OPERATOR’S MANUAL
HM126-MY2021-EN: Rev F Publication Date: 14-Jul-2021
HM126 PORTABLE SAWMILL
9.5 and 14 Horsepower Models

This page intentionally left blank.

HM126 Operator’s Manual
TABLE OF CONTENTS
Space
TABLE OF CONTENTS 1____________________________________________
INTRODUCTION 4__________________________________________________
INTENDED USE 4__________________________________________________
SAFETY, WARNING & INFORMATION SYMBOLS 5_______________________
SAFETY GUIDELINES 6_____________________________________________
WORK AREA 7__________________________________________________
INTERNAL COMBUSTION ENGINE SAFETY 7_________________________
PERSONAL SAFETY 8____________________________________________
TOOL USE AND CARE 9__________________________________________
EQUIPMENT OPERATION 10_______________________________________
MAINTENANCE 11_______________________________________________
TECHNICAL SPECIFICATIONS 12_____________________________________
OVERALL DIMENSIONS 13________________________________________
ASSEMBLY 14_____________________________________________________
1. TOOLS REQUIRED 14_________________________________________

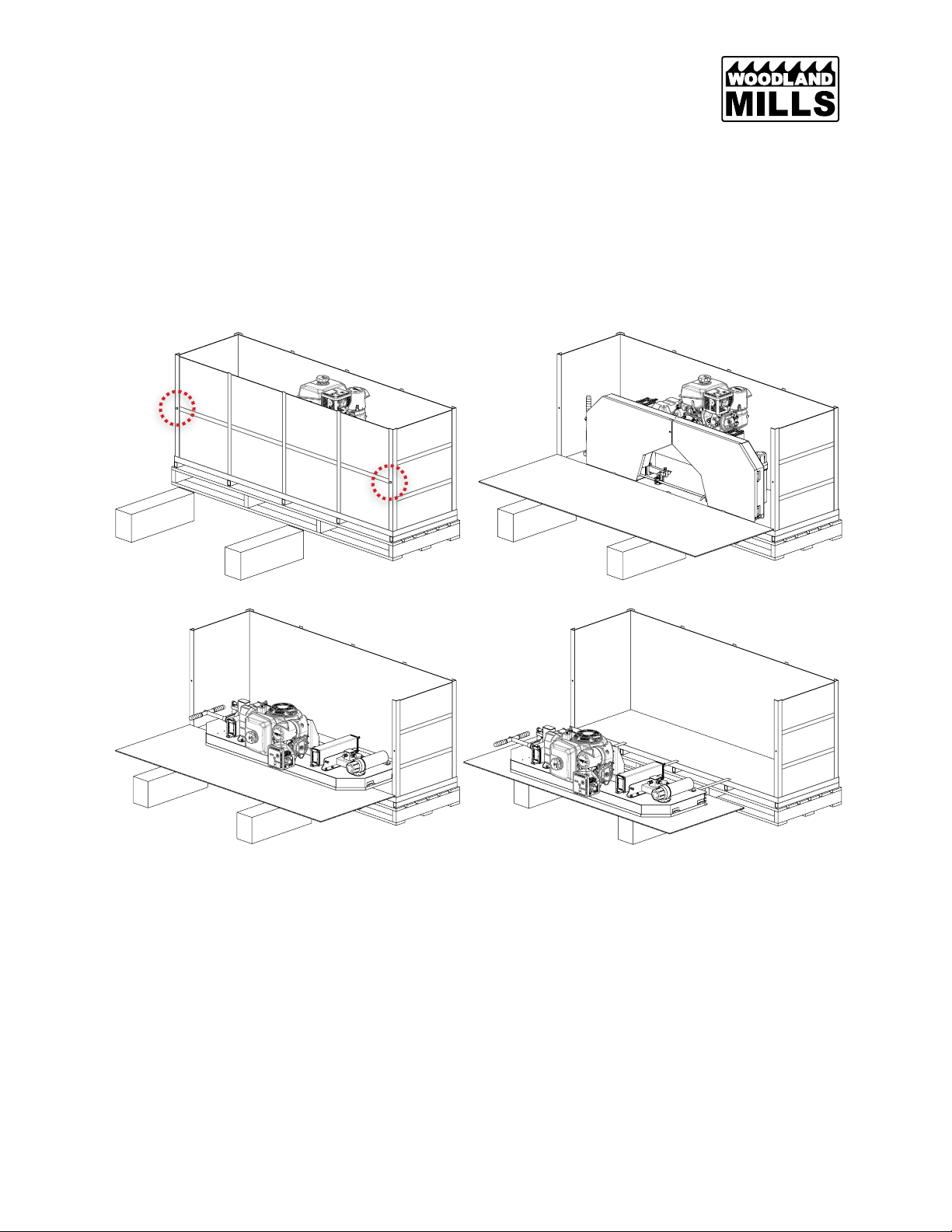

2. UNPACKING 15_______________________________________________
3. TRACK 16___________________________________________________

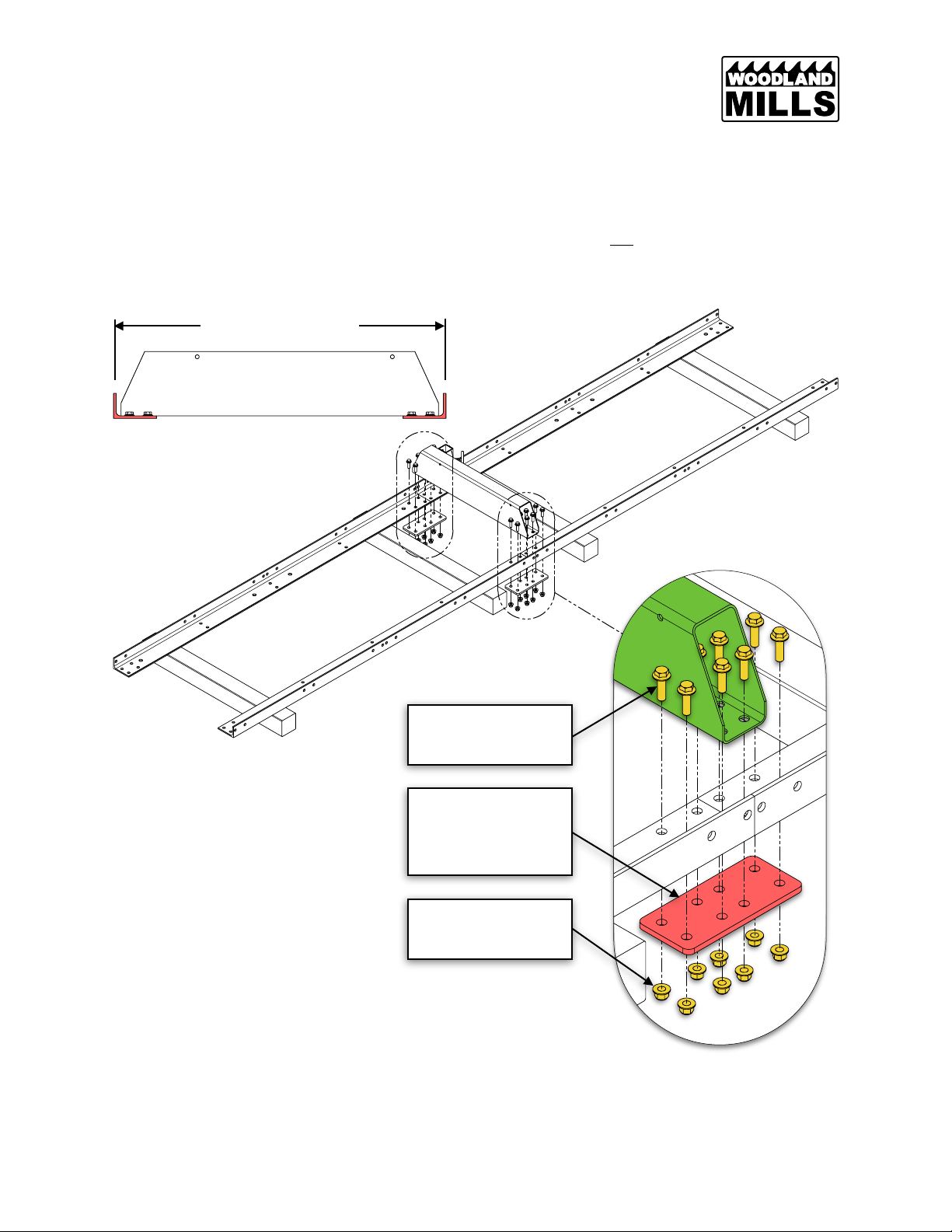

RAILS & CENTRE BUNK 17________________________________________
MID & END BUNKS 19_____________________________________________
SQUARING THE TRACK AND SETTING THE WIDTH 20________________
LEVELLING FEET 21______________________________________________
LEVELLING THE TRACK 23________________________________________
CARRIAGE STOPS 24_____________________________________________
LOG CLAMP 25___________________________________________________
LOG SUPPORTS 28_______________________________________________
4. SAWMILL HEAD ASSEMBLY 30__________________________________
FRONT POSTS 30_________________________________________________
CARRIAGE LEGS 32______________________________________________
HEAD LOCK-DOWN PLATES 33____________________________________
STANDING THE SAWHEAD UPRIGHT 34____________________________
REAR POSTS 35__________________________________________________
HM126-MY2021-EN: Rev F
Page of1112
14-Jul-2021

HM126 Operator’s Manual
CROSS BEAM 36_________________________________________________
LUBRICATION TANK 38____________________________________________
DASHBOARD & HOUR METER 39__________________________________
LIFT MECHANISM 41______________________________________________
LIFT CABLE ROUTING 43__________________________________________
LOG SCALE 45___________________________________________________
PUSH HANDLE 48________________________________________________
THROTTLE HANDLE AND CABLE 50________________________________
BAND WHEEL DOOR LATCHES 52__________________________________
ADJUSTABLE BLADE GUIDE HANDLE 53____________________________
LUBRICATION TUBING 54_________________________________________
TIGHTEN CARRIAGE WHEEL BOLTS 56_____________________________
5. PLACING THE HEAD ON THE TRACK 57__________________________
METHOD 1 57____________________________________________________
METHOD 2 58____________________________________________________
ROLLING THE SAWMILL HEAD ASSEMBLY 59_______________________
RAISING & LOWERING THE SAWHEAD 60___________________________
LEVELLING THE SAWMILL HEAD ASSEMBLY 61_____________________
ADJUST THE POST SLEEVE BUSHINGS 62__________________________
GREASING THREADS 63__________________________________________
ENGINE OIL 64___________________________________________________
PRE START-UP CHECKLIST 66_______________________________________
SAWMILL SET-UP PROCEDURES 67__________________________________
DIRECTION OF CUT 67___________________________________________
DRIVE BELT TENSION 68_________________________________________
BLADE TENSION 70______________________________________________
TENSIONING METHODS 71________________________________________
BELLEVILLE WASHER STACK 72___________________________________
BLADE TRACKING 73____________________________________________
TEST PROCEDURE 74_____________________________________________
FOLLOWER-SIDE ADJUSTMENT 75_________________________________
DRIVE-SIDE ADJUSTMENT 76______________________________________
TRACKING RUN-IN 77_____________________________________________
HM126-MY2021-EN: Rev F
Page of2112
14-Jul-2021

HM126 Operator’s Manual
BLADE GUIDE ADJUSTMENT 78____________________________________
ADJUSTABLE BLADE GUIDE CALIBRATION 80________________________
ECCENTRIC V-ROLLER ADJUSTMENT 80___________________________
BALL PLUNGER ADJUSTMENT 81__________________________________
CARRIAGE & GUIDE ARM ADJUSTMENT 82_________________________
SAWMILL MAINTENANCE 83_________________________________________
CHANGING THE BLADE 83________________________________________
REPLACING BELTS 84____________________________________________
TROUBLESHOOTING 87____________________________________________
REPLACEMENT PARTS ORDERING 89________________________________
EXPLODED ASSEMBLY VIEWS 90____________________________________
TRACK 90______________________________________________________
SAWHEAD—14 hp 91_____________________________________________
SAWHEAD—9.5 hp 92____________________________________________
BACK BEAM—14 hp 93___________________________________________
BACK BEAM—9.5 hp 94___________________________________________
GUIDE BLOCK HOLDERS 95_______________________________________
BAND WHEEL HOUSING 96_______________________________________
BAND WHEEL HOUSING DOORS 97________________________________
BAND WHEELS AND BELT TENSIONER 98___________________________
ENGINE COMPONENTS—14 hp 99__________________________________
ENGINE COMPONENTS—9.5 hp 100________________________________
CARRIAGE 101__________________________________________________
CARRIAGE LEG, WHEEL, AND SWEEPER 102________________________
LIFT MECHANISM 103____________________________________________
THROTTLE HANDLE 104__________________________________________
CABLES, TUBING & LABELS 105___________________________________
PARTS LIST 106___________________________________________________
NOTES112_______________________________________________________
HM126-MY2021-EN: Rev F
Page of3112
14-Jul-2021

HM126 Operator’s Manual
INTRODUCTION
Congratulations on your purchase and welcome to Woodland Mills! This manual gives you the
necessary information about your machine so you will be able to use it properly. The entire
manual must be read and understood before you start using the machine. If any questions
should arise that are not covered by this manual, please contact Woodland Mills Inc.
This machine is designed for certain applications only. We strongly recommend that this
machine is not modified and/or used for any application other than that for which it was
designed. If you have any questions relative to a particular application, DO NOT use the
machine until you have first contacted us to determine if it can or should be performed on the
product.
For technical questions and replacement parts, please contact Woodland Mills Inc.
INTENDED USE
Woodland Mills wood sawmills are designed for acreage owners to aid in the milling of natural,
untreated wood with the mill firmly supported on the ground. Materials that are processed may
contain chemicals or by-products that could corrode the machine or damage it, resulting in
safety concerns.
!
!
!
!
OWNER'S RECORD
!
!
Please take a moment to record the following information about your sawmill. If you
need to call for assistance, please be ready to provide your model and serial numbers.
This information will allow us to help you more quickly when you call.
!
!
!
!
MODEL NUMBER
!
!
!
!
!
!
!
!
SERIAL NUMBER
!
!
!
!
!
!
!
!
DATE OF PURCHASE
!
!
!
!
!
!
!
HM126-MY2021-EN: Rev F
Page of4112
14-Jul-2021

HM126 Operator’s Manual
SAFETY, WARNING & INFORMATION SYMBOLS
Throughout this operator’s manual there are safety, warning, and information symbols. Please
heed and obey all warnings.
**Look for symbols in the upper-right corner of the page throughout the manual.**
Symbol
Description
Refer to instruction/operator’s manual
Wear protective gloves
Wear safety footwear
Wear eye protection
Wear a face shield
Wear a mask
Wear ear protection
Lift point
Lockout electrical power (electric sawmills only)
General warning
Electricity warning
Instructions are different for electric sawmills. Refer to electric sawmill manual
addendum for electric sawmill-specific instructions.
Instructions do not pertain to electric sawmills. Instructions can be skipped and
ignored when working with an electric sawmill.
HM126-MY2021-EN: Rev F
Page of5112
14-Jul-2021

HM126 Operator’s Manual
SAFETY GUIDELINES
**SAVE THESE INSTRUCTIONS**
HM126-MY2021-EN: Rev F
Page of6112
14-Jul-2021
Read and understand all instructions. Failure to follow all instructions
listed below may result in electric shock, fire, and/or serious injury.
WARNING!
The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could
occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product but must be
supplied by the operator.
WARNING!
Only operate the engine in a well ventilated area. Carbon Monoxide
(CO) produced by the engine during use can kill. Do not use indoors,
near windows, or in other sheltered areas.
NOTE: All Federal and State laws and any regulation having
jurisdiction covering the safety requirements for use of the machine
take precedence over the statements in this manual. Users of this
machine must adhere to such regulations.
WARNING!

HM126 Operator’s Manual
WORK AREA
•Keep work area clean, free of clutter and well lit. Cluttered and dark work areas can
cause accidents.
•Do not use your sawmill where there is a risk of causing a fire or an explosion; e.g. in
the presence of flammable liquids, gasses, or dust. Power tools create sparks which may
ignite the dust or fumes.
•Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control, therefore, visitors should remain a safe distance from the work area.
•Be aware of all power lines, electrical circuits, water pipes and other mechanical hazards in
your work area, particularly those hazards below the work surface hidden from the operator’s
view that may be unintentionally contacted and cause personal harm or property damage.
•Be alert of your surroundings. Using power tools in confined work areas may put you
dangerously close to cutting tools and rotating parts.
INTERNAL COMBUSTION ENGINE SAFETY
HM126-MY2021-EN: Rev F
Page of7112
14-Jul-2021
Internal combustion engines present special hazards during operation and
fuelling. Read and follow the warning instructions in the engine Owner’s
Manual and the safety guidelines below. Failure to follow the warnings
and safety standards could result in severe injury or death.
•DO NOT run the machine indoors or in an enclosed area such as a deep
trench unless adequate ventilation, through such items as exhaust fans
or hoses, is provided. Exhaust gas from the engine contains poisonous
carbon monoxide gas (CO); exposure to carbon monoxide can cause
loss of consciousness and may lead to death.
•DO NOT smoke while operating the machine.
•DO NOT smoke when refuelling the engine.
•DO NOT refuel a hot or running engine.
•DO NOT refuel the engine near an open flame.
•DO NOT spill fuel when refuelling the engine.
•DO NOT run the engine near an open flame.
•ALWAYS refill the fuel tank in a well-ventilated area.
•ALWAYS replace the fuel tank cap after refuelling.
•ALWAYS check the fuel lines and the fuel tank for leaks and cracks
before starting the engine. Do not run the machine if fuel leaks are
present or the fuel lines are loose.
•ALWAYS avoid contact with hot fuel, oil, and exhaust fumes.
WARNING!

HM126 Operator’s Manual
PERSONAL SAFETY
•Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating power tools may result in serious
personal injury.
•Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair,
clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be
caught in moving parts. Air vents often cover moving parts and should be avoided.
•Use safety apparel and equipment. Use safety goggles or safety glasses with side shields
which comply with current national standards, or when needed, a face shield. Use a dust
mask in dusty work conditions. This applies to all persons in the work area. Also use non-
skid safety shoes, hardhat, gloves, dust collection systems, and hearing protection when
appropriate.
•Do not overreach. Keep proper footing and balance at all times.
•Remove adjusting keys or wrenches before connecting to the power supply or turning on
the tool. A wrench or key that is left attached to a rotating part of the tool may result in
personal injury.
•Never make blade guide adjustments, remove or install blades, or conduct any other
maintenance or make any other adjustments while the engine is running. Always shut
the engine off, remove the ignition key, and turn the engine off before carrying out any of the
aforementioned procedures. Consult your engine manual for safe shutdown procedures to
prevent accidental ignition.
HM126-MY2021-EN: Rev F
Page of8112
14-Jul-2021

HM126 Operator’s Manual
TOOL USE AND CARE
•Always be sure the operator is familiar with proper safety precautions and operation
techniques before using machine.
•Never touch the engine or muffler while the engine is on or immediately after it has been
turned off. These areas get extremely hot and can cause burns.
•Always close the fuel valve on the engine when the machine is not in use.
•Do not force the tool. Tools do a better and safer job when used in the manner for which
they are designed.
•Never use the sawmill with a malfunctioning switch or throttle. Any power tool that cannot
be controlled with the switch is dangerous and must be repaired before using.
•Turn off the engine and place the switch in the locked or off position before servicing,
adjusting, installing accessories or attachments, or storing. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
•Secure logs with the log screw clamping device instead of with your hand or another
individual’s help. This safety precaution allows for proper tool operation using both hands.
•Storing sawmill. When the sawmill is not in use, store it in a dry, secure place or keep well
covered and out of the reach of children. Inspect the sawmill for good working condition prior
to storage and before re-use.
•Maintain your sawmill. It is recommended that the general condition of the sawmill be
examined before it is used. Keep your sawmill in good repair by adopting a program of
conscientious repair and maintenance in accordance with the recommended procedures
found in this manual. If any abnormal vibrations or noise occurs, turn the sawmill off
immediately and have the problem corrected before further use.
•Keep saw blades sharp and clean. Properly maintained bandsaw blades are less likely to
bind and are easier to control.
•Cleaning and Lubrication. Use only soap and a damp cloth to clean your sawmill. Many
household cleaners are harmful to plastic and rubber components on the sawmill.
•Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for another sawmill may create a risk of injury when used
on the sawmill.
•Always operate machine with all safety devices and guards in place and in working order.
DO NOT modify or make changes to safety devices. DO NOT operate machine if any safety
devices or guards are missing or inoperative.
•Never leave sawmill running unattended.
•Coiled blades can spring apart with considerable force and unpredictably in any
direction. Always deal with coiled blades, including those packaged in boxes, with the
utmost care.
•Never use the equipment to cut anything other than lumber or for any purpose other than
cutting lumber as described in this manual.
HM126-MY2021-EN: Rev F
Page of9112
14-Jul-2021

HM126 Operator’s Manual
EQUIPMENT OPERATION
1. Wear heavy-duty work gloves, ANSI-approved goggles behind a
full face shield, steel-toed work boots, hearing protection, and a
dust mask.
2. Operate only with assistance.
3. Cut-off branches from the lumber to be processed.
4. Place the lumber to be cut on the track supports.
5. Clamp the lumber firmly in place using the included log clamps and supports.
6. Fill the lubrication tank with clean water. Add no more than a teaspoon of liquid dish soap
per full tank. The soap helps keep the blade clean(er) when excess pitch builds up.
7. Start and operate the engine according to the provided engine manual.
8. Depress the throttle to bring the blade up to speed—the throttle should be fully depressed
while the saw is under load.
9. Roll the head assembly slowly along the track and against the lumber to make the cut.
10. Trim off the rounded sides of the log.
11. When the log is squared-off, boards or posts can be cut to standard or custom
specifications.
12. To prevent accidents, turn off the engine and disconnect its spark plug wire after use. Wait
for the engine to cool, clean external parts with a clean cloth, then store the equipment out
of children’s reach.
HM126-MY2021-EN: Rev F
Page of10 112
14-Jul-2021
To avoid death or serious injury, do not cut lumber containing
embedded foreign objects such as nails, metal fragments, etc.
WARNING!
The operator and any assistants must stay clear of the front and back
of the blade whenever the engine is on.
WARNING!

HM126 Operator’s Manual
MAINTENANCE
Proper and routine maintenance is critical to operator safety, achieving good milling results, and
to prolong the life of your investment.
•Band Wheel Bearings — Inspect before use to ensure they are not worn. Bearings are
sealed and do not need to be greased.
•Blade Guide Bearings — Inspect before use for excessive grooves or scoring in the
bearing case. Replace if necessary.
•Blade Tension — Grease tension handle threads when dry or as required. Use multi-
purpose, extreme-pressure grease.
•Log Clamps — Spray the cam mechanism with dry silicone spray frequently.
•Belts — Periodically check the condition and wear of the drive and idler belt. Ensure that
the blade does not ride on the band wheels.
•Drive Belt — Periodically check the tension of the drive belt.
•Carriage Posts (Front) — Spray posts before use with a silicone spray lubricant such as
“WD-40 Water Resistant Silicone Spray,” “3-in-One Silicone Spray Lubricant," or “Jig-A-
Loo.”
•Band Wheel Guards — Routinely remove any build-up of sawdust that may collect inside
the band wheel guards.
•Lubrication Tank — Fill with clean water. Add a teaspoon of liquid dish soap if pitch builds
up on the blade. In winter months windshield washer fluid can be used. Do not leave
water in tank if temperature falls below 32°F [0˚C].
•Blade Lubricant — Never use diesel fuel or kerosene as blade lubricant. These
substances lead to premature wear of your belts and poor sawing performance. For winter
operation, replace the water with windshield washer fluid.
•Engine — Check the engine oil level before each use and maintain the engine per the
instructions set out by the engine manufacturer in the engine manual. The engine is
equipped with an oil alert system and will not start without adding oil before starting.
•Lifting Cables — Before, during, and after operation, regularly inspect the cables for any
wear or kinks. Ensure that the cables are in perfect condition. Oil the coiled part of the
cable often to prevent premature wear. Replace with new cables as necessary.
HM126-MY2021-EN: Rev F
Page of11 112
14-Jul-2021

HM126 Operator’s Manual
TECHNICAL SPECIFICATIONS
The HM126 sawmill comes in two variants: the HM126-9.5 that utilizes a 9.5 horsepower engine
and the HM126-14 with a 14 horsepower engine and adjustable blade guide. Both versions are
assembled and operated in the same manner. Pictures and graphics used in this manual
display the HM126-14 sawmill but the instructions still apply to both.
Item
HM126-9.5 Specification
HM126-14 Specification
Gasoline Engine
9.5 hp Kohler Command Pro
14 hp Kohler Command Pro
Max Log Diameter
26 in [660 mm]
Max Board Width
24 in [610 mm]
Max Board Thickness
7 in [178 mm]
Blade Size
1-¼x 144 in [32 mm x 3657 mm]
Track Length
153-½in [3900 mm]
Track Width
30-½in [775 mm]
Track Height Adjustability
(top of bunk)
7-⅞to 10-⅝in [200 to 270 mm]
Product Weight
751 lb [341 kg]
771 lb [350 kg]
Shipping Weight
935 lb [424 kg]
955 lb [433 kg]
HM126-MY2021-EN: Rev F
Page of12 112
14-Jul-2021
Left
Right
Rear
Front

HM126 Operator’s Manual
OVERALL DIMENSIONS
HM126-MY2021-EN: Rev F
Page of13 112
14-Jul-2021
59-9/16" MAX
1513mm MAX
68-5/8"
1742mm
160-1/8" MAX
4067mm MAX

HM126 Operator’s Manual
ASSEMBLY
1. TOOLS REQUIRED
During several of the assembly steps, more than one socket or wrench of the same size may be
required to assemble the hardware. A socket or box wrench in combination with an adjustable
wrench can be utilized if multiple same size tools are in limited supply.
Tool
Specification
Wrench/Socket
7 mm (2X)
Wrench/Socket
10 mm (2X)
Wrench/Socket
13 mm (2X)
Wrench/Socket
14 mm (2X)
Wrench/Socket
15 mm (2X)
Wrench/Socket
16 mm (2X)
Wrench/Socket
17 mm (2X)
Wrench/Socket
18 mm (2X)
Wrench/Socket
19 mm (2X)
Wrench
24 mm or Adjustable Wrench (2X)
Wrench
30 mm or Adjustable Wrench (2X)
Hex Key
3 mm
Hex Key
4 mm
Phillips Head Screwdriver
No. 2
Tape Measure
Standard Inch/Metric Tape Measure
HM126-MY2021-EN: Rev F
Page of14 112
14-Jul-2021

HM126 Operator’s Manual
2. UNPACKING
Unpack the contents of the crate except for the sawhead and the two long boxes in the bottom
that contain the sections of track. Unfasten the two (2) M8 bolts/nuts on the front of the crate
using a socket/wrench. Place two (2) 6-8 in [150-200 mm] tall support blocks in front of the
crate, bend the front of the crate down, and then lay the cardboard wall over it. Carefully rotate
the sawhead down onto the cardboard and support blocks and slide it out of the crate as shown
below.
The two long track boxes can now be removed and the crate discarded.
HM126-MY2021-EN: Rev F
Page of15 112
14-Jul-2021

HM126 Operator’s Manual
3. TRACK
Assemble the track with the provided components and hardware listed in the table below. It is
important to assemble and level the track on a firm foundation before tightening all of the
hardware and should ideally be 3-½—4 in [90—100 mm] off the ground. This will allow for easy
cleanup of sawdust and log support height adjustments.
* Centre bunk incorporates four (4) mounting holes at each end
12x
M16 X 120 mm
Hex Bolt
4x
Track Rail
16x
M10 X 35 mm
Flanged Hex
Bolt
2x
Reinforcement
Plate
24x
M10 X 25 mm
Flanged Hex
Bolt
1x
Centre Bunk*
36x
M16 Hex Nut
2x
Mid Bunk
40x
M10 Flanged
Lock Nut
2x
End Bunk
12x
Levelling Foot
Base
4x
Carriage Stop
HM126-MY2021-EN: Rev F
Page of16 112
14-Jul-2021
If a Woodland Mills sawmill trailer was
purchased with this sawmill, skip this track
assembly section and follow the track
assembly instructions in those manuals.

HM126 Operator’s Manual
RAILS & CENTRE BUNK
Assemble the centre bunk over the joint between both pairs of track rails using the components
and hardware listed in the table below.
* Centre bunk incorporates four (4) mounting holes at each end.
First, set the four (4) track rails on top of four pieces of lumber of equal height. It is ideal to keep
the rails at least 4-6 in [100-150 mm] off the ground for ease of assembly..
16x
M10 X 35 mm
Flanged Hex
Bolt
4x
Track Rail
16x
M10 Flanged
Lock Nut
2x
Reinforcement
Plate
1x
Centre Bunk*
HM126-MY2021-EN: Rev F
Page of17 112
14-Jul-2021
Build track up off the ground
on large timbers or blocks for
ease of assembly, preferably
4-6 in [100-150 mm] tall

HM126 Operator’s Manual
Next, assemble the centre bunk over the rail joints with a reinforcement plate under the rails on
both the left and right sides. Use eight (8) M10 X 35 mm flanged hex bolts and M10 flanged
lock nuts per side.
Keep the outer faces of the rails 30-½in [775 mm] apart but do not fully tighten the hardware.
Snug the bolts enough so that minor adjustments to the track width can be made once all the
bunks are assembled to the rails.
HM126-MY2021-EN: Rev F
Page of18 112
14-Jul-2021
M10 X 35 mm
Flanged Hex Bolts
Reinforcement
plate positioned
under rails
M10 Flanged Lock
Nuts
30-½in [775 mm]
