woodmizer Cookie-Mizer 2510 User manual

Wood-Mizer
®
Cookie-Mizer
Safety, Operation,
Maintenance and Replacement Parts
Cookie-Mizer rev. A1.00
Safety is our #1 concern! Read and understand
all safety information and instructions before
operating, setting up and/or maintaining this
machine.
Form #2510
!

4 SW-07doc122921Table of Contents
Table of Contents Section-Page
General Contact Information
Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
SECTION 1 SAFETY 1-1
1.1 Safety Symbols.......................................................................................1-1
1.2 Safety Instructions ..................................................................................1-1
Observe safety instructions
Wear Safety Clothing
Keep Cookie-Mizer and Area Around Cookie-Mizer Clean
Heavy Material
Dispose of sawing by-products properly
Keep Hands Away
Keep Safety Labels In Good Condition
Working With Heavy Logs
SECTION 2 ASSEMBLY 2-1
2.1 Mounting for LT15.................................................................................2-1
2.2 Mounting for LX100 ..............................................................................2-2
2.3 Mounting for LT20/40/70.......................................................................2-3
2.4 Mounting for LT20B ..............................................................................2-3
2.5 Mounting optional additional spacers ....................................................2-6
SECTION 3 SETUP 3-1
SECTION 4 OPERATION 4-1
SECTION 5 SPECIFICATIONS 5-1
5.1 Overall Dimensions ................................................................................5-1
5.2 Material Parameters................................................................................5-1

Getting Service
Wood-Mizer is committed to providing you with the latest technology, best quality and strongest
customer service available on the market today. We continually evaluate our customers’ needs to
ensure we’re meeting current wood-processing demands. Your comments and suggestions are
welcome.
General Contact Information
From Europe call your local distributor or our European Headquarters and Manufacturing Facility in
Koło, Nagórna 114 St, Poland at [phone]. From the continental U.S., call our U.S.
Headquarter 8180 West 10th St.Indianapolis, IN 46214, toll-free at 1-800-525-8100. Ask to speak
with a Customer Service Representative. Please have your machine identification number and your
customer number ready when you call. The Service Representative can help you with questions
about the operation and maintenance of your machine. He also can schedule you for a service call.
Office Hours:
Please have your vehicle identification number and your customer number ready when you call.
Wood-Mizer will accept these methods of payment:
 Visa, Mastercard, or Discover
 COD
 Prepayment
 Net 15 (with approved credit)
Be aware that shipping and handling charges may apply. Handling charges are based on size and
quantity of order.
Technical data are subject to change without prior notice.
Actual product may differ from product images. Some illustrations show machines with optional
equipment.
Country Monday - Friday Saturday Sunday
Poland 7 a.m.- 3 p.m. Closed Closed
US 8 a.m.- 5 p.m. 8 a.m.- 12 p.m Closed

Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
EUROPE UNITED STATES
European Headquarters
Wood-Mizer Industries Sp. z o.o.
Nagórna 114, 62-600 Koło, Poland
Tel.: [phone]
Fax: [phone]
www.woodmizer.eu
World Headquarters
Wood-Mizer LLC
8180 West 10th Street
Indianapolis,Indiana 46214-2400,
USA
Tel.: [phone]
Fax: [phone]
www.woodmizer.com
BELARUS
MOST-GRUPP
Siemashko 15, k.3
Minsk 2200116
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
SWITZERLAND Stefan Wespi
Maschinen u. Geräte
Spezialarbeiten GmbH
Eichistraße 4
6353 Weggis
Tel.: [phone]
GSM: [phone]
[email protected]
www.woodmizer.ch
RUSSIA Dariusz Mikołajewski
OOO WOOD-MIZER INDUSTRIES
141031, Moscow
Reg., Mytishenski raj., pos. Veshki,
Zavodskaja str., 3B
Tel.Fax: [phone]
Tel.Fax: [phone]
e-mail: [email protected]
BULGARIA Kalin Simeonov
Ecotechproduct
38 Star Lozenski pat str.
Sofia 1186
Tel.: [phone]
Tel.: [phone]
Tel:/Fax
: [phone]
Kalin Simeonov
GSM: [phone]
e-mail: [email protected]
HUNGARY Wiktor Turoczy
Wood-Mizer Hungary K.F.T.
Szonyi Ut 67., 2921 Komárom
Tel.:/Fax: [phone]
e-mail: [email protected]
RUSSIA Far East Wladimir Głazaczew
“WM Service”
Krasnoretchenskaya Str.111
680006 Khabarovsk
Tel.:/Fax: [phone]
e-mail: [email protected]

CROATIA Krešimir Pregernik
Pregimex d.o.o.
S. Batušiæa 31, 10090 Zagreb
Tel.:/Fax: [phone]
Krešimir Pregernik
GSM: [phone]
e-mail: [email protected]
ITALY Pasquale Felice
Wood-Mizer Italia Srl
Cda. Capoiaccio SN
86012 Cercemaggiore
Campobasso
Tel.:/Fax: [phone]
GSM: [phone]
e-mail: [email protected]
SERBIA Dragan Markov
Wood-Mizer Balkan d.o.o.
Svetosavska GA 3/3; P. Fah 25
23 300 Kikinda
Tel.:/Fax: [phone]
Tel.:/Fax: [phone]
GSM: [phone]
e-mail: [email protected]
CZECH REPUBLIC Miroslaw Greill
Wood-Mizer CZ s.r.o.
Osvaldova 91
339 01 Klatovy-Luby
Tel.:/Fax: [phone]
Fax: [phone]
Miroslaw Greill
GSM: [phone]
e-mail: [email protected]
SLOVAKIA Wiktor Turoczy
Wood-Mizer Danubia s.r.o.
Hadovce 5, 94501 Komárno
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
CZECH REPUBLIC Lubomir Kudlik
Wood-Mizer Moravia
Sovadinova 6
69002 Breclav
Tel.:/Fax: [phone]
Lubomir Kudlik
GSM: [phone]
e-mail: [email protected]
LATVIA Vilmars Jansons
OBERTS Ltd
Gaujas str. 32/2
LV-2167 Marupe, Rigas Raj.
Tel.: [phone]
Fax: [phone]
Vilmars Jansons
GSM: [phone]
Andris Orols
GSM: [phone]
e-mail: [email protected]
TURKEY
Er-Ka Ahsap Profil Kerestecilik San.
ve Tic. Ltd. Sti.
Adana Keresteciler Sitesi 191 sk No.41
ADANA
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
FINLAND Howard Blackbourn
Oy Falkberg Jordbruk Ab
Falkintie 220
25610 Ylonkyla
Tel.: [phone]
Fax: [phone]
Howard Blackbourn
GSM: [phone]
e-mail: [email protected]
LITHUANIA Andrius Zuzevicius
UAB Singlis
Savanoriu pr. 187, 2053 Vilnius
Tel.: [phone]
Fax: [phone]
GSM: [phone]
e-mail: [email protected]
Dmitrij Gaiduk
GSM: [phone]
e-mail: [email protected]
UKRAINE Ivan Vinnicki
MOST UKRAINA
bul. Myru 3, Bajkivtsi Ternoplskyj r-j
Ternopolska oblast
47711 Ukraine
Tel/Fax: [phone]
GSM: [phone]
GSM: [phone]
E-mail: [email protected]
FRANCE Tizoc Chavez
Wood-Mizer France
556 chemin des Embouffus,
ZAC des Basses Echarrieres
38440 SAINT JEAN DE BOURNAY
Tel: [phone]
GSM: [phone]
Mail: [email protected]
NORWAY Tor Bakken Flaathe
Bakken Flaathe A/S
Løkenvegen 5, 2034 Holter
Tel: + 47-638 74 989
Sales: + 47- 412 80 076
Service: [phone]
[e-mail]
www.woodmizer.no
UNITED KINGDOM & IRELAND
Wood-Mizer UK
Hopfield Barn
Kenward Road, Yalding
Kent ME18 6JP, UK
Tel.: [phone]
Fax: [phone]
e-mail: [e-mail]
SLOVENIA Jan Fale
FAMTEH d.o.o.
Gacnikova pot 2,
2390 Ravne na Koroskem
Tel.: [phone]
Fax: [phone]
Jan Fale
GSM: [phone]
e-mail: [email protected]
Matjaz Kolar
Tel.: [phone]
GSM: [phone]
e-mail: [email protected]

GERMANY\AUSTRIA Klaus Longmuss
Wood-Mizer GmbH
Dorfstraße 5, 29485 Schletau
Büro
Tel: [phone]
Werkstatt
Tel: [phone]
Ersatzteilservice
Tel: +49 58 83 - 98 80 250
Schärfservice
Tel: +49-58 83 - 98 80 270
E-mail:
[email protected]
www.woodmizer.de
Klaus Longmuss
Tel.: [phone]
GSM: [phone]
e-mail: [email protected]
Subagent:
SWEDEN Kjell Larsson
Mekwood AB
Slingan 14, 812 41 Gästrike-Hammarby
Tel.: [phone]
Kjell Larsson
GSM: [phone]
e-mail: [email protected]
IRELAND
Wood-Mizer Ireland
Stephen Brennan
Cum Lahardane Ballina County Mayo
Tel:[phone]
E-mail: [email protected]
Subagents:
DENMARK Kevin Christiansen
Kevin Christiansen's
savværker PMV
Arnborgvej 40, 7330 Brande- Fasterholt
Mobile: [phone]
Mobile: [phone]
[email protected]
www.woodmizer.dk
ROMANIA Adrian Echert
SC WOOD-MIZER RO SRL
TRANSILVANIEI Nr. 5
Sibiu, Cisnadie 555300
Tel.:/Fax: : [phone]
GSM: [phone]
e-mail: [email protected]
Regional Manager - Asia
Robert Moxham
Regional Direction - Asia
Wood-Mizer Asia Manufacturing Co., Ltd.
No.2, Gongyequ 40th Rd. Xitun District,
Taichung City, 40768, Taiwan, R.O.C.
TEL: [phone]
FAX: [phone]
CELL: [phone]
EMAIL: [email protected]
www.woodmizerasia.com
Skype: r.g.moxham
NETHERLANDS Gerlo Breukers
Breukers Houtzagerij en Bosbouwmachines
Hazenweg 5, 7481 PC Haaksbergen
Tel: [phone]
Mobile: [phone]
[email protected]
www.woodmizer.nl
Subagent:
ROMANIA M. Echert
S.C. Echert Comprod s.r.l
Str. Schitului Nr. 6, Apt.7 etajul-1
725 70 Vatra Dornei, Romania
Tel.:/Fax: [phone]
Tel. : [phone]
Regional Manager - Africa
Gavin Prowse
Regional Sales Director - Africa
Wood-Mizer Africa (Pty) Ltd.
Unit 1,Leader Park
20 Chariot Street
Stormill Ext.5
Maraisburg, Johannesburg
South Africa
TEL: [phone]
FAX: [phone]
CELL: [phone]
EMAIL: [e-mail]
www.woodmizerafrica.com
Skype: gavin.prowse
USA World Headquarters Canadian Headquarters
Serving North & South America, Oceania, East Asia
Wood-Mizer LLC
8180 West 10th Street
Indianapolis, IN 46214
Phone: [phone] or 800.553.0182
Customer Service: 800.525.8100
Fax: [phone]
Email: [e-mail]
Serving Canada
Wood-Mizer Canada
396 County Road 36, Unit B
Lindsay, ON K9V 4R3
Phone: [phone] or 877.357.3373
Fax: [phone]
Email: [e-mail]
Brazil Headquarters Europe Headquarters

Branches & Authorized Sales CentersWood-Mizer Locations (North and South America)
doc122921 -5
Serving Brazil
Wood-Mizer do Brasil
Rua Dom Pedro 1, No: 205 Bairro: Sao Jose
Ivoti/RS CEP:93.900-000
Tel: [phone]
Email: [e-mail]
Serving Europe, Africa, West Asia
Wood-Mizer Industries Sp z o.o.
Nagorna 114
62-600 Kolo, Poland
Phone: [phone]
Fax: [phone]
Branches & Authorized Sales Centers
For a complete list of dealers, visit www.woodmizer.com

Safety
Safety Symbols
1
1-1 EGdoc122921 safety
SECTION 1 SAFETY
1.1 Safety Symbols
The following symbols and signal words call your attention to instructions concerning your personal
safety. Be sure to observe and follow these instructions.
DANGER! indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING! suggests a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION! refers to potentially hazardous situations which, if not
avoided, may result in minor or moderate injury to persons or
equipment.
IMPORTANT! indicates vital information.
NOTE: gives helpful information.
Warning stripes are placed on areas where a single decal would be
insufficient. To avoid serious injury, keep out of the path of any
equipment marked with warning stripes.
1.2 Safety Instructions
NOTE: ONLY safety instructions regarding personal injury are listed in this section. Caution
statements regarding only equipment damage appear where applicable throughout the manual.
Observe safety instructions
IMPORTANT! Read the entire Owner's Manual before operating the
Cookie-Mizer. Take notice of all safety warnings throughout this
manual and those posted on the machine. Keep this manual with this
machine at all times, regardless of ownership.
Also read any additional manufacturer’s manuals and observe any
applicable safety instructions including dangers, warnings, and
cautions.
Only persons who have read and understood the entire operator's
manual should operate the Cookie-Mizer. The Cookie-Mizer is not
intended for use by or around children.
!
!

Safety
Wear Safety Clothing
safety EGdoc122921 1-2
1
IMPORTANT! It is always owner's responsibility to comply with all
applicable federal, state and local laws, rules and regulations
regarding the ownership and operation of your Wood-Mizer
Cookie-Mizer. All Wood-Mizer owners are encouraged to become
thoroughly familiar with these applicable laws and comply with them
fully while using the Cookie-Mizer.
Wear Safety Clothing
WARNING! Secure all loose clothing and jewelry before operating the
Cookie-Mizer. Failure to do so may result in serious injury or death.
WARNING! Always wear safety goggles and gloves when replacing
the blade. Changing blades is safest when done by one person! Keep
all other persons away from work area when changing a blade. Failure
to do so may result in serious injury.
WARNING! Always wear protective gloves (compatible with EN 388,
Category III) and protective apron (compatible with EN ISO
13688:2013-12, kategorie I) when operating the machine.
WARNING! Always wear eye, ear, respiration, and foot protection
when operating or servicing the machine.

Safety
Keep Cookie-Mizer and Area Around Cookie-Mizer Clean
1
1-3 EGdoc122921 safety
Keep Cookie-Mizer and area around Cookie-Mizer clean
DANGER! Maintain a clean and clear path for all necessary movement
around the Cookie-Mizer and lumber stacking areas. Failure to do so
may result in serious injury.
Heavy Material
WARNING! Use a two-person lift for handling the CookieMizer.
Dispose of sawing by-products properly
IMPORTANT! Always properly dispose of all sawing by-products,
including sawdust and other debris.
CAUTION! The Cookie-Mizer’s work-stand should be equipped with a
4 kg or bigger dry powder extinguisher.
Keep hands away
DANGER! Keep hands, feet, and other objects away from log when
operating the CookieMizer.
Keep safety labels in good condition
IMPORTANT! Always be sure that all safety warning decals are clean
and readable. Replace all damaged safety decals to prevent personal
injury or damage to the equipment. Contact Wood-Mizer Customer
Service or the Wood-Mizer distributor in your area to order a new
decal.
IMPORTANT! If replacing a component which has a safety decal
affixed to it, make sure the new component also has the safety decal
affixed.
Working With Heavy Logs
WARNING! Ensure material is clamped securely before processing.
IMPORTANT! The Cookie-Mizer is intended for working with wood
material only.
!
!
!

ASSEMBLY
Mounting for LT15
Operation EGdoc122921 2-1
2
SECTION 2 ASSEMBLY
IMPORTANT! Ensure you are referencing the mounting instructions for
your mill.
NOTE: Fasteners types and dimensions are showed in Cookie-Mizer
Parts List #2511.

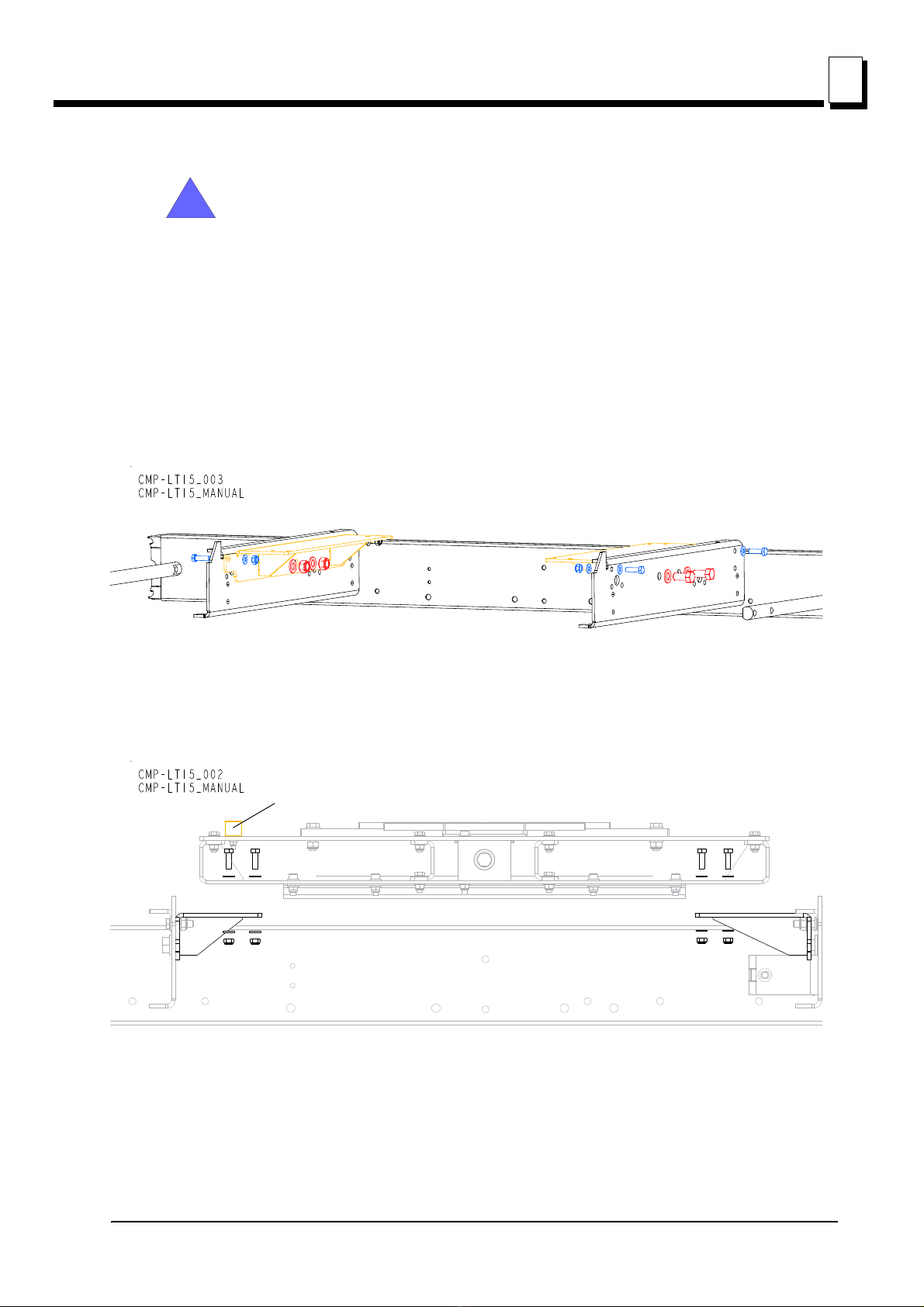

2.1 Mounting for LT15
1. Lower the side supports and log clamp
2. Assemble the mounting brackets on the middle bed rails.
3. Mount the Cookie-Mizer. Ensure the minimum cut indicator (A) is toward the front of the sawmill.
FIG. 2-1
FIG. 2-2
!
A

ASSEMBLY
Mounting for LX100
2
2-2 EGdoc122921 Operation
2.2 Mounting for LX100
1. Lower the side supports and log clamp
2. Assemble the mounting brackets on the middle bed rails
3. Mount the Cookie-Mizer. Ensure the minimum cut indicator (A) is toward the front of the sawmill.
FIG. 2-3
FIG. 2-4
A

ASSEMBLY
Mounting for LT20/40/70
Operation EGdoc122921 2-3
2
2.3 Mounting for LT20/40/70
1. Lower the side supports and log clamp.
2. Set the Cookie-Mizer on the middle bed rails. Ensure the minimum cut indicator (A) is toward the
front of the sawmill.
3. Place the flat mounting plates (B) on the inside of the CookieMizer at the outermost slots. If there is
interference with the mounts, use the closest slot to the outside as possible.
4. Align and fasten the lower mount weldment (C) to secure the plate and the Cookie-Mizer to the bed
rail.
2.4 Mounting for LT20B
1. Cookie-Mizer for LT20B sawmills is an accessory that can be mounted in two different places. The
first option is to mount the Cookie-Mizer between the second and the third bed segment (A). The
second option is to mount the accessory between the fourth and the fifth bed segment (B).
FIG. 2-5
A
B
C

ASSEMBLY
Mounting for LT20B
2
2-4 EGdoc122921 Operation
IMPORTANT! Before mounting the Cookie-Mizer, it may be neccesary
to disassemble the Manual Toe Board.
2. Mount the Cookie-Mizer brackets between the bed segments with M10x75 bolts.
3. Set the Cookie-Mizer at the mounting brackets, and mount the accessory with M8x25 bolts. Ensure
FIG. 2-6
FIG. 2-7
!

ASSEMBLY
Mounting for LT20B
Operation EGdoc122921 2-5
2
the minimal cut indicator (A) is toward the front of the sawmill.
FIG. 2-8
A

ASSEMBLY
Mounting optional additional spacers
2
2-6 EGdoc122921 Operation
2.5 Mounting optional additional spacers
1. Unbolt and remove the log clamp jaws and minimum cut height indicator. Retain all parts and
hardware for reinstallation.
2. Assemble the spacers, log clamp jaws and higher minimum cut height indicator with new, longer
bolts.
FIG. 2-9
FIG. 2-10

SETUP
Operation EGdoc122921 3-1
3
SECTION 3 SETUP
 Ensure that the log is flat on the base, no wider than 500 mm, not narrower than 127 mm, no
higher than 600 mm and no lower than 24 mm.
 To increase stability of the cutting material, use the provided additional spacers to raise the log
clamps.
 Ensure that the sliding clamp can move freely. Clean debris, lubricate slide and/or platform, or
loosen the 2 inside bolts holding the clamp mount to the lead nut (NOT the bolts holding the
sliding clamp itself; those should always remain secure).

Operation
4
4-1 EG92doc122921 Operation
SECTION 4 OPERATION
WARNING! Ensure the material is clamped securely before
processing.
IMPORTANT! The Cookie-Mizer is intended for working with wood
material only.
IMPORTANT! Use the spacers under the jaws to increase the stability
of the material being cut.
1. Lower the blade to the minimum height indicator to ensure it does not interfere with any parts.
2. Load the log on the Cookie-Mizer firmly against the fixed clamp.
3. Use a ratcheting wrench or drill (from either side) to firmly seat the sliding clamp.
4. Ensure the clamp teeth are engaged in the wood.
5. Cut the log according to your mill instructions.
!
!
