Woodson WBPS10 User manual

A guide on the use, care and maintenance
of your quality Woodson product
Models:
W.BPS10, W.BPD20
Specication, Installation
and Operation Manual
Boiling Plate
Rev: B - 27/07/2018
Phone: [phone]
Spare Parts: 0800 503 503
www.southernhospitality.co.nz

Page Intentionally Left Blank
Page 1

Page 2
Introduction
Your New Woodson Product � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Product Overview� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3
Attention � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
General Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4
Service
Installation
Setting Up � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Handling
Unpacking
Positioning
Disposal
Electrical Connection � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 6
Information
Specication
Technical Specifications � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 7

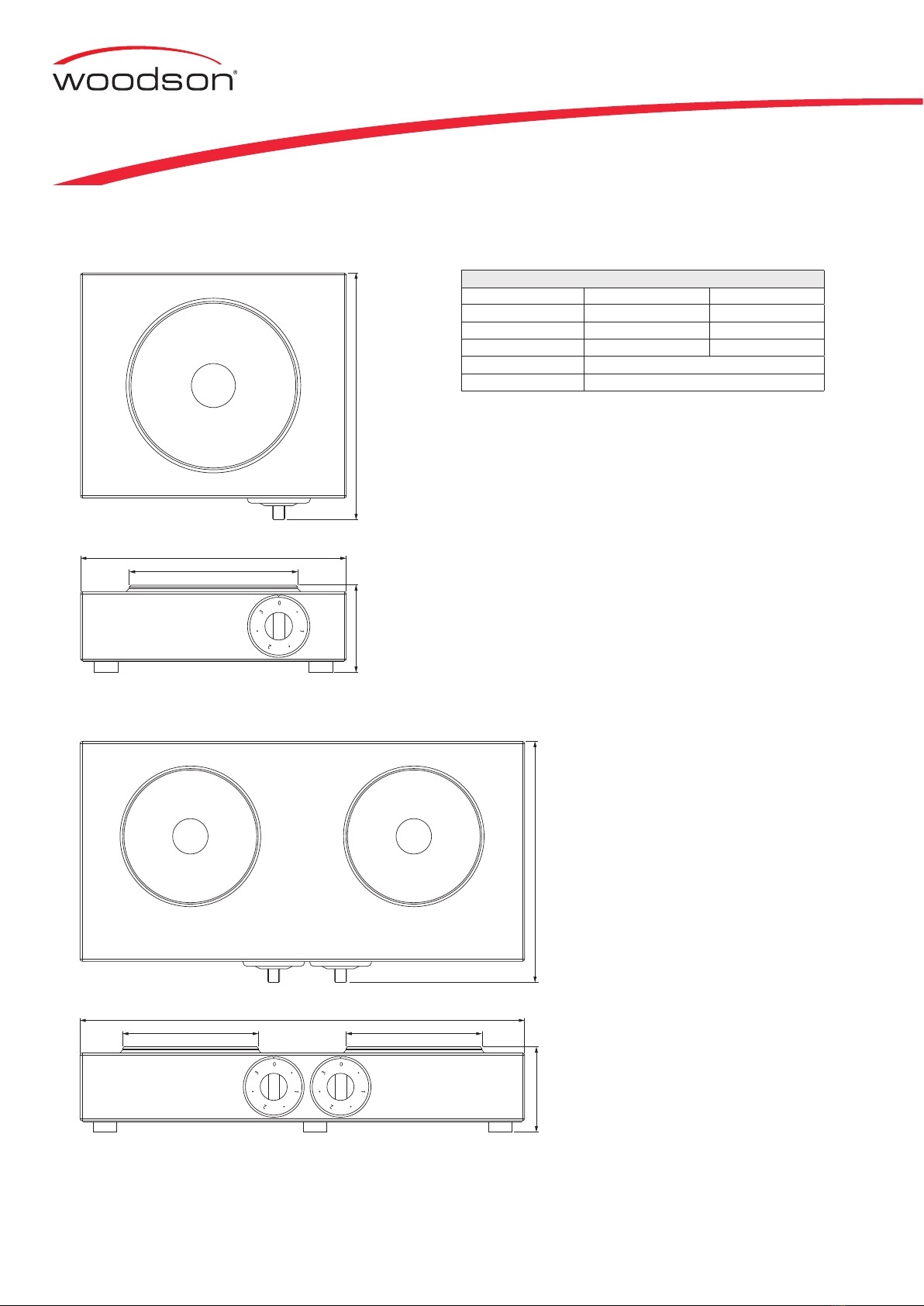

W.BPS10
W.BPD20
Operation
Operating Instructions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 8
First Time Operation
Thermostat Dial Settings
Cleaning � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
General Information
Corrosion Protection
Surface Finish
Cleaning Schedule
Materials Required
Cleaning Procedure
Troubleshooting � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11

Page 3
Introduction
Thank you for choosing this quality Woodson product� All our products are designed and made to meet the needs of food service professionals�
By using, caring and maintaining your Woodson product according to these instructions, your Woodson product should give you many years of
reliable service�
Stoddart is a wholly Australian owned company, which manufactures and distributes Woodson commercial catering equipment�
Stoddart products are manufactured and/or engineered in Australia to provide excellent results whilst offering-value-for-money, ease-of-use
and reliability�
Stoddart manufacture and distribute a comprehensive range of equipment for kitchens, food preparation and presentation�
Configuration may vary according to model�
Your New Woodson Product

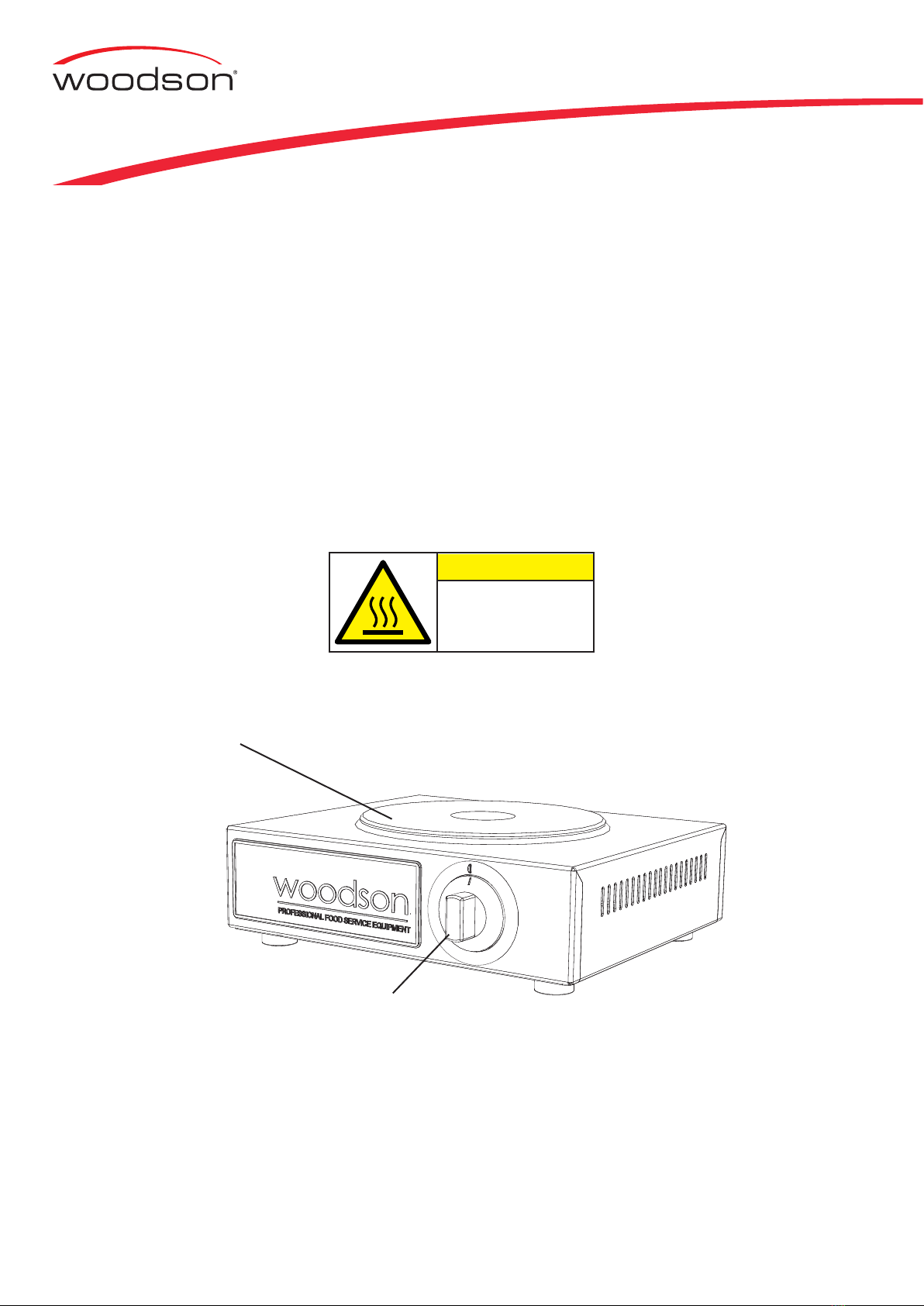

Product Overview
Boiling Plate
Thermostat Dial
CAUTION
Surface is Hot

Page 4
Introduction
• Only specifically trained/qualified Technicians (Stoddart, one of our service agents, or a similarly qualified persons) should carry out any
and all repairs, maintenance and services
Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance� Keep this booklet on
hand in a safe place for future reference by other operators or users�
Stoddart design, manufacture & distribute Food Service Equipment (appliances) exclusively for the commercial market.
This appliance is not designed nor intended for household or domestic use & must not be used for this purpose.
This product is intended for commercial use, and in line with Australian electrical safety standards the following warnings are provided:
• This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning the use of the product by a person
responsible for their safety� Children should be supervised to ensure that they do not play with the product
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid
a hazard
• All units MUST be installed according to the procedures stated in the installation section of this manual
• In the case of new personnel, training is to be provided before operating the equipment
• DO NOT use this unit for any other purpose than its intended use
• DO NOT store explosive substances such as aerosol cans with a flammable propellant in or near this unit
• Keep fingers out of “pinch point” areas
• Unit is not waterproof DO NOT use jet sprays, hoses or pour water over/on the exterior of the unit
• Only use this unit with voltage specified on the rating label
• Do NOT remove any cover panels that may be on the unit
• DO NOT use sharp objects to activate controls
• If any fault is detected, refer to troubleshooting
• The manufacturer declines any liability for damages to persons and/or things due to an improper/wrong and/or unreasonable use of the
machine
When using any electrical unit, safety precautions must always be observed�
Our units have been designed for high performance� Therefore, the unit must be used exclusively for the purpose for which it has been designed�
Read these instructions carefully and retain for future reference�
The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons, units
or others, due to abuse and misuse of this unit in regards to installation, un-installation, operation, servicing or maintenance, or lack of
conformity with the instructions indicated in this documentation�
Disclaimer
All units made by the manufacturer are delivered assembled, where possible, and ready to install� Any installation, un-installation,
servicing, maintenance and access or removal of any parts, panels or safety barriers that is not permitted, does not comply in
accordance to this documentation, or not performed by a TRAINED AND AUTHORISED SPECIALIST will result in the
IMMEDIATE LOSS OF THE WARRANTY�
The manufacturer cannot be held responsible or liable for any unauthorized modifications or repairs� All modifications or repairs must
be approved by the manufacturer in writing before initiating� All modifications or repairs performed to this unit must be performed at all
times by a TRAINED AND AUTHORISED SPECIALIST�
Attention
General Information
Service
Thank you for choosing this quality Woodson product� All our products are designed and made to meet the needs of food service professionals�
By using, caring and maintaining your Woodson product according to these instructions, your Woodson product should give you many years of
reliable service�
Stoddart is a wholly Australian owned company, which manufactures and distributes Woodson commercial catering equipment�
Stoddart products are manufactured and/or engineered in Australia to provide excellent results whilst offering-value-for-money, ease-of-use
and reliability�
Stoddart manufacture and distribute a comprehensive range of equipment for kitchens, food preparation and presentation�
Configuration may vary according to model�

Page 5
• Use suitable means to move the unit: eg� A lift truck or fork pallet trucks (the forks should reach more completely beneath the unit)
• Check the unit for damage before and after unpacking� If unit is damaged, contact the distributor and manufacturer
• Should any item have physical damage, report the details to the freight company and to the agent responsible for the dispatch within
seven (7) days of receipt� No claims will be accepted or processed after this period
• The unit is supplied fully assembled
• Remove all protective plastic film, tapes, ties and packers before installing and operating
• Clean off any remaining residue from the interior/exterior of the unit using a clean cloth dampened with warm soapy water
• Choose an area that is well ventilated and provides access for future maintenance
• Place the unit on a level stable work surface capable of supporting its weight
• Do not position the unit in a wet area, an area with a lot of heat and steam or near flammable substances
• Allow an air gap between the unit and other objects or surfaces� We recommend a minimum gap of 100mm for normal operational use
(if the unit is near any heat sensitive material we suggest you allow additional space)
• Please consult national and local standards to ensure that your unit is positioned in accordance with any existing requirement
• At the end of the appliance’s working life, make sure it is scrapped & components recycled properly
• Current environmental protection laws in the state/country of use must be observed
• Doors must be removed before disposal
• Power supply cable must be removed before disposal
• For further information on the recycling of this product, contact the local dealer/agent or the local body responsible for waste disposal
WARNING
Improper installation, adjustments, alterations, service or
maintenance can cause property damage, injury or death.
Installation
Setting Up
Handling
Unpacking
Positioning
Disposal

Page 6
Installation
On-site Connection:
• The electrical supply must comply with the rating plate data
• Ensure that the unit is connected to a suitably rated and earthed power source
• Ensure that there is an isolation switch installed near the unit
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a
hazard� Please contact Stoddart for parts and we will advise how to do this in order to avoid any electrical hazard
• The power cable should be dry and/or isolated from moisture or water
Aggregate electrical ratings of the Unit are expressed in kilowatts in this manual�
Single Phase Units:
Supplied with an appropriately rated plug and lead fitted and be indicated as:
• 10A plug & lead fitted
• 15A plug & lead fitted
• 20A plug & lead fitted
Some procedures in this manual require the power to the equipment to be turned
off and isolated. Turn the power OFF at the power point and unplug the power
supply lead by the plug body. If the power point is not readily accessible turn the
equipment off at the isolation switch or the circuit breaker in the switchboard.
Attach a yellow “CAUTION-DO NOT OPERATE” tag. This must be performed
where relevant unless the procedures specify otherwise.
FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK.
WARNING
WARNING
This unit must be installed in accordance with AS/NZS 60335.1
Electrical Connection
Information

Page 7
W.BPS10
W.BPD20
Technical Specications
Specication
295
Ø 187
105274
503
Ø 153 Ø 153
105
274
Specications
Model W.BPS10 W.BPD20
Height 105mm 105mm
Width 295mm 505mm
Depth 274mm 274mm
Power 2.0kW
AMPS 10A

Page 8
Operation
Operating Instructions
First Time Operation
• 0�5 - For simmering delicate foods, thickening sauces etc�
• 1�0 - For main stages of slow cooking
• 1�5 - For simmering large quantities
• 2�0 - For frying meat and pan dishes
• 2�5 - For bringing all dishes to steaming and cooking temperature
• 3�0 - For boiling water for coffee, tea etc in a few minutes only

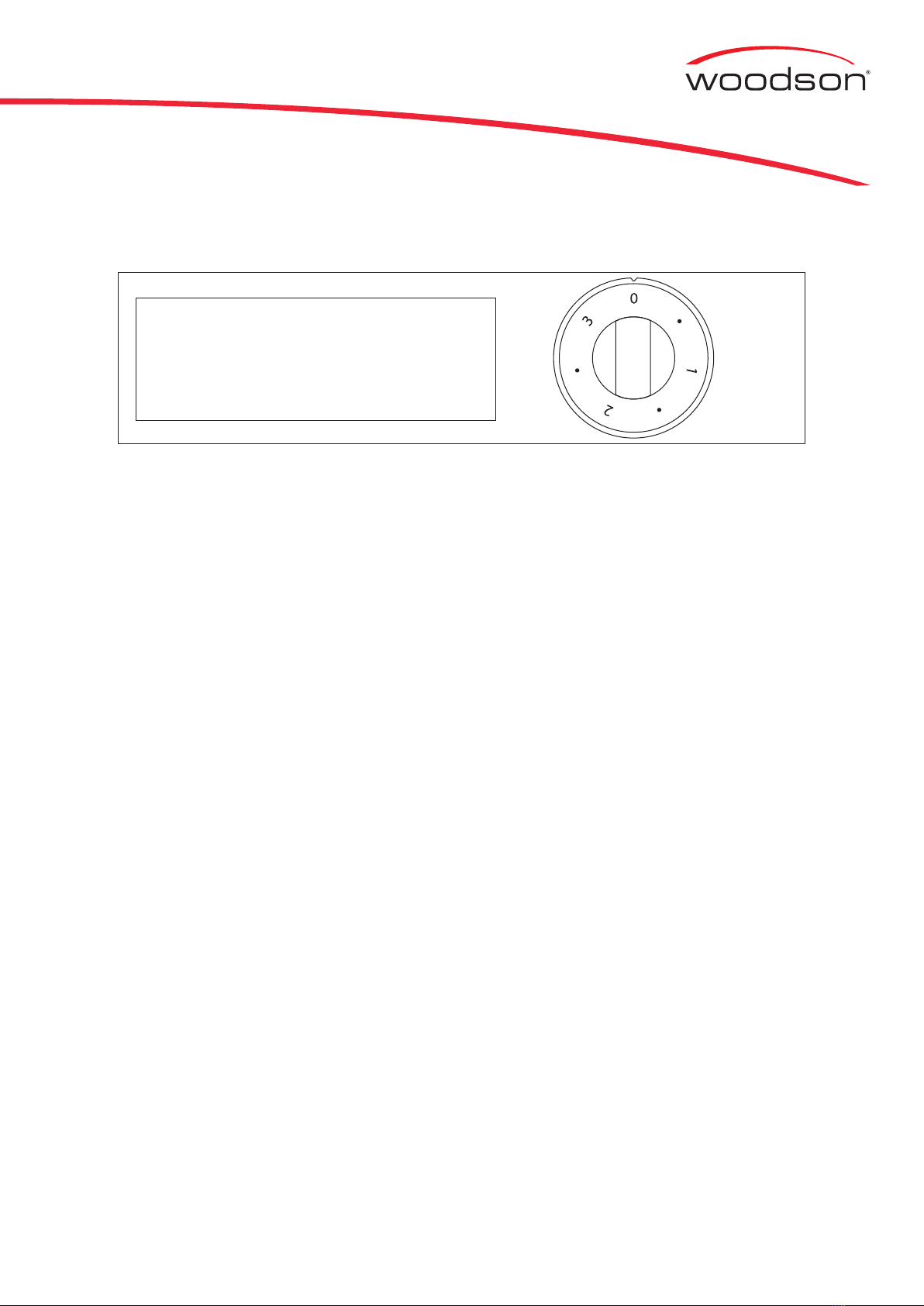

Thermostat Dial Settings
Before using for the first time, turn to the highest setting (3�0) for five minutes to harden the heating element protective coating� Use the
correct cooking pans� The pan used should have a bottom which is as solid and even as possible and which, at a diameter of 20cm, should
have a maximum concavity of 1mm� For smaller pan diameters the concavity will be correspondingly less� Pans with convex bottoms should
not be used� The diameter of the bottom of the pan must not be smaller than the diameter of the hotplate�

Page 9
Cleaning
Operation
• Cleaning is recommended for health and safety purposes and to prolong the life of the unit
• Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit
• Do NOT use industrial chemical cleaners, caustic based cleaners or bleaches and bleaching agents, many will damage the metals and
plastics used on this unit
• When drying, metal surfaces should be wiped with a soft cloth in the same direction as grained polish
• Do NOT remove any screws for cleaning� All internal sections of the unit are to be cleaned by a qualified technician
• This unit is NOT waterproof, do NOT hose, do NOT pour water directly onto the unit, do NOT immerse in water
• Stainless steel exhibits good resistance to corrosion however, if not properly maintained stainless steel can rust and/or corrode
• Any sign of mild rust and/or corrosion should be thoroughly cleaned with warm soapy water and dried as soon as possible
• NEVER use abrasive pads or cleaners for cleaning
• All metal surfaces should be checked while cleaning for damage, scuffs or scrapes as these can lead to rust and further damage to the
product
• Mild rust and/or corrosion can be treated with a commercial cleaning agent that contains citric/oxalic/nitric/phosphoric� Do NOT use
cleaning agents with chlorides or other harsh chemicals as this can cause corrosion� After treatment, wash with warm (not hot) soapy
water and dry thoroughly
• Thoroughly wipe the surfaces dry after cleaning and do NOT let water pool on the unit� Check crevices and folds for pooling
• When using, ensure all liquids and moisture is cleaned up straight away� Food liquids such as juices from vegetables and fruits should
NOT be left on preparation surfaces
• Do NOT leave items on the stainless steel such as cutting boards, rubber mats and bottles
• To protect the polish, stainless steel should be dried by wiping a dry soft cloth in the same direction as grained polish
• For NON-food contact surfaces, a light oil can be wiped on the surfaces with a cloth to enhance the stainless steel surface� Wipe in the
direction of the grain
• Some commercial stainless stain cleaners can leave residue or film on the metal; this may trap fine particles of food on the surface,
thus deeming the surfaces not food safe
WARNING
This unit is NOT waterproof, do NOT hose.
DO NOT pour water directly onto the unit.
DO NOT immerse in water
IMPORTANT
Some commercial stainless stain cleaners leave residue
or  lm on the metal that may entrap  ne particles of food,
thus deeming the surface not FOOD SAFE.
WARNING
Wait until the unit has cooled to a safe temperature before
undertaking any cleaning or maintenance. Contact with hot
surfaces can cause burns and serious injury.
General Information
Corrosion Protection
Surface Finish

Page 10
Operation
Materials Required
• Stainless Cleaner
• Non Abrasive Cleaning pad
• Clean Sanitised Cloth
•Paper Towel
• Container of warm water
• Appropriate PPE (Personal Protective Equipment)
Cleaning Procedure
1� Turn the unit off and isolate from power supply
2� Wearing Personal Protective Equipment (PPE), apply Stainless Cleaner with the Cleaner pad to the external surfaces
3� Scrub any baked on soil with the cleaner pad in the same direction as grained polish
4� Wipe clean using a cloth dampened with clean warm water until all Stainless Cleaner and soil has been removed
5� Using a clean sanitised cloth, thoroughly wipe the stainless steel and metal parts dry� Do NOT let water pool on the unit� Check crevices
and folds
Note: In some areas, particularly seaside environments, stainless steel can be subject to surface discolouration or “tea staining”
This can be removed with an appropriate cleaning agent which contains 10% sodium citrate� Ask your supplier of cleaning chemicals for a
suitable brand�
Cleaning Schedule
• Daily cleaning is required for the Chip Dump� This will help to maintain and prolong the efficiency of your unit
• The unit should be cleaned at the end of each work day

Page 11
Troubleshooting
Operation
Task Type - (O) = Operator
(T) = Technician Task
Problem Possible Causes Task Possible Corrective Action
Unit won’t turn on Unit is not plugged into a
suitable power point O Plug unit in
Power switch is in the “Off”
position O Change the power switch to the “ON” position
Power Point is faulty T Arrange a qualified Technician to repair the power
point
Unit is not heating /
over heating Boiling Plate not working T please contact the Stoddart Service Department at
1300 307 289.
Temp switch / Computer board
not working Tplease contact the Stoddart Service Department at
1300 307 289.
WARNING
Technician tasks are only to be completed by qualied service
people. Check faults before calling service technician.

Page Intentionally Left Blank
Page 12

Page 13
