Woodstock Soapstone 211 Navajo Hybrid User manual

INSTALLATION
LOCATION
A stove which is centrally located will heat the greatest area of your home. Heat
should be able to circulate easily into nearby rooms. Placing your stove near an open
stairway or register in the floor will help transfer heat to other rooms.
Other installation considerations are:
•Clearance to Combustibles
•Adequate Space for Wood Loading and Ash Removal
•Room Traffic Patterns
Most people install their stove in a room they use frequently where they can enjoy the
beauty and comfort of the stove. This also helps in the monitoring and reloading the
stove as needed.
A well-planned placement will enhance your enjoyment of your stove and may save
installation costs.

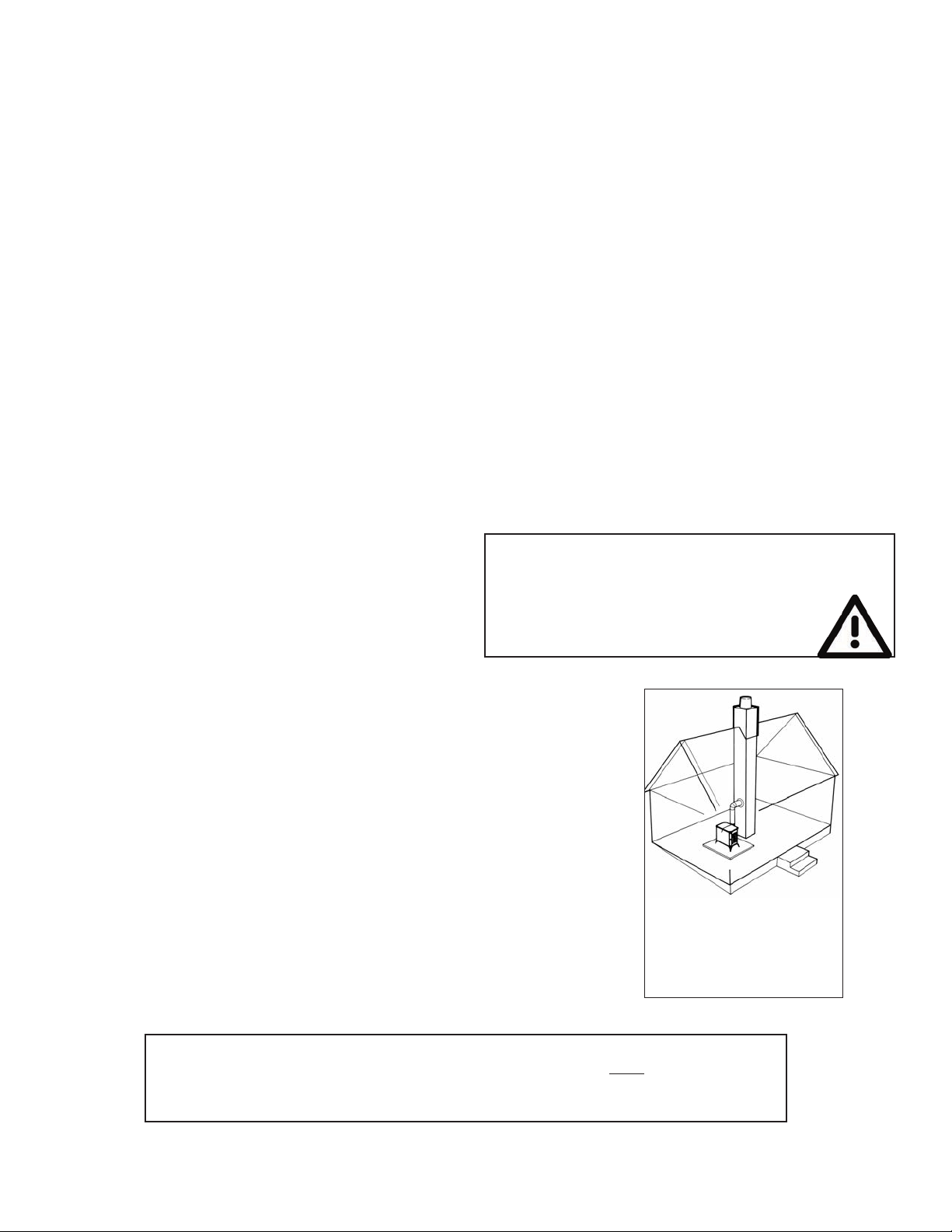

The best loc tion for chimney nd
woodstove is in the center of the
house. The chimney will be
w rmer, dr ft will be better, nd
r di nt he t will be distributed
more evenly.
ALCOVE INSTALLATIONS
THE ODEL 211 ABSOLUTE STEEL HYBRID WOODSTOVE IS NOT APPROVED FOR
AN ALCOVE INSTALLATION. AN ALCOVE IS DESCRIBED AS AN AREA LESS THAN
512 CUBIC FEET, WHICH IS EQUIVALENT TO AN 8’X8’X8’ SPACE.
1
For over two centuries, New Englanders have heated their
homes with soapstone stoves. A properly installed and oper-
ated soapstone stove will warm your home and delight your
eye for a lifetime.
Read this entire manual carefully. It explains how to
install your Woodstock Soapstone Absolute Steel Hybrid
Wood Stove safely and how to operate it correctly and
efficiently. The clearances and procedures recommended in
this guide are in compliance with the recommendations of
the National Fire Protection Association (NFPA), the
Underwriters Laboratories (UL), and the U. S.
Environmental Protection Agency (EPA). You may feel some
of them are very stringent, but they should be followed.
They were designed to protect you, your home, and the
environment. Improper installations are a major cause of
serious fires. Failure to follow instructions may result in
property damage, bodily injury, or death.
Before installing a woodstove, check your local building
codes and any requirements established by your insurance
company.
You may need a local building permit to install your stove.
Any changes in your home must comply with building
codes. If the codes have not been fully updated, you may
want to check with the Building Inspection Department or
your local Fire Department. A qualified stove installer
should be aware of any changes and updates to local and
state codes and may be best suited to handle your
installation work.
Many chimney sweeps are qualified installers. If you are
unfamiliar with sweeps or need to locate a certified sweep in
your area, you can check listings at www.csia.org (Chimney
Safety Institute of America). Builders and contractors are
another option. In some cases, homeowners install their own
stoves. Before installing your stove, please review carefully
the stove installation, clearance, and safety information in
this manual. Woodstock Soapstone has NFI (National
Fireplace Institute) certified woodburning specialists on staff
and available to answer any questions you may have about
your installation. If you have questions, please call us toll
free at 1-800-866-4344.
You should notify your insurance company that you are
using a woodstove. Before you light your first fire, have a
local building inspector and your insurance representative
inspect, and approve in writing, your installation.
When this room heater is not properly installed, a house
fire may result. To reduce the risk of fire, follow the
installation instructions. Contact local building or fire
officials about restrictions and installation inspec-
tion requirements in your area.

CHI NEYS
Your chimney is a critical component of your wood heating system. A properly designed and constructed chimney
will help to provide safe and efficient woodstove operation. Hot exhaust rising up through the chimney also pulls com-
bustion air into the stove through the air damper. If a chimney is too short, or the flue too large, the hot exhaust will cool
and slow down. This can lead to poor stove performance, smoke spillage, back puffing, and even creosote build up in
the chimney itself. An excessively tall chimney could lead to a strong draft, which may make the fire difficult to control
with the stove damper. A draft that is too strong could result in over firing the stove and lead to damage to the steel
components as well as the catalytic combustor. An uncontrollable burn or excessive stove or pipe temperatures can indi-
cate excessive draft. Whether you are installing a new chimney, or adapting an existing chimney to your woodstove,
close attention to chimney height, flue size, and location should be considered.
Chimney Flue Sizing:
The ideal flue size for the Absolute Steel Hybrid is 6” (28 sq.in.), which is the same diame-
ter as the stove’s flue collar.
If upsizing needs to occur due to an existing chimney the following general rules apply:
1. Interior Chimney (no walls of the chimney exposed to the outside below the roofline): the
inside cross-sectional area of your chimney should be no more than 3x (85 in2) the cross-
sectional area of the woodstove flue collar.
2. Exterior Chimney (if there are one or more walls exposed to the outside below the
roofline) - The flue should be no more than 2x (57 in2) the cross-sectional area of the flue
collar.
Recommendation: The Absolute Steel Hybrid has a 6 inch flue collar, thus an 8 inch x 10
inch rectangular or 10 inch round flue tile for an inside chimney are the maximum flue sizes
we recommend for this stove. For an outside chimney, an 8 inch x 8 inch square or 8 inch
round would be the largest acceptable. The smallest size we recommend is 6 inches round, as
the flue should not be less than the flue collar size.
Note: For flues that exceed the recommended area, a stainless steel chimney liner is recommended.
Height Requirements:
The chimney must extend 3 ft. above the point where it passes through the roof and must
also be 2 ft. higher than any roof surface or obstruction within 10 feet (measured horizontally) of the chimney. You should
check your local building codes for any other requirements.
The recommended minimum chimney height is 15 feet from the flue collar of the stove to the top
of the chimney. This includes connector pipe and chimney pipe. There may be other factors to con-
form to code for clearances on the roof, high wind, high altitude, etc., that may make the minimum
height undesirable or a violation of building codes.
CHI NEY TYPES
DO NOT CONNECT THIS UNIT TO A CHI NEY FLUE SERVING ANOTHER
APPLIANCE.
There are two acceptable types of chimneys: (1) A chimney complying with the requirements for
Type HT chimneys in the Standard for Chimneys, Factory-Built, Residential Type and Building
Heating Appliance UL 103 OR A code-approved masonry chimney with a flue liner.
Lined asonry Chimneys:
Always have the chimney inspected prior to your stove installation. If your chimney is not lined
with appropriately sized clay flue tiles, or the clay tiles are old, cracked, damaged or otherwise
compromised, a stainless steel chimney liner or poured liner will be required. Depending on the
condition of your flue or clay tiles, the stainless steel liner may need to be wrapped in a high tem-
perature insulation blanket. A liner may also be recommended if your flue is too large for the draft
to flow properly (please refer to the section on chimney sizing). Our customer service department
can answer any questions regarding the use of a liner and/or insulating blanket. Call 1-800-866-
4344.
Existing chimneys should be checked twice a year for obstructions, creosote deposits, surface
cracks, chemical deterioration and poor construction. Any damage should be repaired immediately. Two other chimney

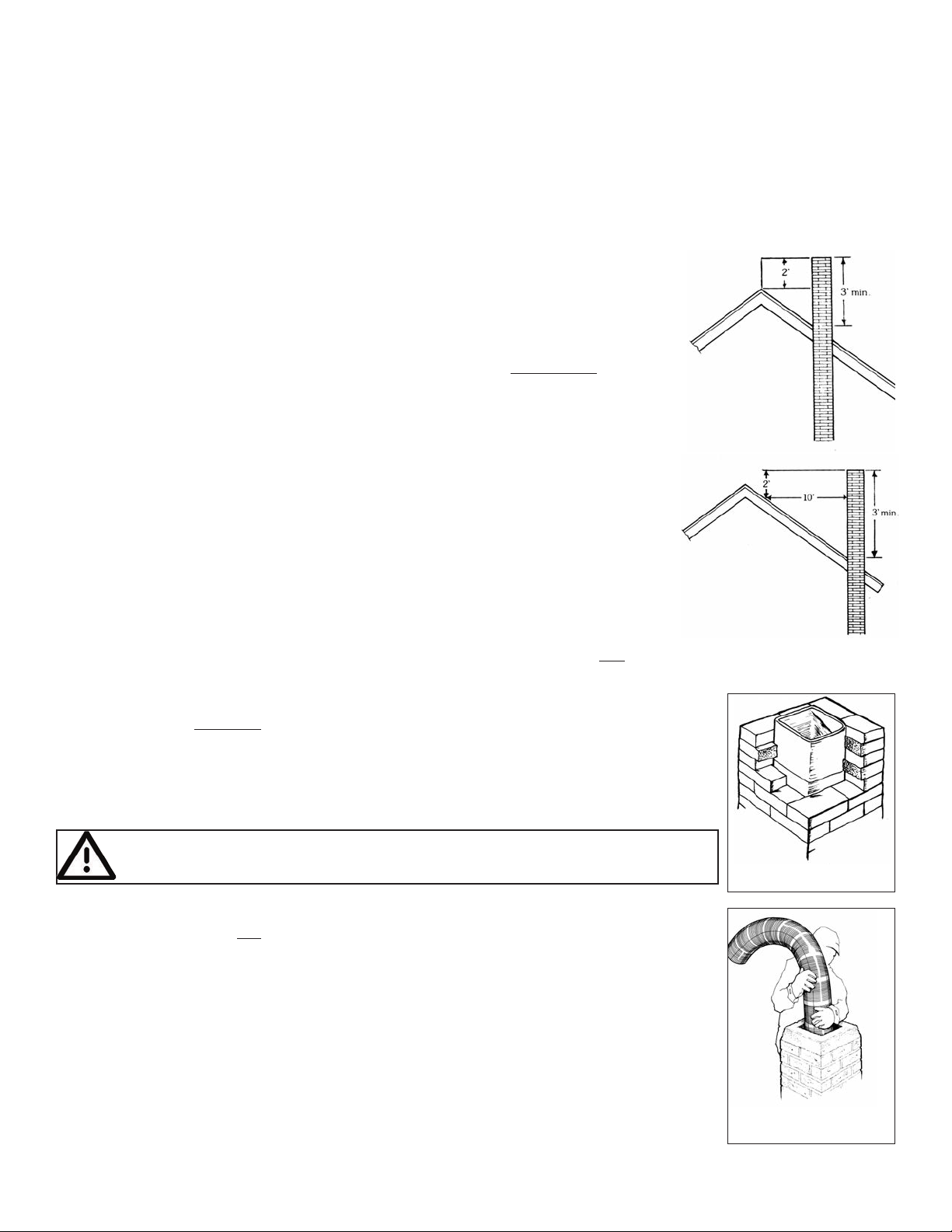

Inst lling St inless Steel
Liner in M sonry
Chimney
Chimneys must
extend minimum
of 3’ bove roof
penetr tion...
... nd minimum of 2’
bove the highest point
within 10’.
Terr Cott Tile Lined
M sonry Chimney
2

related areas that should be checked are chimney penetrations at the floor or ceiling joists, and
at the roofline. There should be at least 2 inches of clearance between the chimney and floor
joists or other combustible materials. Poor flashing between the chimney and the roofline can
cause leaks and deterioration of chimney mortar.
You should make preliminary checks, but if you have any doubts, or are unfamiliar with
chimney construction, cleaning, or maintenance, have a local fire official or certified chimney
professional inspect your chimney. If repairs are required, be sure to use someone who is
knowledgeable in chimney work and familiar with local code requirements.
In addition: All brick or cinder block chimneys should have clean out access with a tightly fit-
ting door. Masonry chimneys should have a wash at the top. All chimneys should have a cap to
keep out rain and snow and to minimize downdrafts caused by wind.
Passing Through A Combustible Wall:
With an exterior chimney, in most cases the chimney connector (or stove pipe) will need to pass through a combustible
wall. The following are acceptable methods:
A. Use a section of Solid Insulated Prefabricated Metal Chimney to connect to the chimney - Use a section of insulated
prefabricated 2100° Class A chimney pipe listed to UL 103 HT (at least 1” of insulation or greater) the same inside diameter
as the stove pipe and maintain a 9” air space between the wall of the prefabricated chimney and the combustible wall. This
section of chimney pipe can be supported by a sheet metal plate securely fastened to the combustible wall, with a hole cut in
the middle of it. This will close the gap around the chimney pipe and the framed opening. (See Diagram A Above)
B. Build a solid brick surround around a tile liner - Frame a 3.5” thick brick surround into the combustible wall you need to
pass through. Maintain a minimum 12” brick separation from the clay liner to combustibles. The minimum 5/8” thick clay
liner should be cemented in place and run from the outer surface of the brick to the inner surface of the chimney. (See
Diagram B Above)
C. There are also UL Listed kits available that are specifically designed for passing through a combustible wall. For more
information on these kits, please contact Woodstock Soapstone Company. Please note: there are several UL listed wall pass
through kits available, always follow the specific manufacturers installation instructions. (See Diagram C Above)
For other methods, please refer to NFPA 211.
RE E BER, UNPROTECTED SINGLE OR DOUBLE WALL STOVE PIPE SHOULD NOT PASS THROUGH A
CO BUSTIBLE WALL OR CEILING TO CONNECT TO THE CHI NEY. YOU UST USE AN APPROVED ETHOD
WHICH PROVIDES GREATER PROTECTION THAN SINGLE OR DOUBLE WALL PIPE.
Prefabricated etal Chimneys:
For high efficiency, freestanding woodstoves, like your Woodstock Soapstone stove, a Prefabricated
Metal Chimney must be listed as Class A and carry a UL Listing of 103 HT (high temperature). The “UL
103 Type HT Class A” prefabricated chimney will have a temperature rating of 2,100° F.
There are prefabricated chimney systems that are approved only to 1,700° F and are suitable only for
fireplace inserts or factory built fireplaces. DO NOT use these with your Woodstock Soapstone stove.
At the point of the first penetration of a combustible surface (i.e., wall or ceiling) all subsequent
venting components need to be prefabricated “UL Type HT Class A”. If your prefabricated chimney goes through a living

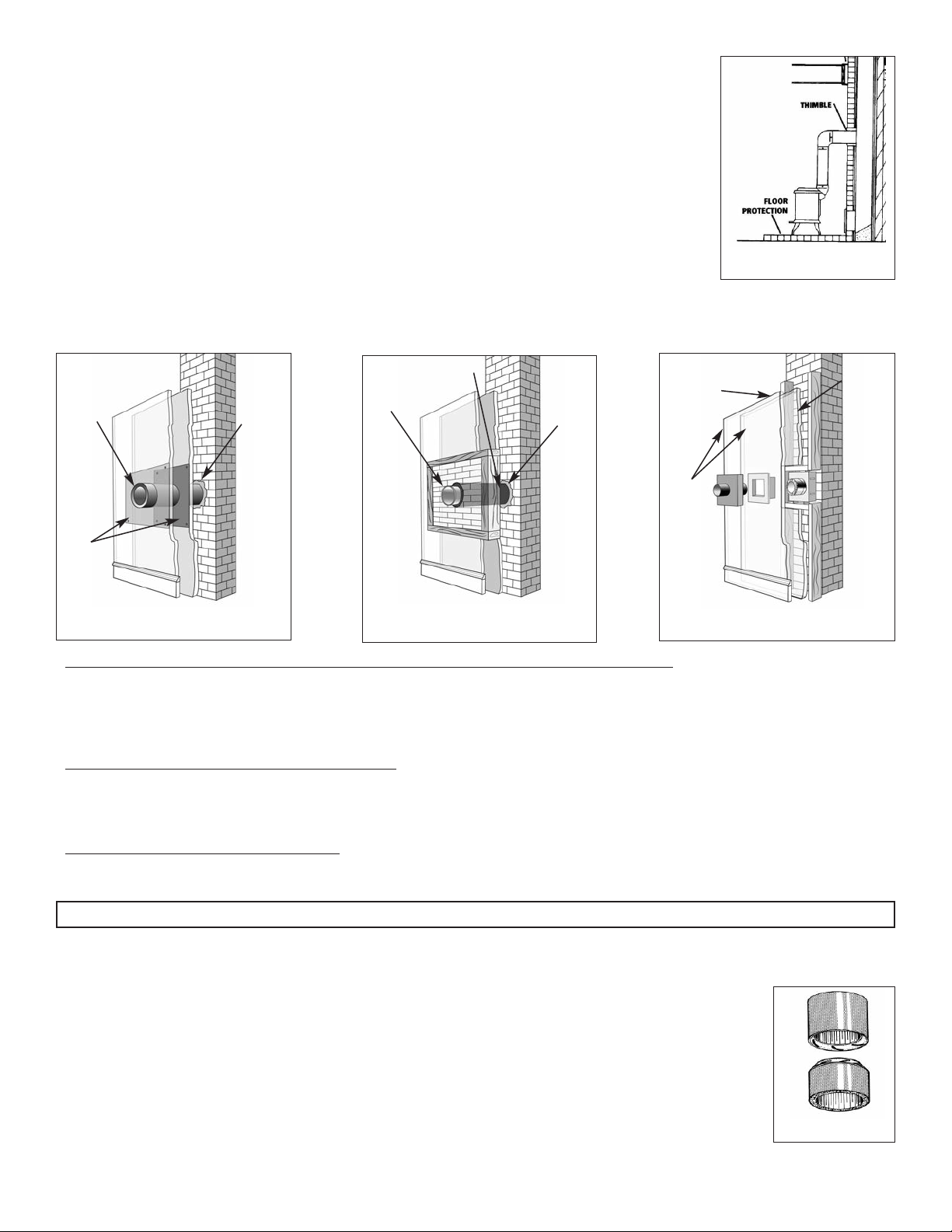

Connecting your stove to
m sonry thimble.
The minimum cle r nce for single w ll
met l stovepipe nd terr cott thimble t the
chimney connection is 12”
A.
Using Pref bric ted Met l Chimney section
to connect to n existing m sonry chimney
loc ted behind combustible w ll Use UL listed nd pproved w ll p ss thru kit.
B.
Refractory
Cement
Insulated
section of
factory built
chimney
Sheet
Steel
Supports
9”
9”
9”
9
Refractory
Cement
Fireclay Thimble
12”
12”
12”
12
Stainless Steel
Connector
C.
UL listed
insulated
thimble
Minimum required
air space
Listed wall
protector &
cover shield
UL 103 HT St inless
Chimney Connection
3

space it must be enclosed, and that enclosure must conform to clearance standards for the prefabricated chimney. Your
chimney must pass through your roof and extend above the roof line in accordance with code standards. Please refer to
height requirements on Page 2.
Prefabricated Chimney Configurations
The diagrams below represent the most common and acceptable installations using prefabricated chimney pipe. The
necessary components are listed and shown in their appropriate locations. These components are Class A listed to U.L.
103HT (tested to 2100 degrees F.) Only components listed to UL 103HT can be used to install your wood stove.
Installation instructions are described below as examples only. More detailed instructions are available through
Woodstock Soapstone or the pipe manufacturer. ALWAYS FOLLOW THE SPECIFIC ANUFACTURER’S INSTALLA-
TION INSTRUCTIONS.

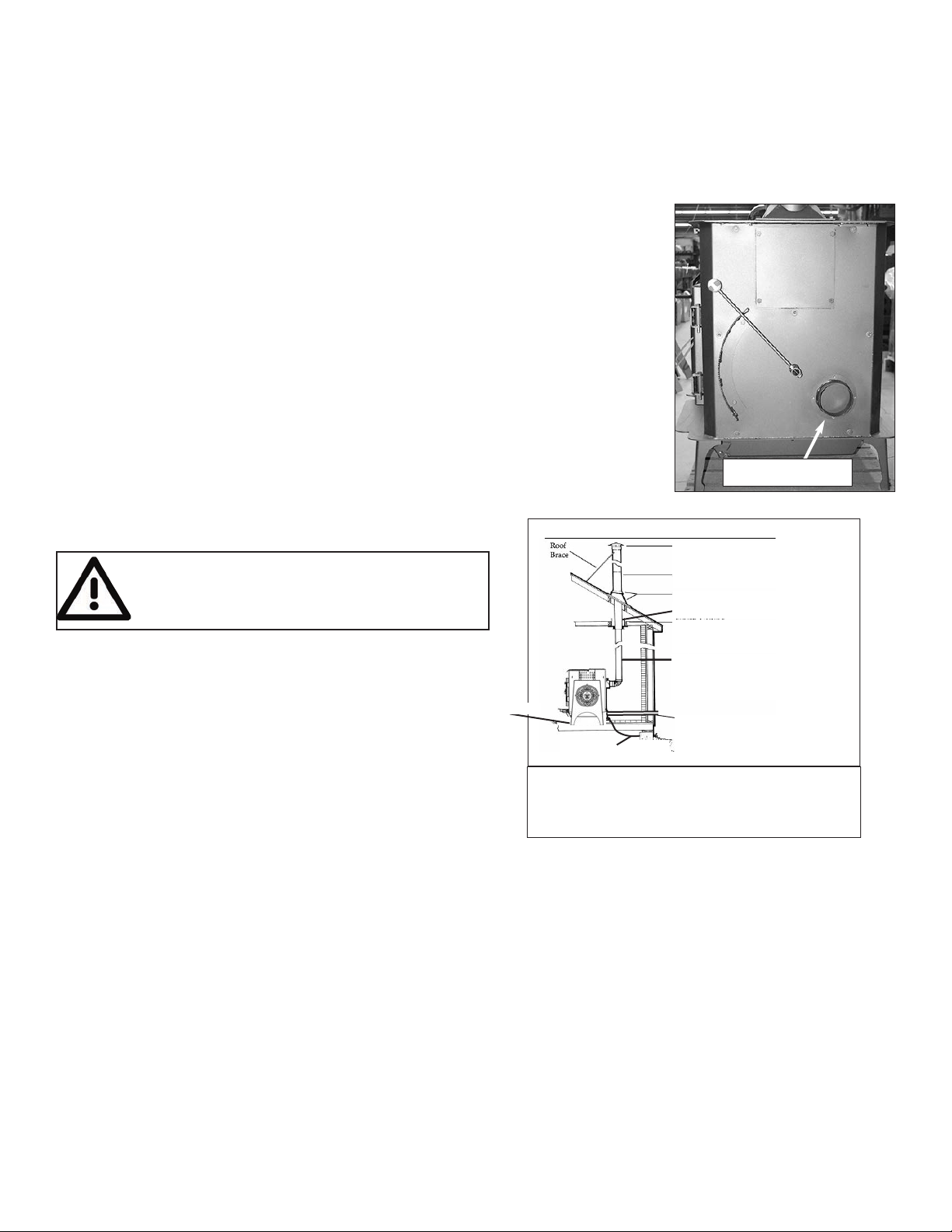

Installation 1- Flat ceiling through the roof
First, determine where the stove will be placed. Pay close attention to all required
clearances for the stove and connector pipe. Next, use a plumb line to locate the fin-
ish ceiling support in the ceiling above. Cut the appropriate sized hole in the ceiling
and frame in the necessary supports to secure the ceiling support. Install the pipe
adapter onto the first section of chimney pipe, and lower them into the ceiling sup-
port. Use an insulation shield in the attic to keep any insulation away from the pipe.
If the attic is a living space the chimney pipe must be fully enclosed. As the pipe
extends through the roof, install the appropriate flashing and storm collar to keep the
weather out. As the height of the chimney increases to meet code, it may be neces-
sary to install a roof brace (typically recommended at 5’ intervals). All chimneys
should have the appropriate cap installed at the top to reduce wind and weather
related downdrafts as well as deter any animals from building nests. The connector
pipe should extend from the flue collar of the stove to the pipe adapter at the ceiling
support. The male (crimped) end should always point down toward the stove. Be
sure that each joint has enough overlap for a secure connection. All connections should be fastened with screws, including
at the flue collar and pipe adapter. (Please refer to the manufacturers full set of installation instructions).
Installation 2- Pitched/Cathedral Ceiling through the roof
Determine where the stove will be placed. Be sure all clearance requirements are
satisfied. Choose the appropriate support for your installation (support box or roof
support). Use a plumb line to locate the support in the ceiling above. Cut the appro-
priate sized hole in the ceiling and install the necessary framing to secure the sup-
port. Install the support according to its specific instructions. Be sure that the sup-
port hangs down below the ceiling far enough to maintain proper clearance for the
connector pipe (steeper slopes require more chimney pipe below the ceiling). Install
the pipe adapter to the first section of chimney pipe and lower it into the support
box (or connect it to the bottom of the roof support). As the pipe extends through
the roof, install the appropriate roof flashing and storm collar. Install the proper
chimney pipe lengths to meet code and recommended chimney height. It may be
necessary to install a roof brace for stability. Always install the appropriate cap to
the top of the chimney. Double wall connector pipe is recommended for installa-
tions that have 8’ or more from the stove to the chimney. Be sure that all joints in
the connector pipe are secure and fastened with screws, including at the flue collar
and chimney pipe adapter. (Please refer to the manufacturers full set of installation instructions).
Installation 3- Through the wall
This installation requires the use of an insulated wall thimble to penetrate a com-
bustible wall. Typically a 9”-12” chimney pipe and pipe adapter will pass through
the thimble and make the connection between the interior connector pipe and an
insulated tee with a clean out on the outside of the bulding. The tee and chimney
rising up from it rest on a wall support designed to bear the weight of the chimney.
Install lateral supports as specified as the chimney rises along the exterior wall. The
appropriate flashing and storm collar should be installed if the chimney penetrates
an eave or overhang. An offset of 15 or 30 degrees may also be used to go around an
overhang. As the chimney extends above the roof to meet code recommended
heights it may be necessary to install a roof brace. (Please refer to the manufacturers
full set of installation instructions).
Installation 1- Flat ceiling through the roof
Installation 2
Pitched/Cathedral Ceiling through the roof.
Class A
Chimney Pipe
Installation 3- Through the Wall
Attic Insulation Shield
4
Chimney Cap
Chimney Cap
Chimney Cap
Flashing & Storm Collar

Stovepipe (Connector Pipe):
Connector pipe is either single wall (sheet metal) or double wall (sheet metal outer pipe with a stainless steel inner
pipe). We strongly recommend 22 gauge pipe (26 or 28 gauge is too thin for use with a woodstove). The connector pipe
should be 6 inch diameter to match the flue collar of the stove. If your connection to either a masonry chimney or prefab-
ricated chimney system is more than 8 feet tall, we recommend the use of double wall connector pipe. If you need to
reduce clearances for your connector pipe installation, double wall connector pipe would be recommended. All pipe con-
nections, including at the flue collar, must be secured with screws. DO NOT USE GALVANIZED SINGLE WALL PIPE.
Connector pipe is designed to connect your stove to your masonry lined or approved prefabricated chimney system.
CONNECTOR PIPE SHOULD NEVER BE USED AS A CHI NEY AND SHOULD NEVER PASS THROUGH A
CO BUSTIBLE WALL, CEILING, WINDOW, CLOSET, OR ROOF. At the point where your stovepipe meets the
chimney, you must either vent into a masonry chimney with approved non-combustible transition, or a prefabricated
chimney system with a specially designed transition piece.

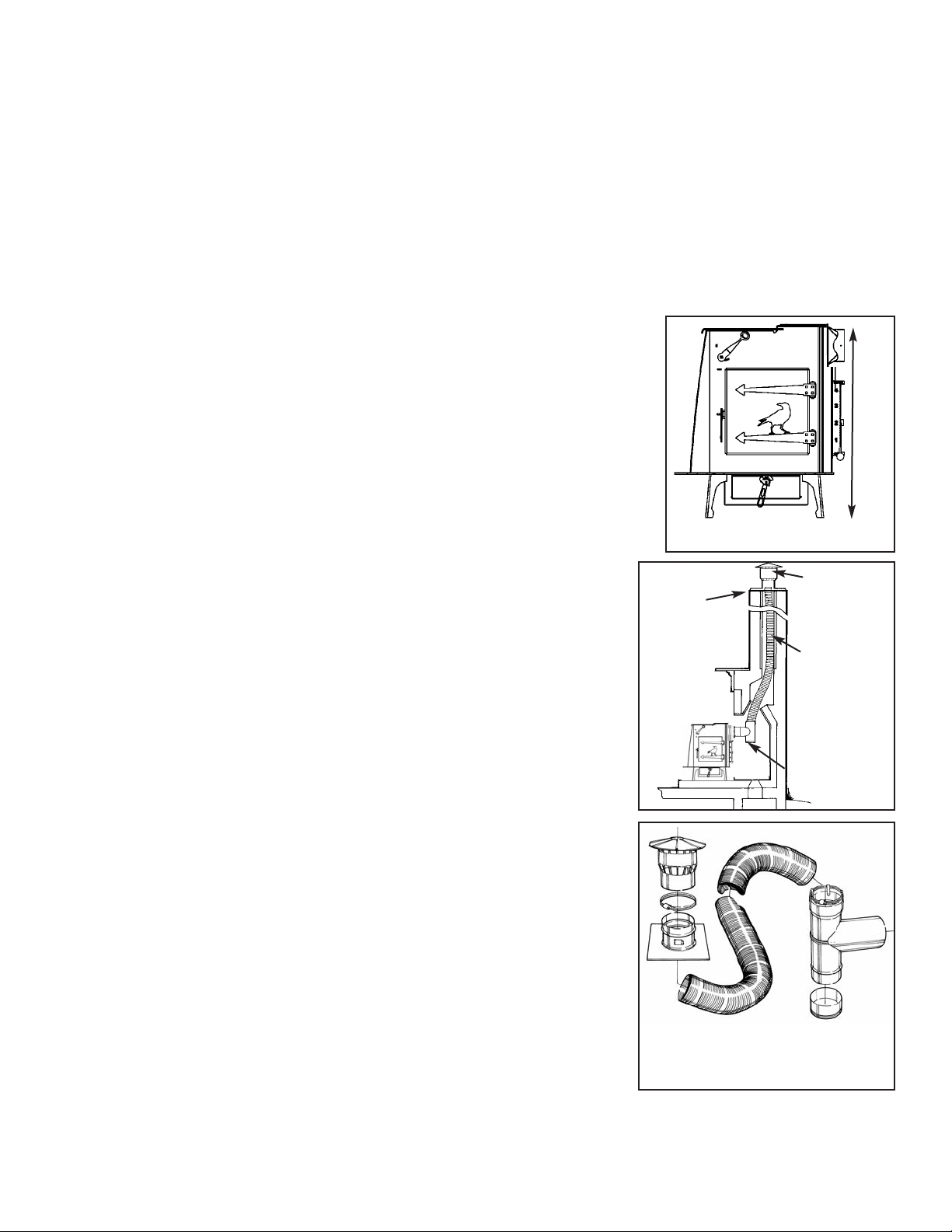

FIREPLACE INSTALLATION
Your Model 211 Absolute Steel Hybrid Woodstove has an option of rear venting. The
centerline height of the rear flue is 28”, in order for the exiting pipe to clear the fire-
place lintel, the opening height will need to be 31” or greater. Installing the Absolute
Steel Hybrid stove in a fireplace setting is a great way to enjoy the view of the fire,
while greatly increasing the efficiency and reducing heat loss to the fireplace chimney.
We do not recommend placing the stove inside the fireplace, as it would make rou-
tine maintenance such as cleaning the combustor more difficult, and much of the heat
radiating off the stove would not circulate into the room.
The preferred method for installing a stove in front of a fireplace is by running a
stainless steel ‘flex’ liner down the chimney, connecting it to the stove at the fire-
place. Chimneys with large flues should be relined to achieve proper draft. If the
chimney does not have flue tiles or if the tiles are cracked or compromised, an addi-
tional insulating material must be used.
It is important that there be a secure connection between the stove and the flue
liner. It is NOT acceptable to simply install a plate in front of the fireplace and run
a stovepipe through it. The stove pipe must connect with the liner for a continuous
outlet to the top of your chimney.
Stainless steel flex liner kits come in a variety of lengths and are readily avail-
able. These kits include a flexible stainless steel pipe, tee with snout & clean out, a
block-off plate for the top of the chimney, and a cap. Please contact Woodstock
Soapstone Company for more information on these kits. ALWAYS FOLLOW THE
SPECIFIC ANUFACTURER’S INSTALLATION INSTRUCTIONS.
If the fireplace surround is clad in wood trim, the proper clearance to a com-
bustible will need to be maintained. Please refer to the clearance charts on pages 8-
10. An unprotected wood mantel needs to be a minimum of 30” from the top of the
stove. If a mantel shield is installed that clearance can be reduced to 12”.
DO NOT VENT YOUR WOOD STOVE THROUGH A FACTORY BUILT FIRE-
PLACE UNLESS IT IS SPECIFICALLY LISTED FOR SUCH AN INSTALLATION
Most factory-built fireplace chimney systems are only rated to 1,700° F, which is not
sufficient for a freestanding wood burning stove.
FLOOR PROTECTION REQUIRE ENTS
Your Woodstock Soapstone stove must be set on an approved hearth or floor protection.
The hearth protects your floor from two hazards:
Cap
Top Plate
Stainless
Liner
Cleanout
Tee & Snout
Components of st nd rd liner kit:
Tee with cle n out& snout, st inless
flex liner, top block-off pl te & c p.
5
Minimum of 31” of vertic l opening for
6” pipe to p ss under the firepl ce lintel.
31”

• Heat Transfer: Heat radiation from the bottom, front, and sides of the woodstove
• Ember Protection: Sparks and hot coals that may fall out during ash removal and reloading of firewood
DO NOT INSTALL YOUR WOODSTOCK SOAPSTONE STOVE ON A CO BUSTIBLE
SURFACE (WOOD, CARPET, LA INATE, OR VINYL, FOR EXA PLE).
Even if you have a stone or tile overlay on wood, it is still considered combustible since the surface materials will not
provide adequate heat transfer protection.
Your stove UST sit on one of the following:
•A hearth pad of solid masonry (brick or tile on concrete and mortared in place)
•A prefabricated hearth pad listed to UL1618 approved standards. These pads are made to be placed on an existing
floor.
•A custom designed pad constructed of approved non-combustible materials which will protect the floor from sparks,
hot coals, and ashes; and prevents heat from being transferred onto the floor beneath.

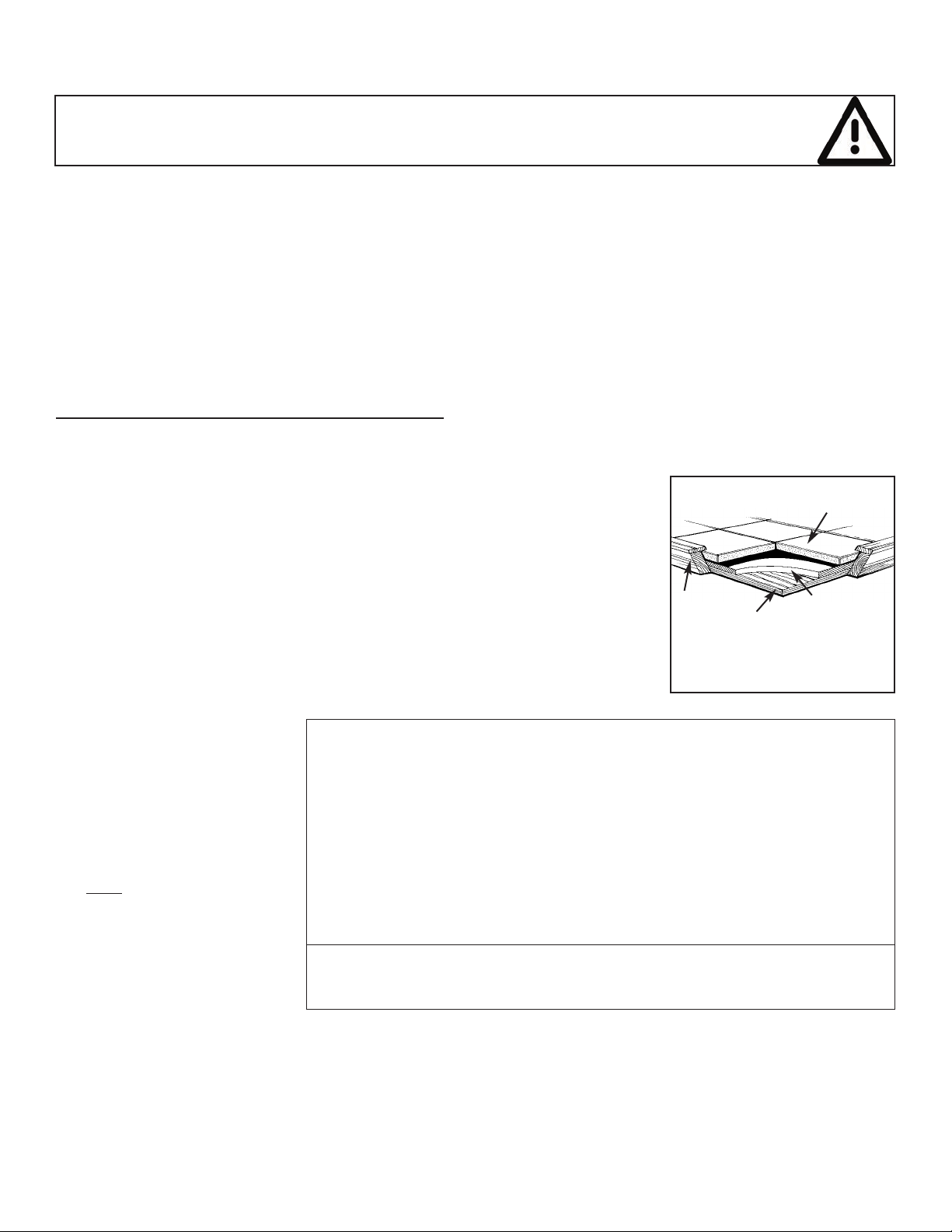

IF YOU CHOOSE TO BUILD YOUR OWN HEARTH PAD
1) Start with a plywood base or subfloor.
Over this pply:
2) a layer of insulating board with an R-Value of at least 0.39 (equivalent to 1/2”of
cementboard). Depending on the material you choose, the insulating board can be
as little as 1/2” thick. For additional help with material specifications, contact
Woodstock Soapstone Company at 1-800-866-4344 or [email protected].
Over this pply:
3) Cover with a non-combustible material such as steel, tile, slate, stone,
or brick. Use mortar or grout to set the material in place, then grout the seams.
Specifications for floor protectors may be listed in terms of R-value, K-value, or C-value.
To convert K or C value to R-value use the following formulas.
K to R: R=1/K x T (Thickness of the alternate material)
C to R: R=1/C
Once alternate materials have been
converted to R-values, the values
of multiple layers can be added to
determine the combined protection.
If the overall R-value meets or
exceeds the specified .39 then the
materials are acceptable.
DO NOT USE: Old-fashioned
stove boards that were commonly
sold in hardware stores as they DO
NOT have adequate protection and
ARE NOT approved for primary
floor protection under your stove.
Hearth Rugs also ARE NOT
meant to be used as primary hearth protection. These are made to be used in addition to an approved hearth, and are an
auxiliary decorative protection. They are not a substitute for an approved hearth pad.
Hearth Sizing:
Clearances for your Absolute Steel Hybrid stove on the front, back and sides must be taken into consideration when
determining the placement and size of your floor protection. The floor protection must extend under any horizontal con-
nector pipe and 2 inches beyond each side of that connector.
You c n build your own he rth p d to fit
your decor. The he rth p d must meet
minimum R v lue of .41
trim
bo rd
1/4” sl te or tile
3/4” plywood
or subfloor
non-combustible
insul tion bo rd
6
R-values of common hearth materials:
Ceramic Tile 1/4” 0.020
ranite 1/4” 0.020
Slate 1/4” 0.025
Cement Mortar 1/2” 0.025
Cementboard 1/4”-1/2” 0.20-0.39
Common Brick 2.25” 0.450
Common Brick 4.00” 0.800
Mineral/Ceramic Fiber Board 1/2” 1.10-1.470
Please Note: Always check with the manufacturer of the hearth material used
to verify the R or K value.
K Values cannot be added. Convert to R value before adding multiple layers.

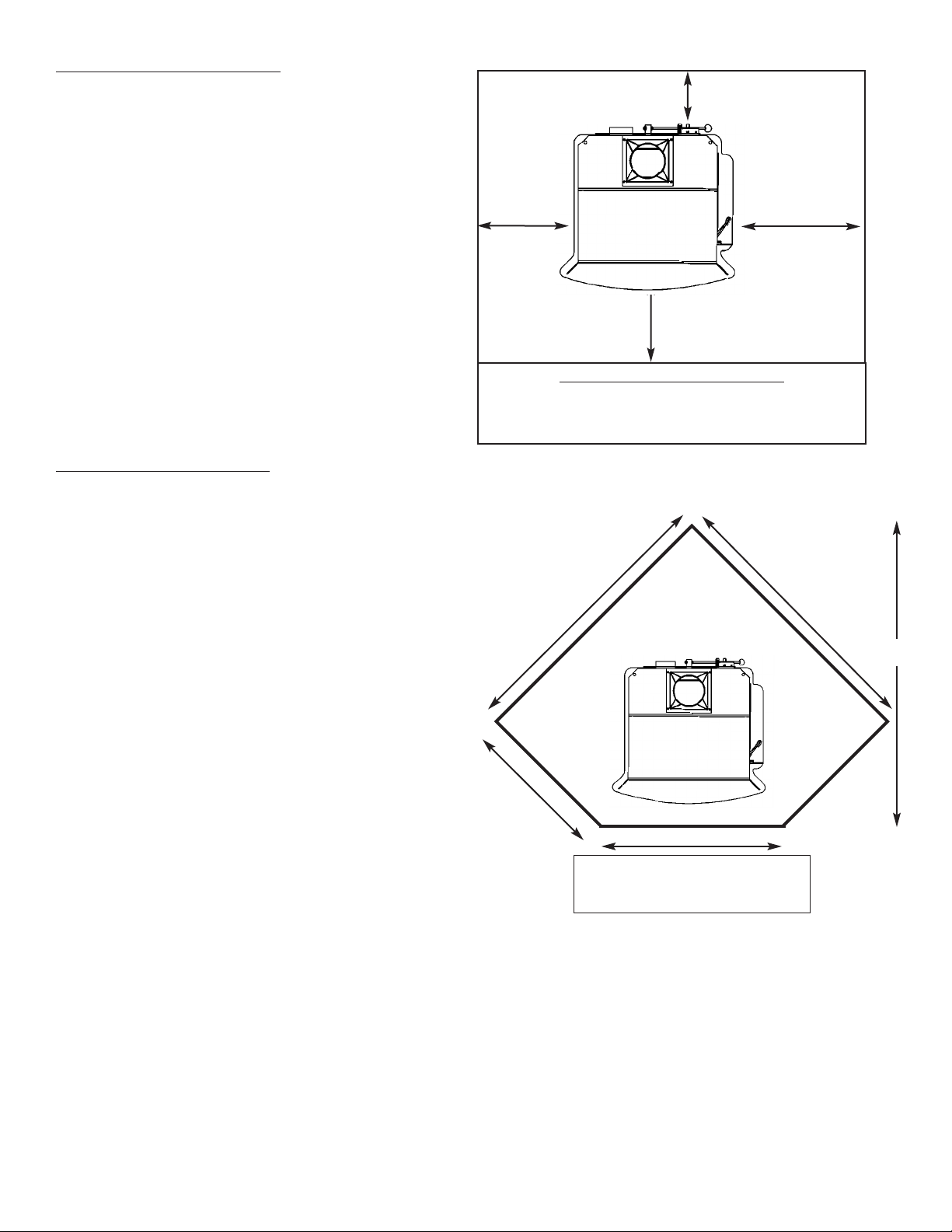

PARALLEL HEARTH PAD
MINIMUM DIMENSIONS
A. Floor protection in front stove = 6”
B. Protection on loading door side = 16”
C. Floor protection non-loading door sides = 6”
D. Floor protection behind stove (top vent or rear
vent) = 6”
E. Floor protection under pipe when rear vented must
extend under any horizontal connector pipe and 2
inches beyond each side of that connector.
Minimum hearth size in a parallel installation is 36.5”D x 46.5”W.
Recommended size is 40” D x 57”W or larger.
A 38.5” x 57” rectangular hearth pad will allow for
8” behind the stove, 16” on either side, and 8”
in front of the stove. The hearth pad must have a minimum
R value of 0.39 (1/2” of “cementboard” covered with non-
combustible material such as sheet metal,tile or stone).
CORNER HEARTH PAD
Minimum hearth size in a corner installation must be 54”x54” (with the front corner cut off).
NOTE: On a hearth of minimum size, the stove will not be centered left to right, but will
meet the minimum required clearances.

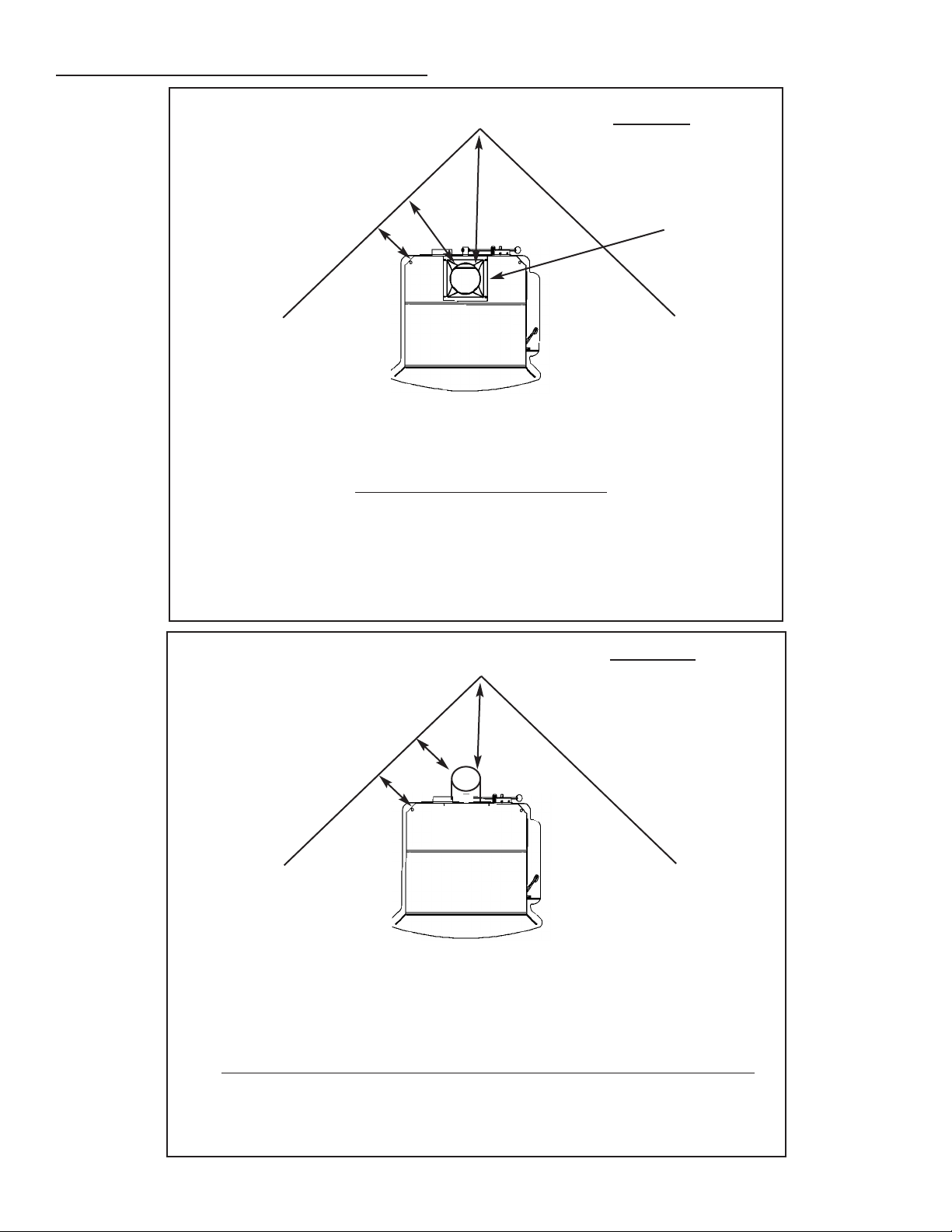

Calculating a Corner Hearth Pad (per NFPA 211):
A=C x 1.414 + W/2 + D + Front Hearth Requirement
A =distance from corner to the front of the hearth pad
C = clearance from rear corner of appliance to wall (6” w/ rear heat
shield)
1.414 = a constant
W/2 = one half the appliance width (12.25”)
D = appliance depth (22.5”)
Front Hearth Clearance= 6”
Example:
Absolute Steel with the Rear Heat Shield & Pipe Shield
A= 18” x 1.414 + 12.25 + 22.5”+6” A= 66.2”
WALL PROTECTION
The Model 211 Absolute Steel Hybrid stove has been tested to UL stan-
dards for clearances to combustible walls. The minimum clearances to
unprotected walls are as follows:
Minimum clearances with no heat shields to unprotected combustible walls:
From the back------------------ 14”
From the sides------------------ 26”
DO NOT ASSU E THAT A WALL IS NOT CO BUSTIBLE BECAUSE IT HAS A NONFLA ABLE SURFACE.
A wall with any combustible materials in it must be considered combustible. For example, a brick wall attached to wood
studs is considered a combustible wall. Over time, heat will pass through bricks and heat the wood, lowering the igni-
tion temperature of the studs, possibly resulting in a fire. As waves of radiant heat energy meet a combustible object,
heat is absorbed and the temperature of the object is raised, which can result in spontaneous combustion. Similarly,
wood-framed walls which are covered with tile, stone or fire-rated sheetrock must be considered combustible. Fire-rated
sheetrock is also considered combustible due to the paper covering.
If you wish to install your stove closer to a combustible wall than standard clearances will permit, you can either attach
an approved stove & pipe shield, or mount a ventilated, non-combustible shield on the wall.
PARALLEL HEARTH PAD
Measurements taken from stove body
Stove Body Width 24.5”
Stove Body Depth 22.5”
A=66.2”
54”
54”
40”
20”
CORNER HEARTH PAD
Absolute Steel Hybrid shown
above centered left to right
7
A
B
D/E
C

Stove and Pipe Shields:
Clearances can be reduced by attaching an approved heat shield, Part R-997 and pipe shield,
part #W-413. Woodstock Soapstone Company carries heat shields specifically designed for this
stove. When using one or both of these shields, clearance is measured from the back of the
shield to the combustible wall. The clearance behind the stove can be reduced to 8.5 inches.
The clearance behind the pipe can be reduced to 6 inches.
Clearance Table:
The Absolute Steel Hybrid can be installed at a 14” clearance with no additional protection, if
the stove pipe is top vented, and the provided shield is installed on the inside of the rear flue
cover plate. To further reduce the rear clearance to 8.5”, you must attach an approved rear heat
shield and a 24” pipe shield.
*These clearance reductions meet or exceed requirements of NFPA 211, Standard for Chimneys, Fireplaces, Vents, and Solid Fuel
Burning Appliances. Approved NFPA 211 clearance reduction methods DO NOT allow stove clearances to be reduced below 12”.
NFPA WALL SHIELDS UST BE SIZED TO NFPA 211 SPECIFICATIONS. CONSULT NFPA 211 AND A QUALIFIED EXPERT
BEFORE I PLE ENTING THESE REDUCTIONS.
The only approved method allowing for a rear stove clearance less than 12” is the Approved Rear Heat Shield (#R-997) provided by
Woodstock Soapstone Co. If your installation requires the use of the Approved Rear Heat Shield call 1-800-866-4344.
• These clearances apply to walls, ceilings, furniture and other combustibles.
• The 24” Vertical Stack Shield attaches to the back of the stove pipe and prevents excess heat from being radiated from the pipe.
Heat shield protection is only required for the first 24” of vertical connector pipe.
• At least 30” is required from the front of the stove to combustibles (such as curtains, wall hangings, and furniture).
The same clearances from your stove and stove pipe apply to both fireplace and freestanding installations. Be
particularly careful to check clearances to a wood mantel or a wood fireplace facade. You must maintain a 30” clearance
to an unprotected wood mantel. See Fireplace Installations on Page 5.
8
Re r he t shield & pipe
shield reduce required
re r cle r nce to 8.5”
Clearance Table For Model 211 Absolute Steel
Type of InstallationuTop Vent Rear Vent Rear Vent with elbow Stove Sides
Stoveck Pipe goes
Type of protectionq
Stove Back Stovepipe
No Protection 14” 14” 23.5”* 15.5” 26”
With 24” Pipe Shield 18” 10” 26”
With Approved Rear Heat Shield, 8.5” 18” 10”*16”
24” Pipe Shield & Side Shield
3 1/2” thick Masonry Against 12” 12” 20” 12” 13”
Combustible Wall*
3 1/2” thick Masonry with 12” 12” 14” 6” 12”
1” ventilated airspace*
24 ga. sheet metal with 12” 12” 14” 6” 12”
1” ventilated airspace*
1/2” thick non-combustible 12” 12” 14” 6” 12”
insulation board with 1” airspace*
Cle r nce from
stove b ck, top
vent, with
stove pipe
which goes
str ight up
Cle r nce
from stove
b ck nd pipe,
which goes
str ight b ck
Cle r nce from stove b ck
nd vertic l single w ll
connector pipe
with elbow at stove back
See note below reg rding NFPA
211 cle r nce reduction methods
nd implement tion.
See note below reg rding NFPA
211 cle r nce reduction methods
nd implement tion.
See note below reg rding NFPA
211 cle r nce reduction methods
nd implement tion.
See note below reg rding NFPA
211 cle r nce reduction methods
nd implement tion.
*Controlling clearance

CLEARANCE INSTALLATION DIA RAMS
B
C
C
A
B
2) Parallel Installation, Single Wall Pipe, Back Vent
WITH REAR HEAT SHIELD & PIPE SHIELD ATTACHED
A. Back of stove shield to wall = 8.5” D. Side of stove to wall = 26”
B. Back of pipe shield to wall = 8.5” E. Side of pipe to wall = 35.5”
C. Above pipe to ceiling = 18”
9
NO HEAT SHIELD
A. Back of stove to wall = 14” D. Side of stove to wall = 26”
B. Back of pipe to wall = 15.5” E. Side of pipe to wall = 35.5”
C. Above pipe to ceiling = 18”
1) Parallel Installation, Single Wall Pipe, Top Vent
A
E
E
D
D
NO HEAT SHIELD
A. Back of stove to wall = 23.5” D. Side of stove to wall = 26”
B. Back of pipe to wall = 15.5” E. Side of pipe to wall = 35.5”
C. Above pipe to ceiling = 18”
WITH REAR SHIELD & PIPE SHIELD ATTACHED
A. Back of stove shield to wall = 18” D. Side of stove to wall = 26”
B. Back of pipe shield to wall = 10” E. Side of pipe to wall = 35.5”
C. Above pipe to ceiling = 18”
Note: On re r vent pplic -
tions, he rth protection must
extend under elbow or hori-
zont l section of pipe, nd
extend 2 inches beyond e ch
side of horizont l pipe.

If you vent your stove through the rear, rather than the top, and then go up with an
elbow, the stovepipe will be closer to the wall than if you top vent (see illustration top
of page 10). For this venting configuration, we recommend using double wall pipe
along with the rear heat shield provided with the stove. You must adhere to the clear-
ances listed below.
WITH REAR SHIELD & DOUBLE WALL CONNECTOR PIPE
A. Stove corners to side walls = 13” non door side; 18” door side (determines placement)
B. Back of pipe shield to side walls = 13” min (Approved Double Wall Connector Pipe)
C. Pipe to corner = 17” min (Approved Double Wall Connector Pipe)
4) Corner Installation, Double Wall Pipe, Back Vent
C
TOP VENT
Your stove comes with a rear heat shield attached. Do not remove the rear heat
shield; it provides extra protection in corner installations and also allows for installa-
tion closer to combustible walls than would would be possible with no shield.
WITH REAR HEAT SHIELD
A. Stove corners to side walls = 13” non door side; 18” door side (determines placement)
B. Pipe to side walls = 20” minimum
C. Pipe to corner = 26” minimum
3) Corner Installation, Single Wall Pipe, Top Vent
CLEARANCE INSTALLATION DIA RAMS
10
B
A
Illustr tion Shown with
Right Door
C
A
Illustr tion Shown with
Right Door
B

Because mobile homes are also referred to by HUD as
“manufactured” homes, regulations present a gray area.
Many “mobile” homes are set on a permanent foundation
and connected to public utilities. If you are installing a
stove in a mobile or manufactured home, check out the
requirements below and check with your local code offi-
cials. More questions? ive us a call Monday through
Saturday from 9 to 5 Eastern time at 1-800-866-4344.
While all stove installations have to meet National Fire
Safety codes, mobile homes are given special consideration
when it comes to installing a wood burning stove. These
additional regulations were established by the Department
of Housing and Urban Development (HUD), and result in
the following additional requirements:
1. Double Wall Connector Pipe
2. Outside Air for Combustion
3. Tie Downs for the Stove
4. Spark Arrestor on the Chimney Cap
5. Stove rounded to Chassis
6. Stoves May Not Be Installed in Mobile Home Bedrooms
Double wall pipe must be used to connect the stove to the
chimney. This is stove pipe that is constructed with two
walls, usually with the inner wall made of stainless steel. It
reduces the required clearance to combustible building
materials and furnishings.
Outside Air must be used for combustion. Because of the
tight construction of mobile homes, wood stoves need a
way to get adequate air from outside the home for com-
plete combustion in order to avoid the risk of depleting
oxygen in the living space. Having outside air for combus-
tion is a requirement for all woodburning stoves in the
state of Washington and is recommended for woodstoves
in “super tight” new construction.
Tie Downs: The stove must be attached to the floor. This
is to prevent tipping in the event the home is moved. (We
can provide tie downs for our stoves at no extra charge).
Spark Arrestor: The chimney cap must have a spark
arrestor screen. These are available with most prefabricated
chimney systems.
Grounding: The stove should be grounded to the home
chassis.
Not allowed in mobile home bedrooms: wood stoves are
not permitted for installation in bedrooms in mobile
homes.
The Outside Air Adapter
is built into the design of
the Absolute Steel Hybrid,
and is located at the back
of the stove. It has a four-
inch collar which allows
you to attach a four inch
pipe, usually flexible dryer
duct, from the stove to the
outside. For long runs, the
flexible pipe can transition
to PVC or aluminum pipe,
if you wish.
Mobile home with pitched roof
OBILE HO E INSTALLATION
CAUTION: THE STRUCTURAL INTEGRITY OF THE OBILE HO E FLOOR, WALL, AND CEILING/ROOF
UST BE AINTAINED.
Woodstock Soapstone Company
66Airpark Road, West Lebanon, NH 03784
800-866-4344 • www.woodstove.com
Mobile Home Prohibition:
WARNING:
DO NOT INSTALL IN SLEEPING ROO Finish Ceiling Support
rounding
Chimney Cap with Spark
Arrester
Class A Chimney
Flashing/Storm Collar
Mobile home inst ll tions require number of spe-
ci l consider tions, including dedic ted outside ir,
tie-downs, nd grounding to the ch ssis of the
mobile home.
11
Outside Air Ad pter
Tie-Downs
Attic Insulation Shield
Double Wall Connector
PIpe
Outside Air Adapter and
Duct

12
SETTIN UP YOUR STOVE
Your Model 211 Absolute Steel Hybrid woodstove has been shipped assembled except for two parts:
1) The flue collar and cover plate, including the internal cover plate shield. 2) Required bottom heat shield.
All necessary hardware and instructions are also packed in the firebox. Any optional items such as heat shields will be
packed separately.
1) How to attach the Absolute Steel Hybrid flue collar & cover plate, and the cover
plate shield:
The Absolute Steel Hybrid is designed to be vented out the top or out the rear with an
easily convertible flue collar and cover plate. Each part is secure to the stove body with 4
bolts. You will need a 7/16” wrench or socket and ratchet to install these parts. The stove
is shipped with the cover plate installed over the rear flue exit with an internally mounted
heat shield. The flue collar is packed inside the firebox.
1. Decide which way you would like to vent your stove. This may be dependent on
the location of an existing chimney or the design of an existing hearth. Always pay
close attention to required clearances when considering stove placement
TOP VENTING:
1. If you are top venting, use the (4) bolts supplied making sure that the gasket on it
is secure and stays in place while installing. Use four of the bolts to attach the flue
collar to the stove body. The holes in the stove body are threaded to accept the
bolts. Alternate between the bolts while tightening to ensure even pressure. The
bolts should be tight enough to firmly compress the gasket. Do not over tighten.
REAR VENTING:
1. If you are rear venting, the cover plate has an internally mounted stainless steel heat shield. Two of the four
mounting bolts are longer to accommodate this shield and are diagonally opposite each other. Remove the (2) hex
nuts from these longer bolts using a 7/16” wrench or socket. Remove the shield and set the shield and nuts aside
for reuse.
2. Remove the (4) mounting bolts from the cover plate and transfer the cover plate to the top of the stove. Install the
(2) longer bolts diagonally opposite from each other (doesn’t matter which 2 holes). Working through the back flue
opening, reinstall the heat shield and snug it down with the (2) nuts. Install the remaining shorter (2) bolts.
3. You can now install the flue collar on the rear of the stove using the (4) 1/4-20 hex bolts supplied.
2) Installation of the required bottom heat shield:
The Absolute Steel Hybrid was tested and listed with the use of the bottom heat shield. The bottom heat shield MUST
be installed prior to lighting the first fire. The attachment instructions can be used for both the ash pan and non-ash pan
versions of the Absolute Steel Hybrid. If your stove DOES NOT have an ash pan, the shield will be flat sheet metal
instead of formed sheet metal.
1. Locate the (4) 1/4-20 studs welded to the bottom of the stove. The studs
can be found in each corner, just behind each leg. With the attachment
flanges facing up, slide the heat shield under the stove centered on the
ash pan housing. The shield is symmetrical so there is no front or back.
2. Each attachment flange has (2) holes, one on each end. Align these holes
with the studs and push the shield up over the studs. It may be easier to
have a helper during this step.
3. Thread (1) 1/4-20 nut on each stud. 2-3 threads is all that’s necessary as
you want the shield to drop down and rest on the nuts, this will leave a
small air gap. DO NOT affix the shield firmly to the bottom of the stove.
Im ge bove shows top mounted
flue coll r nd re r cover pl te
