OWNER'S MANUAL
MODEL M1107
6" BENCH GRINDER
WITH WIDE WHEEL
Phone: [phone] • Online Technical Support: [email protected]
COPYRIGHT © APRIL, 2006 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC. Printed in China
#8123CR



















 
 
 






USE THE QUICK GUIDE PAGE LABELS TO SEARCH OUT INFORMATION FAST!
SET UP MAINTENANCEELECTRICAL PARTSOPERATIONSSAFETYINTRODUCTION
Contents
INTRODUCTION ..................................................................................................2
Woodstock Technical Support ............................................................................ 2
Specifications ............................................................................................... 2
SAFETY ............................................................................................................3
Standard Safety Instructions ............................................................................. 3
Additional Safety Instructions for Grinder ............................................................. 5
ELECTRICAL ......................................................................................................6
110V Operation ............................................................................................. 6
Extension Cords ............................................................................................ 6
Grounding ................................................................................................... 6
SET UP ............................................................................................................7
Unpacking ................................................................................................... 7
Inventory .................................................................................................... 7
Shop Preparation ........................................................................................... 8
Mounting ..................................................................................................... 8
Tool Rest and Eye Shield .................................................................................. 9
Grinding Wheel Installation .............................................................................. 9
Test Run ....................................................................................................10
OPERATIONS ................................................................................................... 11
General .....................................................................................................11
Grinding Operations ......................................................................................11
Changing Grinding Wheels ...............................................................................12
MAINTENANCE ................................................................................................. 13
General .....................................................................................................13
Lubrication & Cleaning ..................................................................................13
Troubleshooting ...........................................................................................14
M1107 Electrical System .................................................................................15
M1107 Parts Diagram .....................................................................................16
PARTS ........................................................................................................... 16
Warranty ....................................................................................................18
Warranty Registration ....................................................................................19

-2-
INTRODUCTION
M1107 Bench grinder
Woodstock Technical Support
Motor .......................................................1⁄4 HP, 110V, Single-Phase, 1725 RPM
Grinding Wheel Size and Type ........... 6" X (1⁄2" to 3⁄4"), and 6" X (3⁄4" to 11⁄2"), Type 1
Arbor Diameter ...................................................................................1⁄2"
Weight .......................................................................................... 20 lbs
INTRODUCTION
Specifications
Your new SHOP FOX® Bench Grinder has been specially designed to provide many years of trouble-free
service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe
and reliable operation.
Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to
include the basic information for safety, setup, operation, maintenance, and service of this product.
We stand behind our machines! In the event that questions arise about your machine, please contact
Woodstock International Technical Support at [phone] or send e-mail to: tech-support@shopfox.
biz. Our knowledgeable staff will help you troubleshoot problems and process warranty claims.
If you need the latest edition of this manual, you can download it from http://www.shopfox.biz.
If you have comments about this manual, please contact us at:
Woodstock International, Inc.
Attn: Technical Documentation Manager
P.O. Box 2309
Bellingham, WA 98227

-3-
M1107 Bench grinder
SAFETY
SAFETY
READ MANUAL BEFORE OPERATING MACHINE.
FAILURE TO FOLLOW INSTRUCTIONS BELOW WILL
RESULT IN PERSONAL INJURY.
Standard Safety Instructions
1. THOROUGHLY READ THE INSTRUCTION MANUAL BEFORE OPERATING YOUR MACHINE. Learn the
applications, limitations and potential hazards of this machine. Keep the manual in a safe and con-
venient place for future reference.
2. KEEP WORK AREA CLEAN AND WELL LIGHTED. Clutter and poor lighting invite potential hazards.

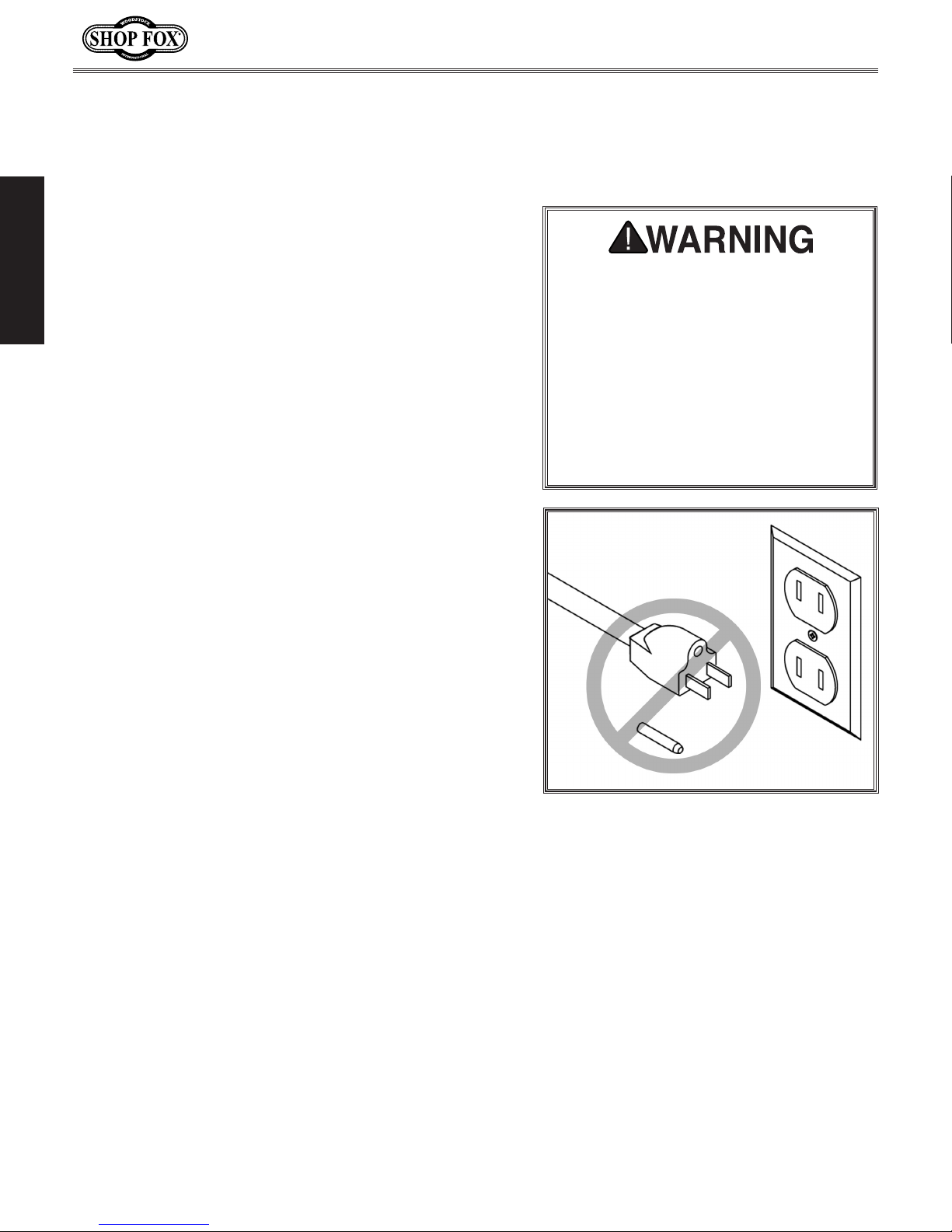

3. GROUND ALL TOOLS. If a machine is equipped with a three-prong plug, it must be plugged into a
three-hole grounded electrical receptacle or grounded extension cord. If using an adapter to aid in
accommodating a two-hole receptacle, ground using a screw to a known ground.
4. WEAR EYE PROTECTION AT ALL TIMES. Use safety glasses with side shields or safety goggles that
meet the appropriate standards of the American National Standards Institute (ANSI).
5. AVOID DANGEROUS ENVIRONMENTS. Do not operate this machine in wet or open flame environ-
ments. Airborne dust particles could cause an explosion and severe fire hazard.
6. ENSURE ALL GUARDS ARE SECURELY IN PLACE and in working condition.
7. MAKE SURE SWITCH IS IN THE OFF POSITION before connecting power to machine.
8. KEEP WORK AREA CLEAN, free of clutter, grease, etc.
9. KEEP CHILDREN AND VISITORS AWAY. Visitors must be kept at a safe distance while operating
unit.
10. CHILDPROOF YOUR WORKSHOP WITH PADLOCKS, master switches or by removing starter keys.

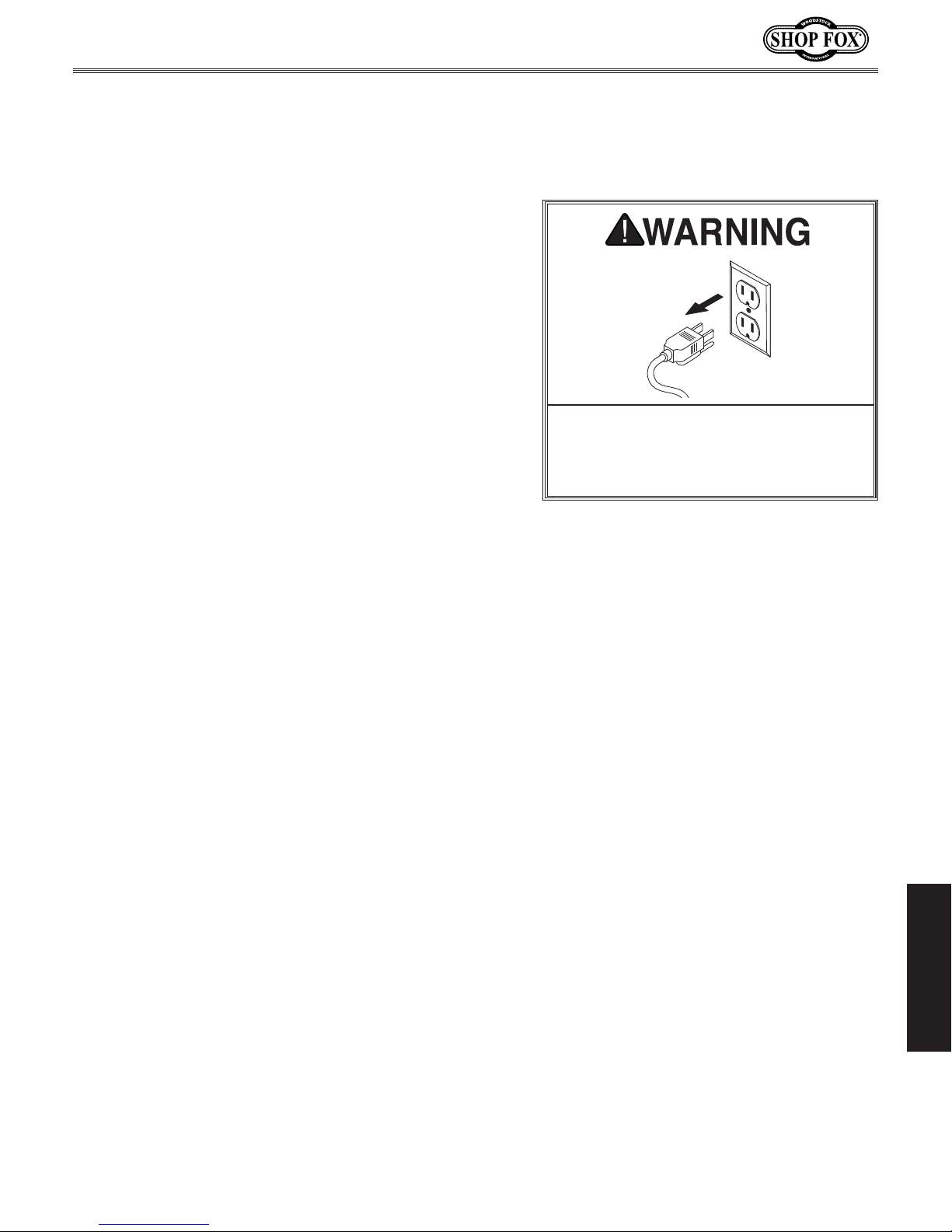

11. STOP AND DISCONNECT THE MACHINE WHEN CLEANING, ADJUSTING OR SERVICING.
Indicates an imminently hazardous situation which, if not avoided, WILL
result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, COULD
result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, MAY
result in minor or moderate injury.
This symbol is used to alert the user to useful information about proper
operation of the equipment, and/or a situation that may cause damage
to the machinery.
NOTICE
