Woody Standard Series User manual

Les Équipements Woody inc. 205, rue commercial Saint-Odilon, Québec G0S3A0
Tél./ Tel. [phone] Fax. [phone]
Courriel/Email: [email protected] Site Web/ Website : www.equipementswoody.com
Facebook: Les Équipements Woody
Woody Dump Trailer
Standard Series
4X8 - 4x10 - 5X10
6x12- 7x12

Les Équipements Woody Inc.
Owners: Jérôme & Sébastien Labbé
205 rue commerciale
St-Odilon de cranbourne
Beauce-Nord
Québec, Canada
G0S 3A0
Phone. [phone]
Fax. [phone]
Email : [email protected]
Web Site: www.equipementswoody.com
Facebook: Les Équipements Woody
Les Équipements Woody Inc.
C
All Rights Reserved: Woody Equipment inc. of Saint-Odilon-de -ranbourne.
No part of this manuel may be reproduced in any form without the written
permission of Woody Equipment Inc.

Table of Contents
Introduction.......................................................................1
Warning.............................................................................2
Dump trailer, model 4x8 part list.....................................3
Dump trailer, model 4x10 part list...................................4
Dump trailer, model 5x10 part list...................................5
Dump trailer, model 6x12 part list................................6-7
Dump trailer, model 6x12 part list................................8-9
Dump trailer, model 7x12 part list............................10-11
Dump trailer, model 7x12 part list............................12-13
Splindle & Hub parts list..................................................14
Safety Operation.............................................................15
Safety Instructions......................................................16-21
Warranty......................................................................22-23

1
Introduction
Congratulations on your purchase of a Woody Dump Trailer. Woody Equipment
designs and manufactures equipment according to very strict criteria. This equipment
is intended for professional use in the agricultural and forestry sectors.
Even if you have experience with this type of product, we recommend that you read
these instructions carefully. These instructions contain important information on safety
and efficiency and to ensure the validity of the factory guarantee.
Woody Equipment reserves the right to modify and / or improve its equipment and
maintenance instructions, as well as to revise data without notice.
Write down the serial number, model number, purchased date, dealer name, and sales
representative’s name. Keep this information available for ordering parts as well as for
any technical assistance or warranty issue.
Serial number
Model
Delivery Date
Distributor
Vendor name

2
The following symbols used in this manual are to warn the operator of the dangers
connected to the use of this machinery. Follow the safety instructions to avoid any risk of
serious injury or death.
Warning

8
4
5
17
14
3
18
15 1320
7
19
16
2
10
12
1
21
11
9
6
3

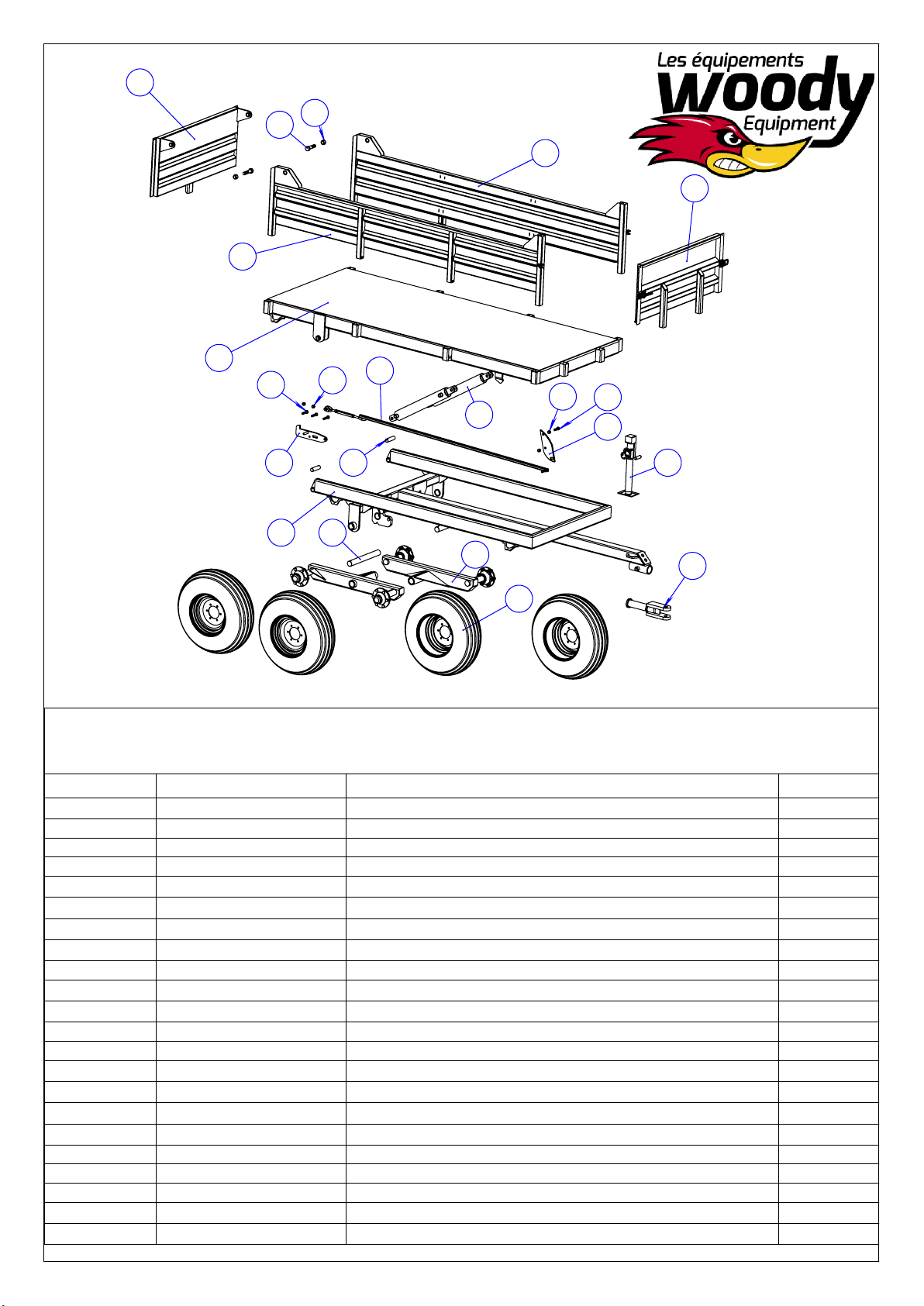

4x8 Trailer parts
No.
Parts#
Descriptions
Qty
1 59-022-06 Trailer axle with 3500 lb hub 2
2 59-022-01 Frame dump trailer 4 x 10 STD 1
3 59-022-02 Frame Baseplate 4 x 8 STD 1
4 59-022-03 Front trailer 48" 1
5 59-022-04 Left side pannel 1
6 59-022-05 Right side pannel 1
7 59-022-07 Open door arm 1
8 59-022-08 Back pannel 1
9 59-003-08 Agricultor swivel hitch 1
10 120331 Hydraulic cylinder H C L 2518 2
11 302000 Tire 11L15 8 ply 5 nuts 3500 lb 4
12 303020 Hitch 6000 lb 1
13 301570 Lock Nut 5/8''-11 5
14 301500 Lock Nut 1''-8 2
15 300830 Bolt 5/8"-11 x 2 1/2" Lenght x 1 1/2" Thread 3
16 300820 Bolt 5/8"-11 x 2" Lenght x 1 1/2" Thread 1
17 300300 Bolt 1"-8 x 4" Long x 2 1/4" Thread 2
18 59-003-017 Lock mechanism for back door 1
19 59-003-054 Trailer dump plate 1
20 86-20-72-E08-00 Pin 2
21 86-31-189-F12-00 Shaft 1 15/16" O.D. 2

4
16 13
7
5
8
6
11
1
12
14
2018
3 19
2
10
34
9
17
15
12
4

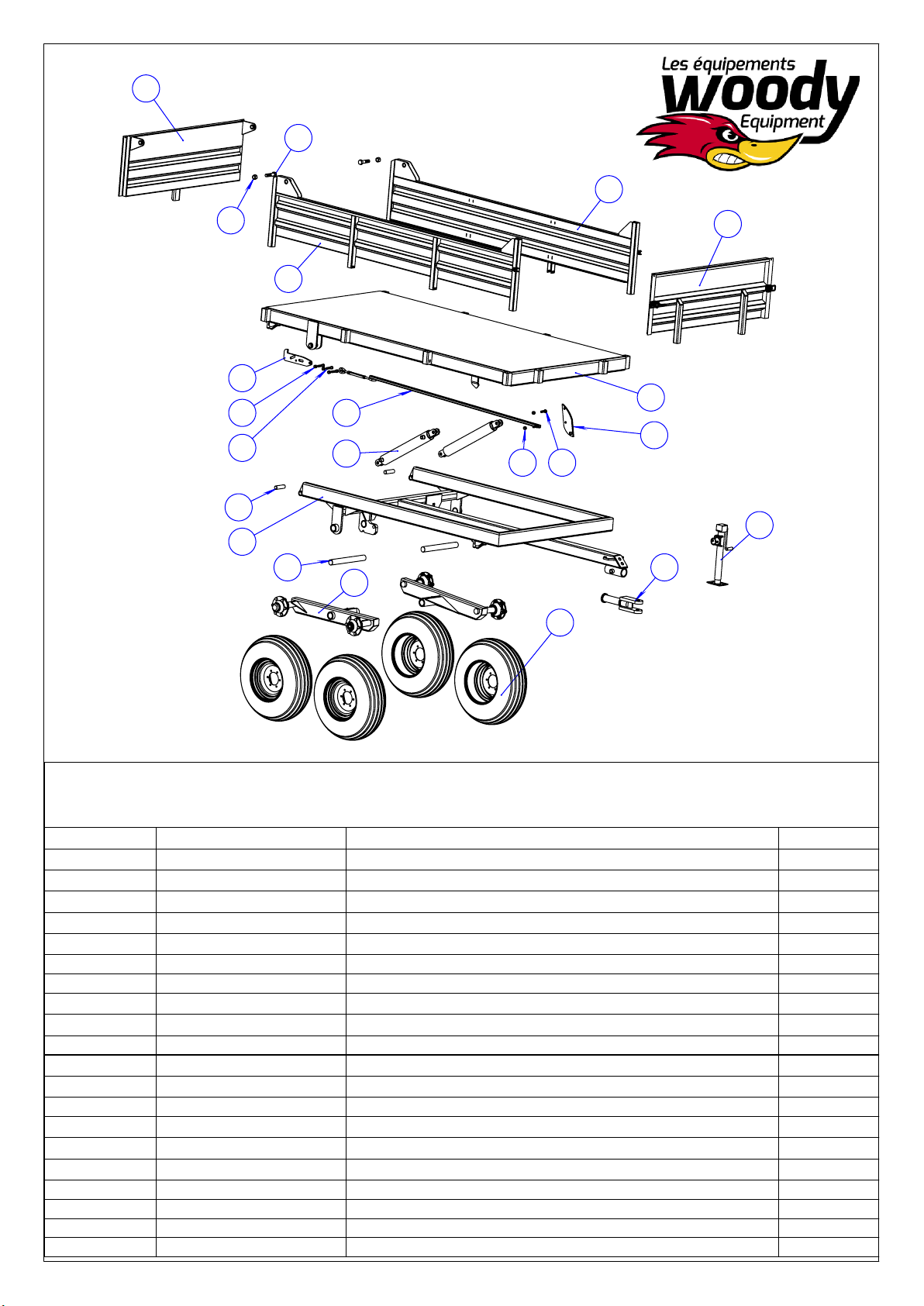

4x10 trailer parts list
No.
Parts#
Description_En Qté
1 59-003-09 Back door opener 1
2 59-003-07 Tandem axle 40" 2
3 59-017-01 Trailer base with 4x10 STD 1
4 59-017-02 Pannel 4x10 1
5 59-003-04 Right side pannel 1
6 59-017-03 Front pannel 1
7 59-003-02 Left side pannel 1
8 59-017-04 Trailer baseplate dump trailer 4 x 10 (48" x 116") 1
9303020 Hitch 6000 lb 1
10 302010 Tire 11L15 8 ply 6 nuts 5000 lb 4
11 120501 Hydraulic HCL 30x20 2
12 301570 Lock Nut 5/8''-11 5
13 301500 Lock Nut 1''-8 2
14 300830 Bolt 5/8"-11 x 2 1/2" Lenght x 1 1/2" Thread 3
15 300820 Bolt 5/8"-11 x 2" Lenght x 1 1/2" Thread 1
16 300300 Bolt 1"-8 x 4" Long x 2 1/4" Thread 2
17 59-003-054 Trailer dump plate 1
18 59-003-017 Lock mechanism for back door 1
19 86-31-285-F12-00 Shaft 1 5/16 O.D. 2
20 86-20-72-E08-00 Pin 2
34 59-003-08 Agricultor swivel hitch 1
35 140000 Dust caps 1/2" Red 2

5
2
3
18
16
4
1
10
17
15
9
11
20
6
19
7
12
8
13
30
17 14
5
5x10 trailer parts list
No.
Parts#
Description Qty
1 59-003-01 Trailer platform 1
2 59-003-02 Left side pannel 1
3 59-003-03 Front pannel 1
4 59-003-04 Right side pannel 1
5 59-003-05 Back pannel 1
6 59-003-06 Trailer 5x10 base and axle 1
7 59-003-07 tandem axle 2
8 59-003-08 Agricultor swivel hitch 1
9 59-003-09 Back door opener 1
10 59-003-017 Lock mechanism for back door 1
11 120501 Hydraulic HCL 30x20 2
12 302010 Tire 11L15 8 ply 6 nuts 5000 lb 4
13 303020 Hitch 6000 lb 1
14 300820 Bolt 5/8"-11 x 2" Lenght x 1 1/2" Thread 1
15 300830 Bolt 5/8"-11 x 2 1/2" Lenght x 1 1/2" Thread 3
16 300300 Bolt 1"-8 x 4" Long x 2 1/4" Thread 2
17 301570 Lock Nut 5/8''-11 5
18 301500 Lock Nut 1''-8 2
19 86-31-285-F12-00 Shaft 1 5/16 O.D. 2
20 86-20-72-E08-00 Pin 2

6
4
3
5
14 13
2
8
10
16
17
15
19 17
22
18
19 9
13
14
120
39
11
24
23
12
21
38
7
6

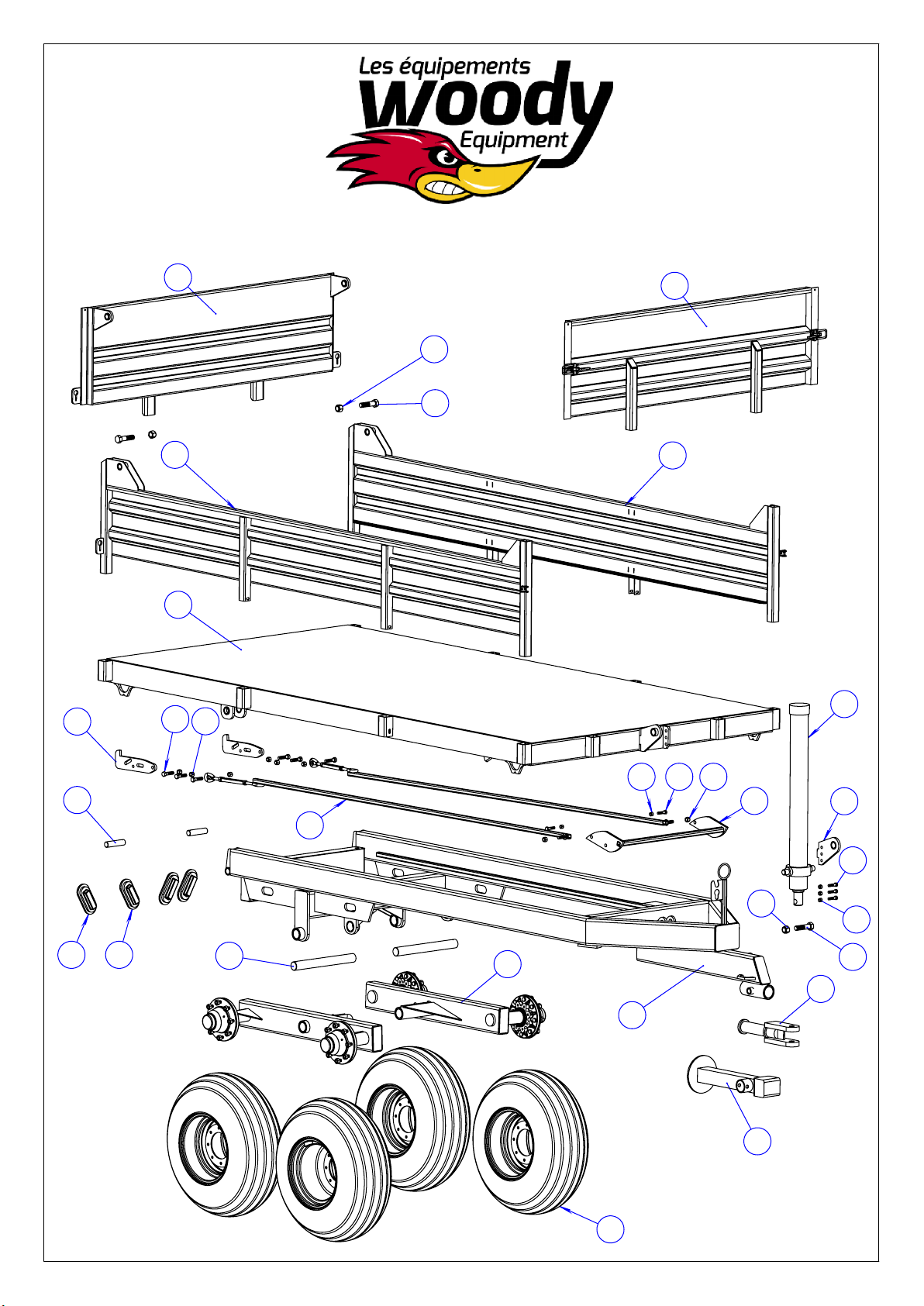

6x 12 5000lbs hub part list

7
6x12 hub 5000lbs trailer parts
No.
# de pièce
Description_En Qté
1 59-066-01 Axle base dump trailer 1
2 59-004-01 Dump trailer baseplate 6x12 1
3 59-004-02 Left side pannel 1
4 59-004-03 Front pannel 1
5 59-004-04 Right side pannel 1
6 59-004-05 Back pannel 1
7 59-066-03 Lever arm 1
8 59-066-04 Back door openning arm 12' 2
9 59-066-05 7 ton cylinder fixed plate 1
10 59-003-017 Lock mechanism for back door 2
11 86-20-84-E08-00 Pin 2
12 86-31-285-F12-00 Shaft 1 5/16 O.D. 2
13 300300 Bolt 1"-8 x 4" Long x 2 1/4" Thread 3
14 301500 Lock Nut 1''-8 3
15 300010 Bolt 1/2"-13 x 1 1/2" Lenght x 1 1/4" Thread 2
16 300830 Bolt 5/8"-11 x 2 1/2" Lenght x 1 1/2" Thread 6
17 301570 Lock Nut 5/8''-11 8
18 300030 Bolt 1/2"-13 x 2" Lenght x 1 1/4" Thread 3
19 301510 Lock Nut 1/2"-13 5
20 303030 Hitch 8000-9000lb 1
21 302020 Tire 12.5L15 10ply 6 nuts 4
22 121120 Telescopic cylinder 7 ton - 108" 1
23 310500 Parking Light (Yellow) 2
24 310510 Parking Lights (Red) 2
37 59-024-03 Tandem Axle 1
38 59-024-03 Tandem Axle 1
39 59-003-08 Agricultor swivel hitch 1

64
14
15
3
5
2
22
23
7
181621
8
11
12
24 25 13
1
10
19
9
20
17 18
16
21
15
14
8

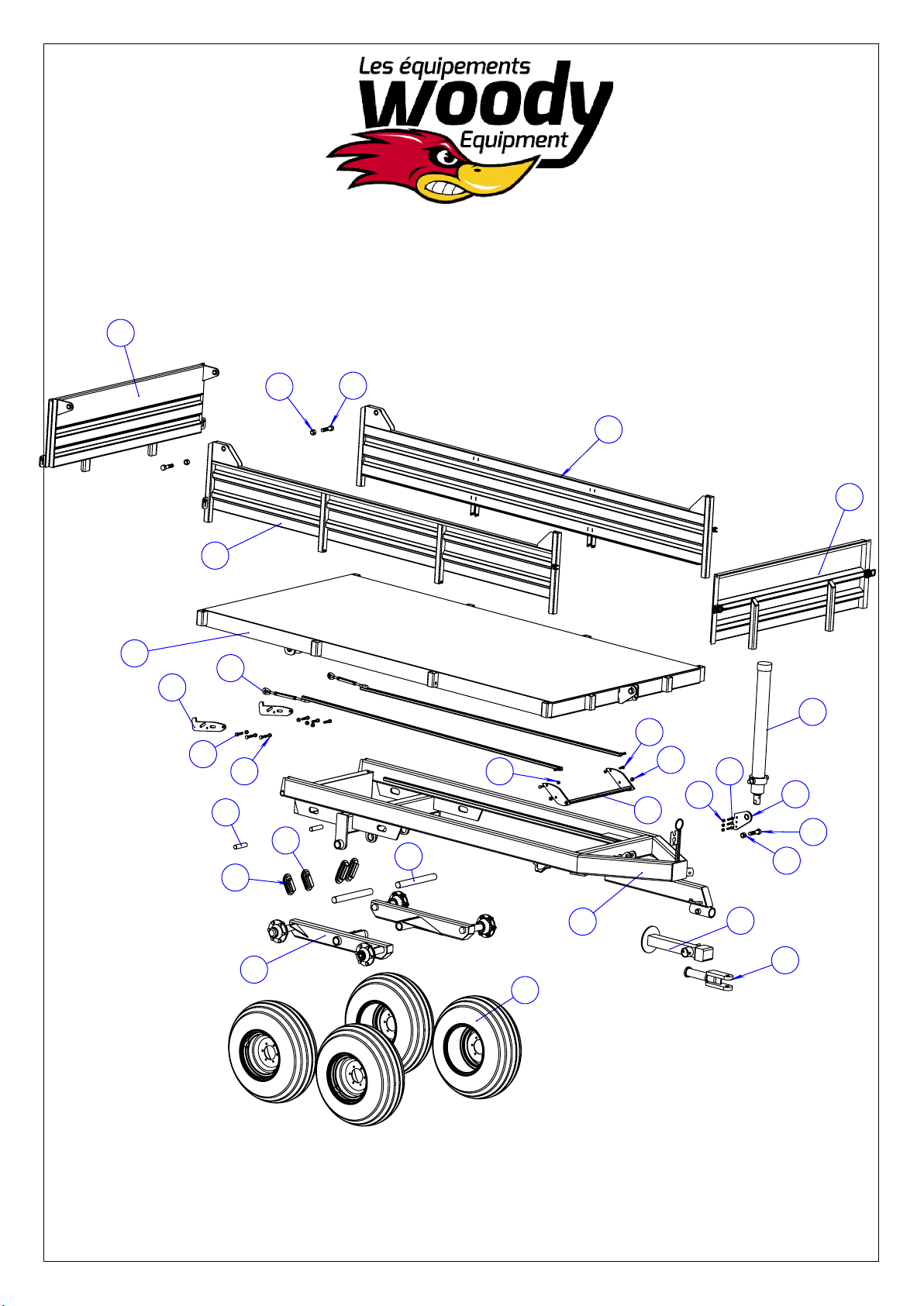

6x 12 8000lbs Hub trailer parts list

9
6x12 hub 8000lbs trailer parts list
No.
# de pièce
Description_En Qté
1 59-090-02 Trailer axle base assembly 1
2 59-090-11 Baseplate 6x12 1
3 59-090-08 Left side pannel 1
4 59-090-09 Front pannel 1
5 59-090-10 Right side pannel 1
6 59-004-05 Back pannel 1
7 59-066-03 Lever arm 1
8 59-066-04 Back door openning arm 12' 2
9 59-090-03 HSSR 6 x 3 8000lb axle 2
10 59-003-08 Agricultor swivel hitch 1
11 59-003-017 Lock mechanism for back door 2
12 86-20-84-E08-00 Pin 2
13 86-31-285-F12-00 Shaft 1 5/16 O.D. 2
14 300300 Bolt 1"-8 x 4" Long x 2 1/4" Thread 3
15 301500 Lock Nut 1''-8 3
16 300030 Bolt 1/2"-13 x 2" Lenght x 1 1/4" Thread 5
17 300830 Bolt 5/8"-11 x 2 1/2" Lenght x 1 1/2" Thread 6
18 301570 Lock Nut 5/8''-11 8
19 303030 Hitch 8000-9000lb 1
20 302030 Tire 12.5L15 12 ply 8 nuts 4
21 301510 Lock Nut 1/2"-13 5
22 121120 Telescopic cylinder 7 ton - 108" 1
23 59-122-07 7 ton cylinder fixation plate 1
24 310500 Parking Light (Yellow) 2
25 310510 Parking Lights (Red) 2

12 5
4
6
17 16
2
15
22 21 22
10
11
8238
20 14
1
22
30
7
17 16
9
13
3
24
25
19
18
7x12 tire 12.5L15 - Trailer parts list
10

11
7x 12 tire 12.5L15 8000lbs hub Trailer
No.
# de pièce
Description_En Qté
1 59-082-01 trailer axle base 1
2 59-082-02 Baseplate 1
3 59-082-07 HSSR 6x3 8000lb tandem 2
4 59-067-10 Left side pannel 1
5 59-082-03 front side pannel 1
6 59-067-16 right side pannel 1
7 59-109-16 Fixation plate 12 ton cylinder 1
8 59-003-017 Lock mechanism for back door 2
9 59-109-15 Agricultor swivel hitch 1
10 59-067-06 Openning lever arm 1
11 59-066-04 Back door openning arm 12' 2
12 59-067-04 Back door pannel 1
13 59-082-016 Shaft 1 15/16 O.D. 2
14 86-20-96-E08-00 Pin 2
15 121130 Telescopic cylinder 12 ton 108" 1
16 300300 Bolt 1"-8 x 4" Long x 2 1/4" Thread 3
17 301500 Lock Nut 1''-8 3
18 303030 Hitch 8000-9000lb 1
19 302040 Tire 12.5L-16 12 PLY 8 nuts 4
20 300830 Bolt 5/8"-11 x 2 1/2" Lenght x 1 1/2" Thread 6
21 300010 Bolt 1/2"-13 x 1 1/2" Lenght x 1 1/4" Thread 2
22 301510 Lock Nut 1/2"-13 6
23 301570 Lock Nut 5/8''-11 9
24 310500 Parking Light (Yellow) 2
25 310510 Parking Lights (Red) 2

12
5
16
15
4
6
2
14
7
22
23
15
16
19 20 10
11
25
24
818 20
1
13
3
21
17
9
12

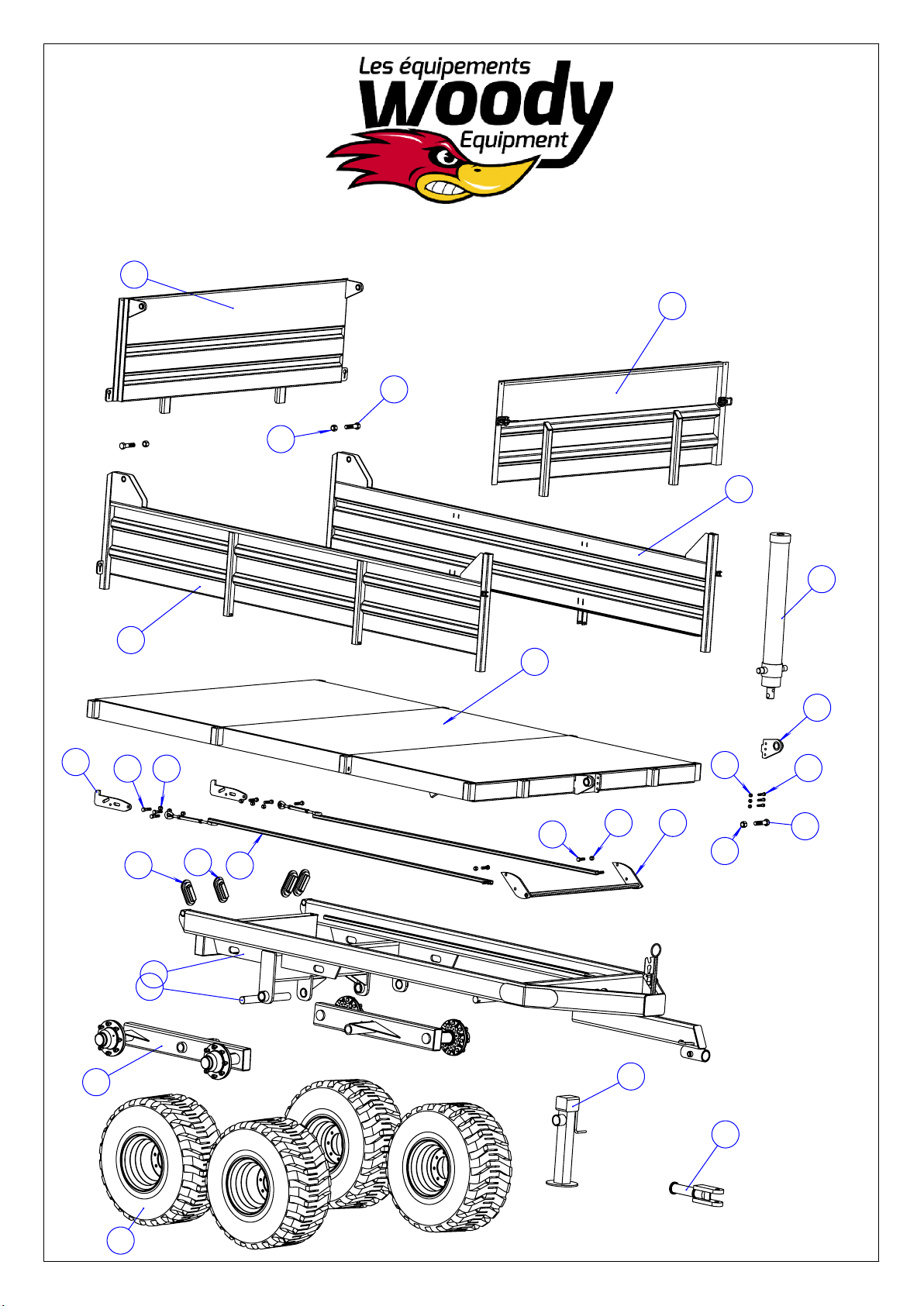

7 x 12 Tire 400-60-15.5 trailer

13
7 x 12 Tire 400-60-15.5 trailer Parts list
No.
# de pièce
Description_En Qté
1 59-152-01 Axle base trailer 1
2 59-152-02 Trailer base 1
3 59-082-07 HSSR 6x3 8000lb tandem 2
4 59-067-10 Left side pannel 1
5 59-082-03 front side pannel 1
6 59-067-16 right side pannel 1
7 59-109-16 Fixation plate 12 ton cylinder 1
8 59-003-017 Lock mechanism for back door 2
9 59-109-15 Agricultor swivel hitch 1
10 59-067-06 Openning lever arm 1
11 59-066-04 Back door openning arm 12' 2
12 59-067-04 Back door pannel 1
13 59-082-016 Shaft 1 15/16 O.D. 2
14 121130 Telescopic cylinder 12 ton 108" 1
15 300300 Bolt 1"-8 x 4" Long x 2 1/4" Thread 3
16 301500 Lock Nut 1''-8 3
17 303030 Hitch 8000-9000lb 1
18 300830 Bolt 5/8"-11 x 2 1/2" Lenght x 1 1/2" Thread 6
19 300820 Bolt 5/8"-11 x 2" Lenght x 1 1/2" Thread 2
20 301570 Lock Nut 5/8''-11 10
21 302070 400-60-15.5 Tire 8 nuts 4
22 300030 Bolt 1/2"-13 x 2" Lenght x 1 1/4" Thread 3
23 301510 Lock Nut 1/2"-13 3
24 310500 Parking Light (Yellow) 2
25 310510 Parking Lights (Red) 2

6
875310
1311
112924
14
Items 1250 lbs 3500 lbs 5000 lbs 8000 lbs 10000 lbs 12000 lbs 16000 lbs
1306001 306100 306201 306300 306401 306501 306801
2306003 306103 306203 306304 306403 306503 306803
3306003 306104 306204 306303 306404 306504 306804
4306005 306107 306207 306340 307407 306507 306807
5n/a 306113 306113 306313 n/a n/a n/a
6306006 306108 306208 306308 306308 306508 306808
7306007 306109 306309 306309 306409 306509 306809
8306008 306110 306210 306310 306310 306510 306810
9306004 306105 306205 306305 306405 306505 306805
10 306004 306180 306206 306306 306406 306506 306806
11 n/a n/a 310020 310020 n/a n/a n/a
12 n/a 306111 n/a 306310 306311 306511 306811
13 306010 306010 n/a 306312 306312 306512 306812

General safety rules:
Read this instruction manual carefully before using the dump trailer. The
technical data in this manual contains important information.
Improper use can result in injury and damage to the equipment.
Woody dump trailers are intended for normal use in the agricultural and
forestry sectors. They must be used only by persons trained in
the handling of this type of machinery.
Before connecting the dump trailer to the tractor's hydraulic system, you must
read the tractor's instruction manual to ensure proper
connections.
Be extremely careful when connecting the dump trailer to the tractor or the
trailer to the tractor, as well as when detaching it.
When operating, make sure everyone remains in the safety zone, outside of
the loader risk area. The user and operator of the
excavator must have full visibility of the work area..
When operating, do not insert your hand or any other part of your body into
the machine or under the load. Do not risk getting stuck
between the different parts of the dump trailer or between the tractor and the
dump trailer.
Do not forget to lower the gravel dump box before moving the trailer.
When loading, always engage the tractor handbrake.
Never use the dump trailer to pull, push or hit.
Be particularly careful when loading and unloading heavy materials.
Never use the loading device during transport.
To stop the machine, turn off the engine, engage the handbrake and remove
the key from the ignition to prevent unauthorized use
The dump trailer is not intended for transporting people .
Be very careful when loading or unloading near high voltage lines. Keep a
safe distance from live cables.
Operation
15

Safety Instructions
If the overload protection of the hydraulic system is not properly adjusted or
certain system functions are altered, safety cannot be ensured.
Always check that any unauthorized personnel remains outside the work risk area.
Make sure that the tractor and trailer are always on firm ground so that there is no risk of
overturning when loading
or unloading.
Make sure you always have a visual view of the work area.
Do not work in conditions where you may get your fingers caught or hurt yourself.
When there is a risk of overturning, immediately lower the gravel box with the
control lever.
Hold the lever in this position until the load is on the ground. Do not interrupt the lowering
movement as the risk of
overturning will increase if the load stops abruptly.
If the tractor rolls over, follow the instructions in the cab. Do not jump out of the cab. You could
end up under the
load during a fall or under the tractor.
Cracks in hydraulic hoses
In the event of pressure loss in the hydraulic fluid or cracks in the hydraulic hoses, you must
immediately shut
down the tractor engine and lower the dump trailer gravel box to the ground. Stop the hydraulic
flow. Repair the
leak
If the main pressure hose is cracked, you must interrupt the oil flow by disconnecting the lever
control associated
with the tractor's hydraulic distributor or by shutting off the engine with the OFF button.
17

Safety Instructions
Driving on the Road
Observe the following instructions to avoid any risk of accident
Position during Transport
Make sure that the dump trailer is firmly attached to the transportation trailer, so that it does not
fall off during transport.
Make sure that no additional equipment connected to the dump trailer is likely to cause an
accident during transport.
Control is Important
You must constantly be in control of the dump trailer at all times and in all situations.
Check that the "slow vehicle" plate and the reflective signals are correctly positioned. Check if
the trailer lights are functioning
correctly and check the tire pressure.
The total permitted weights (in particular the weight of the axle) and the transport dimensions
must never be exceeded.
You must adapt your speed to the driving situation. Drive with caution when one side is tilted, as
well as on sloping ground.
There is a risk of over turning.
Respect the laws of the road and applicable regulations.
The braking distance of a tractor equipped with a trailer is longer than for other vehicles, beware
of the risk of skidding and
check for irregularities in the road.
Secure the load and other loose parts securely.
Oil and Grease Caution
Avoid any oil or grease contact with the skin during maintenance. Wear appropriate protective
clothing.
Never wash your hands with lubricating oil or grease. It may damage your skin. If your skin is
irritated after contact with oil or
grease, contact a doctor immediately.
When servicing, waste oil should be disposed of in accordance with local regulations.
16
