WOR(I)D Helo LX+ User manual

USER GUIDE
EN / IT / ES /FR /RU /TR /DE

Getting Started
Welcome to the new dimension of mobile
wellness with HELO™ LX+.

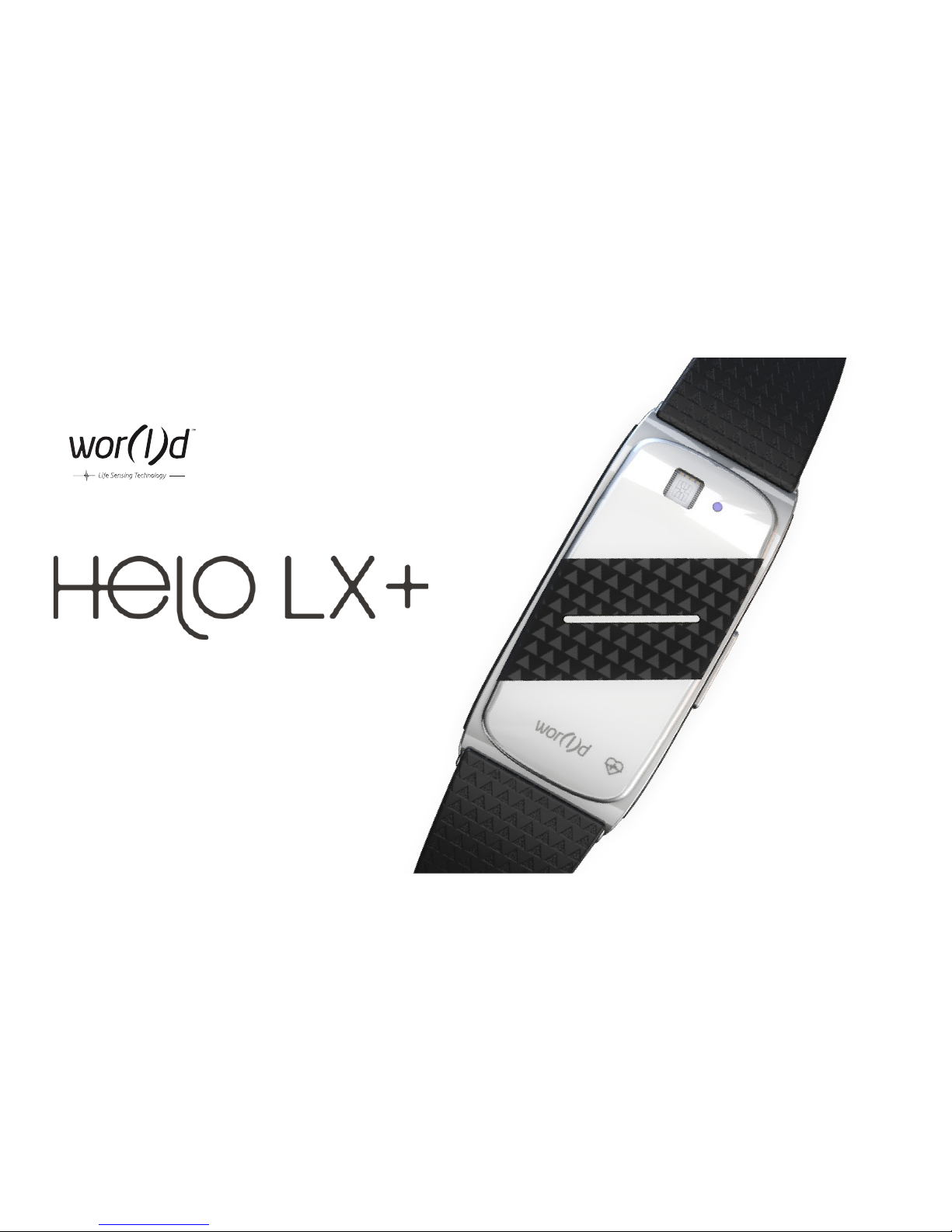

HELO™ LX+ is the head of a new generation of
devices that monitor yowwur bio-parameters
through the power of Life Sensing Technology.
With its Clinical Grade Sensors, HELO™ LX+ learns
from your behaviors and gives you a complete
analysis of your wellness.
USER GUIDE - EN

WHAT IS INCLUDED IN THE PACK
1. HELO™ LX+ wristband
2. Charger cable
3. HELO™ User Guide
4. XS Black Band
5. XL Black Band
HELO™ LX+ wristband is made of two parts: the
removable band and the device body with the
sensors.
1.
3.
2.
USER GUIDE - EN
4.
5.

HELO™ LX+ FEATURES
CLINICAL GRADE SENSORS
2 GREEN SENSORS - RED SENSOR - NIR SENSOR
- UV SENSOR - SKIN CONTACT SENSOR
HIGH RESOLUTION RAW DATA
3 AXIS ACCELEROMETER
INTERCHANGEABLE BANDS
GYROSCOPE
COMPACT DESIGN
5 DAY BATTERY
WIRELESS CHARGER
1 ATM WATERPROOF
BLE CONNECTION
LIGHTWEIGHT 22 GR
XS AND XL BANDS INCLUDED
EXPAND HELO™ LX+ WITH HELOAPPSTORE
OPEN API 2.0
USER GUIDE - EN

This new generation of personal Device by
WOR(l)D is characterized by extraordinary
features:
Dimensions:
• Body Size: 46.5mm x 18.6mm x 11.5mm
• Body Weight: 22 g
Materials:
• Body Front cover: IML process
• Body Back cover: ABS + 304 Stainless steel,
polishing surface.
• Band: Silicon injection
• Band Buckle: Titanium alloy material with CNC
cutting process.
Hardware:
• Sensors: PPG sensors (Red LED - 2 GREEN LED) +
NIR + UV sensor + Skin Contact Sensor
• Chipset: TZ1041 + TI1292 + SI1133
• Battery: 120mA Li-polymer Battery
• Connection: Bluetooth 4.1
KNOW YOUR HELO™ LX+
A - HELO™ LX+ button
The HELO™ LX+ button has different functions:
• Press for 2 seconds to TURN ON HELO™ LX+;
• Press for 5 seconds to TURN OFF HELO™ LX+;
• Press for 8 seconds to RESET HELO™ LX+;
• Double click to activate additional functions
USER GUIDE - EN

B – Sensors with LEDs
Allows, at contact with your skin, to collect your
bio-parameters.
When in use, the Green or/and Red LED is on.
C – Charging Connectors
On which the cable engagement charging takes
place.
D - Plate
Additional contact with your skin.
A
B
C
D
USER GUIDE - EN

USER GUIDE - EN
E - Status LED
Indicates the status of your HELO™ LX+. It shows
the different status of the system (it can be fixed
or blink):
• Red LED: Indicates battery status
• Green LED: Indicates operational but not linked
status
• Blue LED: Indicates linked status
• Yellow LED: Indicates measurements status
F - UV Sensor
Sensor that allows monitoring of your exposure to
UV Rays.
F
E

HOW TO APPLY THE STONES
The band of HELO™ LX+ allows you to put in
different Titanium plates, which include Germanium
stones.
The application of the plates is very simple: you
just need to align the hooks of each plate with the
specific slits that you will find in the internal part
of the band, and press slightly to hook them in.
The plates can be removed and replaced again at
any time and at the height you prefer.
Be careful that they are not covered by the band
itself and that they are in contact with your skin, in
a comfortable way and without forcing. The stones
must be kept clean and safe from impurities.

HOW TO WEAR HELO™ LX+
For correct use, keep your wristband very close to
your skin, keeping the sensor window clean.
It is best to wear HELO™ LX+ on the left wrist, in a
high position, for more accurate measurements.
Wear the wristband:
1. Place your HELO™ LX+ around your wrist, making
sure that it on correctly, with the LED placed in the
farthest part from your body.
2. Run the part of the band with the closure hook
inside the round hole that is on the other part of
the band.
3. Align the pegs of the hook with the two holes
that give you the best wearability.
4. Push the hook with the thumb and the index
finger until the pegs are completely fitted in the
desired holes.
USER GUIDE - EN
