Worcester GREENSTAR UTILITY 32/50 User manual

GREENSTAR UTILITY
32/50 & 50/70
FLOOR STANDING OIL-FIRED CONDENSING BOILER
CONVENTIONAL FLUE & ROOM SEALED FLUE
FOR FULLY PUMPED OPEN VENT OR SEALED CENTRAL HEATING SYSTEMS AND
DOMESTIC HOT WATER CYLINDERS
THE BOILER IS FOR USE WITH
KEROSENE (28 SECOND OIL) ONLY
UK
USER INSTRUCTIONS & CUSTOMER CARE GUIDE
8 716 109 712b 07.10 12/7/10 12:28 Page 1

USER INSTRUCTIONS &
CUSTOMER CARE GUIDE
GREENSTAR UTILITY 32/50 - 50/70
8 716 109 712b (07.2010)
CONTACT INFORMATION
WORCESTER, BOSCH GROUP:
TECHNICAL: 0844 892 3366
SERVICE: 0844 892 3000
SERVICE (EIRE) 01494 0099
LITERATURE: 0844 892 9800
SALES: 01905 752640
WEBSITE: worcester-bosch.co.uk
USER INSTRUCTIONS &
CUSTOMER CARE GUIDE
PLEASE READ THESE
INSTRUCTIONS CAREFULLY BEFORE
OPERATING YOUR BOILER
THESE INSTRUCTIONS ARE
APPLICABLE TO THE WORCESTER
BOILER MODEL(S) STATED ON THE
FRONT COVER OF THIS MANUAL ONLY
AND MUST NOT BE USED WITH ANY
OTHER MAKE OR MODEL OF BOILER.
THE INSTRUCTIONS APPLY IN
MAINLAND UK ONLY AND SHOULD
BE FOLLOWED EXCEPT FOR ANY
STATUTORY OBLIGATION.
IF YOU ARE IN ANY DOUBT CONTACT
THE WORCESTER, BOSCH GROUP
TECHNICAL SUPPORT.
THIS BOILER MUST BE INSTALLED BY
A OFTEC REGISTERED, COMPETENT
PERSON. FAILURE TO INSTALL
CORRECTLY COULD LEAD TO
PROSECUTION.
PLEASE LEAVE THIS GUIDE, THE
INSTALLATION INSTRUCTIONS AND
THE COMPLETED CHECKLIST WITH
THE USER.
NOTE: A CHECKLIST AND SERVICE
INTERVAL RECORD CAN BE FOUND
AT THE REAR OF THE INSTALLATION,
COMMISSIONING AND SERVICE
INSTRUCTIONS.
ABBREVIATIONS:
SEDBUK Seasonal Efficiency for Domestic
Boilers in the United Kingdom.
OFTEC Oil Firing Technical Association for the
Petroleum Industry.
8 716 109 712b 07.10 12/7/10 12:28 Page 2

CONTENTS
GREENSTAR UTILITY 32/50 - 50/70
8 716 109 712b (07.2010)
1
CONTENTS
INTRODUCTION
SAFETY PRECAUTIONS 2
USING YOUR BOILER
CONTROLS 3
OPERATING THE BOILER
Switching the boiler on/off 4
Setting the heating temperature 4
Controlling central heating 4
Frost protection 5
Fault conditions 6
Fault finding 7
MAINTENANCE
MAINTAINING YOUR BOILER 8
SERVICING 9
GENERAL INFORMATION
VENTILATION INFORMATION 10 - 11
GENERAL NOTES 12
ENERGY SAVING
TIPS ON ENERGY SAVING 13
GUARANTEE
FAULT OR BREAKDOWN 14
YOUR GUARANTEE AND REGISTRATION 15
INTRODUCTION
USING YOUR
BOILER
GENERAL
INFORMATION MAINTENANCE
ENERGY
SAVING
GUARANTEE
PLEASE READ THESE INSTRUCTIONS CAREFULLY
These instructions are applicable to the Worcester, Bosch Group model stated on the front cover only.
These instructions apply in the UK/IE only and must be followed except for any statutory obligation.
After installation please leave this User Manual along with the Installation, Commissioning and
Servicing Instructions and completed Benchmark Checklist with the user.
DEDICATED TO HEATING COMFORT
Thank you for purchasing a Greenstar oil fired condensing boiler from Worcester, Bosch Group. The
company prides itself on manufacturing boilers to the strictest quality control standards throughout
every stage of production.
Worcester, Bosch Group has led the field in innovative boiler design and performance for almost 50
years. This heritage means that all our products are of exceptional quality and proven reliability.
The condensing range in particular, is extremely energy efficient, offering you economical running
costs and value for money. It sits in SEDBUK Band A, and is therefore amongst the top energy rated
boilers available.
There is also the assurance of our no-nonsense 2 years parts and labour guarantee - backed up by
Worcester Total Cover, an optional complete maintenance scheme to keep your boiler operating at
peak condition and efficiency.
NOTES
8 716 109 712b 07.10 12/7/10 12:28 Page 3

SAFETY PRECAUTIONS GREENSTAR UTILITY 32/50 - 50/70
8 716 109 712b (07.2010)
2
INTRODUCTION
SAFETY PRECAUTIONS
OIL FUMES OR LEAKS FROM THE BOILER:
Extinguish any naked flames.
Open windows and doors.
Switch off the boiler electricity supply.
Isolate the fuel supply to the boiler.
Contact installer/service engineer.
IMPORTANT:
This boiler must only be operated by a responsible adult who has been instructed in,
understands and is aware of the boiler’s operating conditions and effects.
HEALTH & SAFETY:
The appliance contains no asbestos and no substances have been used in the construction
process that contravene the COSHH Regulations (Control of Substances Hazardous to Health
Regulations 1988). Where applicable, the CE mark indicates compliance with relative
EU Directives.
COMBUSTIBLE AND CORROSIVE MATERIALS:
Do not store or use any combustible materials (paper, thinners, paints etc.) inside or within the
vicinity of the boiler.
The combustion air must be kept clear of chemically aggressive substances which can corrode
the boiler and invalidate any warranty.
FITTING & MODIFICATIONS:
Fitting the boiler and any controls to the boiler may only be carried out by a competent
engineer in accordance with the relevant Installation Regulations.
Flue systems must not be modified in any way other than as described in the fitting instructions.
Any misuse or unauthorised modifications to the boiler, flue or associated components and
systems could invalidate the warranty. The manufacturer accepts no liability arising from any such
actions, excluding statutory rights.
This boiler is suitable for use with kerosene only, no other fuel may be used.
DO NOT OPERATE THE APPLIANCE WHEN:
The appliance, flue or system is incorrectly fitted, faulty or damaged.
The flue terminal outlet is obstructed or damaged.
There are fumes, fuel leaks or fuel smells from the fuel supply, appliance or internal flue system.
The system is empty, frozen or unpressurised (sealed systems).
The condensate pipe is blocked or restricted.
The appliance clearances are inadequate.
The air supply is restricted or vents damaged.
8 716 109 712b 07.10 12/7/10 12:28 Page 4

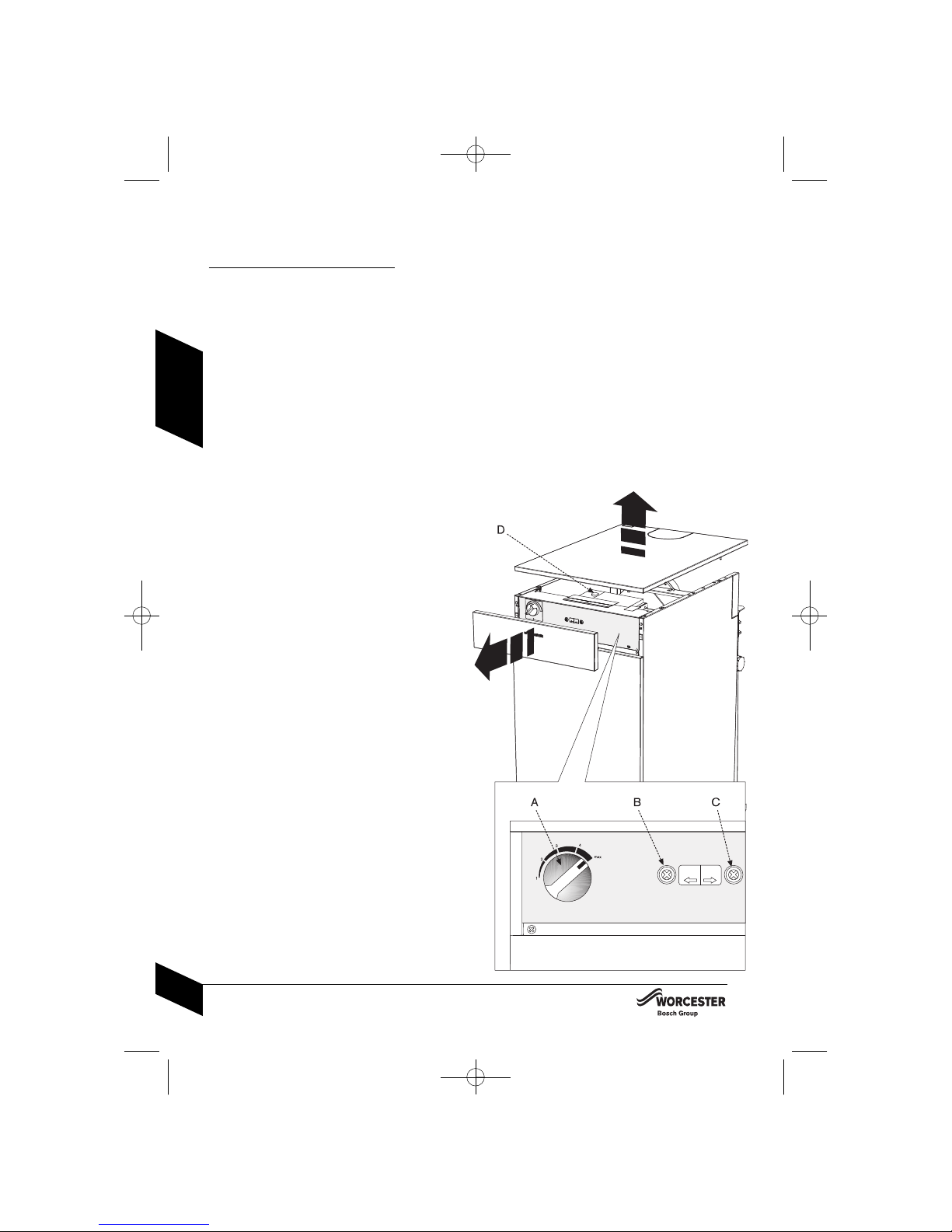

CONTROLS
GREENSTAR UTILITY 32/50 - 50/70
8 716 109 712b (07.2010)
A Temperature control (behind upper front panel)
B Reset button - boiler overheat thermostat (behind front panel)
C Reset button - flue overheat thermostat (behind front panel)
D Reset button - lockout (top of burner under top panel)
E Upper front panel (pull squarely away from the boiler to remove)
F Top panel (lift squarely up from boiler to remove)
CONTROLS
USING YOUR
BOILER
3
8 716 109 712b 07.10 12/7/10 12:28 Page 5

OPERATING THE BOILER GREENSTAR UTILITY 32/50 - 50/70
8 716 109 712b (07.2010)
USING YOUR
BOILER
OPERATING THE BOILER
SWITCHING THE BOILER ON/OFF:
To switch on the boiler; turn on the oil and electricity supply to the boiler.
Check the programmer/timer is correct and is set to ON.
Set the room thermostat to the desired setting.
Open and set thermostatic radiator valves as required.
Turn the boiler water temperature control to the required setting.
To switch off the boiler; turn the programmer/timer to OFF for heating and hot water.
If the boiler is left unused and exposed to freezing conditions; shut off all the mains supplies,
isolate the boiler and drain the system and boiler.
SETTING TEMPERATURE:
Turn the control clockwise to increase the water temperature.
Turn the control anti-clockwise to reduce the water temperature.
The minimum and maximum ranges of the temperature control positions are approximately 60°C to
82°C.
CONTROLLING CENTRAL HEATING:
Set the programmer/timer to the correct time with the required ON/OFF periods.
Turn the room thermostat to the temperature required.
Set thermostatic radiator valves to the required temperature for each room.
4
8 716 109 712b 07.10 12/7/10 12:28 Page 6

OPERATING THE BOILER
GREENSTAR UTILITY 32/50 - 50/70
8 716 109 712b (07.2010)
5
OPERATING THE BOILER
FROST PROTECTION:
Frost thermostats can be wired into the boiler.
Frost protection should be fitted to the system where the system is most exposed and at risk
of freezing.
If there is no hot water or heating, check page 6 and 7 for fault condition guidance.
USING YOUR
BOILER
8 716 109 712b 07.10 12/7/10 12:28 Page 7

OPERATING THE BOILER GREENSTAR UTILITY 32/50 - 50/70
8 716 109 712b (07.2010)
USING YOUR
BOILER
6
OPERATING THE BOILER
FAULT CONDITIONS:
If the boiler fails to operate.
Check the oil level in the oil storage tank.
Check there is not a power cut and the
power supply to the boiler is switched on.
Check the programmer is set to on.
Check the room thermostat and where fitted,
the radiator thermostats are set correctly.
Remove upper front panel and check the
thermostat control knob (A) is turned on.
If the above checks prove satisfactory and the
boiler remains off, then a safety device in the
boiler control system may have been activated to
prevent the boiler from operating.
Automatic reset:
An excessive boiler operating temperature
can activate a thermostat to switch off the
boiler. This thermostat automatically resets
when the boiler has cooled down sufficiently.
Do not attempt to repeatedly start the boiler
using the manual reset buttons as persistent
failure indicates a fault requiring the attention
of a service engineer.
Boiler overheat (manual reset):
Should the boiler temperature rise beyond
the automatic reset level, a high limit
thermostat will switch the boiler off,
indicated by button (B) standing proud.
When the boiler has cooled down, press
and release (B) to reset the thermostat.
Flue overheat (manual reset):
Excessive combustion gas temperatures can
activate a thermostat to switch off the boiler,
indicated by button (C) standing proud.
Press and release (C) to reset thermostat.
Burner lockout (manual reset):
Flame failure, for any reason, will cause the
burner to go safely to a lockout condition.
Remove the boiler top panel and check the
lockout button (D). If this is illuminated it
indicates a ‘lockout’ condition. To cancel
lockout, wait 2 minutes, then press and
release button (D).
ACCESSING RESET BUTTONS:
Reset buttons (A B & C):
To remove upper front panel pull panel
squarely away from the front of the boiler.
To replace, realign ball studs and push back
into place.
Burner lockout reset button (D):
Pull top panel squarely upwards to
remove.
To replace, realign ball studs and push
back into place.
Always keep pressure to the edges of the
panels to avoid accidental damage.
8 716 109 712b 07.10 12/7/10 12:28 Page 8

FAULT FINDING
Problem Cause Remedy
Desired room temperature
is not reached
Thermostatic radiator
valve(s) set too low
Room thermostat set too Increase room thermostat
low setting
Temperature control on
boiler set too low
Air trapped in heating
system
Desired room temperature
exceeded by large amount
Temperature rises instead
of falling
Radiators are too hot
Clock is incorrectly set
Increase thermostatic
radiator valve setting(s)
Increase temperature
control setting
Bleed radiators and
recharge heating system
Turn down thermostatic
radiator valves / room
thermostat / boiler
temperature control setting
Check setting
FAULT FINDING
GREENSTAR UTILITY 32/50 - 50/70
8 716 109 712b (07.2010)
7
USING YOUR
BOILER
8 716 109 712b 07.10 12/7/10 12:28 Page 9

8
MAINTAINING YOUR BOILER
Your new boiler represents a long term investment in a reliable, high quality product.
In order to realise its maximum working life and to ensure it continues to operate at peak
efficiency and performance, it is essential that servicing and maintenance checks are performed at
least once a year by an OFTEC engineer or other suitably qualified person.
If you would like to know more about servicing options from Worcester, Bosch Group, please visit
worcester-bosch.co.uk. Please tick the appropriate box on your warranty registration card for
further details of the Worcester, Bosch Group Service Contract .
When your boiler requires servicing please contact a Worcester, Bosch Group contact centre
(see inside front cover for details).
In addition to the service contract we are pleased to offer a one-off annual service or breakdown
call out for your boiler.
Maintenance tips:
Regularly check the oil level in the tank.
Do not obstruct the flue outlet or the air inlet.
MAINTAINING YOUR BOILER GREENSTAR UTILITY 32/50 - 50/70
8 716 109 712b (07.2010)
MAINTENANCE
8 716 109 712b 07.10 12/7/10 12:28 Page 10
