Workrite Ergonomics PA4000 User manual

Workrite Ergonomics | 800.959.9675 www.workriteergo.com
#1500155 - Rev A
PA4000 - Poise Twin Assembly Instructions
(PA3000 - Poise HD Arm + PATWIN-B Wing Bracket)

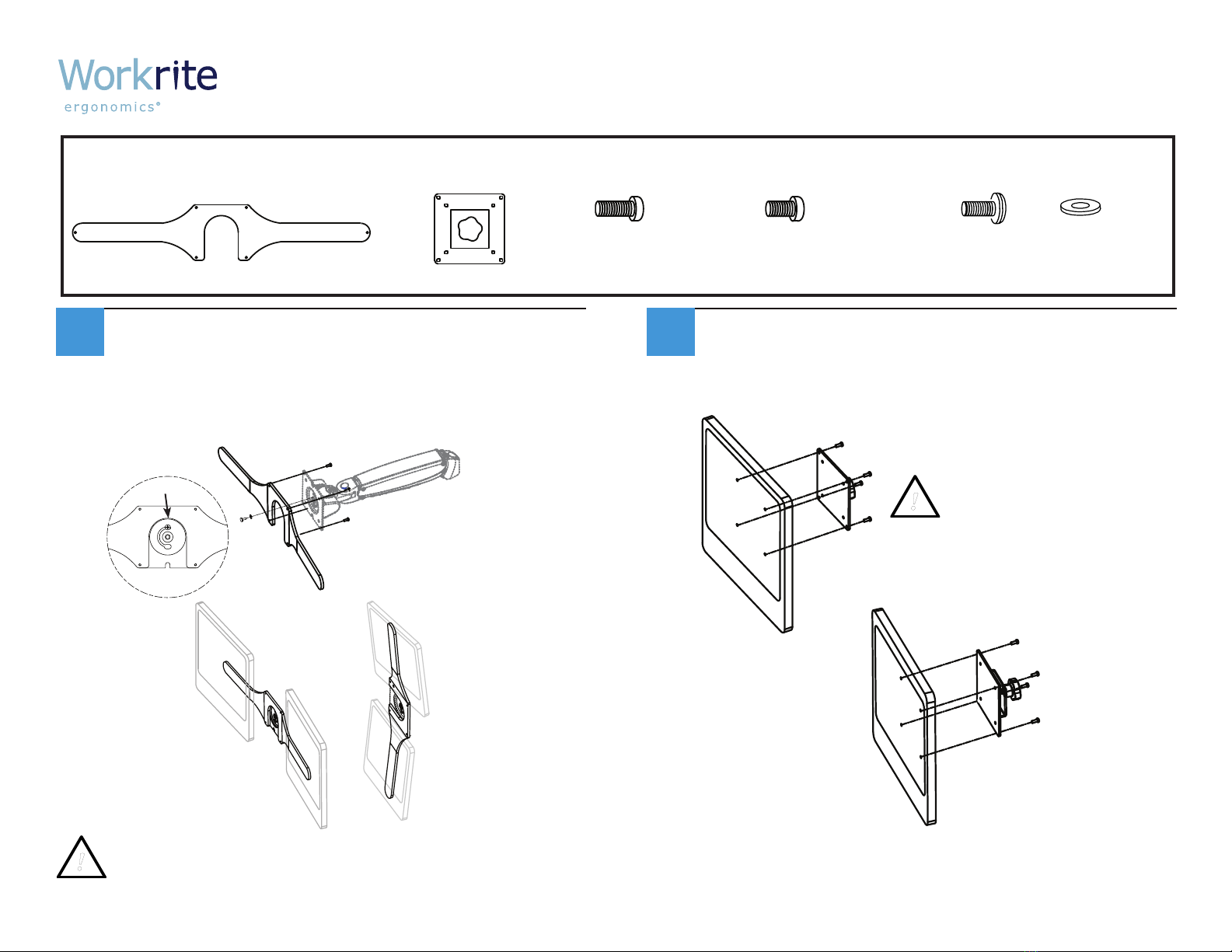

AWing Bracket Qty: 1 CM4x10mm Screw Qty: 12
Attach the Wing Bracket (A) to the Poise
HD forearm VESA 100 Mount using the four
M4x10mm screws (C) (horizontal orientation
shown) . Be sure to tighten securely. Attach
M4x8mm screw and washer (E) to lock pivot.
BLCD Mount Qty: 2 DM4x6mm Screw Qty: 10
Note: It is strongly recommended to use the mounting screws provided by the LCD monitor manufacturer. Due to the variety of
monitor mounting designs, the mounting holes at the back of the LCD monitor might not be suitable for the M4 screws we have
provided and could cause damage to the LCD monitor.
!
1
C
A
2Attach each LCD Mount to the monitors with four
M4 screws (C or D). Be sure both LCD Mounts
are aligned in the same direction for the selected
Wing Bracket orientation.
B
B
C or D
EM4x8mm Screw and Washer Qty: 1 each
E
E
Horizontal
Vertical
Orient LCD Mount
with widest edge
aligned to top of
monitor when mounting
Wing Bracket horizontally.
!

Workrite Ergonomics | 800.959.9675 www.workriteergo.com
Assembly Instructions for Workrite Poise™ Twin #1500155 - Rev A
Slide the LCD Mounts on to the Wing Bracket (A)
and tighten the clamp knob. Adjust as needed to
center the LCD screens.
Tighten
Loosen
Install two M4x6mm screws (D) into the ends of
the Wing Bracket (A) to prevent the LCD monitors
from sliding off the Wing Bracket during use.
To adjust your monitor arm, see the section titled
Arm Adjustments in your Poise HD Assembly
Instructions.
D
D
3 4
