Worksaver CS-694, CS-1094, CSP-694, CSP- Owner's manual

FS-SS007-OG
FARM STAR
P.O. BOX 100 LITCHFIELD, IL 62056-0100 [phone]
WEB: http://www.farmstar.com E-MAIL: [e-mail]
Broadcast Seeder/Spreader
PTO DRIVEN – 3-PT. MOUNTED
Packing Maintenance
Assembly & Mounting Repair Parts
Operating Instructions
ATTENTION! SAFETY RULES
1. Read instruction manual and make sure all operators are knowledgeable on
correct operation of equipment and familiar with the Safety Rules of Operation.
2. Never allow riders on equipment.
3. When operating on rough or uneven terrain, use extreme caution and a safe
operating speed.
4. When spreading seed or fertilizer, always use safety goggles.
5. Never operate equipment when anyone is within 50 feet of seeder/spreader.
Before operating equipment – If you have any questions regarding the proper assembly or
operation, contact your dealer or representative.
OWNER’S /
OPERATOR’S
MANUAL
MODEL NO.’s
CS-694
CS-1094
CSP-1094
WHEN ORDERING REPAIR
PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
1. PART NUMBER
2. PART DESCRIPTION
3. MODEL NUMBER
4. NAME OF ITEM
DECEMBER 2013
LIMITED WARRANTY
Farm Star warrants its implements, parts and accessories to be free from defects in
materials and workmanship for a period of six (6) months from date of purchase. Upon
written approval, Farm Star will repair or exchange without charge any part, which
upon
examination by
Farm Star or its authorized agent, shall disclose to be defective.
This does not apply to (1) parts that have worn out in normal use, (2) parts broken
because of improper assembly or operation by the customer, (3) parts accidentally
damaged, (4) failure of parts traceable to improper care, (5) parts failing through use
of implement for purposes other than those for which it was designed.
The obligations assumed by Farm Star and the limitations expressed herein are in
lieu of all other warranties expressed or implied.
Please work, drive, play and live each day with
care and concern for your safety and that of your
family and fellow citizens.
3-Pt. Broadcast Seeder/Spreader
MAKE EVERY DAY
A HOLIDAY FROM ACCIDENTS
OWNER’S /
OPERATOR’S
MANUAL
MODEL NO.’s
CS-694
CS-1094
CSP-1094
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SI NO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
STATEMENT
OF POLICY
It is the policy of Farm Star to
improve its products where it is
possible and practical to do so.
Farm Star reserves the right to
make changes or improvements
in design and construction at any
time, without incurring the
obligation to make these
changes on previously manu-
factured units.
•Machinery should be operated only by those who are
responsible and are authorized to do so.
•Stop the engine, lower all equipment, lock the brakes,
and remove the ignition key before dismounting from the
tractor.
•Never stand between tractor and implement while tractor
is being backed to hitch.
•Loose fitting clothing should not be worn, to avoid catch-
ing on various parts.
•Detach implement in area where children normally do not
play.
•When performing adjustments or maintenance on an
implement, first lower it to the ground or block it securely
at a workable height.
•Only a qualified operator should be permitted on tractor
when in operation; no riders allowed.
•Make certain everyone is in the clear before starting
tractor or raising or lowering equipment.
•Operate the tractor and implement only while seated in
the driver’s seat.
• Reduce speed when transporting mounted implements
to avoid bouncing and momentary loss of steering
control.
•A heavy load can cause instability of the tractor. Use
extreme care during road travel. Slow down on turns and
watch out for bumps. Tractor may need front counter-
weights to counter-balance the weight of the implement.
•Reduce speed on hillsides or curves so there is no
danger of tipping.
•Avoid driving too close to the edge of ditches or creeks.
•Do not transport implement on public roads without
reflectors and slow moving vehicle emblem in daylight
and with approved warning lights at night and other
periods of poor visibility.
•Due to the width of some implements, use extra caution
on highways, farm roads, and when approaching gates.
•Always be sure the implement is in the proper position for
transport.
•Keep alert and watch the front as well as the rear when
working with the implement.
SAFETY REQUIREMENTS
AVOID ACCIDENTS BY FOLLOWING ALL OF THE SAFETY REQUIREMENTS LISTED BELOW.

12 1
To the Owner/Operator/Dealer
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera-
tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this
implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFORE YOU START!!
Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
THIS SAFETY ALERT SYMBOL IDENTIFIES IMPORTANT
SAFETY WARNING MESSAGES. CAREFULLY READ EACH
WARNING MESSAGE THAT FOLLOWS. FAILURE TO
UNDERSTAND AND OBEY A SAFETY WARNING, OR
RECOGNIZE A SAFETY HAZARD, COULD RESULT IN AN
INJURY OR DEATH TO YOU OR OTHERS AROUND YOU.
THE OPERATOR IS ULTIMATELY RESPONSIBLE FOR THE
SAFETY OF HIMSELF, AS WELL AS OTHERS, IN THE
OPERATING AREA OF THE TRACTOR AND EQUIPMENT.
UNDERSTAND SIGNAL WORDS
Note the use of the signal words DANGER, WARNING
and CAUTION with the safety messages. The
appropriate signal word for each has been selected
using the following guidelines:
DANGER: Indicates an imminently hazardous situation
that, if not avoided, will result in death or serious injury.
This signal word is to be limited to the most extreme
situations typically for machine components which, for
functional purposes, cannot be guarded.
WARNING: Indicates a potentially hazardous sit-
uation that, if not avoided, could result in death
or serious injury, and includes hazards that are
exposed when guards are removed. It may also
be used to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous sit-
uation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
THIS SYMBOL MEANS
– ATTENTION!
– BECOME ALERT!
– YOUR SAFETY IS INVOLVED!
IMPORTANT SAFETY INFORMATION!
Working with equipment can lead to injuries. Read this manual, and the manual for your tractor, before assembly or
operating, to acquaint yourself with the machine. It is the equipment owner’s responsibility, if this equipment is used
by any person other than yourself, is loaned or rented, to make certain that the operator, prior to operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
The use of this equipment is subject to certain hazards which cannot be protected against by mechanical
means or product design. All operators of this equipment must read and understand this entire manual, paying
particular attention to safety and operating instructions, prior to using. If there is something in this manual you
do not understand, ask your supervisor, or your dealer, to explain it to you.
Keep all helpers and bystanders fifty feet (50’) from operating equipment. Only properly trained people should
operate this tractor and attached implement. It is recommended the tractor be equipped with a Roll-Over
Protection System (ROPS) and a seat belt that is used. Always stop the tractor, set brake, shut off the tractor
engine, remove the tractor key, and lower implement to the ground before dismounting tractor. Never leave
equipment unattended with the tractor running.

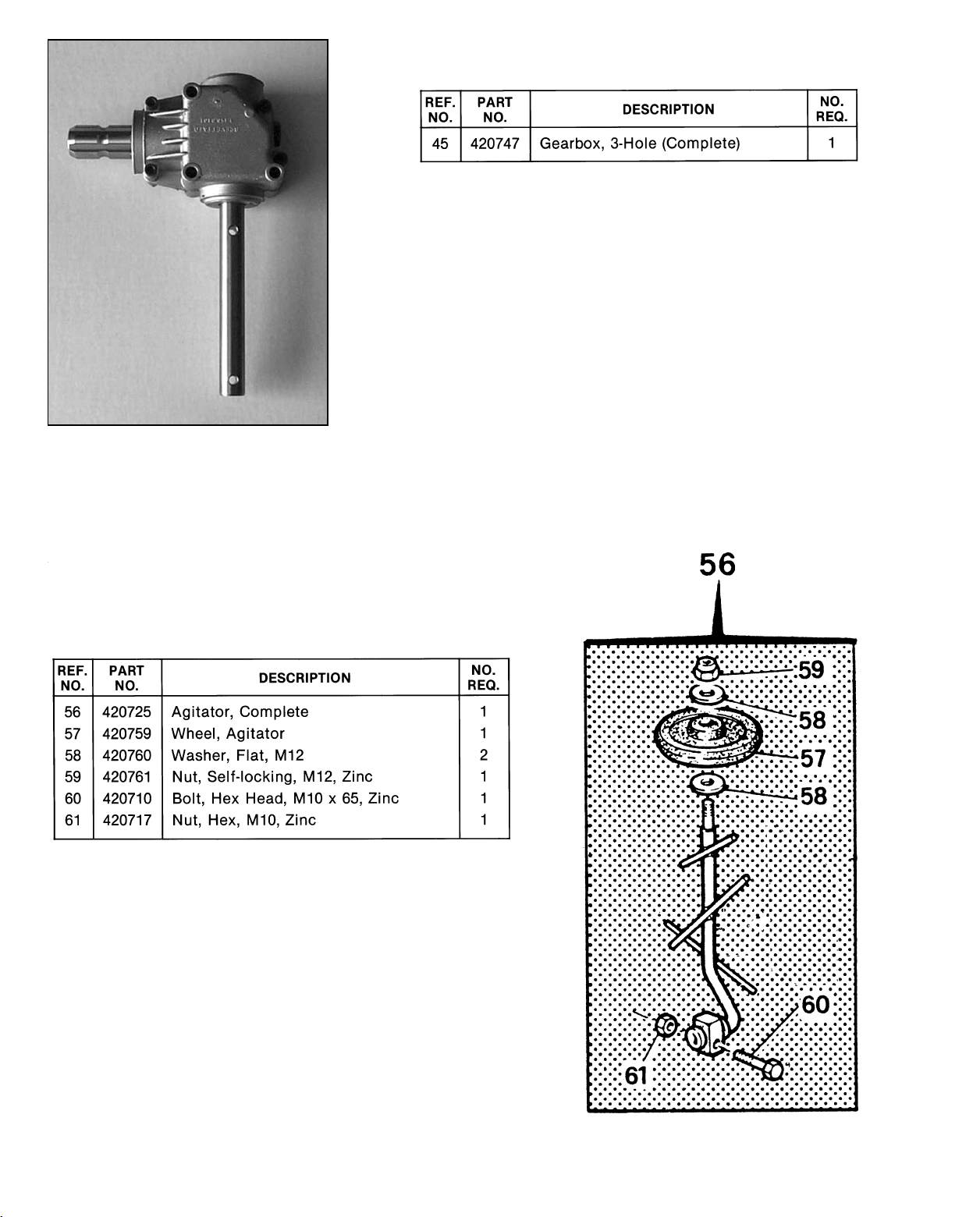

GEARBOX
OPTIONAL AGITATOR
COMPONENTS

211
All equipment is potentially hazardous. There is no substitute for a cautious, safe-minded operator who
recognizes potential hazards and follows reasonable safety practices.
When the use of hand tools is required to perform any part of assembly, installation, adjustment, maintaining,
repairing, removal, or moving the implement, be sure the tools used are designed and recommended by the
tool manufacturer for that specific task.
Personal protection equipment including safety glasses, safety shoes, and gloves are recommended during
assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving of the spreader.
Always use two people to handle heavy, unwieldy components during assembly, installation, removal, or
moving of the implement.
Never place any part of your body where it would be in danger if movement should occur during assembly,
installation, operation, maintaining, repairing, removal, or moving the implement.
Never place yourself between the tractor and implement while implement is in operation.
Do not work under a raised implement unless it is securely blocked or held in position. Do not depend on the
tractor hydraulic system to hold the implement in place.
A heavy load can cause instability of the tractor. Use extreme care during travel. Slow down on turns and
watch out for bumps. The tractor may need front counter-weights to counter-balance the weight of the
implement. An unstable tractor could steer badly and possibly tip over, causing injury or death.
Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating equipment.
Consult your doctor about operating tractor and implement while taking prescription medications.
Do not allow others to ride on the tractor with an operator. Riders are subject to injury such as being struck by
foreign objects or being thrown off. Riders obstruct the operator’s view resulting in unsafe operation. Never
allow anyone to ride on the implement!
Before you operate any implement, check over all pins, bolts and connections to be sure all are securely in
place. Replace any damaged or worn parts immediately.
Do not allow anyone who is not familiar with the safety rules and operation instructions to use this equipment.
Never allow children to operate or be around equipment.
Do not exceed lift capacity of the tractor hitch.
Keep alert and watch the front as well as the rear when working with the attached implements.
Never operate broadcast spreader if anyone is within 50 ft. of tractor and spreader.
Never use your hand or fingers to clear a jam of material in the feed gate. Use a clean stick or rod.
When spreading any material, always use safety goggles or safety glasses with side shields.
When spreading, always be aware of the wind direction and that it may carry the material further than normal
spread width.
SAFETY INFORMATION (continued) PTO COMPONENTS

10 3
REF. PART DESCRIPTION NO.
NO. NO. REQ.
1 420701 Frame, XA 1
2 420702 Bolt, Hex Head, M8 x 20, Zinc 2
3 420703 Washer, Flat, 8mm, Zinc 4
4 420704 Washer, Flat, 10mm, Zinc 7
5 420705 Nut, Self-locking, M10, Zinc 1
6 420706 Washer, Bakelite 1
7 420707 Lever, Adjustment 1
8 420708 Handle, Rubber, 8 x 20 1
9 420709 Brace, Right 1
10 420710 Bolt, Hex Head, M10 x 65, Zinc 1
11 420711 Spring, Pressure 1
12 420712 Hairpin 4
13 420713 Rod, Flow Adjustment 1
14 420714 Block, Fixing 1
15 420715 Indicator 1
16 420716 Screw, Wing, M6 x 16, Zinc 1
17 420717 Nut, Hex, M10, Zinc 9
18 420718 Washer, Lock, 10mm, Zinc 12
19 420719 Nut, Hex, M8 8
20 420720 Vane, Fan 4
21 420721 Bolt, Hex Head, M8 x 16 8
22 420722 Rod, Selector, RX-LX 1
23 420723 Pin, Connection 1
24 420724 Hopper, Steel 250 (6 bu.) 1
24 420758 Hopper, Steel 400 (10 bu.) 1
24 420726 Hopper, Poly 400 (10 bu.) 1
24 420841 Hopper, Poly 250 (6 bu.) 1
25 420727 Washer, for Hopper 1
26 420728 Bolt, Carriage Head, M10 x 25, Zinc 5
27 420729 Bar, Hopper Reinforcement 1
28 420730 Nut, Self-locking, M8, Zinc 1
29 420731 Agitator 1
30 420732 Bolt, Hex Head, M8 x 45, Zinc 1
31 420733 Guide Bushing, Agitator 1
32 420734 Seed Disc, Upper (2 holes) 1
33 420735 Distribution Disc, Lower (3 holes) 1
34 420736 Washer, Special 1
35 420737 Snap Ring, D.32 E 1
36 420738 Spreading Disc (Spinner) 1
37 420739 Roll Pin (Special Double) 1
38 420719 Nut, Hex, M8, Zinc 3
39 420741 Pin, Adjustment 1
40 420742 Guard 1
41 420743 Brace, Left 1
42 420744 Bolt, Hex, M10 x 25, Zinc 4
43 420745 Bolt, Hex, M10 x 100, Zinc 3
44 420717 Nut, Hex, M10, Zinc 3
45 420747 Gearbox, 3-Hole (Complete) 1
46 420748 PTO Assembly (Complete) 1
INSTRUCTIONS
ALWAYS OBEY ALL SAFETY RULES!
ALWAYS BE CAREFUL!

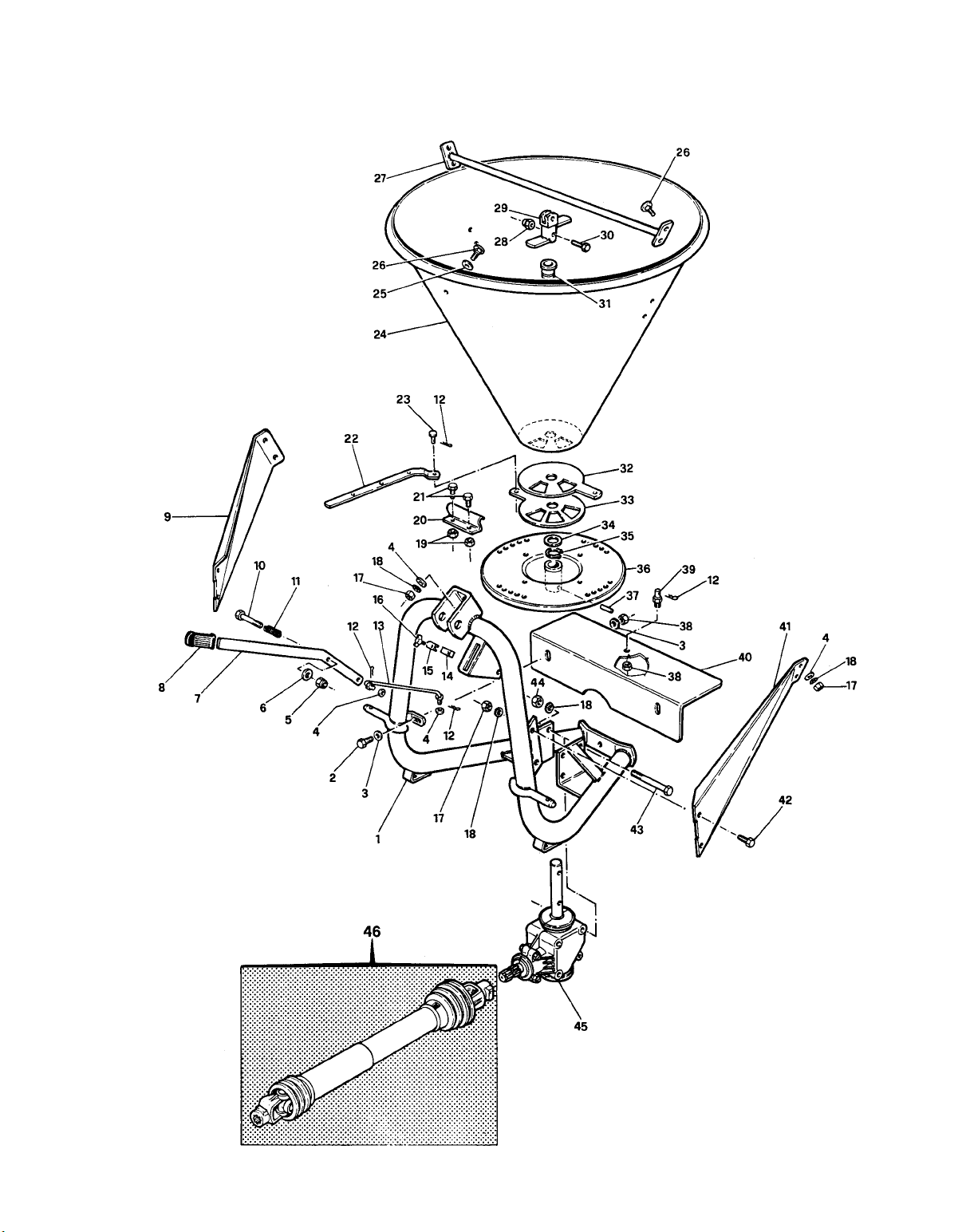

REPAIR PARTS FOR CS SERIES SEEDER/SPREADERS
CAUTION

4 9
EXPLODED PARTS DRAWING FOR
CS SERIES SPREADERS
CAUTION
CAUTION
CAUTION

8 5
OPERATING INSTRUCTIONS
SPREADING CHART FOR SEED
CAUTION
CAUTION

6 7
SPREADING CHART FOR FERTILIZERS

6 7
SPREADING CHART FOR FERTILIZERS

8 5
OPERATING INSTRUCTIONS
SPREADING CHART FOR SEED
CAUTION
CAUTION

4 9
EXPLODED PARTS DRAWING FOR
CS SERIES SPREADERS
CAUTION
CAUTION
CAUTION

10 3
REF. PART DESCRIPTION NO.
NO. NO. REQ.
1 420701 Frame, XA 1
2 420702 Bolt, Hex Head, M8 x 20, Zinc 2
3 420703 Washer, Flat, 8mm, Zinc 4
4 420704 Washer, Flat, 10mm, Zinc 7
5 420705 Nut, Self-locking, M10, Zinc 1
6 420706 Washer, Bakelite 1
7 420707 Lever, Adjustment 1
8 420708 Handle, Rubber, 8 x 20 1
9 420709 Brace, Right 1
10 420710 Bolt, Hex Head, M10 x 65, Zinc 1
11 420711 Spring, Pressure 1
12 420712 Hairpin 4
13 420713 Rod, Flow Adjustment 1
14 420714 Block, Fixing 1
15 420715 Indicator 1
16 420716 Screw, Wing, M6 x 16, Zinc 1
17 420717 Nut, Hex, M10, Zinc 9
18 420718 Washer, Lock, 10mm, Zinc 12
19 420719 Nut, Hex, M8 8
20 420720 Vane, Fan 4
21 420721 Bolt, Hex Head, M8 x 16 8
22 420722 Rod, Selector, RX-LX 1
23 420723 Pin, Connection 1
24 420724 Hopper, Steel 250 (6 bu.) 1
24 420758 Hopper, Steel 400 (10 bu.) 1
24 420726 Hopper, Poly 400 (10 bu.) 1
24 420841 Hopper, Poly 250 (6 bu.) 1
25 420727 Washer, for Hopper 1
26 420728 Bolt, Carriage Head, M10 x 25, Zinc 5
27 420729 Bar, Hopper Reinforcement 1
28 420730 Nut, Self-locking, M8, Zinc 1
29 420731 Agitator 1
30 420732 Bolt, Hex Head, M8 x 45, Zinc 1
31 420733 Guide Bushing, Agitator 1
32 420734 Seed Disc, Upper (2 holes) 1
33 420735 Distribution Disc, Lower (3 holes) 1
34 420736 Washer, Special 1
35 420737 Snap Ring, D.32 E 1
36 420738 Spreading Disc (Spinner) 1
37 420739 Roll Pin (Special Double) 1
38 420719 Nut, Hex, M8, Zinc 3
39 420741 Pin, Adjustment 1
40 420742 Guard 1
41 420743 Brace, Left 1
42 420744 Bolt, Hex, M10 x 25, Zinc 4
43 420745 Bolt, Hex, M10 x 100, Zinc 3
44 420717 Nut, Hex, M10, Zinc 3
45 420747 Gearbox, 3-Hole (Complete) 1
46 420748 PTO Assembly (Complete) 1
INSTRUCTIONS
ALWAYS OBEY ALL SAFETY RULES!
ALWAYS BE CAREFUL!
REPAIR PARTS FOR CS SERIES SEEDER/SPREADERS
CAUTION

211
All equipment is potentially hazardous. There is no substitute for a cautious, safe-minded operator who
recognizes potential hazards and follows reasonable safety practices.
When the use of hand tools is required to perform any part of assembly, installation, adjustment, maintaining,
repairing, removal, or moving the implement, be sure the tools used are designed and recommended by the
tool manufacturer for that specific task.
Personal protection equipment including safety glasses, safety shoes, and gloves are recommended during
assembly, installation, operation, adjustment, maintaining, repairing, removal, or moving of the spreader.
Always use two people to handle heavy, unwieldy components during assembly, installation, removal, or
moving of the implement.
Never place any part of your body where it would be in danger if movement should occur during assembly,
installation, operation, maintaining, repairing, removal, or moving the implement.
Never place yourself between the tractor and implement while implement is in operation.
Do not work under a raised implement unless it is securely blocked or held in position. Do not depend on the
tractor hydraulic system to hold the implement in place.
A heavy load can cause instability of the tractor. Use extreme care during travel. Slow down on turns and
watch out for bumps. The tractor may need front counter-weights to counter-balance the weight of the
implement. An unstable tractor could steer badly and possibly tip over, causing injury or death.
Never use alcoholic beverages or drugs which can hinder alertness or coordination while operating equipment.
Consult your doctor about operating tractor and implement while taking prescription medications.
Do not allow others to ride on the tractor with an operator. Riders are subject to injury such as being struck by
foreign objects or being thrown off. Riders obstruct the operator’s view resulting in unsafe operation. Never
allow anyone to ride on the implement!
Before you operate any implement, check over all pins, bolts and connections to be sure all are securely in
place. Replace any damaged or worn parts immediately.
Do not allow anyone who is not familiar with the safety rules and operation instructions to use this equipment.
Never allow children to operate or be around equipment.
Do not exceed lift capacity of the tractor hitch.
Keep alert and watch the front as well as the rear when working with the attached implements.
Never operate broadcast spreader if anyone is within 50 ft. of tractor and spreader.
Never use your hand or fingers to clear a jam of material in the feed gate. Use a clean stick or rod.
When spreading any material, always use safety goggles or safety glasses with side shields.
When spreading, always be aware of the wind direction and that it may carry the material further than normal
spread width.
SAFETY INFORMATION (continued) PTO COMPONENTS

12 1
To the Owner/Operator/Dealer
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera-
tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this
implement to be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFORE YOU START!!
Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
THIS SAFETY ALERT SYMBOL IDENTIFIES IMPORTANT
SAFETY WARNING MESSAGES. CAREFULLY READ EACH
WARNING MESSAGE THAT FOLLOWS. FAILURE TO
UNDERSTAND AND OBEY A SAFETY WARNING, OR
RECOGNIZE A SAFETY HAZARD, COULD RESULT IN AN
INJURY OR DEATH TO YOU OR OTHERS AROUND YOU.
THE OPERATOR IS ULTIMATELY RESPONSIBLE FOR THE
SAFETY OF HIMSELF, AS WELL AS OTHERS, IN THE
OPERATING AREA OF THE TRACTOR AND EQUIPMENT.
UNDERSTAND SIGNAL WORDS
Note the use of the signal words DANGER, WARNING
and CAUTION with the safety messages. The
appropriate signal word for each has been selected
using the following guidelines:
DANGER: Indicates an imminently hazardous situation
that, if not avoided, will result in death or serious injury.
This signal word is to be limited to the most extreme
situations typically for machine components which, for
functional purposes, cannot be guarded.
WARNING: Indicates a potentially hazardous sit-
uation that, if not avoided, could result in death
or serious injury, and includes hazards that are
exposed when guards are removed. It may also
be used to alert against unsafe practices.
CAUTION: Indicates a potentially hazardous sit-
uation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert
against unsafe practices.
THIS SYMBOL MEANS
– ATTENTION!
– BECOME ALERT!
– YOUR SAFETY IS INVOLVED!
IMPORTANT SAFETY INFORMATION!
Working with equipment can lead to injuries. Read this manual, and the manual for your tractor, before assembly or
operating, to acquaint yourself with the machine. It is the equipment owner’s responsibility, if this equipment is used
by any person other than yourself, is loaned or rented, to make certain that the operator, prior to operating:
1. Reads and understands the operator’s manuals.
2. Is instructed in safe and proper use.
The use of this equipment is subject to certain hazards which cannot be protected against by mechanical
means or product design. All operators of this equipment must read and understand this entire manual, paying
particular attention to safety and operating instructions, prior to using. If there is something in this manual you
do not understand, ask your supervisor, or your dealer, to explain it to you.
Keep all helpers and bystanders fifty feet (50’) from operating equipment. Only properly trained people should
operate this tractor and attached implement. It is recommended the tractor be equipped with a Roll-Over
Protection System (ROPS) and a seat belt that is used. Always stop the tractor, set brake, shut off the tractor
engine, remove the tractor key, and lower implement to the ground before dismounting tractor. Never leave
equipment unattended with the tractor running.
GEARBOX
OPTIONAL AGITATOR
COMPONENTS

FS-SS007-OG
FARM STAR
P.O. BOX 100 LITCHFIELD, IL 62056-0100 [phone]
WEB: http://www.farmstar.com E-MAIL: [e-mail]
Broadcast Seeder/Spreader
PTO DRIVEN – 3-PT. MOUNTED
Packing Maintenance
Assembly & Mounting Repair Parts
Operating Instructions
ATTENTION! SAFETY RULES
1. Read instruction manual and make sure all operators are knowledgeable on
correct operation of equipment and familiar with the Safety Rules of Operation.
2. Never allow riders on equipment.
3. When operating on rough or uneven terrain, use extreme caution and a safe
operating speed.
4. When spreading seed or fertilizer, always use safety goggles.
5. Never operate equipment when anyone is within 50 feet of seeder/spreader.
Before operating equipment – If you have any questions regarding the proper assembly or
operation, contact your dealer or representative.
OWNER’S /
OPERATOR’S
MANUAL
MODEL NO.’s
CS-694
CS-1094
CSP-1094
WHEN ORDERING REPAIR
PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
1. PART NUMBER
2. PART DESCRIPTION
3. MODEL NUMBER
4. NAME OF ITEM
DECEMBER 2013
LIMITED WARRANTY
Farm Star warrants its implements, parts and accessories to be free from defects in
materials and workmanship for a period of six (6) months from date of purchase. Upon
written approval, Farm Star will repair or exchange without charge any part, which
upon
examination by
Farm Star or its authorized agent, shall disclose to be defective.
This does not apply to (1) parts that have worn out in normal use, (2) parts broken
because of improper assembly or operation by the customer, (3) parts accidentally
damaged, (4) failure of parts traceable to improper care, (5) parts failing through use
of implement for purposes other than those for which it was designed.
The obligations assumed by Farm Star and the limitations expressed herein are in
lieu of all other warranties expressed or implied.
Please work, drive, play and live each day with
care and concern for your safety and that of your
family and fellow citizens.
3-Pt. Broadcast Seeder/Spreader
MAKE EVERY DAY
A HOLIDAY FROM ACCIDENTS
OWNER’S /
OPERATOR’S
MANUAL
MODEL NO.’s
CS-694
CS-1094
CSP-1094
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SI NO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
STATEMENT
OF POLICY
It is the policy of Farm Star to
improve its products where it is
possible and practical to do so.
Farm Star reserves the right to
make changes or improvements
in design and construction at any
time, without incurring the
obligation to make these
changes on previously manu-
factured units.
•Machinery should be operated only by those who are
responsible and are authorized to do so.
•Stop the engine, lower all equipment, lock the brakes,
and remove the ignition key before dismounting from the
tractor.
•Never stand between tractor and implement while tractor
is being backed to hitch.
•Loose fitting clothing should not be worn, to avoid catch-
ing on various parts.
•Detach implement in area where children normally do not
play.
•When performing adjustments or maintenance on an
implement, first lower it to the ground or block it securely
at a workable height.
•Only a qualified operator should be permitted on tractor
when in operation; no riders allowed.
•Make certain everyone is in the clear before starting
tractor or raising or lowering equipment.
•Operate the tractor and implement only while seated in
the driver’s seat.
• Reduce speed when transporting mounted implements
to avoid bouncing and momentary loss of steering
control.
•A heavy load can cause instability of the tractor. Use
extreme care during road travel. Slow down on turns and
watch out for bumps. Tractor may need front counter-
weights to counter-balance the weight of the implement.
•Reduce speed on hillsides or curves so there is no
danger of tipping.
•Avoid driving too close to the edge of ditches or creeks.
•Do not transport implement on public roads without
reflectors and slow moving vehicle emblem in daylight
and with approved warning lights at night and other
periods of poor visibility.
•Due to the width of some implements, use extra caution
on highways, farm roads, and when approaching gates.
•Always be sure the implement is in the proper position for
transport.
•Keep alert and watch the front as well as the rear when
working with the implement.
SAFETY REQUIREMENTS
AVOID ACCIDENTS BY FOLLOWING ALL OF THE SAFETY REQUIREMENTS LISTED BELOW.
