WORKZONE TITANIUM CSJ18LDA User manual

Xfinity Li-ION 20V
Instruction Manual
IMPORTANT
Read carefully before use
Keep for future reference
MODEL NUMBER
CSJ18LDA.9
Version number: 002
Multi-PURPOSE saw

2
2
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
Welcome
Congratulations in choosing to buy a Workzone® Titanium 20V Multi-
Purpose Saw (battery / charger not included).
All products bought to you by Workzone® Titanium are manufactured
to the highest standards of performance and safety and, as part of our
philosophy of customer service and satisfaction, are backed by our
comprehensive 5 Year Warranty. We hope you will enjoy your purchase
for many years to come.
When you open your packaging, rst remove all items and check there
are no parts damaged or missing. If you nd anything wrong, do not
operate the product until the parts have been replaced or the fault has
been rectied. Failure to do so could result in serious personal injury.

3
3
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
The product is guaranteed to be free from defects in workmanship and parts for a period of 60 months from the
date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired,
replaced or refunded at our discretion. T conferred by this warranty are in addition to all rights and
remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and
similar state and territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or
damage.You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure.
Warranty Details
REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION
20V Multi-Purpose Saw

4
4
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
Contents
Application 5
Package Content List 5
Parts description 6
Description of symbols 7
General safety warnings 8
Important information – Product care 13
Assembly 13
Operation 18
Maintenance 21
Warranty 22
Environmental protection 23
FAQ/Troubleshooting 23
Technical specications 25

5
5
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
1. Application
20V Lithium-Ion Multi-Purpose Saw
2. Package Content List
First time users or inexperienced operators pay particular attention to the
operation of the 20V Lithium-Ion Multi-Purpose Saw, including details of
starting and stopping and correct use of the 20V Lithium-Ion Multi-Purpose
Saw on pages 18-20, as well as the maintenance instructions on pages 21.
Intended use of 20V Lithium-Ion Multi-Purpose Saw (battery / charger not included)
NOTE: This product is for private domestic DIY use only. It is not suitable for
commercial or trade use.
This 20V Lithium-Ion Multi-Purpose Saw is functioned as a combination of
jigsaw and reciprocating saw. It is intended for sawing wood, plastic, metal
and building materials while resting rmly on the workpiece. It is suitable
for straight and curved cuts.
The Lithium-Ion Multi-Purpose Saw is to be used only for its prescribed
purpose. Any other use is deemed to be a case of misuse.
• 1 x 20V Lithium-Ion Multi-Purpose Saw
• 1 x 120 mm Wood cutting blade
• 1 x 85 mm Metal cutting blade
• 1 x 85 mm Aluminium cutting blade
• 1 x Carry bag
• 1 x Instruction Manual
• 1 x Warranty Card
• Remove all packing materials
• Ensure all parts on the contents
list are present
• Check the appliance, and all
accessories for transportation
damages
WARNING! Please read and understand this instruction manual
before use and keep it for your future reference. Your product
should only be passed on together with this instruction manual.
WARNING! To reduce risk of injury, only use ALDI 20V Li-Ion Xnity
Plus battery packs. Other type of battery packs may burst causing
personal injury and damage. The battery pack must be recharged
only with an ALDI 20V Li-Ion Xnity Plus battery charger.

6
6
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019

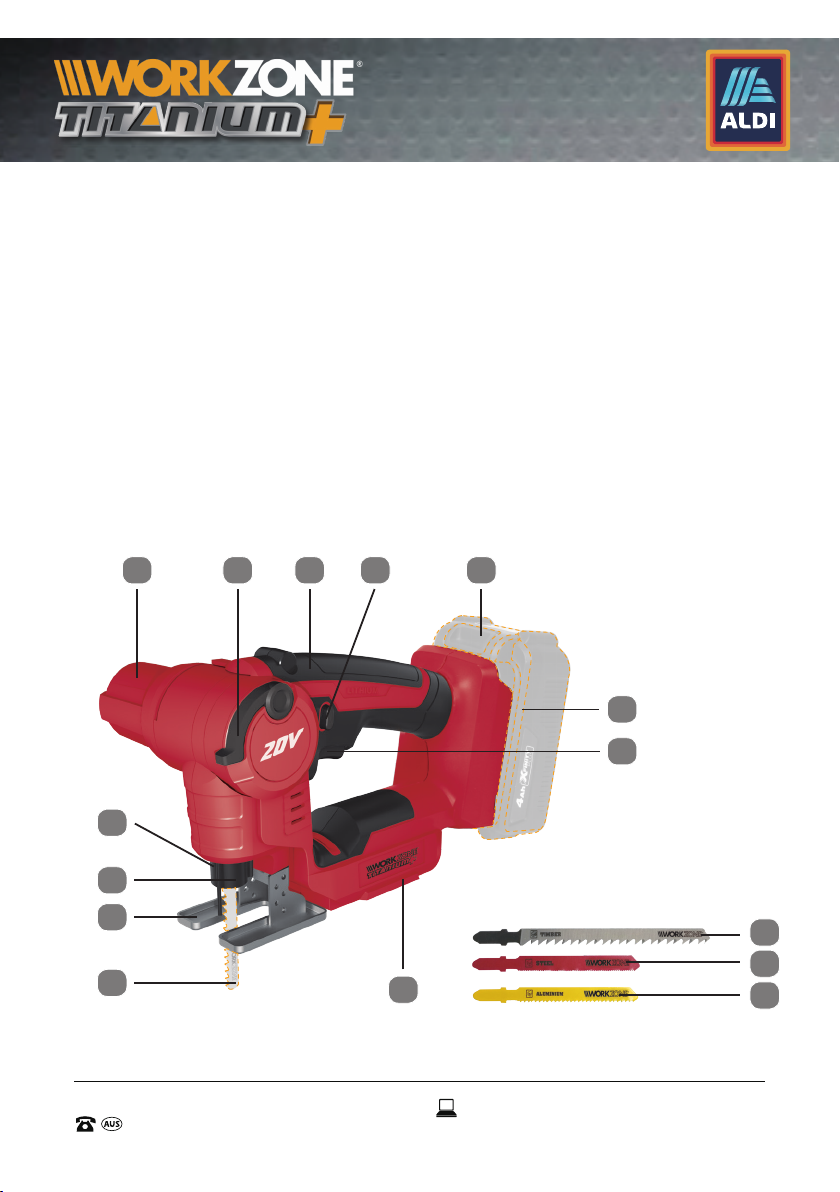

3. Parts description
1. Motor cover
2. Pivot release lever
3. Hand grip area
4. Lock-o button
5. Battery release button*
6. Battery pack*
7. On/o switch
8. Base plate
9. Foot plate
10. Blade
a. 120 mm Wood cutting blade
b. 85 mm Metal cutting blade
c. 85 mm Aluminium cutting blade
11. Blade holder
12. Protection nger
13. LED work light (See Fig. G)
* Battery and charger shown only for illustrative purposes. Battery and
Charger not included with this saw.
11
9
12
6
7
10c
10b
10a
8
1 2 3 54
10

7
7
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
4. Description of symbols
The instruction manual, rating plate, or on the product itself, may
show these symbols. These represent important information about
the product or instructions on its use.
To reduce the risk of injury, user must read instruction manual
Warning
Wear ear protection
Wear eye protection
Wear breathing protection
Conforms to relevant standards for electrical safety and
electromagnetic compatibility.
60 Months Warranty
60

8
8
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
5. General safety warning
General Power Tool Safety Warnings
WARNING Read all safety warnings, instructions,
illustrations and specifications provided with this power
tool.
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless) power
tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed or
grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric

9
9
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
shock.
d) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away from
heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while
operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non-
skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source and/
or battery pack, picking up or carrying the tool. Carrying
power tools with your finger on the switch or energising power
tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery.

10
10
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
Keep your hair and clothing away from moving parts. Loose
clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury within a
fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool
for your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from the
power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools
are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power
tool’s operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly maintained

11
11
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
cutting tools with sharp cutting edges are less likely to bind and
are easier to control.
g) Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account
the working conditions and the work to be performed.
Use of the power tool for operations different from those
intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free
from oil and grease. Slippery handles and grasping surfaces
do not allow for safe handling and control of the tool in
unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of battery
pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery
packs. Use of any other battery packs may create a risk of injury
and fire.
c) When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects, that can make a connection
from one terminal to another. Shorting the battery terminals
together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the
battery; avoid contact. If contact accidentally occurs, flush
with water. If liquid contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged
or modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or risk of
injury.
f) Do not expose a battery pack or tool to fire or excessive
temperature. Exposure to fire or temperature above 130 °C

12
12
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
may cause explosion.
g) Follow all charging instructions and do not charge the
battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at
temperatures outside the specified range may damage the
battery and increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery
packs should only be performed by the manufacturer or
authorized service providers.
Multi-purposed Saw Safety Warnings
1. Hold the multi-purposed saw by insulated gripping
surfaces, when performing an operation where the
cutting accessory may contact hidden wiring. Cutting
accessory contacting a “live” wire may make exposed metal
parts of the power tool “live” and could give the operator an
electric shock.
2. Use clamps or another practical way to secure and
support the workpiece to a stable platform. Holding the
work by hand or against your body leaves it unstable and may
lead to loss of control.

13
13
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
6. Important information – Product care
NOTE: Xfinity Battery and Charger not included. For any issuses
related directly to your purchased ALDI Xfinity Battery / charger,
contact the Customer Service of the manufacturer as listed on the
battery / charger packaging, manual or on the label on the battery /
charger.
This Multi-purpose saw uses Lithium Ion Battery Cells. Care MUST be
taken to ensure both the safety and life of the pack is maintained.
Ensure you have read all of the safety notes in the previous pages
before using the Multi-purposed saw.
Treat the battery pack with care and within the guidelines of this
manual.
If the battery pack does become immersed in water or any fluids,
or is subject to a severe drop or it does not operate within the
guidelines of this manual or the supplied manual, immediately STOP
using the battery pack and have it checked.
Use only ALDI Xfinity Plus 20V range of batteries and chargers.
7. Assembly
7.1 Working mode adjustment
This multi purpose saw functions as a combination jigsaw and
reciprocating saw. You can use the pivot release lever (2) to change
the configuration.
1) Lift up the pivot release lever (2) fully until it cannot be lifted
further. (See Fig. A1)
2) Rotate the front portion of the saw into any of the 6 positions
(0°, 18°, 36°, 54°, 72° and 90°) (See Fig. A2). Restore the pivot release
lever (2). Be sure to lock the pivot release lever (2) in place.
In Position I (0°), this multi purpose saw can be used as a
reciprocating saw.
In Position VI (90°), this multi purpose saw can be used as a jigsaw.

14
14
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
WARNING! When adjusting the multi purpose saw, you can
only hold the foot plate (9) as shown in Fig.B1. Never hold the
pivot head as shown in Fig. B2, B3.
WARNING!
•To avoid being pinched, keep hands away from the hinge when
changing positions.
•To avoid the multi purpose saw being turned on accidentally,
remove the battery pack (6) from the saw.
•Before operation, make sure the pivot release lever (2) is locked
into position.
A1
0o
90o
A2
B1 B2 B3

15
15
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
7.2 Inserting / removing the saw blade (10)
WARNING! Before undertaking any work or maintenance
on the saw itself, remove the battery pack (6).
The blade (10) should extend past both the foot plate (9) and the
thickness of the workpiece during the cut. Select the blade (10) best
suitable for the material to be cut and use the shortest blade (10)
suitable for the thickness of the material.
WARNING! Cut hazard. Blade (10) breakage may occur if
the blade (10) does not extend past the foot plate (9) and
the workpiece during the cut. Increased risk of personal injury,
as well as damage to the foot plate (9) and workpiece may
result.
CAUTION: Remove the battery pack (6) first to prevent switch
actuation before making any adjustments or removing or
installing attachments or accessories.
Jig saw mode
——Inserting the saw blade (10)
WARNING! Wear protective gloves when assembling the
saw blade (10). Contact with the saw blade (10) can lead
to injuries. You can only use the t-shank blade (10) type as
shown in Fig C1.
This multi-purposed saw is equipped with a tool-free blade holder (11).
This makes possible easy and quick changing of the saw blade (10)
without any additional tools.
1) Place the jig saw upside down, rotate the blade holder (11) anti-
clockwise and hold in position.
2) Fully insert the blade (10) into the blade holder (11) slot with blade
(10) teeth facing forward to the front of the saw.
3) Release the blade holder (11) and it will self-rotate back to clamp the
blade (10) tightly. Push the blade (10) to ensure it is locked in position.
(See Fig. C2)

16
16
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019

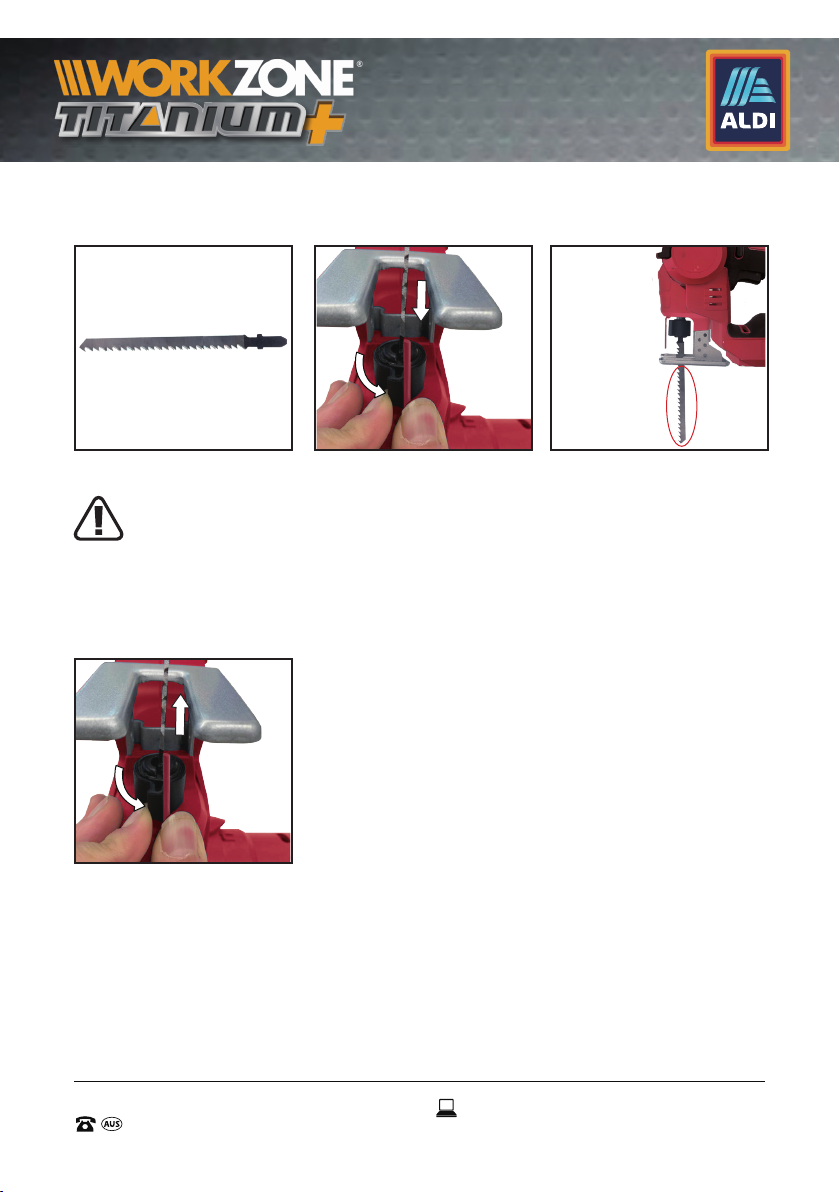

NOTE: When using JIGSAW MODE, the blade (10) teeth face forward
to the front of the saw as shown in Fig. C3.
——Removing the saw blade (10)
WARNING: The blade may be spring ejected so protect
your eyes.
To remove a blade (10), place the jigsaw upside down, hold the
blade (10) and rotate the blade holder (11) anti-clockwise, remove
the blade (10) from the blade holder (11) slot and then release the
blade holder (11). (See Fig. C4)
C4
1
2
Reciprocating saw mode
——Inserting the saw blade (10)
1) Lift up the pivot release lever (2) fully and rotate the front
portion of the saw into 0°positions to make this multi-purpose
saw to become a reciprocating saw. Restore the pivot release
lever (2) to lock (See Fig. D1).
2) Rotate the blade holder (11) anti-clockwise and hold in position.
C1 C2 C3
1
2

17
17
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019

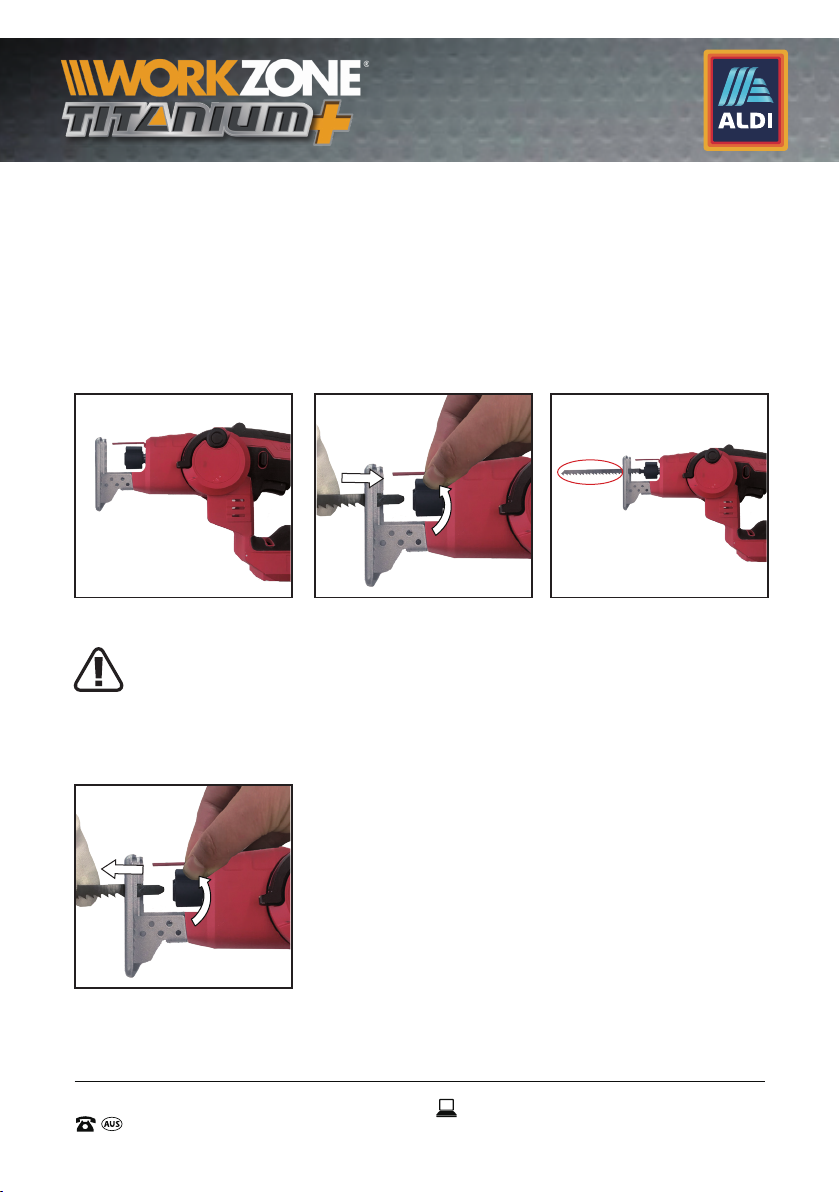

Fully insert the blade into the blade holder (11) slot with blade
teeth facing downwards to the base plate (8) of the saw.
3) Release the blade holder (11), and it will self-rotate back to
clamp the blade (10) tightly. Push the blade (10) to ensure it is
locked in position. (See Fig. D2)
NOTE: When using RECIPROCATING SAW MODE, the blade (10)
teeth face downwards to the base plate (8) of the saw as shown in
Fig. D3.
D1 D2 D3
1
2
——Removing the saw blade (10)
WARNING! The blade (10) may be spring ejected so
protect your eyes.
To remove a blade (10), hold the blade (10) and rotate the blade
holder (11) anti-clockwise, remove the blade (10) from the blade
holder (11) slot and then release the blade holder (11). (See Fig. D4)
D4
1
2

18
18
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019

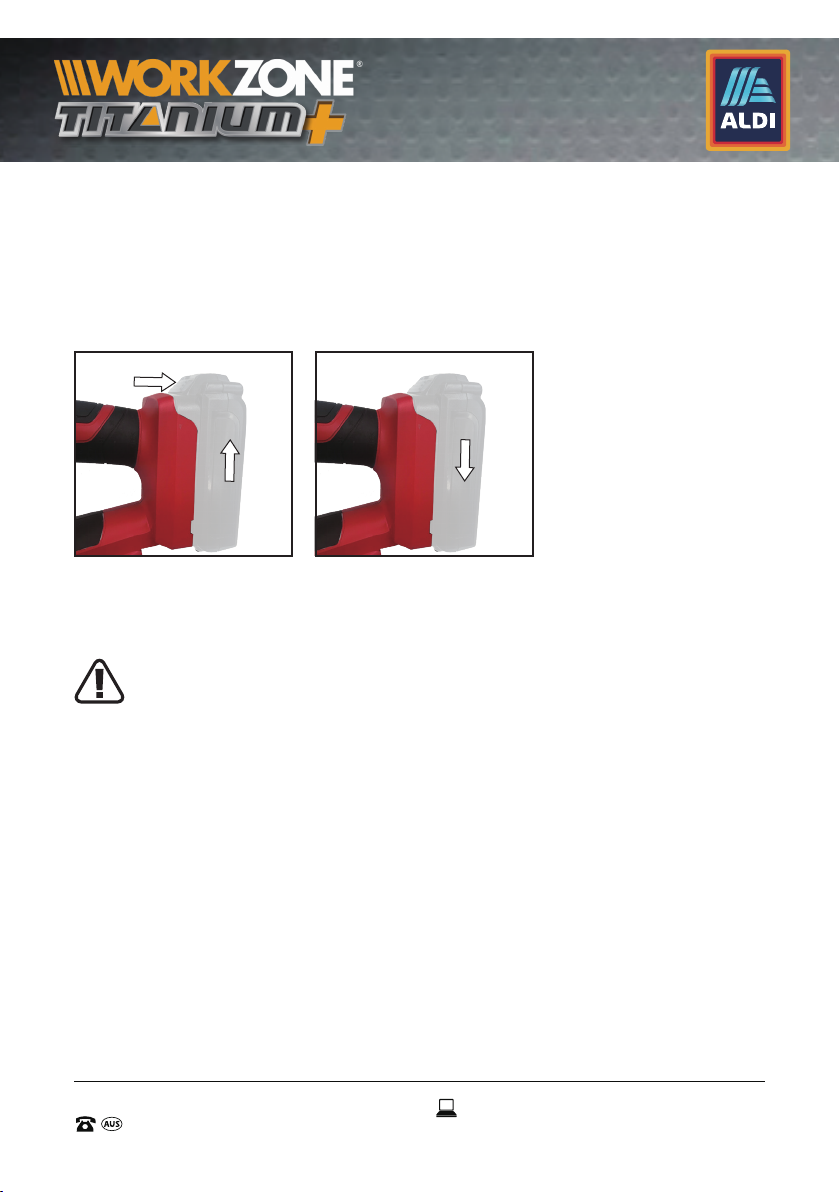

7.3 To remove or install the battery pack (6) (Battery pack not
supplied) (See Fig. E1, E2)
Depress the battery pack release button (5) firmly first and then
slide the battery pack out (6) from your multi purpose saw.
Slide the fully charged battery pack (6) onto the saw with sufficient
force until it clicks into position.
8. Operation
WARNING:
•Always wear eye protection while operating the saw.
•BURN HAZARD. Do not touch the blade (10) immediately
after use. Contact with the blade (10) may result in
personal injury.
•Before you begin work, ensure the material to be cut is
rigid. Small workpieces should be securely clamped to a
work table.
8.1 Switching on and off (See Fig. F)
For starting operation, press the lock-off button (4) and hold in
position, then press and hold the on/off switch (7). To switch off the
machine, release the on/off switch (7).
E1 E2
2
1

19
19
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
For safety reasons the on/off switch (7) of the machine
cannot be locked; it must remain pressed during the entire
operation.
8.2 LED work light (See Fig. G)
An LED work light (13) is built-in near the end of the protection
finger (12). The LED work light (13) will automatically come on each
time the on/off switch (7) is depressed.
F
G
1
2
13

20
20
AFTERSALESSUPPORT
1300 889 028 (toll free) e-mail:
MODEL No.:
[email protected]
CSJ18LDA.9 • 11208 • 10/2019
8.3 Cutting
WARNING:
•Always wear eye protection while operating the saw.
•Never hold the pivot head when operating the tool.
•Before cutting any type of material, be sure it is firmly
anchored or clamped to prevent slipping. Holding the
work by hand or against your body leaves it unstable and
may lead to loss of control.
•Place blade (10) lightly against work to be cut, depress the
on/off switch (7) and allow it to obtain maximum speed
before applying pressure.
•Whenever possible, the saw foot plate (9) must be held
firmly against the material being cut. This will prevent
the saw from jumping or vibrating and minimize blade
breakage.
•Any cut which puts pressure on the blade (10), such as
angle or scroll cuts, increases potential for vibration,
kickback and blade breakage.
•Shock hazard. Use extra caution when cutting overhead
and pay particular attention to overhead wires which may
be hidden from view.
•Use extra caution when cutting overhead and anticipate
the path of falling branches and debris ahead of time.
•Inspect work site for hidden gas pipes, water pipes,
or electrical wires before making blind or plunge cuts.
Failure to do so may result in explosion, property damage,
electric shock, and/or serious personal injury.
