Workzone PB43655 User manual

INSTRUCTION MANUAL
6 OUTLET
WALL MOUNTED
POWER BOARD
WITH LED LIGHTS
AUS
AFTER SALES SUPPORT
[email protected]1300 663 907
MODEL: PB43655 PRODUCT CODE: 8944 06/2019
W
2

23
Af
Af ter ter Sales Suppo Sales Suppo rt rt
1300 663 907 1300 663 907 Model Number PB43655
Model Number PB43655 [email protected]om.au
[email protected]om.au
AUS AUS
Pack Contents
• 1x 6 Outlet Wall Mounted Power Board
• 1x Detachable Tool Holder
• 4x Wood Screws
• 5x Screws to attach Tool Holder
• 1x Mounting Template
• 1x Instruction Manual
• 1x Warranty Card
Table of Contents
Product Overview
Warranty Details
Welcome
General Safety Instructions
Features / Technical Specications
Instructions
FAQ’S
Maintenance & Disposal
Repair and Refurbished Goods or Parts Notice
4
5
6
7
8
9-12
13
14
15
Version 1.1
Product complies to: AS/NZS CISPR 15:2011
AS/NZS 3105:2014
AS/NZS 60598.1:2013
AS/NZS 60598.2.4:2005 Inc A1
AS/NZS 3112:2011 Inc A1–3
AS/NZS 3133:2013 Inc A1–2
AS/NZS 3100:2009 Inc A1–4
SAA-122268-EA

4
After Sales Support
1300 663 907 Model Number PB43655
[email protected]om.au
AUS
5
23
4 5
6
1

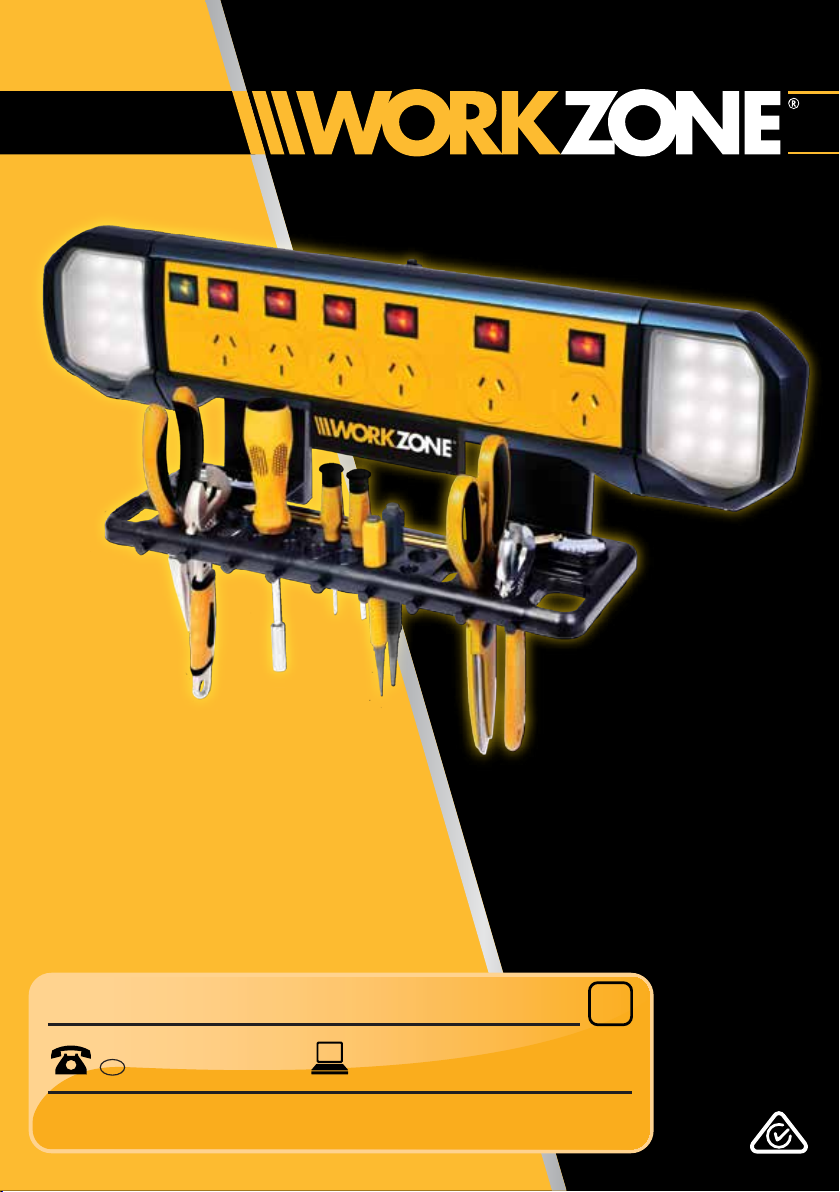

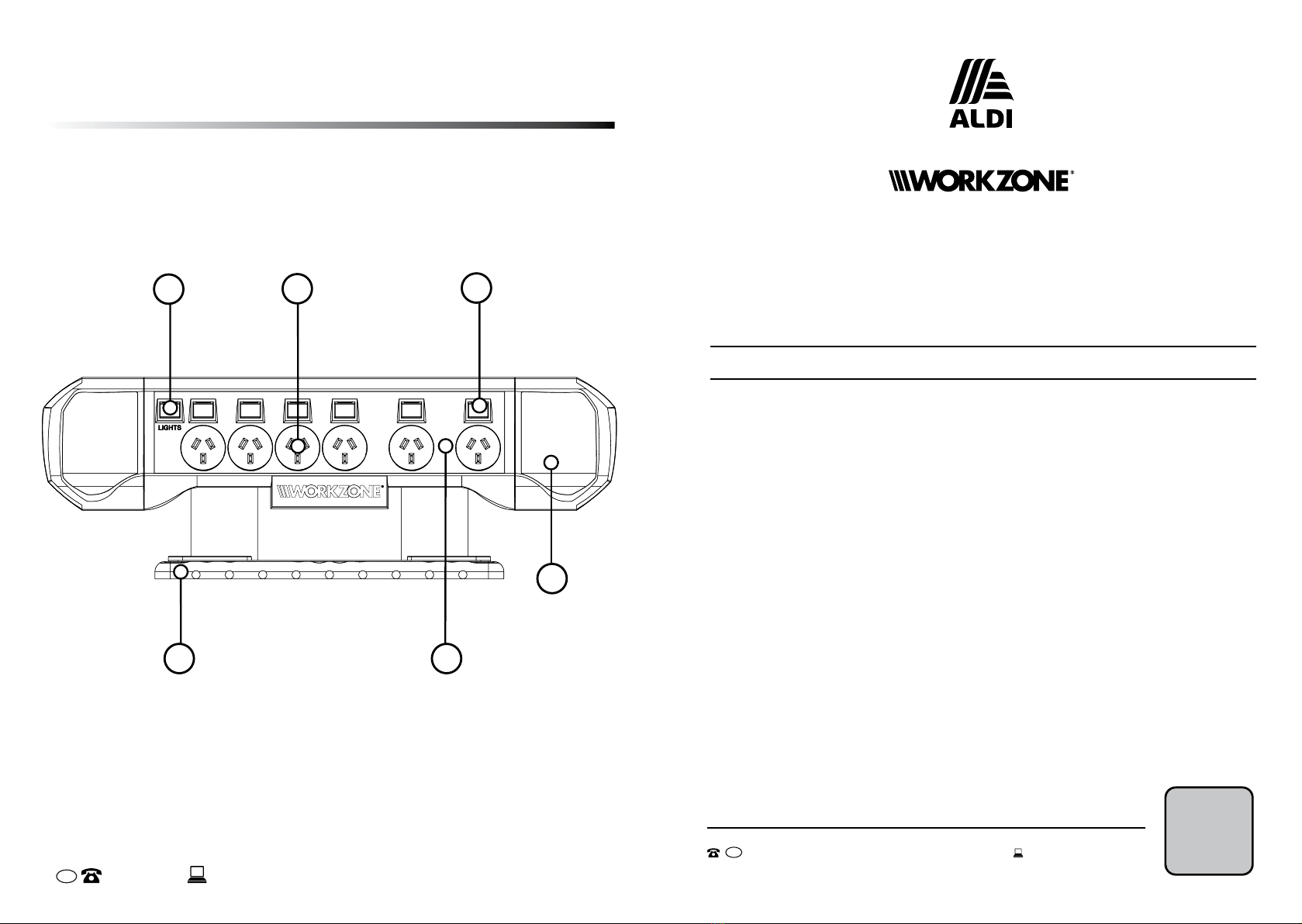

1. Light switch
2. 4 x standard socket outlets
3. Illuminated power on/o switches
4. Tool holder for small tools
5. 2 x wide spaced outlets
6. LED work lights with 90°rotation
Product Overview
Warranty Details
The product is guaranteed to be free from defects in workmanship and parts for a period
of 12 months from the date of purchase. Defects that occur within this warranty period, under
normal use and care, will be repaired, replaced or refunded at our discretion. The benets
conferred by this warranty are in addition to all rights and remedies in respect of the product
that the consumer has under the Competition and Consumer Act 2010 and similar state and
territory laws.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage.You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
AFTER SALES SUPPORT
MODEL: PB43655 PRODUCT CODE: 8944 06/2019
REGISTER YOUR PURCHASE ATwww.aldi.com.au/en/about-aldi/product-registration/TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION
1300 663 907
AUS [e-mail]
WALL MOUNTED POWER BOARD WITH LED LIGHTS
YEAR WARRANTY
1

67
Af
Af ter ter Sales Suppo Sales Suppo rt rt
1300 663 907 1300 663 907 Model Number PB43655
Model Number PB43655 [email protected]om.au
[email protected]om.au
AUS AUS
Congratulations on choosing to buy a WORKZONE® product. By doing so you
now have the assurance and peace of mind that comes with purchasing a
product made by one of the leading manufacturers. All products brought to you
by WORKZONE® are manufactured to the highest standards of performance and
safety and, as part of our philosophy of customer service and satisfaction, are
backed by our comprehensive 1 year warranty. We hope you will enjoy using
your purchase for many years to come.
Welcome General Safety Instructions
Read this manual thoroughly before rst use and keep it in a safe place for future
reference, along with the warranty card, purchase receipt and carton. The safety
precautions enclosed herein reduce the risk of re, electric shock and injury when
correctly adhered to. Follow all instructions and take notice of all warnings to
reduce the risk of re or electric shock.
• Carefully follow all instructions for assembly and mounting. Test the strength of
attachment to the wall before using the product.
• Do not place heavy tools on the tool holder. The tool holder is designed for small
tools only.
• The wall mount power board contains no serviceable parts. Opening the product
will void your warranty.
• Always exercise caution when operating any electrical device.
• Keep away from liquids, oils, petrol, and all chemicals.
• For indoor use only.
• Do not look directly into the LEDs when operating.
• Keep away from children.
• Do not use if power supply cable becomes damaged or broken.
• The external exible cable or cord of this product cannot be replaced; if the cord is
damaged, the product shall be destroyed.
• Long-life LED lights are not replaceable.
• Turn o when not in use.
• Supervise young children to ensure they do not play with the product.

89
Af
Af ter ter Sales Suppo Sales Suppo rt rt
1300 663 907 1300 663 907 Model Number PB43655
Model Number PB43655 [email protected]om.au
[email protected]om.au
AUS AUS
Voltage: 10A, 240V AC 50Hz
Max Load: 2400W
Power Cord: 1.8m 1.0mm
Tool holder: Max weight 4kg
LED output: 720 Lumens total
Dimension: 563mmx130mmx63mm
Weight: 1011g incl cord and plug
Features
Technical Specifications
• 4 x standard socket outlets
• 2 x wide spaced socket outlets
• Illuminated power on / o switches
• Powerful LED work lights
• Work lights with 90° rotation
• Wall mounting
• Detachable tool holder with 32 storage options for small tools
• Overload protection

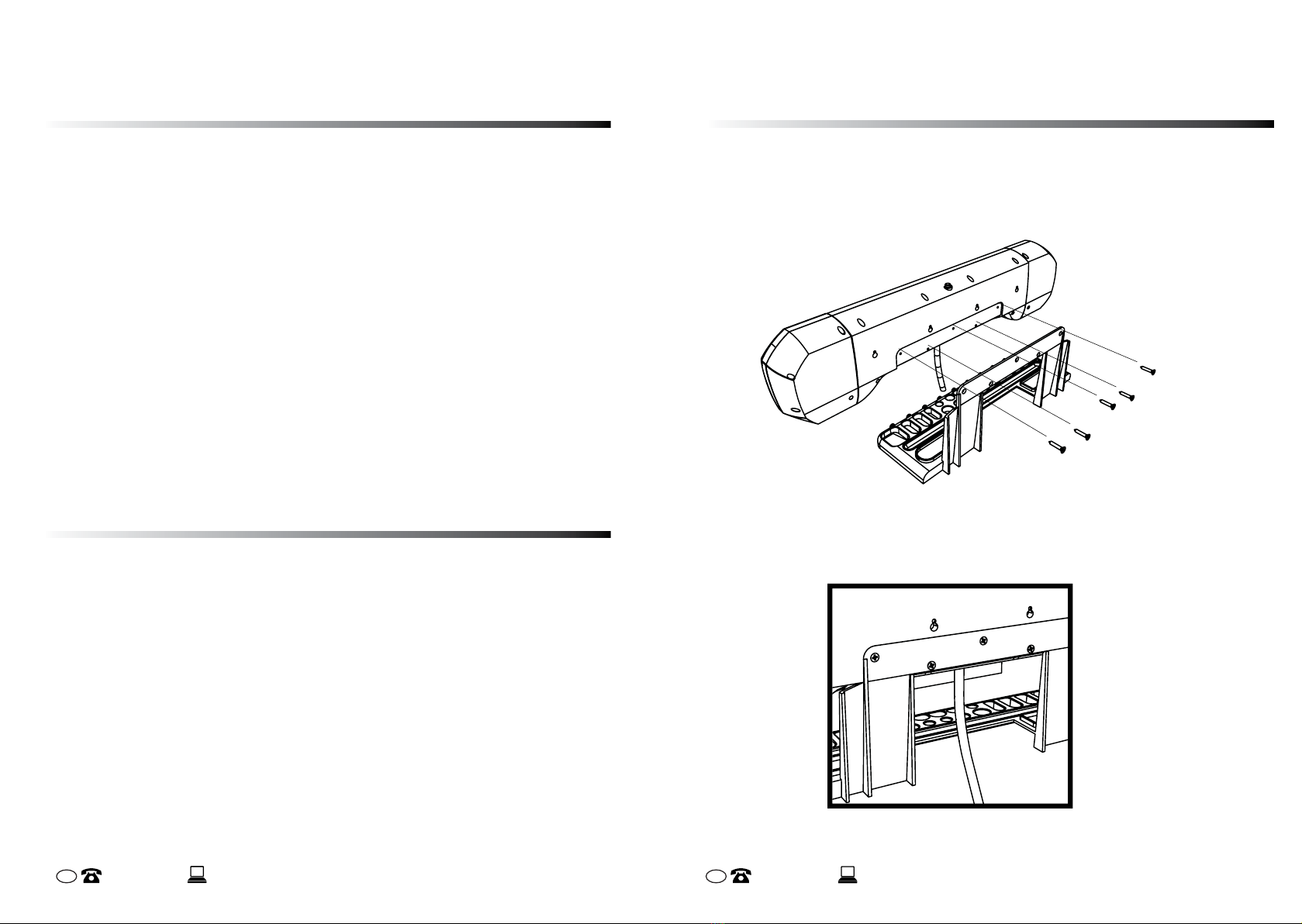

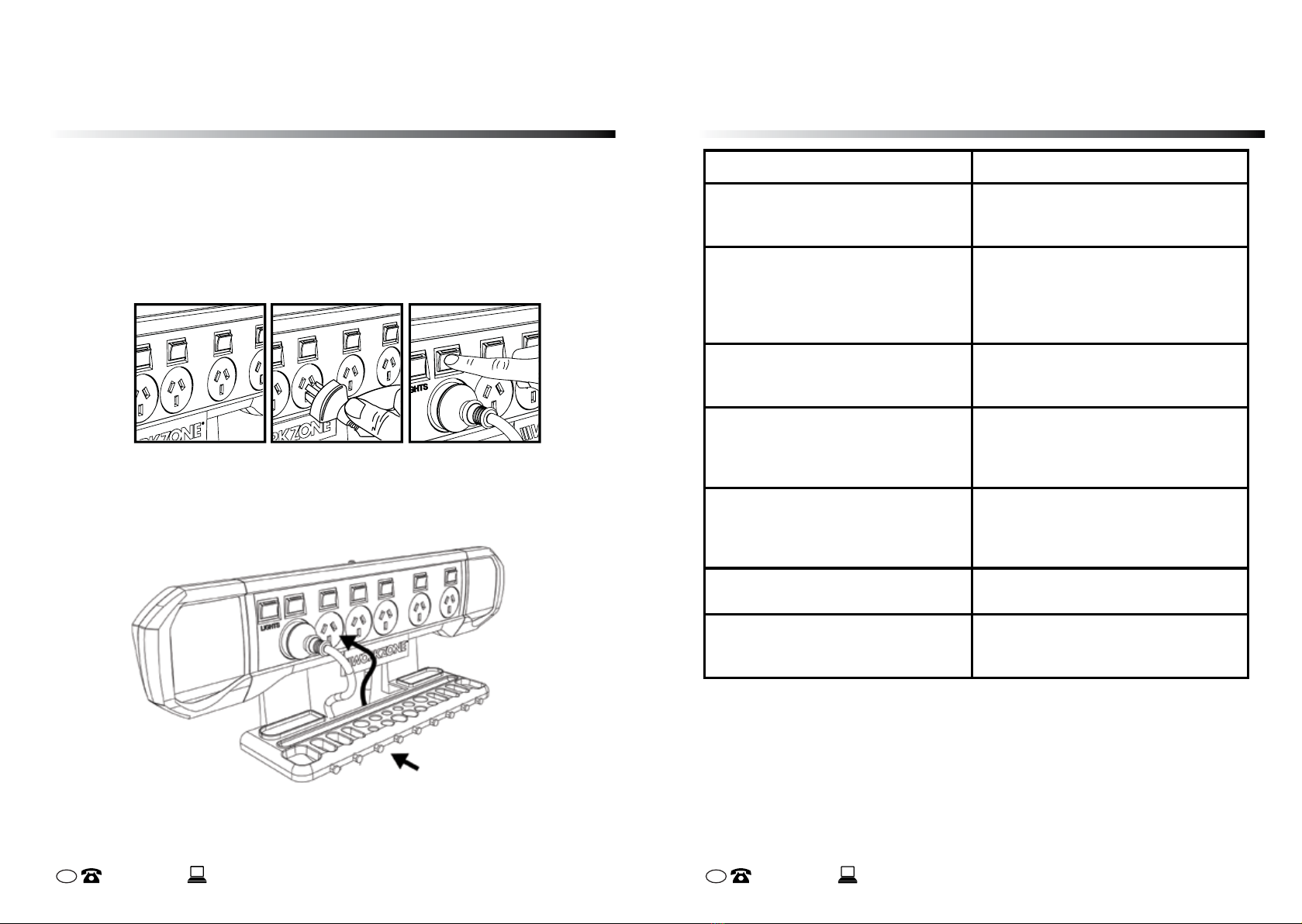

Assemble the tool holder
1. Attach the tool holder to the power board using 5 screws provided
2. Thread the power cable behind the tool holder
Instructions

10 11
Af
Af ter ter Sales Suppo Sales Suppo rt rt
1300 663 907 1300 663 907 Model Number PB43655
Model Number PB43655 [email protected]om.au
[email protected]om.au
AUS AUS

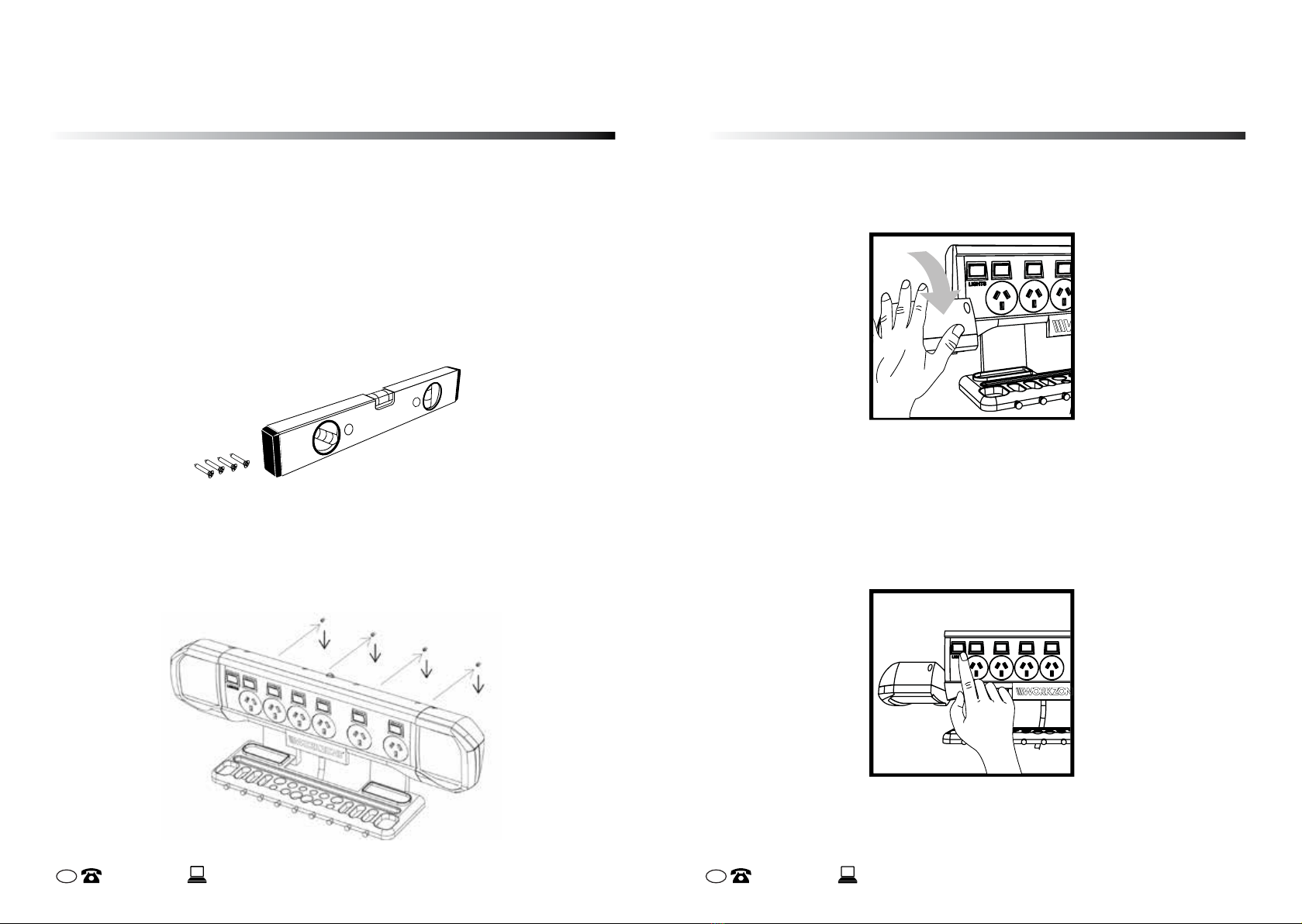

1. Find a suitable location to mount the power board. Use the included
wood screws
Note: Ensure the Wall Mount Power Board is being mounted close enough to
utilise a suitable power point
2. Measure holes for 4 wood screws using a spirit level, with 100mm
spacing. Alternatively, use the provided mounting template. Fit the
supplied wood screws
Note: Mounting the powerboard onto plaster or masonry may require
additional screws and components
3. Line up the mounting holes on the back of the power board and place
on to the screws. Gently push down
Mounting
Instructions
1. Use your hand to rotate the LED lights to the desired position
Tip: Attach the power board to the wall above your workbench, and position
the lights to provide work lighting for small tasks
2. Switch the LED work lights on using the switch marked“LIGHTS”
Instructions
Using the LED Work Lights

12 13
Af
Af ter ter Sales Suppo Sales Suppo rt rt
1300 663 907 1300 663 907 Model Number PB43655
Model Number PB43655 [email protected]om.au
[email protected]om.au
AUS AUS
1. Ensure the switch above the socket is switched o
2. Plug in your device
3. Switch the socket on, using the switch above it
4. When you have nished using the appliance, switch the socket o
Tip: Keep your cables out of the way by threading them behind the
tool holder
Instructions
Using the Power sockets Questions Answers
Is this product compatible with 15A
sockets?
No. The maximum current of 10A applies to
this product. This current output applies to
most household electrical items.
What are wide spaced outlets? Wide spaced outlets allow you to use larger
power sockets without blocking the others
on the power board. This ensures you can
have up to 6 sockets connected at one
time.
Can I plug the Wall Mounted Power Board
into extension leads or other power
boards?
No. The Wall Mounted Power Board should
not be plugged into an extension lead or
another power board.
Can I use the tool holder to carry heavy
power or hand tools?
The tool holder is only designed to carry
small tools – such as a screwdrivers etc.
Please do not overload with excessive
weight.
Can the Wall Mounted Power Board be
mounted outdoors?
No. The Wall Mounted Power Board is for
indoor use only. It should only be mounted
in an area where it is protected from any
moisture.
Can I replace the LED’s? No. The long-life LED’s in this product are
not replaceable.
How far can the LED lights be rotated? The LED lights can be rotated up to 90˚
which can provide work lighting for small
tasks.
FAQ’S

14
After Sales Support
1300 663 907 Model Number PB43655
[email protected]om.au
AUS
Maintenance & Disposal
15
Cleaning
To clean the unit, ensure it is unplugged from power, and no devices are plugged
in to it. Wipe the fascia down with a damp cloth and make sure it is completely dry
before using again
Disposal
At the end of its working life, do not throw this product out with your household
rubbish. Electrical and electronic products contain substances that can have
a detrimental eect on the environment and human health if disposed of
inappropriately. Observe any local regulations regarding the disposal of electrical
consumer goods and dispose of it appropriately for recycling. Contact your local
authorities for advice on recycling facilities in your area.
Please keep the original packaging carton and materials in a safe place. It will help
to prevent any damage if the product needs to be transported in the future. In the
event it is to be disposed of, please recycle all packaging material where possible.
If you require another copy of this instruction manual, please visit www.winplus.
com.au to obtain an electronic copy.
Repair and Refurbished Goods
or Parts Notice
Unfortunately, from time to time, faulty products are manufactured which need to be returned
to the Supplier for repair.
Please be aware that if your product is capable of retaining user-generated data (such asles
stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs
stored on a portable media player, games saved on a games console or les stored on a USB
memory stick) during the process of repair, some or all of your stored data may be lost.
We recommend you save this data elsewhere prior to sending the product for repair.
You should also be aware that rather than repairing goods, we may replace them with
refurbished goods of the same type or use refurbished parts in the repair process.
Please be assured though, refurbished parts or replacements are only used where they
meet ALDI’s stringent quality specications.
If at any time you feel your repair is being handled unsatisfactorily, you may escalate your
complaint. Please telephone us on1300 663 907 or write to us at:
Winplus Australasia
PO Box 537 Bayswater Business Centre, Victoria, Australia
1300 663 907 - Hours: Mon-Fri 8:30am - 6:00pm AEST
