Wow COOLIUS 2700 BT User manual

2117_ENG / Version:10/03/2011
OPERATOR MANUAL
Automotive Air-Conditioning Service Equipment
WOW! COOLIUS 2700 BT

WOW! Coolius 2700BT
- 2 -
This equipment has been extensively researched, designed and developed with the prime objective in satisfying
the workshop operator and technician in carrying out the most efficient air-conditioning diagnostic and service
procedure, which can not be achieved with any other equipment of this kind.
Please follow the proceeding instructions carefully.
If there is anything you do not understand fully in the proceeding text or images, please do not hesitate to
contact your local distributor or manufacturer. We will be only too happy to assist you.
IMPORTANT :
This manual contains important information pertinent to operator safety, and must accompany the unit, in
the case of sale or transfer to another party.
Manufacturer reserves the right to modify this manual and the unit itself at any time without prior notice

WOW! Coolius 2700BT
- 3 -
Contents
1Introduction ....................................................................................................................................4
2SAFETY FIRST! Important Safety Information's ....................................................................................5
3Technical Features........................................................................................................................... 6
4Preparing the Machine for Use ......................................................................................................... 7
5Main Components Location ............................................................................................................. 8
6Switching ON the Machine............................................................................................................. 10
7Icons and their meaning ................................................................................................................ 11
8Printer Set Up................................................................................................................................ 14

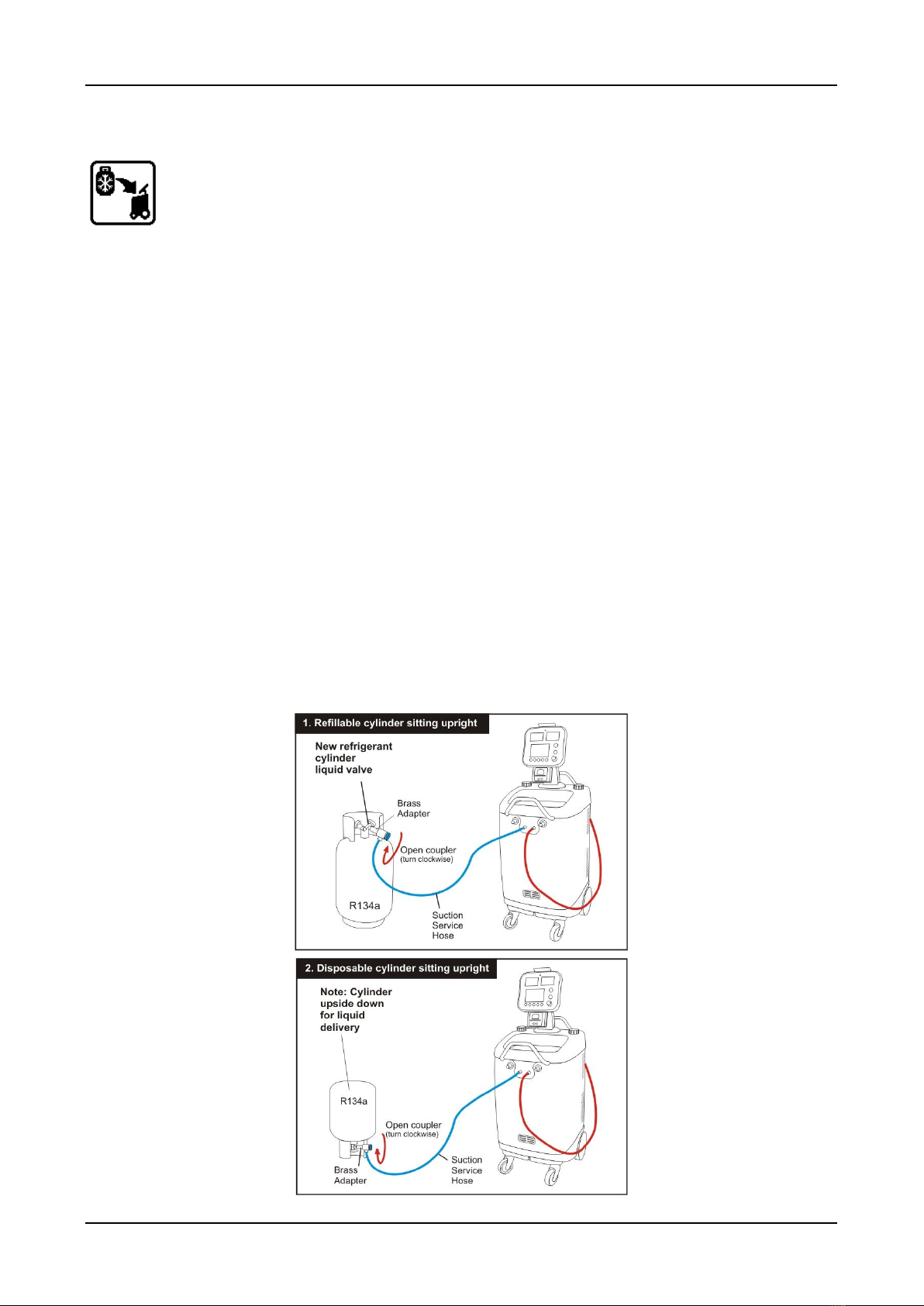

9Storage Cylinder Filling Procedure (Refrigerant Transfer) .................................................................. 15
10 Connecting and testing the A/C system ........................................................................................... 17
11 Recovery & Recycling Mode ............................................................................................................ 18

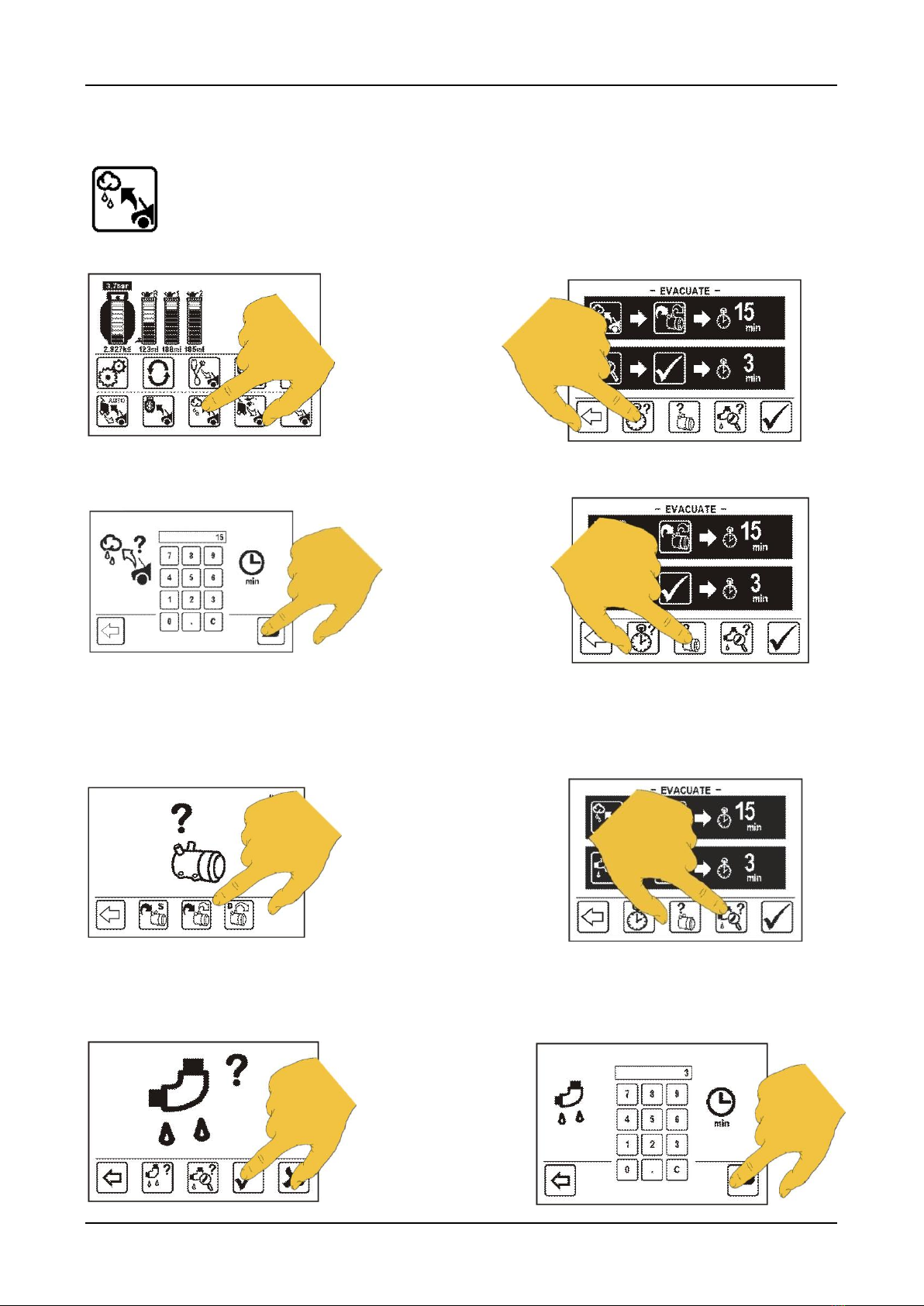

12 Evacuation Mode........................................................................................................................... 20
13 Oil & UV Dye Injection Mode ......................................................................................................... 22
14 Refrigerant Charge Mode .............................................................................................................. 24
15 Auto Mode Function ...................................................................................................................... 27
16 A/C Flushing Mode (OPTIONAL) .................................................................................................... 31
17 Settings & Optional Functions......................................................................................................... 32
17.1 Main Unit Set Up ....................................................................................................................... 32
17.2 Wireless Temperature Sensors Set Up ......................................................................................... 33
17.3 Machine Operation History ........................................................................................................ 34
17.4 Refrigerant Recycling.................................................................................................................. 35
17.5 Declaration of Conformity.......................................................................................................... 36

WOW! Coolius 2700BT
- 4 -
1Introduction
Coolius 2700 BT - Advanced Refrigerant Processor is a user-friendly tool specifically designed for the
automotive air-conditioning technicians, to carry out the following functions:
Testing air-conditioning system.
Recover and recycling the refrigerant from air-conditioning system.
Electronically gauge amount of refrigerant recovered from air-conditioning system.
Electronically gauge amount of oil removed from air-conditioning system (if any).
Evacuate air-conditioning system.
Electronically charge lubricating oil & UV dye by volume into the air-conditioning system.
Electronically charge refrigerant into the air-conditioning system by weight.
Electronically displays vent temperature.
Electronically Flush A/C system (optional).
PC communication via blue tooth (optional).
Refrigerant identification (optional).
The unit is a microprocessor control system. This provides electronically controlled functions, whilst keeping the
operator constantly informed and in full control.
This unit has been designed and build to be long lasting and with high level of reliability including maximum
safety for the operator. The operator needs only to be responsible for the correct use and maintenance of the
unit, in accordance with the instructions found in this manual.
Environmental information
This product may contain substances that can be hazardous to the environmental or to human health if it's not
disposed of properly.
Electrical and electronic equipments should never be disposed of in the usual municipal waste, but must be
separately collected for their proper treatment (recycling).
We also recommend that you adopt appropriate measures for environmental protection: recycling of the
internal and external packaging of the product, including batteries (if any).
With your help it is possible to protect our planet and improve the quality of life, by preventing potentially
hazardous substances being released in to our environment.

WOW! Coolius 2700BT
- 5 -
2SAFETY FIRST! Important Safety Information's
This operator’s manual contains important safety procedures relating to the operation and maintenance of this
equipment. Failure to follow the instructions contained in this manual may result in serious injury.
Read this user manual carefully before operating the unit. If you do not understand any section of this
manual, please contact your nearest distributor or manufacturer.
This equipment is to be operated by accredited technician only! Users must have basic knowledge of
air-conditioning and refrigeration systems, including potential hazards associated with the handling of
refrigerants and systems under high pressure.
Handle refrigerant with care as serious injury may occur. Always wear appropriate protective clothing
and safety glasses.
Avoid inhalation of the refrigerant or oil vapours. Use only in well ventilated work areas.
Use only pure R134a refrigerant with this equipment.
Do not expose the machine to direct artificial heat.
Do not expose the machine to wet environment. Keep Dry.
Do not tamper with or change safety control devices or their settings.
The power cable may only be connected to a socket with nominal voltage stated on the rating plate,
located at the rear of the unit.
Power lead plug to be connected only to power point with an earth.
When transporting the unit keep upright and remove refrigerant cylinder from platform.
Never operate the equipment with a damaged power lead, replace it immediately.
RISK OF ELECTRICAL SHOCK. Before removing any protective cover from unit, always unplug power
lead from power point.
Do not cover ventilation openings on chassis cover when the unit is operating.
Maintenance is to be carried out as per the manufacturer recommendation shown in this manual. Only
original parts are to be used for maintenance and repairs.
Maintenance of the unit must only be performed by an authorized technician.
Only non aggressive substances to be used for cleaning of the unit.
WOW! Coolius 2700-BT does not contain or should be operated with flammable refrigerants.

WOW! Coolius 2700BT
- 6 -
3Technical Features
Refrigerant ......................................................................R134a
Electronic refrigerant scale ...............................................5g resolution
Load cell .........................................................................60kg with 150% overload capacity
LP and HP gauges ...........................................................High Clarity Digital Display
Recovery cylinder .............................................................27kg
Recovery pump ................................................................Danfoss SC12G,
Recovery rate ...................................................................600 g/min (liquid state)
Vacuum pump .................................................................2 stage, 170 l/min (6cfm),
Vacuum ...........................................................................3 x 10-1 Pa
Dimensions .....................................................................500 mm, 650mm, H-1320 mm (1000 packed)
Weight ............................................................................100 kg
Supply voltage .................................................................230VAC- 50/60Hz
Power ..............................................................................700 W
Max. Currency .................................................................6.7A
Working conditions ..........................................................0 to 40oC ambient temperature, up to 80%
humidity, 2000m altitude
Noise level ......................................................................< 70 dB (A).
Fuse .................................................................................10 amp/250V (slow blow type)
Measuring instrument .......................................................I category (Not to be mixed with II, III, IV category).
Approvals ........................................................................EN 61010-1 Electric safety, EN 55014-1 EMC-CE

WOW! Coolius 2700BT
- 7 -

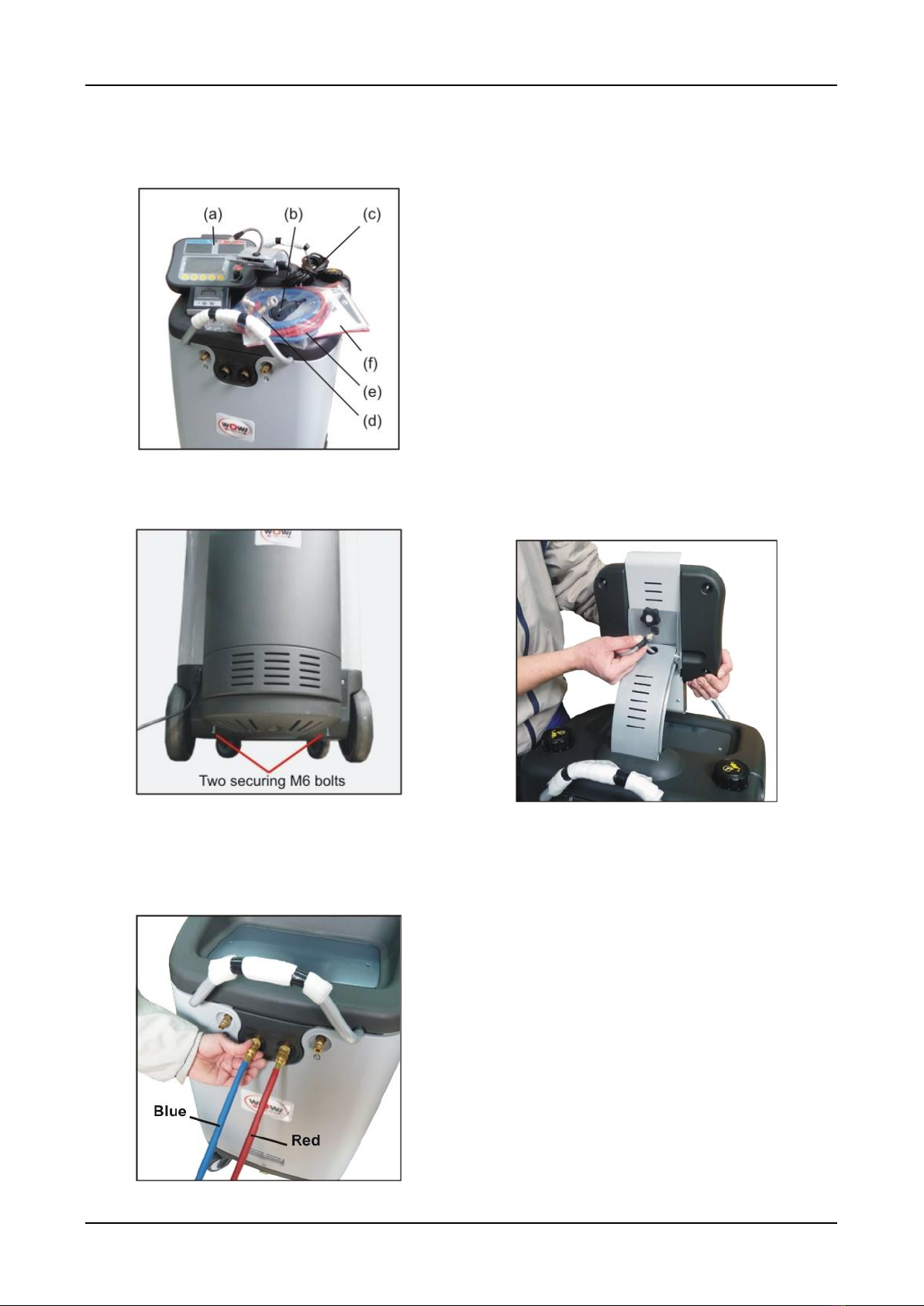

4Preparing the Machine for Use
Perform the following steps to prepare the unit before the first use.
1. Remove the carton box and Styrofoam inserts.
2. Check to ensure that all of the accessory
components are with the unit:
(a) Unit Head
(b) Wireless temperature sensor with USB cable
(c) Power lead
(d) Brass adapter for refrigerant transfer
(e) Service hoses with quick couplers
(f) User's manual
3. Unscrew two securing M6 bolts situated on each
side of the bottom of the platform base.
4. Place and secure the unit head, connect the cable.
5. Connect suction and discharge (blue & red) service
hose to the front service ports of the machine, making
sure the “O” ring seals on the end of each hose fitting
are inserted correctly.
6. Connect power lead to power socket situated behind
the right hand rear wheel, connect power lead plug to
suitable power outlet, making sure it has an earth
connection.

WOW! Coolius 2700BT
- 8 -

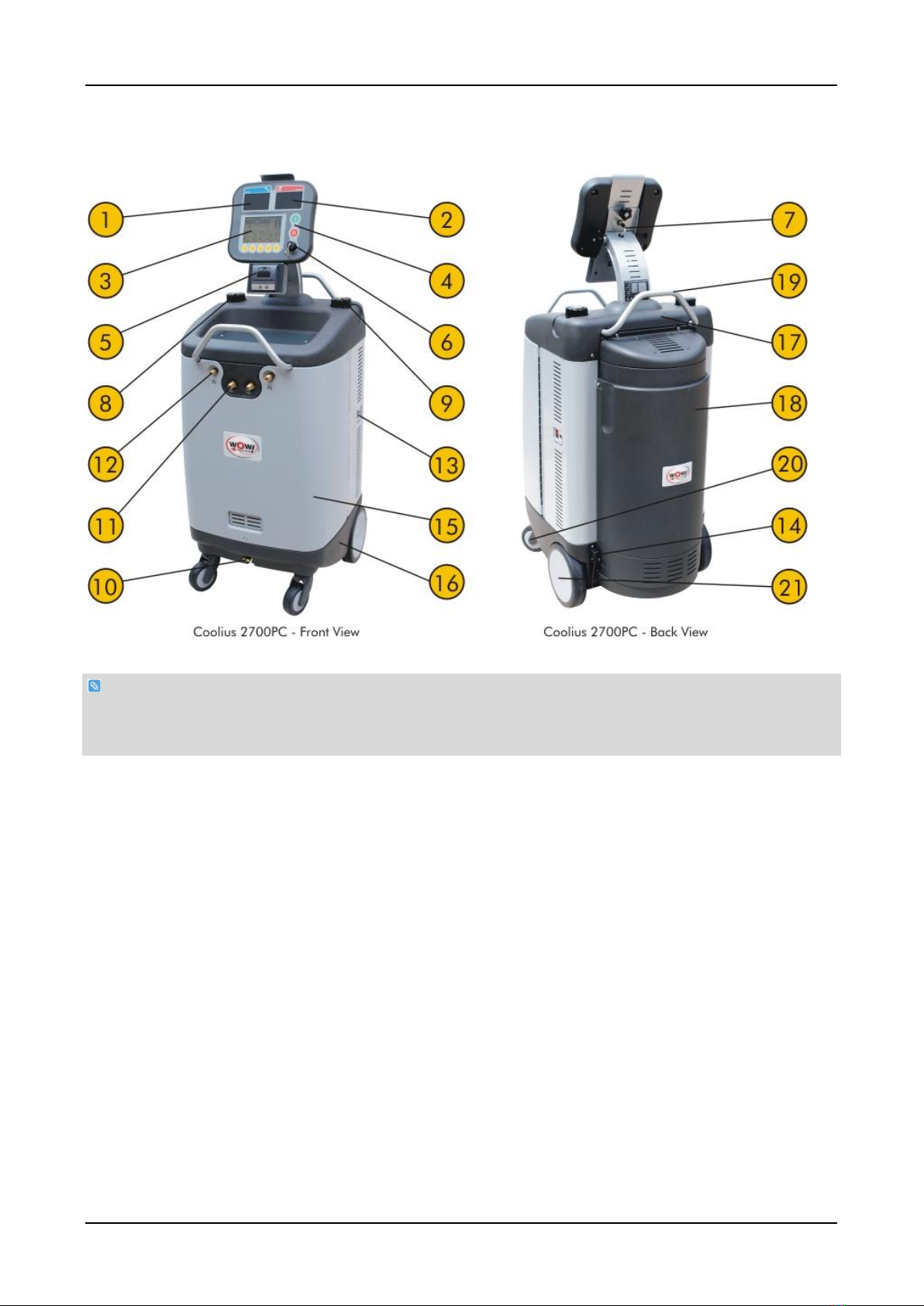

5Main Components Location
NOTE:
No hand valves are incorporated on the Coolius 2700 BT. A series of electronically controlled valves are
incorporated to precisely control the functionality of the machine. No more confusion on which valve to
turn off or on.
1. LP Digital Display (Suction) - A large 80 mm x 50 mm digital display, which displays A/C suction pressure.
The digital display is mounted on the head panel for easy viewing by the operator. Pressure is displayed in Bar
& PSI, depended on the user selection.
2. HP Digital Display (Discharge) - A large 80 mm x 50 mm digital display, which displays A/C discharge
pressure. The digital display is mounted on the head panel for easy viewing by the operator. Pressure is
displayed in Bar & PSI, depended on the user selection.
3. Touch Screen –All functions icons are displayed on the LCD touch screen. All functions are selected by
touching the appropriate icon on the display. The operator is guided step by step in setting and initiating each
selected function.
4. Stop and Start Button - The stop and start button are conveniently located on the front panel to give to the
operator complete control of the equipment.
5. Printer - The thermal printer will print all results at the end of each function once completed.
6. USB to WTS charging lead - The USB port is used for downloading software and charging the wireless
temperature sensors.
7. Connecting Cable - A user friendly connecting cable is used to connect the head with IO board or PC
interface adaption.
8. New Oil 1 Injection vessel - A large capacity vessel of 240ml is mounted on the left side of the unit to
electronically inject the recovered amount of oil back in to air conditioning system, or to select the desired
amount of oil to be injected.

WOW! Coolius 2700BT
- 9 -
9. New Oil 2 / UV dye Injection vessel - A large capacity vessel of 240ml is mounted on the right side of the
unit to electronically inject the oil or UV dye in to the A/C system.
10. Recovered Oil Drain Ball Valve - The Coolius 2700-BT incorporates an internal oil vessel which measures
and retains oil (if any) that is removed from A/C system during the recovery process. The operator is prompted
when the valve should be open to drain the internal vessel, when full.
11. Suction and Discharge Ports with pre-filters - This ports are used to connect to the vehicle A/C system via
service hoses.
12. Service Hoses Storage Ports - These ports are used to store the suction and discharge service hoses quick
couplers to avoid contaminations and damage.
13. ON/OFF Switch - This switch is used to switch the machine on and off.
14. Power Inlet Socket- This socket is used to connect the machine to the power supply via the power lead.
15. Front Cover- The cover id to protect the internal components of the machine.
16. Lower Cover- The lower cover houses the lower internal components of the machine.
17. Upper Cover- The upper cover houses the upper components of the machine, furthermore it incorporates
a tool tray, conveniently located on the front section of the machine.
18. Cylinder Cover- This cover is used to protect the cylinder.
19. Rear Handle - This added handle is used to enhance the monuvrability of the machine.
20. Caster Wheels - Heavy duty oil resistant caster wheels are used to manoeuvre the machine in the
workshop easily.
21. Rear wheels - two rears large 200 mm oil resistant wheel are used to make the monuvrability of the
machine easy on rough floor surfaces.

WOW! Coolius 2700BT
- 10 -
6Switching ON the Machine
Switch on machine power switch, the machine will
display the number of hours left before the
maintenance service is required.
Followed by self purge and hose evacuation (if
necessary). This special function will prevent non-
condensable (air) to be pushed in to the cylinder,
therefore maintaining maximum refrigerant purity.
Once this function is completed, the main menu is displayed on the LCD.
Coolius 2700-PC - Main Menu

WOW! Coolius 2700BT
- 11 -

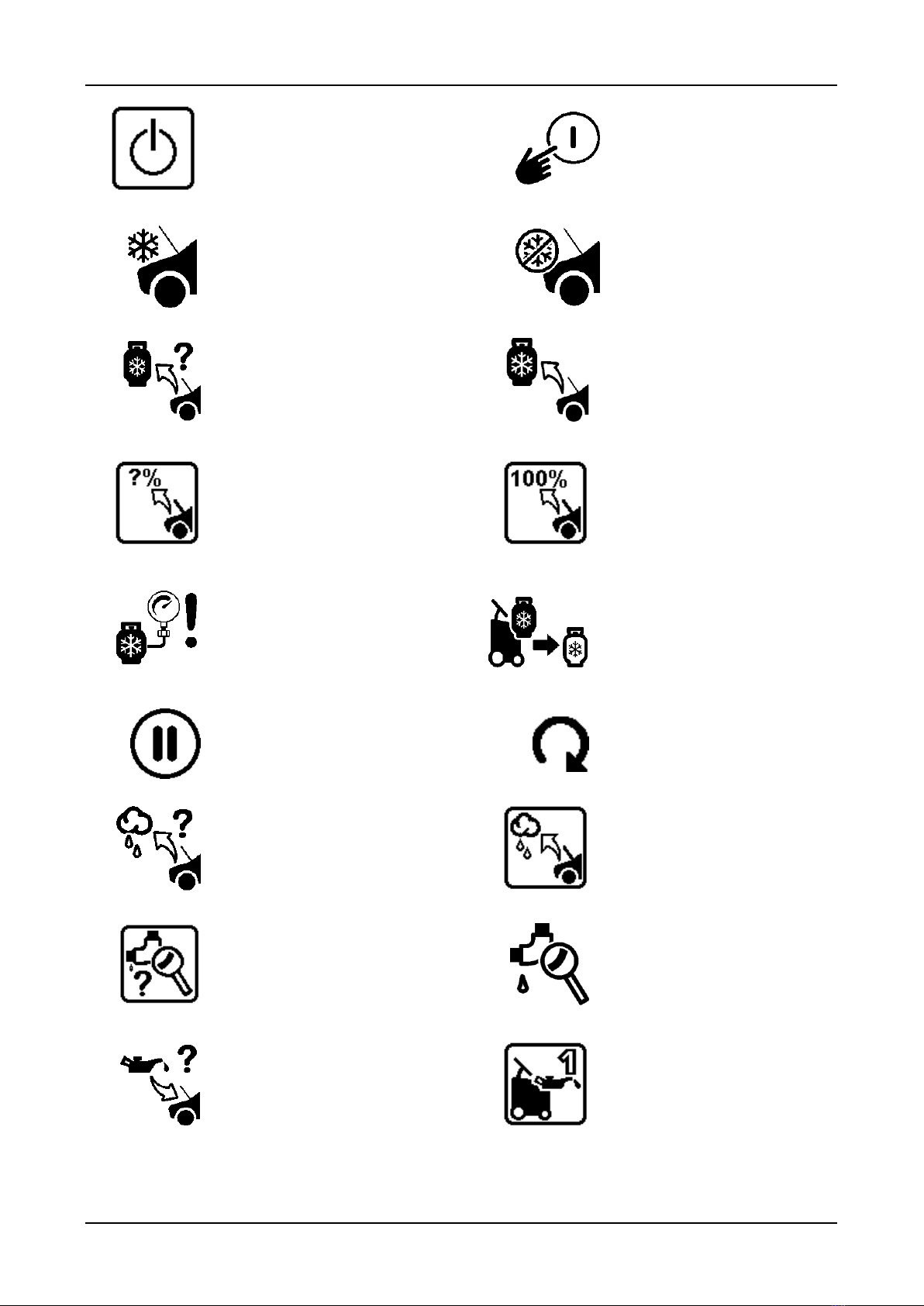

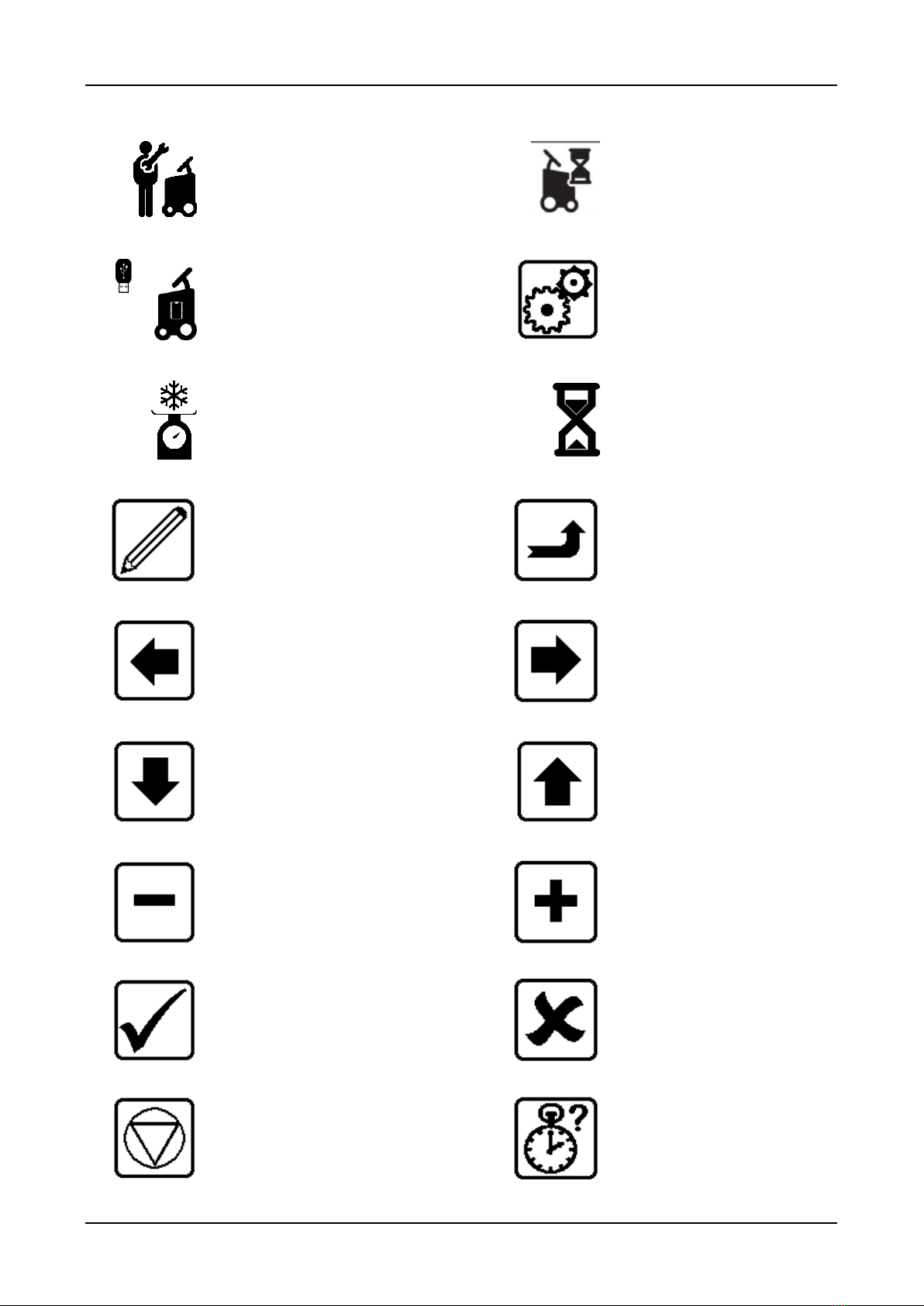

7Icons and their meaning
Machine requires servicing.
The machine is self purging.
Updating software.
Set up, adjusting settings.
Set weight.
Please wait.
Edit.
Return, returning to previous
menu.
Left arrow, scrolling left.
Right arrow, scrolling right.
Down arrow, scrolling down.
Up arrow, scrolling up.
Minus (Decrease).
Plus (Increase).
Good, function completed
successfully.
Bad result is achieved and cancel
symbol.
Cancel symbol.
Set time.

WOW! Coolius 2700BT
- 12 -
Power.
Start button, starting a function.
The air-conditioning system
contains refrigerant
(pressure in A/C system).
There is no refrigerant in the air-
conditioning system or quick
couplers not open.
Recover, yes or no.
Recovering (removing) the
refrigerant from the air-
conditioning system.
Partial recovery (removing
some of the refrigerant from
the air-conditioning system.
Full recovery (removing the entire
refrigerant from the air-
conditioning system.
The machine has stopped due
to excessive high working
pressure.
Refrigerant cylinder on machine is
full, the machine will not allow you
to recover any more refrigerant,
change cylinder or transfer some
refrigerant to another cylinder.
Pause, the function is paused.
Number of cycles, indicating the
number of recovery pauses.
Evacuate, yes or no.
Evacuating, removing air and
moisture from within the air-
conditioning system.
Leak test, yes or no.
Air-conditioning system is leaking.
Oil charge, yes or no.
Oil vessel # 1, injecting oil in to
air-conditioning system.

WOW! Coolius 2700BT
- 13 -
Oil vessel # 2, injecting oil into
air-conditioning system.
Oil vessel # 3 (optional), injecting
oil in to air-conditioning system.
Dye injection vessel (optional),
injecting dye in to air-
conditioning system.
Injecting oil in to air-conditioning
system.
Select amount of refrigerant to
be charged.
Program amount of refrigerant to
be charged in to the air-
conditioning system.
Charging the air-conditioning
system with refrigerant.

WOW! Coolius 2700BT
- 14 -
8Printer Set Up
The printer is equipped with two keys and green led:
>> Paper feed
II on line / off line
The green led shows the state of the printer:
Led constantly ON - Printer in line
Led blinking - Printer not in line or no paper
Led off - Press II. If the problem persists, contact authorized distributor or manufacturer.
Printer roll specifications,
Paper width: 57-58mm
Max paper thickness: 80 µ

WOW! Coolius 2700BT
- 15 -
9Storage Cylinder Filling Procedure (Refrigerant Transfer)
The purpose of the Refrigerant Transfer mode is to transfer new refrigerant from a storage cylinder
to the machine cylinder.
The machine refrigerant cylinder which is situated behind the cylinder cover is supplied empty of refrigerant.
Note: The cylinder is evacuated by the manufacturer.
There are various types of new refrigerant cylinders which are in the market, refillable and disposable
cylinders.
Whenever refrigerant is transferred from either type of cylinder, must always be transferred liquid state in to
the machine.
Using a refillable cylinder to transfer refrigerant (see figure 1 for correct connection
procedure)
Keep the cylinder sitting upright, connect the suction (blue) service hose to new refrigerant cylinder liquid valve
by using the brass adapter provided, open liquid valve on storage cylinder (please note, all cylinder valves are
marked with liquid and vapour on the valve hand wheel), open suction service hose quick coupling >>>
Using a disposable cylinder to transfer refrigerant (see figure 2 for correct
connection procedure)
Connect the suction (blue) service hose to a new refrigerant cylinder valve by using the brass adapter
provided. Turn cylinder upside down for liquid delivery, open the valve on the cylinder, open suction service
hose quick coupling >>>

WOW! Coolius 2700BT
- 16 -
Step 1 - Touch refrigerant recovery icon
Step 2 - Touch compressor icon
Step 3 - Touch suction (S) icon
Step 4 - Touch weight icon
Step 5 - By using the keypad select the desired
amount of refrigerant to be transferred into the
machine cylinder and touch Enter.
Step 6 - Touch confirm icon and press the Start
button on the panel.
NOTE : If you wish to transfer the complete
amount of refrigerant from the new refrigerant
cylinder in to the machine cylinder go directly
from Step 3 to Step 7.
Step 7 - Touch 100% icon , touch the confirm icon
and press the Start button (See flow chart below).

WOW! Coolius 2700BT
- 17 -
10 Connecting and testing the A/C system
Use the service hose quick couplers to connect the hoses to the A/C system service ports, bearing in mind that
BLUE must be connected to the low-pressure (suction) side and RED to high pressure (discharge) side.
If the system is equipped with a single service port, connect only the relative hose.
Note: Before connecting the quick couplers, clean the a/c ports of any foreign material (grease or dust).
Winding the quick coupler hand wheel clockwise, will allow the refrigerant to flow through the hoses. Turning
hand wheel in opposite direction, the flow will be closed. If there is any refrigerant in the air-conditioning
system, the pressure displays will indicate a pressure.
The unit digital displays (suction & discharge) are important and important instruments.
The digital displays indicate the working pressure of the suction and the discharge side of the A/C system. The
pressures are displayed in Metric or Imperial system depended of the user selection.
The operator should have basic understanding between gauge reading and air-conditioning system normal
operating pressures, in order to correctly diagnose any possible system malfunction.
Above the digital displays is a bar graph which gives an estimation of good, fair or bad working pressures of
the A/C system. The black segment on the bar graph is related with the working pressure readings. The bar
graph colour coding is only indication.

WOW! Coolius 2700BT
- 18 -
11 Recovery & Recycling Mode
The purpose of the Recovery & Recycling mode is to recover refrigerant from the air conditioning
system, which will condense, purify and store the liquid refrigerant in the storage cylinder ready for
re-use.
Step 1 - Touch the Recovery Icon
Step 2 - Touch compressor icon
Step 3 - Select the desired A/C service port or
ports. Recovery process is faster when both
suction and discharge ports are selected.
Step4 - To recover the complete amount of refrigerant
from the A/C system, touch 100% icon, touch the confirm
icon and press the Start button to start the recovery
process.
Note: To recovery desired quantity of refrigerant to A/C system touch weigh icon. By using the keypad select
the desired amount of refrigerant, touch Enter icon, touch Confirm icon and press Start button to start the
recovery process.

WOW! Coolius 2700BT
- 19 -
Before recovery process start, the machine will self purge and
evacuate the service hoses (if required).
During the recovery process the machine will display the amount of
refrigerant being recovered. this process can be paused by
depressing Stop button and abort the function totally by depressing
the Stop button again or restart the process by pressing the Start
button.
Once the machine has reached a vacuum of -0.25 kPa it will enter
into recovery pause for duration of 3 minutes to allow for any
remaining refrigerant in the A/C system (if any) to boil off.
If the pressure in the A/C system increases above 0 kPa the machine
will automatically return in to recovery re-run to the remove the rest
of the refrigerant which has boiled off in the A/C system.
If recovery re-run is initiated again the machine will pull down to a
further vacuum of -0.30 kPa and then it will pause again for a
further 3 minutes.
If after the 3min. pause there is no further pressure increase in the
A/C system the machine will drain and measure the recovered oil (if
any).
The display will show the total amount of refrigerant recovered and
oil (if any). This will be displayed until the stop button is depressed
which then machine will display main menu again ready to select
another function if required.

WOW! Coolius 2700BT
- 20 -
12 Evacuation Mode
In the evacuation mode the air and moisture in the air conditioning system is removed and
exhausted to the atmosphere. The evacuation mode runs for a predetermined time selected by the
operator.
Step 1 - Touch the Evacuation Icon
Step 2 - Touch the Time Icon
Step 3 - By using keypad select desired vacuum
time and touch Enter icon to confirm.
Step 4 - Touch compressor icon
Step 5 Select the desired A/C service port or ports.
Evacuation process is more efficient when both
suction and discharge ports are selected.
Step 6 - Touch Leak Test icon
Step 7 - Touch confirm icon if you want to select
leak test, touch X icon to abort leak test under
vacuum.
Step 8 - By using keypad select leak test time and
touch Enter icon to confirm.
