WTM4151 User’s Manual
Page -1

WTM4151 User’s Manual
Page -2
FCC NOTICE
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC FULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITION:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED
OPERATION.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit difference from that to
which
the receiver is connected.
- Consult the dealer of an experienced radio/TV technician for help.
NOTE : The manufacturer is not responsible for any radio or TV interference
caused by
unauthorized modifications to this equipment. Such modifications could void
the user’s
authority to operate the equipment.

WTM4151 User’s Manual
Page -3
T
Ta ab bl le e o of f C Co on nt te en nt ts s
1 Introduction
Features
Specification
Parts check
System Requirements
2. Getting to know WTM4151
Front Panel
Rear Panel
3. Quick Start
Part 1- Connecting the Hardware
Step 1. Connect the ADSL cable and optional telephone
Step 2. Connect the Ethernet cable
Step 3. Attach the power connector
Step 4. Turn on WTM4151 and power up your systems

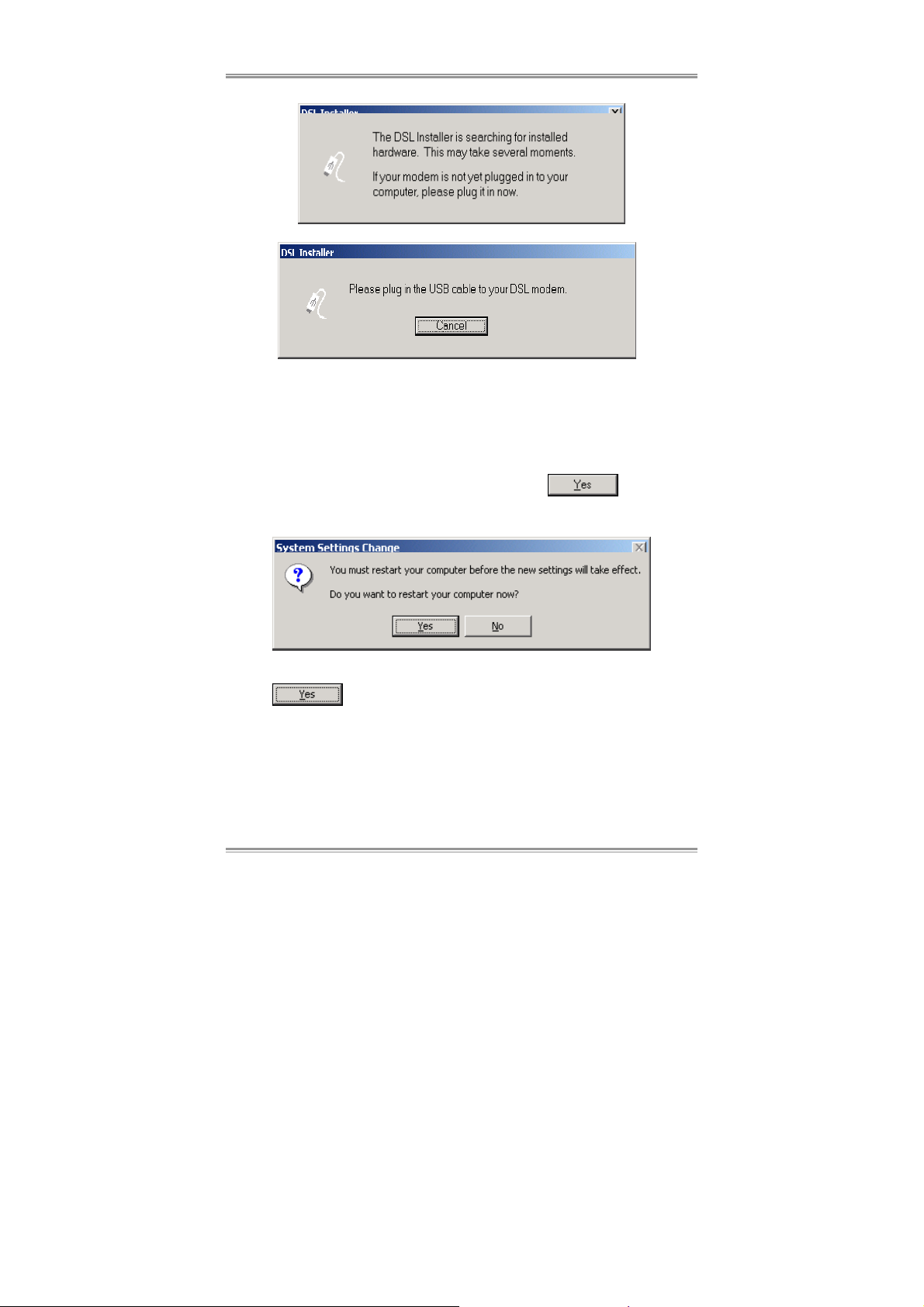

Step 5. Install USB software and connect the USB cable
Part 2- Configuring your computers
Before you begin
Windows 95, 98 PCs
Windows NT 4.0 workstations
Windows 2000
Windows Me PCs
Assigning static Internet information to your PCs
Configuring a computer connected to the USB port
Part 3- Installing the USB Driver
Part 4- Configuring IP properties on the USB PC
Part 5- Configuring the WTM4151
Testing your installation
4. Getting started with the Configuration Manager
Accessing the Configuration Manager
5. Home
Navigating through the program
Commonly used buttons
Viewing Basic system information
Changing the system date and time
3
3
4
1
1
2
4
5
6
6
7
7
7
7
7
8
8
8
9
10
10
11
12
12
15
16
17
21
21
21
22
23
19

WTM4151 User’s Manual
Page -4
6. LAN
1) LAN Configuration
What is the LAN IP Address?
Changing the LAN IP Address?
2) DHCP Configuring
Overview of DHCP
What is DHCP?
Why use DHCP?
WTM4151 DHCP modes
Configuring DHCP Server
Part 1. Creating IP address pools
Part 2. Enabling DHCP Server Mode
Part 3, Configuring your PCs as DHCP clients
Viewing, modifying, and deleting address pools
Viewing current DHCP address assignments
Configuring DHCP Relay
Part 1. Defining the DHCP relay interface(s)
Part 2. Enabling DHCP relay mode
Part 3. Configuring your PCs as DHCP clients
7. WAN
1) DSL Status
2) ATM VC Configuration
Viewing your ATM VCC Setup
Adding and Changing ATM VCC Properties
3) PPP Configuration
Overview of PPP
Viewing your current PPP Configuration
Adding a PPP Interface definition
Modifying and Deleting PPP Interfaces
Modifying a PPP interface’s security protocol, login name and password
Deleting a PPP interface
4) EOA
Overview of EOA
Viewing your EOA Setup
Adding EOA Interfaces
5) IPoA
Viewing your IPoA Interface Setup
Adding IPoA Interfaces
8. Bridge
1) Bridge Configuration
Overview of Bridges
Using WTM4151 as a Bridge
25
25
25
28
27
27
28
28
29
31
31
32
33
33
33
34
35
36
36
39
39
41
42
42
42
25
27
45
47
47
47
48
48
48
50
51
51
53
54
55
54
54

WTM4151 User’s Manual
Page -5
Defining Bridge Interfaces
9. Routing
1) IP Route Table
Overview of IP Routes
Comparing IP routing to telephone switching
Hops and gateways
Using IP Routes to define default gateways
Do I need to define IP routes?
Viewing the IP Routing Table
Adding IP Routes
2) IP Address table
Viewing your WTM4151’s IP Addresses
Viewing IP global statistics
10. Services
1) NAT Configuration
Overview of NAT
Your Default NAT Setup
Viewing your NAT configuration
Viewing NAT Rules and Rule statistics
Viewing current NAT Translations
Adding NAT Rules
TheNAPTrule:Translating between private and public IP addresses
The RDR rule: Allowing external access to a LAN computer
The basic rule: Performing 1:1 translations
The filter rule: Configuration a basic rule with additional criteria
The bimap rule: Performing two-way translations
The pass rule: Allowing specific addresses to pass through untranslated
2) RIP Configuration
RIP Overview
When should you configure RIP?
Configuring WTM4151’s Interfaces with RIP
Viewing RIP Statistics
3) Configuring Firewall Setting
Configuring Global Firewall Settings
Managing the Black List
4) IP Filters Configuration
Overview
Viewing your IP Filter Configuration
Creating IP Filter Rules
IP Filter rule examples
Viewing IP Filters Statistics
Managing Current IP Filters Sessions
74
77
78
80
81
55
57
57
57
57
58
58
58
59
60
61
61
62
64
64
64
65
65
69
70
73
73
82
82
82
83
85
86
86
88
88
89
91
97
99
88
100

WTM4151 User’s Manual
Page -6
4) DNS Configuration
About DNS
Assigning DNS Addresses
11. Admin
1) Changing your login password
2) Committing your changes and rebooting the device
Committing your changes
Rebooting the device using Configuration Manager
3) Viewing the Alarm
Viewing the Alarm Table
Displaying the Alarm Monitor in a Separate Window
Appendix A IP Addresses, Network Masks and Subnets
IP Addresses
Structure of an IP Address
Network classes
Subnet masks
Appendix B Troubleshooting
Diagnosing Problem using IP Utilities
Ping
Nslookup
Appendix C Glossary
104
108
109
108
108
109
111
113
113
114
115
101
101
101
105
105
106
106
106
107
104

WTM4151 User’s Manual
Page -1
1
1. . I In nt tr ro od du uc ct ti io on n
Congratulations on becoming the owner of WTM4151 ADSL Ethernet Router. Your
LAN (local area network) will now be able to access the Internet using your high-
speed ADSL connection.
This User guide will show you how to install and set up your WTM4151 ADSL
Bridge/Router, and how to customize its configuration to get the most out of your new
product.
Features
1. WTM4151 provides a Downstream up to 8 Mbps, Upstream 1 Mbps
2. Supports standard compliance G.DMT, G.LITE ANNEX-A
3. Perfect ADSL solution basis of Ethernet
4. Supports various service protocols
5. Provides UBR/CBR ATM service
6. Provides Ethernet port for LAN configuration and USB port (Optional). Both
ports can be used simultaneously.
7. One ADSL line and IP address can be shared to multi-users.
8. The general user can install and configure WTM4151 easily.
9. Supports software upgrade
10. Data pump, which can program basis of DSP
11. No external Interleave RAM, 16Kbytes of internal memory
12. Supports 8 bits of VPI and 16 bits VCI address range
13. Host-based Soft SAR unspecified Bit Rate (UBR) service supported
14. 802.1D self-learning transparent bridging supported
15. It can transmit maximum 18,000 feet between the distance of CO equipment
and subscriber terminal
16. High compatibility with various of DSLAMS

WTM4151 User’s Manual
Page -2
Specifications
1. Standard Compliance
◆T1.413 Issue 2 and ITU G.dmt (G.992.1) standards Annex A
◆Splitterless ITU G.lite (G.992.2) specification
2. Protocols
◆ATM Protocols
- WAN mode support
PPP over ATM (RFC 2364) and PPP over Ethernet (RFC 2516)
- LAN mode support
Bridged/Routed Ethernet over ATM (RFC 1483)
- ATM Forum UNI 3.1/4.0 PVC
- Up to 8 PVCs, ATM SAR, ATM AAL5, OAM F4/F5
◆Router Mode
- Static IP routing, RIPv2
- DHCP Server and Client, NAT, NAPT, ICMP, IGMP, VPN, IP Filtering
Built-in Firewall
3. Connector
◆2 RJ-11 Connector (ADSL Line & Phone)
◆1 RJ-45 Connector (Ethernet)
◆1 USB Connector
4. PC Interface
◆Ethernet Interface (IEEE 802.3 10Base-T RJ-45)
◆USB Interface (USB Option)
5. Transmission Rate
◆Downstream Max 8 Mbps, Upstream Max 1 Mbps
6. LED Indicators
◆POWER, LINK, ACT, LAN, DIAG
7. Power
◆Input Voltage: AC 110~220
◆Frequency: 50~60Hz
8. Use Environment
◆Temperature: -20℃~70℃
◆Operation Temperature: 0℃~40℃
◆Operation Humidity: 0%~90% (Non-condensing)
9. Dimension
◆190(L) ×142(W) ×40(H)

WTM4151 User’s Manual
Page -3
Parts check
In addition to this document, your WTM4151 should arrive with the following:
1. WTM4151 Modem 1 piece
2. Ethernet cable (straight-through category-5) 1 piece (1.5m)
3. USB cable 1 piece (A, B Type 1.5m) (Optional)
4. Phone cable 1 piece (RJ-11 1.8m)
5. Power Adapter 1 piece
6. User Manual 1 piece
7. USB installation CD (Optional)
8. Microfilter 3~5 pieces
9. Wall-Mount Splitter 1 piece
System Requirement
In order to use your WTM4151 ADSL/Ethernet router, you must have the following:
1. ADSL service up and running on your telephone line, with at least one public
Internet address for your LAN
2. One or more computers each containing an Ethernet 10Base-T/100Base-T
network interface card (NIC) and/or a single computer with a USB port
3. An Ethernet hub/switch, if you are connecting the device to more than one
computer
4. For system configuration using the supplied web-based program: a web
browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or later
WTM4151 Ethernet Cable Phone Cable USB Cable
Power
adapter Microfilter Wall-Mount
Splitter
User’s
Manual
USB
Install CD

WTM4151 User’s Manual
Page -4
2
2. . G Ge et tt ti in ng g t to o k kn no ow w W WT TM M4 41 15 51 1

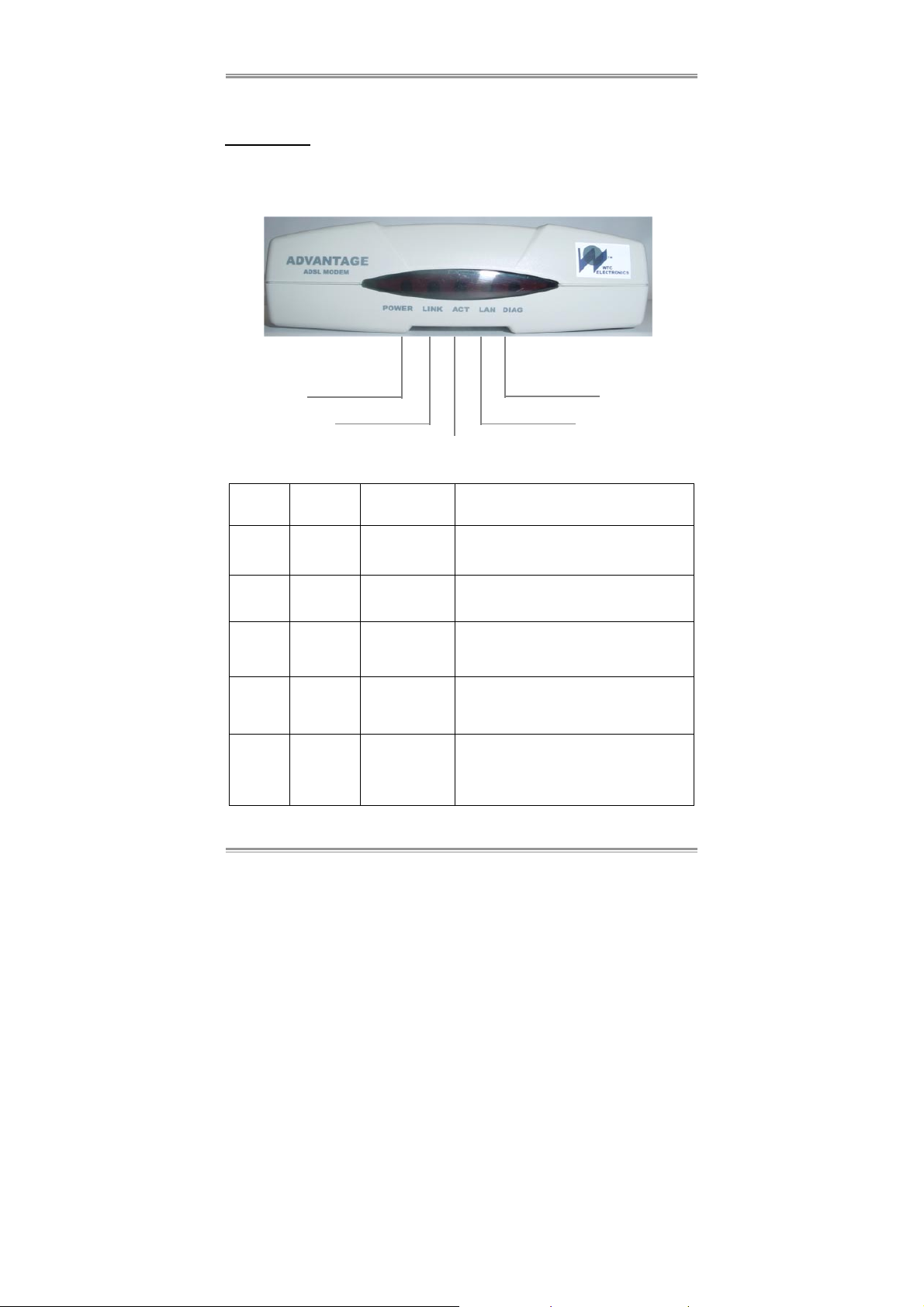

Front Panel
The front panel contains lights called LEDs that indicate the status of the unit.
LED COLOR STATUS DESCRIPTION
POWER RED SOLID
On: Modem is powered on
Off: Modem is powered off
LINK GREEN SOLID On: ADSL Link established and active
Off: No ADSL Link
ACT GREEN FLASHING
Flashes when ADSL data activity occurs
May appear solid when data traffic is
heavy
LAN GREEN SOLID On: LAN Link established and active
Off: No LAN Link
DIAG GREEN FLASHING
Flashes on/off at boot-up to indicate that
the device software is operational. Turns
off after a few seconds
POWER
LINK
A
CT
LAN
DIAG

WTM4151 User’s Manual
Page -5

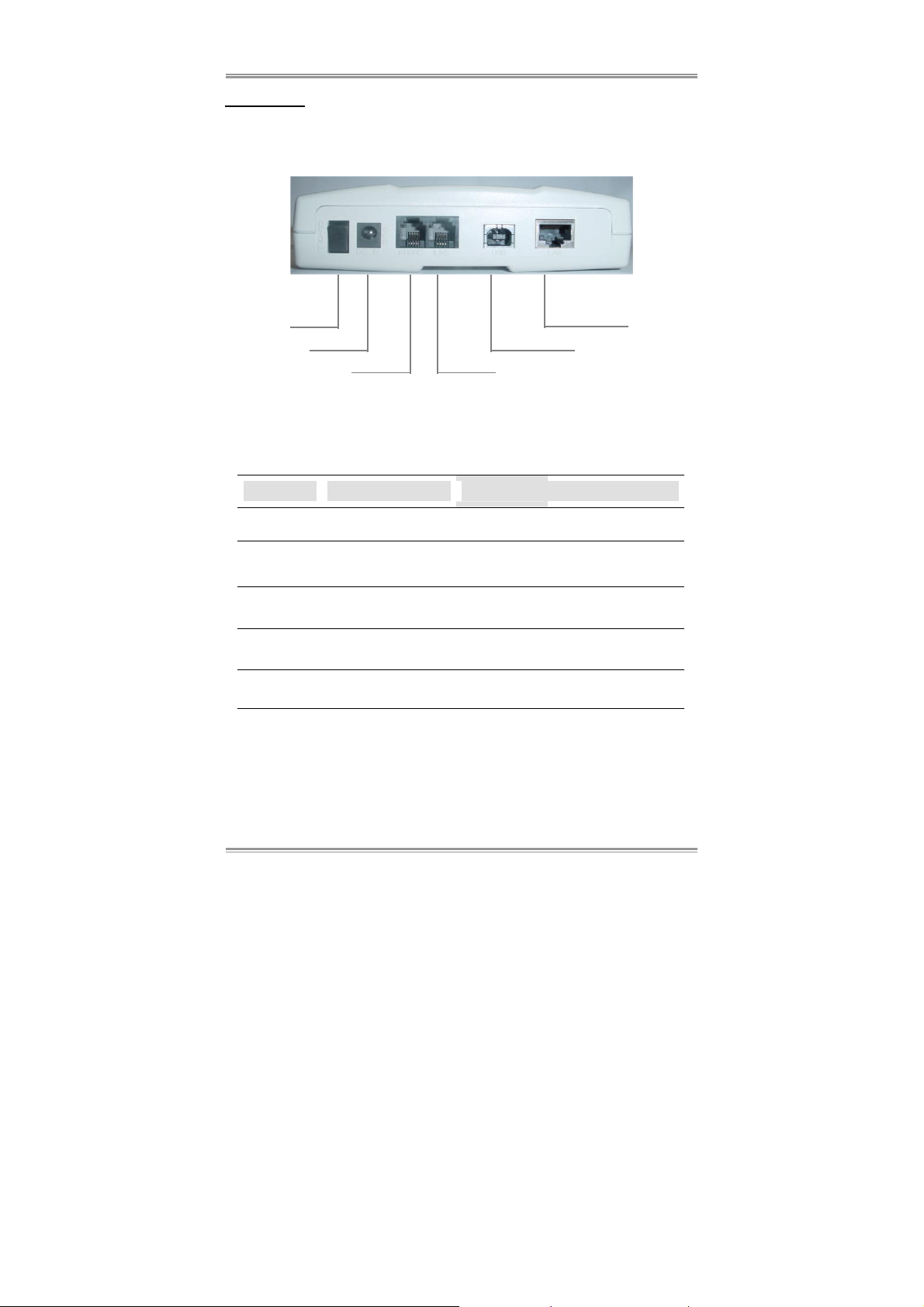

Rear Panel
The rear panel contains the ports for the unit's data and power connections.
Label Port Function
On/Off Power Switch ON/OFF Switch of Modem Power
USB USB Port USB Connector
Connects to your PC (Optional)
Phone Phone Line Port RJ-11 Phone Connector
Connects to your phone
Line ADSL Line Port RJ-11 ADSL Line Connector
Connects with ADSL Line
LAN Ethernet Port RJ-45 Ethernet Connector
Connects to your PC Ethernet Port
On/Off
DC IN USB
Line
Phone
LAN

WTM4151 User’s Manual
Page -6
3
3. . Q Qu ui ic ck k S St ta ar rt t
This Quick Start provides basic instructions for connecting the WTM4151 to a
computer or LAN and to the Internet.
1. Part 1 describes setting up the hardware.
2. Part 2 describes how to configure Internet properties on your computer(s) and
how to install the software for using a computer attached to the USB port
3. Part 3 describes the default settings on the WTM4151, and refers you to the
appropriate chapter for instructions on modifying the defaults.
This Quick Start assumes that you have already established ADSL service with your
Internet service provider (ISP). These instructions provide a basic configuration that
should be compatible with your home or small office network setup. Refer to the
subsequent chapters for additional configuration instructions.
Part 1- Connecting the Hardware
In Part 1, you connect the device to the phone jack, the power outlet, and your
computer or network.
WARNING
Before you begin, turn the power off for all devices. These include
your computer(s), your LAN hub/switch (if applicable), and the
WTM4151.
Figure 1 illustrates the hardware connections. The layout of the ports on your device
may vary from the layout shown. Refer to the steps that follow for specific instructions.
Figure 1. Overview of Hardware Connections
Networked Computers
ADSL/Ethernet Router
On/Off Power Ethernet
ADSL PHONE
Stand-alone computer
1
Telephone
Wall Jack
or
Stand-alone computer
USB
AC adapter
(See section on installing USB driver before
connecting cable)
To a hub:
Use cross cable to
uplink Port To a PC:
Use a straight cable
Hub/Switch
(For local area
network)
1 3
2

WTM4151 User’s Manual
Page -7
Step 1. Connect the ADSL cable and optional telephone.
Connect one end of the provided phone cable to the port labeled ADSL on the rear
panel of the device. Connect the other end to your wall phone jack.
You can attach a telephone line to the device. This is helpful when the ADSL line uses
the only convenient wall phone jack. If desired, connect the telephone cable to the
port labeled PHONE.
WARNING
Although you use the same type of cable, The ADSL and PHONE
ports are not interchangeable. Do not route the ADSL connection
through the PHONE port.
Step 2. Connect the Ethernet cable.
If you are using the WTM4151 with a single computer, attach one end of a “straight”
Ethernet cable to the port labeled LAN and the other to your computer’s Ethernet port.
If you are connecting a LAN to the device, use a crossover cable to connect it to the
uplink port on the hub.
See Appendix B “Troubleshooting,” for a description of these cable types.
Step 3. Attach the power connector.
Connect the AC power adapter to the PWR connector on the back of the device and
plug in the adapter to a wall outlet or power strip.
Step 4. Turn on the WTM4151 and power up your systems.
Press the Power switch on the back panel of the device to the ON position.
Turn on and boot up your computer(s) and any LAN devices such as hubs or switches.
Step 5: Install USB software and connect the USB cable.
You can attach a single computer to the device using a USB cable. The USB port is
useful if you have an USB-enabled PC that does not have a network interface card for
attaching to your Ethernet network.
Before attaching the USB cable, you must install a USB driver and configure the
computer. For complete instructions, see page 12.

WTM4151 User’s Manual
Page -8
Part 2- Configuring your Computers
Part 2 of the Quick Start provides instructions for configuring the Internet settings on
your computers to work with the WTM4151.
Before you begin
By default, the WTM4151 automatically assigns all required Internet settings to your
PCs. You need only to configure the PCs to accept the information when it is assigned.
These instructions assume that your PCs are already connected to a LAN through
their network interface cards (NICs) and the appropriate Ethernet adapter software.
If you are attaching a PC via the USB port, see the USB configuration instructions on
page 12.
Follow the instructions that correspond to the operating system installed on each PC.
Windows

95, 98 PCs:
First, check for the IP protocol and, if necessary, install it:
1. In the Windows task bar, click the Start button, point to Settings, and then click
Control Panel.
2. Double-click the Network icon.
The Network dialog box displays with a list of currently installed network
components. If the list includes TCP/IP, and then the protocol has already been
enabled. Skip to step 9.
3. If TCP/IP does not display as an installed component, click .
The Select Network Component Type dialog box displays.
4. Select Protocol, and then click .
The Select Network Protocol dialog box displays.
5. Click on Microsoft in the Manufacturers list box, and then click TCP/IP in the
Network Protocols list box.
6. Click to return to the Network dialog box, and then click
again.
You may be prompted to install files from your Windows 95/98 installation CD.
Follow the instructions to install the files.
7. Click to restart the PC and complete the TCP/IP installation.
Next, configure the PCs to accept IP information assigned by the WTM4151
8. Open the Control Panel window, and then click the Network icon.
Note
In some cases, you may want to assign Internet information manually to
some or all of your computers rather than allow the WTM4151 to do so. See
“Assigning static internet information to your PCs” on page 11 for
instructions.

WTM4151 User’s Manual
Page -9
9. Select the network component labeled TCP/IP, and then click
If you have multiple TCP/IP listings, select the listing associated with your network
card or adapter.
10. In the TCP/IP Properties dialog box, click the IP Address tab.
11. Click the radio button labeled Obtain an IP address automatically.
12. Click the DNS Configuration tab, and then click the radio button labeled Obtain an
IP address automatically.
13. Click twice to confirm and save your changes.
You will be prompted to restart Windows.
14. Click .
Windows NT 4.0 Workstations
First, check for the IP protocol and, if necessary, install it:
1. In the Windows NT task bar, click the Start button, point to Settings, and then click
Control Panel.
2. In the Control Panel window, double click the Network icon.
3. In the Network dialog box, click the Protocols tab.
The Protocols tab displays a list of currently installed network protocols. If the list
includes TCP/IP, then the protocol has already been enabled. Skip to step 9.
4. If TCP/IP does not display as an installed component, click
5. In the Select Network Protocol dialog box, select TCP/IP, and then click
.
You may be prompted to install files from your Windows NT installation CD or other
media. Follow the instructions to install the files.
After all files are installed, a window displays to inform you that a TCP/IP service
called DHCP can be set up to dynamically assign IP information.
6. Click to continue, and then click if prompted to restart
your computer.
Next, configure the PCs to accept IP information assigned by the WTM4151:
7. Open the Control Panel window, and then double-click the Network icon.
8. In the Network dialog box, click the Protocols tab.
9. In the Protocols tab, select TCP/IP, and then click .
10. In the Microsoft TCP/IP Properties dialog box, click the radio button labeled
Obtain an IP address from a DHCP server.
11. Click twice to confirm and save your changes, and then close the
Control Panel.

WTM4151 User’s Manual
Page -10
Windows 2000 PCs
First, check for the IP protocol and, if necessary, install it:
1. In the Windows task bar, click the Start button, point to Settings, and then click
Control Panel.
2. Double-click the Network and Dial-up Connections icon.
3. In the Network and Dial-up Connections window, right-click the Local Area
Connection icon, and then select Properties.
The Local Area Connection Properties dialog box displays with a list of currently
installed network components. If the list includes Internet Protocol (TCP/IP), then
the protocol has already been enabled. Skip to step 10.
4. If Internet Protocol (TCP/IP) does not display as an installed component, click
.
5. In the Select Network Component Type dialog box, select Protocol, and then click
.
6. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click
.
You may be prompted to install files from your Windows 2000 installation CD or
other media. Follow the instructions to install the files.
7. If prompted, click to restart your computer with the new settings.
Next, configure the PCs to accept IP information assigned by the WTM4151:
8. In the Control Panel, double-click the Network and Dial-up Connections icon.
9. In Network and Dial-up Connections window, right-click the Local Area Connection
icon, and then select Properties.
10. In the Local Area Connection Properties dialog box, select Internet Protocol
(TCP/IP), and then click .
11. In the Internet Protocol (TCP/IP) Properties dialog box, click the radio button
labeled Obtain an IP address automatically. Also click the radio button labeled
Obtain DNS server address automatically.
12. Click twice to confirm and save your changes, and then close the
Control Panel.
Window ME PCs
1. In the Windows task bar, click the Start button, point to Settings, and then click
Control Panel.
2. Double-click the Network and Dial-up Connections icon.
3. In the Network and Dial-up Connections window, right-click the Network icon, and
then select Properties.
The Network Properties dialog box displays with a list of currently installed network
components. If the list includes Internet Protocol (TCP/IP), then the protocol has
already been enabled. Skip to step 11.
4. If Internet Protocol (TCP/IP) does not display as an installed component, click
.
5. In the Select Network Component Type dialog box, select Protocol, and then click
.

WTM4151 User’s Manual
Page -11
6. Select Microsoft in the Manufacturers box.
7. Select Internet Protocol (TCP/IP) in the Network Protocols list, and then click
.
You may be prompted to install files from your Windows Me installation CD or other
media. Follow the instructions to install the files.
8. If prompted, click to restart your computer with the new settings.
Next, configure the PCs to accept IP information assigned by the WTM4151:
9. In the Control Panel, double-click the Network and Dial-up Connections icon.
10. In Network and Dial-up Connections window, right-click the Network icon, and
then select Properties.
11. In the Network Properties dialog box, select TCP/IP, and then click
.
12. In the TCP/IP Settings dialog box, click the radio button labeled Server assigned
IP address. Also click the radio button labeled Server assigned name server
address.
13. Click twice to confirm and save your changes, and then close the
Control Panel.
Assigning static Internet Information to your PCs
In some cases, you may want to assign Internet information to some or all of your
PCs directly (often called “statically”), rather than allowing the WTM4151 to assign it.
This option may be desirable (but not required) if:
▶You have obtained one or more public IP addresses that you want to always
associate with specific computers (for example, if you are using a computer as a
public web server).
▶You maintain different subnets on your LAN (subnets are described in Appendix A.)
Before you begin, contact your ISP if you do not already have the following
information:
▶The IP address and subnet mask to be assigned to each PC to which you will be
assigning static IP information.
▶The IP address of the default gateway for your LAN. In most cases, this is the
address assigned to the LAN port on your WTM4151. By default, the LAN port is
assigned this IP address: 192.168.1.1. (You can change this number, or your ISP
can assign another number. See Chapter 5 for more information.)
▶The IP address of your ISP’s Domain Name System (DNS) server.
On each PC to which you want to assign static information, follow the instructions on
pages 8 through 11 relating only to checking for and/or installing the IP protocol. Once
it is installed, continue to follow the instructions for displaying each of the Internet
Protocol (TCP/IP) properties. Instead of enabling dynamic assignment of the IP
addresses for the computer, DNS server, and default gateway, clicks the radio buttons
that enable you to enter the information manually.

WTM4151 User’s Manual
Page -12
Configuring a computer connected to the USB port (If applicable)
If your WTM4151 includes a USB port for connecting to a PC, you must install the
provided USB driver software on the PC. The driver enables Ethernet-over-USB
communication with the WTM4151.
Configuring the USB computer is a two-part process:
▶In Part 1, you install the USB driver on the PC.
▶In Part 2, you configure the IP properties on the USB PC.
Part 3. Installing the USB Driver:
Ensure that the USB cable is not connected to the USB port on the PC or to the
USB port on the device.
The installation program will prompt you when to connect the cable.
1. Copy the USB installation file to a temporary directory on the USB computer.
2. In the folder where you copied the files, double-click on setup.exe to launch the
installation program.
The Welcome dialog box displays, as shown in Figure 2.
Figure 2. USB Driver Installation: Welcome Screen
3. Click to display the Software License Agreement dialog box, as
Note
Your PCs must have IP addresses that place them in the same subnet as
the WTM4151’s LAN port. If you manually assign IP information to all your
LAN PCs, you can follow the instructions in Chapter 5 to change the LAN
port IP address accordingly.

WTM4151 User’s Manual
Page -13
shown in Figure 3.
Figure 3. USB Driver Installation: Software License Agreement
4. After reviewing the license agreement, click to continue.
5. If a Microsoft digital signature dialog box displays, click to continue.
The installation program will begin copying the necessary installation files to the
required locations. When finished, the Setup Complete dialog box will display, as
shown in Figure 4.
Figure 4. USB Driver Installation: Setup Complete
6. Click .
A DSL Installer dialog box displays while the program searches for your USB
hardware. After a few seconds, a second dialog box displays to prompt you to
attach the USB cable, as shown in Figure 5

WTM4151 User’s Manual
Page -14
Figure 5. USB Driver Installation: DSL Installer
7. Attach the USB cable to the WTM4151 and to your PC.
The USB cable provided has a flat connector on one end (called Type A) and a
square connector on the other (Type B). Connect the flat connector to your PC and
the square connector to the WTM4151.
A window displays briefly, indicating that the system has found new hardware.
8. If a Microsoft digital signature dialog box displays, click to continue.
The System Settings Change dialog box displays to prompt you to restart your
computer, as shown in Figure 6.
Figure 6. USB Driver Installation: System Settings Change
9. Click to restart your computer.
When your computer finishes rebooting, make sure that the installer program
displays as an item on your Windows Start menu:
