Wulfsberg FLEXCOMM 2000 Series User manual

These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)

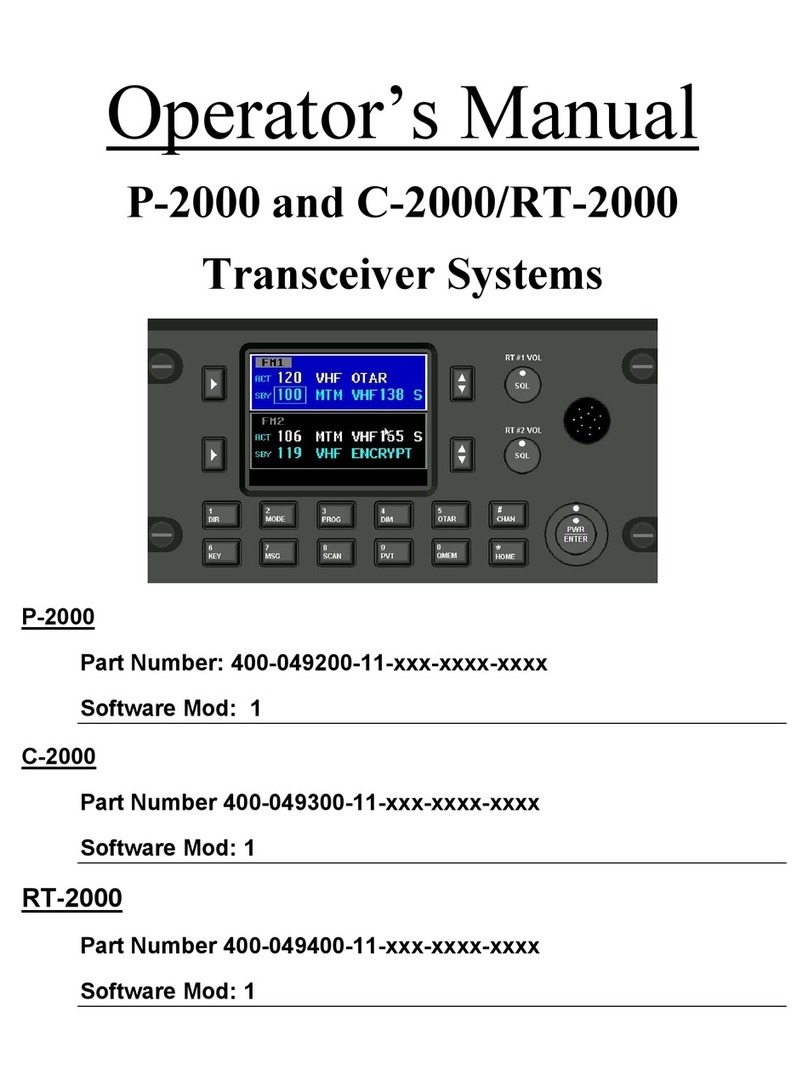

OPERATOR’S MANUAL
P-2000 and C-2000/RT-2000
Transceiver Systems
P-2000
Part Number: 400-049200-11-xxx-xxxx-xxxx
C-2000
Part Number 400-049300-11-xxx
RT-2000
Part Number 400-049400-11-xxx-xxxx-xxxx
Page 2 of 40 Publication No. 150-049105
Operator’s Manual Rev. D
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
TABLE OF CONTENTS
1. Introduction...............................................................................................................................................6
A. Features.......................................................................................................................................6
B. Transceiver Overview..................................................................................................................7
2. Basic Operations ......................................................................................................................................8
A. Front Panel & Controls ................................................................................................................8
B. Keypad Buttons ...........................................................................................................................9
C. The Home Page.........................................................................................................................10
D. Setting The Display Brightness..................................................................................................13
E. Setting The Volume Level..........................................................................................................13
F. Selecting The Active Transceiver..............................................................................................14
G. Selecting A Standby Channel Using The Cursor/Value Knob...................................................15
H. Selecting A Channel Using The Keypad ...................................................................................15
I. Selecting A Channel By Alphanumeric Identifier.......................................................................16
J. Using The Direct/Repeat Feature..............................................................................................16
K. Receiving/Transmitting..............................................................................................................17
L. Enabling/Disabling Transceivers...............................................................................................17
3. Qmem Operations ..................................................................................................................................18
4. Message Page........................................................................................................................................19
5. Programming/Editing A Preset Channel.................................................................................................20
6.Enhanced System Features....................................................................................................................23
A. Relay Mode................................................................................................................................23
B. Simulcast Mode .........................................................................................................................24
C. Relay/Simulcast Mode...............................................................................................................25
D. Repeater Mode..........................................................................................................................26
7. Encryption Features................................................................................................................................27
A. Turning Encryption On And Off .................................................................................................27
B. Selecting An Encryption Key .....................................................................................................27
C. Performing An Otar....................................................................................................................28
D. Adding Encryption Keys.............................................................................................................30
E. Erasing Encryption Keys ...........................................................................................................31
8. CPS Mode...............................................................................................................................................32
A. Loading Channel Memory..........................................................................................................32
9. System Setup Mode ...............................................................................................................................34
10. Maintenance Pages..............................................................................................................................36
A. Flashport Mode..........................................................................................................................37
B. Digital Pot Tuning Mode ............................................................................................................37
C. Software Versions Display Page ...............................................................................................38
11. Steps To Successful Setup And Operation..........................................................................................39
Publication No. 150-049105 Page 3 of 40
Rev. D Operators Manual
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
RF Exposure Information
This radio is restricted to occupational/controlled applications where users have been made aware of
the potential for exposure and can exercise control over their exposure.
Antennas used for the radio must not exceed the antenna gain shown below for each transmit
frequency range. The antenna must be installed at least or exceeding the minimum distance away
from any person(s) depending on the transmit frequency.
Frequency Max Antenna Gain Min Distance
137 – 174 MHz 0 dBi 21 cm (8.3 in)
380 - 470 MHz 3 dBi 25 cm (9.9 in)
450 – 520 MHz 3 dBi 25 cm (9.9 in)
764 – 870 MHz 3 dBi 21 cm (8.3 in)
Transmit no more than 50 % of the time. Measurable RF energy exposure occurs only when
transmitting.
Failure to observe these restrictions will result in exceeding the FCC RF exposure limits.
Page 4 of 40 Publication No. 150-049105
Operator’s Manual Rev. D
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
I M P O R T A N T
MOTOROLA CPS PROGRAMMING NOTES
The following items must be performed or the P-2000
will not function properly!
1. Zones must be set for a maximum of 16 channels per zone.
2. Do not use scan on any personality.
3. Do not change the button settings or menu items. Leave them to the
factory defaults.
4. Disable all messages such as display encryption key name on mode
change.
5. Do not have multiple programs operating on your computer that use the
same communication port as the Motorola CPS software.
6. Do not use identical channel names within the same zone.
7. Zone 1, Channel 1 must be defined as a Cnv (conventional) personality;
Point to Personality 1; and have the Direct/Talkaround feature enabled.
8. Products with Part Numbers ending in -2XXX -2XXX use Motorola
CPS (Customer Programming Software) Part Number RVN4186 (XTS-
5000 Portable).
Products with Part Numbers ending in -0XXX -0XXX use Motorola
CPS (Customer Programming Software) Part Number RVN4184 (XTS-
3000 Portable).
9. All users loading customer codeplug files (Customer
channels/frequencies) must use a version of CPS that is the same or
newer than the version last used to program the internal modules
(ITM).
Publication No. 150-049105 Page 5 of 40
Rev. D Operators Manual
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
1. Introduction
The Wulfsberg "2000" family of Flexcomm products are comprised of the P-2000 panel mount transceiver
and the RT-2000 remote mount transceiver which is controlled by the C-2000 control head. The P-2000
and RT-2000 are capable of being populated with one or two ITM's (Internal Transceiver Modules)
covering any combination of the following frequency bands: VHF (137-174 MHz) UHF -1 (403-470 MHz or
380-470 MHz), UHF -2 (450-520 MHz) and 800 (806-870 MHz or 764-870 MHz). For applications where
multiple points of user operation are required, one or more C-2000's can be added.
For purposes of this manual the term "P-2000" shall be used to describe a P-2000 or C-2000/RT-2000
installation. In both systems, the features and user interface is identical.
A. Features
The P-2000 provides a host of powerful features, including:
Multi-band operations: One or Two ITM's covering any combination of the following
frequency bands:
137 - 174 MHz (10/1 Watt Transmit Power)
403 - 470 MHz or 380-470 MHz (10/1 Watt Transmit Power)
450 - 520 MHz (10/1 Watt Transmit Power)
806 - 870 MHz or 764-870 MHz (3/1 Watt Transmit Power)
(1) Clear and bright Color LCD display showing Active/Standby channel selection along with
other critical operational information.
(2) 255 Preset channel memory in each internal transceiver module.
(3) The powerful yet incredibly simple user interface that allows the user to select channels
using the firm tactile feedback keypad or rotary knobs.
(4) Modulation types available in the P-2000 include FM analog, P25 Digital conventional, P25
Trunking and Motorola 3600 Baud Trunking. Transceivers are capable of operating on 12.5
kHz, 20.0 kHz, and 25.0 kHz channels depending on options.
(5) Multiple types of encryption are available as options (AES, DES, DES-XL, DES-OFB, DVP
and DVI). In addition, MDC1200 OTAR and P25 OTAR are standard in all models that
include encryption capability.
(6) One or Two microphone/headset interfaces are supported. This provides retrofit
applications the ability to use both transceivers even if only one microphone/headset port is
available on the aircraft audio panel system. If two microphone/headset ports are used, the
P-2000 is capable of independent operation of each ITM. In other words, one user can be
operating on FM1 while the other user independently uses FM2.
(7) Advanced multi-radio modes, such as Relay, Simulcast and Relay-Simulcast.
Page 6 of 40 Publication No. 150-049105
Operator’s Manual Rev. D
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
(8) Programming port on the front of the panel allows for computer loading of channel
information and encryption key loading.
(9)Wulfsberg's exclusive QMEM (Quick Memory) function allows for fast access to preset
memory channels.
B. Transceiver Overview
The Wulfsberg 2000 family of radio products are FM Tactical transceivers that incorporate one or two
transceiver modules and control functions into a single panel mount unit (P-2000) or a panel mount
control head (C-2000) and remote mount RT-2000 Transceiver. Part number variations of the unit
exist for any combination of the following frequency bands: 137-174 MHz, 403-470 MHz or 380-470
MHz, 450-520 MHz, and 806-870 MHz or 764-870 MHz. Each transceiver module with the exception
of the 806-870 MHz or 764-870 MHz band can transmit with 1 or 10 Watts transmit power. The 800
MHz unit produces 1 and 2.75 watts transmit power. The P-2000 can operate by itself or in
conjunction with the C-2000 control display acting as a remote slave control. Input voltage is 28 volts
DC and the keypad is backlit from either 28VDC, 5 VDC or 5 VRMS AC.
The Wulfsberg C-2000 is a control display unit that can be used as a slave control head with a P-
2000 panel mount transceiver, or as a primary or slave control head for the RT- 2000 remote
transceiver. Versions of the C-2000 include black faceplate and options for either Standard or NVG
compatible displays. Input voltage is 28 volts DC and the keypad is backlit from either 28 VDC, 5
VDC or 5 VRMS.
The Wulfsberg RT-2000 is a remote mounted transceiver that incorporates one or two transceiver
modules in a remote mounted unit. It must be controlled by at least one C-2000 control head.
Additional C-2000's can be added to the system for multi-positional control of the transceiver. Part
number variations of the unit exist for any combination of the following frequency bands: 137-174
MHz, 403-470 MHz or 380-470 MHz, 450-520 MHz, and 806-870 MHz or 764-870 MHz. Each
transceiver module with the exception of the 806-870 MHz or 764-870 MHz band can transmit with 1
or 10 Watts transmit power. The 800 MHz unit produces 1 and 2.75 watts transmit power.
Operationally a P-2000 or C-2000/RT-2000 system operates identically with the exception of the
PC/Keyloading interface. For a P-2000 the interface is located on the front of the P-2000. In a C-
2000/RT-2000 system, the connector on the RT-2000 is used for PC/Keyloading functions. The
connector on the C-2000 is not currently used.
Publication No. 150-049105 Page 7 of 40
Rev. D Operators Manual
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
2. Basic Operations
A. Front Panel & Controls
DISPLAY - The P-2000 has a color LCD display. It provides the visual feedback for the system. Exactly
what is displayed depends on the current operating mode of the P-2000. During normal operation, the top
area shows information for FM #1 and the bottom line shows information for FM #2.
The keypad and cursor/value rotary knobs perform functions on the transceiver that is highlighted in blue.
The blue highlight also indicates which transceiver has been selected for transmitting when the system is
operating in SINGLE MIC MODE. This is the mode where there is only one audio panel position being
shared between the two transceivers.
FM #1 SELECT – This button selects FM #1 as
the active transceiver. This is depicted on the
display by the FM1 area turning a bright blue
color. The keypad and cursor/value knobs will
now operate exclusively on the FM1 transceiver.
FM #2 SELECT - This button selects FM #2 as
the active transceiver. This is depicted on the
display by the FM2 area turning a bright blue
color. The keypad and cursor/value knobs will
now operate exclusively on the FM2 transceiver.
FM #1 TRANSFER – The button will transfer
(Flip-flop) the active and standby channels for
FM1.
FM #2 TRANSFER – This button will transfer
(Flip-flop) the active and standby channels for
FM2.
FM #1 VOLUME KNOB – This rotary switch is
used to control the volume of FM #1. Pressing
the button will perform a “Test” of the audio
system by allowing audio from that transceiver
to be sent to the headset. This is used to vary
volume levels of that transceiver.
FM #2 VOLUME KNOB – This rotary switch is
used to control the volume of FM #2. Pressing
the button will perform a “Test” of the audio
system by allowing audio from that transceiver
to be sent to the headset. This is used to vary
volume levels of that transceiver.
CURSOR KNOB – This rotary switch is used to
move the cursor around the display.
VALUE KNOB – This rotary knob is used to
modify values at the cursor position.
ENTER/PWR button – Pushing the VALUE
KNOB (Small rotary knob) button performs
“Enter” and power on/off operations.
DATA PORT – This connector is used to
transfer data between the P-2000 and
Encryption Key loaders or for loading preset
channel information via the Motorola CPS
software (PC based).
FM #1 Select
FM #2 Select
FM #1 Volume
FM #2 Volume
Data Port
Cursor Knob
Keypad
FM #1 Transfer FM #2 Transfer
Value/Enter/Pwr
Kn
ob
Page 8 of 40 Publication No. 150-049105
Operator’s Manual Rev. D
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

P-2000/C-2000/RT-2000
OPERATOR’S MANUAL
B. Keypad Buttons
The P-2000 has a 12 button keypad. Each button’s functions are described below.
1:DIR Toggles the active transceiver in and out
of DIRECT mode. Use this button to enter a “1”
during keypad entry mode.
2:MODE This button will cycle through the
enhanced modes of operation. Use this button to
enter a “2” during keypad entry mode.
3:PROG This button will display the PROGRAM
PAGE. Use this button to enter “3” during
keypad entry mode.
4:DIM This button will display the page used to
control the display’s brightness. Use this button
to enter a “4” during keypad entry mode.
5:OTAR This button will initiate an “Over The Air
Rekey” for the transceiver under cursor control .
Use this button to enter a “5” during keypad
entry mode.
#:CHAN This button will select channel entry
mode using the keypad. Use this button to enter
a “#” during keypad entry mode.
6:KEY This button will prompt the user for a
transmit encryption key to override the preset
value for the active transceiver. Use this button
to enter a “6” during keypad entry mode.
7:MSG This button will allow the user to view
system messages pages. Use this button to
enter a “7” during keypad entry mode
8:SCAN The SCAN function is not available at
this time.
9:PVT This button will toggle the active
transceiver in and out of private mode. Use this
button to enter a “9” during keypad entry mode.
0:QMEM This button allows the user to quickly
select a preset channel using the Quick
Memory channel entry mode. Use this button to
enter a “0” during keypad entry mode.
*:HOME This button will display the HOME
PAGE, except in some advanced modes of
operation, where it will return the user to a
previous page or mode of operation. Use this
button to enter a “*” during keypad entry mode.
Publication No. 150-049105 Page 9 of 40
Rev. D Operator’s Manual
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
C. The Home Page
The HOME PAGE is the primary operational page of the P-2000. The HOME PAGE becomes visible
when the P-2000 is ready for user input, immediately after the power up and initialization sequences
have completed. When viewing the HOME PAGE, Radio 1 (Also called FM1 or transceiver #1) is
always displayed on the top section. Radio 2 is always displayed on the bottom section. All keypad-
initiated operations are performed on the active radio. The active radio is easily distinguished by the
bright blue color. The cursor is the square box that is located either around the channel number or
around the channel alpha identifier. It can be quickly toggled between the channel number and alpha
identifier using the cursor knob.
The following illustration is an example of what the HOME PAGE looks like.
The home page is divided into 3 areas – FM 1 information (top), FM 2 information (middle), and an
area for system status or system prompts (bottom). In the picture above notice that the area in blue
contains the information for FM 1. FM 1 will always be on the top. The names “FM1”, “FM2” can be
changed in the system setup so that users can change it to something more meaningful like “VHF”, or
“MAIN”.
(1) ACT/SBY - The normal operating mode of the P-2000 is very similar to most ATC
COMM radios. The user tunes the Standby channel and then “Flip-flops” it into the Active
channel position using the TRANSFER button. The radio is loaded with Active channel.
The standby channel is ONLY used as a scratchpad for selecting the next channel.
As an alternative to using the ACTIVE/STANDBY mode, the operator can press and hold
the transfer button for 3 seconds and the STANDBY channel will disappear and now the
user can tune the active channel directly. Either mode can be selected in the System Setup
Mode as the default mode of operation.
Notice the square box (CURSOR) around the SBY channel number 104. This indicates
the system will tune the Standby channel number. The cursor can be moved around the
alpha identifier and channels will be selected alphabetically using the Alpha Identifier.
ACTIVE Channel
STANDBY Channel
System Status Information
FM 1 Discreet Indicators
CURSOR
FM 1 Information
Channel Alpha Identifier
FM 2 Information
Page 10 of 40 Publication No. 150-049105
Operator’s Manual Rev. D
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
(2) STATUS LINE - The status line is located on the very bottom of the display and it is
where the user will be prompted to either input more information via the keypad, or where
the Message Indictor will show there is a system message to view. In this case the user
should push the MSG button to show the Message page.
(3) Discreet Indicators – The following discreet indicators apply to both FM1 and FM2.
ACTIVE Channel FM 1 Discreet Indicators
Channel Alpha Identifier
STANDBY Channel
This helps the user know the information in this block is for the transceiver located in FM #1
Position.
FM1
This indicates that the audio for that transceiver has been turned off, or “muted”. To un-mute the
audio, change the volume on that radio to something other than “0”.
M
This indicates the transceiver is in the transmit mode.
TX
This indicates the transceiver is receiving a signal.
RX
This indicates the transceiver has been put into DIRECT mode. Direct mode is also called
“Talk-around”, “Car-to-Car”, or “Simplex”.
DIR
PVT This indicates the transceiver has been put into Private mode and will use the encryption
system embedded in the transceiver. This mode is not available if a channel is not
programmed for encryption.
SCAN This indicates the transceiver has been put into Scan mode.
*NOTE: SCAN MODE NOT AVAILABLE will be displayed in the lower field if scan mode is unusable.
You can always get back to the HOME PAGE by pressing the
HOME button one or more times.
Publication No. 150-049105 Page 11 of 40
Rev. D Operators Manual
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
(4) Turning the System On and Off
To power-on the P-2000, press and hold the PWR button (push in the VALUE Knob) for
approximately one second and release. Several version number and copyright pages appear
on the display while the unit performs a self-test and initializes the attached radio systems.
When initialization is complete, the HOME PAGE will appear on the display. (-XX =
latest software mod)
(5) To power the P-2000 OFF, press and hold the PWR button for 3 seconds. The
following message flashes on the display several times:
(6) Continue to hold the PWR button until the message stops flashing and the display turns
off.
If aircraft power is removed while the P-2000 is in operation, the P-2000 will store the
following information to memory so that when power is re-applied the system will be at
the same operating point:
(a) Current active and standby channels for FM1 and FM2.
(b) Current volume levels for FM1 and FM2.
If the operator releases the “PWR” button prior to 3 seconds elapsing, the display will
return its previous state.
Page 12 of 40 Publication No. 150-049105
Operator’s Manual Rev. D
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
D. Setting the Display Brightness
When the user presses the DIM button, the display brightness adjustment display appears. When the
value knob is turned clockwise, the display brightness increases in intensity. When the value knob is
turned counter clockwise, the display brightness decreases in intensity. The Brightness display
disappears when no value knob activity has been present for more than 2 seconds.
E. Setting the Volume Level
When you first power on the P-2000, the volume levels for both transceivers will be reset to the
level that was active when the unit was powered down. You can change the volume level as follows.
When the user turns either of the volume knobs, the volume adjustment display will appear. When the
upper volume knob is turned, the volume adjustment display will appear on the upper half of the
screen, and will adjust the volume on FM1 transceiver. Likewise, when the lower volume knob is
turned, the volume adjustment display will appear on the lower half of the screen, and will adjust the
volume on FM2 transceiver.The display below depicts the volume adjustment display when the upper
volume knob has been turned. Turning the volume knob clockwise will increase the volume level,
while turning the knob counter clockwise will decrease the volume level. The current volume level will
be displayed within the display. If the volume is turned all the way down to the off position, the bar
will turn red and the Mute indicator will be displayed on the main page.
To test the current volume level, press the volume knob and noise should be heard in the
headset. The volume adjustment display will automatically disappear when no knob turning activity
has occurred for more than 2 seconds.
Publication No. 150-049105 Page 13 of 40
Rev. D Operators Manual
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
F. Selecting the Active Transceiver
(1) To make FM1 or FM2 the “active transceiver” means that the keypad/rotary knobs will
perform operations on that transceiver. The active transceiver is always highlighted in a
bright blue color. As shown in the picture below, FM1 is the active transceiver.
(2) To make FM1 the active transceiver, push the FM #1 SELECT BUTTON as shown
above. Pushing the FM #2 select button will make FM2 the active transceiver and
the blue highlight will be moved to the FM2 area of the display as shown below.
FM #2 Select
FM #1 Select
(3) When the P-2000 is operating in SINGLE MIC MODE (only one headset shared
between two transceivers), the active transceiver is the one that will be used for
transmitting. In Single Mic Mode, the transceivers (FM1 and FM2) will have their
receive audio summed together and sent to Headset #1. The operator must choose
which transceiver will be used when they want to transmit.
Page 14 of 40 Publication No. 150-049105
Operator’s Manual Rev. D
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
G. Selecting a Standby Channel Using the Cursor/Value Knob
When the P-2000 first powers on, the selected channels will be set to those that were active when
the unit was powered down. To select a different preset channel, do the following:
(1) Using the cursor knob, put the square cursor around the channel number. Turn the value
knob until the channel is your desired channel. If you wish to make this your active channel,
push the transfer button.
H. Selecting a Channel Using the Keypad
Occasionally, it is desirable to select a preset channel by entering its number via the keypad, rather
than dialing it in with the cursor/value knobs. This can be performed as follows.
(1) When the user presses the CHAN key, the keypad channel entry mode will begin. This
mode allows the user to tune a channel by inputting the desired channel’s number into a
field via the keypad. The figure below depicts this mode of channel tuning. If no keypad
input is received for more than 4 seconds, the operation will automatically cancel. If the
user presses the HOME key, the operation will also cancel. When the user presses the
ENTER key, the channel with the number input into the field will be loaded. If the input
channel number is invalid, an error tone will sound, “INVALID CHANNEL” will be displayed
in lower field, and the previous “good” channel will be reinstated.
Publication No. 150-049105 Page 15 of 40
Rev. D Operators Manual
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
I. Selecting a Channel by Alphanumeric Identifier
To change the standby channel using the alpha identifier, use the cursor knob to move the cursor
square around the alpha identifier as shown below. Turn the value knob until the channel is your
desired channel. Notice that channels change alphabetically.
J. Using the Direct/Repeat Feature
The P-2000 supports both direct and repeat modes of operation. Any preset channel that has
identical transmit and receive frequencies is considered a direct channel. If the transmit and receive
frequencies are different, the P-2000 considers the channel a repeater channel. Repeater channels
can be temporarily changed into direct channels by pressing the DIR button. This will temporarily
copy the receive frequency into the transmit frequency. The direct mode indicator will light. The
following illustration shows radio 1 in direct mode.
Direct Mode Indicato
r
It can take several seconds for the direct operation to be completed once the button has
been pressed.
NOTE:
Page 16 of 40 Publication No. 150-049105
Operator’s Manual Rev. D
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
K. Receiving/Transmitting
(1) Transmitting
To transmit on a radio system, select the appropriate source on your audio panel, and key
the microphone. Transmission will begin on the radio’s currently selected Active channel.
During the transmission, the radio’s transmit indicator will light, and the channel’s transmit
frequency will be displayed. The following illustration depicts FM #1 transmitting.
(2) Receiving
The P-2000 is constantly monitoring its radios for reception. When a signal is received, the
P-2000 will light the receive indicator for the receiving radio, and route the audio to the
operator’s headset (Assuming the associated intercom switch is selected). The following
illustration depicts FM #2 receiving.
TX Indicato
r
RX Indicato
r
L. Enabling/Disabling Transceivers
Transceivers cannot be individually powered off on the P-2000, however the volume level of either
transceiver can be reduced to zero, effectively turning off the transceiver. The screen below shows
what the display looks like when the audio level of a transceiver is set to zero. Notice the mute
indicator is displayed and the level indicator turns red.
Publication No. 150-049105 Page 17 of 40
Rev. D Operators Manual
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
3. QMEM Operations
When the user presses the QMEM key, the system will enter the QMEM mode. This mode allows
the user to either select or program a QMEM location. When the user presses the QMEM key,
then presses a keypad key (0-9), the channel programmed into the corresponding (0-9) QMEM
location shall be loaded into the active channel, and the previously active channel shall be loaded
into the standby channel. If the user presses the QMEM key, then presses and holds down a keypad
key (0-9) for 3 or more seconds, the current active channel shall be programmed into the
corresponding QMEM location. Should the user not press any key for more than 4 seconds after
pressing the QMEM key, the QMEM operation shall automatically be canceled. The user can
cancel the QMEM operation by pressing the HOME key. The figure below shows the QMEM
operation in mid stream.
(1) To store a channel into a QMEM position first put the desired channel in the
active channel and press the QMEM button. The figure below shows what
the display will look like.
(2) At this point press and hold button 0-9 until the status line indicates the storage
operation is completed, as shown in the picture below:
(3) To load the active channel using QMEM, simply push the QMEM button followed
by a 0-9 button and the programmed channel will be automatically loaded into
the active channel. If that QMEM position has not been programmed with a
channel, the status line will indicate to the user no channel is programmed.
Page 18 of 40 Publication No. 150-049105
Operator’s Manual Rev. D
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
4. Message Page
This page allows the user to manage text messages for the system. When no unread messages
exists within the system, the MSG indicator will not be visible on the normal operation page. When
the MSG key is pressed on the normal operation page and no messages are available, the no
message page is displayed. This page is depicted below. The only selectable item on this page shall
be the back button. Pressing ENTER will return to the HOME page.
(1) When an unread message exists within the system, the MSG indicator will be visible
on the HOME page. When the MSG key is pressed and messages are available, the
message list page shall be displayed. An example of a message page that contains
unread messages is shown below:
Publication No. 150-049105 Page 19 of 40
Rev. D Operators Manual
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.

FLEXCOMM 2000
(P-2000/C-2000/RT-2000)
OPERATOR’S MANUAL
(2) The cursor knob allows the selection of the message list, back button, erase button,
and next button. Pressing ENTER while the back button is selected returns to the
previous page. Pressing ENTER while the erase button is selected deletes the
currently selected message from the message list. Pressing ENTER while the next
button is selected invokes the message view page for the currently selected message
in the message list. The message view page is depicted below:
Message Definitions – P-2000 Error Messages
Status Line Message Detailed Error Message Suggested Operator Action
“Init Warning” “Initialization was not completely
successful. Please retry and/or
ensure unit is operating
correctly.”
Press the “SQ” button for each transceiver. If
both transceivers respond by displaying an
RX indicator, ignore message. If not, reset
power to unit for a complete restart.
“Comm Error” “Unable to establish
communication link with radio.” Press the “SQ” button for each transceiver. If both transceivers respond by displaying and
RX indicator, ignore message. If not, rest
power to unit for a complete restart.
“Input Voltage Error” “Input voltage has dropped below
normal operational limit.” The input voltage to the unit dropped below 22.0 volts but stayed above 19.5 Vots. Check
avionic bus voltage level for its value and/or
voltage spikes.
“Internal Temp. Error” “Internal temperature has
exceeded normal operational
limit.”
Reduce display brightness or length of
transmissions or reduce transmit power. If
condition occurs frequently, consider moving
the location of the unit or increasing cooling
available to the unit.
“Fan Error” “Internal cooling fan has failed.” Continue to operate until the “Internal Temp.
Error” is displayed. Return the unit for repair.
“Error” “An unclassified error has
occurred.” Reset Power to the unit. If condition persists, remove and service the unit.
You can always get back to the HOME PAGE by pressing the
HOME button one or more times.
Page 20 of 40 Publication No. 150-049105
Operator’s Manual Rev. D
Oct 2007
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations. When exporting,
diversion contrary to U.S. law is prohibited.
