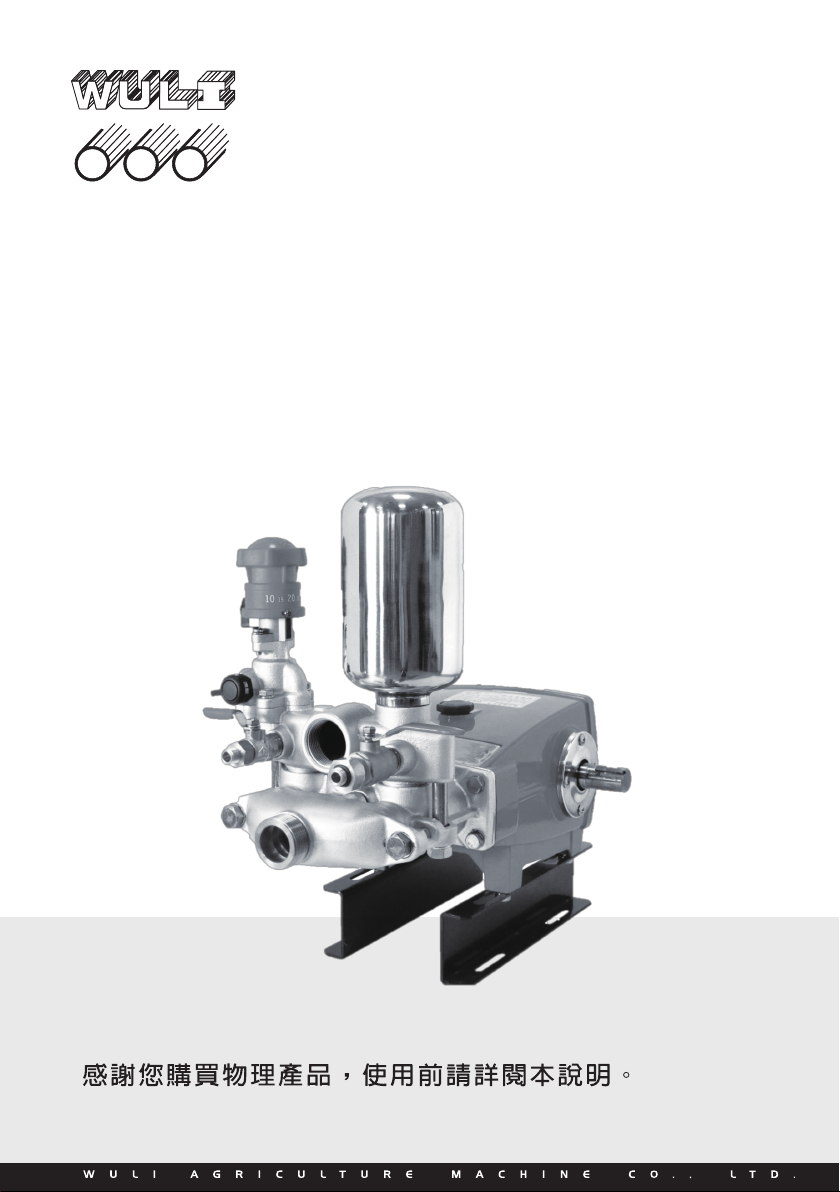

WULI WL-550B2 Series User manual

物理農業機械股份有限公司
WULI AGRICULTURE MACHINE CO., LTD.
動力噴霧機、高壓洗淨機、微霧系統專業設計製造
Please Read The Manual before use.
Thank You For Choosing Our Product.
WL-550B2 SERIES USER’S MANUAL
WL-550B2
系列操作手冊
2021.03V

泵 浦 使 用 說 明
1
--
A.危險注意事項：
B.使用前注意事項：
C.泵浦使用事項：
1. 嚴禁噴槍對人噴射。
2. 泵浦、引擎/馬達運轉時會產生高溫，須小心使用。
3. 噴霧機在高速運轉下，須注意皮帶及普利部份，不可碰觸。
1. 檢查每個扣件，確定噴霧機與引擎或馬達都穩固地裝在架子上。
2. 檢查引擎齒輪箱是否加機油；使用燃料是否正確；馬達電壓是否正確。
3. 啟動引擎前開關是否打開；化油器開關是否打開。
4. 兩個皮帶輪應裝於一直線上，皮帶應鬆緊適中。
5. 鎖好輸水管、噴槍。
6. 使用前須檢查泵浦內是否有機油、油量是否足夠及油品狀況是否正常。
1. 把吸水管鎖緊泵浦吸水口，同時將吸水過濾端放入水槽底部上方20公分處，預
防吸進底部泥沙，確保泵浦壽命。
2. 吸水管給水量需大於泵浦使用水量，如此才能達到使用壓力。
3.
WL-550B2/WL-550BC2 使用前將把手開關鈕(#P23)切換至洩壓，排除泵浦內空
氣。待正常出水後再將把手開關鈕切換至噴霧，即可使用噴槍做噴霧工作。
4.
WL-550ASB2/WL-550ASBC2 出水管路須裝在洩壓汽缸套(#121)上，方可有洩
壓功能。使用前，打開泵浦球形閥(#35)，排除泵浦內空氣。待正常出水後，
關閉球閥開關，即可使用噴槍做噴霧工作。
5. 壓力調整：壓力調整弁加壓以順時針方向調整，調整壓力同時須打開噴槍，最
高壓力不得高於泵浦設定壓力，以維護機械壽命。並可依實際壓力需求，逆時
針降壓以確保最佳使用壓力。(請依照壓力錶或調壓把手上顯示之壓力作為調壓
參考值。)
6. 暫停使用泵浦時或無水空轉時不宜超過5分鐘，以確保U迫緊不受水溫升高而降
低使用壽命。

2 --
--
泵 浦 使 用 說 明
D.使用後注意事項：
E.日常保養：
F.簡易故障排除：
1. 無法供水及壓力不穩
A. 檢查吸水塑膠管是否洩漏(破損或鬆脫)。
B. 打開出水開關排掉多餘的空氣。
C. 取下進水室(#29)及出水室(#31)檢查活門組(#28A)是否阻塞或損壞。
D. 檢查過濾網是否阻塞。
2. 壓力不足
A. 檢查壓力是否調整適當。
B. 檢查皮帶是否太鬆。
C. 檢查噴霧管與接頭是否洩漏或損壞。
D. 噴嘴磨損或孔徑太大導致壓力下降。
E. 檢查迫緊是否磨耗。
3. 汽缸洩漏
A. 取出汽缸內的迫緊(#21, #21-1, #22-1, #23, #24) 檢查是否磨耗。
B. 檢查柱塞(#14A/B)是否損壞，柱塞損壞可能導致汽缸洩漏或壓力不足。
1. WL-550B2/WL-550BC2:
A. 噴霧完畢，將把手開關鈕(#P23)轉至〞洩壓〞，並以清水操作噴霧機以清除內
部殘留之化學品。
B. 使用完畢後，將「調壓把手」(#P1-1)刻度轉至〞啟動〞，避免彈簧疲乏。
2. WL-550ASB2/WL-550ASBC2: 噴霧完畢，請用清水操作噴霧機以清除內部殘留
之化學品，並將調壓螺帽(#147)放鬆，以免彈簧疲乏。
1. 泵浦與引擎初使用10-15小時應更換機油，以後每隔70小時再更換一次。(使用前
應注意機油是否變質。)
2. 機油冷卻後才可進行更換，更換機油時，請打開排油螺絲(#08)排出骯髒之機油。
3. 加機油時，把排油螺絲(#08)鎖緊，打開加油蓋(#04A)，注入SAE#30~#40車輛
用清潔機油，正確加油量在油鏡(#07)的2/3位置。

3 --
圖號 No. 編號 CODE
Q'TY
DESCRIPTION
名 稱
1
1
2
1
2
8
1
1
1
1
1
1
7
1
1
1
1
1
1
1
1
3
3
6
6
曲軸箱 (紅)
曲軸箱 (藍)
汽缸銷
防塵蓋
曲軸油封蓋
大扁頭螺絲
曲軸油封蓋 (套筒)
O形環
皮帶輪
10B2*24*5
六角螺絲
加油蓋組
後蓋迫緊
曲軸箱後蓋 (紅)
曲軸箱後蓋 (藍)
大扁頭螺絲
油鏡組
油鏡
O形環
排油螺絲組
排油螺絲
O形環
曲軸
曲軸鍵
連桿組
連桿
六角螺絲
平面華司
Crankcase (Red)
Crankcase (Blue)
Set Pin
Dustproof Cap
Crankshaft Oil Seal Cover
Screw
Crankshaft Oil Seal Cover (Cone)
O-ring
Pulley 10B2*24*5
Screw
Oil Inlet Cover Assy
Rear Cover Packing
Rear Cover (Red)
Rear Cover (Blue)
Screw
Oil Window Assy
Oil Window
O-ring
Drainage Screw Assy
Drainage Screw
O-ring
Crankshaft
Crankshaft Key
Connecting Rod Assy
Connecting Rod
Set Bolt
Washer
B010103050
B010103051
B012904000
B011403000
B011003110
BS12108010100
B011102111
BG10280030
BP11822243
BS11112032121
B011901014
B011703000
B011603000
B011603310
BS12108016100
B012201003
B012201020
BG10234028700
B011801001
B011801000
BG10110015
B010803050
B012101110
B010603001
N/A
BS11208035500
BS31208500
零件表 PARTS LIST
01
01-1
02
03
03-1
03-2
03-3
03-4
03-5
04A
05
06-1
07A
07
07-1
08A
08
08-1
09
09-1
10A
10-1
10-2
10-3
06

4 --
零件表 PARTS LIST
圖號 No. 編號 CODE
Q'TY
DESCRIPTION
名 稱
3
6
2
2
3
彈簧華司
軸承
曲軸油封
柱塞銷
不鏽鋼柱塞
陶瓷柱塞組
(G1)
柱塞桿
柱塞套
柱塞套固定螺絲
背托環
O形環
柱塞套平墊圈
柱塞套固定螺帽
陶瓷柱塞組(
G2 )
柱塞桿
柱塞套
柱塞套固定螺絲
止水墊片
腳座
六角螺絲附華司
柱塞油封
柱塞中間皮
軸箱螺絲
汽缸
六角螺絲附華司
六角螺絲附華司
防水迫緊(兩用)
Spring Washer
Bearing
Crankshaft Oil Seal
Piston Pin
Sst Piston
Ceramic Piston Assy (G1)
Piston
Ceramic Piston Sleeve
Piston Screw
Back-up Ring
O-ring
Gasket
Set Nut
Ceramic Piston Assy (G2)
Piston Rod
Ceramic Piston Sleeve
Piston Screw
Gasket
Crankcase Stand
Set Bolt W/ Washer
Piston Oil Seal
Waterproof Ring
Screw
Cylinder
Set Bolt W/ Washer
Set Bolt W/ Washer
Packing (General)
BS32110500
B010703010
B010918010
B010503110
B010403050
B013003002
B013103050
B013203000
B013303000
BG30190024
BG10180024
B013503000
B013403000
B013003004
B013103150
B013203100
B013303100
B015122153
B010303000
BS11112016122
B010203000
B011203010
B012303050
B020103050
BS11112032122
BS11110032222
B020303111
10-4
11
12
13
14A
14
14-1
14-2
14-4
14-5
14-6
14-7
14B
14B-1
14B-2
14B-3
14B-4
15
15-1
16
17
18
20
20-1
20-2
21
3
3
3
3
3
3
3
3
3
3
3
3
2
4
3
3
1
1
4
2
3

5 --
圖號 No. 編號 CODE
Q'TY
DESCRIPTION
名 稱
3
1
1
3
3
3
3
3
防水迫緊( NKA11 /水用)
防水迫緊墊片
U迫緊固定環
O形環
U迫緊墊片
U迫緊 (
VN905 /兩用)
U迫緊(
NKA11 /水用)
迫緊防脫套
連接管
O形環
雙頭牙螺絲
六角螺帽
彈簧華司
活門組
活門帽
活門彈簧
活門塞
活門座
活門皮
進水室含銅接頭
進水室
進水接頭
六角螺絲
彈簧華司
出水室
出水室(水用/
ASB2 系列)
空氣室
Packing (Water Transport)
Spacer
Set Ring
O-ring
Spacer
U-packing (General)
U-packing (Water Transport)
Set Socket
Connecting Pipe
O-ring
Double-end Screw
Nut
Spring Washer
Valve Assy
Valve Cage
Valve Spring
Valve Plug
Valve Seat
Valve Packing
Suction Chamber W/ Connector
Suction Chamber
Connector
Set Bolt
Spring Washer
Outlet Chamber
Outlet Chamber(Water Transport/ASB2 Series)
Air Chamber
B020303113
B020303091
B020503050
BG10410046
B020303081
B020303101
B020303103
B020603050
B024102000
BG10100014010
BS15116078300
BS21116200
BS32116200
B040003031
B040303020
BJ20305000
B040103020
B040236090
B040436090
B031403052
B031403050
B032303050
BS11116050100
BS32116200
B030203051
B030203050
B030403000
21
21-1
22
22-1
23
24
31
32
25
26
26-1
27
27-1
27-2
28A
28-1
28-2
28-3
28-4
28-5
29/30
29
30
29-1
29-2
1
2
4
2
2
2
6
6
6
6
6
6
1
1
1
2
2
零件表 PARTS LIST

零件表 PARTS LIST
6 --
圖號 No. 編號 CODE
Q'TY
DESCRIPTION
【GENERAL】
名 稱
【兩用】
【FOR WATER TRANSPORT ONLY】
【水用】
O形環
壓力錶
出水塞頭 PT1-1/4
球形閥 10mm
球形閥 13mm
接頭由令 10mm
接頭由令 13mm
內六角塞頭 PT1/2
自動洩壓總成
安全弁 (中文)
安全弁 (英文)
吸水管組
1-1/4"*10 尺
吸水管組
3/4"*9 尺
過濾網申目
過濾網
迴水桿底座
六角螺絲附華司
方形環
吸水管蝶頭
吸水管申目
方形環
O-ring
Pressure Gauge
Plug Pt1-1/4
Ball Cock 10mm
Ball Cock 13mm
Connector 10mm
Connector 13mm
Plug Pt1/2
Overflow Rod Seat
Set Bolt W/ Washer
Square Ring
Suction Hose Wing Nut
Suction Hose Socket
Square Ring
Unloading Valve Assy
Safety Valve Assy (Zh)
Safety Valve Assy (En)
Suction Hose Assy
Suction Hose Assy
Filter Socket
Filter
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
BG10330039
B250001031
B030703020
B031603110
B031604110
B032003000
B032004000
BS50016000
B031703000
BS11110025122
BG20250030
B150403110
B150503120
BG20280037030
B050003311
B050002024
B050002025
B150103001
B150101001
B150603110
B150903110
32-1
33
34
35
36
37
38
39
91-1
92
94
ACC.
ACC.
ACC.
*120
ACC.
ACC.
ACC.
ACC.
*P1 1
*120零件表及展開圖請參閱第9~10頁。
*P1零件表及展開圖請參閱第11~13頁。
*120 parts list & diagram please refer to page 9~10.
*P1 parts list & diagram please refer to page 11~13.
2020.02V

7 -- 8 --
WL-550B2 SERIES

9 --
圖號 No. 編號 CODE
Q'TY
DESCRIPTION
名 稱
2
1
1
2
1
1
1
1
六角螺絲附華司
洩壓汽缸套
方形環
O形環
洩壓輔助彈簧
柱塞活門組
柱塞活門體
圓頭螺絲
Set Bolt W/ Washer
Unloading Valve Cylinder
Square Ring
O-ring
Auxiliary Spring
Piston Valve Assy
Piston Valve Body
Screw
BS11110025122
B050203001
BG20250030
BG10300035010
BJ50301010
B052203001
B052203000
BS14108010300
*92
121
123
124
125
126
127
128
自動洩壓總成 UNLOADING VALVE ASSEMBLY
B050003311
適用機型 FOR:
WL-550ASB2 SERIES

10 --
圖號 No. 編號 CODE
Q'TY
DESCRIPTION 名 稱
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
4
4
1
1
1
1
閥塞頭
O形環
O形環
閥塞座
球閥固定彈簧
彈簧底座
C扣環
壓力閥座
方形環
壓力閥桿組
壓力閥
壓力閥桿
消音片
O形環
迴水座
固定環
無頭內六角螺絲
內六角螺絲
彈簧華司
彈簧下座
調壓彈簧
彈簧上座
調壓螺帽
Valve Plug
O-ring
O-ring
Valve Plug Seat
Spring
Spring Seat
C-clip
Valve Seat
Square Ring
Valve Rod Assy
Pressure Valve
Pressure Valve Rod
Damper Plate
O-ring
Overflow Chamber
Set Ring
Screw
Hex Screw
Spring Washer
Spring Seat
Pressure Regulating Spring
Spring Seat (Upper)
Pressure Regulating Knob
B052403000
BG10060008
BG10130018010
B052503000
BJ30301010
B052303110
B052603000
B051003010
BG20320037
B050803011
B050903000
B050803020
B051903000
BG10135018510
B050503011
B071109051
BS17106005300
BS16108019300
BS32108300
B071409000
BJ41101000
B071311000
B071709000
129
129-1
130
131
132
133
134
135
137
138/139
138
139
140
141
142
142-1
142-2
143-1
143-2
144
145
146
147
2020.04V
自動洩壓總成 UNLOADING VALVE ASSEMBLY
*92 不屬於自動洩壓總成標準零件，須另外訂購。 * 92 is not a standard part, please order it as needed.

安全弁 SAFETY VALVE ASSEMBLY
11 --
B050002024/B050002025
適用機型 FOR:
WL-550B2 SERIES

12 --
圖號 No. 編號 CODE
Q'TY
DESCRIPTION 名 稱
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
2
1
2
1
1
調壓把手 (中文)
調壓把手 (英文)
安全弁上蓋
圓頭螺絲
調壓螺絲
六角螺帽
調壓把手螺帽
彈簧上座
調壓彈簧
彈簧下座
調壓管
圓頭螺絲
彈簧華司
壓力固定彈簧
鋼珠
壓力指針
圓頭螺絲
安全弁本體
壓力閥桿滑套
六角螺絲附華司
O形環
O形環
壓力閥桿
O形環
Pressure Regulating Knob (Zh)
Pressure Regulating Knob (En)
Upper Cap
Screw
Pressure Regulating Screw
Nut
Nut
Spring Seat (Upper)
Spring
Spring Seat
Pressure Regulating Pipe
Screw
Spring Washer
Spring
Sst Ball
Pressure Indicator
Screw
Safety Valve Body
Valve Rod Sleeve
Set Bolt W/ Washer
O-ring
O-ring
Valve Rod
O-ring
B050602000
B050602010
B054602000
BS14204012300
BS17208032500
BS21208201
B054402050
B051301221
BJ40101040
B051402030
B050302001
BS14206020300
BS32108300
BJ70101010
B310115080
B054702000
BS14204006300
B050102070
B052902020
BS11110025122
BG10150020020
BG10100015010
B050802030
BG10080010
P1-2
P1-3
P2
P2-1
P3
P4
P5
P6
P7
P7-1
P7-2
P8
P9
P10
P10-1

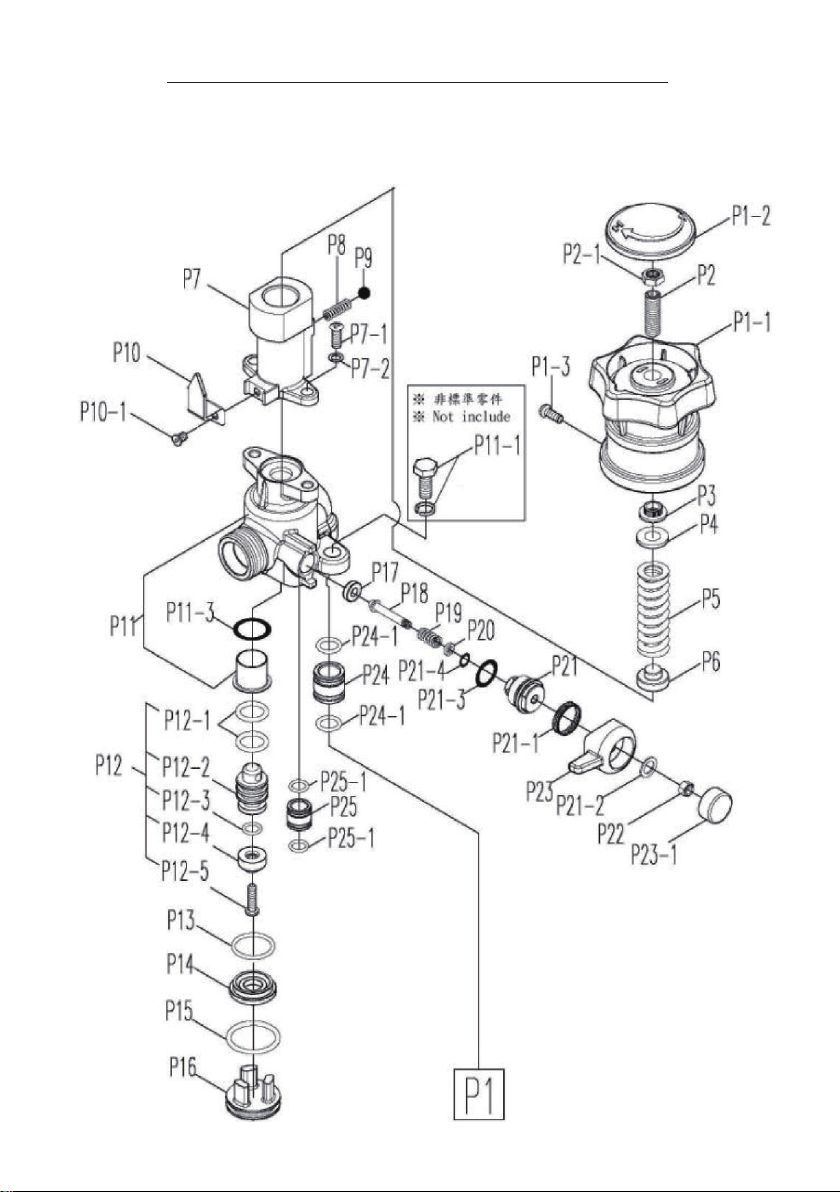

安全弁 SAFETY VALVE ASSEMBLY
*P11-1
P11-3
P12-1
P12-2
P12-3
P11
P1-1 1

2020.04V
* P11-1 is not a standard part, please order it as needed.
13 --
圖號 No. 編號 CODE
Q'TY
DESCRIPTION 名 稱
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
壓力閥
圓頭螺絲
O形環
壓力閥座
O形環
閥座固定座
排氣止水墊片
安全弁止水桿
M03增壓彈簧
O型環固定片
閥桿固定螺帽
排氣把手固定彈簧
平面華司
O形環
O形環
防鬆螺帽
把手開關鈕 (中文)
把手開關鈕 (英文)
拉座用封口
安全弁進水連接管
O形環
安全弁排氣連接管
O形環
Pressure Valve
Screw
O-ring
Valve Seat
O-ring
Valve Seat
Spacer
Valve Rod
Spring
Set Plate Pom
Nut
Spring
Washer
O-ring
O-ring
Nut
Switch (Zh)
Switch (En)
Seal
Inlet Connecting Pipe
O-ring
Air-release Pipe
O-ring
B050902020
BS14203012300
BG10190022010
B051001000
BG10240029
B054202000
B054502010
B050801221
BJ00106370
B054802010
B054402000
BJ70101100
BS31105301
BG10140017500
BG10035007200
BS22204300
B054902002
B054902003
B055002000
B054302011
BG10105013500
B054302051
BG10065009530
P12-4
P12-5
P13
P14
P15
P16
P17
P18
P19
P20
P21
P21-1
P21-2
P21-3
P21-4
P22
安全弁 SAFETY VALVE ASSEMBLY
1
1
1
2
1
2
P23-1
P24
P24-1
P25
P25-1
P23
*P11-1 不屬於安全弁標準零件，須另外訂購。

14 --
1. Never point the spray gun at people or animals.
2. To reduce the risk of burns, do not touch the surface of the pump while operating.
3. Keep hands and clothing clear of the belts and pulleys when operating the pump.
●Warning
●Before Use
●During Use
1. Please tighten every connector securely to prevent leaking and make sure that the sprayer
and the engine/motor are installed firmly on the frame.
2. Set the two pulleys in a straight line and the belts at an appropriate tightness.
3. Make sure that the oil in the pump is sufficient and in good condition.
4. Engine: Check whether there is sufficient engine oil and use the right fuel.
Before starting the engine, make sure both the ON/OFF SWITCHES of engine and
carburetor are on.
5. Motor: Be sure to use the correct voltage and frequency for the motor.
1. Couple the suction hose to the inlet of the sprayer. Leave the suction hose filter
suspended 20cm from the bottom of the water tank.
2. Make sure the water supply is sufficient to allow the pump to reach its working pressure.
3. Couple the spray hose with the spray gun. Before using the spray gun for spraying, be
certain water in the pump is flowing properly.
4. WL-550B2/WL-550BC2: Set the SWITCH BUTTON (#P23) to “Pressure Release”
before starting the engine/motor to release air in the pump. Switch to “Spray” after the
outlet is normal.
5. WL-550ASB2/WL-550ASBC2: Open the BALL COCK(#35) before starting the engine
/motor to release air in the pump. Close it after the outlet is normal.
6. Pressure Adjustment: The maximum pressure should not exceed the set pressure of the
pump. When adjusting the pressure, the spray gun must be opened. Turn PRESSURE
REGULATING KNOB/NUT (WL-550B2/BC2#P1-1; WL-550ASB2/ASBC2#147) in a
clockwise direction to increase the pressure and counter-clockwise to reduce the pressure.
Please use the PRESSURE REGULATING KNOB (WL-550B2BC2#P1-1) value or the
PRESSURE GAUGE(WL-550ASB2/ASBC2#33) as the pressure reference when
adjusting.
7. In order to avoid any damage to the packings and the pump, shut off the engine /motor
when stopping the unit for more than 5 minutes.
Attention

15 --
1. Use water to operate the pump again in order to clean out any remaining chemicals.
2. WL-550B2/WL-550BC2:
A. Set the SWITCH BUTTON (#P23) to “Pressure Release”, and run the pump with
clean water to prolong the life of the pump.
B. Set the PRESSURE REGULATING KNOB (#P1-1) to “Start” when the pump is not
in use.
3. WL-550ASB2/WL-550ASBC2: When not in use, loosen the PRESSURE
REGULATING NUT (#147) in order to maintain proper tension of the spring inside.
●After Use
●Maintenance
●Repair Instructions
1. Replace oil in the pump after the first 10~15 hours of use. After this, the oil should be
changed after every 70 hours of use. Make sure the oil is in good condition before use.
2. After the oil has cooled, unscrew the DRAINAGE SCREW (#08) and drain all oil and
residue from the pump.
3. Tighten the DRAINAGE SCREW (#08) before refilling with clean motor oil SAE
#30~#40 up to the level of 2/3 of the OIL WINDOW (#07).
1. Instability of working pressure and water supply:
A. Check if the suction hose is blocked or leaking.
B. Open the BALL COCK to release any air in the pump.
C. Remove the SUCTION CHAMBER (#29) and OUTLET CHAMBER (#31) to check
if the VALVE ASSY (#28A) are stuck or clogged.
D. Check if suction filter is stuck or clogged.
2. Insufficient pressure:
A. Check whether the pressure has been adjusted properly.
B. Check whether the belt is too loose.
C. Check whether the spray hose and the coupling are damaged.
D. Check whether the packings are worn or the nozzle is worn out.
3. Cylinder leakage:
A. Check if the packings (#21, #21-1, #22-1, #23, #24) in the cylinder are damaged.
B. Check if pistons (#14A/#14B) are worn out or damaged. This may lead to leaking
and low pressure.
Attention
