XAG B12620Q User manual

Smart Battery 2019
User Manual
EN

To Users
Dear user, thank you for choosing XAG products.
For safety reasons and the best experience possible, XAG recommends that you read through the User
Manual and Disclaimer in this document before attempting to use the Smart Battery 2019.
Contact Us
If you have any questions about this document, please contact our Technical Support via email: info@
xa.com

User Manual
1
4
Product Profile
The Smart Battery 2019 is available in two versions: B12620Q (standard for P20) and B12800Q (standard for P30).
Both are compatible with all XAG P-Series Plant Protection UAV Modules. The Smart Battery contains 12 large-
capacity lithium polymer batteries, and is integrated with a BMS module. It enables real-time monitoring of
voltage, current, and temperature, and also features charging protection. During use, the battery can
transmit feedback information to the device in real time. In case of low power or battery failure, the BMS system
will send an emergency stop command to ensure the safety of the device.

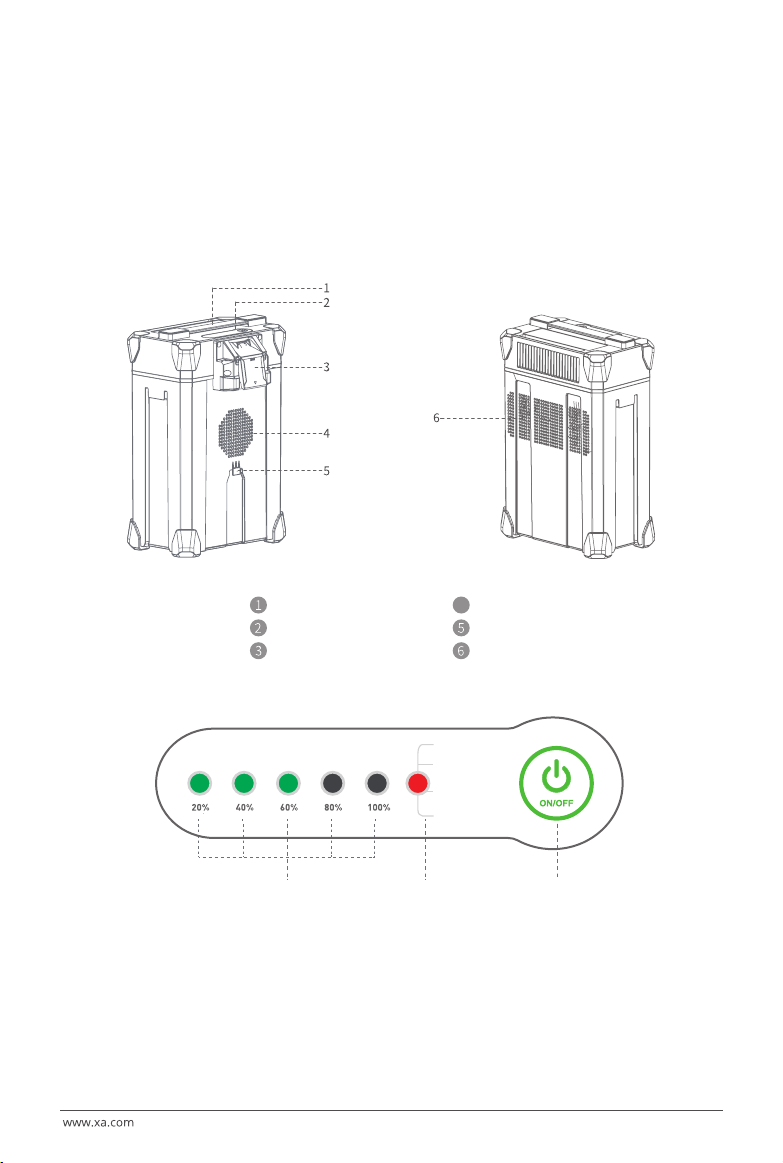

Overview
Handle
Control Panel
Clip
Air Outlet
Connector Port
ON: Normal
Flashes slowly: Low
Temperature
Flashes quickly:
High Temperature
Flashes twice:
Battery Malfunction
Battery Level Indicators Status Indicator Power Button
Air Inlet
ON/OFF
[1]
Battery ON/OFF
1. When the Battery is turned off, press the Power button once to check the current battery level, indicated
by the Battery level LED. If the battery is too low, recharge before use
2. Connect the battery to an device, then press the Power button once for at least 1 second until all the
indicator lights flashes, then press and hold the power button again for at least 1 second until you hear a
beep from the battery.
3. Repeat Step 2 to turn off the Battery

2
Battery Level LED
1 GREEN FLASH
1 GREEN
2 GREEN
3 GREEN
4 GREEN
5 GREEN
2 LIGHTS
DOUBLE FLASH Self-locked
Remotely locked
3 GREEN
DOUBLE FLASH
Battery is locked caused by critical power level.
Please contact customer support to unlock the device.
Battery is locked remotely.
Please contact customer support to unlock device.
Status Battery Level
SOLID RED Normal
RED QUICK FLASH Overheated
RED SLOW FLASH Low Temperature
Normal
Temporarily locked. Prohibited from
charging and usage.
Battery requires preheating.
RED DOUBLE FLASH Battery Malfunction Stop using immediately.
Battery Level LED Status Battery Level
Checking Battery Status

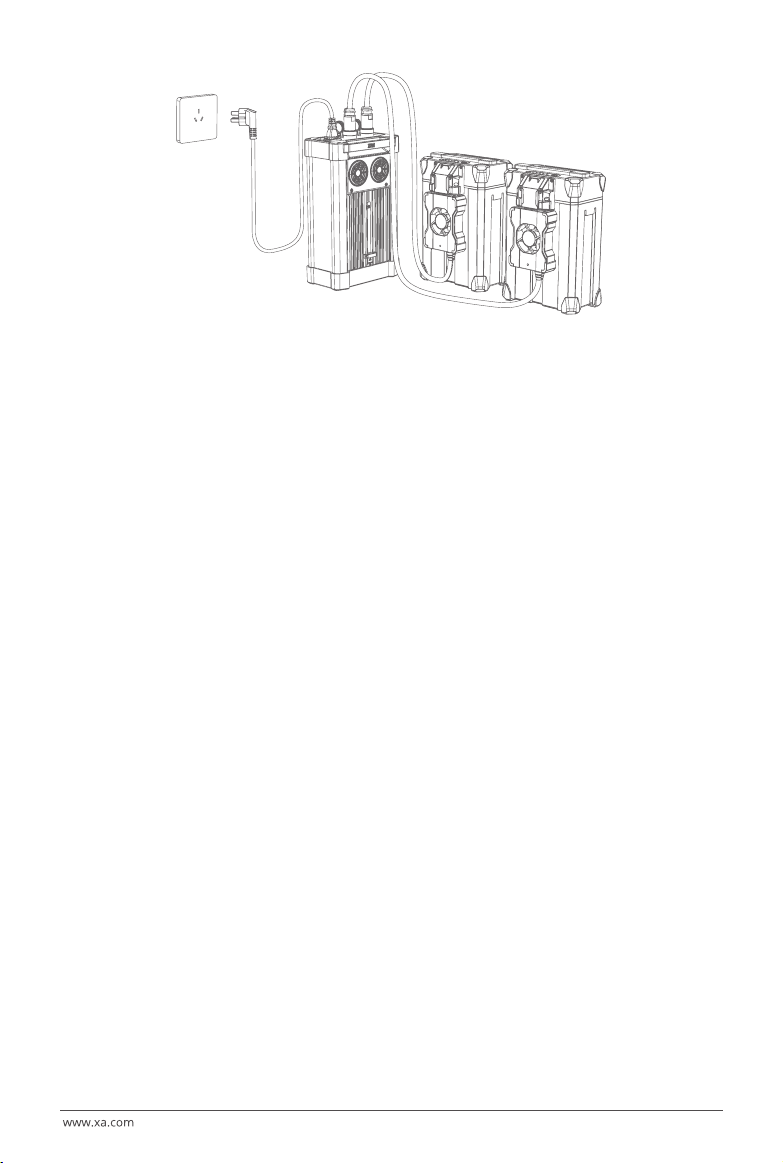

Battery Charging
During the battery charging, the fan on the charger will be turned on to dissipate heat. The battery
management system will automatically suspend the charging if the temperature is over 50° C, and resume
after the temperature drops below 50° C. The ideal ambient charging temperature (20° - 35° C) for charging
helps maintain the normal service life of the battery.
The battery level indicators corresponding to the current battery level will be solid green, and the remain will
be flashing in series indicating the battery is currently charging. Once the charging is completed, the buzzer
will beep for 30secs and all the battery level indicators will flashes for 2 minutes, then the battery will turn off
automatically
User Manual
Battery Preheating
Press and hold the power button for 5 seconds when the battery is OFF until a beep is heard from the
battery and the status indicator is on. The pre-heating of the battery will start and the battery will turn off
automatically after heating.
Checking Battery Level
When the battery is OFF, press the power button once to display the battery level.
When the battery is ON, check the battery level indicators to see the battery level.
[1] Device: Device as UAV or Charger
[2] Preheating: Preheating can be conducted when the battery is not connected to a device
[2]

User Manual
3
Technical Specifications
Operating temperature: 10 - 50 °C
Charging temperature: 10 - 40 °C
Storage temperature: -10 - 30 °C
Weight:
Dimensions:
Approx. 4.6 kg (B12620Q)
Approx. 5.4 kg (B12800Q)
183*137*277 mm (B12620Q)
183*137*302 mm (B12800Q)
Model:
Type:
Capacity:
B126 、20Q B12800Q Lithium
polymer battery
14000mAh/620Wh (B12620Q)
18000mAh/800Wh (B12800Q)
Rated output: 44.4 V /70A( B12620Q )
44.4 V /80A( B12800Q )

4
• Do not plug or unplug the battery when it is turned on, otherwise the power connector may be
damaged.
•Check the battery firmware before flight operation. If there is a new version, please update first. The
flight loss caused by the user’s failure to update the battery firmware in time will be borne by the user.
•The battery should be used between 10° and 50° C (ambient temperature). Overheating (above 50° C)
may cause the ignition or even explosion of the battery. Low temperature (below 0° C) may greatly
degrade the battery performance, resulting in failure to meet the requirements of use.
•To avoid short circuiting, do not connect the positive and negative poles of the battery with a wire or
other metal objects.
•Prevent the battery from coming into contact with any liquid. Please remember that it is strictly
forbidden to soak the battery in water or expose the battery to water, otherwise it may lead the
battery to decompose, and then spontaneous combustion or even explosion.
•If there is liquid or foreign matter on the battery terminal, wipe in a timely fashion and keep it clean.
Otherwise it may cause poor contact, resulting in loss of energy or charging failure.
•Please handle with care during use. Do not disassemble it, puncture its case, or manually press the
battery, including but not limited to the following: Sitting on the battery, placing heavy objects on the
battery, or otherwise putting pressure on the battery.
•Regularly check the battery terminal, plug, and other components before use. Do not use alcohol or
other flammable agents to clean charging devices. Do not use a damaged charging device.
•When charging, place the battery and charging devices on flat ground that is free of flammable or
combustible materials. Battery charging shall be watched over to prevent accidents. For safety, when
charging, a distance of more than 30cm shall be kept between two batteries, or between a battery
and a charger, to avoid the malfunction of the charger or the battery, and even serious consequences
such as fire due to overheating.
•Before each flight, make sure the battery has completed charging. Never operate with a full load
when the battery is not fully charged.
•It is strictly forbidden to use batteries other than those provided by XAG. For replacement, please
contact the after sales or designated dealers of XAG. The user shall bear the responsibility for battery
accidents, flight failures or other accidents caused by the use of batteries not provided by XAG.
•In case of ONE GREEN LIGHT FLASH after flight, please charge the battery to a level of 40%-60%
before storage. Failure to charge in time may cause damage to the battery. The battery should be
recharged and discharged every 90 days to maintain its activity.
•The battery should be stored in a dry environment at a temperature of -10-30° C. Do not place the
battery where leakage may occur.
•When the battery is found swollen, leaking, or damaged, stop using the battery immediately and
contact XAG or your dealer timely.
•The liquid inside the battery is highly corrosive. If it inadvertently comes into contact with your skin
or eyes, rinse with clean water and seek medical advice immediately.
•When disposing the battery, please follow local laws and regulations. Protect the natural
environment, and do not discard the battery at random.
󱩓 IMPORTANT:

User Manual
5
Disclaimer
1. Please read this document carefully before using this product. This Disclaimer has an important
impact on the safe use of the product and your legitimate rights and interests. The use of the
product shall be deemed as you have known, understood, acknowledged, and accepted all terms and
contents of this document.
2. This product is not a toy, and is not suitable for people under the age of 18. Please keep this product away
from the reach of children, and be very careful when operating in the presence of children.
3. This product must be charged with the charging devices provided by XAG. For product malfunction or
damage caused by the use of other devices for charging, XAG does not bear the corresponding legal
responsibility.
4. Please install and use this product as guided by the “Product Manual/Operation Manual”. Do not
modify or disassemble the product without authorization. All losses caused by the user’s
unauthorized modification or disassembly of this product shall be borne by the user, while XAG does
not assume any corresponding legal responsibility.
5. To the maximum extent permitted by law, XAG shall not be liable for all losses caused by users'
failure to use the product in accordance with this document and the “Product Manual/Operation
Manual”.
6. To the maximum extent permitted by law, XAG’s liability or amount under any circumstances to you for all
damages, losses, and litigation arising therefrom will not exceed the amount paid to XAG by you for the
purchase of the product.
7. In any case, the purchaser or user shall comply with relevant laws and regulations of the country and
region where the product is used. XAG does not assume any liability arising from violation of relevant
laws and regulations by the purchaser or user.
8. As laws in some countries may prohibit exemptions from liability clauses, your rights in different
countries may vary. This does not mean that the contents of this Disclaimer are necessarily invalid.
9. To the extent permitted by law, XAG has the final right to interpret and modify the above terms. XAG has
the right to update, modify, or terminate these terms through its official website, the “Product Manual/
Operation Manual”, online APP and other means without prior notice.
Wa r n i n g :
•Users are required to read the complete “Product Manual” and be familiar with the product
operations before using the product. Otherwise, it may cause serious injury to yourself or
others, or cause product damage and property loss. Strong safety awareness is required
to operate this product. Do not use the parts that are not provided or suggested by XAG.
Please strictly follow the instructions of XAG to install and use the product.
