XAG GNSS RTK Fix Station User manual

EN
Version 1.0
XAG GNSS RTK Fix Station
Installation Guide

To Users
Dear user, thank you for choosing XAG products. For safety reasons and the best
experience possible, XAG recommends that you read through the Installation Guide and
Disclaimer in this document before attempting to use the XRTK4 Fix Station.
Contact Us
If you have any questions about this document, please contact our Technical Support via email:
[email protected]

Contents
List of Items 5
Overview - XAG GNSS RTK Fix Station 6
Site Selection - XAG GNSS RTK Fix Station 07
Installation - Station Bracket 08
Installation - Solar Panel 09
Installation - XRTK (Data SIM Required) 10
Installation - Wiring Guides 11
RTK Module Status Indicator 12
Console of the RTK Positioning Module 12
Checking Operation Status 12
Checking Network Status 12
Checking Positioning Status 12
Fix Station Activation & Firmware Update 13
Activation 13
Firmware Update 13
Maintenance 14
Technical Specifications 15
Disclaimer 16
Warning 16

5
XAG AUSTRALIA
List of Items
Before unpacking and using the product, please carefully check if it contains all the items listed below.
Please contact XAG™ or your dealer if there are any missing items.
Station Bracket
× 1
Support Rod
×1
Solar Panel (With Battery)
×4 XRTK Module (SIM Card Not Included)
×1
Screw Pack
×1

XAG AUSTRALIA
6
Overview - XAG GNSS RTK Fix Station
XAG XRTK (Beidou) Fixed Station is comprised of the RTK Positioning Module, Solar Panel and Station
Bracket
XRTK Module
Tightening Ring
Solar Panel
Solar Panel Battery
Power Box
XRTK Module S/N
Support Rod
Adjustable Mount
Bracket Fixtures
Station Bracket

07
XAG AUSTRALIA
Site Selection - XAG GNSS RTK Fix Station
To ensure the continuous operation of the XAG GNSS RTK Fix Station, Site selection must follow the
following principles:
1. The XAG GNSS RTK Fix Station as the horizontal plane, there are no obstructions higher than
15° around the XAG GNSS RTK Fix Station
2. Distance from objects prone to multipath effects (such as trees, water bodies, beaches, water-
prone areas and metal objects) is not less than 100 meters.
3. Distance from electromagnetic interference areas (such as microwave stations, radio towers,
high-voltage lines, high-speed railway crossing areas, etc.) is not less than 100 meters and avoid
areas prone to vibration (such as railways, highways, etc.).
4. 4G network signals are normal, and there are no buildings will be built near the base station to
interfere with the satellite signals.
5. Avoid areas with unstable geological structures, fractured fault zones, and locations prone
to local deformation such as landslides and subsidence (such as mining areas, oil and gas
mining areas, Groundwater funnel settlement area, etc.), while avoiding places that are prone to
flooding or large changes in groundwater level.

XAG AUSTRALIA
08
Installation - Station Bracket
Prior to the installation, ensure there are no obstruction and the Solar Panel are facing:
Northern Hemisphere: Southward facing with 5° ~ 10° West
Southern Hemisphere: Northward facing with 5° ~ 10° West
Method 1 – Build Platform & Installation (Recommended)
Build a cement platform of 1m x 1m x 0.15m. Once the cement is solidified and harden,
install the 4 fixtures in the proper position on the cement platform and secure the Station
Bracket with 8 expansion bolts.
Method 2 – Direct Drilling & Installation
Where conditions permit, you may choose to drill and install the 4 fixing pieces directly on
the ground at a suitable position, then secure the Station Bracket with the 4 fixtures and 8
expansion bolts.
01
02

09
XAG AUSTRALIA
Installation - Solar Panel
Refer to the figure below to align the 4 solar panels with the reserved screw holes on the Adjustable
mount of the Station bracket, then tighten the screws to secure each Solar Panel (2 screws for each
panel). Once the Solar Panel is secured, adjust the solar panels to a deflection angle of 45°.
45°

XAG AUSTRALIA
10

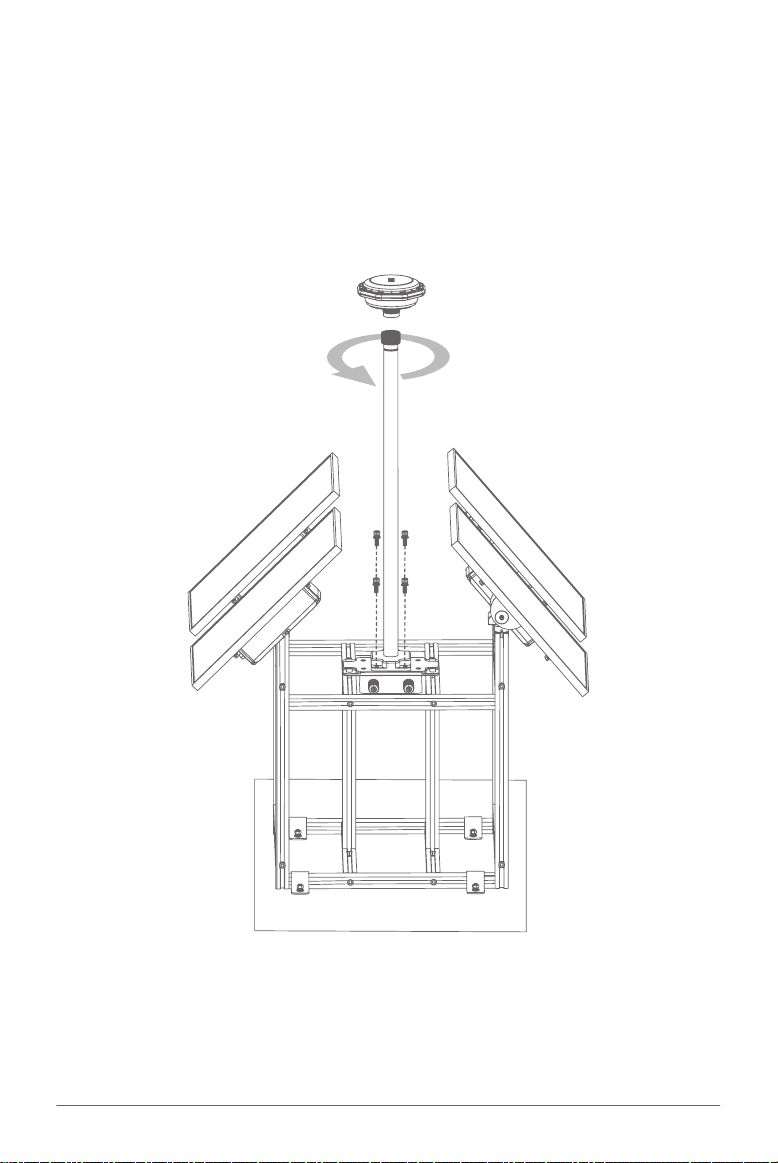

Installation - XRTK (Data SIM Required)
1. Position the Support Rod vertically and align with the Station Bracket, then secure and tighten
the screws (4)
2. Align and insert the XRTK Module vertically on the top of the support rod, and rotate the
tightening ring CCW (Counter-Clockwise) to firmly secure the connection of the support rod.

11
XAG AUSTRALIA
Refer to the wiring guidelines in the figure below, respectively connect the 4pin power cords on the 4
solar battery boxes to the main power box of the bracket, and then connect the power cords of the
support rod to the main power box.
During the installation, check and ensure the power cords of the solar panel and the support rod are
properly and connected. Unsecured or Improper Connection may result in water penetration resulting
in rusting or damage to the interface.
🧷IMPORTANT
Installation - Wiring Guides
Solar Panel Battery
Connector
Solar Panel Battery
Connector
Solar Panel Battery
Connector
Solar Panel Battery
Connector
Support Rod
Connector

XAG AUSTRALIA
12
🧷IMPORTANT
RTK Module Status Indicator
• Console of the RTK Positioning Module
• Checking Operation Status
• Checking Network Status
• Checking Positioning Status
Button
Status Indicator
The Console of RTK Positioning Module is
composed of three function buttons and three
corresponding indicator lights in different colors
(see right figure).
The functions of the button/indicator lights are
defined as follows:
RED LIGHT ON Normal
RED SLOW FLASH WLAN initializing (about 30 seconds)
RED QUICK FLASH Voltage is low (< 12.5V)
(Immediate charging required; when
the voltage is higher than 13.5V, the
red light will return to Normal and the
alert stops).
Status LED Status
Beep
Warning/Alert
YELLOW SINGLE FLASH Not connected
YELLOW DOUBLE FLASH Connected
YELLOW LIGHT ON Connected, but no available fixed
station nearby (Automatic switch to
24-hour selfcapturing mode).
Status LED Status
BLUE LIGHT OFF Not connected
BLUE LIGHT ON
BLUE DOUBLE FLASH
BLUE SINGLE FLASH
BLUE TRIPLE FLASH
Status LED Status
RTK
Single
Float
Fix
• Buzzer Alert
▸Coordinates Different: The buzzer sends an alert when the difference between the coordinates
manually entered and the actual coordinates is more than 8 meters.
▸Low Voltage: The buzzer sends an alert when the battery voltage is lower than 12.5V. Immediate
charging required; when the voltage is higher than 13.5V, the red light will return to Normal and the
alert stops

13
XAG AUSTRALIA
Fix Station Activation & Firmware Update
Once the Installation of the XAG GNSS RTK Fix Station is completed,
1. Record the following Details:
• Detail Address of the Installation Site
• S/N of the Fix Station (Located on the back of the RTK Module)
• Photos of the QR Code (Located on the back of the RTK Module)
• Photos (Close-Up) of the GNSS RTK Fix Station
• Photos (Long-Shot) of the GNSS RTK Fix Station
• Photos (Front, Rear, Left & Right) of the GNSS RTK Fix Station
2. Contact and Notify XAG Technical Support via email: [email protected], XAG
Technician will assist in the setup and the testing of the station. Notification will be provided
once the Fix Station is ready to be used (Generally within 1 Business Day).
• Activation
Once the XAG GNSS RTK Fix Station is activated and connected to the Cloud Network, the firmware
update is autonomous. During the update process, service may be temporarily interrupted (The RTK
Module Status Indicator F1 & F2 will be off and F3 will flash quickly with buzzers).
• Firmware Update

Maintenance
01
Before and after severe weather conditions, perform inspection to ensure the Station
Bracket is firmly secured, and visual inspection of the power cables, connector and the
solar panel for damages. If there are signs of liquid penetration, add waterproof glue and
other waterproof materials.
02
Clean the surface of the solar panel every month, then check and tighten loose screws
and ensure Fix Station was not moved.
03
Do not move the Fix Station after installation. If you need to change it, please contact XAG
Technical support.
04
In severe weather such as hail, adjust the solar panels vertically to prevent them from
being damaged.

15
XAG AUSTRALIA
Physical:
Dimension XRTK: 154mm x 83.6mm x 87mm
Solar Panel: 465mm x 350mm x 18mm
Weight <1.5 Kg (Without Battery)
Operating ambient temperature -20℃to 65℃
Nonoperating temperature -40℃to 85℃
Relative humidity 100%, Condensation
Ingress Protection IP54
Technical Specifications
Communication:
Satellite System BDS/GPS/GLONASS/Galileo
RTK Horizontal Accuracy ±10mm + 1ppm (RMS)
RTK Vertical Accuracy ±15mm + 1ppm (RMS)
Network Protocol GSM, CDMA2000/EVDO, WCDMA, TD-SCDMA, LTE-
FDD, LTE-TDD
BT Frequency 2.4GHz
BT Protocol Bluetooth 3.0+, Bluetooth 4.0
Communication Interface 1 x CAN Interface
1 x Bluetooth
3 x GPRS Communication Modules
Hardware Interface 1 x Power Supply Interface
3 x SIM card slot
Solar Panel:
Solar Panel 10400mAh
Battery Capacity 14.4V
Output Voltage 18~22V
Charging Voltage ＜20W
Power Consumption ＞7h

XAG AUSTRALIA
16
1. Please read this document carefully before using this product. This Disclaimer has an important
impact on the safe use of the product and your legitimate rights and interests. The use of the
product shall be deemed as you have known, understood, acknowledged, and accepted all terms
and contents of this document.
2. This product is not a toy, and is not suitable for people under the age of 18. Please keep this product
away from the reach of children, and be very careful when operating in the presence of children.
3. Please install and use this product as guided by the “Product Manual/Operation Manual”. Do
not modify or disassemble the product without authorization. All losses caused by the user’s
unauthorized modification or disassembly of this product shall be borne by the user, while XAG
does not assume any corresponding legal responsibility.
4. To the maximum extent permitted by law, XAG shall not be liable for any losses caused by users'
failure to use the product in accordance with this document and the “Product Manual/Operation
Manual”.
5. To the maximum extent permitted by law, XAG’s liability or amount under any circumstances to you
for all damages, losses, and litigation arising therefrom will not exceed the amount paid to XAG by
you for the purchase of the product.
6. In any case, the purchaser or user shall comply with relevant laws and regulations of the country
and region where the product is used. XAG does not assume any liability arising from violation of
relevant laws and regulations by the purchaser or user.
7. As laws in some countries may prohibit exemptions from liability clauses, your rights in different
countries may vary. This does not mean that the contents of this Disclaimer are necessarily invalid.
8. To the extent permitted by law, XAG has the final right to interpret and modify the above terms. XAG
has the right to update, modify, or terminate these terms through its official website, the “Product
Manual/Operation Manual”, online APP and other means without prior notice.
Disclaimer
Warning
Users are required to read the complete “Product Manual” and be familiar with the product operations
before using the product. Otherwise, it may cause serious injury to yourself or others, or cause
product damage and property loss. Strong safety awareness is required to operate this product. Do
not use the parts that are not provided or suggested by XAG. Please strictly follow the instructions of
XAG to install and use the product.

This content is subject to change without notice.
The copyright of all information in this user manual (including but not limited to any text description, illustrations,
photos, methods, processes, etc.) belongs to XAG Australia and is protected by copyright law. No individual
or organization may imitate, extract, translate, distribute or reproduce or quote all the contents of this manual
without any written authorization.
Copyright©2021 XAG Australia All Rights Reserved
