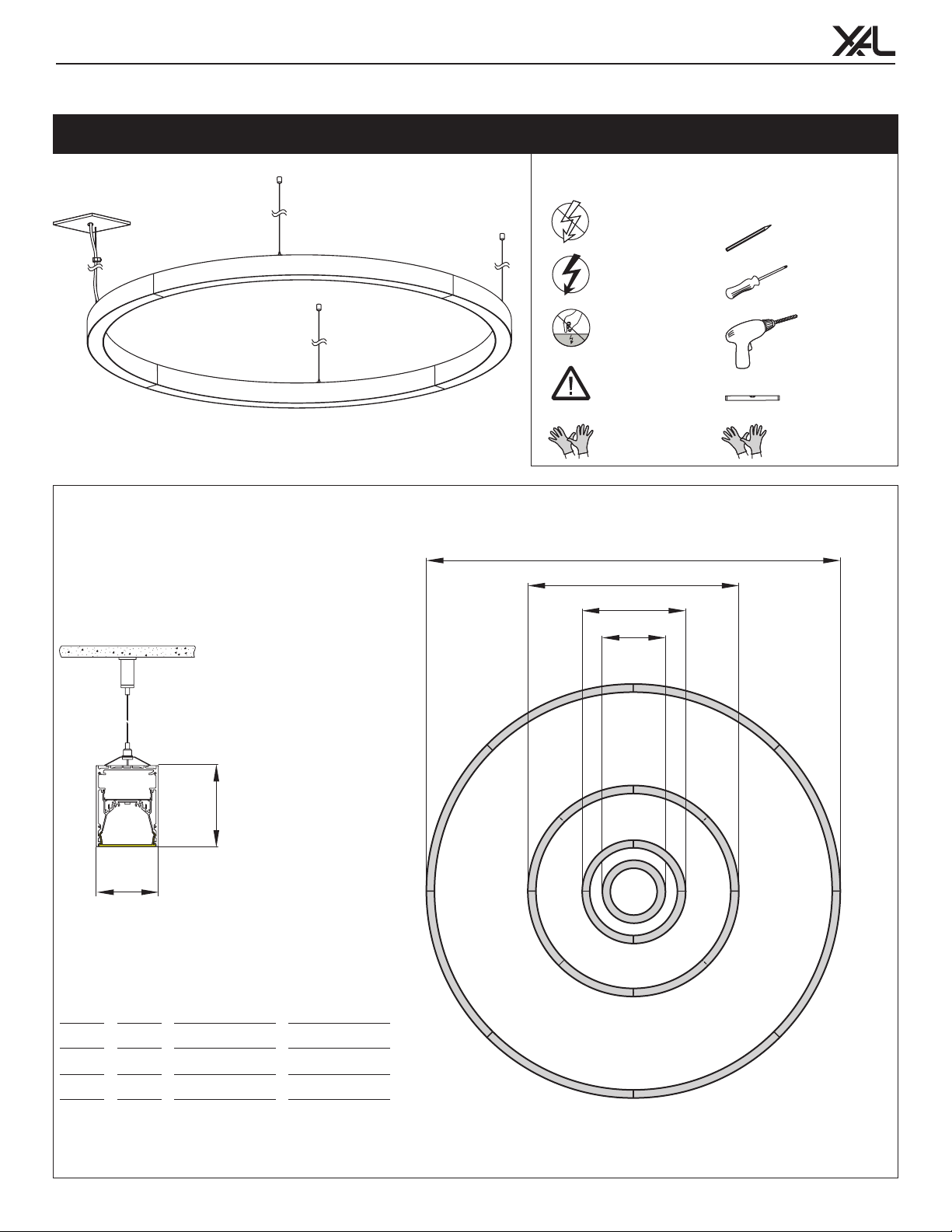

XAL Mino 2.5 Circle User manual

2 ⅜"
3 "
236 ¼"
118"
59"
40"
CIRCUMFERENCEDIAMETERRADIUSNOMINAL
Ø 3 ¼'
Ø 5'
Ø 10'
Ø 20'
20"
29 ½"
59"
118 ⅛"
Ø 118 ⅛"
Ø 236 ¼"
Ø 40"
Ø 59"
30' 10"
61' 10"
10' 5"
15' 5"
POWER OFF
POWER ON
DON´T TOUCH
THE LED
Pencil
Drill
Screwdriver
ATTENTION
USE ESD
GLOVES
ESD
GLOVES
SIGN LEGEND TOOLS REQUIRED
(not included)
Level
DO NOT DISCARD!
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.292.9990 www.xalusa.com 1
Mino 2.5 Circle pendant
MOUNTING INSTRUCTIONS
MI-V02 10/2018

40" MOUNTING POSITIONS
60" MOUNTING POSITIONS
750mm /29 ½"
500mm /19 11/16"
500mm /19 11/16"
750mm /29 ½"
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.292.9990 www.xalusa.com 2
Mino 2.5 Circle pendant
MOUNTING INSTRUCTIONS
MI-V02 10/2018

XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.292.9990 www.xalusa.com 3
Mino 2.5 Circle pendant
MOUNTING INSTRUCTIONS
MI-V02 10/2018

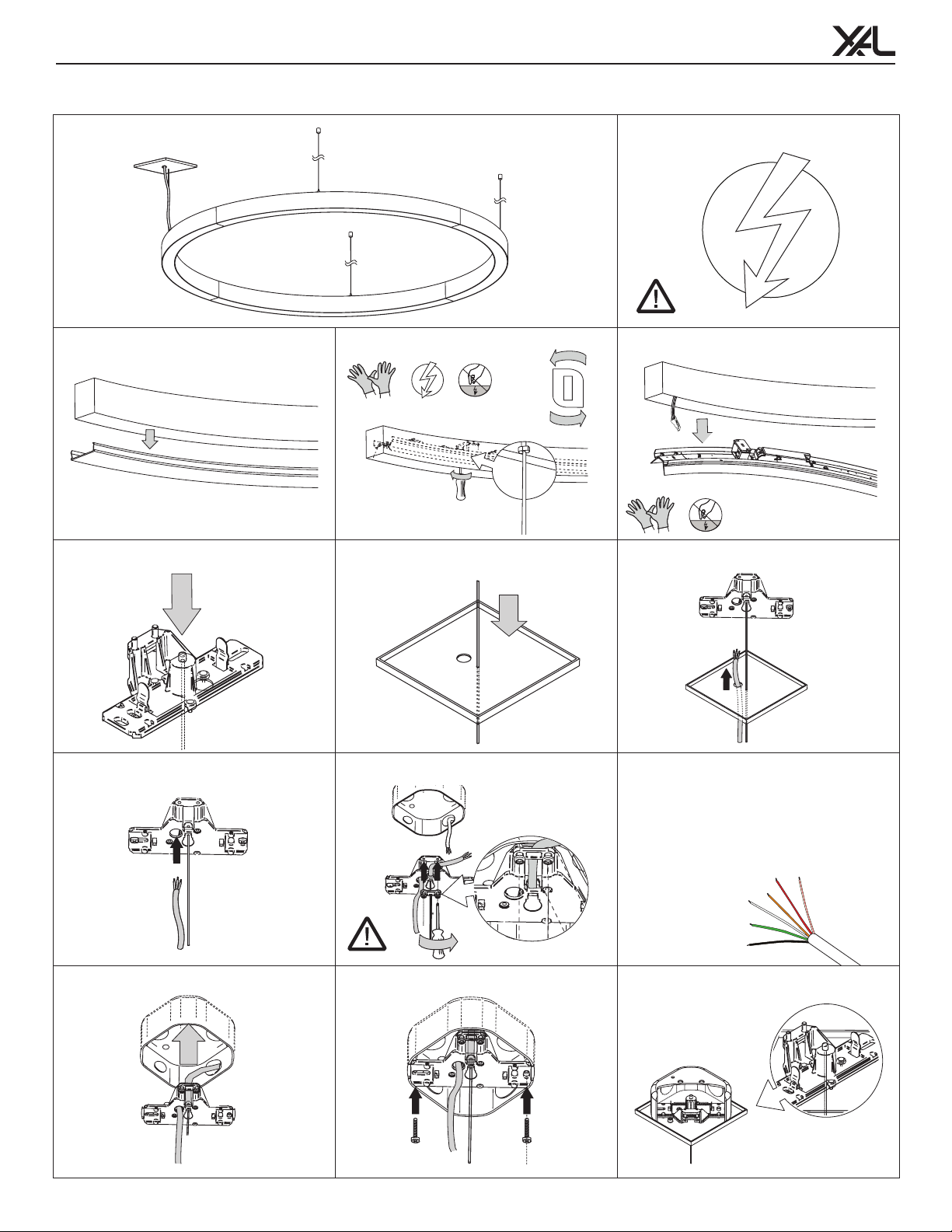

40" /60" INSTALLATION
1. Remove covers2. Loosen inset locks 3. Remove insets from channels
TURN OFF POWER SOURCE BEFORE
INSTALLATION
Keep covers with channels
12. Click cover plate into bracket via springs
Phase (black)
Ground (green)
Neutral (white)
DIM E2 - (orange)
DIM E1 + (red)
*Unswitched emergency
line (red / white)
5. Thread cable through cover plate
9. Connect wiring to power source8. Screw on strain relief
10. Insert mounting bracket 11. Screw bracket into junction box
4. Thread cable through top of bracket 6. Thread power feed through cover plate
7. Thread power feed through bracket

XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.292.9990 www.xalusa.com 4
Mino 2.5 Circle pendant
MOUNTING INSTRUCTIONS
MI-V02 10/2018
After Sales Service Hotline
The XAL After Sales Hotline is available
by phone from Monday to Friday,
8 AM - 6 PM (EST)
[phone]
Or 24/7 via email:
[email protected]
22. Insert covers23. Installation complete
13. Use laser pointer or pencil to mark
dimensions for mounting
15. Attach clip to top of channel and trim cable14. Assemble barrel mount and rope fixation
Click
Max. 0.5 Ohm
resistance
16. Clip grounding bracket into channel 17. Connect power and dimming inputs 18. Once connected, place insets into channels
21. Test the channel grounding19. Secure insets by fastening inset locks 20. Connect insets. Repeat steps 15 - 17 for
additional channels.

118" MOUNTING POSITIONS
236" MOUNTING POSITIONS
776mm /30 "
1500mm /59 "
2121mm /83 ½"
2598mm /102 "
2898mm /114 "
3000mm /118 ⅛"
750mm / 29 ½"
1299mm /51 ⅛"
1500mm
/ 59 "
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.292.9990 www.xalusa.com 5
Mino 2.5 Circle pendant
MOUNTING INSTRUCTIONS
MI-V02 10/2018

XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.292.9990 www.xalusa.com 6
Mino 2.5 Circle pendant
MOUNTING INSTRUCTIONS
MI-V02 10/2018
1. Remove covers 2. Open inset locks 3. Remove insets from channels
118" /236" INSTALLATION
12. Click cover plate into bracket via springs
Phase (black)
Ground (green)
Neutral (white)
DIM E2 - (orange)
DIM E1 + (red)
*Unswitched emergency
line (red / white)
5. Thread cable through cover plate
9. Connect wiring to power source8. Screw on strain relief
10. Insert mounting bracket 11. Screw bracket into junction box
4. Thread cable through top of bracket 6. Thread power feed through cover plate
7. Thread power feed through bracket
TURN OFF POWER SOURCE BEFORE
INSTALLATION
Keep covers with channels

XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.292.9990 www.xalusa.com 7
Mino 2.5 Circle pendant
MOUNTING INSTRUCTIONS
MI-V02 10/2018
13. Insert pegs into channel15. Screw connector piece to channel14. Install channel connector piece
17. Screw channels together.
Do not over-tighten.
16. Connect curve channels 18. Locate adhesive tape
19. Apply adhesive tape on the inside of
channel seam
20. Hold and let sit for one minute 21. Mark dimensions for mounting with laser
pointer or pencil
23. Attach clip to top of channel and trim cable22. Assemble barrel mount and rope fixation
Click
24. Clip grounding bracket into channel
25. Connect power and dimming inputs26. Once connected, place insets into channels 27. Secure insets by fastening inset locks

XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.292.9990 www.xalusa.com 8
Mino 2.5 Circle pendant
MOUNTING INSTRUCTIONS
MI-V02 10/2018

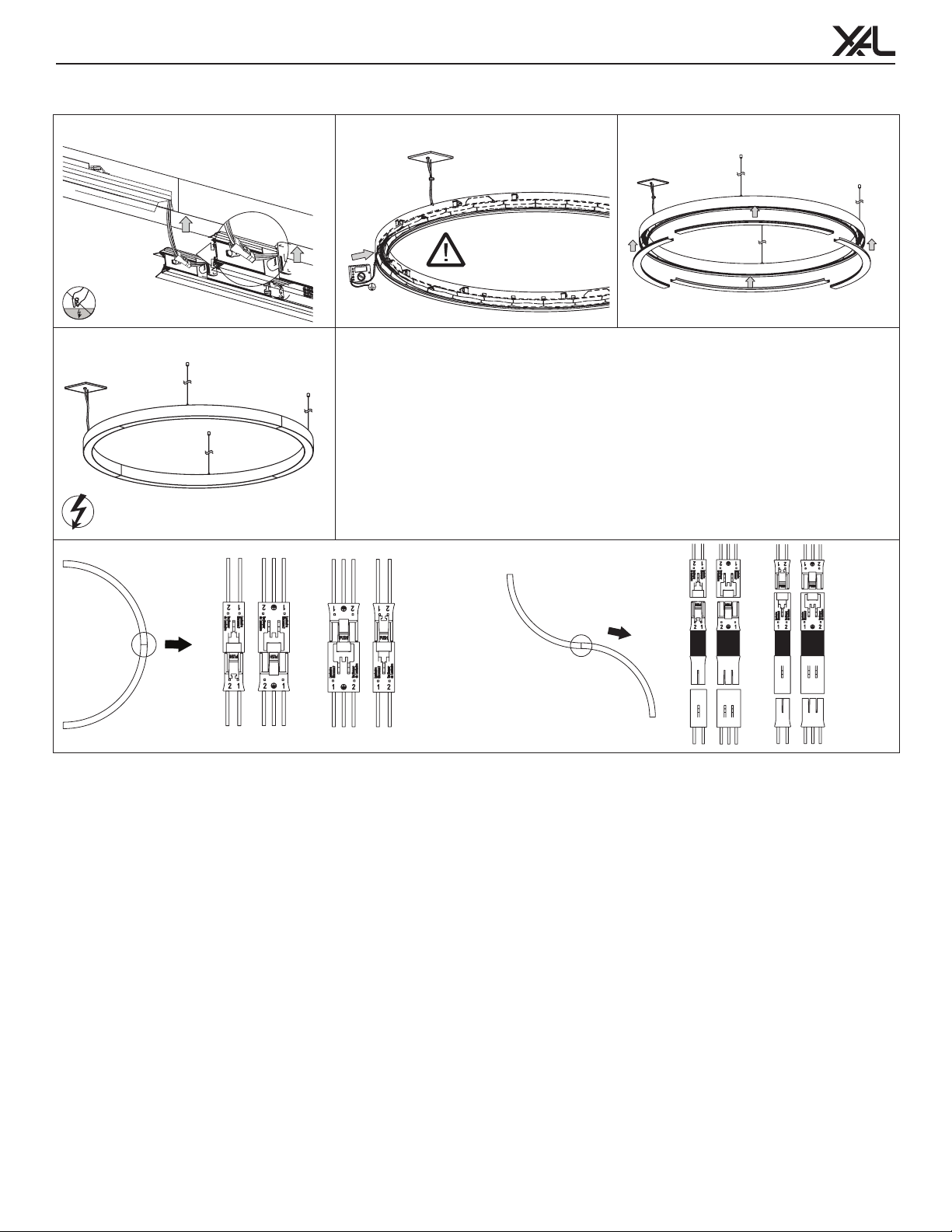

29. Test the channel grounding
After Sales Service Hotline
The XAL After Sales Hotline is available by phone from
Monday to Friday, 8 AM - 6 PM (EST)
[phone]
Or 24/7 via email:Hotline:
[email protected]
31. Installation complete
28. Connect insets
Max. 0.5 Ohm
resistance
30. Insert covers

EN
-
Keep these installation instructions in a safe place as reference for any future maintenance works.
3. The lamp is not suitable for outdoor use.
4. The lamp may only be used with a safety guard.
5. Damaged protection glasses and covers have to be replaced immediately.
12.
17. No liability is accepted for any subsequent change of the luminaire.
23. LEDs are high-quality electronic components! Please avoid touching by hand the LED light emitting surface while assemblying or replacing parts and during maintenance work.
24.
29. The LED circuit must always be closed, before the converter is connected to the main power. XAL does not assume any liability for damages resulting from nonobservance of this rule.
FR
avant de changer les lampes (si applicable) ou avant de realiser travaux (p.ex nettoyage) a la luminaire. Attendre jusqu‘à ce que la luminaire et les lampes ont frâichit completement. Merci de bien vouloir vous référer aux notes d‘installation
utiliser encore un produit de nettoyage sans alcol qui ne fraye pas le material. Garder cette notice de montage pour possiblestravaux de maintenance.
3. La luminaire n‘ est pas apte pour l‘utilizage extrerieur.
4. Utilizer la luminaire seulement avec un dispositif de sécurité
5. Changer immédiatement des verres de sécurité defectes ou bien des écrans de protection.
12. Evitez tout contact de la lampe avec de produits chimiques corrosifs.
17.
23. Des LEDs sont des composants électroniques de haute qualité! Eviter tout contact direct de la surface de sorti de lumière de la LED avec les mains lors du montage ou des les travaux de maintenance de la lampe.
24.
27. La source du luminaire peut être remplace uniquement par le fabricant ou un tiers habilité.
29. Il faut que le circuit de LED soit fermé avant de connecter le convertisseur. XAL ne assume pas la garantie si cette norme ne se respecte pas.
ES La instalación, la puesta en marcha y el mantenimiento sólo deben realizarse por personal especializado considerando esta guía de instalación y todas las normas y reglamentaciones vigentes. Asegurarse de la aptitud eléctrica, mecá-
en esta (p.ej. Limpieza). Esperar hasta que se enfríen la luminaria y la lámpara completamente. Tener en cuenta las instrucciones de montaje del fabricante al colocar, cambiar y utilizar lámparas convencionales. Para la limpieza de la luminaria
3. La luminaria no es apta para utilizarla en el exterior.
4. La luminaria sólo debe accionar con un dispositivo de seguridad.
5. Cambie de inmediato los vidrios y las tapas de protección dañados.
12.
17.
23.
24.
29. El circuito LED debe ser cerrado antes de conectar el convertidor. XAL no asume garantía si esta norma no se respete.
We reserve the right to change our products at any time. Current information is available at www.xalusa.com.
Nos reservamos en todo momento el derecho de realizar cambios en nuestros productos. n nuestra página web www.xalusa.com siempre se encontrarán datos actuales.
The lamp is only to be operated with its full protective covering!
L‘apparecchio necessita del relativo vetro di protezione!
Sólo usar la luminaria con su cobertura de seguridad completa!
Recommended room temperature: 77 °F.
Temperatura ambiente recomendada: 77 °F.
Température ambiante recommandée: 77 °F.
Use gloves.
Use guantes.
Utiliser des gants.
Don‘t touch the LED
After Sales Service Hotline
The XAL After Sales Hotline is available by phone
from Monday to Friday, 8 AM - 6 PM (EST)
Hotline:
[phone]
Or 24/7 via email:
[e-mail]
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.292.9990 www.xalusa.com 9
Mino 2.5 Circle pendant
MOUNTING INSTRUCTIONS
MI-V02 10/2018

12×
12×
12×
12×
MINO 2.5 CIRCLE suspended
direct:
MINO 2.5 CIRCLE surface
direct:
MINO 2.5 CIRCLE suspended
direct / indirect:
MINO 2.5 CIRCLE surface
direct / indirect:
please download the corresponding
files from the homepage
please download the corresponding
files from the homepage
please download the corresponding
files from the homepage
please download the corresponding
files from the homepage
Ø 40" Circle
Ø 59" Circle
16×
16×
16×
16×
MINO 2.5 CIRCLE suspended
direct:
MINO 2.5 CIRCLE surface
direct:
MINO 2.5 CIRCLE suspended
direct / indirect:
MINO 2.5 CIRCLE surface
direct / indirect:
please download the corresponding
files from the homepage
please download the corresponding
files from the homepage
please download the corresponding
files from the homepage
please download the corresponding
files from the homepage

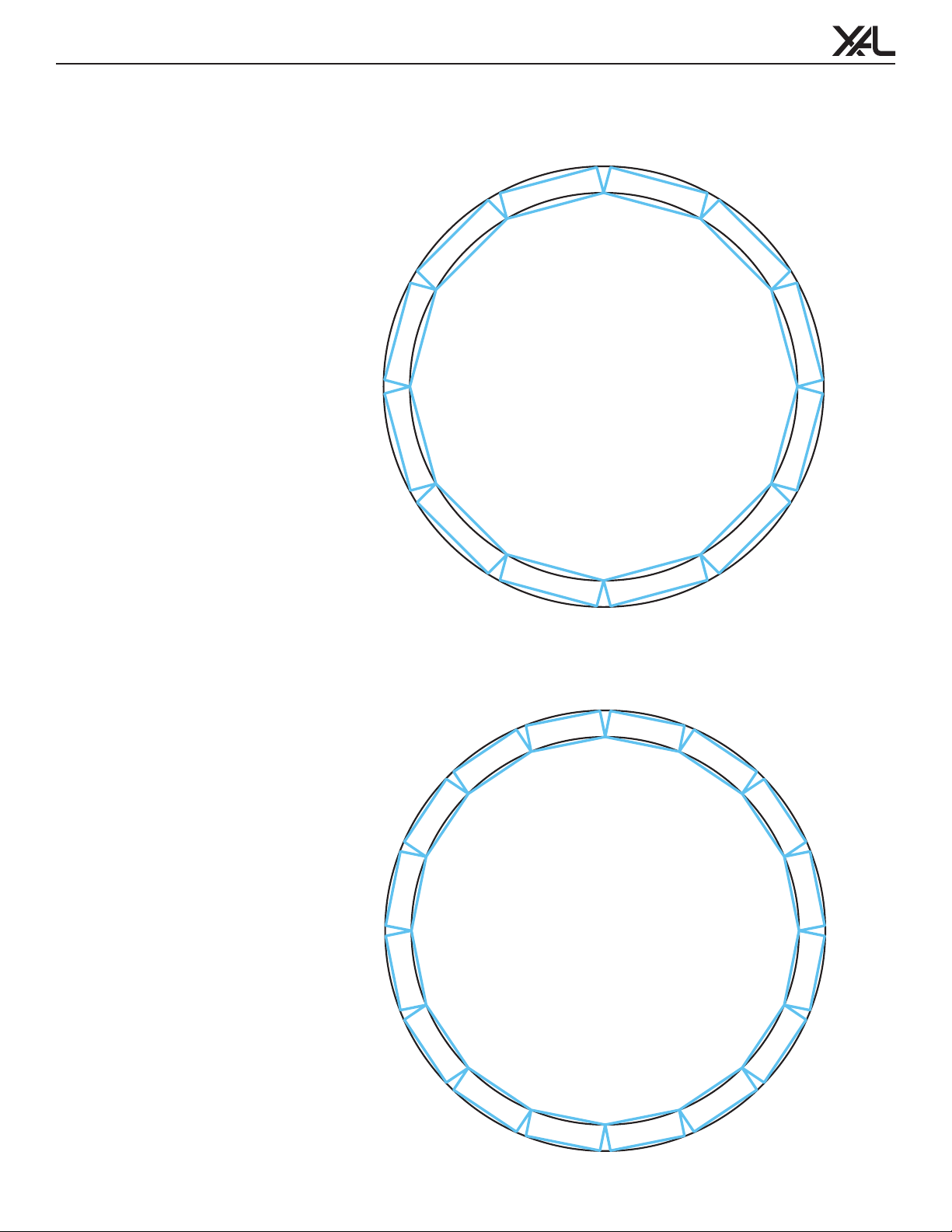

Light Planning Diagrams
XAL Inc. 150 Hawley Rd. Oxford, CT 06478 T: +1 203.292.9990 www.xalusa.com 10
Mino 2.5 Circle pendant
MOUNTING INSTRUCTIONS
MI-V02 10/2018

Ø 118" Circle
16×
16×
16×
16×
MINO 2.5 CIRCLE suspended
direct:
MINO 2.5 CIRCLE surface
direct:
MINO 2.5 CIRCLE suspended
direct / indirect:
MINO 2.5 CIRCLE surface
direct / indirect:
please download the corresponding
files from the homepage
please download the corresponding
files from the homepage
please download the corresponding
files from the homepage
please download the corresponding
files from the homepage
Ø 236" Circle
16×
16×
16×
16×
MINO 2.5 CIRCLE suspended
direct:
MINO 2.5 CIRCLE surface
direct:
MINO 2.5 CIRCLE suspended
direct / indirect:
MINO 2.5 CIRCLE surface
direct / indirect:
please download the corresponding
files from the homepage
please download the corresponding
files from the homepage
please download the corresponding
files from the homepage
please download the corresponding
files from the homepage
