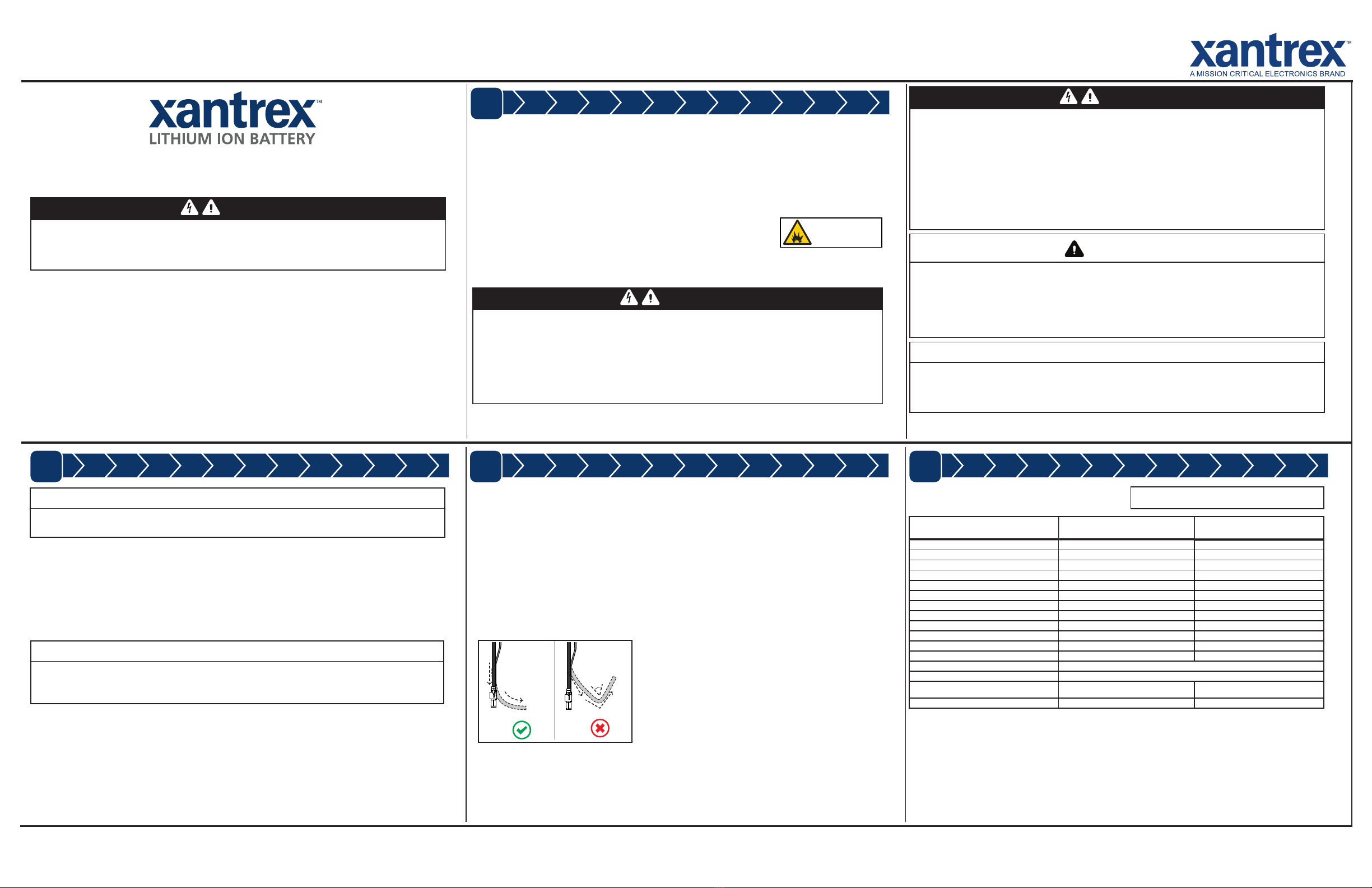

Xantrex 883-0105-12 User manual

883-0105-12
883-0125-12
883-0125-12-04
DANGER
HAZARD OF FIRE, ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
This Xantrex Lithium-ion Batteries Quickstart Guide is in addition to, and incorporates by reference, the relevant product manuals for each product
in the power system. After reviewing this guide you must read the relevant product manuals. Unless specified, information on safety,
specifications, installation, and operation is as shown in the primary documentation received with the product. Ensure you are familiar with that
information before proceeding.
Failure to followthese instructionswill result in death orserious injury.
Exclusion for Documentation
UNLESS SPECIFICALLY AGREED TO IN WRITING, SELLER (A) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR
SUITABILITY OF ANY TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION; (B)
ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES, WHETHER SPECIAL, DIRECT,
INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH INFORMATION. THE USE OF ANY
SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S RISK; AND (C) REMINDS YOU THAT IF THIS MANUAL IS IN ANY
LANGUAGE OTHER THAN ENGLISH, ALTHOUGH STEPS HAVE BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE TRANSLATION,
THE ACCURACY CANNOT BE GUARANTEED. APPROVED CONTENT IS CONTAINED WITH THE ENGLISH LANGUAGE VERSION
WHICH IS POSTED AT HTTP://WWW.XANTREX.COM.
NOTE:Visit http://www.xantrex.com , click Products, select a Product category, select a Product, and search the Product Documents panel for a
translation of the English guide, if available.
Contact Information
Telephone: [phone]
Email: [e-mail],
http://www.xantrex.com/power-products-support/
Web: http://www.xantrex.com
1
Important Safety Information
READ AND SAVE THESE INSTRUCTIONS
Electrical equipment shall be installed, operated, serviced, and maintained only
by qualified personnel. Certain configuration tasks shall only be performed by
qualified personnel in consultation with your local utility and/or an authorized
dealer. Servicing of batteries and the BMS shall only be performed or
supervised by qualified personnel with knowledge of lithium-ion batteries and
their required precautions. Qualified personnel have training, knowledge, and
experience in:
• Installing electrical equipment
• Applying applicable installation codes
• Analyzing and reducing the hazards involved in performing electrical work
• Installing and configuring lithium-ion batteries
• Selecting and using Personal Protective Equipment (PPE)
No responsibility is assumed by Xantrex LLC for any consequences arising out
of the use of this material.
ARC FLASH
HAZARD
cAn example of an arc flash event
could be a direct short circuit
caused by a metallic object such as
a tool bridging between the positive
and negative of an energized circuit.
DANGER
HAZARD OF FIRE, ELECTRIC SHOCK, EXPLOSION, BURN, OR ARC FLASH
• This battery shall be installed and serviced only by qualified personnel.
• Always wear proper PPE (safety glasses and clothing) when working on the Li-ion battery and follow
safe electrical work practices according to local codes.
• Do not wear metallic items such as watches or bracelets when working on the battery. Use insulated
tools to prevent accidental short circuit.
• Do not install the Li-ion battery module adjacent to any heat source. Keep away from sources of ignition.
• Do not install or operate any of the system devices in a compartment containing flammable materials or
in locations that require ignition-protected equipment.
Failure to follow these instructions will result in death or serious injury.
DANGER
HAZARD OF FIRE, ELECTRIC SHOCK, EXPLOSION, BURN, OR ARC FLASH
• No user-serviceable parts. Do not attempt to open or dismantle the Li-ion battery. If the battery module is
damaged, do not touch the corrosive electrolyte or powder, and consult your dealer.
• When the battery module is damaged, it can release harmful gases. Ensure the surrounding
environment is well-ventilated.
• In case battery content comes in contact with skin or eyes, immediately flush the affected area with large
amount of clean water and seek medical help.
• In case of fire, use only a Class ABC (dry chemical) or CO2type fire extinguisher. Water can be a
dangerous extinguishing medium for energized equipment because of the risk of electric shock.
• Dispose of Li-ion batteries through a local recycling center. Do not mix batteries with other wastes
Contact your local recycling center for proper disposal information.
• Do not crush, puncture, drop, disassemble, or dispose of in fire.
Failure to follow these instructions will result in death or serious injury.
WARNING
HAZARD OF FIRE, ELECTRIC SHOCK, EXPLOSION, AND PERSONAL INJURY
• Do not expose the Li-ion battery to rain, snow, or liquids of any type. Products are designed for indoor use
only.
• Always use proper lifting techniques when handling the battery module. Battery is heavy.
• Do not step on the battery module enclosure.
•Do not charge the battery in ambient temperature below freezing.
• Do not disconnect the battery while it is being charged.
Failure to follow these instructions can result in death or serious injury.
NOTICE
RISK OF EQUIPMENT DAMAGE
• Do not allow the battery to be depleted.
• Charge the battery module with an approved charger. Contact Xantrex for details.
• Do not charge the battery above the recommended voltage.
Failure to followthese instructionscan result in damageto equipment and may void the warranty.
2
IMPORTANT
ON FIRST USE: Perform a full charge, discharge, and charge cycle to ensure maximum
battery life. For information, see Battery Storage Guide on the reverse side of this document.
Introduction
The Xantrex Lithium-ion Batteries are lithium iron phosphate (LiFePO4) chemistry batteries
used in conjunction with the internal Battery Management System (BMS) unit which protects
the batteries and monitors state-of-charge (SoC), voltage, current, and temperature.
cBATTERY DISPOSAL
At the end of the battery’s useful life, proper disposal is required. Do not dispose the
battery with ordinary household waste. Refer to your local codes for proper disposal of
lithium-ion batteries.
3
Installation
1. Check the battery and the battery cable (if included) for visible damage including
cracks, dents, chips, and deformations.
2. Select a location for the battery that is stable, clean, cool, dry, and well-ventilated.
3. Mount the battery in upright (terminals pointing up) or sideways (terminals pointing
to one side) position with safety labels still visible and away from heat sources.
4. Orient the devices so that the cables avoid sharp bends. Follow the bending radius
recommendation below. This applies to both the communication and battery cables.
Optional: Connect the 4-pin connector cable and route the remote panel connectors as
required.
NOTE: Installation and maintenance shall only be performed by qualified personnel as
defined in Important Safety Information above. Contact Xantrex for information resources.
4
Specifications NOTE: Specifications are subject to change
without prior notice.
Feature 883-0105-12 883-0125-12
883-0125-12-04
Nominal Capacity 105Ah 125Ah
Nominal Voltage 12.8V 12.8V
Charging Voltage (max) 14.6V 14.6V
Float Voltage 13.4V 13.4V
Low Battery Cutoff Voltage 10.0V 10.0V
Recommended Charge Current 50A 62.5A
Max Charge Current(continuous) 100A 125A
Recommended Discharge Current 50A 62.5A
Max Discharge Current(continuous) 100A 125A
Max Pulse Discharge Current 200A (3sec) 200A (3sec)
Internal Impedance 3-4mΩ 3-4mΩ
Weight 26.5lbs (12Kg) 28lbs (12.7Kg)
Charging Temperature 32 – 131 °F (0 – 55 °C)
Discharging Temperature -4 – 131 °F (-20 – 55 °C)
L x W x H 10.24 x 6.6 x 8.23in
(260 x 168 x 209 mm)
13.1 x 6.8 x 8.7in
(332 x 172 x 220 mm)
Cycle Life at 25C to 80% Capacity 2800 (0.5C, 100% DOD) 2500 (0.5C, 80% DOD)
975-0827-01-01 Rev A
April 2021
Copyright © 2021 Xantrex LLC. All Rights Reserved.
All trademarks are owned by Xantrex LLC and its affiliates.
1
Xantrex Lithium-ion Batteries Quickstart Guide
http://www.xantrex.com

Xantrex Lithium-ion Batteries Quickstart Guide http://www.xantrex.com
2Copyright © 2021 Xantrex LLC. All Rights Reserved.
All trademarks are owned by Xantrex LLC and its affiliates.
975-0827-01-01 Rev A
April 2021
Term Temperature Humidity Self-discharge Rate Duration
< one week –4 to 113°F (–20 to 45°C) <85%RH ≤3% per month Short
< one month 14 to 113°F (–10 to 45°C) <85%RH ≤3% per month Short
< six months 50 to 77°F (10 to 25°C) <85%RH ≤3% per month Short
> six months* 50 to 77°F (10 to 25°C) <85%RH ≤3% per month Long
Table 2For batteries with 883-prefix Product numbers
* For long term duration storage the battery should be kept in a particular charged state such as, 13.2V, ~50% SoC, and stored at the
recommended storage specifications shown above.
B. Storage Instructions for Short Durations
1. Fully charge the battery.
2. Turn off the battery using the ON/OFF button.
3. Keep the battery in an environment according to A. Storage Specifications.
C. Storage and Maintenance Instructions for
Long Durations
1. Reduce the battery state-of-charge (SoC) to 50% ±10% which is approximately,
•13.2V for a 12V battery,
•26.4V for a 24V battery,
•52.8V for a 51V battery.
2. Turn off the battery using the ON/OFF button.
3. Keep the battery in an environment according to A. Storage Specifications.
4. Every six months maintain the battery by charging it to 100% SoC, then
discharging the battery to low voltage cutoff (LVC) level, then charging it back to
50% ±10% SoC.
NOTICE
RISK OF BATTERY DAMAGE
Do not charge the battery in ambient temperature below freezing.
Failure to followthese instructionscan result in damageto the batteryand mayvoid the warranty.
D. Battery System Maintenance
The Xantrex Lithium-ion Batteries system is designed to require the least amount of
maintenance as possible. The Xantrex Lithium-ion Batteries and internal Xantrex BMS
are contained in a sealed device and do not require disassembly for maintenance
reasons.
In general, to properly maintain the battery, follow the storage guidelines in the previous
sections.
If the Xantrex Lithium-ion Batteries are in regular use, then it is recommended that the
Xantrex Lithium-ion Batteries be fully charged a minimum of once per two weeks in
order for the Xantrex BMS to recalibrate its State of Charge (SoC) setting. This process
also ensures that the SoC meter maintains its accuracy.
Battery Storage Guide
For all Xantrex Lithium-ion Batteries
DANGER
HAZARD OF FIRE, ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
This Battery Storage Guide is in addition to, and incorporates by reference, the relevant product manuals for each product in the power system.
After reviewing this guide you must read the relevant product manuals. Unless specified, information on safety, specifications, installation, and
operation is as shown in the primary documentation received with the product. Ensure you are familiar with that information before proceeding.
Failure to followthese instructionswill result in death orserious injury.
Exclusion for Documentation
UNLESS SPECIFICALLY AGREED TO IN WRITING, SELLER (A) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR
SUITABILITY OF ANY TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION; (B)
ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES, WHETHER SPECIAL, DIRECT,
INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH INFORMATION. THE USE OF ANY
SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S RISK; AND (C) REMINDS YOU THAT IF THIS MANUAL IS IN ANY
LANGUAGE OTHER THAN ENGLISH, ALTHOUGH STEPS HAVE BEEN TAKEN TO MAINTAIN THE ACCURACY OF THE TRANSLATION,
THE ACCURACY CANNOT BE GUARANTEED. APPROVED CONTENT IS CONTAINED WITH THE ENGLISH LANGUAGE VERSION
WHICH IS POSTED AT HTTP://WWW.XANTREX.COM.
NOTE:Visit http://www.xantrex.com , click Products, select a Product category, select a Product, and search the Product Documents panel for a
translation of the English guide, if available.
Contact Information
Telephone: [phone]
Email: [e-mail],
http://www.xantrex.com/power-products-support/
Web: http://www.xantrex.com
1
Important Safety Information
READ AND SAVE THESE INSTRUCTIONS
Electrical equipment shall be installed, operated, serviced, and maintained only by qualified personnel.
Certain configuration tasks shall only be performed by qualified personnel in consultation with your local
utility and/or an authorized dealer. Servicing of batteries and the BMS shall only be performed or supervised
by qualified personnel with knowledge of lithium-ion batteries and their required precautions. Qualified
personnel have training, knowledge, and experience in:
• Installing electrical equipment
• Applying applicable installation codes
• Analyzing and reducing the hazards involved in performing electrical work
• Installing and configuring lithium-ion batteries
• Selecting and using Personal Protective Equipment (PPE)
No responsibility is assumed by Xantrex LLC for any consequences arising out of the use of this material.
CAUTION
RISK OF PERSONAL INJURY OR EQUIPMENT DAMAGE
• The Xantrex Battery must be stored and mounted upright on a horizontal plane. Always follow the
manufacturer’s mounting instructions.
• Make sure the Xantrex Battery is fastened and secured even in storage. The battery pack is heavy and
can become a crush hazard if not secured properly.
• Do not store the Xantrex Battery adjacent to any heat source.
Failure to followthese instructionscan result in personal injuryand/ordamageto equipment and may void the
warranty.
2
Battery Storage and Maintenance
Guidelines
In order to keep your Xantrex Lithium-ion Batteries at peak performance and at its
healthiest state, you have to store it according to proper storage conditions and also
maintain it with proper care.
Storage can be short term, such as less than one month or long term, such as more
than three months.
A. Storage Specifications
Term Temperature Humidity Self-discharge Rate Duration
< one month –4 to 95°F (–20 to 35°C) 45 to 75%RH ≤3% per month Short
< three months 14 to 86°F (–10 to 30°C) 45 to 75%RH ≤3% per month Short
> three months* 59 to 95°F (15 to 35°C) 45 to 75%RH ≤3% per month Long
Table 1For batteries with 880-prefix Product numbers
* the approximate voltage should be:
13.2V for a 12V battery,
26.4V for a 24V battery,
52.8V for a 51V battery,
(~50%SoC) and stored at the recommended storage specifications shown above. Additionally, the battery needs at least one charge-discharge-
recharge to 50% SoC cycle every six months (see C. Storage and Maintenance Instructions for Long Durations).
