XCQQ S8L User manual

Thank you for your recent purchase of this product.
Please read the enclosed information to ensure the safe use of your product.
Be sure to read this Instruction Manual before using your product and keep it in a safe place
for future reference.
Instruction Manual
SMART TOILET SEAT
S8L
(Panel Control)
V90L
(Remote Control)

Safety precautions
These precautions are important for safe usage. Be sure to follow them and use the
product correctly.
May result in death or serious injury
May result in injury or property damage
Symbols and Meanings
The following symbols are used to indicate important safety instructions for the use of the product.
This symbol indicates a prohibition.
This symbol indicates a warning.
Symbol Meaning
·This product is classified as Class I Equipment and must be grounded.
·Install this equipment so that its power breaker is accessible.
·Individuals with physical or intellectual disabilities (including children) need to use this
product under adult supervision. Patients with heart disease should use it with caution.
·When installing, new hose components and other accompanying components should
be used. Old hose components cannot be reused, otherwise it may cause water leakage.
Do not touch the connection of power cord with wet hands.
• Doing so may cause electrical shock.
Do not pour water or detergent on the product body or power plug.
• Doing so may cause fire, electrical shock, heat or short circuit.
• Doing so may cause the product to crack resulting in injury or water damage.
Do not disassemble, repair, or alter the product on your own.
• Doing so may cause fire, electrical shock, overheating, short circuit or breakdown.
Do not install the product on mobile vehicles, such as caravans or ships.
• Doing so may cause fire, electric shock, short circuit or malfunction.
• The toilet seat, toilet lid, main unit, or other parts may come loose and fall off,
resulting in injury
PAGE 01
TABLE OF CONTENT
Safety precautions
Maintenance
01
13
06
15
05
14
09
Parts Names
Installation ways
Operation instruction
Trial operation
Technical parameter

Do not use the product if a malfunction occurs.
• In case of breakdown or other problems, be sure to cut off power by flipping
the power switch to OFF.
Close the water shutoff valve to stop water supply.
Possible malfunctions:
−Water is leaking from a pipe or the main unit.
−The product is cracked or broken.
−The product makes a strange noise or emits a strange odor.
−The product emits smoke.
−The product is abnormally hot.
−The toilet seat cushion is out of place.
• Continued use after malfunction could cause a fire, electric shock, heat, short circuit,
injury or water damage.
Do not use other water then allowed by the laws and ordinances
of the region of use. Only use drinking water.
Do not use seawater or recycled water.
• Doing so may cause irritation to the skin and malfunction.
Do not touch the power cord during thunderstorms.
• Doing so may cause electrical shock.
Do not allow the water supply hose to touch the connection of power cord.
• Doing so may cause condensation resulting in a fire, electrical shock, heat or a short.
Do not do anything that may damage the power cord.
Do not strike, yank, twist, excessively bend, damage, alter, bind, pinch,
or heat the power cords. Also, do not place anything heavy on.
• Using a damaged power cord may result in a fire, electrical shock, heat or short.
Do not use any power supply other than the one specified.
(Specified power supply: AC 120V/1300W/60Hz)
• Doing so may cause fire or excessive heat.
To reduce the danger of burns, death from electric shock,
fire or other human injury:
-Never operate this product if it has a damaged power cord or power connecting part.
-Never block the air openings of the product or place it on a soft surface.
-Never use it while sleepy or drunk.
-Never drop or insert anything into any opening or hose.
-Do not use it outdoors where aerosol (spray) products are being used.
Do not stick a finger or anything else into the warm air outlet.
Do not place anything on the warm air outlet or drape clothes over it.
• Doing so may cause burns, electrical shock or malfunction.
Do not throw lit cigarettes or other combustibles into the toilet seat.
• Failure to do so may cause fire.
Refrain from sitting on the seat for long periods.
• It may cause low-temperature burns.
To prevent the following persons from getting a moderate temperature burn during use,
other person should turn off the toilet seat heater.
−Children and kids the aged and other users unable to set
the temperature appropriately themselves.
−Patients, physically disabled and others who do not have freedom of movement.
−Those using any medicines that cause drowsiness (sleeping or cold medicine),
those who have been drinking heavily, anyone severely fatigued and anyone else liable
to fall asleep.
Do not cut the string that connects the main unit and base plate.
• Doing so may cause fire, electrical shock, overheating, short circuit or breakdown.
,
To reduce the danger of burns, death from electric shock, fire or other
human injury:
−Close supervision is necessary when this product is used by or near children
or invalids.
−Use this product only for its intended use as described in this manual.
Do not use accessories not recommended by the manufacturer.
−Keep the power cord away from heated surfaces.
−Connect this product to a properly grounded the power supply unit only.
This is an electrical product. Do not install it anywhere water is likely
to get on the product or anywhere with humidity high enough that water is likely
to form When using the product in a bathroom, install a fan or ventilation port
and ensure good air flow through the bathroom.
• Failure to do so may cause fire or electrical shock
Always connect the product to the cold water supply.
• Connecting to hot water supply may result in burns and equipment damage.
Check that the power cord is connected correctly.
• Failure to do so may cause fire, heat or short circuit.
(When installing this product, observe the local laws
and regulations regarding installation.)
If the power cord is damaged, avoid danger by having the manufacturer's
repair department or equivalent specialist replace it.
Before carrying out maintenance or inspection, be sure to turn off the power supply
• Failure to do so may cause a fire or electrical shock..
PAGE 03PAGE 02

Do not use the product if the main unit is unstable.
• Doing so may cause the main unit to come loose and fall, resulting in injury.
If the product is damaged, do not touch the damaged section.
• Doing so may cause electrical shock or injury.
Do not apply strong force, mechanical shock, step on or stand on the toilet
seat, toilet lid or main unit.
• Doing so may cause cracking or cause the main unit to come loose and fall,
resulting in injury.
Do not lift up this product by the toilet seat or lid.
• Doing so may cause the main unit to come loose and fall, resulting in injury
Switch the breaker on the distribution board to OFF.
When maintaining the plastic parts (main unit etc.) or the water supply hose,
use a neutral kitchen detergent diluted with water. Do not use any of the following.
Toilet cleaner, household cleaner, benzene, paint thinner, powdered cleanser or nylon
scrubbing brush.
• These items may damage or crack the plastic and cause injury or malfunction.
• These items could damage the water supply hose and cause a water leak.
To prevent a sudden water leak, do not remove the water filter drain valve
when the shutoff valve is open.
• Doing so will cause water to spurt out.
Do not fold or crush the water supply hose; do not damage by cutting with a
sharp object.
• Doing so may cause water leaks.
Do not install the base plate, which is not attached.
• Doing so may cause damage.
If a water leak should occur, always close the shutoff valve.
When the ambient temperature is likely to drop to 0 °C or lower, prevent
damage to the pipes and hoses due to freezing.
• Frozen water pipes could cause the main unit and the pipes to break,
resulting in a water leak.
• Regulate the room temperature to prevent the pipes and hoses from
freezing during cold months.
• Drain the water.
When not using the product for a long time, close the shutoff valve, drain
the water from the main unit and water supply hose
• When using the product again, allow the product to refill with water first. Otherwise,
the water in the tank might become contaminated and cause skin inflammation
or other problems.
• Leaving the power on may cause fire or heat.
When installing the water filter drain valve, make sure that it is securely
tightened in its proper position.
CAUTION

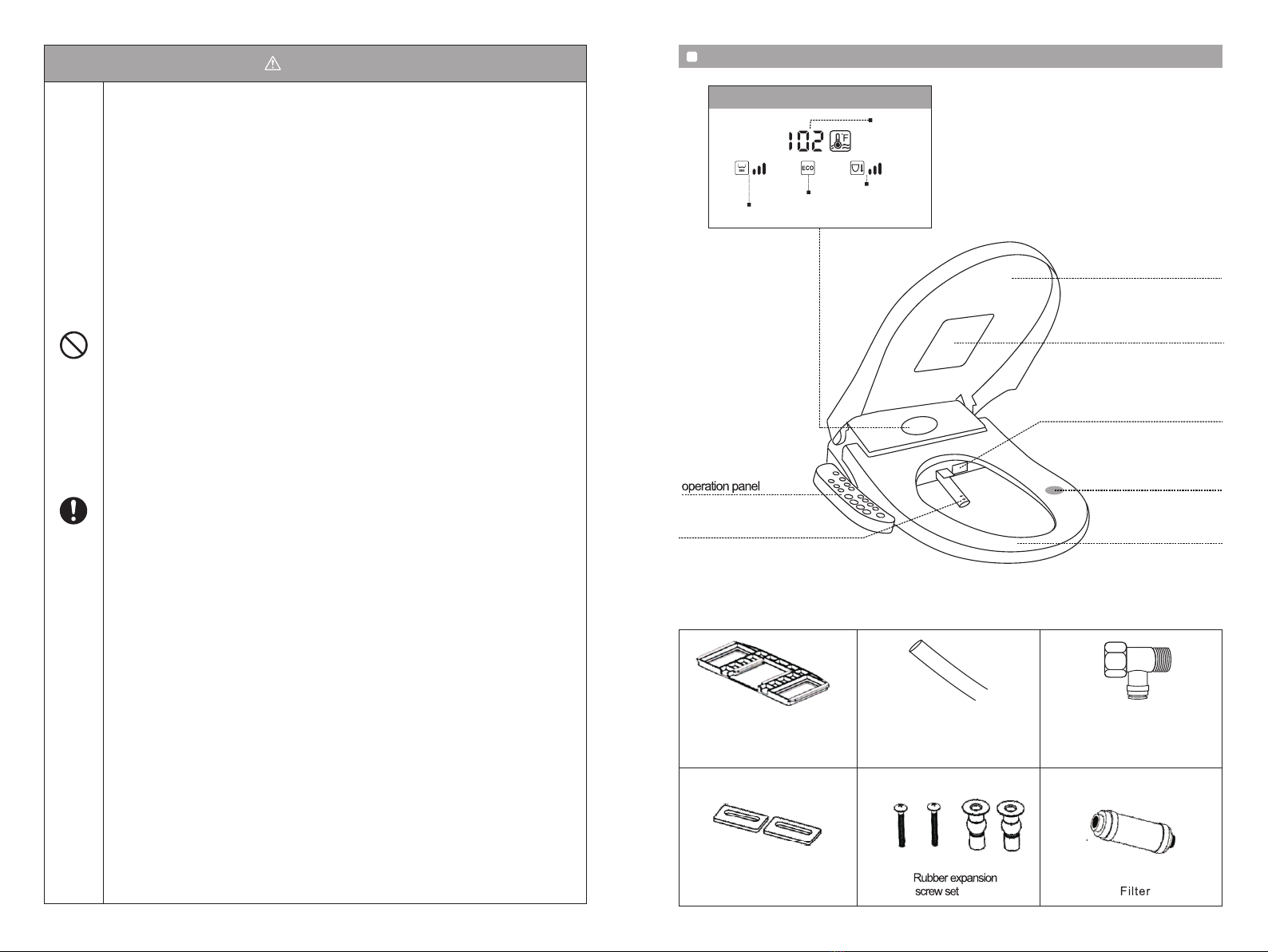

LED display
Spray nozzle Heated seat
Seat sensor
Warm air outlet cover
Safety Precautions
Toilet lid
Energy saver LED
Seat LED
Dry temp LED
Water temp LED
Parts Names
Three-way valve
PAGE 05PAGE 04
Fixing plate(Installed at
the bottom of the product)
Adjustment
metal sheet
DMT pipe

Installation ways Installation ways
1.Ensure that the water pressure range of the inlet is between 0.05-0.75Mpa.
2.Be sure to use the original accessories and consumables.
3.Please do not switch on the power until the installation is completed to avoid failure
Precaution before installation
Method of mounting base
Press the buckle
1.Draw the fixing plate from the machine
2.Install the accessories as shown in the diagram
1.Remove the existing toilet seat/lid.Put the expansion screw rubber intothe toilet mounting hole.
2.Put the fixing plate, adjustment pad and adiustment sheet metaorderly on the toilet.
3.After fixing tighten the screws
PAGE 07PAGE 06
Installation method
Pressing the buckle while aligning the bidet
to both sides of the fixing plate,
and push along the arrow direction.
The lock catch makes a "click" sound,
indicating that the installation is complete
Screw
Adjustment pad
Adjustment sheet
Fixing plate
Rubber expansion screw
Disassembly method
Unplug the power cord and DMT tube first,
pressing the buckle while pull out the bidet
from the fixing plate.

Installation ways
Connection of external water pipes
DMT pipe
Operation instruction
Note:
If remote controller can not use at begin, please pair the remote controller as below instruction.
Pair method: Keep press rotary knob for 5 seconds till heard "Beep" sound, and screen start
flashing, then press any button on the remote controller, heard "Beep" sound and screen stop
flashing, pair succeed.
NOTE !
PAGE 09PAGE 08
S8L
(Panel Control)
V90L
(Remote Control)

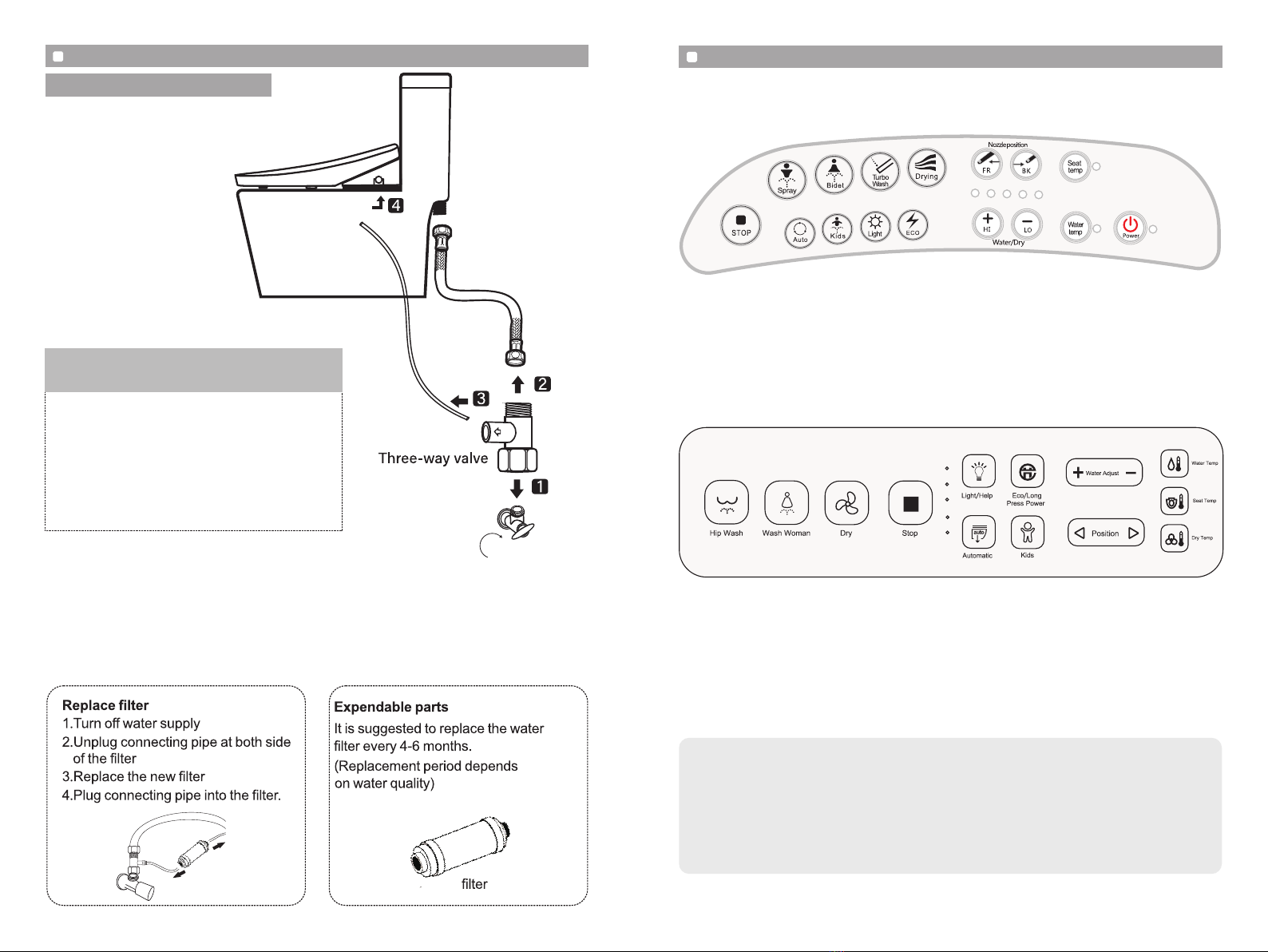

Close the water supply
valve and cut off the water
1.Close the water supply valve.
2.Connect the three-way valve to the water tubing under the toilet tank.
3.Connect the smallest end of the three-way valve with DMT pipe.
4.Connect the other end of the DMT pipe with the inlet hole of the bidet.
5.Open the water supply valve to supply water.
6.Check to ensure no water leakage at all connections.
--When testing the smart toilet bidet for the first
time after installation, please make sure to open
the water supply valve first and then power it on.
--If the blue light keeps flashing, please unplug
the plug for 30 seconds, turn on the water source,
and then connect the power to restore normal
operation.

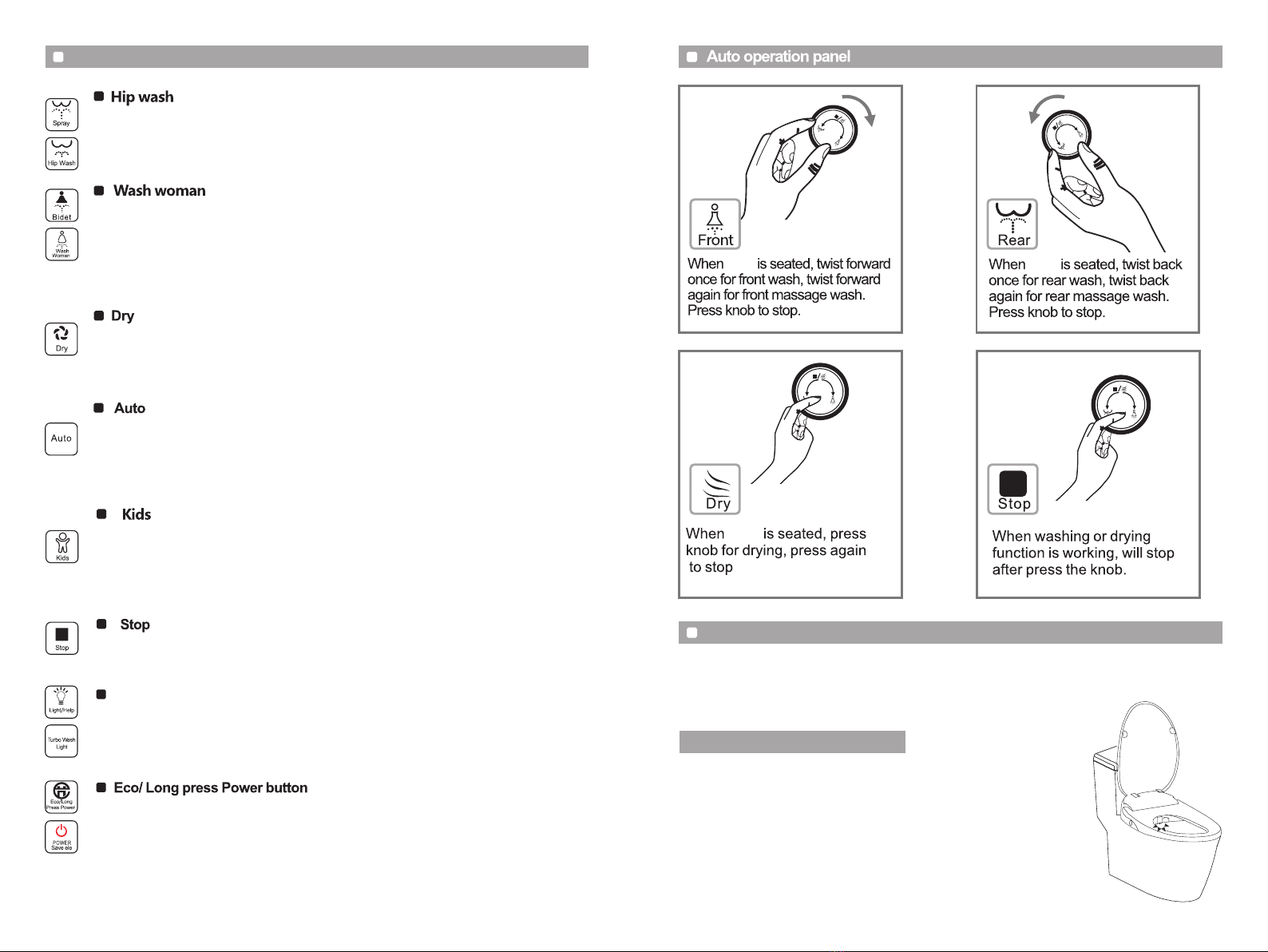

Operation instruction(S8L) Operation instruction(V90L)
Seat temp
Press this button to adjust seat temperature to your preference.
There are4 levels to adjust:
Seat Temp
Press this button to adjust seat temperature to your preference.
There are4 levels to adjust:
Water temp
Press this button to adjust water temperature to your preference.
There are4 levels to adjust:
Water Temp
Press this button to adjust water temperature to your preference.
There are4 levels to adjust:
Dry temp
While the dryer function is operating, press ‘Dry temp' to
adjust the drying temperature .There are four temperature
levels indicated by light
Water pressure
While the function is operating, press the '＋ －'
to adjust the water pressure of spray. There are five water
pressure levels.
cleaning
N room temperatureo indicator --
One light indicator room temperature --
One light indicator room temperature --
No ight room temperaturel --
Blue light--Low--91℉
Two light indicator--Low--91℉
Two light indicator--Low--91℉
Blue light--Low--91℉
Pink light--Medium--99℉
Three light indicator--Medium--99℉
Three light indicator--Medium--96℉
Pink light--Medium--96℉
Red light--High--102℉
Four light indicator--High--102℉
Four light indicator--High--102℉
Red light--High--102℉
Nozzle position
Press this button to adjust the water during cleaning.
4 levels are adjustable.Forward 2nd gear adjustment,
backward 2nd gear adjustment
position
Nozzle position
Press this button to adjust the water position during cleaning.
4 levels are adjustable.Forward 2nd gear adjustment,
backward 2nd gear adjustment
PAGE 11PAGE 10
Water/Dry
While the cleaning function is operating, press the '+ -' to adjust
the water pressure. There are five water pressure levels indicated by light.
While the drying function is operating, press '+ -' to adjust the drying
temperature.There are five temperature levels indicated by light.

Operation instruction
Trial operation
First preparation
-The flashing of the panel water temperature light and/or night light indicates
that the product is not connected to water. Please put down the bidet cover,
open the water supply valve, turn off the power, and then turn it on again.
Do not perform any operation during the reset. Use it after 3min
when the night light no longer flashes.
-After finished connection of water supply, open the angle valve and switch
on the power. The nozzle will come out which is the self inspection process.
-It is normal for the nozzle to delay spraying for 10-15 seconds for the first time.
Note:
Turn on the water source first, then turn on the power
PAGE 13PAGE 12
When the body is seated and this button is pressed, the nozzle will protrude and
spray water towards the rear. Press again, and the nozzle will automatically move
back and forth like a massage, for a pleasant oscillating washing experience.
Pressing this button will start cleaning the front for women, lasting for 2
minutes. Press this button again during the cleaning process, and the spray
will move forward and backward for oscillating cleaning. Pressing the "Water
Adjust" during cleaning will adjust the water pressure. Press "Stop" at any time
to complete flushing.
Press to activate the 8-hour ECO mode, which will reduce energy
consumption. ECO mode will automatically turn off after 8 hours or when
sitting on the toilet. Press and hold the button to turn off the power of the
remote control.
When body stood up and press this button the light on/off.
When body seated and press this button activates the turbo wash with
intensive water pulsation to help defecation.
This function is designed for kids. Press this button,the whole process as
follows: hip washing 15s, then oscillating cleaning 15s, then drying 2 minutes.
The water pressure is lower than adults. This function is still workable if kids
body not in seat sensor area.
All currently operating
functions will stop by press this button
Press this button the nozzle cleans itself for 2 seconds.The whole process as
follows: hip washing 30s, then oscillating cleaning 30s,then drying 3 minutes.
Press Bidet(or Wash Women) button before auto,the flushing will be feminine
wash.
Press this button will start warm air drying which will last 5 minutes or stop
automatically after user left. Press "Dry Temp" to adjust the warm air
temperature. There are 5 levels from room temperature to 102℉.
Lighting/Enema
bidet bidet
bidet

Trial operation
1. Please check each function according to the manual
2.Switch on the power and put a wet towel on sensor
areaAfter one minutes, the water will be heated as set
temperatureand the warm air will work when you press the
drying key.
3.When there is no power supply , no function can work.

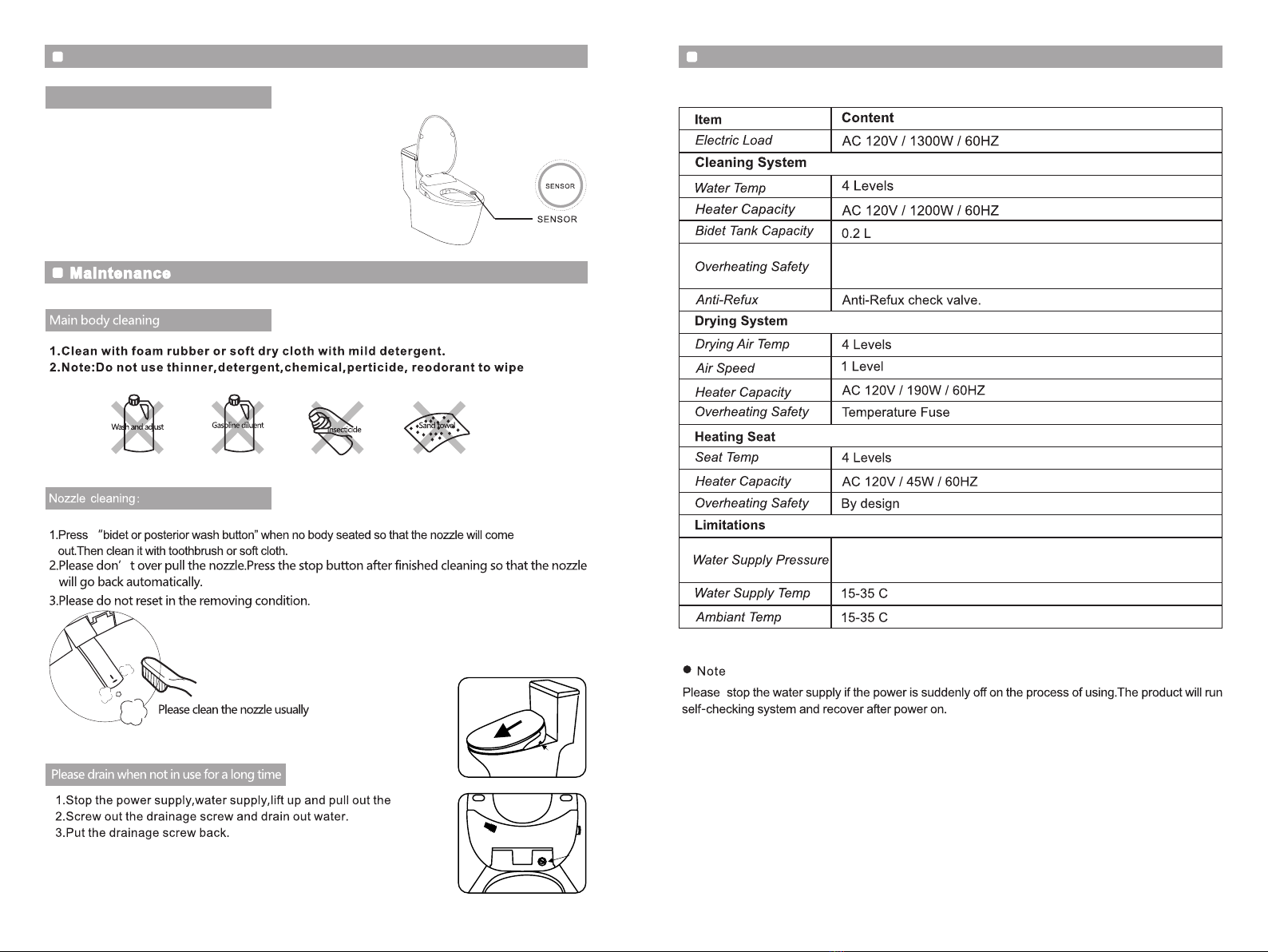

Function confirmation
Temperature safety reset protector integrated.
Toilet will shutdown if temp. is out of specs.
Lowest water pressure is 100 kPa (14.5 psi),
highest water pressure is 500 kPa (72.5psi)
Technical parameter
PAGE 15PAGE 14
product.
To avoid freezing of DMT pipes/three-way valves due to low winter temperatures,
please take the following antifreeze measures:
--Raise indoor temperature.
--Close the water supply valve.
--Drain the water from the DMT pipe.
