Xeltek Superpro 7500 Series User manual

User'sGuide
XELTEK
Superpro®7500
Series
Ultra‐Fast, Stand‐Alone, 144pin
Programmer of the Future
XELTEK
1296 Kifer Rd. Unit 605
Sunnyvale, CA 94086
Tel:(408)530‐8080Fax: (408)
530‐0096
www.xeltek.com

IMPORTANT!
1. This manual applies to SuperPro/7500.
2. Make sure the software installation is completed before connecting the
programmer to PC.
3. Please read the manual carefully before using programmers.
4. Please use Xeltek Adapters. Non‐Xeltek adapters will cause error
XELTEK
1296 Kifer Rd. Unit 605
Sunnyvale, CA 94086
Tel:(408)530‐8080Fax: (408)
530‐0096
www.xeltek.com
SUPERPRO is the registered trademark of XELTEK.
Distribution and sales of this product are intended for use by the
original purchaser under the
terms of the License Agreement.
This document may not, in whole or part, be copied, photocopied, reproduced, translated or
reduced to any electronic medium of machine‐readable form without prior consent in writing from XELTEK.
The information in this document is subject to change without notice.
Software Copyright 2012‐2020 XELTEK
Userʹs Guide Copyright 2012‐2020 XELTEK

Welcome
Welcome to the world of Xeltek SUPERPRO programmers. Xeltek has produced the
SUPERPRO line of IC programmers since 1985. Our motto is to provide high value
products at affordable prices. In the past 27 years, Xeltek has produced a string of
highly popular and successful programmers including SUPERPRO, SUPERPRO II,
SUPERPRO III, SUPERPRO V, SUPERPRO 680, SUPERPRO 8000, SUPERPRO 3000U,
and SUPERPRO 9000 models.
SUPERPRO 3000U is the first model to incorporate both PC connected and stand‐
alone modes operations combined into one programmer. It is also the first programmer
to break the barrier of 40,000 devices supported in the industry. SUPERPRO 3000U is by
far the most popular IC programmer in the industry today.
Pushing the barrier further, Xeltek is proud to announce the family of SUPERPRO
7500 programmers. SUPERPRO 7500 retains all the good features of SUPERPRO
3000U, but, in addition, it is designed to program today's large size devices efficiently
and effectively.
Feature Highlights
•The SUPERPRO includes ultra high speed programming via 32bit RISC MCU
device. This is especially suitable for programming high capacity NAND
Flash devices
•A 144 pin driver support is built-in to provide efficient programming of large
pin count devices, an additional pin expander module is not necessary to
program large pin-count devices.
•The SUPERPRO operates with a PC for engineering purpose or in stand-
alone mode, without a PC, for repeat production mode programming. This
provides seamless migration from engineering to production.
•The SUPERPRO communicates through a USB 2.0 port and operates on most
Pentium‐based, IBM compatible desktop/notebook computers.
•The SUPERPRO comes with a standard 48-pin DIP ZIF socket and supports
optional socket adapters to accommodate PLCC, TSOP, SOIC, SOP, QFP,
TSSOP and BGA package types.
•The programmer and software supports Windows XP, Windows Vista, and
Windows 7.

•For authorized users, the SUPERPRO can provide for automatic generation of
electronic serial numbers.
User Manual Organization
This manual includes the following major chapters,
•An introduction to the SUPERPRO series, including the system requirements
and the software and hardware installation
•Detailed explanations on the commands and the programming procedures
•Information about error messages and common problems
•An Appendix that includes the customer support information
Note: The software prevails in any discrepancy between it and the user manual, due
to any upgrades of the software. The information in this document may be subject to
change without notice.

Chapter 1 Overview of SUPERPRO®7500
This section provides a brief introduction of SUPERPRO (1.1), software features (1.2),
structure of the handbook (1.3), system requirement for the installation (1.4), and
package content (1.5).
1.1 Introduction to SUPERPRO
The SUPERPRO is a menu-driven software that operates a series of cost-effective,
reliable, and high-speed universal programmers. SUPERPRO communicates
through a USB 2.0 port and operates with most IBM-compatible desktop and
notebook computers that based on Pentium. Menu-driven software interface makes
all the operations quite user-friendly.
1.2 Software feature
The USB 2.0 Series supports:
•Windows XP, Windows Vista, and Windows 7
•More than 43,000 types of devices, including E/EPROM, PLD, MCU, FLASH,
etc.
•Compatible with many types of file formats, such as Binary, Intel (linear &
segmented) Hex, Motorola S, Tektronix (linear & segmented), Jed, pof, etc.
•It supports a plug-in test (48 pins or less) to detect defective chips, improper
insertion and pins that are poorly contacted.
•SUPERPRO has an integral full-screen buffer editorial environment with
commands such as fill, copy, move, swap, etc.
•Electronic serial numbers are generated automatically.
1.3 Structure of this User's Guide
The content of this User's Guide is structured into three major sections,
Chapter 1 is an overview and introduction of the SUPERPRO, describing the
system requirement, installation of the hardware and software.

Chapter 2 - Chapter 5 are detailed specification and explanation of all the
features, commands, and function modules.
In Appendices, there are supportive information and guide for trouble-shooting
1.4 System requirements
The minimum system configuration requires:
•A desktop or laptop computer with Intel Pentium or an equivalent processor
•Windows XP, Windows Vista, and/or Windows 7 operating system
•1 GB free space on the hard drive
•Standard (USB 2.0) compliant socket
•A CD drive
1.5 Package content
A standard SUPERPRO programmer package includes:
A Programming host module
A Power supply unit
A USB 2.0 connection cable
A CD contains driver software
A user's registration form


Chapter 2 System Installation
This chapter provides a brief guidance on how to install the SUPERPRO software
and connect the programmer hardware properly.
NOTE: To avoid complications during the installation process, you must setup the
software before connecting the programming hardware (the USB device) to your
computer. That is, installation through the "Add New Hardware Wizard" of
Windows system is NOT recommended (this might lead to wrong drivers with a
different compatible device ID).
2.1 Software Setup
Select the software to setup your SUPERPRO programmer either from the CD‐
ROM or by downloading the program from the Xeltek website. Instructions for both
methods are described below.
2.1.1 Software setup from CD
1. Insert the CD into the CD-ROM drive.
2. If the setup program does not start automatically, run SETUP.EXE located in
the root directory.
3. Select the appropriate programmer model.
4. Click Setup.
NOTE: Each model has its own software and they are NOT compatible.
2.1.2 Download the software from website and setup (recommended)
You can also download the specific software for a certain model at Xeltek
website: http://www.xeltek.com. Select the icon to download the appropriate file for
your programmer. Once you have saved the file to your computer, run it to setup
the software. The following procedure describes the setup process step by step.
1. Once the setup program is running, a dialog box displays to allow the user
choosing a preferred language. Select one from the drop down list and click
OK to continue

2. An installation wizard will be displayed (as illustrated below). Click Next to
continue.
3. A License Agreement will be displayed. Click I Agree to continue.

4. Choose the Destination Location in which the driver software will be
installed. Once the destination file folder is selected, click Next to proceed.

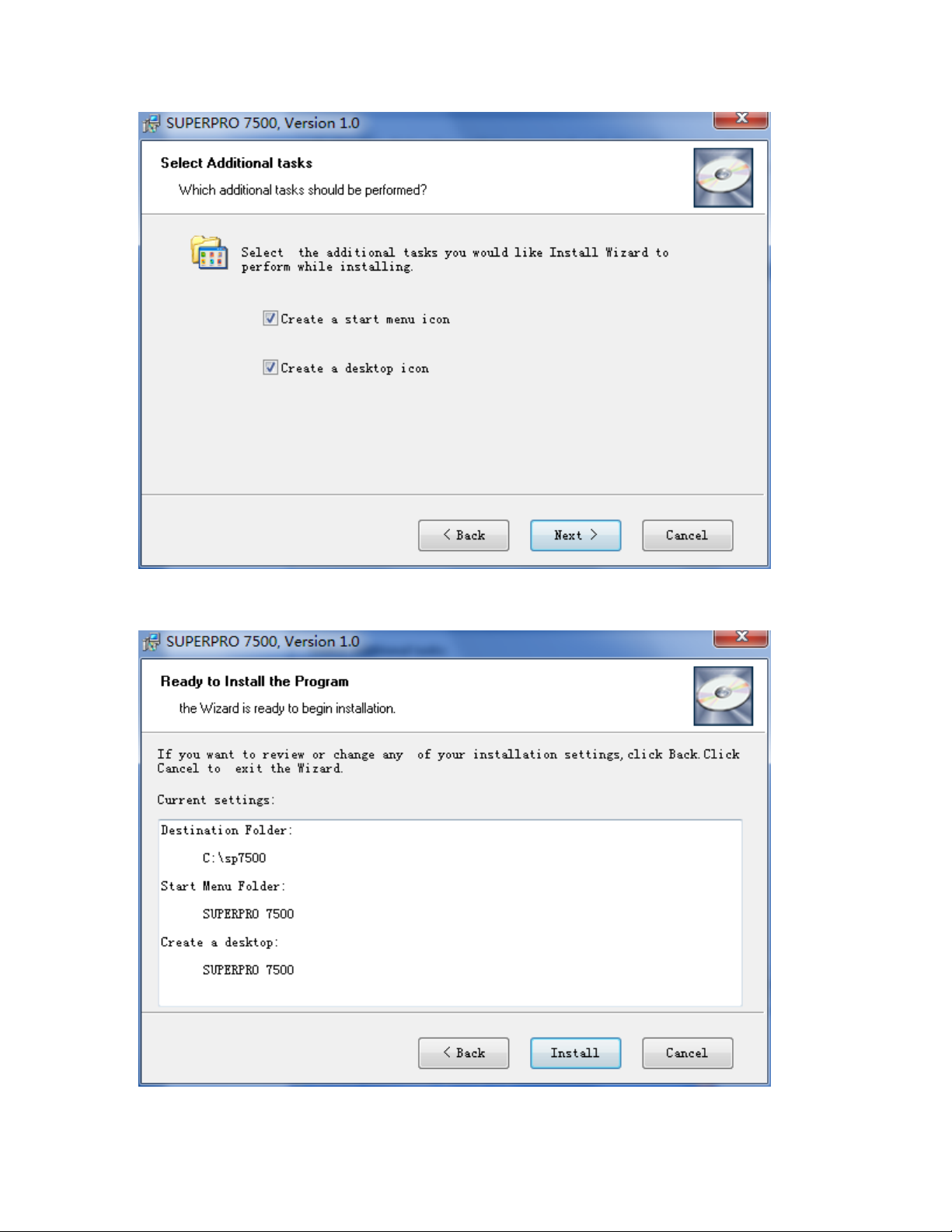

5. Another dialog box will be presented and allow the user to choose whether
creating a start menu icon and/or a desktop icon. Once correctly check the

tick box(es), click Next to continue.
6. Check the previous selections and click Install to start the installation
NOTE: If you are using the Windows Vista system, the operation system may

display the following dialog box to ask you whether to install the software. Select
Install this driver software anyway.
7. Once the installation is completed, click Finish.
2.2 Hardware and Driver Installation
After you set up the software, you can install the hardware and driver. The
following procedure explains the installation process.
NOTE: Do not follow these steps below if you have not yet setup the software (see
section 2.1).

1. Make sure all other programs are closed during the installation process.
2. Connect the programmer module to the computer through the USB port.
3. Turn on the power switch of the programmer module.
When you connect the new hardware, the system initiates the New Hardware
Wizard, which locates the driver from the software you have just installed.
The system displays alerts one at a time, illustrated below. The alerts on your
system may be slightly different.
4. After you open the application software for the programmer, the system
automatically starts the initialization. If it does not, make sure the
programmer is securely connected to the computer and that the power switch
is on.

Chapter 3 Quick Guidance of the Software Features
This chapter is a quick guidance of the SUPERPRO®software. It describes the
functions and features of the programmer that are most frequently used. The
SUPERPRO 7500 provides two programmers in one, they are: PC mode for engineering
and Stand-alone mode for production.
•Under PC hosted mode, a PC controls the programmer via a high-speed USB
connection to program a chip.
•Under stand-alone mode, the user controls the programmer via 20-characters,
4-line LCD display with 6-KEY keypad.
In this chapter, all the features being described are in PC mode, while the stand-
alone mode is described elsewhere.
3.1 The User's Interface (main screen)
The main SUPERPRO screen is illustrated below. Each part of the user interface is
labeled with a number and described below.

1. The Menu Bar provides access to the File,Buffer,Device,Option,Project,
and Help menus.
2. The Tool Bar offers quick access to many commonly used functions.
3. The Command Window enables shortcut to many commands and operations.
4. The Programmer Statue Panel shows the state of the current project and
programmer.
5. The Device Panel shows the connected device.
6. The Buffer Panel shows the state of the buffer.
7. The File Panel shows some basic information of the loaded file.
8. The Log Window displays the operation history.

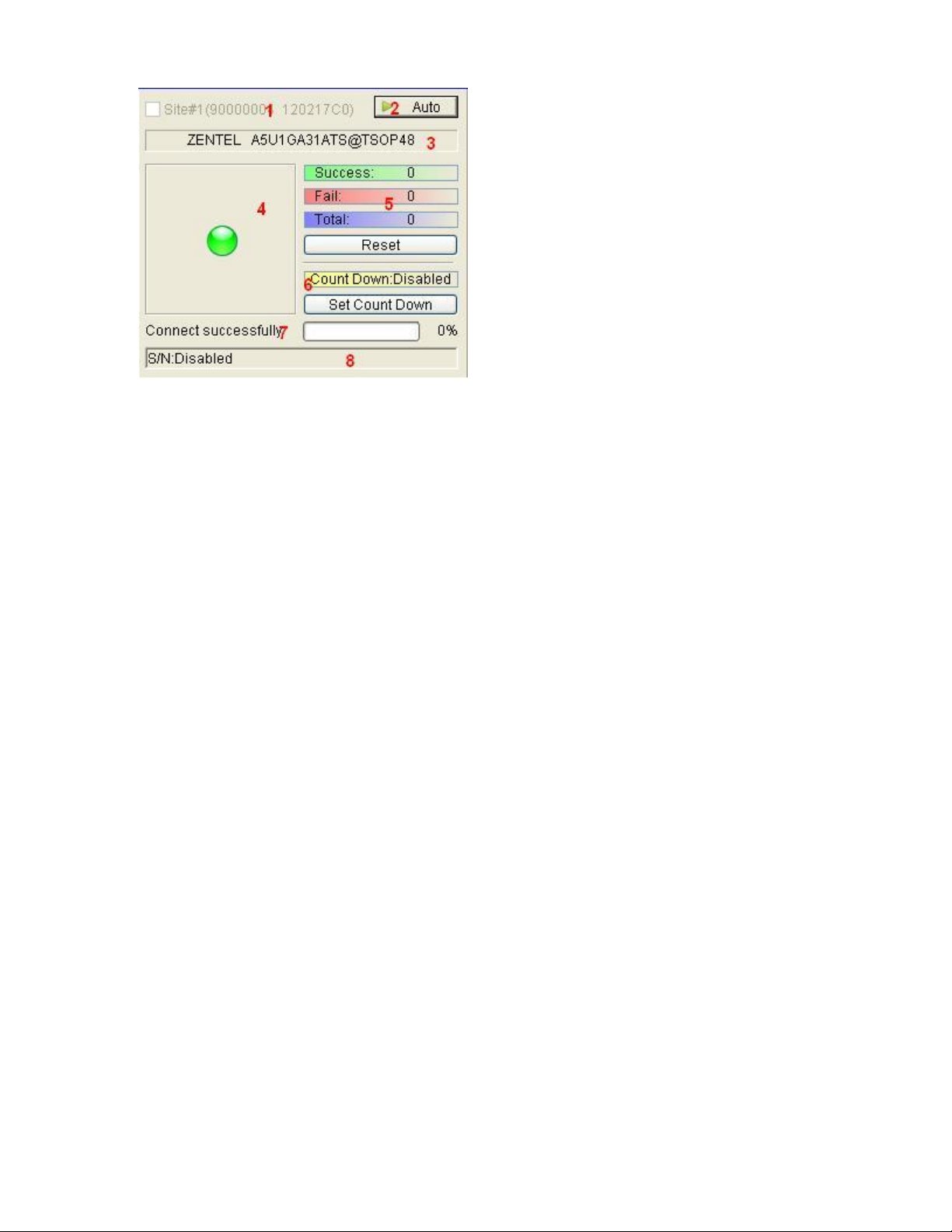

A detailed specification of the Programmer Statue Panel is shown in the picture below
and described accordingly to the numbered notation.

1. Module number and the ID of the programmer
2. Auto/Cancel button
3. Device name and the manufacturer information
4. Statue bar shows the success/failure of the programmer
5. Statistic information panel
6. Count down settings and information
7. Connectivity and progression of the programmer/project
8. Serial number
3.2 Programming Procedures
This section provides information on steps for common procedures to programme
devices using SUPERPRO 7500.
Before using the programmer to program a device, make sure that the programmer
is installed properly and that the computer and programmer are communicating
successfully. Make sure that you have the appropriate adapter for your SMD devices,
if applicable. Insert the chip correctly. Follow the guidelines of the standard chip
insertion markings near the pin-driver socket. However, if you select SMD or a
device that requires non-standard insertion, the system prompts you with the
appropriate chip insertion.

3.2.1 Select the device
To open the Device Selection window, choose one of the following options:
•Select the Device Selection icon
•Select the Device menu and select the Select Device (Device) option.
The system then displays the Device Selection screen as shown below.
NOTE: The red device name means that such device(s) need authorization to use.
3.2.2 Load data into buffer
One can load data into the buffer by reading data either from a file or a master chip.
To read data from a file, select Load File from the File menu. The system
displays the Load File dialog box. To make sure the loaded data is correct one
can review the information in the Buffer window.
NOTE: Some Hex or S record files contain non-zero file initial address. In this
case, enter the start address in the File Address box.
To read the data from a master chip, complete the following steps:
oInsert the master chip in the socket.
oSelect Read on the Device Operation window in the main screen. The

data will be copied from the master chip to the buffer memory.
oTo make sure the loaded data is correct one can review the
information in the Buffer window.
oIf desired, you can save the data to a disk for later use.
NOTE: The read function is not available for some devices, including those
have been encrypted.
3.2.3 Set options
Click Operation Option from the Option menu to open the Operation Option
screen. Set each of the following options:
oInsertion Test indicates whether to check the pin contact.
oDevice ID Check indicates whether to check the ID of the device.
oBeeper indicates whether the beeper alarms a sound when the
operation succeeds/fails.
oAuto Increment Function indicates an automatic increase in the label
number written to each chip.
oAddress Change indicates whether a different start and end address
shall be applied for the programming zone of the device.
To set the order of the batch processing functions, select Edit Auto from the
Options menu. The system displays the Edit Auto screen.
For devices that include the configuration word, you must set the
configuration word before programming to ensure that the chip can be used
on the target system. The configuration words for some devices are contained
in the data file. Therefore, the system automatically loads the configuration
word into the configuration word buffer when loading the data file. For some
devices, you must manually make the selection. Select Device Configuration
Word from the Device menu to open the ConfigWord screen.
Many devices must meet some special requirements for the programming of
a chip, including special algorithms conventions. Read the device manual or
instructions carefully and adjust the operation steps or buffer data as needed.

If an adapter is required for programming, the system displays information
about the adapter in the device information screen.
3.2.4 Execute programming
Insert the chip properly into the socket. If the prompt information indicates a need
for an adaptor, you may purchase the adapter. The operation procedure for the
programming of a chip is described as the following steps:
Blank Check
NOTE: You can skip this step if the chip is brand new.
The Blank Check fails on electrically erasable chips containing some
information. In this case, perform the Erase operation first. You do not
need to erase EPROM chips for which the data can be overwritten.
Program
Verify
NOTE: This step is necessary. The chip must pass Verification before the
programming can be implemented. Some chips provide only the
accumulation check function, such as VerifyCRC instead of a unit-to-unit
check function. Very few chips do not provide the accumulation check
function.
Security or Protect if encryption is required
NOTE: You may need to set the configuration word before performing
encryption. Refer to Device Configuration Word on page 37 for more
information. Select Auto to finish all the operations in one step.
Execute Production Mode to Program Chips in Batches
Select Production Mode from the Option menu to program devices in large
quantities. This function facilitates the job of the user who programs chips in
batches. In order to program chips in batches, the programmer always conducts the
insertion test. The programmer waits for the chip insertion to initiate while the
system displays the following prompt: Please, insert a device into the socket. Once
you have properly inserted the chip, the auto batch-processing command starts
automatically.

3.3 Programming When Connected by Hub
SUPERPRO®7500 provides a connection hub and user can simultaneously operate
multiple SUPERPRO®7500 programmer by using the hub.
Click menu Programmer -> Module Management, and select the number of the
programmer you want to operate. Picture below shows the interface when
simultaneously operating three programmers.
Every programmer has a unique number. The programmer's first line of the LCD
display will show the number of this programmer. The module that is selected at the
time will be highlighted. The device that is going to be programmed can be different
type(s) in each of the module that is connected through the hub.

In normal mode, all operations (i.e. selecting devices, loading documents and
programming) are carried out in the programmer that is selected and
highlighted at the time being.
In global configuration mode, all the operations are carried out in the
programmer(s) that is selected with the check in tick-box(es).
NOTE: Choose specified hub for XELTEK to connect SUPERPRO/7500, and
currently up to 8 programmer can be operated simultaneously.
`
Chapter 4 Functions and Commands
This chapter provides a detailed specification and explanation of the SUPERPRO®
