XGIMI Halo+ User manual

USER GUIDE

* XGIMI Technology reserves the right to interpret and amend the Instructions.
Please read the Product Instructions carefully before using the product
Thank you for purchasing and using the products of Chengdu XGIMI Technology
Co., Ltd. (hereinafter referred to as "XGIMI Technology" or "XGIMI"). You should
read the Product Instructions carefully before using this product for both your
safety and interests.
XGIMI Technology disclaims all responsibilities for any personal injury, damage
to property, or other loss that may occur as a result of improper or unsafe use of
this product.
About the Product Instructions
(hereinafter referred to as the "Instructions")
The copyright of the Instructions belongs to XGIMI Technology.
Trademarks and names mentioned in the Instructions belong to their respective
right owners.
In case of inconformity between the content of the Instructions and the actual.
product, the actual product shall prevail.
Any objections to any content or clause found within the Instructions should be
reported to XGIMI Technology in written form within 7 days after the purchase
otherwise, it will be assumed that you agree to, understand, and accept all the
content of the Instructions.
Google, Android TV and Chromecast built-in are trademarks of Google LLC.
Google Assistant is not available in certain languages and countries. Availability
of services varies by country and language.
* Model: WM03A
HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc.
Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS
DTS-HD, DTS Studio Sound, and the DTS-HD logo are registered trademarks or trademarks of DTS, Inc. in the
United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED.
1

Auto Keystone
Note: Do not block the sensor to prevent keystone correction failures.
1. Front View
Auto Focus ToF Part
Overview
2

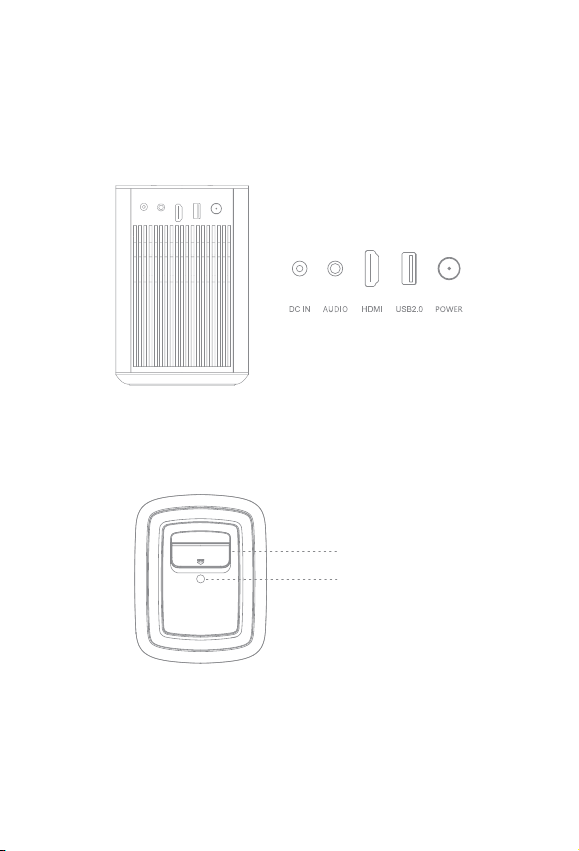

2.Button&input View
3.Bottom View
Open it as a stand
Tripod Socket
3

* Focus is adjusted through add-subtract key when function switch is moved to the right (Focus).
* Volume is adjusted add-subtract key when function switch is moved to the left (VOL).
4.Remote View
Power key
Menu key
Google Assistant
Shortcut keyInput source key
Return key
Function switch
Arrow key
Home key
VOL+(*Adjust Focus +)
VOL-(*Adjust Focus -)
4

5.LED Indicator Guide
Device Off
Flashing Red
Solid Red
Solid Green.
Then Off
Device ON
Off The battery capacity is more than 30%
The battery capacity is less than 30%
Charging.
The battery capacity is less than 90%
The battery capacity is more than 90%
Device Status LED Status DescriptionDevice Button
6.Device Status
Display Off: Only switch off the display. Other parts are still working.
Restart: Restart the device completely.
Hibernate: The device will reboot quickly next time.
Power Off: Switch off the device completely. This mode is suitable for outing. Next
time, press the device's power button twice to power on the device.
5

When you use the device for the first time, the mistouch prevention feature
is enabled. Therefore, press the device's power button twice to power on the
device. We recommend that you connect the device to the power source during
its first-time use.
Getting Started
Device on/off
Device Status
Power Off Power button of the
remote control
Power Off
Hibernate
Hibernate
Power button of the device
Press the device's power button to trigger the
instructions on the screen. Long press the device's
power button as instructed
Press the device's power button to trigger the
instructions on the screen. Short press the device's
power button again as instructed
Press the power button of the remote control and
select an action as instructed on the screen
Action Trigger How to Trigger
Display Off
Press the power button of the
device or the remote control
Press the power button of the
remote control or the device
Power Off
Hibernate
Press the device's power
button twice
This mode is suitable for outing because it
saves the battery life and avoids start-up due
to accidental touch
It consumes little battery. The device will
reboot quickly next time
Only the display is switched off. Other parts
are still working
Device Status How to Enable Description
6

To access the shortcut key function, briefly press the Settings button " "
Remote Control Pairing
Function Description of Remote Control
If pairing fails, after 30s repeat the above steps.
When the function switch at the bottom of the remote control is moved to the
right (Focus), the automatic focus function is enabled. You can adjust the focus
by using the " VOL+/- " button. When the function switch is moved to the left (VOL),
focus adjustment is disabled. You can use the " VOL+/- " button to control the device
volume.
Place the remote control within 10cm of the
device, press" " and " " simultaneously,
an indicator light will begin flashing as the
remote control enters pairing mode. Buttons
can be released as soon as flashing begins,
and the connection is successful when a
"Ding" is heard.
Automatic Focus Adjustment/Remote Focus Adjustment
When the automatic focus adjustment function is enabled, the frame will be
adjusted automatically when you turn on the device or move it to another location.
You can enable automatic focus by using the switch at the bottom of the remote
control. Move the switch to the right (Focus) so that the "VOL+/-" button can be
used to adjust the frame.
Focus adjustment
Shortcut key
7

Automatic keystone correction
When the automatic keystone correction function is enabled, the frame will be
adjusted automatically if you move the device to another location.
When the automatic obstacle avoidance function is enabled, the frame will
automatically avoid obstacles if there are obstacles in the projection area.
When the automatic screen alignment function is enabled, the frame will
automatically match the screen if there is a 16:9 or 16:10 screen in the projection
area.
Press the button on the remote control to enter the "Keystone Correction"
page. Select "Auto Keystone Correction" to enable the automatic keystone
correction function. Select "Manual Keystone Correction" to adjust the four
points and the size of the frame.
8

Google Assistant
Bluetooth Speaker
Talk to Google to control your TV using your voice.
Press the Google Assistant button on your remote to search for movies and
shows, get recommendations to match your mood, get answers, control smart
home devices, and more.
Use mobile Bluetooth settings to search for "XGIMI Halo+" to pair with the
device and play songs.
Chromecast Built-inTM
Easily cast your favorite movies, music, and more to your TV with Chromecast
built-in.
Simply tap the Cast button from apps you already know and love to stream
entertainment from your phone, tablet or laptop to the TV. While you’re
streaming, you can keep using your phone for other things- scroll through
social media, send a text, and even accept calls.
9

More Settings
The various settings are described as follows.
Select a brightness mode and adjust the parameters.
Set your device and image at any interface by using the Settings button " "
on the remote control.
Brightness and color
Image mode
Sound effect
Focus Calibration
Keystone Calibration
Adjusts the frame ratio of a signal source.
If you are not satisfied with the effect of the automatic keystone
correction function, you can recalibrate the automatic keystone
correction function through "Keystone Calibration".
Note: Follow instructions on the screen.
If the automatic keystone correction function is not as good as before
after long-term use, you can recalibrate the gyro through "Gyro
Calibration" to optimize the effect of automatic keystone correction.
Follow instructions on the screen.
If the auto focus function is not as good as before after long-term use,
you can tune the automatic focus adjustment function through "Focus
Calibration". Note: Follow instructions on the screen.
Select different image modes in different scenarios, such as movie,
football, office and game, to adjust the image parameters of video or
signal source. The low-latency option is available in game mode.
Gyro Calibration
10

Charging Instruction
System Upgrade
The device should be charged with an official, standardized adaptor.
Charging time will be lengthened for charging under the power-on state.
If you plug into an adapter under the powered-off state, a blinking red indicator
light represents charging while the green indicator light represents that the battery
is fully charged. (The green indicator light will extinguish after it is on for 10s.)
If your device will remain unused for long periods of time, the device should be
fully charged. Select the Power Off mode when you switch off the device. (In this
mode, the mistouch prevention feature is enabled. The power consumption is
low, and the device cannot be powered on by using a remote control. Users can
only press the device's power button twice to power on the device. Alternatively,
you can connect the device to the adapter, and the mistouch prevention feature
is disabled by default. Then, you can simply press the power button once to
power on the device.) Moreover, charge the device once every 3 months to avoid
irreversible capacity loss or damage arising from low battery. This is because the
battery will self-discharge during the excessively long storage time.
The system can be upgraded only when the device has at least 50% battery power
or is connected to a power source.
Online upgrade
The online upgrade can be performed through system settings.
Note: The online upgrade can be made through system settings " "
11

Important Precautions
Correct use of the device:
Do not face lens into eyes because the strong projector light may cause injury to
the eyes.
Do not block the air inlet/outlet of the device in order to avoid damage to internal
electronic devices arising from normal heat dissipation failure of the device.
Do not wipe the lens directly with cleaning tools including paper and cloth in order
to avoid damage to the lens. Please clean up the dust on the lens surface through
clean air blowing.
Do not wash the device with chemicals, detergents, or any liquid in order to prevent
the circuit board from being corroded by rainwater, moisture, and mineral-containing
liquids.
Keep the device and its components and accessories out of reach of children.
Make sure that the device is used in a dry and ventilated environment.
Do not store the device in overheated or overcooled places, because extreme
temperatures will shorten the life of electronic devices. Place and use the device
in an environment of 0℃-40℃.
Do not put the device into any heating equipment (such as dryer and microwave
oven) for drying.
Do not firmly extrude the device or place barriers on it or its back to avoid damage
to the device.
Do not throw, strike, or sharply vibrate the device to avoid damage to the internal
circuit board.
Do not try to disassemble and assemble the device yourself. If any issue occurs,
please contact the after-sales service of XGIMI.
Do not repair any product on your own. If the device or any component cannot
work properly, consult the after-sales service of XGlMI in a timely manner or return
it to the factory for repair.
Use careful with the earphone maybe excessive sound pressure
from earphones and headphones can cause hearing loss.
12
As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.

FCC warning
The device meets provisions of part 15 of FCC rule. Operation meets the following 2
conditions: (1) the device will not cause harmful interference, and (2) the device
must accept any interference received, including interference that may result in
accidental operations. User manual or operating instructions shall remind users
that intentional or unintentional modification and replacement of radiators without
explicit approval from the responsible compliance party may prevent the user from
operating the device. If the manual is provided in a form other than paper, such as,
provided in computer disk through the Internet, then the information required in
the section can be included in the manual in the alternative form under the premise
that users can have access to the form information.
For B-class digital or peripheral device, instructions provided by users shall include
the following or similar statements and put them in a prominent place of manual
text:
Notes: the device has been tested to meet restrictions of part 15 of FCC rule on B-class
digital device. These restrictions are aimed at providing the effective prevention of
harmful interference in a residential installation. If installation and use are not made
according to the instructions, the device will generate and radiate radio frequency
energy, and may cause harmful interference to radio communication. However,
there is no guarantee that interference will not occur in a particular installation. If the
device does cause harmful interference to radio or television reception (determined
by stopping and starting the device), it is suggested that users should attempt to
correct the interference by one or more of the following measures:
- Reposition direction of receiving antenna.
- Increase the distance between the device and the receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver
is connected..
- Consult distributors or experienced radio/television technicians to seek help
- This device is acting as a slave and operating in the 2.4 GHz (2402-2480 MHz,
2412-2462 MHz) band or 5 GHz (5.180 GHz-5.240 GHz, 5.260 GHz-5.320 GHz,
5.500 GHz-5.700 GHz, 5.745 GHz-5.825 GHz) band.
FCC ID: 2AFENWM03A
13

CE Maintenance
1. Risk of explosion if battery is replaced by an incorrect type.Dispose of used
batteries according to the instructions.
2. The product shall only be connected to a USB interface of version USB2.0.
3. Adapter shall be installed near the equipment and shall be easily accessible.
4. EUT Operating temperature range: -10℃-40℃.
5. Adapter：
The plug considered as disconnect device of adapter
Power supply and ADP (rating):
Input: AC 100V-240V, 50/60Hz, 1.5A
Output: DC 19.0V, 4.74A
6. The device complies with RF specifications when the device is used at a distance
of 20 cm away from your body.
7. To prevent possible damage to hearing, do not listen at high volume levels for
long periods.
Chengdu XGIMI Technology Co., Ltd hereby
declares that this product is in compliance with
the essential requirements and other relevant
provisions of Directive 2014/53/EU.
This product is allowed to be used in some of EU
member states. For example, the device can be
used in the following Member States:
BE
HR
AT
BG
IT
PL
CZ
CY
PT
DK
LV
RO
DE
LT
SI
EE
LU
SK
IE
HU
FI
EL
MT
SE
ES
NL
UK
FR
Operations in the 5.15-5.25 GHz band are restricted
to indoor usage only.
This Frequency applies to the following Member
States or the geographical area within a Member
State where restrictions on putting into service or
requirements for authorisation of use exist.
Declaration of Conformity
14

BE HR AT
BG IT PL
CZ CY PT
DK LV RO
DE LT SI
EE LU SK
IE HU FI
EL MT SE
ES NL UK
FR
Radiation Exposure Statement
For remote control, this device complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This Frequency applies to the following Member
States or the geographical area within a Member
State where restrictions on putting into service or
requirements for authorisation of use exist.
Disposal instructions for used products:
* Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive
supply adapter etc).
The product is designed and manufactured with high quality
materials and components that are recyclable.
This symbol on the product indicates that it is protected under
the Directive 2012/19/EU.
The transmitter shall not be placed or operated in
conjunction with any other antenna or transmitter.
For the LED projector, the device meets FCC
radiation exposure limits specified for uncontrolled
environments. In the installation and operation of
the device, the distance between radiator and body
should be at least 20 cm.
Notes: 5150-5250 MHz frequency range is only for
indoor use.
* Beware that this product may emit harmful light radiation.
15

Chengdu XGIMI Technology Co., Ltd.
Building A4, No. 1129 Century City Road, New and High-tech zones, Chengdu City，China
www.xgimi.com [email protected]
