Xhorse VVDI User manual

VVDI - BMW User Manual
www.xhorseshop.us

BMW TOOL User Manual
2
Ver: 1.1
Table of Contents
1. Document Declaration..................................................................................................5
2. Overview.......................................................................................................................6
2.1. Noun explanation............................................................................................6
2.2. Options.............................................................................................................6
2.3. EEPROM/KM/Synch Codes(OBD)/ISN...........................................................7
2.4. Key Learn..........................................................................................................7
2.5. File Make Key...................................................................................................7
2.6. Unlock Key........................................................................................................7
2.7. File Change KM................................................................................................7
2.8. CAS Repair........................................................................................................8
2.9. CAS PLUG .........................................................................................................8
3. Options .........................................................................................................................8
3.1. Language..........................................................................................................8
4. CAS/EWS Information..................................................................................................9
5. CAS Key Learn...........................................................................................................12
5.1. OBD - CAS1/CAS2/CAS3/CAS3+/CAS4/CAS4+ main functions ................12
5.2. Special note in OBD operation(Important！！！).........................................14
5.3. CAS3+ encrypt version (include ISTAP) make dealer key by OBDII........19
5.3.1. Add new key with working key .............................................................19
5.3.2. Lost All Key...........................................................................................20
5.4. Special note in File Make Key (Important!!!)..............................................22
www.xhorseshop.us

BMW TOOL User Manual
3
Ver: 1.1
5.5. EEPROM-EWS1/EWS2/EWS3/EWS4/CAS1/CAS2/CAS3 (include lost all
key) 24
6. FEM/BDC Key Learn..................................................................................................26
7. Exchange ECU/CAS...................................................................................................27
8. Gearbox......................................................................................................................28
9. Exx Program/Code.....................................................................................................29
9.1. Connect Car.....................................................................................................29
9.2. Vehicle configuration(FA/FP)...........................................................................29
9.3. Gateway registered unit/FA calculate unit.......................................................30
9.4. Module information/DTCs................................................................................31
9.5. Unit coding.......................................................................................................31
9.6. Unit programming............................................................................................32
10. Fxx/Gxx Program/Code.......................................................................................33
10.1. Connect to car..............................................................................................33
10.2. Vehicle configuration(FA/FP).......................................................................33
10.3. Read/Clear DTCs.........................................................................................34
10.4. Vehicle coding..............................................................................................34
10.5. Vehicle programming...................................................................................36
11. CAS Repair (EEPROM OBDII)...........................................................................37
11.1. OBDII - CAS1 (0K50E) repair......................................................................37
11.2. OBDII –CAS3+ (ISTA-P4*) repair...............................................................37
11.3. EEPROM Repair (CAS1, CAS2, CAS3, CAS3+).........................................37
12. Unlock Key..........................................................................................................38
13. File Change KM .................................................................................................39
14. CAS PLUG...........................................................................................................41
14.1. CAS PLUG Overview ..................................................................................41
www.xhorseshop.us

BMW TOOL User Manual
4
Ver: 1.1
14.2. Make old CAS PLUG work on VVDI2.......................................................42
14.3. CAS PLUG connect to EWS/CAS ..............................................................44
14.4. Manual line to achieve CAS PLUG ...........................................................47
www.xhorseshop.us

BMW TOOL User Manual
5
Ver: 1.1
1.Document Declaration
Please view the following declaration carefully:
VVDI –BMW User Manual can help you maintenance vehicles with VVDI BMW
device. Please DON’T used for illegal purpose, Please follow the national law
VVDI –BMW User Manual is written by VVDI BMW, Please DON’T used for
commercial purposes without authorize
VVDI –BMW User Manual can help you how to use BMW software, please view
carefully
Any illegal use VVDI –BMW User Manual, illegal use VVDI BMW device, The
user should take all risks, the company does not assume any responsibility
www.xhorseshop.us

BMW TOOL User Manual
6
Ver: 1.1
2.Overview
2.1. Noun explanation
BMW: Bayerische Motoren Werke
EWS: Immobox used in earlier BMW cars
CAS: Car Access System(40 unit), mainly include CAS1(0K50E), CAS2(2K79X),
CAS3(0L01Y), CAS3+(0L15Y, 0M23S), CAS4(1L15Y, 5M48H), this document will
only use CAS1, 2, 3, 3+, 4, 4+ to express, don’t write detail mask. If document have
detail mask indicates the special explain to this type
FEM/BDC: BMW after 2014 parts of new models with latest immobox
OBDII method: connect VVDI2 to car with OBDII interface
CAS Plug: It is not a standard device, need buy for extra. Communication with CAS
through CANBUS 100Kbps
CAS3+ encrypt version: Sometimes we call CAS3++. When the car (not encrypt
version) start, CAS will verify key, engine will verify CAS. But for CAS3++ type,
engine will verify key in addition. So add key for this type need working key or ISN
support. For the above reason, the introduction for CAS3+ is also applicable for
CAS3+ encrypt version. Expect write no applicable for CAS3+ encrypt version
ISTAP Version: Strictly, ISTAP belong to CAS3+ encrypt version, the only different is
that we cannot read CAS immodata by OBDII for ISTAP version. Fortunately, we can
OBDII read ISTAP CAS immodata by update CAS flash. VVDI-BMW update ISTAP
version flash only need 10 minutes. So the introduction for CAS3 encrypt version also
applicable for ISTAP version, expect write not applicable for ISTAP
ISN: Identification Serial Number, this value use to verify engine with key. 16 bytes
CAS3+ encrypt version(not ISTAP) SN: 9226238, 9227053, 9237046, 9237047
ISTAP version SN: 9262360, 9262361, 9278745, 9278746, 9287534, 9287535,
9267608, 9267609
CAS4+: Parts of F series chassis immo system
FEM/BDC: New model of F series chassis immo system
All Key Lost: The car lost all working key, there is big different from add key with
working key. Note: before OBDII communication, you need open dangerous light,
press on the brakes for several times to active OBD communication
2.2. Options
Detail can be found in chapter 3 Options
Language
About…
www.xhorseshop.us

BMW TOOL User Manual
7
Ver: 1.1
2.3. EEPROM/KM/Synch Codes(OBD)/ISN
Detail can be found in chapter 4 EEPROM/KM/Synchronization Codes (OBD)
Read EEPROM / Write EEPROM
Read KM / Write KM
Synchronize DME-CAS, CAS-ELV
2.4. Key Learn
Detail can be found in chapter 5 Key Learn
Get Key Info
Write Key Info
Load Key Info / Save Key Info
Prepare dealer key with programmer
Prepare dealer key with ignition switch
Add key
Program Key Info
Repair Keyless Key
Enable Key / Disable Key
Clear DTC / Clear Shadow
2.5. File Make Key
Detail can be found in chapter 6 File Make Key
EWS1/EWS2/EWS3/EWS4
CAS1/CAS2/CAS3/CAS3+/CAS4/CAS4+
2.6. Unlock Key
Detail can be found in chapter 7 Unlock Key
Unlock with key info file
Unlock with CAS1/CAS2/CAS3/CAS3+ EEPROM
2.7. File Change KM
Detail can be found in chapter 8 File Change KM
EWS3/EWS4
CAS1/CAS2/CAS3/CAS3+ CAS4
Cluster (E Series): M35080 EEPROM dump
Cluster (F Series)
www.xhorseshop.us

BMW TOOL User Manual
8
Ver: 1.1
2.8. CAS Repair
Detail can be found in chapter 9 CAS Repair
CAS1(0K50E) OBDII Repair
ISTAP4* Version OBDII Repair
2.9. CAS PLUG
Detail can be found in chapter 10 CAS PLUG
3. Options
3.1. Language
Support following languages:
Chinese (Simplified)
English
Italian
Spanish
German
Hungarian
Please manual set user language after first run program
www.xhorseshop.us

BMW TOOL User Manual
9
Ver: 1.1
4. CAS/EWS Information
CAS/EWS Information main interface as picture(PICTURE 4.1) , support types as below:
OBDII - Auto Detect: Auto detection communication protocol, support KWP-E6X…,
CAN bus 100Kbps, CAN bus 500Kbps. Other functions need choose manually
OBDII - KWP –E6X, E7X, E9X, E81, E82, E87, E89: Usually used in old cars with
CAS1, CAS2 and some CAS3
OBDII - KWP –CAN bus 100Kbps: This type will be use when your VVDI2 connect
to CAS with CAS PLUG or without gateway
OBDII - KWP –CAN bus 500Kbps: This type will be use when connect to car with
CAS3, CAS3+
OBDII - KWP –CAN bus 500Kbps(F-Series) : This type used CAS4 in BMW F
series
KLINE –EWS3/EWS4: When connect EWS with CAS PLUG, choose this type
(PICTURE 4.1)
Connect: Connect to CAS system. Attention: EWS don’t support this (see special
note 1). After connect to CAS, there will display detail information in CAS
identification (PICTURE 4.2). When you choose Auto Detect, only connect support, it
will detect the connection type: KWP, CANBUS 100, CANBUS500. You must choose
another type before other operation
CAS ID: CAS identification number
CAS type: CAS type is very important, this type is detected by VVDI2-BMW,
he type detect incorrect，add new key may not work. Usually have the
www.xhorseshop.us

BMW TOOL User Manual
10
Ver: 1.1
following types: CAS1, CAS2, CAS3/CAS3+, CAS3++, CAS3++ (ISTAP),
CAS4 etc.
CAS3/CAS3+: This means CAS should be CAS3 (0L01Y) or
CAS3+(0L15Y)(not encrypt version)
CAS3++: This means detected CAS3+ encrypt version
CAS3++ (ISTAP): find ISTAP version
VIN: Vehicle identification number
Prod. Date: CAS production date
HW/Cod.Index: CAS hardware version and coding version
MSV/FSV/OSV: MSV running in CAS, software version and system version
(PICTURE 4.2)
Read EEPROM: Support Read CAS1/CAS2/CAS3/CAS3+ (ISTAP version not
support) EEPROM. For CAS1/CAS2/CAS3 type require CAS PLUG; CAS3+ can use
OBDII or CAS PLUG. Attention: the read EEPROM for CAS3+ is not the whole
EEPROM, You can’t write it to CAS with BDM programmer, it can use to prepare
dealer key with File Make Key
Write EEPROM: Support write CAS1/CAS2/CAS3 EEPROM dump by OBDII,
requires CAS PLUG
Save to File… / Load From File…: Save the reading data / load EEPROM dump to
buffer
Read KM: Read KM stored in CAS system, support CAS1/CAS2/CAS3/CAS3+
(ISTAP version not support). CAS1, CAS2, CAS3 require CAS PLUG; CAS3+ can
access by OBDII and CAS PLUG
Write KM: Write new KM to CAS, support CAS1/CAS2/CAS3/CAS3+ (ISTAP version
not support). CAS1, CAS2, CAS3 require CAS PLUG; CAS3+ can access by OBDII
www.xhorseshop.us

BMW TOOL User Manual
11
Ver: 1.1
and CAS PLUG
Attention: KM shown on instrument stored not only in instrument, but also in
CAS system, it can synchronize CAS with cluster for the bigger one. So, when
you want change KM, you’d better take instrument away from car, Set CAS KM
to 0, read EEPROM dump from instrument, change instrument EEPROM KM to
new one with File Change KM function, write the new EEPROM dump to
instrument and put your instrument in car
Read Code: Read DME and EGS code stored in CAS
Write Code: Write DME and EGS code to CAS system. Attention: We don’t
recommend general user write this code, the car will stop working if write error code
Synch DME-CAS: Synchronize DME and CAS. Don’t do this operation if you lost all
working key. Sometimes add new key for CAS1/CAS2/CAS3 will lost synchronization
code, then you can run this operation, see Special Note 2
Synch CAS-ELV: Synchronize CAS and ELV, This function can be run once ELV has
error; Sometimes add new key for CAS1/CAS2/CAS3 will cause ELV error，then you
can run this operation, see Special Note 2
Key Learn: Detail can be found in chapter 5 Key Learn
Special Note 1: Read/Write EWS now support 0D46J mask and 2D47J mask. EWS
support read EEPROM, write EEPROM, File Make Key, File Change KM etc
Special Note 2: Sometimes add new key for CAS1/CAS2/CAS3 will cause car not
start, you need synchronize DME and CAS, synchronize CAS and ELV, insert
original key to ignition switch, run this 2 operation one by one, take key off,
insert again and try to start. If not start, try this again until car start. If you get
error in synchronize progress, ignore and continue
www.xhorseshop.us

BMW TOOL User Manual
12
Ver: 1.1
5. CAS Key Learn
5.1. OBD - CAS1/CAS2/CAS3/CAS3+/CAS4/CAS4+
main functions
Key Learn interface like(PICTURE 5.1).
(PICTURE 5.1)
Mainly Function:
Key cutting code: Key This code can help make the key stick, you can use
CONDOR Automatic Key Cutting Machine make the key stick directly (Lost All Key is
very convenient, no need change cylinder)
CAS remote control frequency: You need select correct remote key accord this
value, they must have same frequency. Of course you can test working key frequency
with Remote Frequency Test( “F” button on VVDI –BMW device)
CAS key in ignition switch is: The position at immobilizer for ignition key.
Get Key Info: OBD read key cutting code, CAS remote control frequency, CAS key in
ignition switch is, key info etc. You must read and backup original key info before
OBD prepare key
Save Key Info: Save the key info read by OBDII, the file is encrypted
Prepare dealer key with programmer: After read key info success, select a key
www.xhorseshop.us

BMW TOOL User Manual
13
Ver: 1.1
position, prepare dealer key with VVDI –BMW programmer
Prepare dealer key with ignition switch: After read key info success, select a key
position, prepare dealer key with ignition switch
Add Key: Add the new prepared key to CAS system. Most of the car, the new
prepared key can start engine directly without add key; there’s still a few car can’t
identification new key, at this situation you need add key to CAS system, key should
be placed in VVDI –BMW programmer
Enable Key: Insert a working key to ignition switch, select key position which you
want enable, press button Enable Key. If there’s a key for this position, it will start
work again. Attention: Enable Key don’t need to read key info
Disable Key: Insert a working key to ignition switch, select key position which you
want disable, press button Disable Key. If there’s a key for this position, it will stop
work, add key new at this position is also not work. Attention: Disable Key don’t
need to read key info
Edit Key Info: After you read key info or load key info, select a specify key item，run
this operation to change detail item (PICTURE 5.2). Attention: We don’t
recommend general user run this operation, the working key will stop work if
write error data
(PICTURE 5.2)
Repair Keyless Key: If the keyless key doesn’t have smart function after start engine.
You can try this operation to fix it. Detail operation can follow (PICTURE 5.3).
Attention: you must have one un-keyless key and this key can start engine
www.xhorseshop.us

BMW TOOL User Manual
14
Ver: 1.1
(PICTURE 5.3)
Write Key Info: Write the loaded key info to CAS system, it can use for restore
original key info
5.2. Special note in OBD
operation(Important！！！)
Under Get Key Info get window (PICTURE 5.5): For CAS3+ encrypt version, must
select add key or lost all key. For other CAS version, this 2 method is same, they
don’t have lost all key mode, add key is always
(PICTURE 5.5)
Under OBD operation get window (PICTURE 5.6): If there’s key in ignition switch,
take away. If the key is keyless key (smart key), move it out of car. If there’s no key in
ignition, just press OK to continue
www.xhorseshop.us

BMW TOOL User Manual
15
Ver: 1.1
(PICTURE 5.6)
Under prepare dealer key get window (PICTURE 5.7): Once you get this window,
VVDI-BMW detect this CAS is CAS3+ encrypt version. If you are sure CAS is encrypt
version, but there’s no this window while prepare dealer key, the made key may not
start engine. You’d better choose “File Make Key” for the error detection CAS
(PICTURE 5.7)

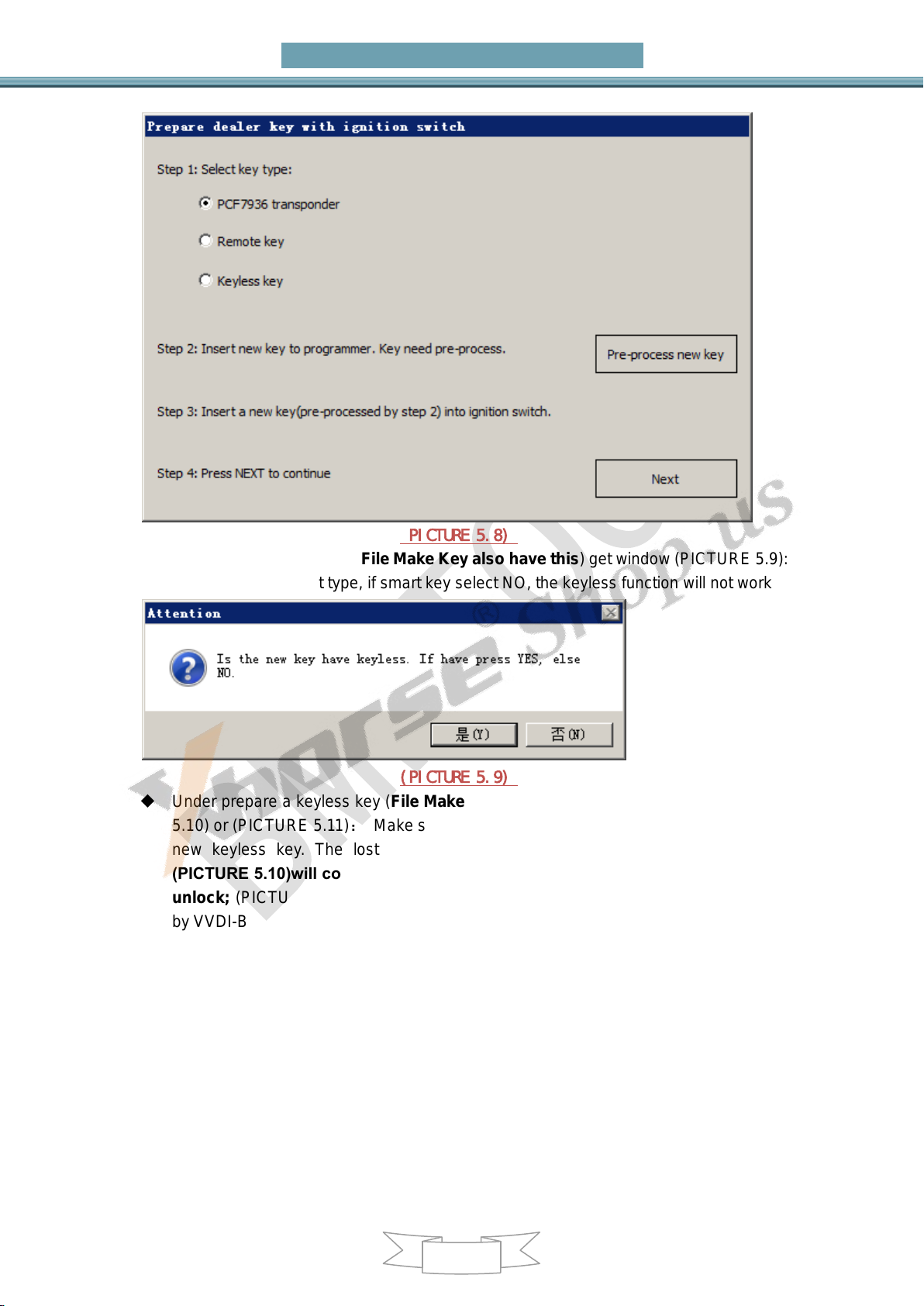

Under prepare dealer key with ignition switch get window (PICTURE 5.8): Here we
need pre-process new key. Just follow step1 to step4. Attention: You must insert
new key into ignition switch before NEXT
www.xhorseshop.us

BMW TOOL User Manual
16
Ver: 1.1
(PICTURE 5.8)
Under prepare dealer key(File Make Key also have this) get window (PICTURE 5.9):
Please select correct type, if smart key select NO, the keyless function will not work
(PICTURE 5.9)
Under prepare a keyless key (File Make key also have this) get window (PICTURE
5.10) or (PICTURE 5.11)：Make sure the car have 1 keyless key at most before add
new keyless key. The lost keyless key should disabled or erased. Attention:
(PICTURE 5.10)will come with add key, this situation keyless key don’t support
unlock; (PICTURE 5.11)will come with lost all key, here the keyless key can unlock
by VVDI-BWM
www.xhorseshop.us

BMW TOOL User Manual
17
Ver: 1.1
(PICTURE 5.10)
(PICTURE 5.11)
After make dealer key get window (PICTURE 5.12): When you get this window, the
key was made successfully. You can try to start engine directly. If not work, you need
add this key to CAS system withAdd Key. Keyless can fixed with Repair Keyless Key
(PICTURE 5.12)
After add key to CAS get window (PICTURE 5.13): When you get this window, the
key was add to CAS system successfully. Key can start engine now. Sometimes add
new key for CAS1/CAS2/CAS3 will cause car not start, you can follow chapter 4
Special Note 2
www.xhorseshop.us

BMW TOOL User Manual
18
Ver: 1.1
(PICTURE 5.13)
Under lost all key for CAS3+ encrypt version (File Make key also have this) get
window (PICTURE 5.14) or (PICTURE 5.15): For CAS3+ encrypt version, lost all key
will have a special procedure to make working key (this procedure maybe need load
EEPROM dump). By insert temp key to ignition and try start. (PICTURE 5.14) is
CAS3+ encrypt version (not ISTAP) window, at most 16 times try start. (PICTURE
5.15) is ISTAP version window, at most 64 times try start
Attention: For ISTAP version, There is a few car can’t find useful combine data
after 64 times try start, because the CAS lost some verify data, you need select
File Make Key->Known ISN to make working key
Attention: If you press “Yes” and get something like “Cannot find useful
combine data, please check the EEPROM file”, means the CAS lost some verify
data, you need select File Make Key->Known ISN to make working key
(PICTURE 5.14)
(PICTURE 5.15)
Under lost all key for CAS3+ encrypt version (File Make key also have this) get
window (PICTURE 5.16): In the title you can find “Try times 5” means this is the fifth
try start. If can start, press “YES”，key made successfully. If cannot start, press “NO”,
continue next try start For some reason cause not find start combine data after all try,
the temp key is locked, you need unlock the key with EEPROM or key info before
next time test.
www.xhorseshop.us

BMW TOOL User Manual
19
Ver: 1.1
Attention: when you get this window, you’d better try with this method: insert
temp key to ignition switch, try start, if not start, take key off, then insert to
ignition again, try start again, if still not start, take key off ignition and press
“No” (In File Make Key you need place temp key in programmer)
(PICTURE 5.16)
5.3. CAS3+ encrypt version (include ISTAP)
make dealer key by OBDII
5.3.1. Add new key with working key
Attention: Under these steps, there will come some ASK or NOTE message,
Method 1, operation: This method support CAS3+ encrypt version (ISTAP not
support). you can follow:
1) Read EEPROM with Read EEPROM in (PICTURE 4.1) by OBDII
2) Make dealer key with File Make Key function
Method 2, operation:
1) Insert a working key to car ignition and switch ON
2) (PICTURE 5.1), use Get Key Info read CAS immo data, cutting code, remote
frequency and etc. (Remember: when you get window (PICTURE 5.5), you need
choose Add Key) Attention: The key info can read directly if CAS isn’t ISTAP version.

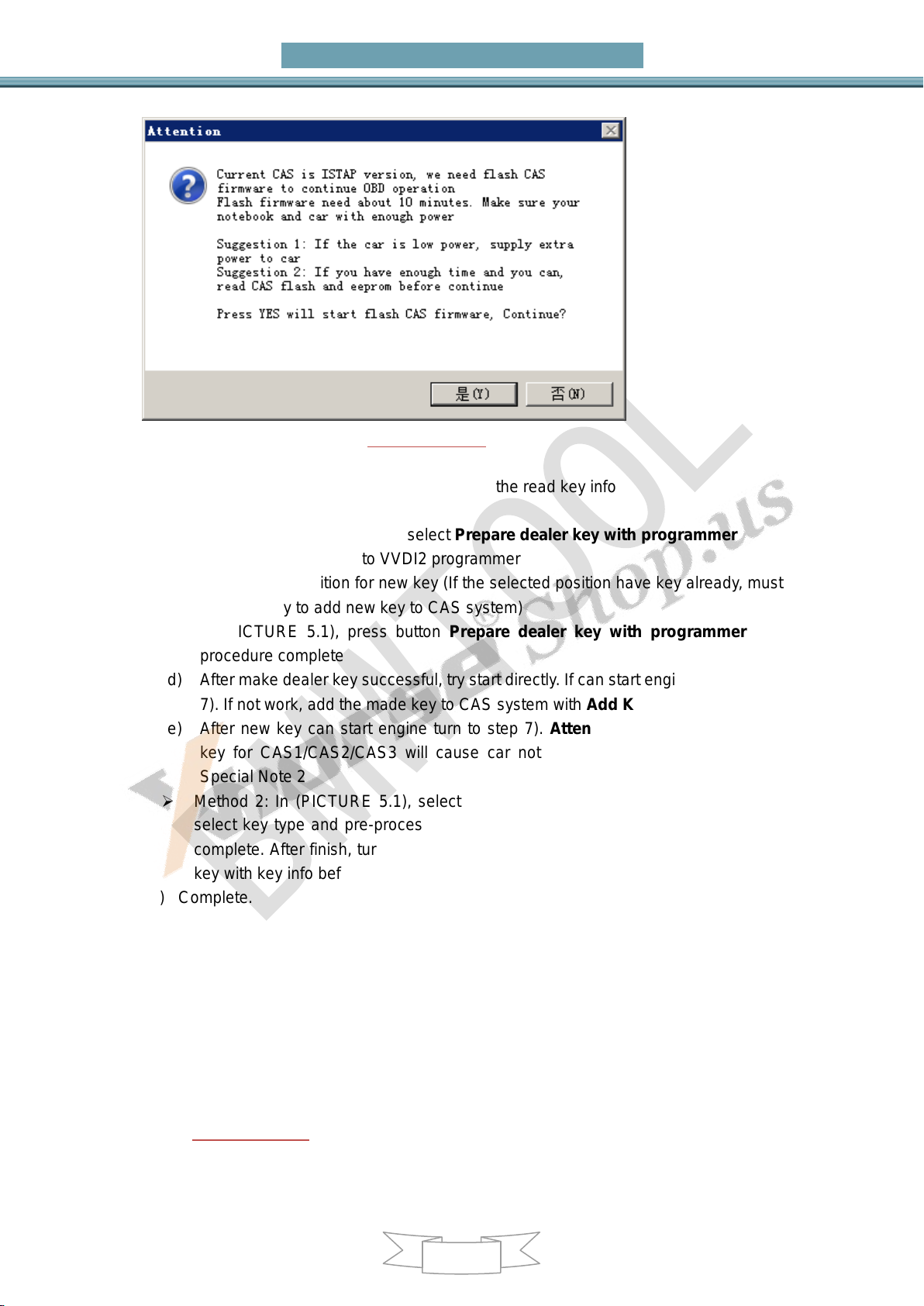

If CAS belongs to ISTAP version, there will be update CAS flash window (PICTURE
5.17) for the first time read key info. Upgrade CAS flash only need 10 minutes, after
update flash turn to step 5). If the upgrade progress failed by some reason, you can
fix it with Menu->CAS Repair->ISTAP4* version OBDII Repair. Repair with CAS ID
(write in step2)). Detail can be found in chapter 9 CAS Repair
www.xhorseshop.us

BMW TOOL User Manual
20
Ver: 1.1
(PICTURE 5.17)
3) In (PICTURE 5.1), use Save Key Info save the read key info
4) There’s 2 methods for make key:
Method 1: In (PICTURE 5.1), select Prepare dealer key with programmer
a) Input a new blank key to VVDI2 programmer
b) Select a key position for new key (If the selected position have key already, must
use Add Key to add new key to CAS system)
c) In (PICTURE 5.1), press button Prepare dealer key with programmer wait
procedure complete
d) After make dealer key successful, try start directly. If can start engine, turn to step
7). If not work, add the made key to CAS system with Add Key in (PICTURE 5.1)
e) After new key can start engine turn to step 7). Attention: Sometimes add new
key for CAS1/CAS2/CAS3 will cause car not start, you can follow chapter 4
Special Note 2
Method 2: In (PICTURE 5.1), select Prepare dealer key with ignition switch,
select key type and pre-process the blank key, insert to ignition switch and wait
complete. After finish, turn to step 7). If you get failure here, you need unlock the
key with key info before next make dealer key
5) Complete.
5.3.2. Lost All Key
Attention: Under these steps, there will come some ASK or NOTE message,
they all can be found in chapter 5.2
Operation steps:
1) Active OBD communication with lost all key method
2) In (PICTURE 5.1), use Connect to detect CAS type and read CAS identification
information (Remember: Write down CAS ID)
3) In use Get Key Info read CAS immo data, cutting code, remote frequency and etc.
www.xhorseshop.us
