Xiaomi Mi Smart Band 4C User manual

Mi Smart Band 4C
User Manual

Read this manual carefully before use, and retain it for
future reference.
1
Product Overview
Note: You can check the model number on the end of
the fitness tracker without the USB charging plug.
Fitness Tracker Long Strap
Short Strap
Charging Port
Touchscreen
Heart Rate Sensor
Touch Button
a
c
b

2
Installation
1. Insert the USB charging plug of the fitness tracker
into the slot of the short strap, then make sure they
are well connected.
2. Attach the long strap to the other end of the fitness
tracker in the same way.

3

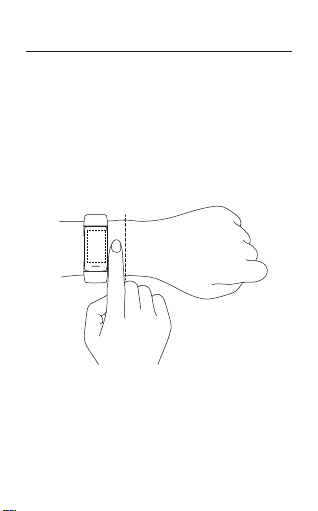

How to Wear
Comfortably tighten the band around your wrist about
one-finger width away from your wrist bone.
Note: Wearing the straps too loosely may impact the
data collection by the heart rate sensor.

4
How to Connect
1. The band needs to be used together with the
Xiaomi Wear/Xiaomi Wear Lite app. Scan the QR code
below to download the app, and follow the on-screen
instructions to pair the band with your phone, then
you can view and control more functions via the app.
Note: Press and hold the button to light up the screen
on its first use.
App QR code
( Android 4.4 & iOS 10 or above )

XXXX
Pair first
Mi Smart Band 4C
Add device
Mi Smart Band 4C XXXX
Searching for devices
Couldn‘t find devices to add?View help.
Identification Code
5
2. Sign in to your Mi account in the app, and select the
corresponding band to pair with your phone.
Note: Select the Bluetooth device in the list whose
identification code matches the one on the band to pair.

Couldn't connect. View help.
Mi Smart Band 4C
Add device
Pair with phone?
Pairwith phone?
Try again
6
3. Follow the on-screen instructions. Once the band
vibrates and a pairing request is displayed on its
screen, tap the button to complete the pairing with
your phone.
Note: Make sure the Bluetooth on your phone is
enabled. Hold the phone and the band close to each
other during the pairing process.
Connect
Pair
Add account

How to Use
Swipe right to return to
the previous page
Swipe up/down to switch
between functions
7
When the band is successfully paired with your phone,
it will start tracking and analyzing your daily activities
and sleeping habits.
Tap the touch button to light up the screen. You can
access features including browsing the activity data
and measuring your heart rate by swiping up or down,
and return to the previous page by swiping right.

Disassembly
8
Remove the band from your wrist, hold the fitness
tracker and pull the strap downward to disassemble it.

Charging
9
1. Immediately charge your band when you receive a
low battery notification.
2. Remove the short strap to expose the USB charging
plug.
3. Insert the charging plug into any standard USB port
to charge.

Precautions
10
When using the band to measure your heart rate,
please hold your wrist still.
The Mi Smart Band 4C has a water resistance rating
of 5 ATM. It can be worn in the shower, swimming
pool, or while swimming near the shore. However, it
cannot be used in saunas or while scuba diving.
The touch button and touchscreen of the band do
not support operations underwater. When the band
comes in contact with water, use a soft cloth to wipe
away excess water from its surface before using it.
During daily use, avoid wearing the band too tightly.
Keep its contact area dry and regularly clean the
band straps with water. Immediately stop using the
band and seek medical assistance if the contact area
on your skin shows signs of redness or swelling.
This band is a not a medical device, any data or
information provided by the band should not be used
as a basis for diagnosis, treatment, or prevention of
disease.

Name: Mi Smart Band 4C
Model: HMSH01GE
Fitness Tracker Net Weight: 13 g
Fitness Tracker Dimensions: 58.69 × 20.72 × 16.52 mm
Strap Material: TPU
Clasp Material: PA
Adjustable Length: 150.68–198.74 mm
Compatible with: Android 4.4 & iOS 10 or above
Battery Capacity: 130 mAh
Battery Type: Lithium Polymer
Input voltage: DC 5.0 V
Input Current: 140 mA Max.
IP Rating: 5 ATM
Operating Temperature: -10°C to 50°C
Wireless Connectivity: Bluetooth 5.0 BLE
Maximum Output Power: 6 dBm
Operation Frequency: 2402-2480 MHz
Specifications
11

All products bearing this symbol are waste
electrical and electronic equipment (WEEE
as in directive 2012/19/EU) which electronic
equipment (WEEE as in directive 2012/19/EU)
which should not be mixed with unsorted
household waste. Instead, you should
protect human health and the environment
by handing over your waste equipment to a
designated collection point for the recycling
of waste electrical and electronic equipment,
appointed by the government or local
authorities. Correct disposal and recycling
will help prevent potential negative
consequences to the environment and
human health. Pleasecontact the installer
or local authorities for more information
about the location as well as terms and
conditions of such collection points.
Disposal and Recycling Information
12

Hereby,Xiaomi Communications Co., Ltd.
declares that the radio equipment type
HMSH01GE is in compliance with Directive
2014/53/EU. The full text of the EU
declaration of conformity is available at the
following internet address:
http://www.mi.com/global/service/support/
declaration.html
For regulatory information, product certification, and
compliance logos related to the Mi Smart Band 4C,
please go to More >Settings >Regulatory.
Certifications and Safety Approvals
13
Manufactured by: Xiaomi Communications Co., Ltd.
Address: No.019, floor 9, building 6, yard 33, middle
Xierqi Road, Haidian District, Beijing, P.R. China
For further information, please go to www.mi.com

WARRANTY NOTICE
As a Xiaomi consumer, you benefit under certain conditions from
additional warranties.Xiaomi offers specific consumer warranty
benefits which are in addition to, and not instead of, any legal
warranties provided by your national consumer law. The duration
and conditions related to the legal warranties are provided by
respective local laws. For more information about the consumer
warranty benefits, please refer to Xiaomi's official website
https://www.mi.com/en/service/warranty/. Except as prohibited
by laws or otherwise promised by Xiaomi, the after-sales services
shall be limited to the country or region of the original purchase.
Under the consumer warranty, to the fullest extent permitted by
law,Xiaomi will, at its discretion, repair, replace or refund your
product. Normal wear and tear,force majeure, abuse or damage
caused by the user's negligence or fault are not warranted. The
contact person for the after-sale service may be any person in
Xiaomi's authorized service network, Xiaomi's authorized
distributors or the final vendor who sold the products to you. If in
doubt please contact the relevant person as Xiaomi may identify.
The present warranties do not apply in Hong Kong and Taiwan.
Products which were not duly imported and/or were not duly
manufactured by Xiaomi and/or were not duly acquired from
Xiaomi or a Xiaomi’s official seller are not covered by the present
warranties. As per applicable law you may benefit from
warranties from the non-official retailer who sold the product.
Therefore, Xiaomi invites you to contact the retailer from whom
you purchased the product.
14
