Xilica Audio Design XP Series User manual

XP Series
Loudspeaker Management System
QUICK START GUIDE 快捷控制设置
XILICA Audio Design

如何可以方便快捷控制设置您的 XP 音箱控制器
史力卡音频设计公司设计开发的 XP 控制器在操控方面极之方便及简单，用户可以透过 XP
本机面板控制或是透过随机的 PC 计算机软件控制：
如通过 XP 面板控制控制，主是分为两部份操控
（一）是主系统方面 (面向面板 LCD 显示屏右手面的 2行X 3 键)
即是关于主体控制方面，
按下 ENTER 使可进入主系统控制部份，内里包括-Recall 呼叫节目，Store 储存节目，Config
分频设置，（如 2、3、4分频），Copy 通道复制设置， General 系统通用单位设置，Secure
保安锁定设置等。
用户可按一下 右下边的 Enter, 再按一下 上方 << Menu >> (菜单键)选择以上各项目的设
置，之后按中间行两个 << Cursor >> 键，选择需要设置的项目，再转动 右面大圆旋钮便可
设置各项目。
（二） 通道参量设置 (有关各通道自己的参数)
以右手按下在右面大圆旋钮键旁的<< Menu Control>>菜单控制键同时，左手按下需要修改的
通道，便可以对各通道进行设置。正进行修改的通道下面的绿色 LED 灯会发亮，表示通道
正在修改中。(如果需要两个或以上通道一起连锁设置，用户可以按下右手按下在右面大圆
旋钮键旁的 Menu Control 的同时，再按下各个需要修改参量的通道 Mute 键)，之后按下<<
Menu >>或<< Cursor >> 键到需要修改参量项目中，转动大圆旋钮键便可对各通道作如下的设
置：
各通道参量可修正如下：
-音量设置 Level +15 至-40 db, 再按<< Cursor >> 向右，相位 + / - 再>>向右，延时 0 –1300
ms
-再按一下<< Menu>>、<< Control>>及大圆旋钮键，便可设置均衡器 EQ 1 至8的参量

-再按一下<< Menu >>便进入 XOVER 分频器设置，按下<< Cursor >> 及大圆旋钮键，便可
设置滤波器类型（或 OFF 直通），低端分频频率 FRQL，分频斜度 SLPL、FTRH高频端滤
波器类型，FRQH 分频频率、分频斜度 SLPL。
-再按一下 << Menu >> 便进入，限幅器 LIMIT、THRESH 门限 -20 至+20dbu，再按下<<
Cursor>>及大圆转动键，便可设置 ATTACK 起动时间 0.3 – 100ms，RELEASE 释放时间
200ms –3200ms 。
-再按一下<< Menu >>便进入 通道声源，选择 ON 输入声源，OFF 不输入声源，可单独或
合并声源。
再按一下<< Menu >> Name 设置通道名称，转动大圆旋钮键选择 A –Z
设置完成之后，按一下右下边的 Enter 键跳出设置，回到主显示，再按 Enter，按<< Menu >>
右键一次，见到 Store 储存节目，共可储存 30 个节目，按 <<Cursor>> 之后便可设置节目
名称，最多 12 英文的字符，最后按 Enter 2 次，便可把节目储存。
修改节目参数之，一定要把节目储存下来，修改节目才不会丢失。否则关了电源之后，XP 便
回复原先上次未修改前的设定。
快速设置参考
各通道设置：
音量 LEVEL：
按 Menu Control 及通道键： 到达 Level 音量转动大圆旋钮键设置音量
改变通道相位 POL
按 Menu Control 及通道键 Cursor > 转动大圆旋钮键设置 +正相/ - 180 度反相
延时 DELAY
按 Menu Control 及通道键 > Cursor > Cursor > 转动大圆旋钮键设置 0–1300ms
均衡器 EQ1 至8按Menu 键的右边 键 1次，便可到 EQ 菜单
按 Menu Control 及各通道键 > Menu > Cursor > 设置电平 > Cursor > 设置频率 >
Cursor > 频宽 ( Q 值) Cursor > 均衡器类型 PEQ 参量均衡，Lo-Shf 低频端 或 Hi-Shf
高频端。
分频点 XOVER (按Menu 键的右边 键 2次，便可到 分频菜单)

按 Menu Control 及通道键> Menu > Menu > 转动大圆旋钮键设置 及 Cursor > 设置其
它参数
限幅器 Limiter (按Menu 键的右边 键 3次, 便可到 限幅器菜单)
按 Menu Control 及通道键> Menu > Menu > Menu > 转动大圆旋钮键设置 及 Cursor >
设置其它参数
音源 Source (按Menu 键的右边 键 4次, 便可到 音源菜单)
按 Menu Control 及通道键> Menu > Menu > Menu > Menu > 转动大圆旋钮键设置及
Cursor > 设置 On /Off
通道名称 Name (按Menu 键的右边 键 5次, 便可到 通道名称菜单)
按 Menu Control 及通道键> Menu > Menu > Menu > Menu > Menu > 转动大圆旋钮键设
置及 Cursor > 设置
主系统设置
呼叫节目 Recall
按Enter > 转动大圆旋钮键 选择节目号码及名称
节目储存 Store
按Enter > Menu > 转动大圆旋钮键选择节目储存号码及名称
立体声 2，3，4设定 Config
按Enter > Menu > Menu > 转动大圆旋钮键选择 None 不设置，Stereo 2 way 或
Stereo 3 way，Stereo 4 way
通道复制 Copy
按Enter > Menu > Menu > Menu >转动大圆旋钮键选择 SOURCE 源通道，可选择任何
输入或输出通道，Cursor >转动大圆旋钮键选择 TARGET 目标信道，可选择任何输入
或输出通道
改变系统通用参量单位设置 Generl- 频率如步进速率，延时显示单位，XP机号设置
按Enter > Menu > Menu > Menu > Menu > FREQ MODE 频率步进设计，转动大圆旋钮
键可设置 36/OCT 或All 全频率
再按 Cursor > DELAY UNIT 延时时间单位 转动大圆旋钮键可设置 ms 微秒/ ft 尺/ m
米。
改变系统 COMM 如端口选择，XP 机号等设置

再按 Cursor > DEVICE# 设置 本机号数 由 1 = 16 是给计算机软件时用，计算机软件可
同时控制多至 16 台XP 机
保安功能设置 Secure
按Enter > Menu > Menu > Menu > Menu > Menu > Secure，PASSWORD 输入密码 (预
设为不用输入任何文字)再按 Enter > Enter 2 次，XP 便锁定了。
解除保安功能设置，也如上一样做一次
注：只有通过 PC 计算机软件才可以修改密码，同时只可锁 XP 而不会锁 PC 计算机
软件。
**在Menu Control 下的一个 Speed 系统/速度键作用是可加快参量调节的速度，在修
改参量，转动大圆旋钮键 同时按下 Speed 键，可加快参节速度。
Xilica China 史力卡中国公司
Unit 14, 10/F, Kwai Cheong Centre, 50 Kwai Cheong Road, Kwai Chung, Hong Kong.
香港 葵涌葵昌路50 路葵昌中心10 楼14 室
Tel: [phone]
Fax: [phone]
E-mail : [e-mail]

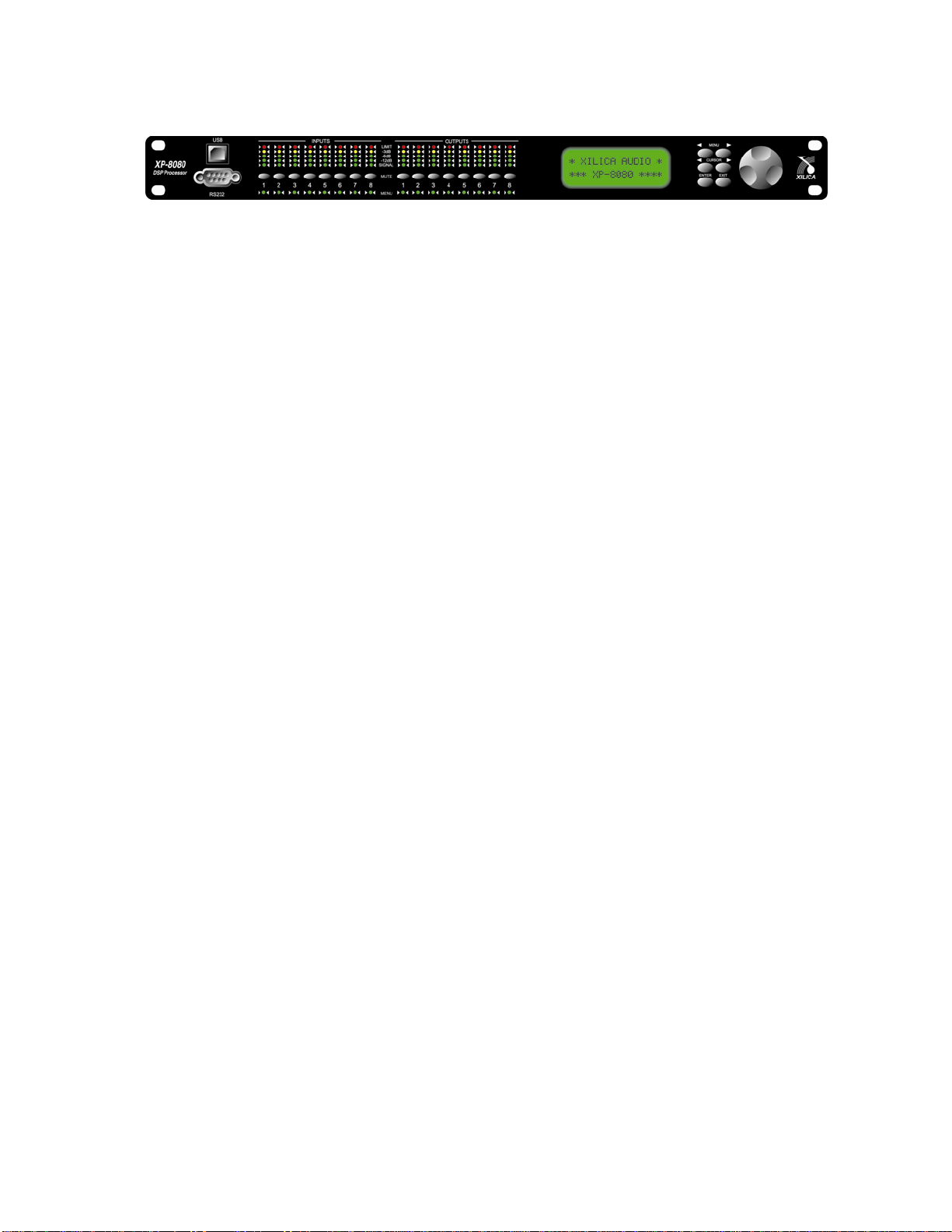

Front PanelFunction
1. USB –a standard Type B USB connector. Device driver from the provided software CD
must be installed prior to usage.
2. RS232 – a standard female DB9 socket. A straight through cable is required for PC
connection.
3. Mute (Channel Menu) Buttons – Mute or un-mute input and output channels. When an
input channel is muted, a red LED will come on for indication.
When the <<Menu or Menu>> key is held down, the Mute Buttons selects the
corresponding channel for the LCD menu display and is acknowledged by a green LED
below the button. The last modified menu will be displayed on the LCD. Multiple
channels can be linked or unlinked by pushing the desired channels. This eases
programming for same parameters across multiple channels. Multiple Inputs can be
linked together and multiple outputs can be linked together. Inputs and Outputs are
linked separately.
4. Channel Menu LED –Indicates the activated channels for data modification.
5. Peak Level LED –Indicates the current peak level of the Signal:
Signal, -12dB, -6dB, -3dB, Over/Limit. The Input Limit LED references to the device's
maximum headroom. The Output Limit LED references to the threshold of the output
limiter.
6. LCD –Shows all the necessary information to controlthe unit.
7. Menu Buttons –There are 6 menu keys: <<Menu (Menu Down), Menu>> (Menu Up),
<<Cursor (Cursor Down), Cursor>> (Cursor Up), Enter/Sys/Speed, Exit. The
functions of each key is explained below:
<<Menu: Go to previous menu screen. Holding this button down while
pressing Mute key will go to the specify channel menu.
Menu>>: Go to next menu screen. Holding this button down while pressing
Mute key will go to the specify channel menu.
<<Cursor: Go to previous cursor in the menu screen.
Cursor>>: Go to next cursor in the menu screen.
Enter/Sys/Speed: Enter is used only in the System Menu to proceed with selected
actions.
5 7
8
6
2
1
4
3

Sys enters the System Menu from the main menu.
Speed modifies delay and frequency (1 Hz resolution mode) data
values by 100X.
Exit: Exit to the Main Menu.
8. Rotary Thumb Wheel –Changes parameter data values. The wheel has travel velocity
sensing which ease large incremental data modifications. For modifying delay and
frequency (1 Hz resolution), pressing the Speed key simultaneously will
increment/decrement the data value by 100X.
Operating the Channel Menus
Channel Linking –While holding down the <<Menu or Menu>>, more than 1 channel from
the same group (Input or Output group) can be selected to link the channels together. The
green LEDs below the Mute buttons are lit for the linked channels. Any modification of the
data for the selected channel will be applied to the linked channels as well. To cancel the
linking, simply deselect the desired channel while the <<Menu or Menu>> key is still
pressed, or just press the Exit key to deselect all channels.
Input/Output Signal
LEVEL:
The level (or gain) ranges from -40.00dB to +15.00dB in 0.25dB steps.
POL:
The polarity (or phase) can be normal (+) or inverted (-).
DELAY:
The maximum delay permitted is 650ms, in steps of approximately 10us. It can be
displayed in ms, ft or m. The time unit of the delay is set in the System Menu. Please
refer to page 21 for more details.
Input/Output Equalizer
EQ#: Each input channel has 8 bands of equalization. This control selects one of the 8
available bands.
BYPASS:
This control will un-bypass (Off)or bypass (On) the currently selected band.

TYPE:
The 5 types of EQ that can be used are: parametric (PEQ), low shelf (LO-SHF), high shelf
(HI-SHF), 1st degree all-pass (AP-1), and 2nd degree all-pass (AP-2).
FREQ:
The EQ center frequency ranges from 20Hz to 30kHz in either 1Hz steps or 1/36 octave
steps. The frequency steps can be selected in the System Menu. Please refer to page 21
for more details.
BW:
The EQ bandwidth ranges from 0.02 to 3.61 octaves in steps of 0.01 octave. The
equivalent Q value is automatically shown besides the octave value. For 1st degree
all-pass (AP-1) filter, the bandwidth will sets the phase shift at the centre frequency. This
phase shift is gradually changed from 180 degrees above the centre frequency to the
specified value.
LEVEL:
The EQ level (or gain) ranges from -30.00dB to +15.00dB in 0.25dB steps.
Input Graphic Equalizer
GEQ#:
The graphic equalizer has 31 bands of equalization from 20Hz to 20kHz. This control
selects one of the 31 available bands. The frequency corresponding to each band is also
shown.
LEVEL:
The GEQ level (or gain) ranges from -30.00dB to +15.00dB in 0.25dB steps.
BYPASS:
This control will un-bypass (Off)or bypass (On) the entire GEQ for this channel.
Input/Output Crossover
TYPL:
The 3 available filter types for the low frequency crossover point (high pass) are:
Butterworth, Linkwitz Riley or Bessel.
FRQL:
The filtercut-off frequency forthe lowfrequency crossoverpoint(highpass) ranges from 20
to 30kHz in either 1Hz steps or 1/36 octave steps. The frequency steps can be selected in
the System Menu. Please refer to page 21 for more details.
SLPL:
The filter slope for low frequency crossover point (high pass) ranges from 6 to 48dB/octave.
If the selected filter type is Linkwitz Riley, the available slopes are 12, 24, 36 or 48
dB/octave only.
TYPH:

The 3 available filter types for the high frequency crossover point (low pass) are:
Butterworth, Linkwitz Riley or Bessel.
FRQH:
The filtercut-off frequency forthe highfrequency crossoverpoint (low pass) ranges from20
to 30kHz in either 1Hz steps or 1/36 octave steps. The frequency steps can be selected in
the System Menu. Please refer to page 21 for more details.
SLPH:
The filter slope for high frequency crossover point (low pass) ranges from 6 to 48dB/octave.
If the selected filter type is Linkwitz Riley, the available slopes are 12, 24, 36 or 48
dB/octave only.
Input Compressor
THRESH:
The compressor threshold ranges from -20 to +20dBu in 0.5dB steps.
ATTACK:
The compressor attack time ranges from 0.3 to 1ms in 0.1ms steps, then ranges from 1 to
100ms in 1ms steps.
RELEASE:
The compressor release time can be set at 2X, 4X, 8X, 16Xor 32X the attack time.
RATIO:
The compressor ratio is the slope in which the signal is compressed. It ranges from 1:1 to
1:40.
Input/Output Channel Name
NAME:
A 6 characters name canbe assigned to each channel.
Output Limiter
THRESH:
The limiter threshold ranges from -20 to +20dBu in 0.5dB steps.
ATTACK:
The limiter attack time ranges from 0.3 to 1ms in0.1ms steps, then ranges from 1 to 100ms
in 1ms steps.
RELEASE:
The limiter release time can be set at 2X, 4X, 8X, 16X or 32X the attack time.
Output Source
IN1-8:
This sets the input channel source for the current output channel. It can be used to mix
the input source (in dB) or disable it (Off). If more than one input sources are enabled,
they will be added together as the source for the current output channel.

Operating the System Menus
The System Menus allowthe user to control and change parameters thatare related to the
system behavior and general operation. It can be accessed by pressing the Sys key in the
main menu (when no Input/Output or System Menu is activated). All System Menus require
pressing the Enter key to confirm and save the settings.
Preset Recall
The XP has a built in non-volatile memory that can store up to 30 different preset setups.
P:
This control selects which program to recall from the non-volatile memory. The program
name is displayed to the right of the program no.
Preset Store
The XP has a built in non-volatile memory that can store up to 30 differentpreset setups. A
program can be stored using this menu. The old program with the same program number
will be replaced. Once the program is stored in the flash memory, it can be recalled at a
later time, even after power down.
P:
This control selects which preset location in the non-volatile memory to be saved.
NAM:
Adescriptive name of up to 12 characters can be assigned to each program.
Security Lock
The XP enables the user to securethe unit and prevent undesired changes in the setup. In
order to lock or unlock the unit the user must enter the correct password. The user can
only lock or unlock all menus using the front panel, XConsole is required to lock or unlock
individualmenu.
PASSWORD:
The password is 4 characters in length. The factory default of a new unit does not require
a password. The user can change the password via XConsole or the Set Password
menu.
