Xilinx A-U250-P64G User manual

1829XIxb1526_fc c3 Page 1 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
..........
Atlas Compliance & Engineering, Inc.
TestReportClassA
FCCCFR47Part15COMPLIANCE
Part15.107(b)andPart15.109(b&g)Limits
Xilinx,Inc.
2100LogicDrive
SanJose,CA95124 USA
Product:
SpecializedReprogrammableHardware
Models:
A-U250-P64G&A-U250-A64G
TestReportNumber: 1829XIxb1526_fcc3
DateofReport: July20,2018
This report contains 35 pages and may be reproduced in full only.
Partial reproduction may only be done with the written consent of
Atlas Compliance & Engineering, Inc.
Testing Cert #1007.01

1829XIxb1526_fc c3 Page 2 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
Change History
1829XIxb1526_fc c3
Rev.
Change Description
Reason/Application
Date
Appvd.
DRAFT
Preliminary version of report for
review
Applies to A-U250-P64G & A-
U250-A64G
July 20, 2018
MEB
c1
Issue of final report
Acceptance of report by Xilinx,
Inc.
August 6, 2018
MEB
c2
Added photo on page 15
Requested by Manufacturer
August 9, 2018
MEB
c3
Changed pictures on pgs 16 - 19
Newer shrouds
August 31, 2018
MEB

1829XIxb1526_fc c3 Page 3 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
Table of Contents
Change History...................................................................................................................................................2
Table of Contents ...................................................................................................................................................3
General Information ...............................................................................................................................................5
Executive Test Summary........................................................................................................................................6
Test Equipment.......................................................................................................................................................7
EUT Technical Description....................................................................................................................................8
Test Configuration................................................................................................................................................10
EUT Description / Note:...................................................................................................................................10
EUT Support Program......................................................................................................................................10
EUT Modifications for Compliance .................................................................................................................10
EUT Support Devices.......................................................................................................................................11
I/O Ports and Cables.........................................................................................................................................11
Equipment Under Test..........................................................................................................................................12

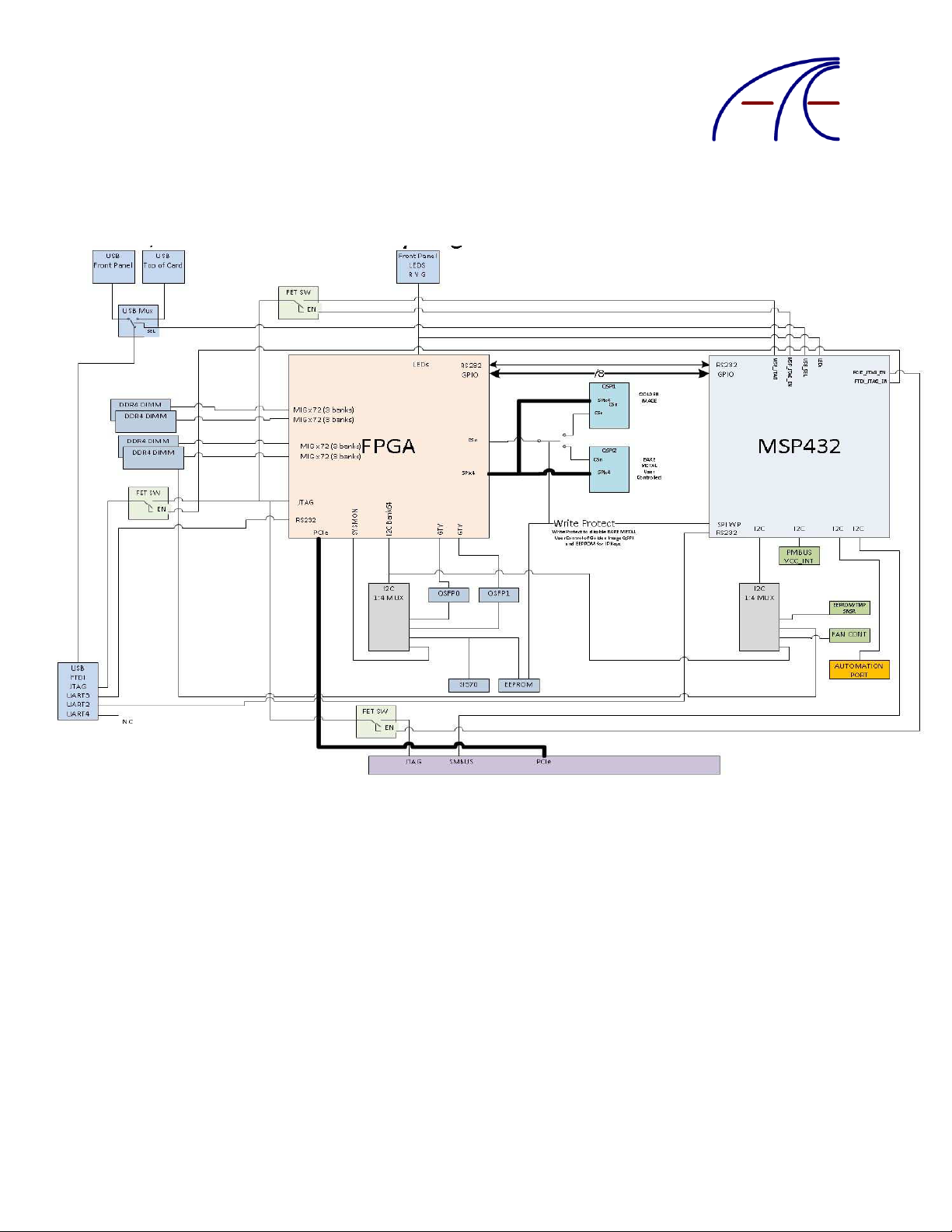

Equipment Block Diagram...................................................................................................................................16
Test Setup (Radiated Emissions)..........................................................................................................................21
Test Setup (Conducted Emissions).......................................................................................................................23
Appendix A: EUT Setup and Requirements.........................................................................................................24
Test Methods for Emissions .................................................................................................................................25
EUT Setup........................................................................................................................................................25
Emissions Test Procedure.................................................................................................................................25
Radiated Emission Testing (Electric Field)......................................................................................................26
Conducted Emission Testing............................................................................................................................27
Temperature and Humidity...............................................................................................................................27
Sample Calculations.........................................................................................................................................27
Part 15.107(b) and 15.109(b & g) Limits .............................................................................................................28
Appendix B: Measurement Data ..........................................................................................................................29
Report of Measurements Radiated Data...........................................................................................................30
Report of Measurements Conducted Data........................................................................................................31
Radiated Data for 15.109(b & g) Class A at 10 & 3 Meters.............................................................................32
Conducted Data for 15.107(b) Class A Line ....................................................................................................33
Conducted Data for 15.107(b) Class A Neutral................................................................................................34
COMPLIANCE VERIFICATION REPORT.......................................................................................................35

1829XIxb1526_fc c3 Page 4 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
Table 1 - Equipment Under Test ..........................................................................................................................10
Table 2 - Support Equipment Used For Test........................................................................................................11
Table 3 - EUT Port Termination’s........................................................................................................................11
Table 4 - Host Port Termination's.........................................................................................................................11
Table 5 - Class A 10-Meter Distance Radiated Limits.........................................................................................28
Table 6 - Class B 10-Meter Distance Radiated Limits.........................................................................................28
Table 7 - Class A Power Line Conducted Limits.................................................................................................28
Table 8 - Class B Power Line Conducted Limits .................................................................................................28
Table 9 - Six Highest Radiated Emission Levels .................................................................................................30
Table 10 - Six Highest Conducted Emission Levels ............................................................................................31
Table 11 - Radiated Data......................................................................................................................................32
Table 12 - Line Scan Data....................................................................................................................................33
Table 13 - Neutral Scan Data ...............................................................................................................................34

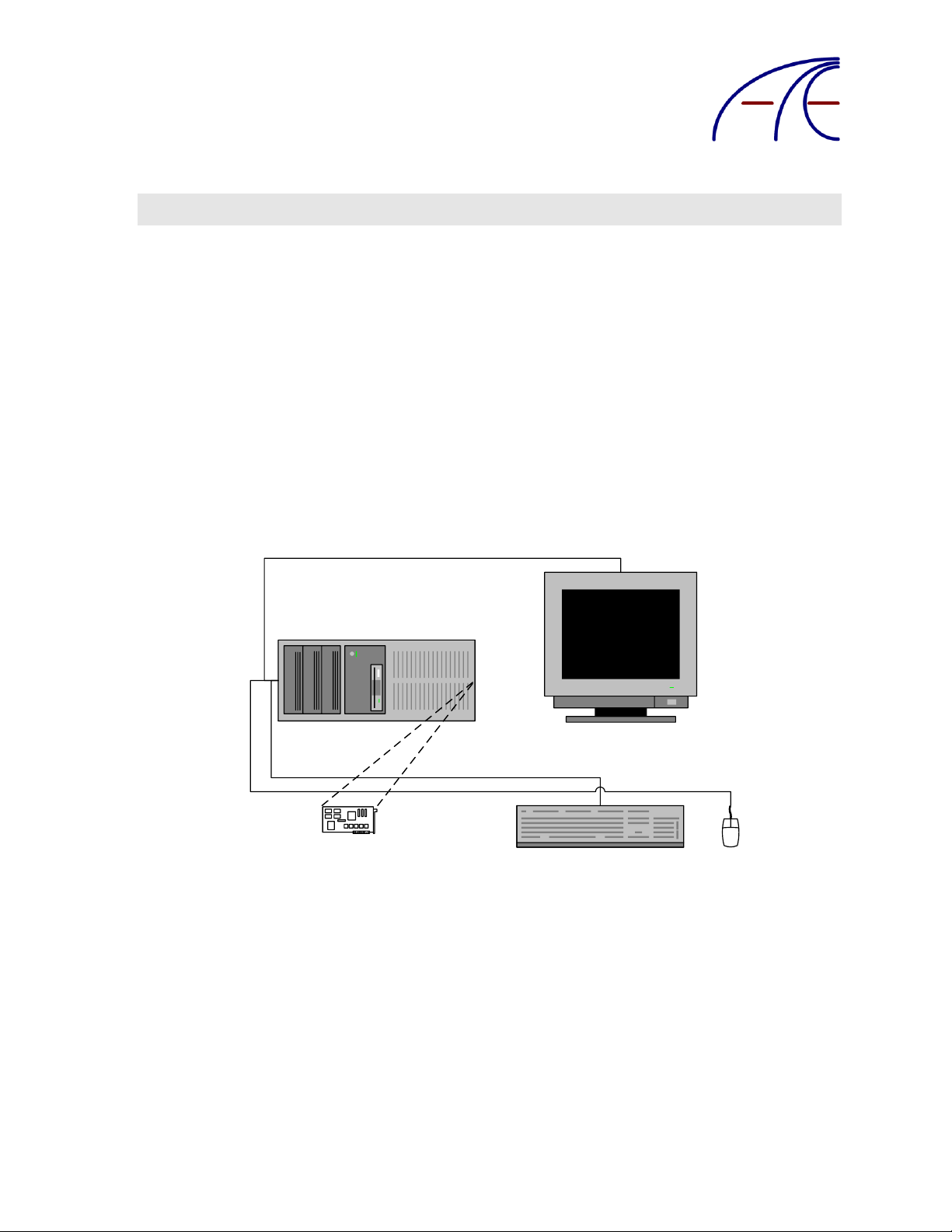

Figure 1 - Test Setup Diagram .............................................................................................................................20
Figure 2 - Line Scan .............................................................................................................................................33
Figure 3 - Neutral Scan.........................................................................................................................................34

1829XIxb1526_fc c3 Page 5 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
General Information
TestReportNumber: 1829XIxb1526_fcc3
DateProductTested: July13-18,2018
DateofReport: July20,2018
Applicant: Xilinx,Inc.
2100LogicDrive
SanJose,CA95124 USA
ContactPerson: JohnPham
EquipmentTested: SpecializedReprogrammableHardware
TradeName: SpecializedReprogrammableHardware
Models: A-U250-P64G&A-U250-A64G
Purposeof Test: TodemonstratethecomplianceoftheSpecialized
ReprogrammableHardware,A-U250-P64G&A-
U250-A64G,withtherequirementsofFCCCFR47
Part15RulesandRegulationstothelimitsofClassA ,
usingtheproceduresstatedinANSIC63.4-2014.
FrequencyRangeInvestigated: 150kHzto40000MHz
TestSiteLocations: FCCmeasurementfacilityregistrationnumber
US1016,FieldStrengthMeasurementFacility:
AtlasCompliance&Engineering,Inc.
726HiddenValleyRoad
RoyalOaks,California95076
ConductedInterferenceMeasurementFacility:
AtlasCompliance&Engineering,Inc.
1792LittleOrchardStreet
SanJose,California95125
TestPersonnel: MarioE.BaraonaSr.
EMCEngineer

1829XIxb1526_fc c3 Page 6 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
Executive Test Summary
Atlas Compliance and Engineering, Inc. was contracted by Xilinx, Inc. to test the
Specialized Reprogrammable Hardware, A-U250-P64G & A-U250-A64G, to the
standards listed below. The tests were performed on samples of the equipment provided
by Xilinx, Inc.. Results of the tests are summarized below.
FCCCFR47Part15RulesandRegulations:
SubpartBSection15.107(b)andSection15.109(b&g)ClassADigital
DevicetestedperANSIC63.4-2014procedures:
MeetsallapplicablerequirementsofFCC
Part15ClassALimits
SeeAppendixB:MeasurementDatafordetailedtestresults.

1829XIxb1526_fc c3 Page 7 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
Test Equipment
The following list contains the test equipment that was utilized
in making the measurements in this report.
Description _ Model
Serial
Manufacturer
Calibrated
Calibration Due
BiLog Antenna _ 3143B
00217636
ETS-Lindgren
9/18/17
10/3/19
BiLog Antenna _ CBL6112B
2783
Chase Electronics Ltd.
6/10/17
6/10/19
Double Ridge Guide Horn Antenna _ 3115
9003-3340
EMCO
11/24/17
11/24/19
LISN _ 3825/2
9007-1683
EMCO
7/28/17
7/28/19
LISN _ 4825/2
9808-1088
EMCO
5/25/17
5/25/19
OATS –RF Cable 75 ft. _ BM95012.900.
109
Bracke Manufacturing, LLC
1/16/17
1/16/19
Chamber –NPS-2301-5400-NPS Cable 45 ft.
0110
IW Microwavw
1/16/17
1/16/19
Pre amp 9kHz-2GHz _ CPA9231A
3259
Schaffner
1/16/17
1/16/19
Pre amp 9kHz-2GHz _ LNA6901
74007
Teseq
5/15/17
5/17/19
Pre amp 1GHz –26.5GHz_HP 89449G
3008400910
HP
5/15/17
5/17/19
EMI Test Receiver 9 kHz - 2500 MHz _ ESPC
DE15934
845296/0024
Rohde & Schwarz
4/17/17
4/17/19
EMI Test Receiver 9 kHz - 2500 MHz _ ESPC
(bat)
DE14459
843820/0015
Rohde & Schwarz
1/19/17
1/19/19
Spectrum Analyzer 100Hz-22GHz _ 8566B
2542A13058 (IF)
2637A03426 (RF)
HP
3/10/17
3/10/19
Quasi-Peak Adapter _ 85650A
2521A00716
HP
3/10/17
3/10/19
4.8kVA AC Power Source _ 4801iL
HK511991
California Instruments
VOP
VOP
Temperature and humidity probe _ RH-20F
200-97-082591
Omega Engineering
3/24/17
3/24/19
VOP = Verification of Performance
NCR = No Calibration Required
Prior to utilizing equipment, test validations are performed.

1829XIxb1526_fc c3 Page 8 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
EUT Technical Description
U250 specialized reprogrammable hardware for computationally intensive applications,
specifically targeting the fast-growing markets for live video transcoding, data analytics,
genomics, and machine learning.
PCIe Gen1/2/3 x1/2/4/8 and dual x8(PCIe bifurcation capable.
¾ length, Full Height x16 PCIe form factor.
4 banks of DDR4 DIMM 72 bit wide memory (ECC), rated at 2400 MT/s.
Two QSFP28 sites capable of data rates up to 25Gpps per channel.
On-board re-programmable flash configuration memory.
Front Panel JTAG Access via USB port.
FPGA configurable over USB/JTAG and dual QSPI configuration flash.
Xilinx® Kinex® UltraScale+™ VU9P FPGA (U200), Virtex® UltraScale+™
XVCU13P FPGA (U250)
Voltage, current, and temperature monitoring.
Thermal management with variable rate fan for minimal noise
Dual QSPI, selectable from MSP line
2xI2C bus, compatible with SMBus, connected directly from MSP432, one routed
through PCIe, another through 6-pin header.

1829XIxb1526_fc c3 Page 9 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com

1829XIxb1526_fc c3 Page 10 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
Test Configuration
Customer: Xilinx, Inc.
Test Date: July 13 - 18, 2018
Specification: FCC CFR 47 Part 15
ClassALimits
EUT Description / Note:
The EUT, Specialized Reprogrammable Hardware,A-U250-P64G &A-U250-
A64G uses a 156.2MHz oscillator and the PCIe 100Mhz clocks. TheA-U250-
A64G was tested as the worst case for emission testing. See the EUT Technical
Description and Block Diagram for further details.
Table 1 - Equipment Under Test
Model:
Description:
S/N
A-U250-A64G
Specialized Reprogrammable Hardware
A-U250-P64G
Specialized Reprogrammable Hardware
EUT Support Program
The EUT and all support equipment were exercised in all operating modes for
determination of worse case emission under typical operations.The system is
continuously running with the XBB Demo program as observed on the host PC
monitor. Data reported for conducted and radiated emissions reflects worse
case conditions.
EUT Modifications for Compliance
There were no modifications performed on the EUT. The test results state the
emission and immunity level of the EUT in the condition as it was received
July 13, 2018.

1829XIxb1526_fc c3 Page 11 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
EUT Support Devices
Table 2 - Support Equipment Used For Test
Model
Description
S/N
R740
Dell EMC Power Edge
7F48CP2
E178FPc
Dell LCD Monitor
CN-0W021K-64180-921-0M9L
SK-8115
Dell USB Keyboard
CN-0DJ331-71616-6BE-0SX5
M-UVDell1
Dell USB wired Mouse
0815018097
I/O Ports and Cables
Table 3 - EUT Port Termination’s
I/O Port
Cable Type
Length
Connector
Termination
CN1 / CN2
Shielded
2 M
Mini-SAS HD
Looped back
Table 4 - Host Port Termination's
I/O Port
Cable Type
Length
Connector
Termination
USB
Shielded
2 m
Type A
Keyboard
USB
Shielded
2 m
Type A
Mouse
Video
Shielded w/FB
2.2 m
15 pin HD
Monitor
Power
Non-Shielded
7 FT
IEC
Power Mains

1829XIxb1526_fc c3 Page 12 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
Equipment Under Test

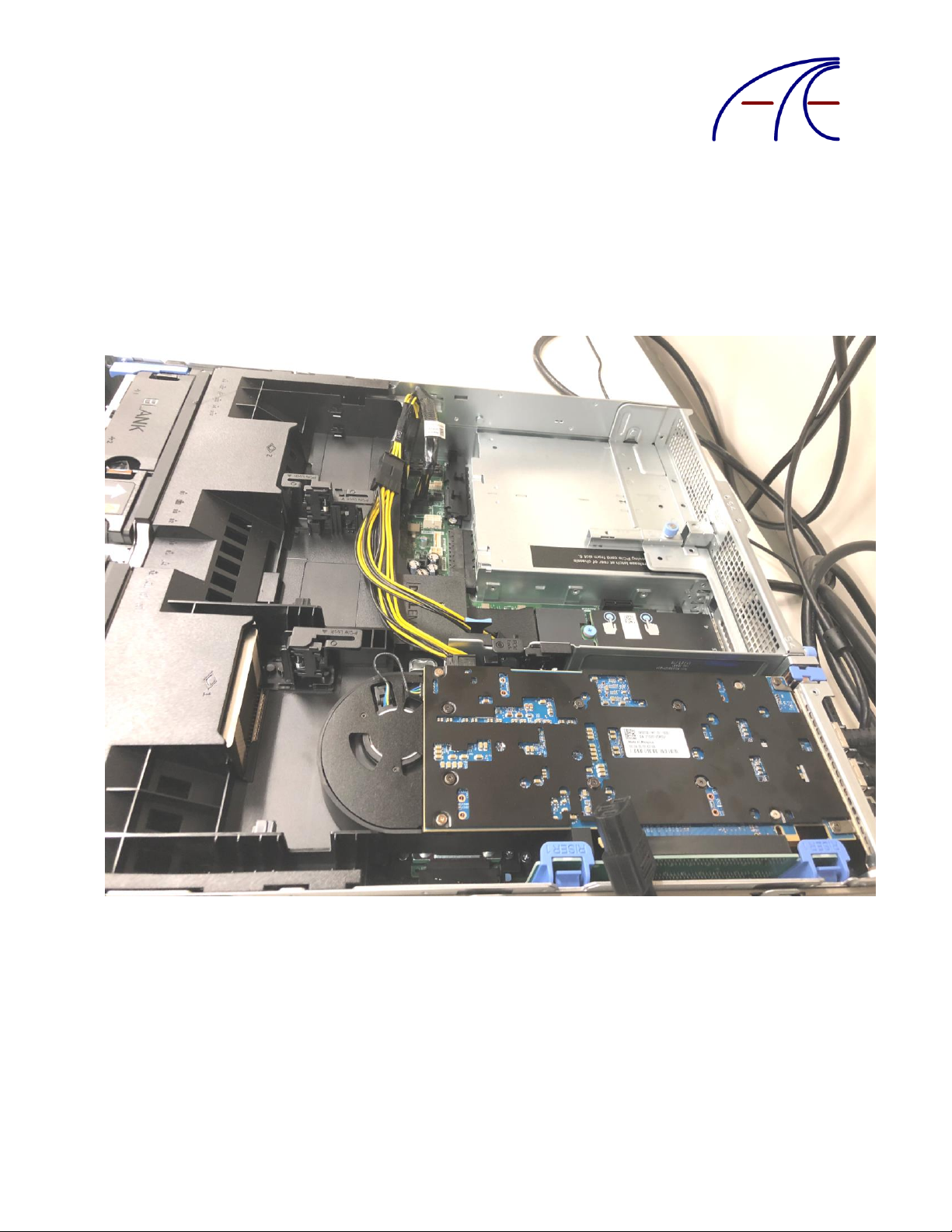

The photographs below show the condition of the EUT for test.

1829XIxb1526_fc c3 Page 13 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com

1829XIxb1526_fc c3 Page 14 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com

1829XIxb1526_fc c3 Page 15 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com

1829XIxb1526_fc c3 Page 16 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
A-U250-A64G

1829XIxb1526_fc c3 Page 17 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com

1829XIxb1526_fc c3 Page 18 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
A-U250-P64G

1829XIxb1526_fc c3 Page 19 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com

1829XIxb1526_fc c3 Page 20 of 35
Atlas Compliance & Engineering, Inc.
1792 Little Orchard Street
San Jose, CA 95125
Phone [phone]
Fax [phone]
Web www.atlasce.com
Equipment Block Diagram
Following is the block diagram of the test setup. Refer to TEST
CONFIGURATION pages for port connections and information.
Figure
Monitor
Keyboard Mouse
USB
USB
Video
EUT:
U250
EUT
1
- Test Setup Diagram
