HL-WALL-15
Solar Lamp
USER MANUAL

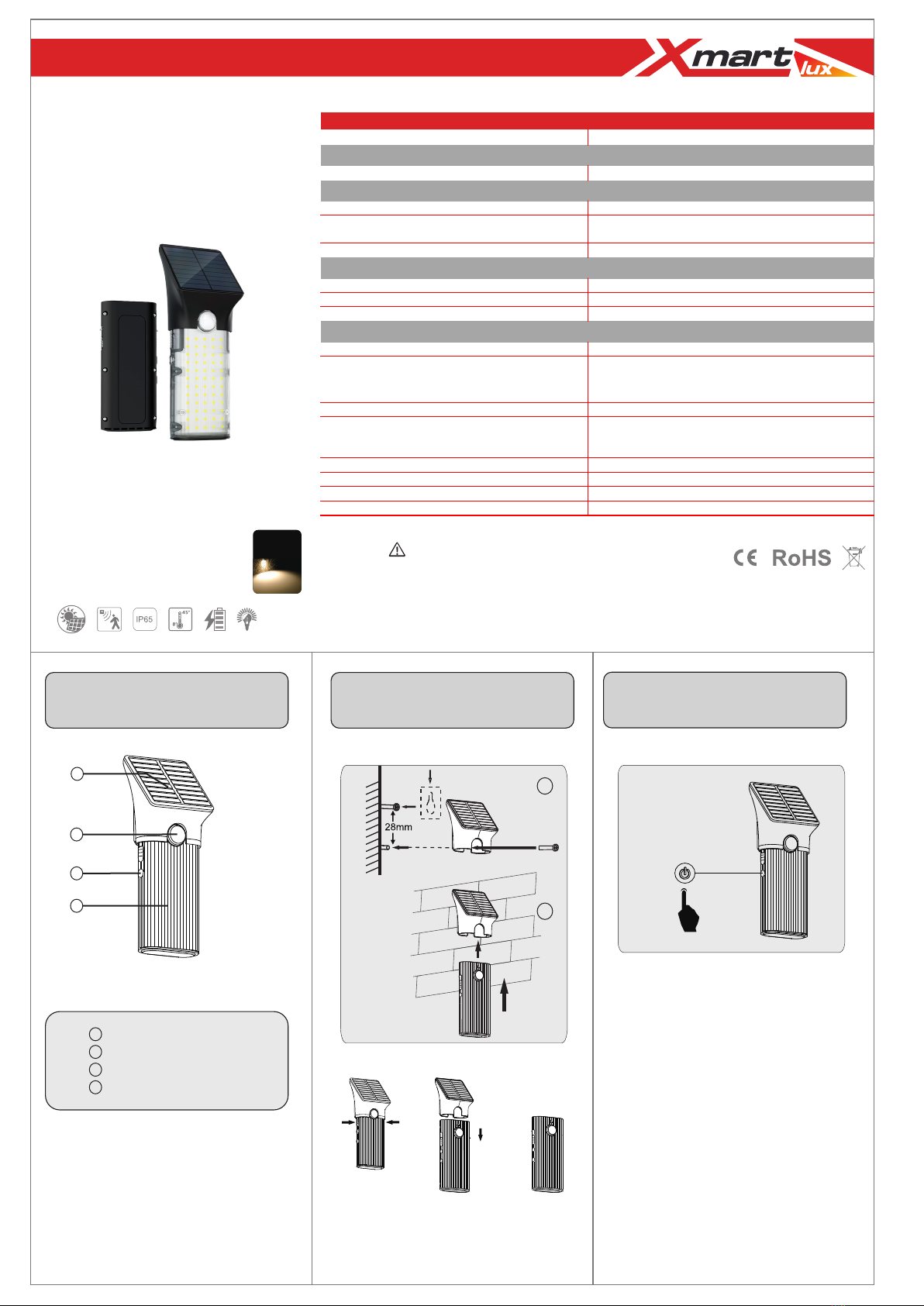

Parts Identication Operation Instructions Installation Instructions
Detachable portable design
Power On/Off: Press switch for 1.5 Sec, approx.
Mode Change: Press switch shortly to choose Mode 1,
Mode 2, or Mode 3.
Available Modes:
Mode 1 50LM + PIR 1000LM x 10s (Red):
Mode 2 (Green): 0LM + PIR 1000LM x 10s
Mode 3 (Orange): 200LM x 6H
Solar Panel
PIR and Indicator
Switch
Lampshade
3
2
1
4
Special Features:
Monocrystalline Solar Panel
Li-ion Rechargeable Battery
Equipped With PIR Sensor
Congurable Operation Modes
Detachable and portable design
PC Case
Compact Design, High Brightness
1000
lumens
4
2
1
3
Fix the lamp to the wall with screws
www.xmart-ups.com
During portable operation press button to change Luminosity:
1st Push: 100LM
2nd Push: 200LM
Battery Power Indication:
> 70%Green:
Orange: Between 30% and 70%
Red: < 30%
Note: Indicator LED regularly shows Battery Capacity.
When changing Operation Mode it shows selected
mode for 5S, then it returns to show Battery Capacity
Select Operation Mode according to your own requirements
Wall
1
2
IMPORTANT
1. Use standard installation accessories
2. If stored, charge the lamp every 3 months, to avoid
battery damage
3. If stored for more than 1 year without charging, make a
charge & discharge process to assure battery is in good
condition, otherwise it is not allowed to use.
WARNING
1. Keep the device away from re and re risk
2. There are no replaceable parts inside the lamp. If disassembled warranty will be void.
3. Do not remove battery for other use. If backup time is too short, lamp’s battery needs to be recharged under bright sunlight
4. Clean solar panel regularly for more efcient operation and longer backup (Suggestion: At least every 6 months)
5. Long term storage might cause battery damage and leakage, Leakage might cause battery spontaneous combustion
6. Operation temperature for this lamp must comply with Technical Specications
7. Solar Panel must be oriented toward sun for battery charging efciency
HL-WALL-15 - TECHNICAL SPECIFICATIONS / ESPECIFICACIONES TECNICAS
Luminosity / Luminosidad (LM) 1000
SOLAR PANEL / PANEL SOLAR
Type & Capacity / Tipo y Capacidad Monocrystalline / Monocristalino, 1 W
Li-Ion BATTERY / BATERIA Li-Ion
Capacity / Capacidad 3.7 Vdc / 7.4WH / 2.000 mAH
Charge & Discharge Temperature /
Temperatura de Carga y Descarga
Charge / Carga: -10 to 60 °C
Discharge / Descarga: -20 to 60 °C
Recharge Time / Tiempo de Recarga 10 H
ILLUMINATION / ILUMINACION
LED (OSRAM) 2835 - 20pcs
Light Color Temperature / Temperatura de Color de la Luz 4000K, Ra 80+
Efciency / Eciencia 190 lm/W
OPERATION / OPERACION
Backup (During cloudy days) / Autonomía (con Poca Luz Solar) Up to 10 nights / Hasta 10 noches
Operation Modes / Modos de Operación
Mode 1: 50LM + PIR (1000LM)
Mode 2: 0LM + PIR (1000LM)
Modo e: 200LM x 6h
Mode Indication / Indicación de Modo Mode 1: Red/Rojo - Mode 2: Green/Verde - Mode 3: Orange/Naranja
Capacity Indication / Indicador de Capacidad
Green / Verde: >70%
Orange / Naranja: 70% to / a 30%
Red / Rojo: <30%
PIR 120º, >5m
IP/IK Codes / Códigos IP/IK IP65 / IK10
Directives / Normativas CE (IEC60598-1 / IEC60598-2-3 / EN55015 / EN61547)
Installation Height / Altura de Instalación 1.6 mts

HL-WALL-15
80.26
Top View / Vista Superior
33
71.72
Side View / Vista Lateral
225.04
Front View / Vista Frontal
Isometric View / Vista isométrica
Packing Information / Información de Empacado:
Dimensions / Dimensiones
Dimensions / Dimensiones
Carton / Cartón (mm) Net/Neto Gros/Bruto
Inner Box / Caja Interna 1 86 x 78 x 235 0.5 0.55
Carton / Cartón 24 490 x 360 x 250 12 12.5
Net and Gross weight information is for reference purposes only / La información de pesos Neto y Bruto, es solo referencial
Model
Modelo
Packing Type
Tipo de Empaque
Packed Units
Unidades Empacadas
Carton Weight / Peso Cartón (Kg)
HL-WALL-15
