Xmultiple XP1 POWER 2500 User manual

XMULTIPLE
XP1 Rechargeable
Battery/Cable Manual

-Specification
-XP1 Accessories
-Xmultiple Ninety Days Limited Warranty
(For Additional information go to www.XP1power.com)
Safety Guidelines
Read following guidelines carefully for your acknowledgement
before using the XP1.
Batteries
Lithium-ion battery. Do not try to open the XP1 rechargeable
battery unit. Charges your iPhone/iPod and charges your
XP1-Power battery with the touch of a button.

Connecting & Disconnecting
To connect or disconnect your XP1 power cable you must
place your fingers on the connectors and unattached them.
Never disconnect your unit by pulling on the cable. This can
damage your XP1 power cable.
XP1 products are not Water-resistant
Should moisture get in your XP1, please do not attempt to
remove the battery or open the XP1, you may run the risk of
electrical shock.
Backup Copy (Just as a reminder)
Please remember to make backup copies of manual if
required.

Connecting to other devices
XP1 XP-2500 units are only design to connect to USB
compatible products and to the iPhone and iPod'.
Restricting Children’s Access to your XP1
XP1 cables are not recommended for use by small children
under 12 years of age
Avoid dropping or impacting your XP1
Dropping or excessively impacting the XP1 will cause damage.
Cleaning your XP1
When cleaning the outside of your XP1:
- Make Sure your XP1 is unplugged.

-Use a damp, soft, lint-free cloth. Avoid getting moisture in
the USB and device side connections, buttons or any other
openings.
-Don’t use aerosol sprays, solvents, alcohol, or abrasives.
Battery Maintenance
To maintain the best performance of your battery, please
carefully follow the guidelines listed below.
-Plug in the XP1 into the USB port of your computer or into
a AC power adapter and attach to a power source.
-Charge the battery only in temperatures that range from
0C to 40C. Charging in direct sunlight or in high humidity
areas may cause damage.
-Do not attempt to disassemble or short-circuit the

battery.
-Make sure the metal contact on your cable USB connector
and the iPhone/iPod connector are always clean in order
to provide your XP1 with the best performance.
Important!!
Never dispose of the battery by incineration.
*Disposal of Lithium Ion (Li-Ion) Batteries:
-For safety, do not handle a damaged or leaking Li-Ion battery.
-For safe disposal options of your Li-Ion batteries, please
contact your nearest XP1 distributor.

Package content:

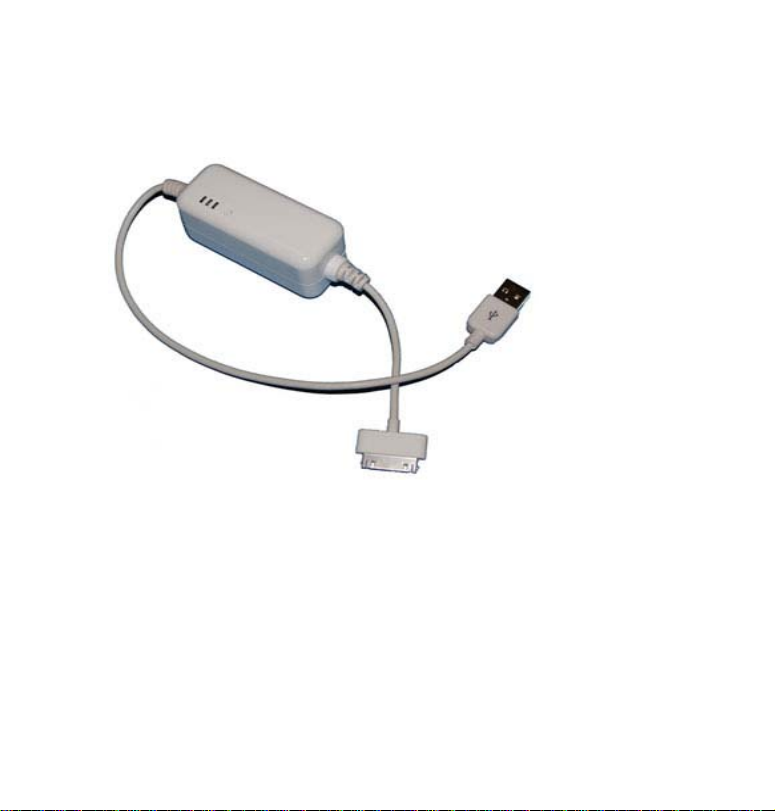

1 XP1 Cable with Integrated Battery
1 Quick Start Manual.
Function Of LED Indicators
The XP1 power cable has three LEDs. The LED colors are green,
blue and red. When charging the XP1 and no device is attached,
the blue and red LEDs will illuminate. When XP1 is fully charged
the blue and green LEDs will be illuminated. The blue LED shows
the adapter which is charging and that the XP1 is working properly.

Function Of LED Indicators for Battery Level Display
The XP1 LEDs also show the battery capacity level when used in
combination with the adjacent button. There are three LED lights
and each will illuminate separately to display the current capacity
level of the battery. The button must be pushed to see the battery
level status. To test the battery level of XP1 when you press the
button, different LEDs will be illuminated to show different battery
level status as following:
RED LED: 25% or less
BLUE LED: 25% to 75%
GREEN LED: 75% to 100%

Button Functions for Charging Your XP1 and
iPhone/iPod
The button charging functions are listed below.
When you press the button, you can see the battery level of XP1.
then when you press the button for 3 seconds, it chooses to charge
iPhone/iPod or XP1. When iPhone/iPod is connected to the XP1 and
the XP1 is connected to a computer, it automatically will charge
iPhone/iPod and a blue LED illuminates.

To charge the XP1 you press the button for 3 seconds and the XP1
charges and a blue and red LED will illuminate.
When XP1 is fully charged a blue and green LED illuminate.
Protection Mode—When Input voltage is more than 5.6V or less
than 4.2V, the three LEDs illuminate. it shows the input voltage is
unsteady and XP1 goes to protection mode.

Getting Started
You must charge your XP1
Insert your XP1 cable into the USB port of a personal computer or
notebook to charge. The initial battery charge should be at least 4
- 6 Hours. Once your XP1 is charged, it charges itself every time
you plug your XP1 into a Personal Computer, Laptop or any of the
XP1 AC charging devices available on our web site under
accessories. The XP1 Battery is protected by a full charge
detection function to eliminate damage to your battery. (when the
voltage reaches 4.2V). The spec of the Li-ion battery is 3.7V, and
the full battery is set up @ 4.2V, and low battery is set up @ 3.4V.
However, the battery will be at auto-shut down @ 3.2V for
self-protection. When charging the LED #1 will illuminate and

will stay on when fully charged.
Full-charge time: About 2 hours.
Recharge time 1 hour
Transfers : Approximately 50,000
NOTE: XP1 will not be charged when the Personal Computer or
Notebook is under “Standby Mode”, “Power Saving Mode” or
“Suspend Mode”. Therefore, please charge your XP1 while your
Personal Computer or Notebook is in use.
IF YOU NEED TO USE ANY EXTERNAL CHARGERS OTHER
THAN A PERSONAL COMPUTER or NOTEBOOK TO
CHARGE THE XP1, IT IS RECOMMENDED TO USE
XMULTIPLE’S PROPRIETARY XP1 CHARGERS ONLY.

(Using another manufacture’s charger may cause
damage to your XP1 therefore voiding the 90-day
warranty)
(Do not remove the integrated battery to charge.
Simply insert the XP1 into the USB port of a
personal computer or notebook).

Using your USB XP1
Step 1: To turn on the power to your
personal computer or laptop. Insert the
XP1 male USB cable into the female USB
port of your computer or laptop.

Troubleshooting
Basic Troubleshooting Steps
Below is a listing of commonly asked XP1 questions and answers
and basic troubleshooting steps. Keep in mind that this is just a
select few of the questions and answers in our database. If you're
Step 2: Connect your XP1 male iPhone/iPod
connector to the female connector on your
iPhone/iPod. When connected, LED #1, 2
and 3 will illuminate.
Step 3: Only LED #1 will be illuminated
when the XP1 is fully charged.

encountering a more specific issue you should call our customer
support. The XP1 is a very simple product to use and most users
never experience a problem.
1. No connection is made after plugging in the XP1 cable to both the
USB computer port and the attaching device.
Solution: Un-plug and re-plug all connections.
2. *If an Error occurs the XP1 LEDs will all illuminate simultaneously.
This means the XP1 not connected properly to the USB port of your
computer.
Solution: Check the USB connector and iPhone/iPod connector for
dirt or an obstruction. We move any foreign material and reinsert
the XP1 cable.

3. When your iPhone/iPod is connected to the XP1 and the XP1 is
connected to a computer using a USB cable the iPhone/iPod will not
synchronize with iTunes or transfer any data.
Solution: This problem is normally a software issue and it is
recommended that your reboot your iTunes software.
4. Is recharge from a USB port fast and easy.
Solution: Yes, The power that is available from USB ports differs
depending on their design however they should all work with the
XP1. . Recharging the XP1 should take approximately 60 minutes
after you plug it in to a computer USB port. For the fastest recharge
time, use a USB port from a AC-USB adapter. Alternately connect
the battery pack to a USB port which is located on your PC or laptop.
Do not recharge using an auxiliary USB port on a keyboard or
extension cable.

Technical Support
Technical support is available to all registered users of Xmultiple
products. Technical Support contact information can be found on
our website at www.XP1power.com
Web Support
XP1's website has most technical information you will need. Please
connect to our website at www.XP1power.com and click on the
"Technical Resource" button at the top of the homepage. You may
also find the answer to your problem in the Frequently Asked
Questions (FAQ) section of the Support area on the XP1 Website:
www.XP1.com.

Telephone Support
There is no charge for technical support except long-distance
charges where applicable. Please visit www.XP1power.com for
telephone support hours. Please note the following when calling
support:
Please have the XP1 unit with you before you call our support from
a phone. Be prepared to provide information including: your name,
address, and telephone number and the symptoms of the problem
you are experiencing.
Registering Your Xmultiple/XP1 Product
Register your XP1 product online at www.XP1power.com.

Xmultiple Ninety Days Limited Warranty
For additional information go to our web site
www.XP1power.com
Specification
Battery
Rechargeable Li-ion power module with DC or USB charge
Operation System
Operation system support Windows Vista/XP/2000/Me; MacOS9.X
or higher version.
