Xo BAR PRO User manual
BARTENDER STATION
CARE & USE / INSTALLATION
RESIDENTIAL USE ONLY
Professional "BAR PRO"
Cutout Dimensions Exterior Dimensions
Cut-out Dimension
Specifications Width A Height B Depth C Width D Depth E Depth F
XOG30BARPRO 30 3/8" 27 3/4" 24 3/8"
Counter top notch detail: a 1/2” width is required
with a depth equal to the counter top overhang.

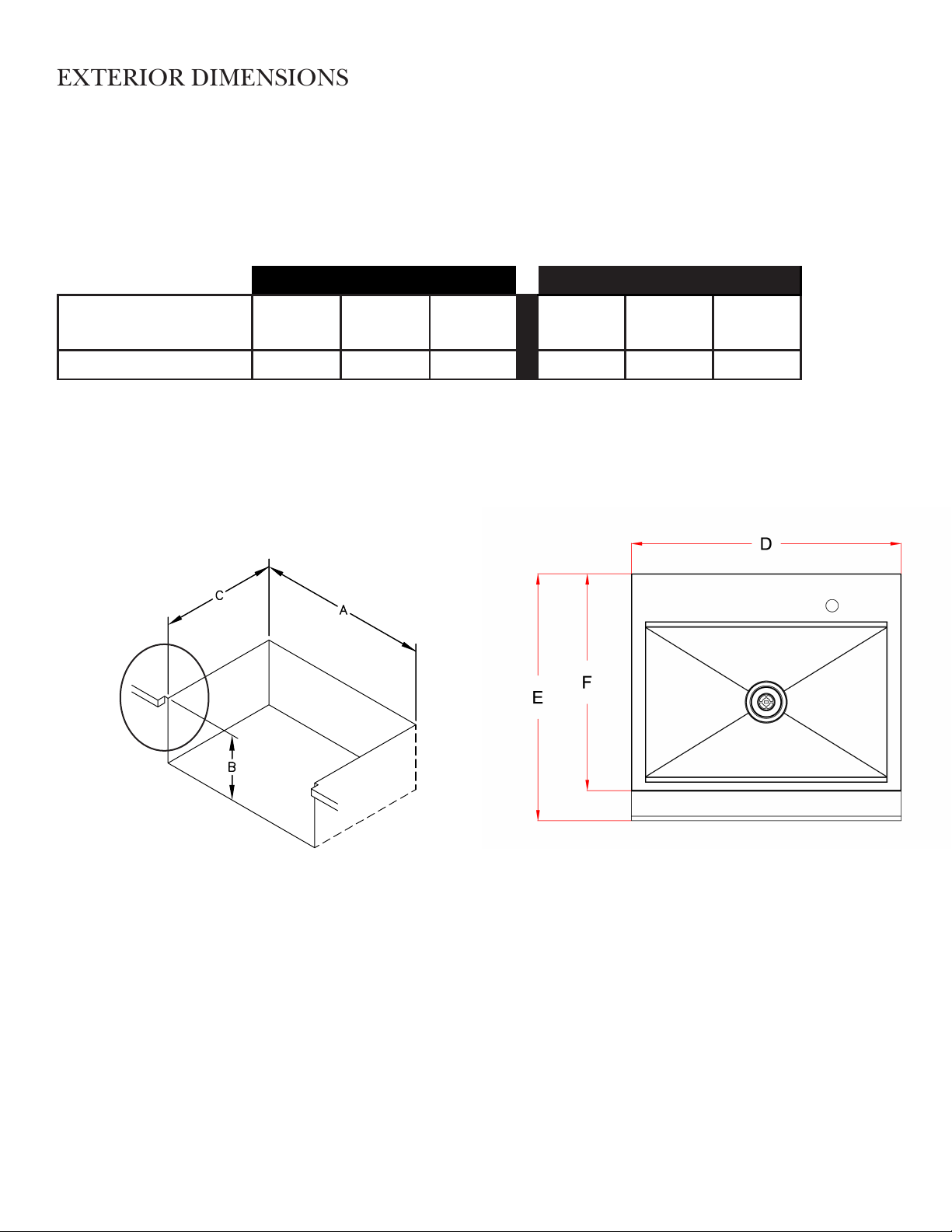

EXTERIOR DIMENSIONS
INSTALLATION PREPARATION
The XO sinks are designed for outdoor use only. The sink should be installed by a qualified liscensed technician
in accordance with all local plumbing and building codes.
Prepare the counter top by cutting the appropriate cutout dimensions There must be a minimum of a 1/2”
overlap on the sides and rear of the sink on the counter top to support the sink. Note: clearances below the sink
must be maintained for maintenance, water, and drain lines.
Exterior DimensionsCutout Dimensions
INSTALLER: Read these instructions carefully before starting installation. Please leave these instructions with
the homeowner.
HOMEOWNER: Please retain these instructions for future use
27 7/16" 24 1/8"
30"
INSTALLING THE DRAIN ASSEMBLY
For ease of installaon we recommend that the drain assembly be installed before installing the sink into the counter
top.
1. Remove the drain assembly from the box and idenfy the following parts:
INSTALLING THE DRAIN ASSEMBLY
a. Drain Plug/Strainer Basket
b. Upper Drain Fing
c. Rubber Gasket
d. Paper Gasket
e. Locknut
f. Tailpiece
g. Threaded Coupling
Sink Boom
2. Remove the drain plug strainer basket (a) and separate the upper drain ng (b) from the remainder of the
drain assembly.
3. Place a bead of Plumbers Puy* around the underside lip of the upper drain ng. Drop the upper drain ng
(b) into the sink boom opening and press it rmly into place. From the boom of the sink posion the rubber
gasket (c) and then the paper gasket (d) on the upper drain ng (b). The paper gasket (d) is used to prevent
kinking of the rubber gasket (c) while ghtening the locknut (e).
4. Align the drain assembly so that it sits centered in the sink drain cut-out. Screw the locknut (e) on to the upper
drain ng (b) threaded connecon unl it is hand ght. Now use a tool to ghten the locknut (e) another
quarter turn.
5. Remove any excess Plumber Puy with a damp cloth.
* Plumbers Puy is available at most home improvement centers. Plumbers puy is an
easy-to-mold seng compound for use with stainless steel sealing applicaons. Do Not Omit This Step.
Sink Opening
1/2” NPSM
Waste Outlelet
1. Install the faucet into the top faucet opening on right back of the sink.
2. Carefully place the sink into the cut out on the counter top. Push the sink back until there are no gaps in the
back and the bull nose contacts the front face of the cabinet. The sink will be supported by its weight on both
sides and back lip.
3. If needed a small bead of silicone sealant could be put around the edges of the sink to prevent water seepage
into the spaces below the sink.
INSTALLING THE XO SINK
INSTALLING THE DRAIN PIPING (NOT INCLUDED)
Assemble all drain pipe connecons to the tailpiece and on through a pipe trap and proper drainage. The drain
must be installed in accordance with all local codes. In the absence of local codes, the requirements of the Uniform
Plumbing Code should be followed.
INSTALLING THE LED LIGHT TRANSFORMER
The power supply transformer should be installed below the sink within the cabinet enclosure. Select a locaon
where the transformer is protected against water, heat and physical damage. It is recommended that fasteners are
used in at least two of the four mounng holes for secure aachment.
The power supply transformer must be plugged into a properly grounded GFI equipped outlet, installed by a
qualified technician. The outlet of the transformer is plugged into the connector at the rear of the sink. Please see
the electrical diagram provided in this manual.
5
INSTALLING THE XO FRONT COMPONENTS
1. Located the supplied hardware bag
2. Install the two stainless steel shoulder screws into the right hand side inserts of the front panel.
3. Carefully lower the bottle holder on the newly attached shoulder screws.
4. When installing the bottle opener you will need to Install the third shoulder screw directly below the far le
insert. Attach the top of the bottle holder when you install the towel bar, as they share the screw.
5. Continue to install the towel bar using the second stainless steel phillips head screw provided.

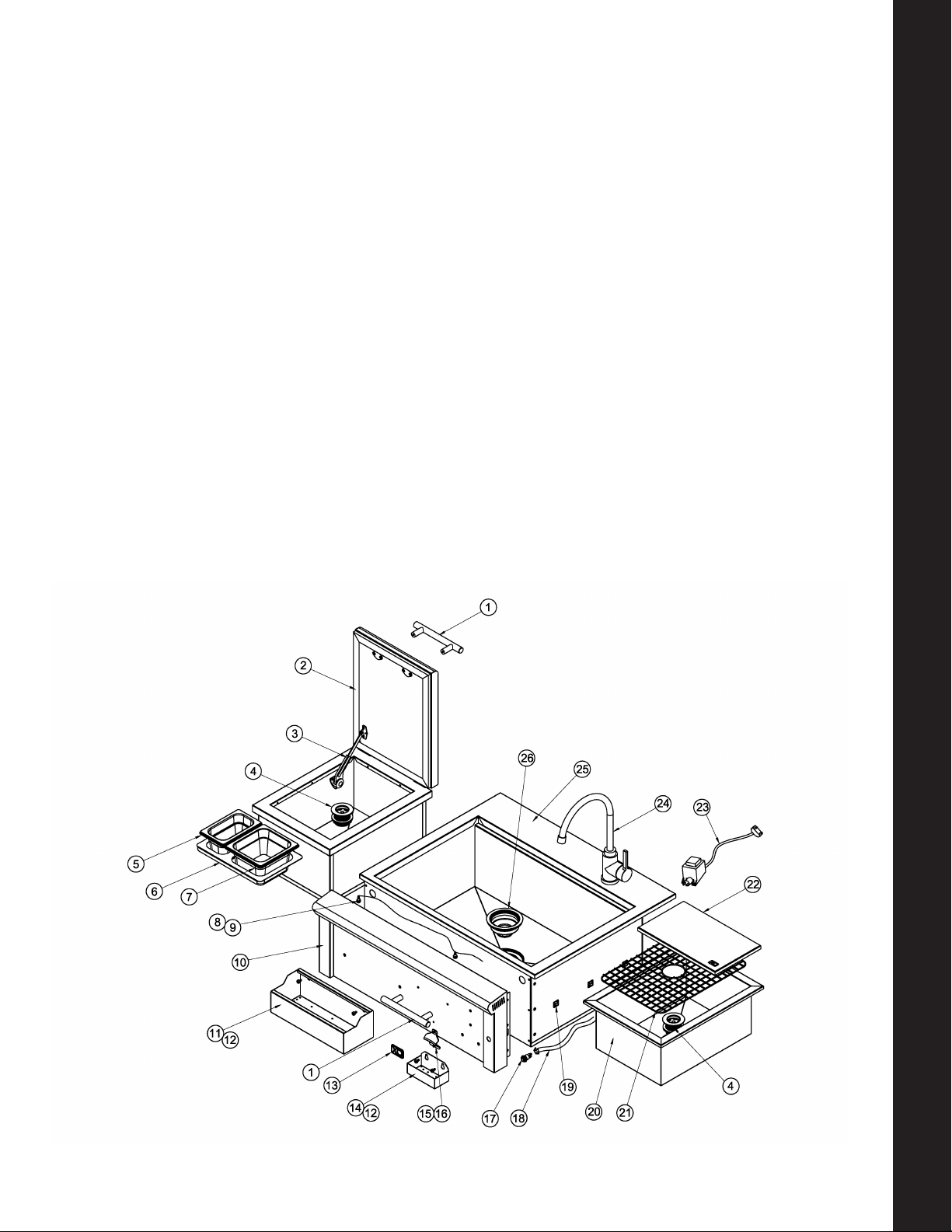

EXPLODED VIEW/PARTS
XOG30BARPRO

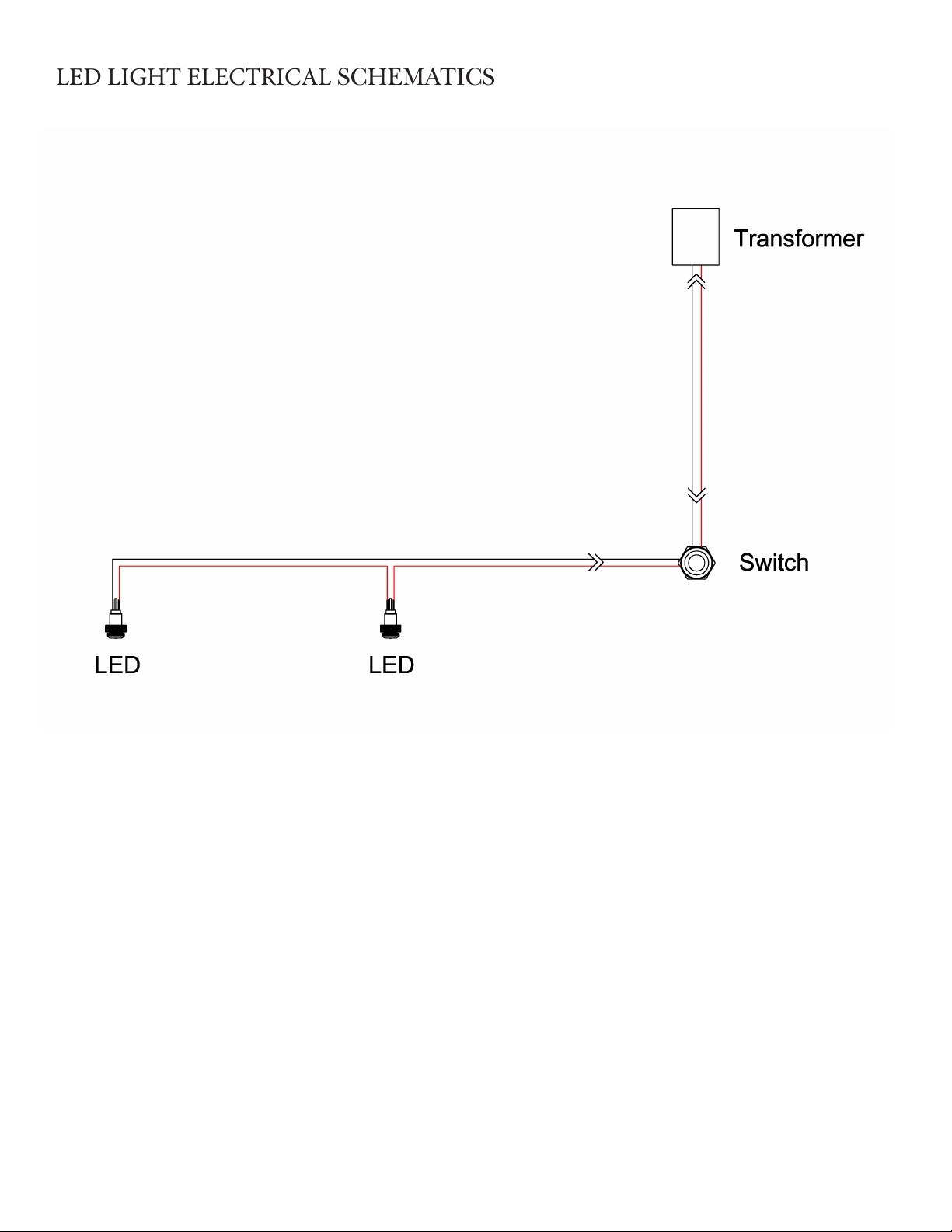

LED LIGHT ELECTRICAL SCHEMATICS
70552
80353
PRODUCT DIMENSIONS/CUT OUT DIMENSIONS (IN BLUE)
how to order repair parts
how to order repair parts
Parts Not Under Warranty
Parts can be ordered through XO directly.
Warranty Parts
Warranty parts will need a proof of purchase and can be ordered by contacting XO appliances.. Proof of purchase is
required for warranty parts.
All parts listed in the Parts List have a Part Number. When ordering parts, first obtain the Model Number and Serial
Number from the name plate on your equipment. Then determine the Part Number and the Description of each part from the
following illustration and part list. Be sure to give all this information . . .
Appliance Model Number ______________________________Part Description ________________________________
Appliance Serial Number _______________________________ Part Number __________________________________
Type of Gas (Propane or Natural _____________________________________________________________________
Do not order bolts, screws, washers or nuts. They are standard hardware items and can be purchased at any local hardware store.
Shipments contingent upon strikes, fires and all causes beyond our control.
______________________________________________________________________________________
Your XO Premium Gas Grill is identified by model number, serial number, and gas type. This information is provided on
a product identification label located on the left side of the grill and under the grill's drip tray. For your
convenience, complete this section for future reference when contacting XO Appliance.
XOG30BARPRO

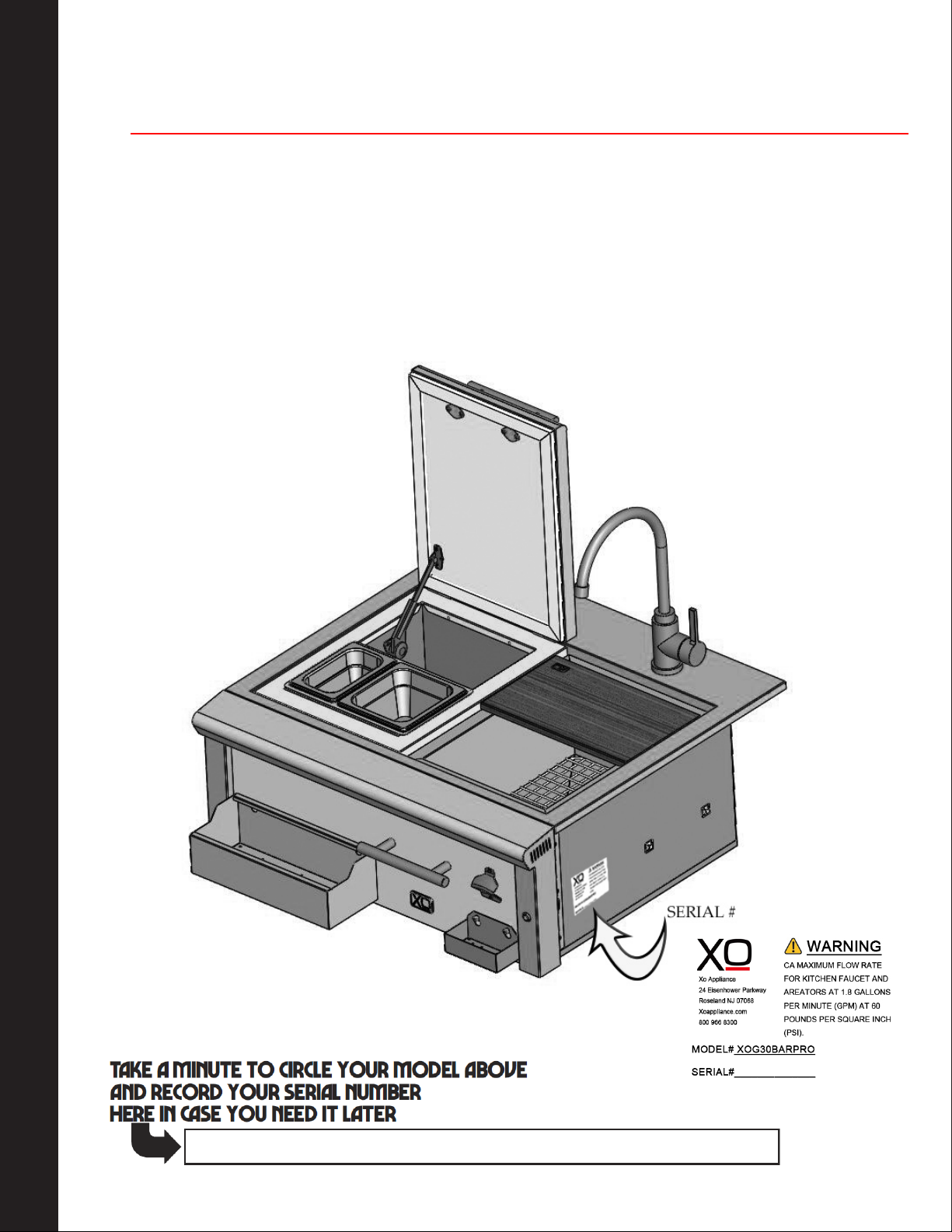

contacting xo
contacting xo appliance directly
Before contacting XO Appliance, please make sure you have the following information:
• Model number
• Date of purchase
• Proof of purchase by the original owner
• Serial number
The serial number can be located on the rating plate which is located on the left side of the
grill or on the pull-out drip tray lighting instructions and also on the underside of the drip tray.
