XOCECO LC-27U16 User manual

LCD TELEVISION
LC-27U16
America

CONTENTS
Safety instructions………………………………………………………………………..…
Adjustment instructions …………………………….…….…………………………….…
Trouble shooting ……………………………………………………….……………………
Working principle analysis……………………………………………………….………….
Block diagram…………………………………..……………….……………….…………
IC block diagram………………………………………………………………………..……
Main assembly……………………………………………………………………………..…
Identification criteria for the bright spot and dark spot of the LCD screen………..….
Wiring diagram ……………………………………………………………..……………...
Troubleshooting charts………………………………………………………………..……
Schematic diagram ………................................…………………………………..……
1
3
6
8
9
10
22
23
24
25
28
APPENDIX: Exploded View

1
Safety instructions
1. Instructions
Be sure to switch off the power supply before replacing or welding any components or
inserting/plugging in connection wire Anti static measures to be taken (throughout the entire
production process!):
a) Do not touch here and there by hand at will;
b) Be sure to use anti static electric iron;
c) It’s a must for the welder to wear anti static gloves.
Please refer to the detailed list before replacing components that have special safety requirements.
Do not change the specs and type at will.
2. Points for attention in servicing of LCD
2.1 Screens are different from one model to another and therefore not interchangeable. Be sure to
use the screen of the original model for replacement.
2.2 The operation voltage of LCD screen is 700-825V. Be sure to take proper measures in
protecting yourself and the machine when testing the system in the course of normal operation or
right after the power is switched off. Please do not touch the circuit or the metal part of the module
that is in operation mode. Relevant operation is possible only one minute after the power is
switched off.
2.3 Do not use any adapter that is not identical with the TV set. Otherwise it will cause fire or
damage to the set.
2.4 Never operate the set or do any installation work in bad environment such as wet bathroom,
laundry, kitchen, or nearby fire source, heating equipment and devices or exposure to sunlight etc.
Otherwise bad effect will result.
2.5 If any foreign substance such as water, liquid, metal slices or other matters happens to fall into
the module, be sure to cut the power off immediately and do not move anything on the module lest it
should cause fire or electric shock due to contact with the high voltage or short circuit.
2.6 Should there be smoke, abnormal smell or sound from the module, please shut the power off at
once. Likewise, if the screen is not working after the power is on or in the course of operation, the
power must be cut off immediately and no more operation is allowed under the same condition.
2.7 Do not pull out or plug in the connection wire when the module is in operation or just after the
power is off because in this case relatively high voltage still remains in the capacitor of the driving
circuit. Please wait at least one minute before the pulling out or plugging in the connection wire.
2.8 When operating or installing LCD please don’t subject the LCD components to bending, twisting
or extrusion, collision lest mishap should result.
2.9 As most of the circuitry in LCD TV set is composed of CMOS integrated circuits, it’s necessary
to pay attention to anti statics. Before servicing LCD TV make sure to take anti static measure and
ensure full grounding for all the parts that have to be grounded.
2.10 There are lots of connection wires between parts behind the LCD screen. When servicing or
moving the set please take care not to touch or scratch them. Once they are damaged the screen
Attention: This service manual is only for service personnel to take reference with. Before
servicing please read the following points carefully.

2
would be unable to work and no way to get it repaired.
2.11 Special care must be taken in transporting or handling it. Exquisite shock vibration may lead to
breakage of screen glass or damage to driving circuit. Therefore it must be packed in a strong case
before the transportation or handling.
2.12 For the storage make sure to put it in a place where the environment can be controlled so as to
prevent the temperature and humidity from exceeding the limits as specified in the manual. For
prolonged storage, it is necessary to house it in an anti-moisture bag and put them altogether in one
place. The ambient conditions are tabulated as follows:
Temperature Scope for operation 0 ~ +50 oC
Scope for storage -20 ~ +60 oC
Humidity Scope for operation 20% ~ 85%
Scope for storage 10% ~ 90%
2.13 Display of a fixed picture for a long time may result in appearance of picture residue on the
screen, as commonly called “ghost shadow”. The extent of the residual picture varies with the
maker of LCD screen. This phenomenon doesn’t represent failure. This “ghost shadow” may remain
in the picture for a period of time (several minutes). But when operating it please avoid displaying
still picture in high brightness for a long time.
3. Points for attention during installation
3.1 The front panel of LCD screen is of glass. When installing it please make sure to put it in place.
3.2 For service or installation it’s necessary to use specified screw lest it should damage the screen.
3.3 Be sure to take anti dust measures. Any foreign substance that happens to fall down between
the screen and the glass will affect the receiving and viewing effect
3.4 When dismantling or mounting the protective partition plate that is used for anti vibration and
insulation please take care to keep it in intactness so as to avoid hidden trouble.
3.5 Be sure to protect the cabinet from damage or scratch during service, dismantling or mounting.

3
Alignment instruction
1 Alignment equipment
PM5518 (video signal generator)
K-7253 (VGA signal generator)
CA210 (white balancer)
2 Alignment flow-chart
The alignment flow-chart is shown as fig-1
Fig-1 adjustment flow-chart
3 Unit adjustments
Connect digital board, CPU board and analog board according to wiring diagram, connect with
power and observe the display.
Method for entering factory menu: press “SLP”, “DSP”, “MENU” and “DSP” in turn to enter factory
menu; press “CH+” and “CH-” to select adjustment items and press “VOL+” and “VOL-” to adjust
value items, press “MENU” to exit.
Note: the white balance adjustment should be done under “nature” picture mode.
3.1 Initialization
Enter factory menu, select “Factory settings” sub-menu, and adjustment for items of table1.
Check DDC, HDCP KEY and CPU
Factory initialization setup
IF channel voltage of TV andAGC voltage adjustment
Support format of VGA pre-set
Adjustment for sub-
b
rightness and white balance of VGA/HDMI (colo
r
temperature 6500k, 9300k and 12000k)
Adjustment for sub-brightness and white balance of YPbPr/YcbCr channel
Adjustment for sub-brightness and white balance of VIDEO channel
Preset ex-factory

4
Table1 sub-menu adjustment
Items Range Introduce
PW on LOGO ON/OFF Display 5s LOGO of turn on the TV
NO Sig LOGO ON/OFF If display LOGO in no signal
Black Screen BLUE/BLACK If display blue screen and white noise wave in no signal, setting
“BLUE”
MLK 120-159 Adjustment for clock frequency (MHz) of memorizer, setting “145”.
PIP Size Middle/Large Select two component of PIP: “SMALL AND MIDDLE” and “SMALL
AND BIG”, setting “MIDDLE”.
init EEprom Start? Eeprom Initialization (adjustment for EEprom data)
3.2 Adjustment for AFT voltage and AGC voltage of IF channel in TV
Input frequency for 45.75MHz and IF signal for 80dBV of TP1, adjust L107 to value 2.4v of TP2;
when increase 0.10MHz of TP1 input signal, the TP2 value 1.0v at least; but decrease 0.10MHz of
TP1 input signal, the TP2 value 4.0v at least.
3.3 VGA/DVI channel adjustment
3.3.1 Preset VGA channel mode
Input VGA signal (PATTERN: CROSS) of VG-849 or VG-848, select PROG850(640*400/85Hz),
auto adjustment until the screen is filled with picture. Use the same method to do auto adjustment
for the following items:
PROG851(640*480/72 Hz) PROG852(640*480/75 Hz) PROG853(800*600/56 Hz)
PROG854(800*600/60 Hz) PROG855(800*600/72 Hz) PROG856(1024*768/60 Hz)
PROG857(1024*768/70 Hz) PROG858(1280*768/75 Hz) PROG888(800*600/75 Hz)
PROG915(1152*870/75 Hz) PROG915 (1280*1024/60Hz)
3.3.2 Sub-brightness and White balance adjustment VGA/HDMI channel
a. Input VG-849 or VG-848 signal of VGA: PROG852(640* 480/75Hz) and eighth level gray-scale
signal of PATTERN. Use color analyzer CA210 to adjust sub-brightness and white balance.
b. Enter submenu of COLOR TEMP., Select 9300k of color temperature, set auto value of R, G and
B to 50. Enter submenu of white balance, preset value of offset_R, offset_G and offset_B to 125,
and preset value of gain-R, gain-G and gain-B to 100. Adjustment for brightness let the second level
brightness be 3nit at least.
c. Fixed value of offset_B, adjust offset_R and offset_G, let the color coordinate of the second level
be 285 and 293 and its brightness be 4-5nit more or less (it can not 3.5nit at least). Fixed value of
gain_B, adjust gain_R, gain_G and gain_B, let the color coordinate of seventh level be 285 and 293.
Adjustment offset_R, offset_G, offset_B, gain_R, gain_G and gain_B repeatedly until the value of
the two levels gray-scale be 285 and 293.
d. Select 6500k of color temperature, set auto value of R, G and B to 50. Fixed value of B to 50,
adjust R and G, let the color coordinate of the sixth level be 313 and 329. Adjust R and G repeatedly
until the color coordinate value to 313 and 329.
e. Select 12000k of color temperature, set auto value of R, G and B to 50. Fixed value of B to 50,
adjust R and G, let the color coordinate of the sixth level be 270 and 283. Adjust R and G repeatedly
until the color coordinate value to 270 and 283.

5
f. Input PROG852(640*480/75Hz) and the eighth level gray-scale of PATTERN signal of VG-849 to
HDMI, repeatedly the b-e course. In the HDMI channel, preset value of offset_R, offset_G and
offset_B to 15, preset value of gain_R, gain_G and gain_B to 25.
3.4 Adjustment for sub-brightness and white balance of YPbPr channel
a. Connect YPbPr signal of VG-849 and VG-848 to YPbPr terminal, input color signal of
PROG973(1080i)PATTERN964. Select AUTOTUNE item, wait for it displays “OK”. NOTE: Don’t
select AUTOTUNE item in other state.
b. Switch YPbPR signal of VG-849 and VG-848 output to the eighth gray-scale signal of
PROG973(1080i)PATTERN964. prset value of offset_R, offset_G and offset_B to 15 and gain-R,
gain-G and gain-B to 25. adjust brightness, let second bright to 3nit at least.
c. Fixed value of offset_B, adjust offset_R and offset_G, let the color coordinate of the second level
be 285 and 293 and its brightness be 4-5nit more or less (it can not 3.5nit at least). Fixed value of
gain_B to 25, adjust gain_R, gain_G and gain_B, let the color coordinate of seventh level be 285
and 293. Adjustment offset_R, offset_G, gain_R and gain_G repeatedly until the value of the two
levels gray-scale be fixed.
d. Input PROG977(720p), PROG978(480p) and PROG968(480i) mode for eighth level gray-scale
signal, let the color coordinate of the second level and the seventh level 285 and 293.
3.5 VIDEO channel adjustment (TV/VIDEO/S-VIDEO)
a. Connect color bar signal of AV (PM5518, NTSC , eight level gray-scale signal) to VIDEO1
terminal, enter factory menu, preset value of offset_R, offset_G and offset_B to 15 and gain-R,
gain-G and gain-B to 25, adjust brightness, let second bright to 3nit at least.
b. Fixed value of offset-B to 15, adjust offset_R and offset_G, let the color coordinate of the second
level be 285 and 293 and its brightness be 4-5nit more or less (it can not 3.5nit at least). Fixed value
of gain_B to 25, adjust gain_R, gain_G and gain_B, let the color coordinate of seventh level be 285
and 293. Adjustment offset_R, offset_G, gain_R and gain_G repeatedly until the value of the two
levels gray-scale be fixed.
4 Performance check
4.1 TV function
Enter searching menu →auto search, connect RF-TV terminal with central signal source and check
if there are channels be skipped
4.2 AV/S, YpbPr terminals
Input AV/S, HD signal, check if it is normal.
4.3 VGA terminal
Insert VGA terminal, input VGA format signal of 640 X 480@60 Hz, check if the display is normal. If
interference exists, press the auto adjusts button on remote control again and check if it is normal.
4.4 HDMI terminal
Insert HDMI terminal, input signal of 640 X 480@60 Hz signal and check if the display is normal.
4.5 check sound channel
Check the speaker and headphone of each channel.
4.6 presetting before ex-factory

6
Trouble shooting
Before servicing please check to find the possible causes of the troubles according to the table
below.
1.Antenna(signal):
Picture is out of focus or jumping  Bad status in signal receiving
 Poor signal
 Check if there are failures with the electrical connector or
the antenna.
 Check if the antenna is properly connected.
Fringe in picture  Check if the antenna is correctly oriented.
 Maybe there is electric wave reflected from hilltop or
building.
Picture is interfered by stripe
shaped bright spots
 Possibly due to interference from automobile, train, high
voltage transmission line, neon lamp etc.
 Maybe there is interference between antenna and power
supply line. Please try to separate them in a longer
distance.
 Maybe the shielded-layer of signal wire is not connected
properly to the connector.
There appear streaks or light color
on the screen
 Check if interfered by other equipment and if interfered
possibly by the equipment like transmitting antenna,
non-professional radio station and cellular phone.
2.TV set:
Symptoms Possible cause
Unable to switch the power on  Check to see if the power plug has been inserted
properly into the socket.
No picture and sound  Check to see if the power supply of liquid crystal TV
has been switched on. (As can be indicated by the
red LED at the front of the TV set)
 See if it’s receiving the signal that is transmitted from
other source than the station
 Check if it’s connected to the wrong terminal or if the
input mode is correct.
 Check if the signal cable connection between video
source and the liquid crystal TV set is correct.
Item Setting Item Setting Item Setting
Picture mode NATURE OSD language English CCD OFF
Sound mode NORMAL HALFTONE 50 STEREO ON
N/R WEAK DURATION 30 VGA/HDMI NORMAL
SCREEN FULL MAG.C ON ANTENNA CATV

7
Deterioration of color phase or color
tone
 Check if all the picture setups have been corrected.
Screen position or size is not proper  Check is the screen position and size is correctly set
up.
Picture is twisted and deformed  Check to see if the picture-frame ratio is properly set
up.
Picture color changed or colorless  Check the “Component” or “RGB” settings of the
liquid crystal TV set and make proper adjustment
according to the signal types.
Picture too bright and there is
distortion in the brightest area
 Check if the contrast setting is too high.
 Possibly the output quality of DVD broadcaster is set
too high.
 It maybe also due to improper terminal connection of
the video signal in a certain position of the system.
Picture is whitish or too bright in the
darkest area of the picture
 Check if the setting for the brightness is too high
 Possibly the brightness grade of DVD player
(broadcaster) is set too high.
No picture or signal produced from the
displayer if “XXX in search” appears.
 Check if the cable is disconnected.
 Check if it’s connected to the proper terminal or if the
input mode is correct.
There appears an indication - “outside
the receivable scope)
 Check if the TV set can receive input signal. The
signal is not correctly identified and VGA format is
beyond the specified scope.
Remote control cannot work properly  Check if the batteries are installed in the reverse
order.
 Check if the battery is effective.
 Check the distance or angle from the monitor.
 Check if there is any obstruct between the remote
control and the TV set.
 Check if the remote control signal- receiving window
is exposed to strong fluorescence.
No picture and sound, but only hash.  Check if the antenna cable is correctly connected, or
if it has received the video signal correctly.
Blur picture  Check if the antenna cable is correctly connected.
 Of if it has received the right video signal.
No sound  Check if the “mute” audio frequency setting is
selected.
 Check if the sound volume is set to minimum.
 Make sure the earphone is not connected.
 Check if the cable connection is loose.
When playing VHS picture search
tape, there are lines at the top or
bottom of the picture.
 When being played or in pause VHS picture search
tape sometimes can’t provide stable picture, which
may lead to incorrect display of the liquid crystal TV,
In this case please press “auto” key on the remote

8
control so as to enable the liquid crystal TV set to
recheck the signal and then to display correct picture
signal
Working principle analysis
RF signal from the antenna to tuner, via high frequency amplifier and mix frequency to obtain IF
signal, and then via pre-IF amplifier in V104, then it send to processed IF filter of SAW (Z103),
obtain more idea IF speciality, it processed to IF amplifier, phase locked logic VCO and sync
detection of N101 (M52760E) in the TV board to obtain VIDEO; IF via pre IF amplifier to send to
processed filter of SAW (Z102), again send to processed IF amplifier of N101, decode second SIF.
From M52760E output VIDEO, AV1 and AV2/S signal all send to video decoder N601
(TVP5147PFP), via video select, clamping, A/D transfer, comb filter and color decode, one way
output AV OUT, another way output 8bit for CIR656 format signal and CLK signal, send to
N101(MST6151) of CPU board, Also YPbPr, VGA and HDMI send to N101. N101(MST6151) is
many function big dimension integrate circuit, it processed HDMI, A/D to DA switch, interlaced and
non-interlaced processing, model switch and low voltage difference output functions and so on, it
send to four ways difference signal and one way clock signal to LCD display.
From HDMI input to MST6151contain sound signal, via processed MST6151, send to processed
D/A switch for NA01(CS4340), output L/R of HDMI.
Output SIF from M52760F and send to processed stereo demodulation for N201(LA72700), output
L/R of TV.
L/R of HDMI and Ypbpr from CS4340 output, L/R of VGA/DVI signal via sound switch
NA02(HEF4052) to select, then send to sound processing N301(R2S15900SP); demodulate L/R
signal of LA72700 send to N301, and L/R signal for AV1A and V2/S input send to N301. Via
selected switch and processing sound, one way sound output for AV OUT, other way send to
N401(TPA3008D2) of sound amplifier, via amplify for sound signal to speaker and earphone.
The unit working is controlled N801(MTV412) of CPU, connect tuner, TVP5147, LA72700 and
R2S15900SP to IIC bus; connect MST6151 to parallel BUS.

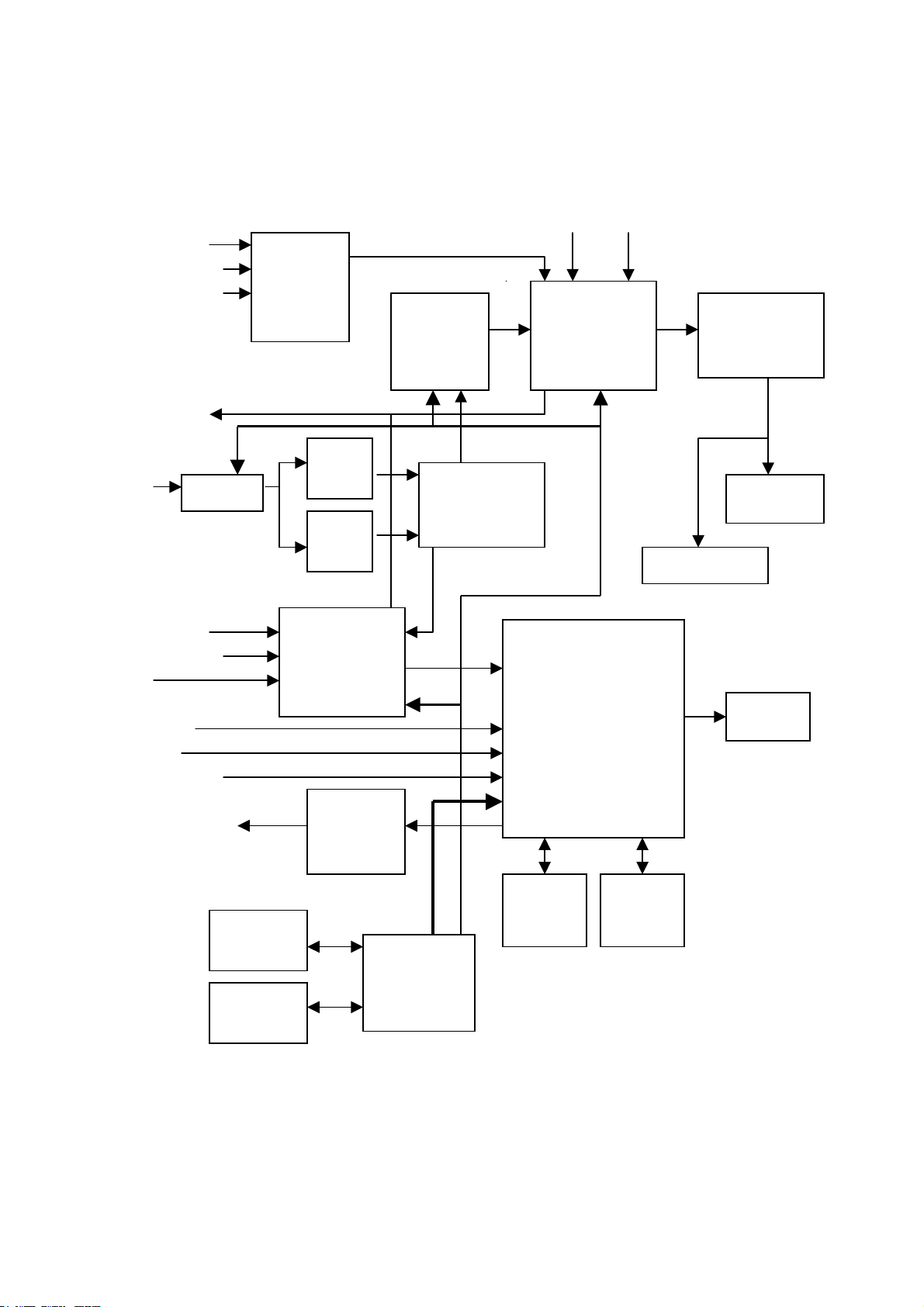

BLOCK DIAGRAM
AV1-A AV2/S-A
YPbPr-A
VGA/DVI-A L/R
HDMI-A
L/R
A
AVOUT L/R
SIF
RF
IF
V
V IIC
VIDEO1
Y/VIDEO2 CCIR656
C 8bit
YPbPr
VGA
HDMI/DVI
HDMI-A
L/R
BUS
SCALER
A/D D/A
DEINTERLACER
LVDS
HDMI
N
101(CPU)
MST6151DA
VIDEO
DECORDER
N
601
TVP5147PFP
MCU
N
801
MTV412
SDRAM
N
201
SDRAM
N
202
SIF DEC
N
201
LA72700
AUDIO
PROCESSO
R
N
301
R2S15900SP
AUDIO AMP
N
401
TPA3008D2
EEPROM
N
802
EEPROM
N
803
AUDIO
SW
N
A02
HEF4052
IF AMP
N
101(TV)
M52760E
TUNER
SAW
Z103
SAW
Z102 SPEAKER
PANEL
DAC
N
A01
CS4340
HEADPHONE
9

10
IC block diagram
TVP5147
Compositeand S-Video Processor
Y/C
Separation
5-line
Adaptive
Comb
Luma
Processing
Chroma
Processin
g
M
U
X
CVBS/Y
C/CbCr C
YOutput
Formatter
Y[9:0]
VBI
Data
Processor
Copy
Protection
Detector
C[9:0]
Host
Interface
Timin
g
Processor
With Sync Detector
VI_1_A
VI_1_B
VI_1_C
VI_2_A
VI_2_B
VI_2_C
VI_3_A
VI_3_B
VI_3_C
VI_4_A
CVBS/
Y
CVBS/
C/Pb
CVBS/
C/Pr
CVBS/Y
CVBS/Y
Analog
Front End
Sampling
Clock
GPIO
HS/CS
VS/VBLK
FID
AVID
XTAL1 XTAL2
DATACLK
RESETB
GLCO
PWDN
SCL
SDA
YCbCr
Clamping
AGC
2 11-Bit
ADC
80: AV OUT
2: TV-V input
7: AV1-V input
9: AV2-V/S-Y input
18: S-C input
29: SDA
28: SCL
40: CLK output
43-47, 50-52: CCIR656 format signal output
4, 5, 20, and 21: 3.3V-A power supply
38, 48, 61: 3.3V-D power supply
11, 25, 76: 1.8V-A power supply
31, 41, 55, and 67: 1.8V-B power supply

11

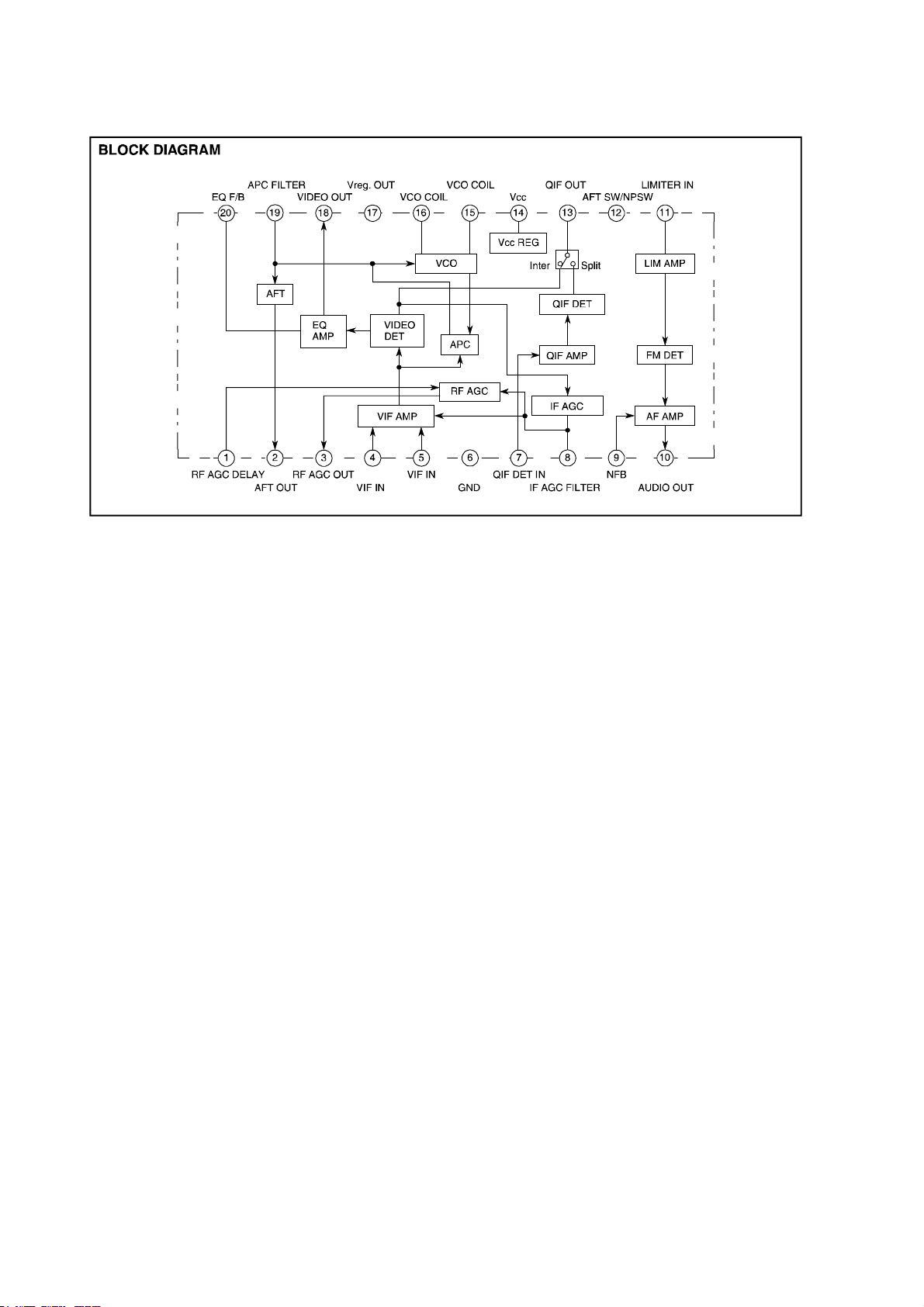

M52760
2: AFT
3: AGC
4, 5: picture If input
7: sound IF input
13: SIF output
10: mono sound output
18: TV- VIDEO output
14, 17: +5V-1 power supply

12
LA72700
5: SIF input
25: TV sound -R output
26: TV sound- L output
11: SDA
12: SCL
31: +9Vpower supply

13
MST6151
207, 208: HDMI-R input
2, 3: HDMI-G input
5, 6: HDMI-B input
8, 9: HDMI-CLK input
14: HDMI-SDA
15: HDMI-SCL
20, 21: VGA-B input
22: VGA-G input
23, 24: VGA-G input
25, 26: VGA-R input
18: VGA H-sync input
19: VGA V-sync input
27, 28: PB input
29, 30: Y input
31: HDMI-G input
32, 33: PR input
54-61: CCIR656 format signal input
53: CLK input
164-171, 174: 4 difference signal output
160, 161: 1 clock signal output
188-191: HDMI sound output
200: PWW (brightness control switch) output
72-75: BUS (parallel communication signal)
49, 131, 195: 1.8V power supply
4,17,12,109,204,66,102: 3.3V power supply

14
PINDIAGRAM(MST5151A)
Pin1
1
2
3
4
5
7
9
11
13
14
17
18
21
23
25
27
28
30
32
34
36
39
41
43
6
8
10
12
15
16
19
20
22
24
26
29
31
33
35
37
38
40
42
44
45
46
47
48
50
51
52
49
53 54 55 56 57 59 61 63 65 66 69 70 73 75 77 79 80 82 84 86 88 91 93 95 58 60 62 64 67 68 71 72 74 76 78 81 83 85 87 89 90 92 94 96 97 98 99
100 102 103 104 101
208 207 206 205 204 202 200 198 196 195 192 191 188 186 184 182 181 179 177 175 173 170 168 166 203 201 199 197 194 193 190 189 187 185 183 180 178 176 174 172 171 169 167 165 164 163 162 161 159 158 157 160
156
155
154
153
152
150
148
146
144
143
140
139
136
134
132
130
129
127
125
123
121
118
116
114
151
149
147
145
142
141
138
137
135
133
131
128
126
124
122
120
119
117
115
113
112
111
110
109
107
106
105
108
MVREF
GND
VDDM
MST5151A XXXXXXXXXXX XXXXX
GND AVDD_MPLL XIN XOUT PWM1 PWM0 AIWS AISCK VDDC SPDIFO AUWS AUSD LVB0M VDDC GND VDDP AISD AIMCK GND AUMUTE AUSCK AUMCK LVB0P GND LVB1M LVB1P LVB2M LVB2P LVBCKM LVBCKP LVB3M LVB3P VDDC GND LVA0M LVA0P LVA1M LVA1P LVA2M LVA2P LVACKM LVACKP GND VDDP LVA3M LVA3P GND BYPASS GND DVI_R- DVI_R+ GND
GND
DVI_G+
DVI_G-
AVDD_DVI
DVI_B+
DVI_CK+
AVDD_DVI
AVDD_PLL
DDCD_DA
GND
HSYNC1
BIN1P
BIN1M
DVI_B-
GND
DVI_CK-
REXT
GND
DDCD_CK
AVDD_ADC
VYSNC1
SOGIN1
GIN1P
GIN1M
RIN1P
RIN1M
BIN0M
BIN0P
GIN0M
GIN0P
SOGIN0
RIN0M
RIN0P
AVDD_ADC
GND
HSYNC0
VSYNC0
RMID
REFP
REFM
VI_DATA[8]
VI_DATA[9]
VI_DATA[10]
VI_DATA[11]
VI_DATA[12]
VI_DATA[13]
VI_DATA[14]
VI_DATA[15]
AVDD_APLL
GPO[5]
GPO[4]
GND
VI_CK
VI_DATA[0] VI_DATA[1] VI_DATA[2] VI_DATA[3] VI_DATA[4] VI_DATA[7]
GND
VDDP
INT
RDZ
DBUS[0] DBUS[1]
VI_DATA[5] VI_DATA[6]
VDDC
GND
HWRESET
ALE
WRZ
DBUS[2] DBUS[3]
GPO[3] GPO[2] GPO[1]
VDDC
GND
MDATA[31] MDATA[30] MDATA[29] MDATA[28]
VDDM
GND
MDATA[27] MDATA[26] MDATA[25] MDATA[24] MDATA[23] MDATA[22] MDATA[21] MDATA[20] MDATA[19] MDATA[18] MDATA[17] MDATA[16]
DQS[2]
VCTRL
DQS[3]
DQM[1]
DQS[0]
MDATA[0]
GND
VDDC
MADR[10]
MADR[9]
MADR[8]
GND
VDDM
MADR[7]
MADR[6]
MADR[5]
MADR[4]
MADR[3]
MADR[2]
MADR[1]
MADR[0]
WEZ
CASZ
GND
VDDM
RASZ
BADR[0]
BADR[1]
AVDD_PLL2
GND
MCLK
MCLKZ
MCLKE
MDATA[1]
MDATA[2]
MDATA[3]
MDATA[4]
MDATA[5]
MDATA[6]
MDATA[7]
MDATA[8]
MDATA[9]
MDATA[10]
MDATA[11]
GND
VDDM
MDATA[12]
MDATA[13]
MDATA[14]
MDATA[15]
DQS[1]
DQM[0]
MADR[11]
VDDC
GND
VDDM

15
PINDESCRIPTION
MCUInterface
PinName PinType Function Pin
HWRESET
SchmittTriggerInput
w/ 5V-tolerant HardwareReset,activehigh 67
DBUS[3:0] I/Ow/5V-tolerant MCU4-bitDDRDirect bus;4mAdrivingstrength 75-72
ALE Iw/ 5V-tolerant MCUBusALE,activehigh 69
RDZ Iw/ 5V-tolerant MCUBusRDZ,activehigh 70
WRZ Iw/ 5V-tolerant MCUBusWDZ,activehigh 71
INT Output MCUBusInterrupt;4mAdrivingstrength 68
AnalogInterface
PinName PinType Function Pin
RMID Mid-ScaleVoltageBypass 38
REFP InternalADCTop De-couplingPin 39
REFM InternalADCBottomDe-couplingPin 40
REXT AnalogInput ExternalResister390 ohmto AVDD_DVI 11
HSYNC0
Schmitt TriggerInputw/
5V-tolerant AnalogHSYNCInputfromChannel0 36
VSYNC0
Schmitt TriggerInputw/
5V-tolerant AnalogVSYNCInputfromChannel0 37
BIN0M AnalogInput Reference GroundforAnalogBlueInputfromChannel0 27
BIN0P AnalogInput AnalogBlueInputfromChannel0 28
GIN0M AnalogInput Reference GroundforAnalogGreenInputfromChannel0 29
GIN0P AnalogInput AnalogGreenInputfromChannel0 30
SOGIN0 AnalogInput SyncOnGreenInputfromChannel0 31
RIN0M AnalogInput Reference GroundforAnalogRedInputfromChannel0 32
RIN0P AnalogInput AnalogRedInputfromChannel0 33
HSYNC1
Schmitt TriggerInputw/
5V-tolerant AnalogHSYNCInputfromChannel1 18
VSYNC1
Schmitt TriggerInputw/
5V-tolerant AnalogVSYNCInputfromChannel1 19
BIN1P AnalogInput AnalogBlueInputfromChannel1 20
BIN1M AnalogInput Reference GroundforAnalogBlueInputfromChannel1 21
SOGIN1 AnalogInput SyncOnGreenInputfromChannel1 22
GIN1P AnalogInput AnalogGreenInputfromChannel1 23
GIN1M AnalogInput Reference GroundforAnalogGreenInputfromChannel1 24
RIN1P AnalogInput AnalogRedInputfromChannel1 25
RIN1M AnalogInput Reference GroundforAnalogRedInputfromChannel1 26

16
DVIInterface
PinName PinType Function Pin
DVI_R+ Input DVIInput ChannelRed+ 207
DVI_R- Input DVIInput ChannelRed- 208
DVI_G+ Input DVIInput ChannelGreen+ 2
DVI_G- Input DVIInput ChannelGreen- 3
DVI_B+ Input DVIInput ChannelBlue+ 5
DVI_B- Input DVIInput ChannelBlue- 60
DVI_CK+ Input DVIInput Clock+ 8
DVI_CK- Input DVIInput Clock- 9
VideoInterface
PinName PinType Function Pin
VI_CK Inputw/5V-tolerant DigitalVideoInputClock 66
VI_DATA[15:0] Inputw/5V-tolerant DigitalVideoInputData[15:0] 48-41,61-54
DigitalAudioInterface
PinName PinType Function Pin
AUMCK Output AudioMasterClockOutput 188
AUSD Output AudioSerialDataOutput;4mAdrivingstrength 189
AUSCK Output AudioSerialClockOutput;4mAdrivingstrength 190
AUWS Output WordSelect Output;4mAdrivingstrength 191
AUMUTE Output AudioOutput MuteControl 192
SPDIFO Output S/PDIFAudioOutput;4mAdrivingstrength 193
AIMCK Input AudioMasterClockInput 196
AISD Input AudioSerialDataInput 197
AISCK Input AudioSerialClockInput 198
AIWS Input WordSelect Input 199
LVDSInterface
PinName PinType Function Pin
LVA0M Output A-LinkNegativeLVDSDifferentialDataOutput 171
LVA0P Output A-LinkPositiveLVDSDifferentialDataOutput 170
LVA1M Output A-LinkNegativeLVDSDifferentialDataOutput 169
LVA1P Output A-LinkPositiveLVDSDifferentialDataOutput 168

17
PinName PinType Function Pin
LVA2M Output A-LinkNegativeLVDSDifferentialDataOutput 167
LVA2P Output A-LinkPositiveLVDSDifferentialDataOutput 166
LVA3M Output A-LinkNegativeLVDSDifferentialDataOutput 161
LVA3P Output A-LinkPositiveLVDSDifferentialDataOutput 160
LVACKM Output A-LinkNegativeLVDSDifferentialDataOutput 165
LVACKP Output A-LinkPositiveLVDSDifferentialDataOutput 164
LVB0M Output B-LinkNegativeLVDSDifferentialDataOutput 187
LVB0P Output B-LinkPositiveLVDSDifferentialDataOutput 186
LVB1M Output B-LinkNegativeLVDSDifferentialDataOutput 181
LVB1P Output B-LinkPositiveLVDSDifferentialDataOutput 180
LVB2M Output B-LinkNegativeLVDSDifferentialDataOutput 179
LVB2P Output B-LinkPositiveLVDSDifferentialDataOutput 178
LVB3M Output B-LinkNegativeLVDSDifferentialDataOutput 175
LVB3P Output B-LinkPositiveLVDSDifferentialDataOutput 174
LVBCKM Output B-LinkNegativeLVDSDifferentialDataOutput 177
LVBCKP Output B-LinkPositiveLVDSDifferentialDataOutput 176
GPOInterface
PinName PinType Function Pin
PWM0 Output GPOwithPWMFunction;4mAdrivingstrength 200
PWM1 Output GPOwithPWMFunction;4mAdrivingstrength 201
GPO[1] I/O GPO/ FIELD input;4mAdrivingstrength 78
GPO[2]I/O GPO/ DigitalVSYNCInput;4mAdrivingstrength 77
GPO[3] I/O GPO/ DEInput;4mAdrivingstrength 76
GPO[4] I/O GPO/Secondary VideoClockInput
;4mAdriving
strength 52
GPO[5] I/O GPO/ DigitalHSYNCInput;4mAdrivingstrength 51
DRAMInterface
PinName PinType Function Pin
MVREF Input
ReferenceVoltageforDDRSDRAM
Interface 104
MCLKE Output DRAMMemory ClockEnable 105
MCLKZ Output
DRAMMemoryclockComplementary/Input
106

18
PinName PinType Function Pin
(fordifferentialclocks)
MCLK Output DRAMMemory Clock 107
RASZ Output RowAddressStrobe,activelow 112
CASZ Output ColumnAddressStrobe,activelow 115
WEZ Output WriteEnable,activelow 116
DQM[1:0] Output DataMaskByteEnable 101,133
DQS[3:0] Output DataStrobe 81,100,134,153
BADR[1:0] Output MemoryBankAddress 110,111
MADR[11:0] Output MemoryAddress 130-127,124-117
MDATA[31:0]I/O MemoryData82-85,88-
99,
135-138,141-152
Misc. Interface
PinName PinType Function Pin
XIN CrystalOscillatorInput CrystalOscillatorInput 203
XOUT Crys
talOscillator
Output CrystalOscillatorOutput 202
DDCD_DA I/Ow/5V-tolerant HDCPSerialBusData/
DDCdataofDVIport;4mA
drivingstrength 14
DDCD_CK Inputw/5V-Tolerant HDCPSerialBusClock/ DDCClockofDVIPort 15
BYPASS For ExternalBypassCapacitor 158
VCTRL Output Regulator Control 62
PowerPins
PinName PinType Function Pin
AVDD_DVI 3.3VPower DVIPower 4,10
AVDD_ADC 3.3VPower ADCPower 17,34
AVDD_PLL 3.3VPower PLL Power 12
AVDD_PLL2 3.3VPower PLL Power 109
AVDD_APLL 1.8VPower AudioPLLPower 49
AVDD_MPLL 3.3VPower PLL Power 204
VDDM
3.3VPower (SDRSDRAM)/
2.5VPower(DDRSDRAM)
DRAMInterfacePower
86,102,113,125,139,
154
VDDP 3.3VPower DigitalOutput Power 66,162,182
VDDC 1.8VPower DigitalCorePower 63,7
9,131,156,173,
185,195
