Xorcom GW0017 User manual

GW0017 User Manual
I
GW0017 VoIP Gateway
User Manual V3.0
Xorcom Ltd.
8 Katom St., Misgav Industrial Park, 2017400, Israel
Phone: [phone],
[e-mail]
Xorcom USA
145 S JeffersonAve Suite G Cookeville, TN 38501 USA
Phone: [phone],
[e-mail]

GW0017 User Manual
II
Preface
Welcome
Thanks for choosing the GW0017-128S Analog Gateway for VoIP! We hope you will make
full use of this rich-feature FXS VoIP Gateway. Contact us if you need any technical support:
[e-mail]
About This Manual
This manual provides information about the introduction of the analog VoIP gateway, and
about how to install, configure or use it. Please read this document carefully before install the
gateway.
Intended Audience
This manual is aimed primarily at the following people:
⚫Users
⚫Engineers who install, configure and maintain the gateway.
Revision Record
Document Name
Document Version
Firmware Version
GW0017-128S FXS Analog VoIP
Gateway User Manual V1.0
V1.0

Contents
III
Contents
1 Product Introduction...................................................................................................................... 1
1.1 Overview .........................................................................................................................................................1
1.2 Application Scenario....................................................................................................................................... 1
1.3 Product Appearance.......................................................................................................................................... 2
1.3.1 Appearance of GW0017-128S................................................................................................................ 2
1.3.2 Ports and Connector................................................................................................................................ 3
1.4 Features & Functions...................................................................................................................................... 4
1.4.1 Key Features........................................................................................................................................... 4
1.4.2 Physical Interfaces................................................................................................................................. 4
1.4.3 Voice Capabilities & Fax ........................................................................................................................5
1.4.4 FXS .......................................................................................................................................................... 5
1.4.5 VoIP......................................................................................................................................................... 5
1.4.6 Software Features.................................................................................................................................... 6
1.4.7 Supplementary Services.......................................................................................................................... 6
1.4.8 Environmental......................................................................................................................................... 6
1.4.9 Maintenance............................................................................................................................................ 7
2 Quick Installation............................................................................................................................ 8
2.1 Installation Attentions ...................................................................................................................................... 8
2.2 RJ45 Wire Sequence......................................................................................................................................... 8
2.3 Installation Steps..............................................................................................................................................9
3 Basic Operation............................................................................................................................. 11
3.1 Methods to Number Dialing........................................................................................................................... 11
3.2 Direct IP Calls................................................................................................................................................ 11
3.3 Call Holding................................................................................................................................................... 12
3.4 Call Waiting.................................................................................................................................................... 12
3.5 Call Transfer................................................................................................................................................... 12
3.5.1 Blind Transfer ....................................................................................................................................... 12
3.5.2 Attended Transfer.................................................................................................................................. 13
3.6 Three-way Calling.......................................................................................................................................... 13
3.7 Description of Feature Code .......................................................................................................................... 14
3.8 Send or Receive Fax....................................................................................................................................... 16
3.8.1 Fax Mode Supported............................................................................................................................. 16
3.8.2 Explanation of T.38 and Pass-through .................................................................................................. 16
4 Configurations on Web Interface ................................................................................................ 17

Contents
IV
4.1 Preparations for Login.................................................................................................................................... 17
4.1.1 Network Connection............................................................................................................................. 17
4.1.2 Log In Web Interface ............................................................................................................................ 18
4.2 Navigation Tree.............................................................................................................................................. 18
4.3 Status & Statistics .......................................................................................................................................... 19
4.3.1 System Information............................................................................................................................... 19
4.3.2 Port Status............................................................................................................................................. 22
4.3.3 Current Call........................................................................................................................................... 23
4.3.4 RTP Session .......................................................................................................................................... 23
4.3.5 CDR...................................................................................................................................................... 23
4.3.6 Record Statistics.................................................................................................................................... 24
4.4 Quick Setup Wizard ....................................................................................................................................... 24
4.5 Network.......................................................................................................................................................... 25
4.5.1 Local Network ...................................................................................................................................... 25
4.5.2 VLAN（Virtual Local Area Network）............................................................................................... 26
4.5.3 DHCP Option........................................................................................................................................ 27
4.5.4 QoS ....................................................................................................................................................... 28
4.5.5 ARP....................................................................................................................................................... 28
4.5.6 IPv6 Network........................................................................................................................................ 28
4.6 SIP Server....................................................................................................................................................... 29
4.7 IP Profile ........................................................................................................................................................ 31
4.8 Tel Profile....................................................................................................................................................... 33
4.9 Port................................................................................................................................................................. 34
4.10 Advanced ..................................................................................................................................................... 36
4.10.1 Line Parameter.................................................................................................................................... 36
4.10.2 FXS Parameter.................................................................................................................................... 38
4.10.3 Media Parameter................................................................................................................................. 40
4.10.4 Service Parameter ............................................................................................................................... 41
4.10.5 SIP Compatibility................................................................................................................................ 46
4.10.6 NAT Parameter.................................................................................................................................... 50
4.10.7 Speed dial............................................................................................................................................ 50
4.10.8 Feature Code....................................................................................................................................... 51
4.10.9 System Parameter................................................................................................................................ 53
4.11 Call & Routing............................................................................................................................................. 55
4.11.1 Port Group........................................................................................................................................... 55
4.11.2 IP Trunk............................................................................................................................................... 57
4.11.3 Routing Parameter............................................................................................................................... 57
4.11.4 IP →Tel Routing ................................................................................................................................ 58

Contents
V
4.11.5 Tel →IP/Tel Routing.......................................................................................................................... 59
4.12 Manipulation................................................................................................................................................ 60
4.12.1 IP →Tel Called................................................................................................................................... 60
4.12.2 Tel →IP/Tel Caller............................................................................................................................. 61
4.12.3 Tel →IP/Tel Called ............................................................................................................................ 62
4.13 Management................................................................................................................................................. 64
4.13.1 TR069 ................................................................................................................................................. 64
4.13.2 SNMP.................................................................................................................................................. 65
4.13.3 Syslog.................................................................................................................................................. 68
4.13.4 Provision............................................................................................................................................. 69
4.13.5 Cloud server........................................................................................................................................ 69
4.13.6 User Manage....................................................................................................................................... 70
4.13.7 Remote Server..................................................................................................................................... 70
4.13.8 Record Parameter................................................................................................................................ 71
4.13.9 Radius Parameter ................................................................................................................................ 71
4.13.10 Action URL....................................................................................................................................... 72
4.13.11 SIP PNP............................................................................................................................................. 73
4.13.12 NMS Configuration........................................................................................................................... 73
4.14 Security ........................................................................................................................................................ 74
4.14.1 WEB ACL........................................................................................................................................... 74
4.14.2 Telnet ACL.......................................................................................................................................... 74
4.14.3 Passwords............................................................................................................................................ 75
4.15 Tools............................................................................................................................................................. 76
4.15.1 Firmware Upload ................................................................................................................................ 76
4.15.2 Data Backup........................................................................................................................................ 76
4.15.3 Data Restore........................................................................................................................................ 77
4.15.4 Outward Test....................................................................................................................................... 77
4.15.5 Ping Test.............................................................................................................................................. 77
4.15.6 Tracert Test.......................................................................................................................................... 78
4.15.7 Network Capture................................................................................................................................. 79
4.15.8 Factory Reset ...................................................................................................................................... 81
4.15.9 Device Restart..................................................................................................................................... 81
5 Glossary.......................................................................................................................................... 83

GW0017 User Manual
1
1 Product Introduction
1.1 Overview
GW0017 is a multi-functional analog gateway offering seamless connectivity between
IP-based telephony networks and legacy telephones (POTS), fax machines and PBX systems.
It adopts modularized hardware design that allows to expand FXS ports by adding boards
according to user's requirements. Each board has 8 FXS ports and the gateway supports 128
FXS ports at maximum.
GW0017 supports the standard SIP protocol and it's compatible with leading IMS/NGN
platforms and SIP-based IP telephony systems. It is ideally suited for small and medium
businesses, call centers and multi-location environments that need VoIP services.
1.2 Application Scenario
The general application scenarios of GW0017-128S for enterprises are as follows:
GW0017
GW0017
GW0017

GW0017 User Manual
2
The general application scenarios of GW0017-128S for carrier are as follows:
1.3 Product Appearance
1.3.1 Appearance of GW0017-128S

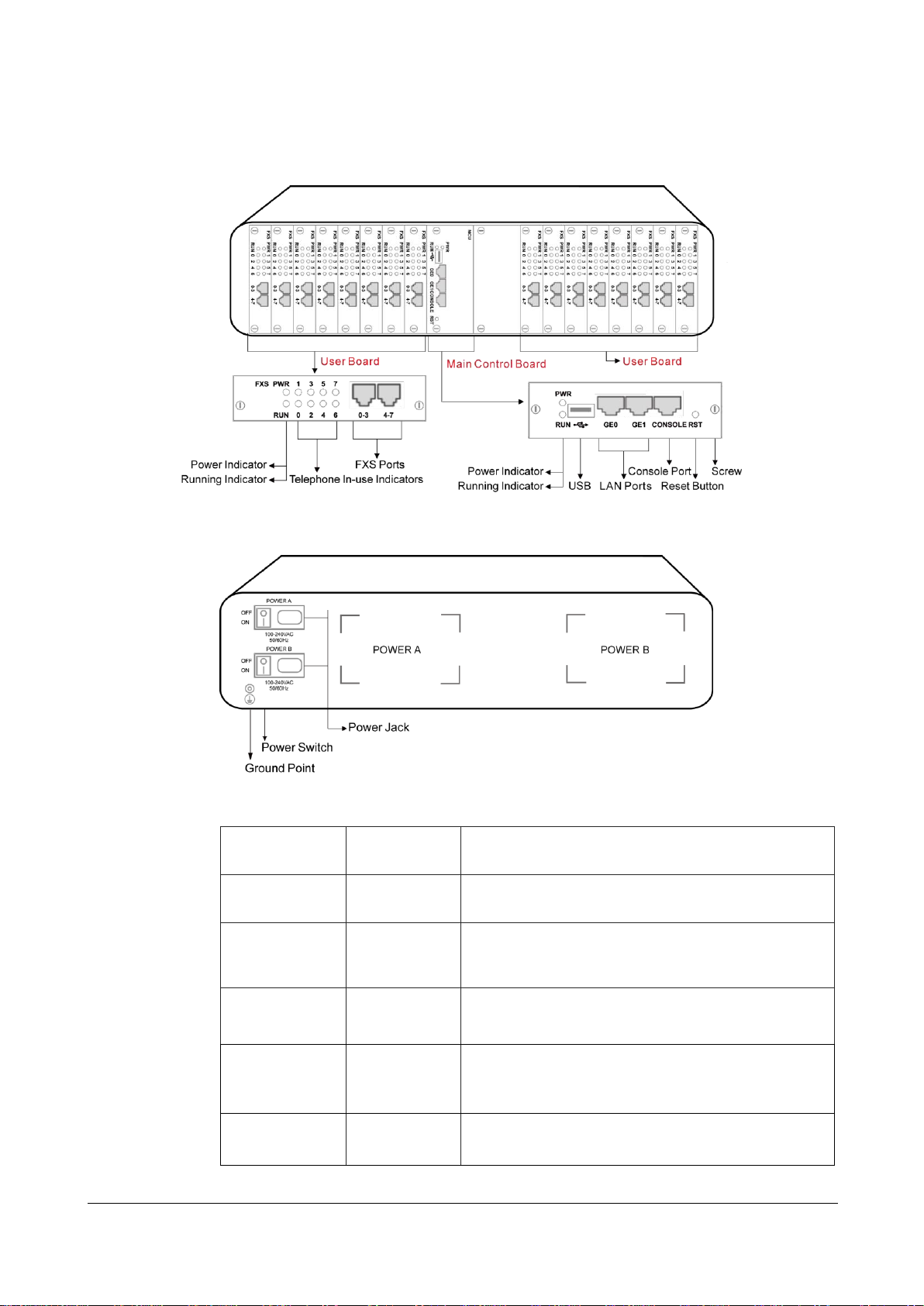

Front View:
Back View:
GW0017

GW0017 User Manual
3
1.3.2 Ports and Connector
The description of interfaces of GW0017-128S
Port Name
Connector
Description
Power Jack
Power Jack
To connect 100-240VAC 50-60HZ power supply
LAN Port
(GE0/GE1)
RJ45
To connect to the IP network over a DSL modem or
Router or a LAN switch
FXS Ports 0~7
RJ45
FXS ports to connect standard analog phone or FAX
machine or a PBX
Console Port
RJ48
Console port is used to carry out maintenance-related
configurations
Reset Button
Reset Button
The button is used to restart GW0017-128S

GW0017 User Manual
4
The description of indicators of GW0017-128S
Indicator
Definition
Status
Description
PWR
Power
Indicator
On
Power supply is normal .
Off
There is no power supply or power supply
is abnormal.
RUN
Running
Indicator
Slow Flashing
The device is running properly
Fast Flashing
SIP account is registered successfully.
On dull
The device is running improperly.
FXS 0~7
Telephone
In-use
Indicator
On
FXS port is currently occupied by a call
Off
FXS port is idle or faulty
LAN Port
(GE0/GE1)
Link (Green)
Flashing
The gateway is properly connected to
network
Off
The gateway is not connected to network
or network connection is improper
1.4 Features & Functions
➢Key Features
⚫High density gateway, up to 128 FXS
⚫Modularized design, easy to expand
⚫Support IPv4 and IPv6
⚫5KM Maximum Cabling Length
⚫Multiple codecs: G.711A/U,G.723.1,G.729A/B, iLBC
⚫Fully compatible with leading IMS/NGN, SIP based IP telephony system
➢Physical Interfaces
⚫Capacity
Range from 8 to 128 FXS
Support 16 user board slots

GW0017 User Manual
5
⚫User Board
2* RJ45 connectors with 8 FXS
⚫MCU Board
1*RS232, 115200bps
2*10/100/1000Mbps, RJ45
1* USB 2.0
➢Voice Capabilities & Fax
⚫G.711A/U law, G.723.1, G.729A/B, G.726,iLBC
⚫Silence Suppression
⚫Comfort Noise Generation(CNG)
⚫VoiceActivity Detection(VAD)
⚫Echo Cancellation(G.168), with up to 128ms
⚫Adaptive (Dynamic) Jitter Buffer
⚫Hook Flash
⚫Programmable Gain Control
⚫T.38/Pass-through
⚫Modem/POS
⚫DTMF mode: Signal/RFC2833/INBAND
⚫VLAN 802.1P/802.1Q
⚫Layer3 QoS and DiffServ
➢FXS
⚫Connector: RJ45 with 4 FXS
⚫Dial Mode: DTMF and Pulse
⚫Pulse: 10 and 20 PPS
⚫Caller ID: DTMF/FSK CLI Presentation
⚫Max Cable Length: 5KM
⚫Reversed Polarity
⚫Programmable Call Progress Tone
➢VoIP
⚫Protocol: SIP v2.0 (UDP/TCP),RFC3261,SDP,RTP(RFC2833), RFC3262, 3263,3264,3265,
3515,2976,3311
⚫SIP TLS
⚫RTP/RTCP, RFC2198, 1889
⚫RFC4028 Session Timer
