XPERT 2-Speed/A User manual

swiss made
Ausgabe/Index: Xpert 2-Speed/A01-19
Schafschermaschine Betriebsanleitung
de
Sheep clipper Instruction Manual
en
Esquiladora para ovejas Instrucciones de uso
es
Tondeuse pour moutons Mode d'emploi
fr
Tosatrice per ovini Istruzioni per l’uso
it
Schaapscheermachine Handleiding
nl
Fåreklipper Driftsvejledning
da
Fårklippmaskin Användarinstruktion
sv
Saueklippemaskin Instruksjonsbok
nb
Keritsin lampaille Käyttöohjeet
fi
Máquina de tosquia para ovinos Manual de instruções
pt
Κουρευτική μηχανή προβάτων Οδηγίες χρήσης
el

2Instruction Manual / Xpert 2-Speed sheep clipper
Table of contents
1 Safety .................................................................................................3
1.1 Generalities ........................................................................................ 3
1.2 Personnel requirements ..................................................................... 3
1.3 Dangers that can be caused by the device ........................................ 4
1.3.1 Danger from electrical current............................................................ 4
1.3.2 Animals............................................................................................... 5
1.3.3 Blades................................................................................................. 5
1.4 Personal Protective Equipment (PPE) ............................................... 6
2 Generalities ........................................................................................6
2.1 Guarantee conditions ......................................................................... 7
2.2 Customer service ............................................................................... 7
2.3 Limitation of liability ............................................................................ 7
2.4 Copyright ............................................................................................ 7
2.5 Symbols used..................................................................................... 7
2.6 Stipulated usage................................................................................. 8
3 Technical data ....................................................................................9
4 Assembly and function.......................................................................9
4.1 Construction ....................................................................................... 9
4.2 Functional description ...................................................................... 10
5 Transport, packaging and storage ................................................... 10
5.1 Scope of delivery.............................................................................. 10
5.2 Packaging ......................................................................................... 10
5.3 Storage ............................................................................................. 10
6 Operation ......................................................................................... 11
6.1 Requirements at the place of use......................................................11
6.2 Adjusting the clipping pressure .........................................................11
6.3 Switching the clipper on and off ....................................................... 12
6.4 Using the clipper............................................................................... 12
6.5 Replacing the clipping blades........................................................... 12
6.6 Lubrication ........................................................................................ 14
6.7 Cleaning............................................................................................ 15
7 Troubleshooting................................................................................ 16
7.1 Safety instructions............................................................................ 16
7.2 Causes of malfunctions and their rectication ................................. 16
8 Spare parts....................................................................................... 18
9 Disposal ........................................................................................... 19

Instruction Manual / Xpert 2-Speed sheep clipper 3
1 Safety
1.1 Generalities
DANGER!
DANGER FROM DISREGARDING THE SAFETY INSTRUCTIONS!
Disregarding the operating instructions and safety precautions
presented in these operating instructions will lead to serious in-
jury to people as well as damage to the device.
 The warnings and instructions in these operating instructions
must be observed.
Observe the following safety instructions:
 Do not leave the clipper unattended as long as the plug is
plugged in.
 Store the clipper out of reach of children.
1.2 Personnel requirements
yThis clipper may be operated only by persons who can be ex-
pected to carry out their work responsibly. Persons whose abil-
ity to react is undermined by, for example, drugs, alcohol or
medication should not be allowed to use the device.
yThe operator must be experienced in handling the animals to
be clipped.
yChildren are strictly prohibited from operating the device.
Unauthorised persons
CAUTION!
DANGER FOR AND FROM UNAUTHORISED PERSONS!
Unauthorised persons who do not meet the requirements de-
scribed here will be unable to recognise dangers in the work area.
 Prohibit access by unauthorised persons to the location where
the clipping is being performed.
 If in doubt, approach the persons and instruct them to leave the
work area.
 Suspend work until the unauthorised persons have left the
work area.

4Instruction Manual / Xpert 2-Speed sheep clipper
1.3 Dangers that can be caused by the device
1.3.1 Danger from electrical current
DANGER!
DANGER OF FATAL ELECTRIC SHOCK!
Fatal electric shocks can result from contact with electrically live
conductors or components!
 Always disconnect the charger power cord from the mains by
grasping the plug, not the cord.
 Before every use, check the clipper for externally visible dam-
age. If the clipper is damaged, do not use it.
 Only ever insert the charger's electrical plug into an undam-
aged socket.
 Never wrap the power cable around the clipper, and keep the
clipper away from hot surfaces and objects.
 Only permit repairs to the clipper to be made by authorised
dealers or the factory customer service department; this ap-
plies especially to the replacement of a damaged power cord.
 Before plugging the clipper in, compare the electrical connec-
tion data (voltage and frequency) on the nameplate with that
of your electric mains. These data must be identical so that no
damage occurs to the device. If in doubt, ask your specialised
electrical dealer.
 Do not under any circumstances open the housing of the clipper.
If voltage-bearing connectors are disturbed or the electrical
and mechanical construction is modied, there is risk of elec-
tric shock.
 Keep moisture away from the clippers. This can cause a short
circuit. If you suspect that moisture has penetrated the device,
do not switch it on again; instead take it to a repair shop.
 Never clip wet animals.
 Clean the clipper only when it is dry, using a brush or the en-
closed cleaning brush.
 Never submerge the clipper in water or other liquids.
 Always switch the clipper off before working on it. Pull the plug
from the socket to prevent the device from being switched on
inadvertently.

Instruction Manual / Xpert 2-Speed sheep clipper 5
 Never operate this appliance with the air openings blocked or
while on a soft surface, such as a bed or couch, where it is pos-
sible for the air openings to be blocked. Keep the air openings
free of lint, hair, and similar objects.
1.3.2 Animals
CAUTION!
DANGER OF INJURY BY ANIMALS!
The noise of the clipper can trouble animals. A kick, an attack or
the body weight of the animal can lead to injuries.
 Just persons being experienced in handling with animals are
allowed to clip the animals.
 Before beginning shearing, remove foreign objects from the
coat (wire, wood etc.).
 Secure the animal sufciently and calm it before starting work.
 Proceed with caution when working.
 Call in a second person if necessary.
1.3.3 Blades
CAUTION!
DANGER FROM MOVING COMPONENTS!
The moving clipping blade and its sharp edges can cause injuries.
 Proceed with caution when working.
 Avoid any contact with the moving clipping blades.
 Do not touch the area around the clipping blades whilst the ma-
chine is still plugged in to a power source, even if it is switched
off. Before working on the clipping blade/clipping head, always
disconnect the electrical power rst.
 Do not use damaged shearing blades with blunt or missing
teeth. Only work with sharp shearing blades sharpened by a
specialist workshop.
 The upper blade of the shearing head is only held by the ta-
pered pins of the chicken feet. If the shear-pressure adjustment
head is released too much, the upper blade can y off and
result in injuries.

6Instruction Manual / Xpert 2-Speed sheep clipper
CAUTION!
DANGER OF BURNS!
Insufcient oiling of the clipping head will cause it to become hot.
This may agitate the animals.
 When clipping, oil the clipping blades and clipping head through
the lubrication opening provided for this purpose at least every
15 minutes, so that the blades do not run dry.
 The shearing blades may become hot after prolonged use.
1.4 Personal Protective Equipment (PPE)
CAUTION!
DANGER OF INJURY THROUGH INCORRECT OR MISSING PROTEC-
TIVE EQUIPMENT!
Personal protective equipment is required when working, in order
to minimise the possibility of endangering health.
 Always wear the protective equipment required for the current
task when performing work.
Antislip shoes. For protection against slipping on slippery un-
derground.
Protective goggles to protect eyes from ying parts.
Close-tting protective clothing with low resistance to tearing,
with tight sleeves and no protruding parts. This is primarily to
prevent injury if they become caught between moving parts of
the machine.
Do not wear rings, chains or other jewellery.
Wear work gloves to protect against injury.
The acoustic emission while operating the device is typically
72 dB(A). We recommend that you always wear ear protection
when working with the device.
2 Generalities
This manual facilitates a safe and efcient machine handling.
Read these instructions carefully before starting operation.
Basic requirements for a safe operation are the adherence of all
the information regarding safety and operation in this manual.

Instruction Manual / Xpert 2-Speed sheep clipper 7
Keep this manual permanently. If you hand on the equipment to
other persons, provide them with this manual.
2.1 Guarantee conditions
The guarantee conditions are included in the general terms and
conditions of the manufacturer.
2.2 Customer service
For technical information, our customer service and our autho-
rised service centres are at your disposal.
Furthermore, our staff is interested in new information and expe-
rience resulting from the operation which could be useful for the
improvement of our products.
2.3 Limitation of liability
All data and information in this instruction manual were arranged
in consideration of the current standards and regulations and
state of the art as well as our realizations and experiences of
many years.
The manufacturer assumes no liability for disadvantages due to:
yDisregarding the operating instructions.
yNon-intended uses of the device.
yAssignment of not instructed personal.
yTechnical modications.
yUse of non-original spare parts.
The actual scope of delivery can differ from specially designed
models, from additional ordering options or due to the latest state
of the art from the here described annotations and illustrations.
2.4 Copyright
This document is protected by copyright. Any kind of reproduc-
tion or copying, in whole or in part, or the reproduction of imag-
es, even when changed, may be performed only with the written
agreement of the manufacturer.
2.5 Symbols used
DANGER!
A WARNING AT THIS DANGER LEVEL DESIGNATES AN IMMINENTLY
DANGEROUS SITUATION.
If the dangerous situation is not avoided, it will lead to death or
serious injury.
 To avoid the danger, follow the instructions shown.

8Instruction Manual / Xpert 2-Speed sheep clipper
CAUTION!
A WARNING AT THIS DANGER LEVEL DESIGNATES A POSSIBLY
DANGEROUS SITUATION.
If the dangerous situation is not avoided, it can lead to injury.
 To avoid the danger, follow the instructions shown.
CAUTION!
A WARNING AT THIS DANGER LEVEL DESIGNATES POSSIBLE PROP-
ERTY DAMAGE.
If the dangerous situation is not avoided, it can lead to property
damage.
 To avoid the danger, follow the instructions shown.
NOTE!
 This advice designates additional information that simplies
operation of the device.
2.6 Stipulated usage
The device is designed exclusively for shearing sheep, goats and
llamas, alpacas and other camelidae.
Any other use or use extending beyond the above is considered
unauthorised.
CAUTION!
Danger from unauthorised use!
Danger can result from improper use or use for a purpose other
than that intended.
 Use the device only as intended.
 Limit yourself to the procedures described in these operating
instructions.
Claims of any nature for damage resulting from unauthorised use
will not be accepted.
Such use is entirely at the operator’s own risk.
CAUTION!
Danger due to incorrect use!
In particular, the following applications of the device are prohib-
ited:
 Using the machine on persons.
 Clipping other animals, in particular dangerous animals such
as beasts of prey.

Instruction Manual / Xpert 2-Speed sheep clipper 9
3 Technical data
Handle Ø 54 mm
Length 301 mm
Weight (without charger power cord) 1.18 kg
Voltage
See rating plate on the device
Maximum current consumption
Frequency
Power drawn
Rotary speed
Noise emission (LPA) 72 dB(A) (EN 60745-1:2009)
Uncertainty K 3 dB
Ambient temperature range 0 - 40 °C
Maximum relative humidity 10 - 90%
Vibration 12,8 m/s2
Uncertainty K 1,5 m/s2
We reserve the right to make technical changes and improvements without
notice.
4 Assembly and function
4.1 Construction
1
234567
8
9
Fig. 1
1 Blades
2 Air outlet opening
3 Lubrication opening
4 Clipperhead
5 Clipping pressure
adjustment
6 Motor unit
7 ON/OFF switch
8 Air lter
9 Cable
ahv

10 Instruction Manual / Xpert 2-Speed sheep clipper

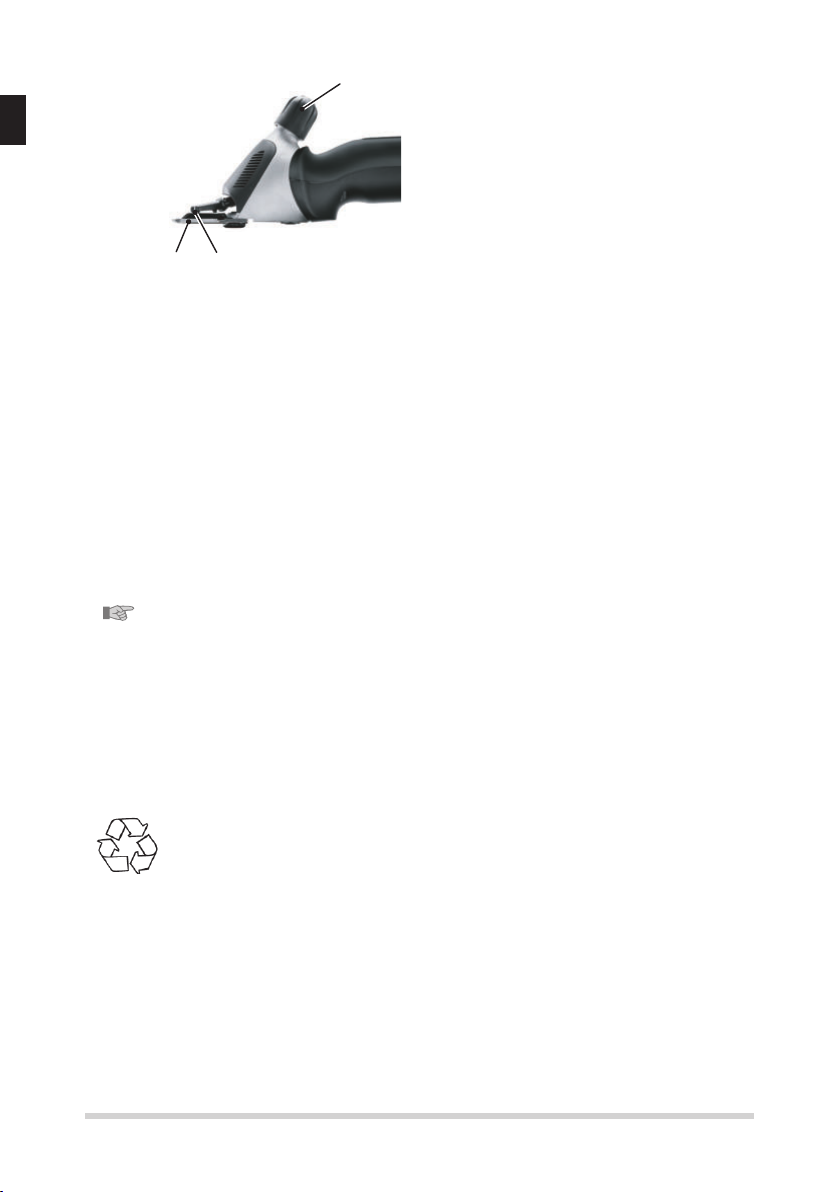

4.2 Functional description
3
1
2
Fig. 2
The clipper is used to shear sheep,
goats and llamas, alpacas and other
camelidae. Two comb-shaped blades
are the cutting tool. The comb plate
(2) closest to the skin of the animal is
xed and attached to the housing. The
top blade (3) is agitated crossways that
one. The upper blade is set in motion
with the help of two chicken feet. The
clipping pressure between the blades is
adjusted via the adjustable head (1).
5 Transport, packaging and storage
5.1 Scope of delivery
1 Clipper
1 pair of clipping blades
1 special screwdriver
1 bottle of special lubricating oil
1 cleaning brush
1 case for transport and storage
1 operating instructions
NOTE!
 Check to ensure the completeness of the contents and that
there is no damage. Please report incomplete package con-
tents or any apparent damage immediately to your supplier/
dealer.
5.2 Packaging
For the packaging, just non-polluting material is being used.
The return of the packaging saves raw materials and reduces the volume
of waste. Dispose of packaging materials that are no longer needed in
accordance with locally applicable regulations.
5.3 Storage
Store clipper and accessories on the following conditions:
 Do not store outdoor.
 Store dry and dust-free.
 Protect against solar irradiation.
 Avoid mechanical shocks.
 Storage temperature: 0 until 40°C.
 Relative humidity: max. 90%.

Instruction Manual / Xpert 2-Speed sheep clipper 11
 When storing longer than 3 months, check periodically the general con-
dition of all parts.
 When not using the clipper, store it in the case making sure it is well
cleaned, lubricated and that the clipping elements are not spring loaded
(risk of corrosion).
6 Operation
6.1 Requirements at the place of use
 Observe the manual (see chapter 3 Technical data).
 Power outlets in the outer area must be equipped with a residual current
circuit breaker (FI).
 The work place must have adequate lighting.
 The electrical socket must be easily accessible so that the device can be
quickly disconnected from the mains.
 The charger power cord must not be taut or kinked.
 Make sure there is adequate ventilation.
6.2 Adjusting the clipping pressure
Set the clipping pressure as follows before you start clipping:
Fig. 3
 Before beginning shearing when
the machine is switched off, check
to make sure that the tapered pins
of the chicken feet exactly engage
in the positioning holes of the upper
blade.
 Turn the adjusting knob in the direc-
tion of the arrow until you feel resis-
tance.
 Turn the knob another 1/4 turn in the
direction of the arrow.
 If the clipping quality deteriorates,
increase the clipping pressure by
turning the adjusting knob another
1/4 turn in the direction of the arrow.
If this does not produce the desired
result, the blades must be replaced
or sharpened.

12 Instruction Manual / Xpert 2-Speed sheep clipper
CAUTION!
 The upper blade of the shearing head is only held by the ta-
pered pins of the chicken feet. If the shear-pressure adjustment
head is released too much, the upper blade can y off and
result in injuries.
NOTE!
 If the clipping pressure is too low, hair can gather between the
clipping blades. This results in a poor clipping quality. In this
case, clean the clipping blades as described in chapter 6.7.
6.3 Switching the clipper on and off
I0
II
Fig. 4
 To switch the clipper on, slide the
ON/OFF switch to the position I or II.
 To switch the clipper off, slide the
ON/OFF switch to the position 0 (see
Fig. 4).
6.4 Using the clipper
 Approach the animal from the front.
 Secure the animal to be clipped and calm it down.
 Plug the power plug into the socket.
 Switch the clipper on while you are in the visual range of the animal.
 Select the desired speed (level I or II).
 Observe the animal's behaviour while clipping.
 Switch the clipper off after you have nished clipping and pull the plug
from the socket.
6.5 Replacing the clipping blades
Fig. 5
 Switch the clipper off by sliding the
switch to the position 0.
 Pull the plug from the socket.
 Turn the adjusting knob in the direc-
tion of the arrow until the resistance
decreases.
 Place the clipper with the comb plate
screws facing upwards on a at sur-
face.

Instruction Manual / Xpert 2-Speed sheep clipper 13

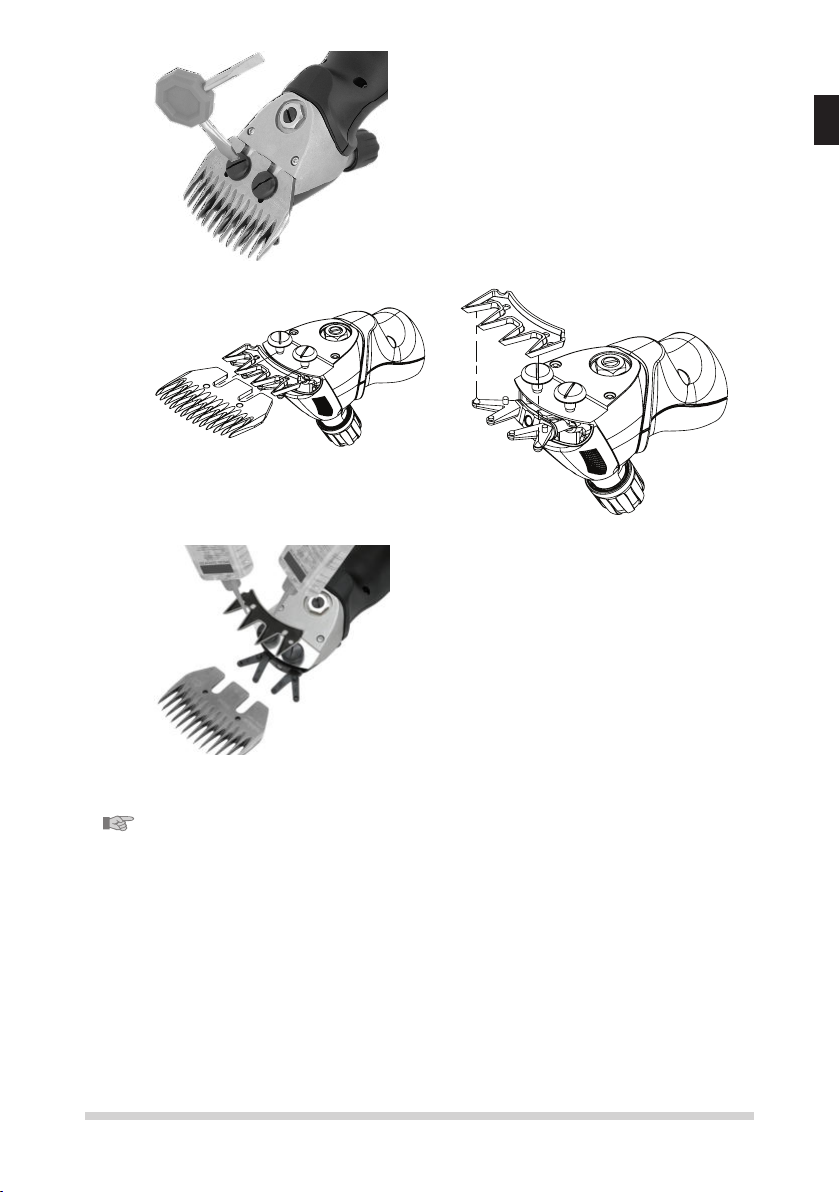

Fig. 6
 Release the comb plate screws and
pull the comb plate from the shear-
ing head.
 Remove the upper blade.
Fig. 7 Fig. 8
Fig. 9
 Place the new upper blade in the ta-
pered pins of the chicken feet.
 Apply a few drops of oil on the pol-
ished surfaces of the upper blade.
NOTE!
 Make sure the clipping blades are positioned correctly when
installing the new or sharpened blades.
 The tapered pins of the chicken feet must engage exactly in the
positioning holes of the upper blade.

14 Instruction Manual / Xpert 2-Speed sheep clipper
1,5 – 2 mm
Fig. 10
 Install the new comb plate. Align it so
that the ground surface of the comb
plate protrudes by approx. 1.5 - 2 mm
above the point of the upper blade.
 Tighten the comb plate screws.
NOTE!
 Only work with sharp blades, replace blunt or defective blades
without teeth. The correct resharpening of blades is only to do
by special machines or by a specialist. In that case, contact
your service centre.
6.6 Lubrication
Fig. 11
To ensure a well-clipped animal and to
increase the life of the clipper including
the shearing head, it is necessary to ap-
ply a thin coat of oil between the upper
blade and comb plate. All other moving
parts of the clipping head must also be
lubricated.
 Apply some drops of oil on to the
clipping blades and into the lubrica-
tion opening.
CAUTION!
POSSIBLE DAMAGE TO THE CLIPPER!
Insufcient oiling of the clipping head will lead to warming and will
shorten the life of the clippers and its blades.
 Oil the clipping blades adequately during the clipping session,
at least once every 15 minutes, so that they do not run dry.
 Only use the special oil supplied or a parafn oil conforming to
the ISO VG 15 specication.
NOTE!
 The provided oil is non-toxic and produces no irritation on con-
tact with the skin or the mucous membranes. This parafn oil
degrades to some 20% after 21 days (CEL-L-33-T-82).

Instruction Manual / Xpert 2-Speed sheep clipper 15
 Oil the blades prior to, during and after every use.
 Oil the blades no later than when the blades leave streaks or slow down.
 Apply several drops of oil on the front and on the sides of the clipping
blades (see Fig. 11).
 Wipe excess oil off with a soft, dry cloth.
 Lubrication sprays do not have sufcient oil for a good lubrication, but
serve for cooling the blades.
 Immediately replace damaged or notched blades in order to avoid inju-
ries.
6.7 Cleaning
CAUTION!
IMPROPER CLEANING.
RISK OF DAMAGING THE CLIPPER!
 Clean the clipper only with a dry cloth and with the brush sup-
plied. To clean the air lter, use exclusively a dry brush or a
nailbrush.
 Never use compressed air for cleaning the clipper.
Housing of the clipper
 Clean the housing of the clipper with a dry cloth.
Shearing blade and shearing head
 Use the brush supplied to clean the shearing blade and the shearing
head.
 Lubricate the clipping blades as described in chapter 6.6.
Air lter
Fig. 12
 Remove the air lter from the clipper.
 Clean the air lter with a dry brush
or a nailbrush. Make sure no foreign
objects get into the device while
cleaning it.
 Slide the air lter back onto the clip-
per.
CAUTION!
POSSIBLE DAMAGE TO THE CLIPPER!
Operating the clipper without the air lter can damage the clipper.
 Only use the clipper with a properly tted air lter.

16 Instruction Manual / Xpert 2-Speed sheep clipper
7 Troubleshooting
7.1 Safety instructions
DANGER!
DANGER OF FATAL ELECTRIC SHOCK!
Fatal electric shocks can result from contact with electrically live
conductors or components!
 Switch the equipment off before troubleshooting the problem.
 Repairs to electrical devices must only be carried out by the
factory service department or specialists who have been
trained by the manufacturer.
During the warranty period the device must be opened only by personnel
authorised by the manufacturer, otherwise the warranty will be void.
7.2 Causes of malfunctions and their rectication
Malfunction Cause Rectication
The upper blade does not
move
across the
full bearing surface.
Retaining spring broken. Notify customer service.
Eccentric shaft and/or ball
and swivelling fork are
worn (insufcient lubrica-
tion).
Bearings are heavily
worn.
Top blade does not move. Defective gear wheel. Notify customer service.
Eccentric shaft is broken
or bent.
Ball is missing.
Shearing pressure adjust-
ment knob is jammed.
Thread dirty or rusty. Notify customer service.
Circlip is jammed.
Shearing pressure adjust-
ment knob automatically
releases.
Circlip missing. Notify customer service.
Threaded insert is loose.
Not enough pressure can
be applied to the upper
blade.
Retaining spring broken. Notify customer service.
Sliding sleeve is missing.
Sliding sleeve is worn.
Swivelling fork is worn.
Chicken feet are worn.
Chicken feet fall out. Securing cams on the re-
taining spring are broken.
Notify customer service.

Instruction Manual / Xpert 2-Speed sheep clipper 17
Malfunction Cause Rectication
Motor runs very slowly. Clipper blades were not
oiled sufciently.
Lubricate the clipping
blades.
Motor and/or electronics
defective.
Notify customer service.
Motor does not run or
stops immediately.
Clipping pressure too
strong.
Reduce the clipping
pressure, as described
in chapter 6.2. Have the
blades sharpened.
Smell of burning from
the motor housing. Motor
burned out.
Notify customer service.
Motor and/or electronics
defective.
Motor turns off due to
overload.
Turn off the device, allow
it to cool down and then
turn it on again. Notify
customer service if the
device is not working
properly.
No speed difference be-
tween level I and level II.
Motor and/or electronics
defective.
Notify customer service.
Magnet missing.
Clipper cuts badly or not
at all.
Clipper blades blunt. Notify customer service.
Clipper blades have not
been correctly ground.
Clipping pressure too low. Increase the clipping
pressure, as described in
chapter 6.2.
Shearing blade is incor-
rectly installed and/or
aligned.
Correctly install the
shearing blade, as
described in chapter 6.5.
Align the clipping blades
correctly, see Fig. 10.
The animal‘s hair is wet. Only clip dry hair.
Hairs stuck between up-
per and lower blade.
Remove the clipping
blades; clean, lubricate
and install them again; set
the clipping pressure.
Motor unit becomes hot. Air lter clogged. Clean or replace the air
lter.
Clipping pressure too
high.
Reduce the clipping pres-
sure.
Bearing faulty. Notify customer service.

18 Instruction Manual / Xpert 2-Speed sheep clipper
8 Spare parts
See spare parts list at the end of these operating instructions.
CAUTION!
FAULTY SPARE PARTS MAY CAUSE DAMAGES, MALFUNCTIONS OR
TOTAL LOSS AND MAY REDUCE SECURITY.
 Use only original spare parts from the manufacturer. Obtain
spare parts from an authorised dealer or directly from the man-
ufacturer.
NOTE!
 If non-approved parts are used, all warranty, service, compen-
sation and liability claims against the manufacturer or its em-
ployees, dealers and representatives will be forfeited.
During the warranty period the device must be opened only by personnel
authorised by the manufacturer, otherwise the warranty will be void.
Pos. No. Description Quantity
Clipper
1Sheep clipping head, complete 1
2Adjusting knob, sheep 1
3Sheep shearing head cover 1
4Retaining spring 1
5Swivelling fork 1
6 Gauge plate 1
7Chicken feet, right 1
8 Chicken feet, left 1
9 Countersunk screw M4 x 8 2
10 Ball 1
11 Eccentric shaft sheep 1
12 Ball bearing 608-2RS 1
13 Comb plate screw, sheep 2
14 Locknut 1
15 Centre post 1
16 Sheep shearing head case 1
17 Ball bearing 608-2Z 1
18 Gear wheel Z22, sheep 1
19 Lock washer 1
20 Threaded insert 1
21 Circlip 1

Instruction Manual / Xpert 2-Speed sheep clipper 19
Pos. No. Description Quantity
22 Sliding sleeve 1
30 Air lter 1
31 Switch lever 1
32 Upper housing cover 1
33 Catch spring for switch with magnet 1
34 Motor complete 1
35 Front bearing ange 1
36 Stator 1
37 Ball bearing 8-19-6 2
38 Lock washer 1
39 Rotor incl. ball-bearing 1
40 Play compensation disc 626 1
41 Bearing ange, rear, with carbon brush springs 1
42 Carbon brush spring 2
43 PH-screw M4 x 10 1
44 Impeller 1
45 Carbon brush 2
46 Motor bracket 4
47 Lower housing cover 1
48 Cable grip 1
49 Anti-kink sleeve 1
50 PCB 1
51 Contact wire 1
52 PT-screw KA30 x 16 13
53 Cable 1
9 Disposal
CAUTION!
Environmental damages when disposing incorrectly!
 Electrical waste, lubricants and other consumable materials
are subject to special regulations regarding disposal. They can
only be disposed of only through qualied specialists!
NOTE!
 Dispose of the clipper at a service centre or nearby electrical
workshop.
