Xplore DT4100 User manual

WiFi PDA
DT4100
Quick Start Guide

1
Contents
Copyright ................................................................................................ 2
Disclaimer ............................................................................................... 2
Regulatory Information.......................................................................... 2
Safety Information.................................................................................. 4
Getting Started........................................................................................ 5
Device Overview ................................................................................ 5
Installing and Removing the Battery................................................... 7
Battery Charging ................................................................................ 8
LED Status Description .................................................................... 10
Powering the Device On and Off...................................................... 11
Suspending the Device .................................................................... 11
Using the Device................................................................................... 12
Viewing System Information............................................................. 12
Using Wi-Fi....................................................................................... 12
Using Bluetooth................................................................................ 12
Using NFC........................................................................................ 13
Adjusting Date & Time...................................................................... 13
Adjusting Volume.............................................................................. 13
Adjusting Display Settings................................................................ 13
Dening Keys ................................................................................... 14
Changing Battery Charging Policy ................................................... 14
Changing Language......................................................................... 15
Performing System Backup.............................................................. 15
Performing System Restore ............................................................. 15
Resetting the Device ........................................................................ 16
Contents

2
Copyright
Copyright© 2015 Group Sense Mobile-Tech Limited. All rights reserved.
No part of this document may be reproduced, distributed, translated, or
stored in any form without the prior written permission of Group Sense
Mobile-Tech Limited. All brands and product names mentioned herein
may be trademarks or registered trademarks of their respective owners.
Product specications are subject to change without prior notice.
Disclaimer
The contents of this document are provided as is. Group Sense Mobile-
Tech Limited makes no representations or warranties with respect to
the contents herein and specifically disclaims any express or implied
warranties of merchantability or tness for any particular purpose. Group
Sense Mobile-Tech Limited reserves the right to revise this document at
any time without prior notice.
Regulatory Information
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Changes
or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC Radiation Exposure Statement
This device should be installed and operated with a minimum separation
distance of 20cm between the radiator and all persons. This transmitter
must not be co-located or operated in conjunction with any other antenna
or transmitter.
CE Statement
This device has been tested and found to comply with the following EU
Directives:
Copyright

3
• R&TTE Directive (1999/5/EC)
• EMC Directive (2004/108/EC)
• Low Voltage Directive (2006/95/EC)
The assessment of compliance of the device was performed according to
the following European standards:
• EMC: EN 301 489-1 V1.9.2, EN 301 489-3 V1.4.1, EN 301 489-17
V2.2.1
• Health: EN 62311:2008, EN 62209-2:2008, EN 62479:2010
• Safety: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011
• Radio: EN 300 328 V1.7.1, EN 300 330-1 V1.7.1, EN 300 330-2
V1.5.1, EN 50360:2001
Use Restrictions: This device is restricted to indoor use when
operating in the 5150 to 5250 MHz frequency range.
Radiation Exposure Statement
This devise is designed, tested, and manufactured to comply with the
limits for exposure to RF energy set by international regulatory agencies.
“Specic Absorption Rate,” or SAR, refers to the rate at which the body
absorbs RF energy. The SAR limits for Wi-Fi and Bluetooth are 1.6
watts per kilogram (W/kg) for the FCC, and 2.0 W/kg for the Council of
the European Union. This device has been tested, and meets the FCC
and European Union RF exposure guidelines for Wi-Fi and Bluetooth
operation.
Regulatory Information

4
Safety Information
Please read the following information carefully before using the device for
the rst time, and keep this Quick Start Guide in a safe place for future
reference.
■Always treat the device with care and keep it in a clean and dust-
free environment.
■Do not expose the device to extremely hot, cold or humid
environment. The operation temperature is from –10°C to 50°C.
■Do not use the device in wet or rainy conditions.
■Do not charge the device in extremely hot (over 38°C) or cold
conditions (below 0°C).
■Do not attempt to disassemble or modify the device including the
charger.
■Do not operate the device when your hands are wet.
■Do not insert foreign objects into the openings of the device.
■Use only the charger and battery approved for the device.
■Install the cradle on a at and stable surface.
■Do not cascade over 3 cradles in series.
■Do not use the charger if the power cord or plug is damaged.
■Do not disassemble, crush or puncture the battery.
■Do not expose the battery to high temperatures.
■Do not let battery terminals touch other metal objects that could
lead to short-circuit of the battery.
■Do not dispose of the battery in re or water.
■Dispose of used battery properly according to local laws and
regulations.
Safety Information

5
Getting Started

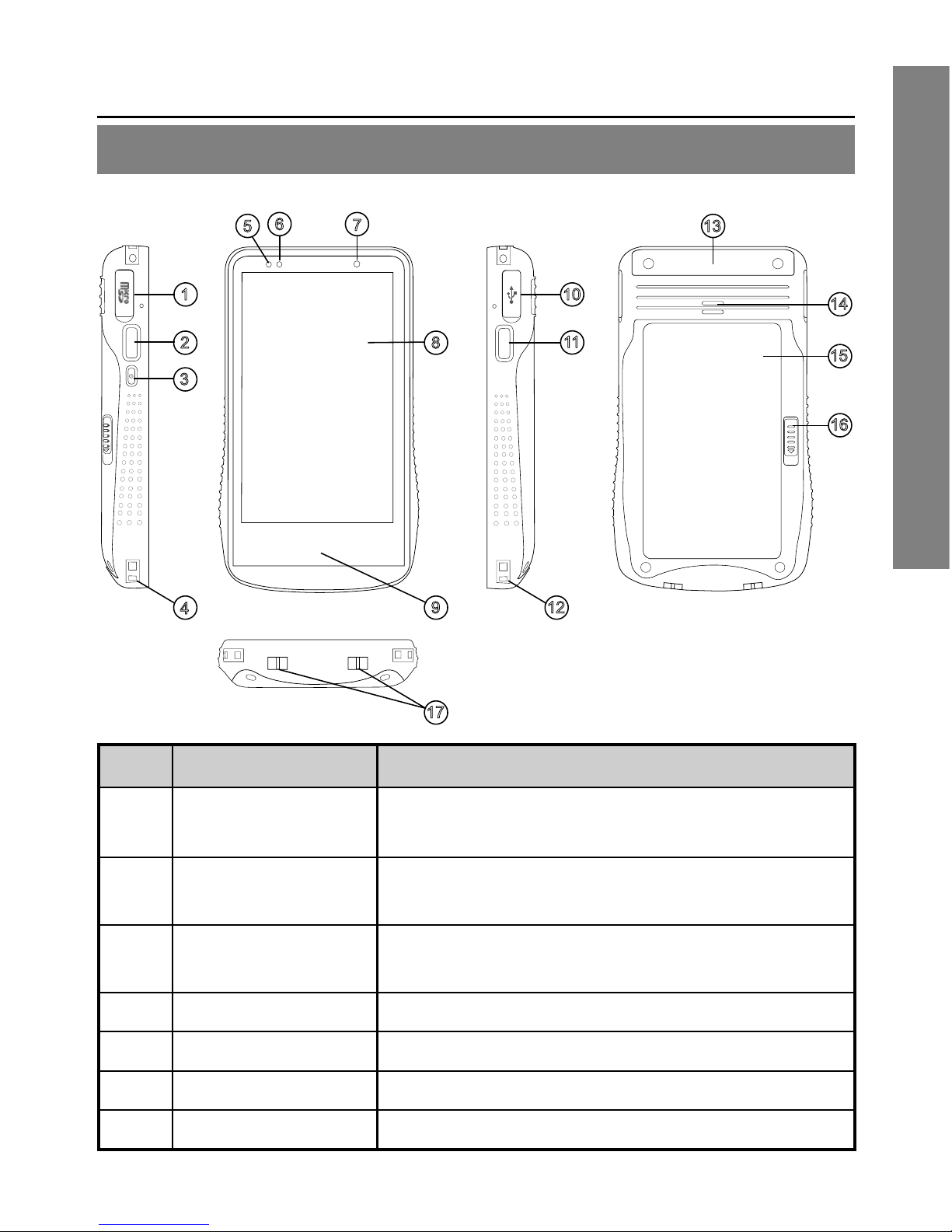

Device Overview
1
2
3
4
5
67
8
9
10
11
12
13
16
15
14
17
No. Item Description
1MicroSD card
cover
Open the cover to access the MicroSD card
slot
2 Left side key Congurable shortcut key. Default as Menu
key
3 Power key Press and hold to turn the device on or off.
If the device is on, press to suspend.
4 /12 Strap eyelet Attach the anti-drop string
5Congurable LED Software congurable LED
6 Device LED Power and Wi-Fi connection status indicator
7 Light sensor Auto screen brightness control
Getting Started

6
8 Touch screen LCD with capacitive touch screen
9 NFC reader Scanning area for NFC tags
10 USB cover Open the cover to access the USB
connector
11 Right side key Congurable shortcut key. Default as Back
key
13 Expansion slot
cover
Remove cover for the add-on module
connection
14 Speaker Mono speaker
15 Battery cover Remove the battery cover to access the
battery
16 Battery cover lock Slide down to release the battery cover
17 Charging plates Contact plates for charging in the cradle

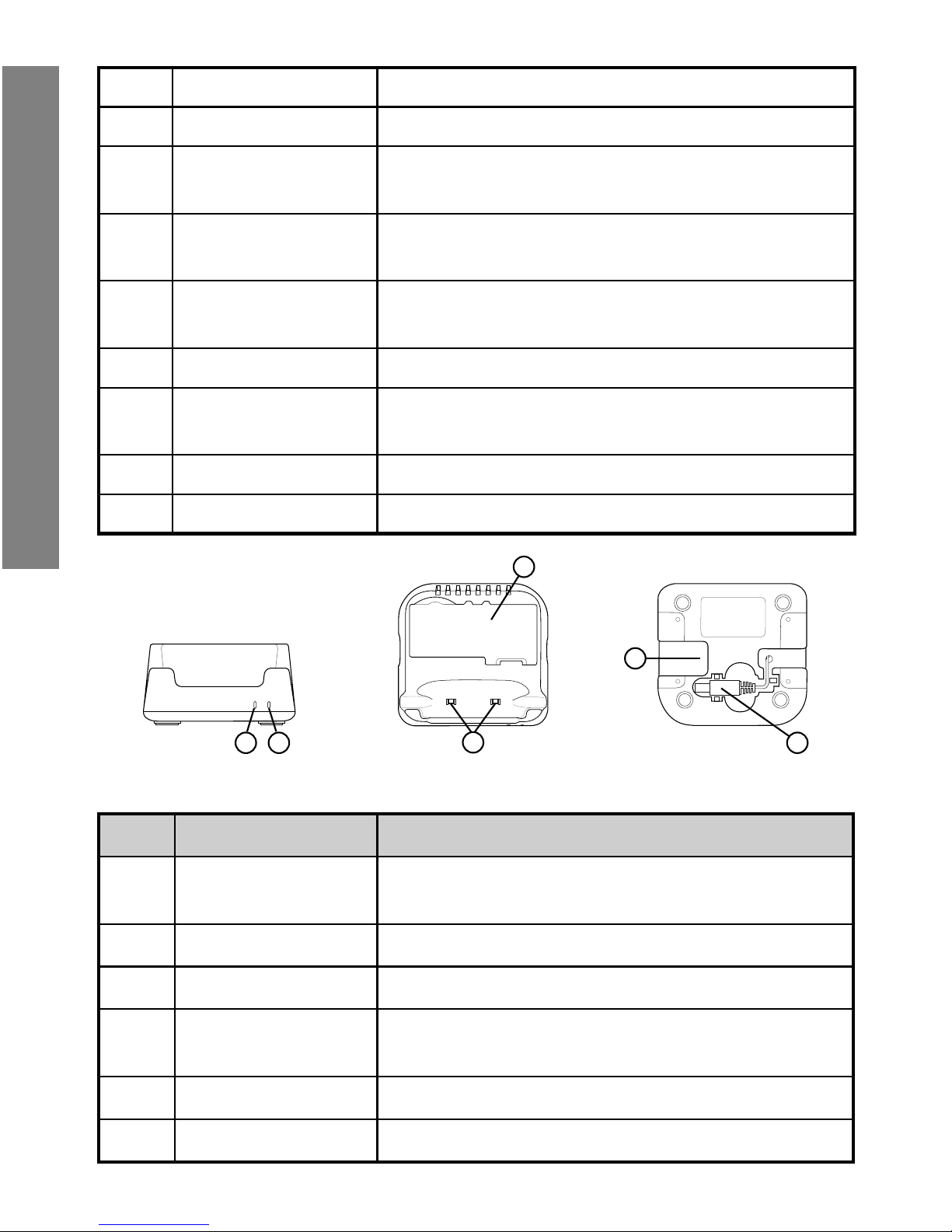

1 2 4
3
6
5
No. Item Description
1Spare battery
LED Spare battery charging status indicator
2 Power LED Cradle power connection indicator
3 Battery slot To charge spare battery
4Charging contact
plates To charge the device
5 DC jack Connect AC/DC Adaptor or DC power cable
6 DC power cable Power cable for cascading cradles
Getting Started

7
Installing and Removing the Battery
Installing the Battery
1. Align the battery metal contacts with the contact pins inside the
battery compartment.
2. Press the battery down until the battery lock clicks into place.
3. Align the battery cover with the battery compartment; and push the
battery cover down until it is locked.
1
2
3
Removing the Battery
Note: Always power off the device before removing the battery.
1. Slide the battery cover lock down until the battery cover ejects
slightly.
2. Remove the battery cover.
3. Slide the battery lock to the right and hold it at the unlocked
position.
4. Lift the battery from the battery compartment.
1
2
4
3
Getting Started

8
Battery Charging
Charging the Device
1. Connect the AC/DC adaptor to the DC jack of the cradle.
2. Plug the AC/DC adaptor into a suitable power socket. The cradle
power LED will turn green when power is supplied to the cradle.
3. Insert the device to the cradle slot. The device LED will ash amber
while charging, then it will turn green when fully charged.
Note: Alternately, use the approved travel adaptor to charge the device
via the USB connector.
Charging the Spare Battery
1. Align the battery metal contacts with the contact plates of the
battery slot.
2. Press the battery down to t into the battery slot. The cradle battery
LED will turn red while charging, then it will turn green when fully
charged.
1
2
Getting Started

9

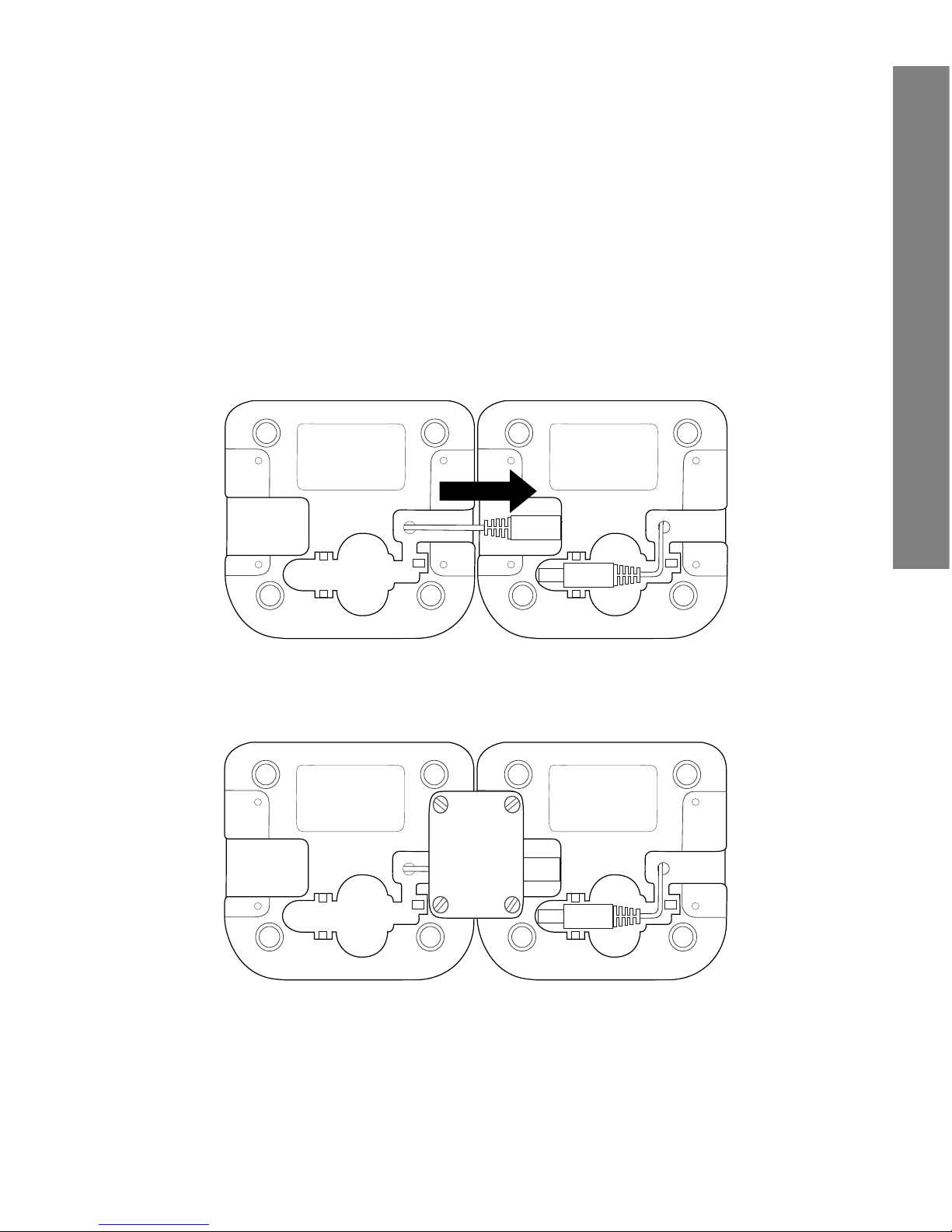

Cascading the DT4000 Cradles
DT4000 cradles can be cascaded in series to charge devices and
batteries simultaneously with one AC/DC adaptor. Each adaptor supports
maximum 3 cascaded cradles.
Important: Do not cascade over 3 cradles in series.
1. Disconnect AC/DC adaptor, and turn over 2 cradles.
2. Connect the DC Power Cable of one cradle to the DC power
connector of the other cradle.
3. Apply the metal plate accessory to the recess area as illustrated,
and fasten the metal plate screws with a coin or screwdriver.
4. Re-connect the AC/DC Adaptor to the cradle.
Getting Started
