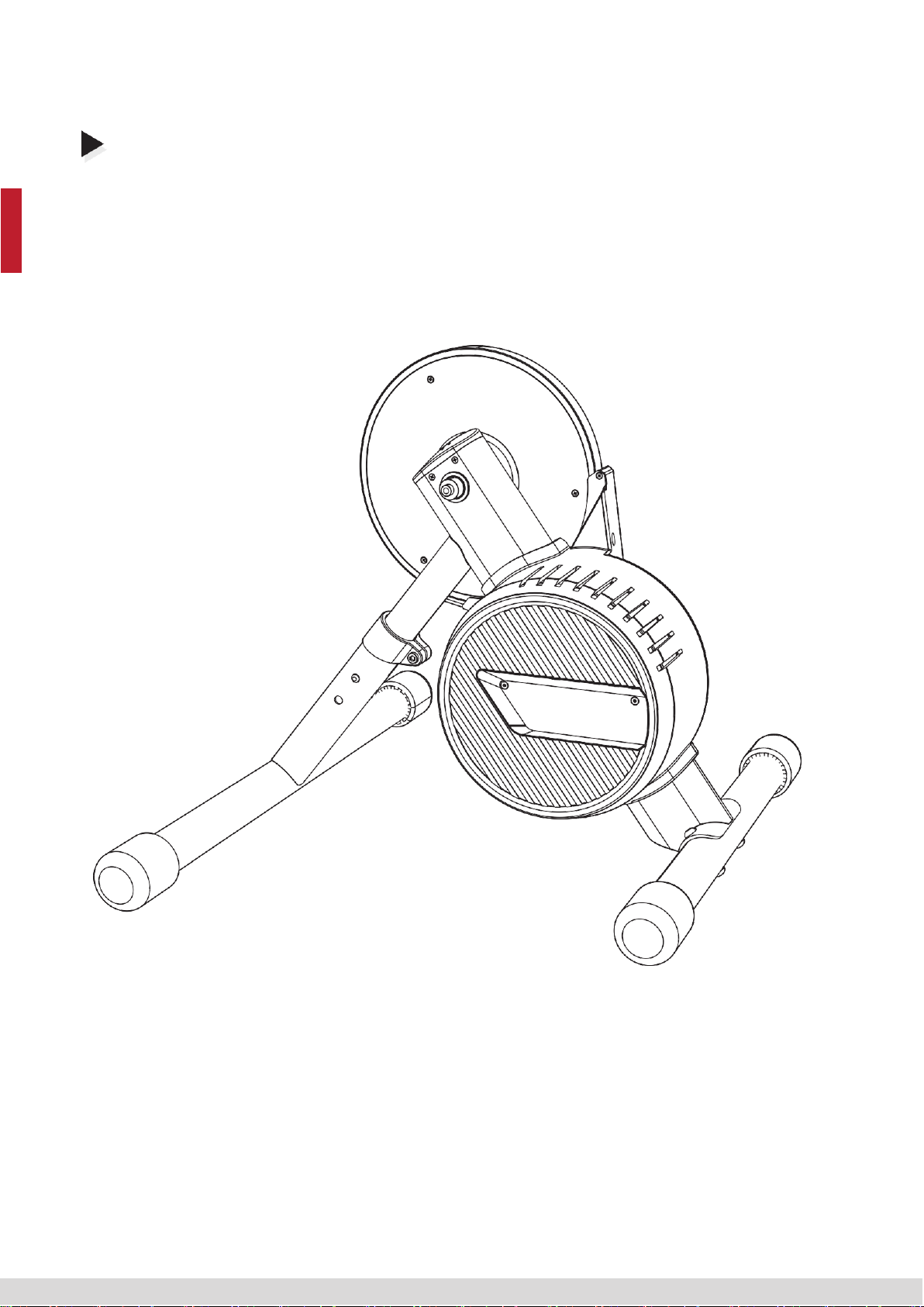

Knowing your NOZA ONE
EN-1
EN
KNOWING YOUR NOZA ONE
Q Package contents
Rear bottom tube
Xplova NOZA ONE
bike trainer main unit
Front bottom tube
(Bolt and nut are
Included within it)
Rear bottom tube
bolt x2
Rear bottom tube
nut x2
Front bottom
wrench
Flywheel/cassette
cover bolt wrench
(2mm Hexagon)
Flywheel/cassette
washer
Decorative bolt
cover x2
Rear bottom
wrench
Flywheel/cassette
cover
Flywheel/cassette
cover bolt x2

Knowing your NOZA ONE
EN-2
EN
Notice: Accessories may vary by country or region.
Q Product Appearance
Quick release kit Adapters for
QR&Thru-axle
Control module Control module
screw x2

Assembly Instructions
EN-3
EN
ASSEMBLY INSTRUCTIONS
Q Assembly Instructions Notice
Front bottom tube installation
Install according to the direction shown in the figure, press the spring button during
installation, and rotate the front bottom tube slightly to make the spring buckle go
through any hole in the front bottom tube. Then tighten the bolts and the front bottom
tube can be installed.
Flywheel/cassette cover installation
After taking out the filler from the flywheel/cassette cover, first tighten the flywheel/
cassette cover onto the flywheel, and then lock the two screws, as shown in the figure.
* Note: 1. The flywheel cover plays a role
in protecting the machine, personnel
safety and aesthetics purpose, please be
sure to install it in place!
* Note: 2. For detailed installation
methods, please refer to the specific
chapters.
* Note: 1. The part marked in red is a
plastic pipe sleeve, which is installed to
prevent the metal pipes from rotating each
other, please do not discard it.
* Note: 2. The height of the trainer can be
adjusted through the spring button and the
installation of the two holes on the front
bottom tube to adapt to different training
models. The adaptation category is shown
in the figure.

Assembly Instructions
EN-4
EN
Q Assembling the Xplova NOZA ONE
1. Open the packing box, remove the styrofoam top cover and take out the
installation tools and accessories from the accessory bag.
• For front bottom tube
installation use:
- Front bottom wrench
• For the installation of the rear
bottom tube:
- Rear bottom tube bolt x2
- Rear bottom tube nut x2
- Decorative bolt cover x2
- Rear bottom wrench
• For the installation of Flywheel/
cassette cover:
- Flywheel/cassette cover
- Flywheel/cassette cover
bolt x2
- Flywheel/cassette cover bolt wrench
• For the installation of control module:
- Control module
- Control module screw x2
2. Take out the NOZA ONE bike trainer main unit and front bottom tube from the
styrofoam cover and install according to the illustrations.
Xplova NOZA ONE
Bike trainer main unit
Front bottom tube
Diagram of completed front
bottom tube installation
TIP: Press down the spring button when
installing. When installation is done, make
sure the button goes through the locating
hole on the front leg.

Assembly Instructions
EN-5
EN
3. Put the front leg on the ground as a
support to lift the trainer, put rear bottom
tube bolt through the holes on the rear
bottom tube and secure it tightly to the
trainer main unit. Then use the rear bottom
wrench to screw the rear bottom tube nut
tight, and then install the decorative bolt
cover.
4. Tighten the bolts in the direction according
to illustration, screw tight the front bottom
tube. (Bolt and nut are included in the front
bottom tube)
5. After removing the filler from the flywheel/cassette cover, place the flywheel/
cassette cover in the direction shown in the figure below and tighten it, use the
flywheel/cassette cover wrench to tighten the two flywheel/cassette cover bolts.
6. Install the battery according to the
following diagram:
6.1. Take out the control module from the
accessory bag and put in two AAA batteries.
6.2. Put the control module into the main
beam according to the direction shown in the
figure.
6.3. Use a screwdriver to tighten the control
module screws to complete the battery
installation.

Assembly Instructions
EN-6
EN
Attention:
Discarded dry batteries should be disposed in time, please do not try to
disassemble them. Please remove the battery if the battery is not used
for a long period of time to avoid damage to the equipment due to battery
leakage.
7. Install the flywheel/cassette (sold separately) into the cassette body manually
and use the cassette nut to secure it on the cassette body, and lock the cassette
to prevent it from loosening.
Attention:
The cassette body of NOZA ONE bike trainer is compatible with
Shimano and SRAM cassette, an 11-speed cassette can be installed
directly. If you use a non-11-speed cassette, please install the cassette
washer into the bottom of the cassette body before installing the
cassette.

Assembly Instructions
EN-7
EN
Q Mounting your bicycle
Shift the chain on your bicycle to the smallest sprocket of the cassette and then
remove the rear wheel. Align the bicycle chain with the smallest sprocket of the
cassette of NOZA ONE, and then put on the chain as well as mount the bicycle on
NOZA ONE's axle to have the bicycle in a suitable position for riding.
Please use the bicycle quick release kit properly with care. When the arc of the
rotating arm of the quick release kit is toward outside, it means the kit is in a released
state. Rotate the rotating arm of the kit clockwise to tighten the quick release kit. The
rotating arm of the quick release kit should be placed on the other side of the NOZA
ONE's cassette body.
Please refer to the following illustration for the installation of the thru axle bicycle.
Insert the thru axle from the other side of the cassette and tighten the axle.
Attention:
1. Please firmly tighten the quick release lever and the thru axle to
prevent damage to property or human body. If you cannot tighten the
quick release lever and the thru axle, please contact your dealer or
Xplova customer service. Please DO NOT attempt to use the NOZA
ONE under this situation.
2. When mounting the bicycle, please lift its front wheel and press the
frame down to make the bicycle firmly mounted on the NOZA ONE.

Assembly Instructions
EN-8
EN
Q Indicator descriptions
NOZA ONE has two indicator lights, one indicates system status, the other indicates
communication status. See illustration for locations of the two indicator lights:
Categories Type of indicator light
Battery exhausted
System LED indicator light
off.
Bike trainer at sleep
mode
Low power
consumption mode
Working status
Not Connected ---
Communication indicator
light flashing slowly.
Connected ---
Communication indicator
light always on
Low battery
System indicator light
flashes in every 10
seconds.
Spindown
Alternate flashing of red
light and blue light. Blue
light will always on after
spindown completed.

Assembly Instructions
EN-9
EN
Q Cycling game QSG
Q Training program and uploading riding data
Use the Xplova Workout Plus App to control NOZA ONE and use multiple training
programs.
If you want to conduct more detailed analysis, you can use Xplova Workout Plus App
to upload your data to website for analysis.
Q More of the amazing functions
If you want to experience the full functions of the NOZA ONE, we recommend that
you install the Xplova Workout Plus App on your smartphone. Xplova Workout Plus
App enables you to:
•View/store training records
•Upload the records to different platforms (such as Xplova, Strava, TrainingPeak
and so on)
Please go to Google Play or App Store to search for ''Xplova Workout Plus'' to
download and install the app. If you want to get a better understanding of the product,
please go to our official website at www.xplova.com and download the User Manual.
1. You may download some of the cycling
game training softwares on PC/MAC or
smartphone. Here are a few key games:
•ZWIFT: www.zwift.com
•Rouvy: rouvy.com
•Onelap: www.onelap.cn
2. Install games and setup connection to
NOZA ONE. NOZA ONE will only
display power and speed data.
3. Once you mount the bike, you are ready
to start the game training experience.

Assembly Instructions
EN-10
EN
Q Specifications
Dimensions (installed) 600 x 490 x 450 mm
Total Weight (unboxed) 12.5 KG (Excluding package)
Flywheel Weight 5.3 KG
Sound Level 58 dB (@30KPH)
Max Power Output 800 W (@58KPH)
Max Simulated Incline 2% (@70 KG)
Accuracy ±3%
Drivetrain
Cassette needs to be purchased separately
Compatible with Shimano & SRAM 8/9/10/11 speed
cassette
Connectivity ANT+, Bluetooth Smart
Firmware Upgradable Yes
Box Dimensions 700 x 485 x 270 mm

Safety precautions and regulations
EN-11
EN
SAFETY PRECAUTIONS AND REGULATIONS
Q Safety precautions before use
1. When the bike trainer is active, please do not touch it and you should keep non
users, animals or objects away from it to avoid danger.
2. Consult your coach before you start any training plans.
3. Please DO NOT put your hands or any object near the spinning parts of the
Xplova NOZA ONE.
4. The flywheel/cassette of the Xplova NOZA ONE might gets hot after you use it for
a while. Please DO NOT touch the flywheel/cassette within a short time.
5. Please DO NOT attempt to disassemble the bicycle when the cassette is running.
6. When you are using the Xplova NOZA ONE, keep your children and pets away
from it to prevent injury.
7. Xplova NOZA ONE can only be installed and used on a firm, level ground.
8. When training is in progress, please ride safely.
9. Keep away from water.
10. Before training, you should check if the bicycle is firmly secured to the Xplova
NOZA ONE.
11. Xplova NOZA ONE can only be used after it is completely assembled.
12. When using the Xplova NOZA ONE, you can only use accessories certified by
Xplova.
Q Notices
1. Xplova shall not be held responsible for users using software, applications and
devices from other companies that result in malfunctioning of the Xplova NOZA
ONE.
2. As ANT+™ and Bluetooth are mutually exclusive, it is impossible for the Xplova
NOZA ONE to send data simultaneously through ANT+™ or Bluetooth, i.e., When
one of the protocols is in use, the Xplova NOZA ONE will automatically stop the
other protocol to avoid the possibility of causing NOZA ONE programs to
misbehave.
3. Radio devices may cause interference and may change or completely prevent the
Xplova NOZA ONE from functioning normally. Therefore, when training using the
NOZA ONE, it is advised to stay away from high voltage power lines, traffic
signals, railway power lines, buses or trains.
4. When the Xplova NOZA ONE is not in use, make sure not to expose it to direct
sunlight for long periods of time.
Q Disclaimer
Attention! Xplova shall not be held responsible for temporary or permanent injury to
the user out of using the Xplova NOZA ONE (either directly or indirectly).

Safety precautions and regulations
EN-12
EN
Q Maintenance and care
1. When cleaning the bike trainer, please use neutral lubrication oil. DO NOT use
corrosive detergents.
2. DO NOT burnish the surface of the bike trainer or drill holes. Scratches or drilled
holes will lead to occurrence of cracks.
3. Please place the bike trainer indoors and keep it dry to avoid damage from
humidity.
Q Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
(Section 15.21)
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the equipment.
Q Xplova Limited Product Warranty Policy
This Limited Product Warranty shall apply to Xplova products including all
accessories as contained within the original Xplova gift box. Xplova warrants that
products from its authorized distributors and retailers will meet the applicable product
specifications and be free from all defects in material and workmanship during the
Limited Product Warranty Period, one year starting from the date of original
purchase, if the products are used and serviced in accordance with the user manual
and other documentation provided to the purchaser at the time of purchase. This
Limited Product Warranty is subjected to the following terms and conditions:
1. To obtain warranty service, a proof of purchase, an original or copy of the sales
receipt from the original retailer, is required.
2. This Limited Product Warranty is only valid and enforceable in the country/region
where the product is sold.

Safety precautions and regulations
EN-13
EN
3. This Limited Product Warranty is at sole option of Xplova to either repair or replace
the defective product during the Limited Product Warranty Period. Xplova will not
replace missing components from any package purchased through on-line
auctions.
4. To obtain warranty service, contact your local Xplova authorized retailer or Xplova
for shipping instructions and an RMA number.
5. This Limited Product Warranty covers expenses for inspecting and repairing the
product during the Limited Product Warranty Period. The defective product shall
be delivered by the purchaser at his/her own expense to the designated premises
together with the proof of purchase and RMA number.
6. Xplova will return the repaired or replaced product to the drop-zone for collection
by the customer in good working condition. All replaced faulty products or
components will become the property of Xplova. If Xplova repairs or replaces the
product, the repaired or replaced product shall continue to be warranted for the
remaining time of the original warranty period or for three (3) months from the date
of repair or replacement, whichever is longer.
7. Before returning any units for service, be sure to back up data and remove any
confidential, proprietary, or personal information from the Product. Xplova is not
responsible for damage to or loss of data.
8. Xplova reserves the right to add, delete or amend the terms and conditions at any
time without prior notice on its website indicated below.
9. THIS LIMITED WARRANTY SHALL NOT APPLY IF THE DAMAGE WAS
CAUSED BY ANY OF THE FOLLOWING:
A. The product serial number has been removed, erased, defaced, altered or is
illegible.
B. The damage is resulting from the use of the product in a manner other than its
normal and customary manner.
C. Deterioration of the product due to normal wear and tear.
D. The damage is arising from improper installation, unauthorized repair,
alteration or modification to this product by third parties other than Xplova or its
designee.
E. The damage is arising from operating with components or accessories not
officially authorized or provided by Xplova or used in other than its intended
use.
F. The damage is arising from exposure to abnormally corrosive conditions or
operation with extreme heat or humidity.
10. XPLOVA WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
LOSSES OR DAMAGES TO ANY NATURE, INCLUDING BUT NOT LIMITED TO
LOST PROFITS OR COMMERCIAL LOSS, TO THE FULLEST EXTENT THAT
THOSE LOSSES OR DAMAGES CAN BE DISCLAIMED BY LAW.
11. This Limited Product Warranty does not affect the customer's statutory rights in
law specific to the country of purchase, such rights remain protected. Some
countries do not allow the exclusion or limitation of incidental or consequential loss
or damage, or limitation of the implied warranties, in those circumstances the
preceding limitation of exclusions may not apply to such customers.

Safety precautions and regulations
EN-14
EN
Warranty Coverage:
1. Under normal conditions of use, the product main unit and components gets a one
year free after-sales maintenance services.
2. Please present the original purchase approval or receipt with this Product
Warranty on upon of requesting a service. Service fee might be charged in
accordance with this Product Warranty. Please note the Limited Product Warranty
Period and service availability and response times may vary from country to
country and may also be subject to registration requirement in the country of
purchase. If you require assistance regarding warranty conditions, or any other
enquiries, please contact the original retailer or Xplova.
Website: https://www.xplova.com

認識您的 NOZA
ONE
認識您的 NOZA ONE
目錄
認識您的NOZA ONE....................................................................................1
包裝內容物................................................................................................. 1
產品外觀. ................................................................................................... 2
組裝說明........................................................................................................3
注意. .......................................................................................................... 3
組裝Xplova NOZA ONE..............................................................................4
安裝您的自行車.......................................................................................... 7
指示燈說明................................................................................................. 8
單車遊戲入門指南...................................................................................... 8
訓練計畫以及上傳騎乘數據........................................................................ 9
更多令人驚豔功能...................................................................................... 9
規格表........................................................................................................ 9
安全警告及規範...........................................................................................10
使用前安全警告.........................................................................................10
注意事項. ..................................................................................................10
免責聲明. ..................................................................................................10
維護與保養................................................................................................11
無線警語. ..................................................................................................11
Xplova 有限產品保固政策.........................................................................11
Xplova 有限產品保固政策...........................................................................12

1
註：配件可能會因國家或區域而異。
認識您的 NOZA
ONE
認識您的 NOZA ONE
認識您的 NOZA ONE
包裝內容物
Xplova NOZA ONE 訓練台主體
前底管(含螺
釘螺帽)
後底管 後底管固定螺釘 x2
後底管固定螺母 x2 前底管鎖緊扳手 飛輪罩蓋螺釘鎖緊扳手 飛輪轉換墊圈
螺栓裝飾蓋 x2 後底管鎖緊扳手 飛輪罩蓋 飛輪罩蓋固定螺釘 x2
快拆桿 快拆桿和桶軸轉換器 控制模塊 控制模塊固定螺絲 x2

2
認識您的 NOZA
ONE
認識您的 NOZA ONE
產品外觀
