Knowing your NOZA
EN-1
EN
KNOWING YOUR NOZA
 Package contents
Note: Accessories may vary by country or region.
Front bottom tube Rear bottom tube
Xplova NOZA bike trainer main unit Bolt x2 / Nut x2 1.8mm cassette
washer
Tuning knob – for
front/rear bottom
tubes adjustment
and tightness
Quick release kit Open-end wrench Power adapter
Adapter A –
for quick release
cassette nut
Adapter B –
for quick release
130mm/135mm
Adapter C –
for thru axle
cassette nut
Adapter D –
for thru axle
12x142/
12x148mm

Knowing your NOZA
EN-2
EN
 Introduction of product appearance
Tuning knob
Flywheel
LED indicator
Front bottom tube Power cord connector

Assembly descriptions
EN-3
EN
ASSEMBLY DESCRIPTIONS

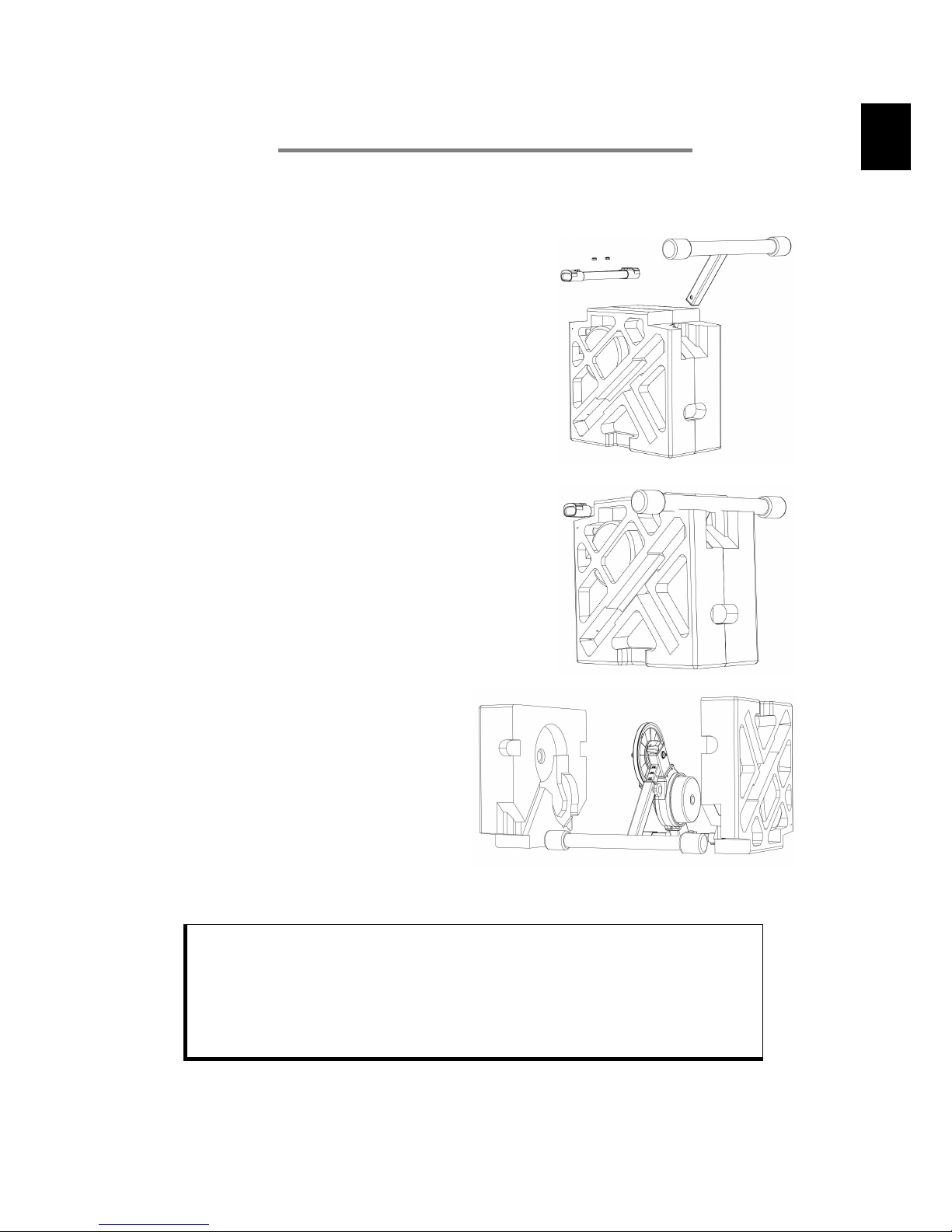

 Assembling the Xplova NOZA
1. Flip the box and open the bottom of the box.
Take the Xplova NOZA main unit and
Styrofoam packaging out of the box at the
same time.
2. Remove the front and rear bottom tubes from
the sides of the Styrofoam packaging.
(DO NOT open the Styrofoam packaging at
both sides.)
3. Take out the bolts and insert them into the bolt
holes on the main frame.
4. Put the front and rear bottom tubes on the main
frame, then push the bolts into bolt holes.
5. Use the wrench to tighten the nuts.
6. Flip the entire Styrofoam packaging
to make the Xplova NOZA bike
trainer stand upright on the floor
where it will be used. Remove the
Styrofoam packaging on both sides
to complete assembly of the bike
trainer.
7. Install the cassette (sold separately)
into the cassette body and lock the
cassette nut to prevent loosening.
Attention:
The Xplova NOZA bike trainer cassette body is compatible with Shimano
and SRAM cassette which can be directly installed with an 11-speed
cassette. If you are using a non-11-speed cassette, please fit the
cassette washer on the bottom of the cassette body first before installing
the cassette.

Assembly descriptions
EN-4
EN

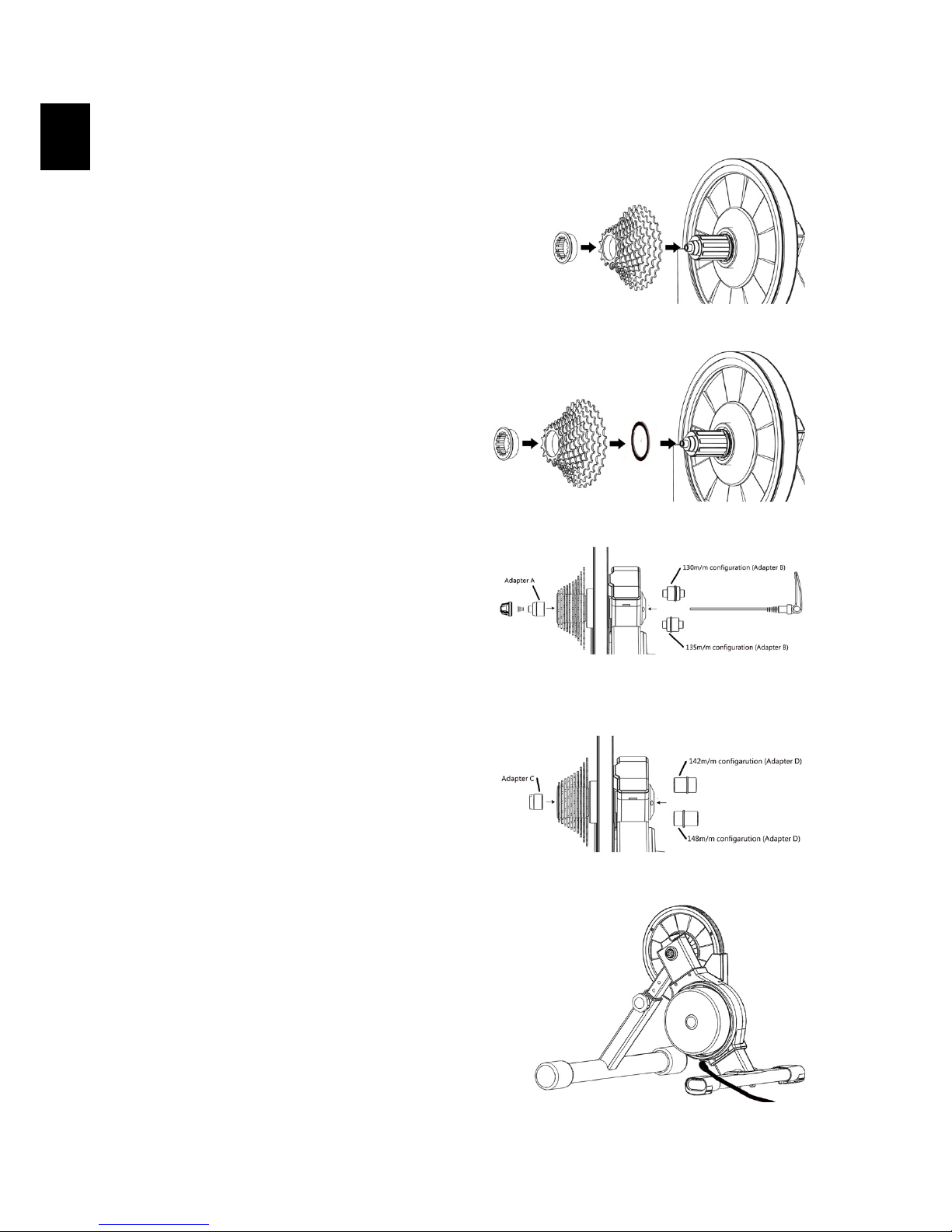

 Attaching the cassette (sold separately)
•Attaching a compatible 11-speed
cassette
Attach the cassette onto the cassette
body manually and use the cassette nut
to secure it on the cassette body. Use the
cassette removal socket to secure it
tightly on the NOZA cassette body (the
tool is not included).
•Attaching a 9-speed or 10-speed
cassette
Before attaching a 9-speed or 10-speed
cassette, you need to put the 1.8mm
cassette washer onto the cassette body
first and then secure the cassette tightly
on the NOZA cassette body as
mentioned above.
•130mm or 135mm quick release
installation
When installing on a quick release
bicycle frame, you need to use adapter A,
adapter B and the quick release kit (these
three accessories are included in the
package). Please refer to the figure on
the right for the installation.
•142mm or 148mm thru axle
installation
When installing on a thru axle bicycle
frame, you need to use adapters C and D
(the two accessories are included in the
package). Please refer to the figure on
the right for the installation.
Please use the supplied power adapter
and plug one end into a wall outlet.
Connect the other end to the power jack
on the bike trainer as shown in the figure
on the right.

Assembly descriptions
EN-5
EN

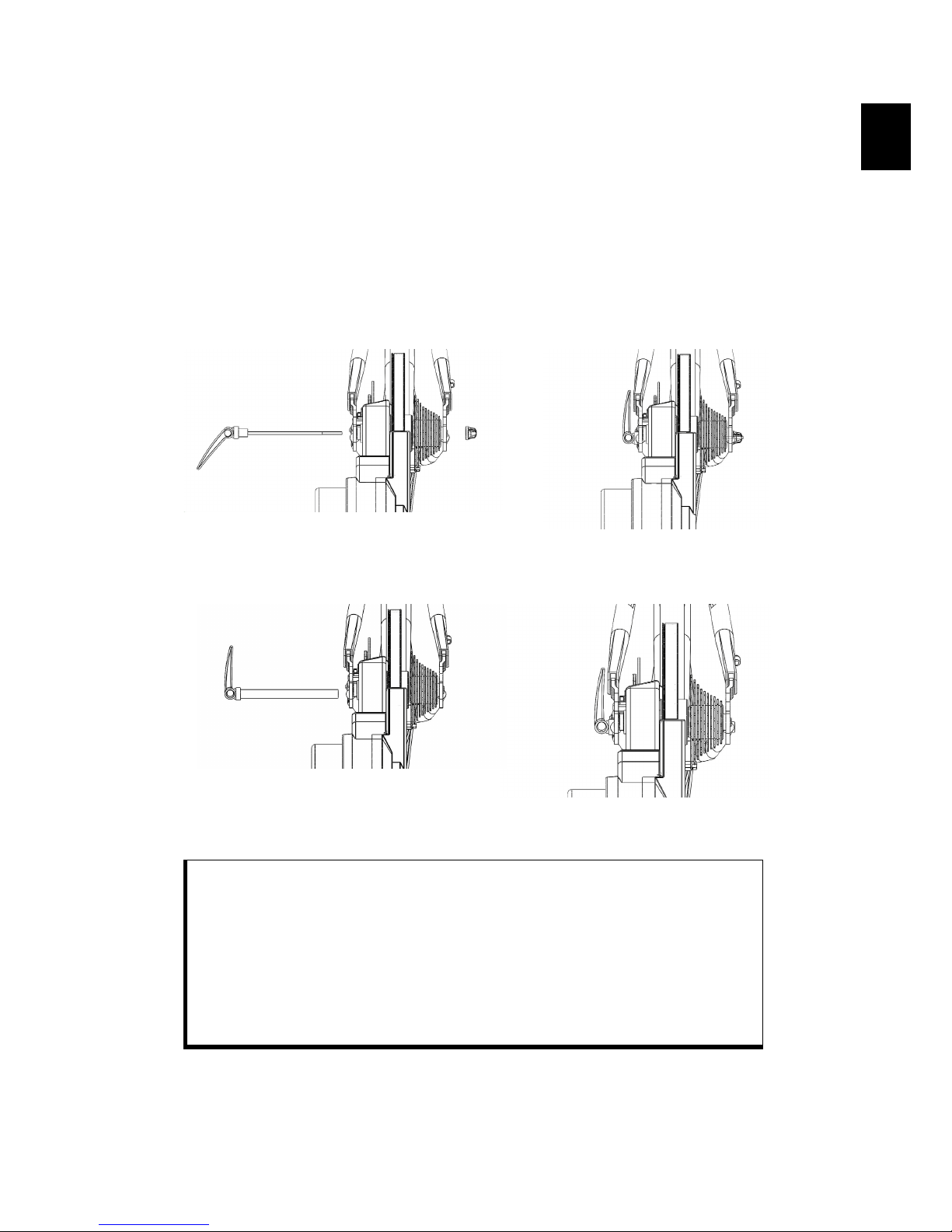

 Mounting your bicycle
Shift the chain on your bicycle to the smallest sprocket of the cassette and then
remove the rear wheel. Align the bicycle chain with the smallest sprocket of the
cassette and then put on the chain as well as mount the bicycle on NOZA's axle to
have the bicycle in a suitable position for riding.
Please use the bicycle quick release lever properly with care. When the arc of the
rotating arm of the quick release lever is toward outside, it means the lever is in a
released state. Rotate the rotating arm of the lever clockwise to tighten the quick
release lever. The rotating arm of the quick release lever should be placed on the
other side of the NOZA's cassette.
Please refer to the following figure for the installation of the thru axle bicycle. Insert
the thru axle from the other side of the cassette and tighten the axle.
Attention:
1. Please firmly tighten the quick release lever and the thru axle to
prevent damage to property or human body. If you cannot tighten the
quick release lever and the thru axle, please contact your dealer or
Xplova customer service. Please DO NOT attempt to use the NOZA
in this situation.
2. When mounting the bicycle, please lift its front wheel and press the
frame down to make the bicycle firmly mounted on the NOZA.

Assembly descriptions
EN-6
EN
 Indicator descriptions
When the bike trainer is powered on, the indicator will light red first to indicate that the
control panel is conducting self diagnostics and auto zeroing. When the indicator is
blinking green, it means the control panel has finished self diagnostics and auto
zeroing and is entering standby mode to get ready for riding.
 Specifications
No. Indicator status Status description Notice and remark
1 Red Control panel self
diagnostics and auto
zeroing in progress
•Normally, the process will
complete in 2-4 seconds after
it is powered on.
•Please DO NOT use the bike
trainer before auto zeroing
and self diagnostics are
completed to avoid power
measurement deviations.
2Blinking green Self diagnostics and
auto zeroing completed
Can connect to software.
3 Solid green Bluetooth is connected Connected to a Bluetooth device
and paired successfully.
4Blue The bike trainer is
active and providing
power normally
When connecting to Bluetooth or
ANT+ devices, it will light blue
during riding.
Dimensions (installed) 620 x 518 x 453 mm
Total Weight (unboxed) 16.5 KG
Flywheel Weight 5.7 KG
Sound Level 58 dB (@30KPH)
Max Power Output 2500 W (@58KPH)
Max Simulated Incline 18% (@70KG)
Accuracy ±2.5%
Drivetrain
Cassette not included.
Requires purchase/installation of new cassette: 8/9/
10/11 Speed SRAM/Shimano
Connectivity ANT+, ANT+ FE-C, and Bluetooth Smart
Firmware Upgradable Yes
Electrical Requirements 100 - 240 Volt, 1.5 A, 50 Hz - 60 Hz
Box Dimensions 598 x 275 x 565 mm

Safety precautions and regulations
EN-7
EN
SAFETY PRECAUTIONS AND REGULATIONS
 Safety precautions before use
1. Specs of the Xplova NOZA power adapter are as follows:
•Input: 100 ~ 240 VAC / 1.5 A
•Output: 19 VDC / 4.7 A
•Power plug: External diameter 5.5 m/m; internal diameter 2.5 m/m; length 10~12
m/m
2. Only use the power adapter certified by the Xplova NOZA. Non-compliant power
adapters will cause irreparable damage to the bike trainer.
3. When the bike trainer is active, please do not touch it and you should keep non
users, animals or objects away from it to avoid danger.
4. Consult your coach before you start any training plans.
5. Please DO NOT put your hands or any object near the spinning parts of the
Xplova NOZA.
6. The flywheel/cassette of the Xplova NOZA might get hot after you use it for a
while. Please DO NOT touch the flywheel/cassette within a short time.
7. Please DO NOT attempt to disassemble the bicycle when the cassette is running.
8. When you are using the Xplova NOZA, keep your children and pets away from it to
prevent injury.
9. The Xplova NOZA can only be installed and used on a firm, level ground.
10. When training is in progress, please ride safely.
11. Keep away from water.
12. Before training, you should check if the bicycle is firmly secured to the Xplova
NOZA.
13. The Xplova NOZA can only be used after it is completely assembled.
14. When using the Xplova NOZA, you can only use accessories and power adapters
certified by Xplova.
 Notices
1. Xplova shall not be held responsible for users using software, applications and
devices from other companies that result in malfunctioning of the Xplova NOZA.
2. As ANT+™ and Bluetooth are mutually exclusive, it is impossible for the Xplova
NOZA to send data simultaneously through ANT+™ or Bluetooth, i.e., when one
of the protocols is in use, the Xplova NOZA will automatically stop the other
protocol to avoid the possibility of causing NOZA programs to misbehave.
3. Radio devices may cause interference and may change or completely prevent the
Xplova NOZA from functioning normally. Therefore, when training using the
NOZA, it is advised to stay away from high voltage power lines, traffic signals,
railway power lines, buses or trams.

Safety precautions and regulations
EN-8
EN
4. When the Xplova NOZA is not in use, make sure not to expose it to direct sunlight
for long periods of time.
 Disclaimer
Attention! Xplova shall not be held responsible for temporary or permanent injury to
the user out of using the Xplova NOZA (either directly or indirectly).
 Maintenance and care
1. When cleaning the bike trainer, please use neutral lubrication oil. DO NOT use
corrosive detergents.
2. DO NOT burnish the surface of the bike trainer or drill holes. Scratches or drilled
holes will lead to occurrence of cracks.
3. Please place the bike trainer indoors and keep it dry to avoid damage from
humidity.
 Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with radio frequency (RF) exposure limits adopted by the
Federal Communications Commission for an uncontrolled environment. This
equipment should be installed and operated to ensure a minimum of 20 cm spacing to
any person at all times.

Safety precautions and regulations
EN-9
EN
 CE Complaince Statement
2402 MHz ~ 2480 MHz, power: -0.81 dBm
This device meets the EU requirements and the International Commission on Non-
Ionizing Radiation Protection (ICNIRP) on the limitation of exposure of the general
public to electromagnetic fields by way of health protection. This equipment should be
installed and operated to ensure a minimum of 20 cm spacing to any person at all
times.
Hereby, Xplova Inc. declares that the radio equipment type bike power trainer is in
compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the wwww.xplova.com
 Xplova Limited Product Warranty Policy
This Limited Product Warranty shall apply to Xplova products including all
accessories as contained within the original Xplova gift box. Xplova warrants that
products from its authorized distributors and retailers will meet the applicable product
specifications and be free from all defects in material and workmanship during the
Limited Product Warranty Period, one year starting from the date of original
purchase, if the products are used and serviced in accordance with the user manual
and other documentation provided to the purchaser at the time of purchase. This
Limited Product Warranty is subjected to the following terms and conditions:
1. To obtain warranty service, a proof of purchase, an original or copy of the sales
receipt from the original retailer, is required.
2. This Limited Product Warranty is only valid and enforceable in the country/region
where the product is sold.
3. This Limited Product Warranty is at sole option of Xplova to either repair or replace
the defective product during the Limited Product Warranty Period. Xplova will not
replace missing components from any package purchased through online
auctions.
4. To obtain warranty service, contact your local Xplova authorized retailer or Xplova
for shipping instructions and an RMA number.
5. This Limited Product Warranty covers expenses for inspecting and repairing the
product during the Limited Product Warranty Period. The defective product shall
be delivered by the purchaser at his/her own expense to the designated premises
together with the proof of purchase and RMA number.
6. Xplova will return the repaired or replaced product to the drop-zone for collection
by the customer in good working condition. All replaced faulty products or
components will become the property of Xplova.
Waste Electrical and Electronic Equipment (WEEE)
This symbol means that according to local laws and regulations your
product and/or its battery shall be disposed of separately from
household waste. When this product reaches its end of life, take it to a
collection point designated by local authorities. Proper recycling of your
product will protect human health and the environment.

Safety precautions and regulations
EN-10
EN
If Xplova repairs or replaces the product, the repaired or replaced product shall
continue to be warranted for the remaining time of the original warranty period or
for three (3) months from the date of repair or replacement, whichever is longer.
7. Before returning any units for service, be sure to back up data and remove any
confidential, proprietary, or personal information from the Product. Xplova is not
responsible for damage to or loss of data.
8. Xplova reserves the right to add, delete or amend the terms and conditions at any
time without prior notice on its website indicated below.
9. THIS LIMITED WARRANTY SHALL NOT APPLY IF THE DAMAGE WAS
CAUSED BY ANY OF THE FOLLOWING:
A. The product serial number has been removed, erased, defaced, altered or is
illegible.
B. The damage is resulting from the use of the product in a manner other than its
normal and customary manner.
C. Deterioration of the product due to normal wear and tear.
D. The damage is arising from improper installation, unauthorized repair,
alteration or modification to this product by third parties other than Xplova or its
designee.
E. The damage is arising from operating with components or accessories not
officially authorized or provided by Xplova or used in other than its intended
use.
F. The damage is arising from exposure to abnormally corrosive conditions or
operation with extreme heat or humidity.
10 XPLOVA WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
LOSSES OR DAMAGES TO ANY NATURE, INCLUDING BUT NOT LIMITED TO
LOST PROFITS OR COMMERCIAL LOSS, TO THE FULLEST EXTENT THAT
THOSE LOSSES OR DAMAGES CAN BE DISCLAIMED BY LAW.
11. This Limited Product Warranty does not affect the customer's statutory rights in
law specific to the country of purchase, such rights remain protected. Some
countries do not allow the exclusion or limitation of incidental or consequential loss
or damage, or limitation of the implied warranties, in those circumstances the
preceding limitation of exclusions may not apply to such customers.
Warranty Coverage:
1. Under normal conditions of use, the product main unit and components gets a one
year free after-sales maintenance services.
2. Please present the original purchase approval or receipt with this Product
Warranty on upon of requesting a service. Service fee might be charged in
accordance with this Product Warranty.
Please note the Limited Product Warranty Period and service availability and
response times may vary from country to country and may also be subject to
registration requirement in the country of purchase. If you require assistance
regarding warranty conditions, or any other enquiries, please contact the original
retailer or Xplova.
Website: https://www.xplova.com

Manufacturer: Xplova Inc.
6F., No.68, Ruiguang Rd., Neihu Dist., Taipei City 114, Taiwan (R.O.C.)
Tel: [phone]
E-mail: [email protected]
NOZA BIKE POWER TRAINER
Product Warranty
產品保固服務卡
製品保証書
제품 보증
Please retain the original purchase receipt or approval in order to protect your right
of free warranty service.
務必保留原購買收據或是發票，以保障您的保固權益。
保証を受ける際には、購入日・購入店名が証明できる書類（レシートなど）を
添えてください。
무료 보증 서비스를 받을 권리를 보호하기 위해 원본 구매 영수증 또는 구매 승인서
를보관하십시오 .
Serial Number
產品序號
シリアル番号
일련 번호
Purchase Date
購買日期
購入年月日
구매일
Dealer stamps
經銷商蓋印處
購入販売店捺印
딜러 스탬프

 Service Information / 全球服務據點 / サービス情報 /서비스 정보
Italia
•lunedì ~ venerdì
•9:00/13:00 - 14:00/18:00
•[phone]
•[email protected]
台灣
•週一 ~ 週五
•08:30 - 17:00
•[phone]
•[email protected]
Deutschland
•Montag ~ Freitag
•9:00 - 17:30
•[phone]
•[email protected]
香港
•週一 ~ 週五 10:00 - 19:00
•週六 10:00 - 13:00
•[phone]
•[email protected]
United Kingdom
•Monday ~ Friday
•9:00 - 18:00
•[phone]
•[email protected]
ประเทศไทย
•วันจันทร์~ วันศุกร์10:00 - 20:00
•วันเสาร์10:00 - 18:00
•[phone]
•[e-mail]
France
•lundi ~ vendredi
•9:00/13:00 - 14:00/18:00
•[phone]
•[email protected]
Malaysia
•Monday ~ Friday
•9:00am~5:00pm
•[phone]
•[email protected]
España
•Lunes ~ Viernes
•9:30/13:30 - 14:30/18:30
•[phone]
•[email protected]
Philippines
•Monday ~ Friday
•9:00am ~ 5:00pm
•[phone]
•[phone]
België (La Belgique)
•Maandag ~ Vrijdag (Lunedi~Venerdì)
•9:00am - 17:00pm
•[phone]
•[email protected]
•[email protected]
日本
•月曜～金曜
（祝祭日、年末年始、特定休業日を除く）
•10:00 ～17:00
•03-6386-9681
•style_b_staf[email protected]
Denmark
•Mandag ~ Fredag
•09:00 – 17:00
•[phone]
•[email protected]
한국
•월요일 ~금요일
•09：00 ~ 17：00
•+82 – 70 -4820-2394
•[email protected]
Australia
•Monday~Friday
•09：00 ~ 17：00
• https://www.bikesportz.com.au/contact

© 2018. All Rights Reserved.
Xplova NOZA
This revision: 09/ 2018
© 2018. 版權所有。
Xplova NOZA
本修訂版本：2018 年9 月
© 2018. 全著作権所有。
Xplova NOZA
発行年月：2018 年9 月
© 2018. 모든 권리 보유 .
Xplova NOZA
버전 : 09/2018
Thank you again for purchasing the Xplova NOZA.
Xplova reserves the right to design, change specifications, and
improve quality.
Should you have any questions regarding use of the bike trainer,
please visit our website at: www.xplova.com.
再次感謝您購買 Xplova NOZA。
本公司保有產品設計、規格變更、品質改善的權利。
如果您對於使用單車互動訓練台有任何的疑問，
請參考我們的網站 www.xplova.com。
Xplova NOVA をお買い上げいただき、ありがとうございます。
Xplova は、設計、仕様の変更、品質向上を行う権利を有します。
バイクトレーナーの使用について不明な点がございましたら、
弊社の Web サイト www.xplova.com までアクセスしてください。
Xplova NOZA 를구입해 주셔서 다시 한번 감사드립니다 .
Xplova 는디자인에 대한 권리 , 사양 변경에 대한 권리와 품질 향상
에대한 권리를 보유합니다 .
자전거 트레이너 사용에 관하여 질문이 있는 경우 당사 웹사이트를
방문하십시오 : www.xplova.com.
