XPR Access MTTS-EXIT User manual

www.xprgroup.com 1
Touch button switch
EN
MTTS-EXIT / MTTBK-EXIT
INSTALLATION
Introduction
Mounting instructions
WIRING AND APPLICATIONS
Features Speciications

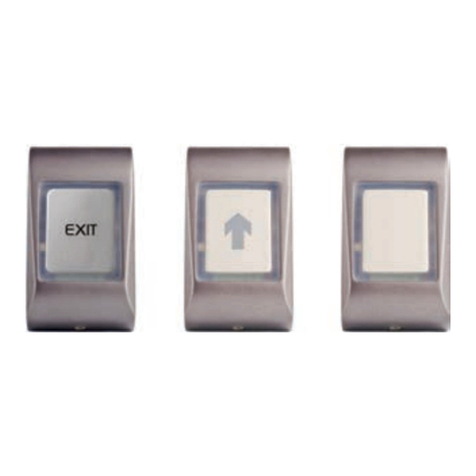

MTT is a request-to-exit switch, It will work independently (standalone) or can equally be connected via a controller to provide exit
from a secured area (Push Button Input). With its slim looks and die-cast metal (or ABS) body, the MTT combines elegance and
aesthetics with ruggedness and reliability.
- Feather light touch control
- Works in Pulse and Latch mode
- Ideal for a wide range of applications
- Vandal-resistant (MTTS-EXIT version)
- Resin Potted Electronics
Audio and Visual indications:
- Front dual light indication
- Buzzer sound on every touch
Input voltage:
Current consumption:
Relay Output:
Panel Connection:
Indicators-LED:
Operating Temperature:
Operating Humidity:
Dimension (mm):
Housing:
Touch Plate:
Protection:
1224 VDC; 1524 VAC;
max.65mA
2A at 24V DC / 120V AC Cable,
0.5 m
Normal - RED
Relay Operation – GREEN
-20° to 50°C
Non-condensing up to 95%92L
x 51W x 25H (Metal)
92L x 51W x 27H (ABS)
Die-cast Aluminium alloy or
bABS Mild Steel Painted
IP65
1. Identify a suitable location on wall or lat surface.
2. Stick the Drilling Template provided on chosen location. Drill 3 holes as indicated in the diagram.
3. Insert 3 nos. of 5 mm wall plugs provided into the drilled holes.
4. Route the cables through the holes provided in the BackPlate.
5. Fix the Backplate irmly on the wall using 3nos. of 3x30mm CSK screws
6. Connect wires.
7. After wiring, place the Housing over the ixed backplate and guide the slot into the backplate tab and slide it downwards.
8. Fix the Housing to the Back-Plate with a M3 x 6 mm Security Screw on the bottom of the Housing using a Security Screwdriver provided.
- Light switches
- Exit button (Access control)
- Elevator buttons
- Industrial panels
V4A
Important Note: Several layers of protection are provided against transient voltages from static discharge,lightning and power
supply spikes. For protection to be fully eective, earthing should be done correctly.

www.xprgroup.com 2
View
Output Connection for AC Device - Fail Secure
Application & Wiring
Output Connection for DC Device - Fail Open
OPERATION
Backlight ON/OFF
MTT operates in Latch and Pulse mode.
The time is set by Dipswitch setting.
Note: Set the operating time only before
switching on power to the MTT.
If the operating time is to be changed,
select a new time setting and then wait a
few seconds for the circuit to re-adjust
before switching back the power.
The table illustrates the dipswitch settings in dierent modes
Approvals and Safety standards
Immunity: Meets to EN500822 (EN6100042, EN6100043, EN6100044, EN6100045 and EN6100046)
Operation Switch 1 Switch 2 DipSwitch
Latch Mode ON ON
10 Seconds ON OFF
5 Seconds OFF ON
3 Seconds OFF OFF
This product herewith complies with requirements of EMC directive 2014/30/EU. In addition it complies with RoHS2 directive EN50581:2012
Ω
