Xtool IK618 User manual

Shenzhen Xtooltech Intelligent Co., LTD
User Manual
IK618 Key Programming Tool

I
Please read this user manual carefully before using the IK618 Smart
Diagnostic System. When reading the manual, please pay attention to the
words “Note” or “Caution”, and read them carefully for appropriate operation.
TRADEMARKS
is a registered trademark of Shenzhen Xtooltech Intelligent
CO., LTD.
In countries where the trademarks, service marks, domain names, logos
and the name of the company are not registered, XTOOL claims that it still
reserves the ownership of the unregistered trademarks, service marks,
domain names, logos and the company name. All other marks for the other
products and the company’s name mentioned in the manual still belong to
the original registered company.
You may not use the trademarks, service marks, domain names, logo and
company name of XTOOL or other companies mentioned without written
permission from the trademark holder.
XTOOL reserves the right to the final interpretation of this manual content.
COPYRIGHT
Without the written consent of Shenzhen Xtooltech Intelligent Co., Ltd., any
company or individual shall not copy or backup this operationmanual in any
form (electronic, mechanical, photocopying, recording, or other forms).
DECLARATION
This manual is designed for the usage of the IK618 Smart Diagnostic
System and provides operating instructions and product descriptions for
users of the IK618 Smart Diagnostic system.

II
No part of this manual can be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means (electronic, mechanical,
photocopying, recording, or otherwise), without the prior written permission
of XTOOL.
Use the device only as described in this manual. XTOOL is not responsible
for any consequences of violating the laws and regulations caused by using
the product or its data information
XTOOL shall not be liable for any incidental or consequential damages or
for any economic consequential damages arising from the accidents of
individual users and the third parties, misuse or abuse of the device,
unauthorized change or repair of the device, or the failure made by the user
not to use the product according to the manual.
All information, specifications, and illustrations in this manual are based on
the latest configurations and functions available at the time of printing.
XTOOL reserves the right to make changes at any time without notice.
OPERATION INSTRUCTIONS
For safe operation, please follow the instructions below:
⚫Keep the device away from heat or fumes when you use it.
⚫If the vehicle battery contains acid, please keep your hands and skin
or fire sources away from the battery during testing.
⚫The exhaust gas of the vehicle contains harmful chemicals, please
ensure adequate ventilation.
⚫Do not touch the cooling system components or exhaust manifolds
when the engine is running due to the high temperatures reached.
⚫Make sure the car is securely parked, Neutral is selected or the
selector is at P or N position to prevent the vehicle from moving when
the engine starts.
⚫Make sure the (DLC) diagnostic link connector is functioning properly
before starting the test to avoid damage to the Diagnostic Computer.
⚫Do not switch off the power or unplug the connectors during testing,
otherwise, you may damage the ECU and/or the Diagnostic Computer.

III
CAUTIONS!
⚫Avoid shaking or dismantling the unit as it may damage the internal
components.
⚫Do not use hard or sharp objects to touch the LCD screen;
⚫Do not use excessive force;
⚫Do not expose the screen to strong sunlight for a long period.
⚫Please keep it away from water, moisture, high temperature or very
low temperature.
⚫If necessary, calibrate the screen before testing to ensure the
accuracy of LCD performance.
⚫Keep the main unit away from strong magnetic fields.
AFTERSALES-SERVICES
E-Mail: [email protected]
[email protected]
Tel: [phone] or [phone] (China)
Official Website: www.xtooltech.com

i
CONTENT
TRADEMARKS................................................................................I
COPYRIGHT....................................................................................I
DECLARATION...............................................................................I
OPERATION INSTRUCTIONS.......................................................II
CAUTIONS! ...................................................................................III
AFTERSALES-SERVICES............................................................III
CONTENT........................................................................................I
1GENERAL INTRODUCTION....................................................1
Tablet................................................................................................... 1
Front View of Tablet .................................................................................................................1
Back View of Tablet ..................................................................................................................2
Host Ports....................................................................................................................................2
Accessories.......................................................................................... 3
KC100 Transponder Generator..............................................................................................3
EEPROM Adapter ......................................................................................................................4
Technical Specifications....................................................................... 4
Package List ........................................................................................ 5
2GETTING STARTED................................................................6
Activation ............................................................................................. 6
Main Interface...................................................................................... 8
Operation system......................................................................................................................8
IK618 APP Menu........................................................................................................................9
Function Buttons .................................................................................................................... 10
Navigation Buttons ................................................................................................................ 11
Notification Bar....................................................................................................................... 12
3UPDATE.................................................................................13
4KEY PROGRAMMING ...........................................................14
Vehicle Connection............................................................................ 14
Connect To KC100 ................................................................................................................. 15
Connect To EEPROM Adapter ............................................................................................ 15
Immobilizer Menu............................................................................... 16
Immobilizer Functions........................................................................ 17
Read PIN code/Pin Code Calculation ............................................................................... 17

ii
Check Number of Keys ......................................................................................................... 20
Add Keys................................................................................................................................... 21
All Key Lost............................................................................................................................... 23
5DIAGNOSTIC .........................................................................29
Diagnostics ........................................................................................ 29
Vehicle Selection .................................................................................................................... 29
Diagnosis functions................................................................................................................ 32
6SPECIAL FUNCTIONS ..........................................................41
5.1 OIL RESET.................................................................................. 41
5.2 EPB.............................................................................................. 43
5.3 SAS.............................................................................................. 45
5.4 DPF.............................................................................................. 48
5.5 BMS RESET................................................................................ 52
5.6 THROTTLE.................................................................................. 54
5.7 INJECTOR CODING.................................................................... 56
5.8 GEARBOX MATCH...................................................................... 58
5.9 GEAR LEARNING........................................................................ 59
5.10 EEPROM ADAPTER.................................................................. 61
7SETTINGS..............................................................................61
Language........................................................................................... 62
Units................................................................................................... 63
My Workshop Info.............................................................................. 63
Firmware Information......................................................................... 64
About.................................................................................................. 65
8REPORT.................................................................................66
Report................................................................................................ 66
Replay................................................................................................ 69
File Manager...................................................................................... 69
9REMOTE ASSISTANCE........................................................70
10 FAQ.....................................................................................72
Q1: Failed to generate Diagnostic report ........................................... 72
Q2: How to print Diagnostic report..................................................... 73
Q3: Failed to extract files ................................................................... 73
Q4: Mailbox supported....................................................................... 74
Q5: How to make an appointment for remote support ....................... 74
Q6: How to generate and upload diagnostic log files......................... 74

iii
Q7: How to switch language .............................................................. 74
Q8: SHOWING “COMMUNICATION FAILED”................................... 75
Q9: Failed to activate or register........................................................ 75
Q10: Failed to turn on when charging................................................ 75
Q11: Failed to open the Diagnostic app............................................. 76
Q12: HOW TO FACTORY RESET THE DEVICE.............................. 76
Q13: SHOWING “LICENSE EXCEPTION” ........................................ 76
Q14: SHOWING “FAILED” WHEN GOING INTO MENUS................. 76
Q15: HOW TO FREE THE STORAGE SPACE................................. 76
Q16: SOME OF THE SOFTWARE ARE MISSING............................ 77
11 COMPLIANCE INFORMATION..........................................77
FCC Compliance................................................................................ 77
CE...................................................................................................... 79
UKCA................................................................................................. 79

1
1GENERAL INTRODUCTION
The XTOOL IK618 key programming tool is an Android tablet with multiple
key programming as well as diagnosis functions. It supports multi-language
switching and is suitable for different countries and regions. This tool can
be connected with the OBD port of this car and provide various modification
options to it, like adding keys, read EEPROM data, module synchronization,
as well as diagnosis functions and multiple special functions. IK618 key
programmer also comes along with KC100 transponder generator and
EEPROM adapter, allows you to generate dealer keys, read key remote
frequency, and modify EEPROM data on bench.
TABLET
The main unit of the IK618 is the tablet, which can be directly connected to
the tablet and the car with the test cable.
FRONT VIEW OF TABLET
①Grip: this part is used to hold the device by hand
①
②

2
②Touch Screen: Shows the info from the device and allows you to
operate the device.
BACK VIEW OF TABLET
①Nameplate: Shows basic info for the device like serial number, safety
info, etc.
②Loudspeaker: Use as sound/voice output.
HOST PORTS
①
②
②
①
②
③
④

3
①USB Port: Used to transfer data via PC. Also used to connect with
KC100 and other accessories.
②DB15 Port: This port is used to connect to the main test cable to
connect with cars or EEPROM Adapter.
③DC charging port: This port is used to charge the device.
④Power Button: Long press to power on or off. When the device is on,
short press the button to shut down the screen.
ACCESSORIES
KC100 TRANSPONDER GENERATOR
KC100 is a transponder generator that is used to generate dealer key for
Volkswagen/Audi/BMW/Fiat/Renault and more models. It can also be used
to generate emulated keys, write transponder chips and read remote
frequency. KC100 has to be used with IK618.

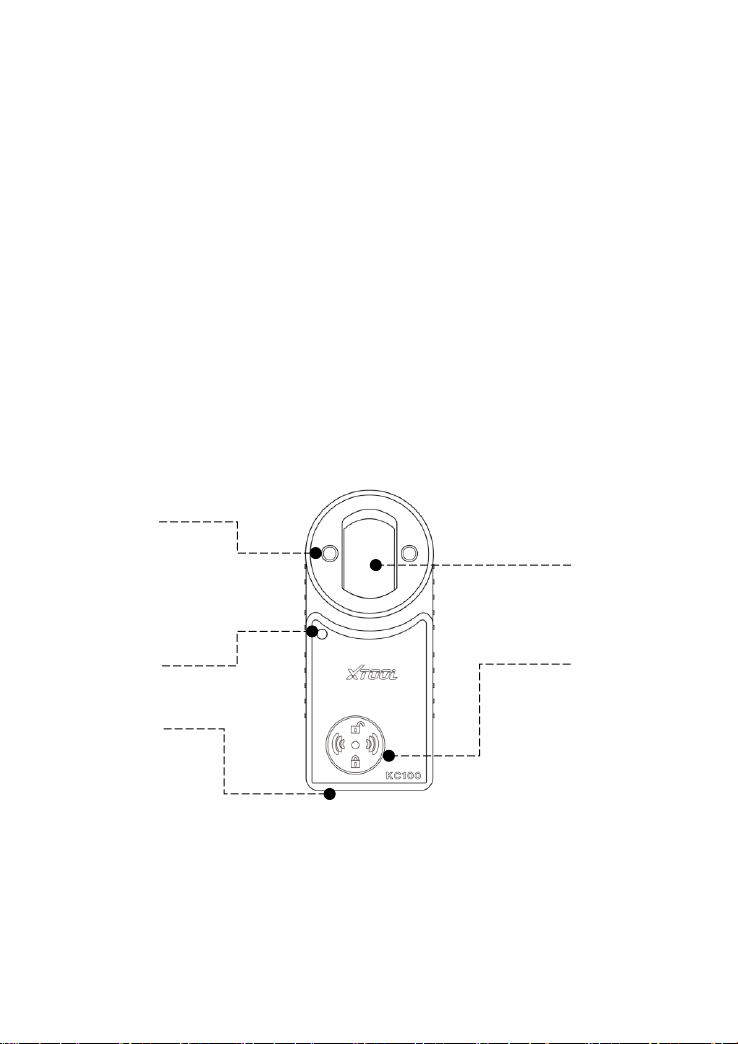

①Key slot: Insert key into this slot to program keys.
②Transponder Slot: Insert key chip into this slot to program transponder
chips directly.
③Status Light: Lights up to show the status of the programmer. Red:
KC100 is now power on. Violet: KC100 is now communicating to the
device.
⑤
①
②
④
③
