USER MANUAL
Power Station XT-600Wh
ENGLISH

Thank you for purchasing this Power Station. Please read all instructions and cautions carefully before
use to avoid personal injury or damage to the Power Bank and any connected products.
OBERSERVE ALL INPUTS AND OUTPUTS
To avoid fire or electrical shock hazard, observe all ratings on unit, and products you intend to use;
check manual for more information.
USE IN AN VENTILATED AREA
Ensure proper ventilation while in use and do not obstruct fan openings on unit. Inadequate ventilation
may cause damage to the power bank. Do not stack anything on top of the power station in storage or
in use.
DO NOT OPERATE IN WET CONDITIONS
In order to avoid short circuits or electric shocks do not allow unit to get wet.
If the remaining power is 0% please charge the power station. Long term storage may cause battery
damages.
Any manipulation to the unit or its components will void all warranties.
IMPORTANT SAFETY INSTRUCTIONS

1
High Beam LED Lighting
2
Button LED Lighting
3
DC1 In- and Output: 5-24V (Voltage adjustable)/ 80W Max.
4
Power and Control Button DC1 Output
5
Low Beam LED Lighting
6
DC2 and DC3 Output: 12V Output
7
XT30 12V Output
8
USB-C PD1 Output
9
USB-C PD2 Output
10
USB1 and USB2 QC3.0 Outputs
11
Power Button Outputs USB
12
Output AC1 and AC2
13
Power Button Output AC
14
Cooling Fan
15
Input DC
16
LCD Display

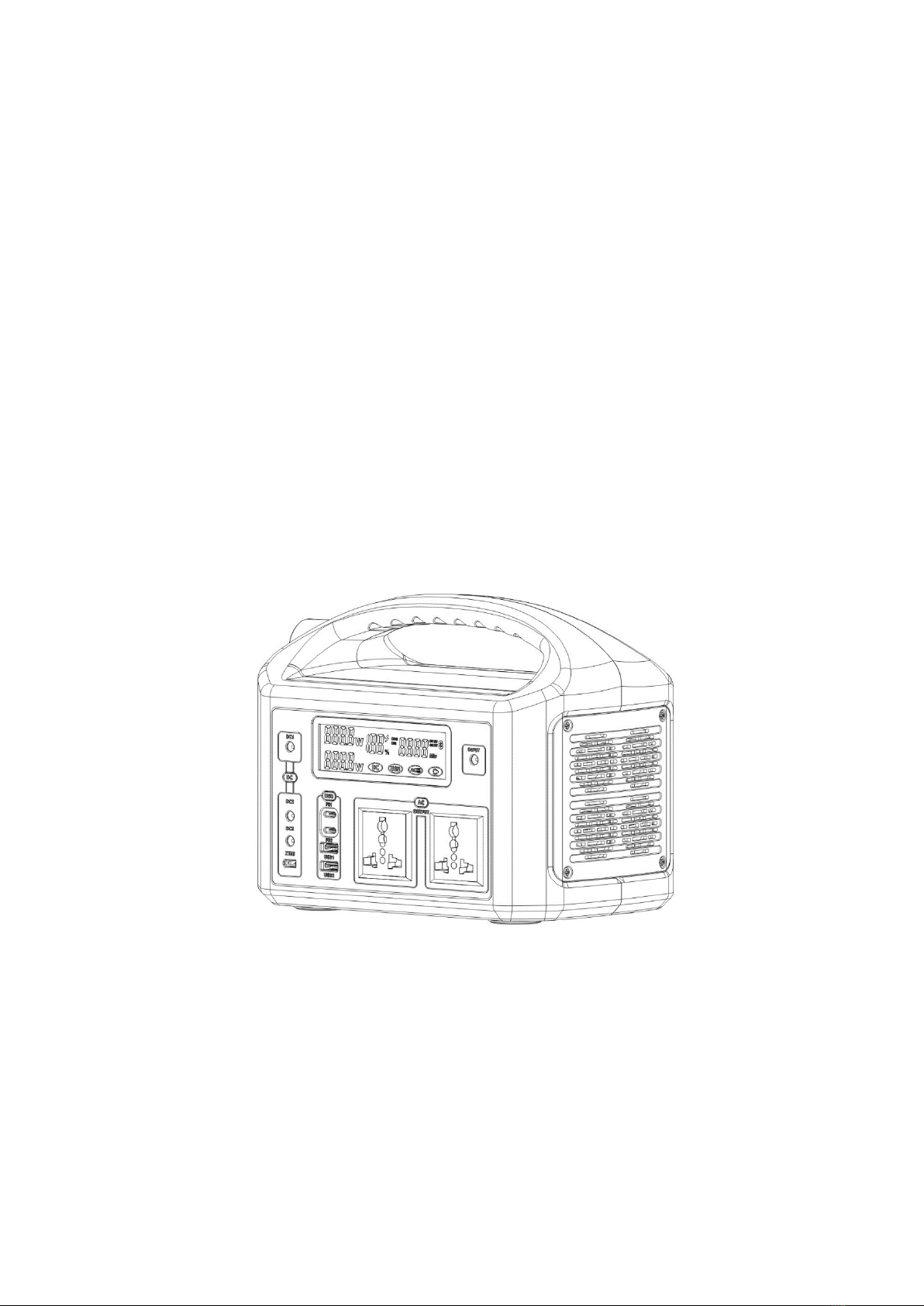

GET TO KNOW YOUR POWER STATION

1x
Power Station XT-600Wh
1x
Power Supply
1x
Car Charging Cable (Male Car Charger to 5525 DC Male)
1x
Car Charging Cable (Female Car Charger to 5525 DC Male)
1x
DC Connecting Cable
1x
USB-A to USB-C Cable
1x
USB-C to USB-C Cable
8x
Laptop Adapters
A: Sony, LG, Fujitsu (6.0x4.5mm)
B: Fujitsu, Toshiba, Acer, Dell, IBM, HP, Asus, Delta, Compad (5.5x2.5mm)
C: Acer, Sony (5.5x1.7mm)
D: Samsung (5.0x1.0mm)
E: HP, LG, Asus, NEC, Compad, Delta (4.8x1.7mm)
F: Lenovo (7.9x0.9mm)
G: Compad, Benq, Acer, IBM, HP, NEC, Toshiba (5.5x2.1mm)
H: HP, Dell (7.4x0.6mm)
Power Button Power Bank
Power On: Hold the power button for approximately 2 seconds to
turn on the power station.
Power Off: Hold the power button for approximately 2 seconds to
turn off the power station.
Power Button DC Output
Turn On DC Output: Hold the DC button for approximately 2
seconds to turn on DC output.
Change Output Voltage of the DC Output: Press the DC button for
more than one second to select the appropriate voltage. The
symbol will start blinking. Press the button to confirm the voltage.
After five seconds, the voltage symbol will stop blinking. Then click
the DC-button to manually turn on the DC Port.
Turn Off DC Output: Hold the DC button for approximately 2
seconds to turn off DC output.
Power Button AC Output
Turn On AC Output: Hold the AC button for approximately 2
seconds to turn on AC output.
Turn Off AC Output: Hold the AC button for approximately 2
seconds to turn off AC output.
Note: When the power station is turned off, the AC Output will be
disabled. When the power station is turned on, AC output is
turned off by default. Please hold the power button to turn on the
WHAT YOU GET
EXPLANATION OF THE POWER BUTTONS AND LCD DISPLAY

power station and then hold the AC power button to turn on the
output.
LCD Display
The built-in LCD display indicates several important information:
1
Voltage/ Working Power Display
2
Battery Level
3
Input Charging Symbol
4
LCD Display for Charge and Discharge
5
Full Power Remaining Charging Time
6
Failure Code
7
Bluetooth Symbol
8
Charging Power Display
9
Port On/Off Display
10
Lighting On/Off Display

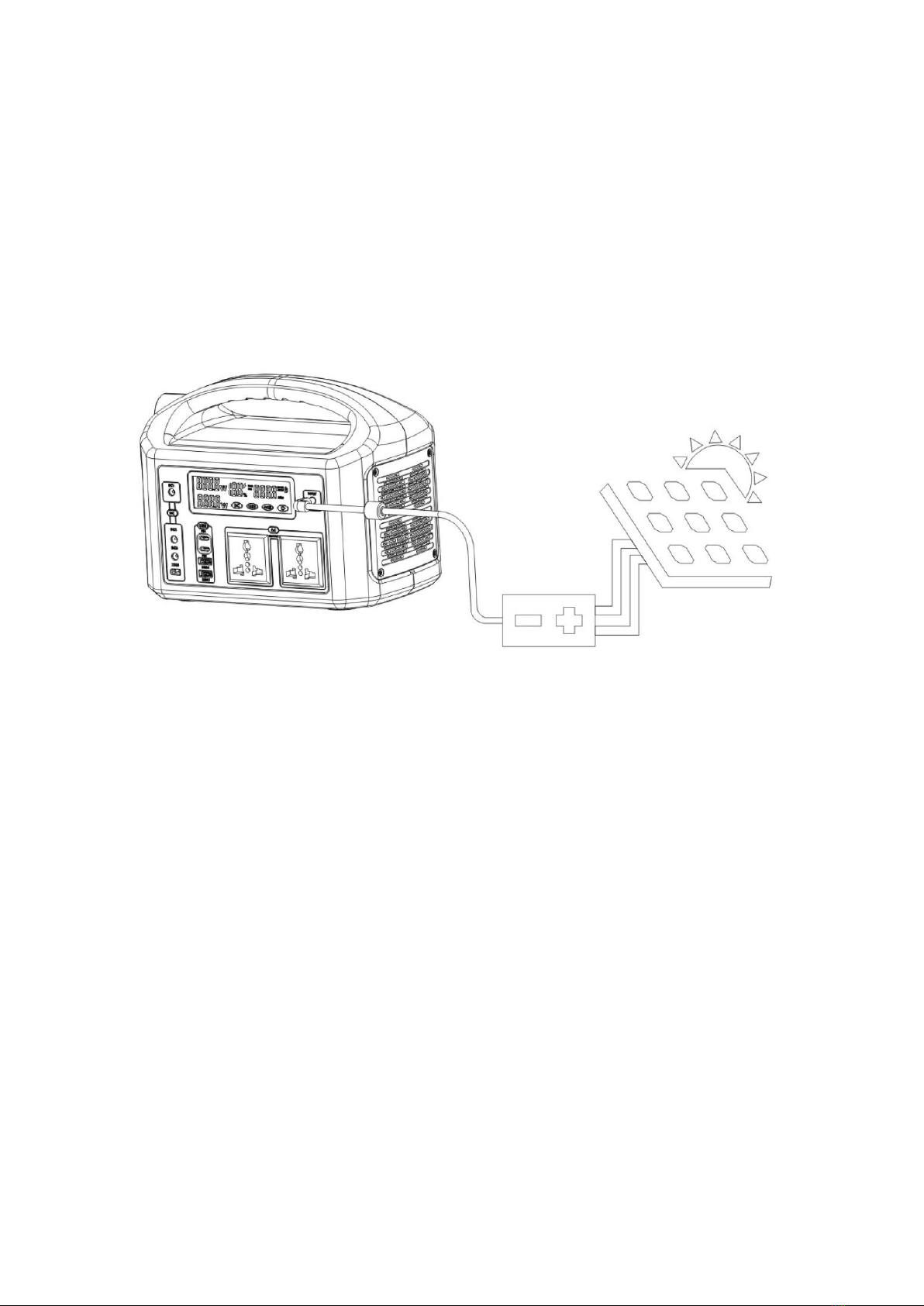

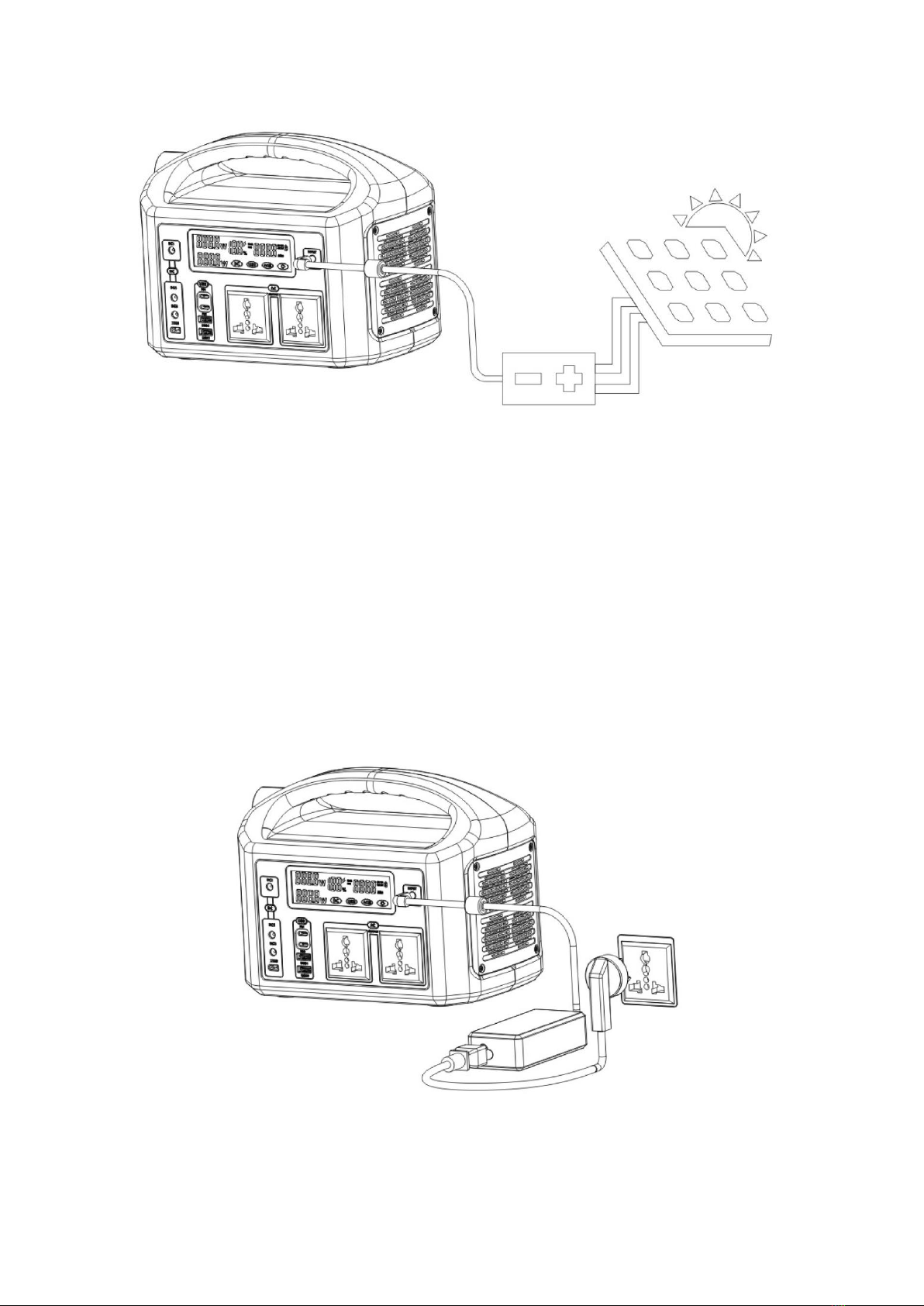

There are three ways to charge this Power Station. When charging, the screen will light up and the
charge symbol will blink and the charging power and the battery level in %.
CHARGING YOUR POWER STATION
