Xtreme Power 61032 Original instruction manual

SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER)
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: [phone] MON-FRI 9AM TO 3PM PST

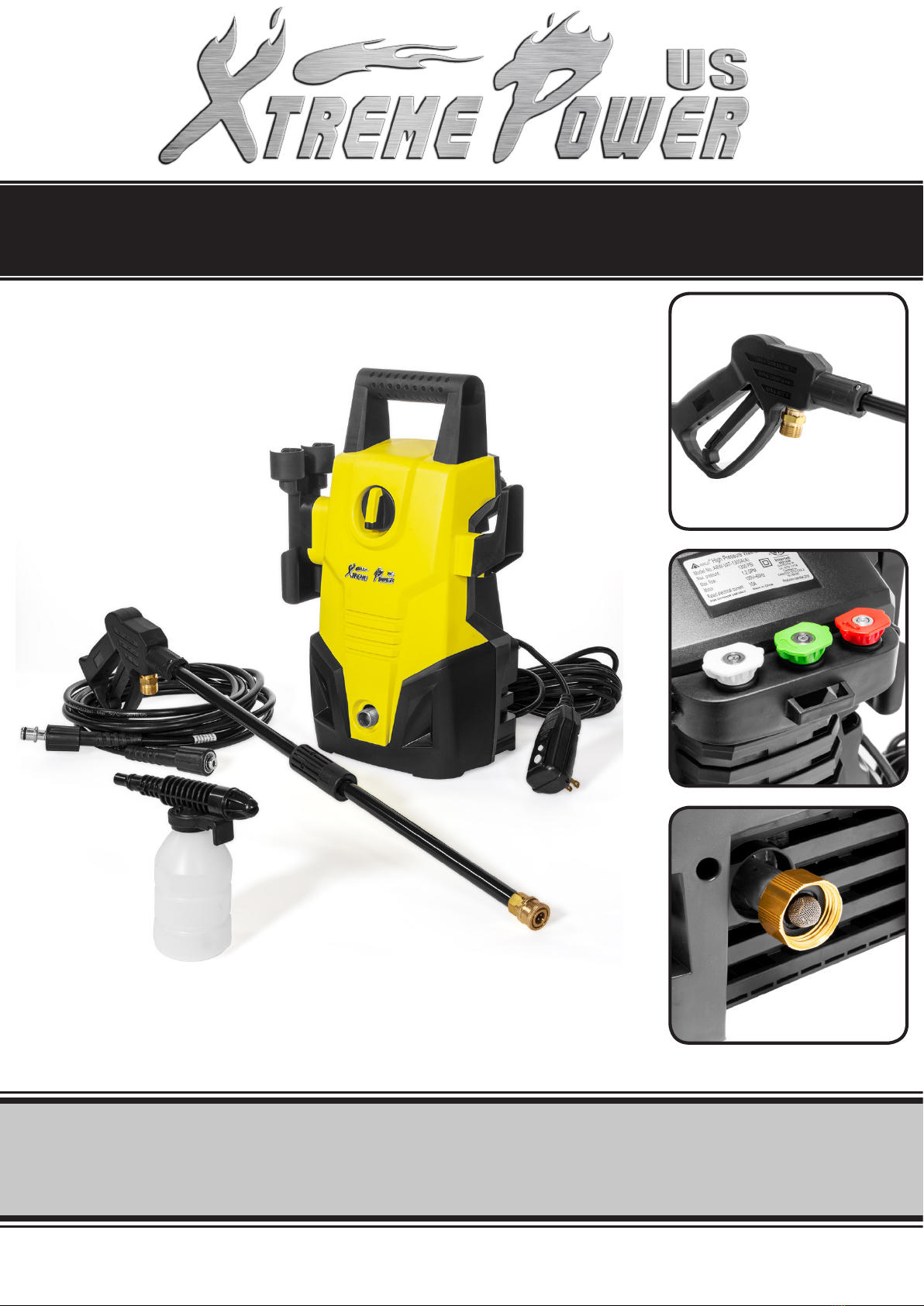

2000PSI POWER WASHER
ITEM: 61032

GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in electric shock, re and/or serious injury. Save all warnings and instructions for future
reference.
SAFETY
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator.
Read and understand all instructions. Failure to follow all instructions may result in serious injury or
property damage.
DO NOT allow persons to operate or assemble the product until they have read this manual and have
developed a thorough understanding of how it works.
DO NOT modify this product in any way. Unauthorized modication may impair the function and/or
safety and could affect the life of the product. There are specic applications for which the product was
designed.
This portable pressure washer is a highly specialized multifunctional machine with reliable safety
assurance, which must be inspected before it can be used to wash cars, bikes etc.
1
IMPORTANT SAFETY INFORMATION
The electric supply connection should be made by a qualied electrician and comply with IEC 60364-1.
It is recommended that the electric supply to this machine should include either a residual current device
that will interrupt the supply if the leakage current to earth exceeds 30mA for 30ms or a device that will
prove the earth circuit.
The motor on this pressure washer does not run continuously. It will only run when the spray trigger gun
is squeezed. After following the startup procedures in this manual, turn the trigger for activation.
Close supervision is necessary when the machine is in use near children.
ALWAYS disconnect power before disassembling or repairing the machine.
Ensure safety devices are operating normally before using the machine. Know how to stop the machine
and bleed pressure quickly, be familiar with the controls.
Only put the machine on a stable platform when using, transporting, assembling or dismantling the
machine.
The machine is not intended to be connected to a potable water mains. If necessary, use only an inlet
hose-set approved by IEC 61770.
Keep clear of the nozzle. NEVER direct high pressure spray at an person, animals or self.
ALWAYS wear safety goggles and protective clothing when operating the machine.
NEVER try to stop or deect leaks with any body parts.
DO NOT use pressure that exceeds the operating pressure of any of the parts (hoses, tings etc) in the
pressurized system. Ensure all equipment and accessories are rated to withstand the maximum working
pressure of the unit.

IMPORTANT SAFETY INFORMATION
Servicing of a double-insulated machine: In a double-insulated machine, two systems of insulation are
provided instead of grounding. No grounding means are provided for a double-insulated machine. Nor
should grounding means be added the machine. Servicing a double-insulated machine requires extreme
care and knowledge of the system and should be done only by a qualied technician.
DO NOT use pressure that exceeds the operating pressure of any of the parts (hoses, ttings etc) in the
pressurized system. Ensure all equipment and accessories are rated to withstand the maximum working
pressure of the unit.
WARNING EXPLOSION HAZARD: NEVER spray ammable liquids or use a pressure washer in areas
containing combustible dust, liquids or vapors. NEVER operate the machine in a closed building or in or
near an explosive environment.
DO NOT spray the electrical apparatus and wiring. NEVER disconnect the high pressure discharge hose
from the machine while the system is pressurized. To de-pressurize the machine, turn the power and water
supply off, then press the gun trigger 2-3 times.
NEVER permanently engage the trigger mechanism on the gun.
NEVER operate the machine without all components in place and connected properly. (Handle, trigger
gun, nozzle etc.)
ALWAYS turn the water supply ON before turning the pressure washer ON. Running the washer dry will
cause damage to the machine.
DO NOT operate the pressure washer with the inlet water screen removed. Keep the screen clear of debris
and sediment.
ALWAYS hold the gun and wand rmly when operating the machine. NEVER allow the machine to run with
the trigger released for more than one minute. Resulting heat build-up will damage the pump.
NEVER connect the washer to a hot water supply. Doing so will greatly reduce the life of the pump.
Release the trigger when changing from high to low pressure modes. Failure to do so can result in damage
to the machine. Be aware of the recoil caused by the water jet when the machine is turned on.
EXTENSION CORDS: The use of an extension cord is not recommended. Use only extension cords
intended for outdoor use. These are identied by the following statement “Acceptable for use with outdoor
machines”. Use only extension cords having an electrical rating equal to more than the rating of the
machine. DO NOT use damaged extension cords.
Water that has gone through backow preventers is considered to be non-potable water.
Due to the inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by
the utility.
This machine is intended to be used at a temperature above 0 degrees. (Only for machines with the power
cord of H05VV-F)
Be careful of the danger of the kickback force on the spray assembly when opening the trigger gun and be
sure you have a rm grasp on the trigger.
Make sure the water inlet pressure keeps between 0.01MPa ad 0.4MPa. The inlet pipe should be at least
5M long. DO NOT use the pipe if it is damaged.
2

Electric Pressure Power Washer is constructed with a powerful 10-amp motor that
generates 1300 PSI of maximum water pressure and a maximum ow rate of 1.2 GPM
for light to medium duty cleaning application. Lightweight and compact so you can
easily tote or wheel it from one cleaning task to the next.
FEATURES:
Wash everything from structures to vehicles, boats, decks, driveways, patios, truck,
sidewalk, oors and lawn equipment etc.
3
FEATURES AND SPECIFICATIONS
Multi-functional pressurized jet machine will pack plenty of power to efciently blast
away dirt, grease, grime, mildew, rust and oil from your home driveway, sidewalk,
garden, outdoor furniture, vehicles and more.
Color-coded spray tips lets you conveniently select the appropriate nozzle size to tackle
the toughest cleaning jobs, starting with the lower pressure nozzle before working to
higher pressure for the best results.
Lightweight and compact so you can easily tote or wheel it from one cleaning task to
the next.
Spray gun features a total stop system (TSS) to automatically shut off pump when trigger
isn’t engaged, letting you save more energy and prolong pump life.
Max Pressure (Burst): 1300PSIAmp: 10 Motor: 120v/60 HzMax. Flow: 1.2GPM
3 Interchangeable Nozzle Adapters Certied: ETL, CSA, UL

4
OPERATION
1. Attach the high pressure hose to the pressure water outlet of the machine.
2. Attach the spray handle to the high pressure hose. Prior to operating the machine,
ensure that the high pressure hose has been completely uncoiled. Whilst the machine is in
operation the hose must not loop.
CONNECTIONS
3. Mount the nozzle or any other equipment you want to use.
4. Connect the machine to the water and power supplies.
1. Pressure cleaner
2. Water supply hose
3. Water connection
4. Water inlet
5. High pressure tube
6. Water supply hose
7. Spray gun
8. Power supply
PRE-OPERATION
NOTE: To prevent damage to your surface and to select an appropriate nozzle size for your
application. Always start with the lowest pressure nozzle size and continue changing to the
higher nozzle size until the best result is achieved.
The pressure washer is furnished with four spray nozzles. Each nozzle is color coded and
delivers a specic spray pattern and pressure for a particular cleaning job.
A clogged or partially clogged nozzle can cause a signicant reduction of water coming
out of the nozzle and cause the unit to pulsate while spraying. To clean out the nozzle turn
off and unplug the unit. Turn off the water supply and relieve any pressure trapped in the
hose by squeezing it 2-3 times. Separate the lance from the gun. Rotate the nozzle to the
narrow stream setting. This opens up the fan blades. Using the included tip cleaner, or an
unfolded paper clip, insert the wire into the nozzle hole and move it back and forth until the
debris is dislodged.

OPERATION
5

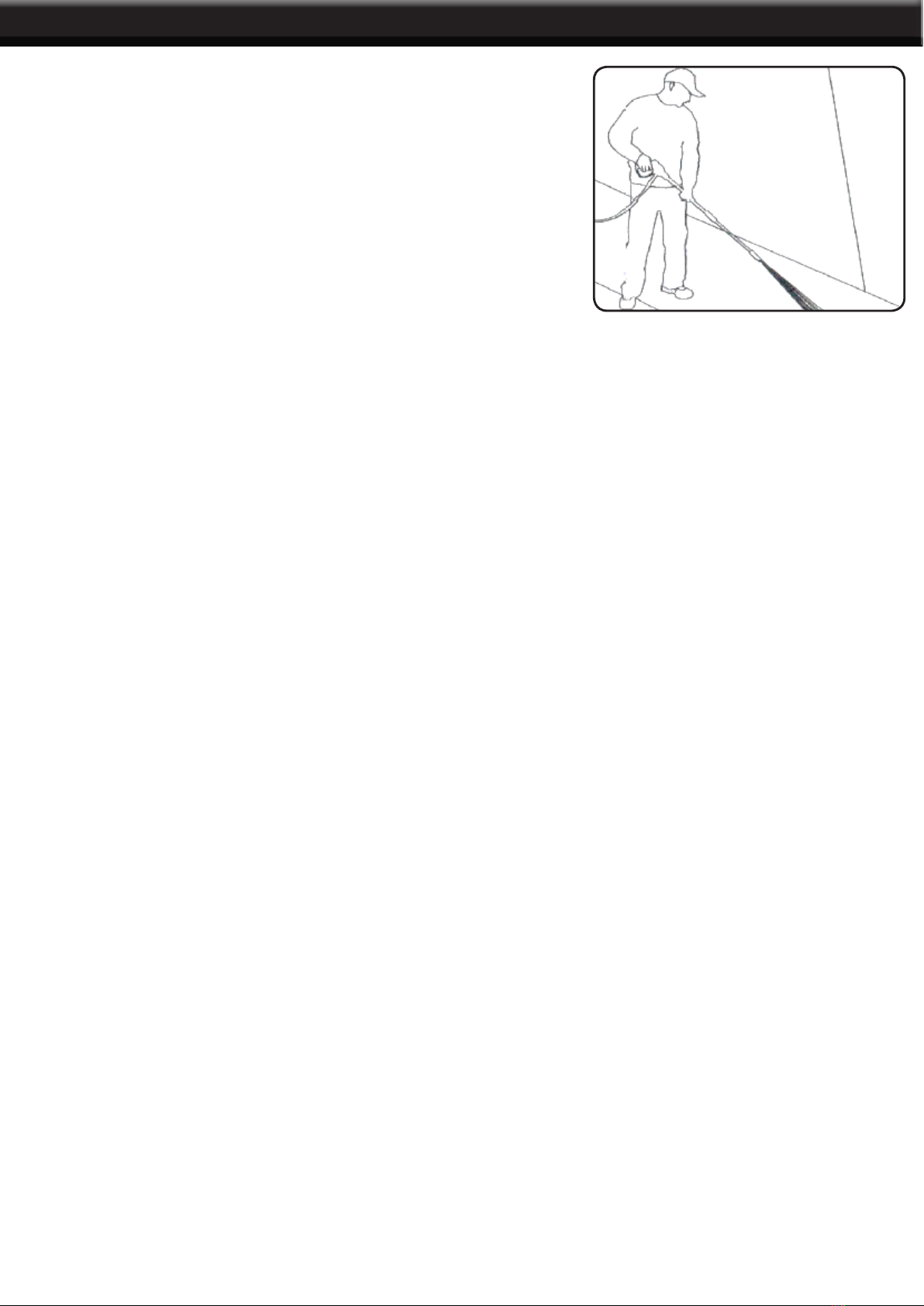

ANGLE TO THE CLEANING SURFACE
When spraying water against a surface, maximum impact
is generated when the water strikes the surface head on.
However, this type of impact tends to cause dirt particles
to imbed in the surface, thereby preventing the desired
cleaning action. The optimal angle to spray against
the surface is a 45 degree angle. Spraying against the
surface at this angle provides the most benecial impact
force combined with efcient removal of debris from the
surface.
DISTANCE FROM CLEANING SURFACE
Another factor that determines the impact force of the water is the distance from the spray
nozzle to the cleaning surface. The impact force of the water is increased as the nozzle is
moved closer to the surface.
AVOID DAMAGING SURFACES
Damage to cleaning surface occurs when the impact force of the water exceeds the
durability of the surface. The impact force can be varied by changing the nozzle adapter.
NEVER use a narrow, high impact stream or a turbo/rotary nozzle on a surface that is
susceptible to damage. Avoid spraying windows with a narrow high impact stream or
a turbo nozzle as this may cause breakage. Avoid damaging surfaces by following the
1. Before triggering the gun, adjust the nozzle to a wide fan pattern.
2. Place the nozzle approximately 4-5 feet and 45 degree angle from the cleaning surface
to the trigger gun.
3. Vary the fan pattern spray angle and the distance to the cleaning surface until optimum
cleaning efciency is achieved without damaging the surface.
DETERGENTS
The use of detergents can dramatically reduce cleaning time and assist in the removal of
stains. Some detergents have been customized for pressure washer use for specic cleaning
tasks. The detergents are about as thin as water. The use of thicker detergents like dish soap,
will clog the chemical injection system and prevent the application of the detergent.
The cleaning power of detergents comes from applying the to the surface and giving them
time to break down the dirt and grime. Detergents work best when applied at low pressure.
The combination if chemical action and high pressure rinsing is very affective. On vertical
surfaces, apply the detergent starting at the bottom and work your way upward. This will
prevent the detergent from sliding down and causing streaks. High pressure rinsing should
also progress from the bottom to the top. On particularly tough stains, it may be necessary
to use a brush in combination with detergents and high pressure rinsing.

OPERATION
6
SURFACE PREPARATION
Before starting a pressure wash cleaning it is important to prepare the surface that is to be
cleaned. This is done by clearing the area of furniture and making sure all windows and
doors are closed tight. In addition, you should make sure all plants and trees are protected
by a drop cloth.
INITIAL HIGH PRESSURE RINSE
Spray the cleaning surface with water to clean off any dirt that may have collected on the
surface. This will allow the detergent to work on the deep down dirt that has worked its way
into the cleaning surface. Before triggering the gun, adjust the nozzle to a wide fan pattern
and slowly adjust to the desired spray pattern. This will avoid too much concentrated spray
to the surface which can cause damage.
DETERGENT APPLICATION
Use only detergents formulated for pressure washes. Make sure to test the detergent in an
inconspicuous area before use.
1. Follow the label directions for mixing correct detergent to water ratio through the pressure
washer, it is approximately 5.4% (1-19). Unscrew the top of the detergent applicator and ll

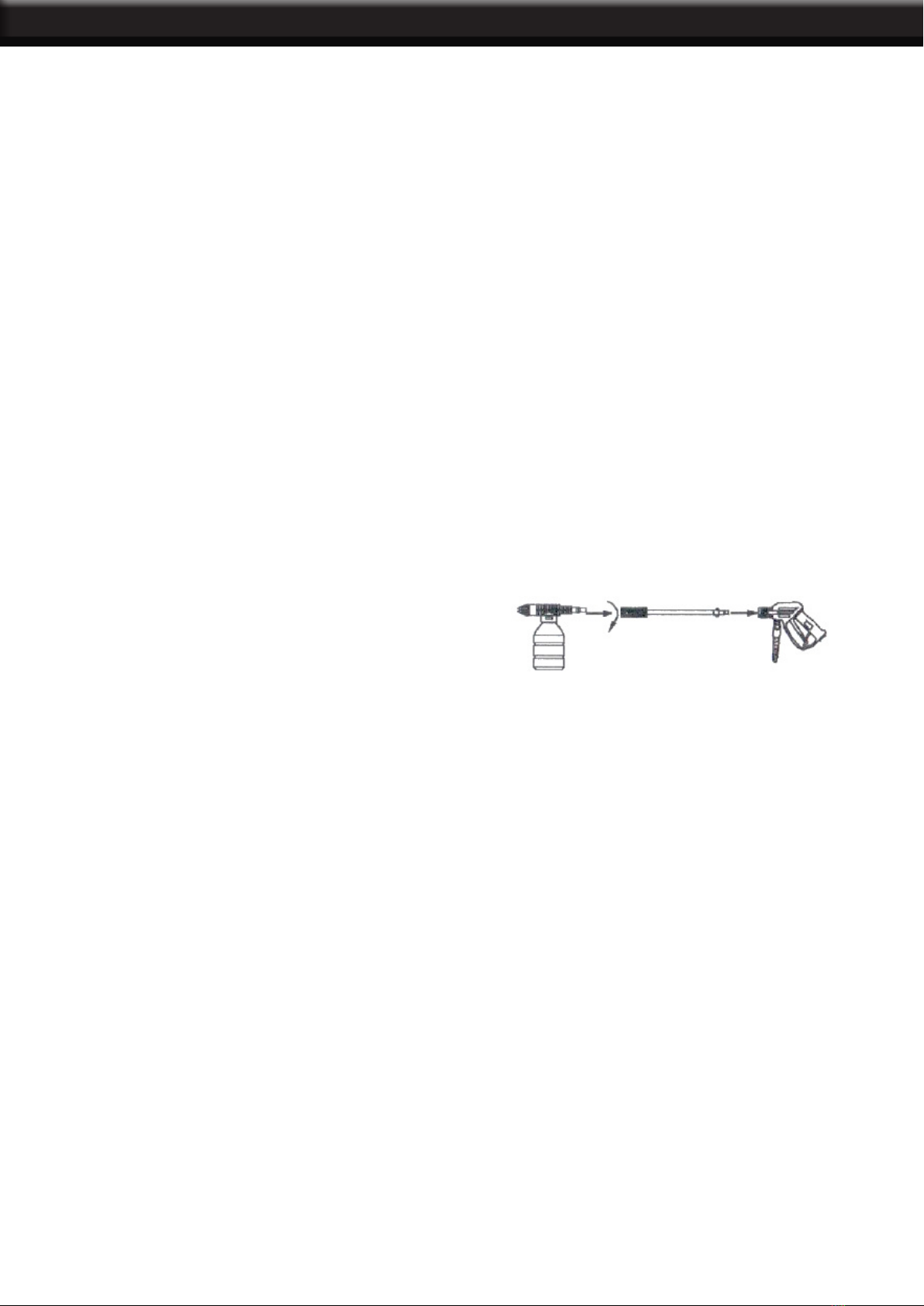

the applicator with detergent.
2. Replace the top on the applicator and remove the lance from the gun.
3. Attach the detergent applicator to the gun.
4. Apply detergent so it thoroughly covers the cleaning surface. Apply from the bottom up.
5. Allow detergent to remain on the surface for a few minutes. Use a brush to lightly scrub
heavily soiled areas. NEVER allow detergent to dry on the surface.
6. Remove the detergent applicator from the gun and replace with the lance, or remove
the applicator from the end of the lance.
7. Rinse the detergent from the surface. NOTE: Flush the applicator with clean water following
each use.
8. Final Rinse: Start at the bottom and work your way upward. Make sure you thoroughly
rinse the surface and that all detergent has been removed.
SHUT DOWN
1. Turn off the motor and water supply. Squeeze the trigger gun to de-pressurize the system.
CAUTION: NEVER turn the water supply off before turning the motor off. Serious damage
could occur to both the pump and motor.
NEVER disconnect high pressure discharge hose from the machine while the system is
pressurized. To de-pressurize, turn the motor of and squeeze the trigger 2-3 times.
2. After each use, wipe all surfaces of the pressure washer clean with a damp cloth.

TECHNICAL DATA
7

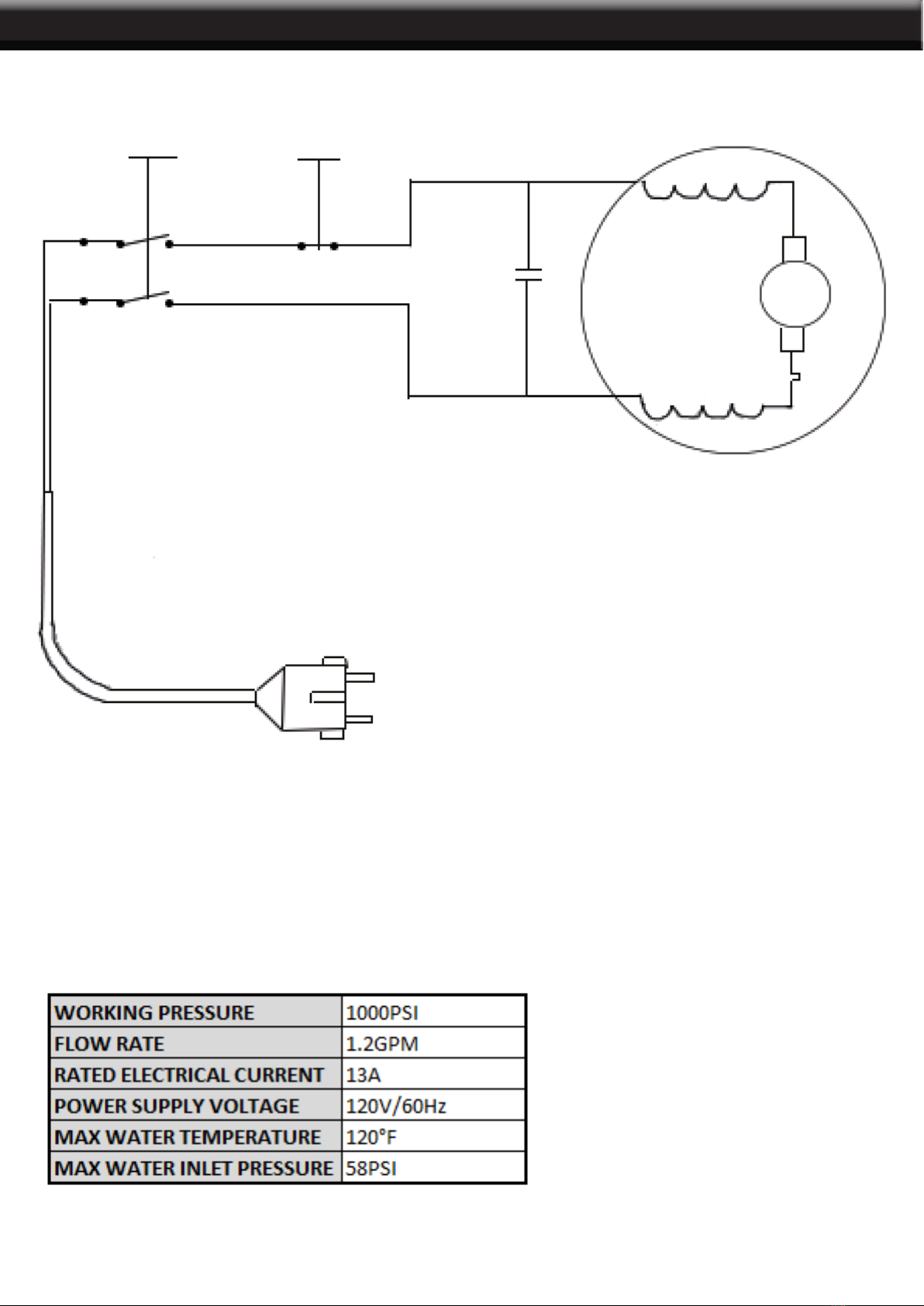

ELECTRICAL WIRING DIAGRAM
SWITCH 1 SWITCH 2
CAPACITOR
TERMINAL
PROTECTOR
BLACK
BLUE
MOTOR
L 4 5
N 1 2

TROUBLESHOOTING
8
DO NOT dispose of electrical machines in unsorted municipal waste, use separate collection facilities.
DISPOSAL
Contact your local government for information regarding the collection systems available.
If electrical machines are disposed of in landlls or dumps, hazardous substances can leak into the
groundwater and get into the food chain.

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available individually
as replacement parts.
PLEASE READ THE FOLLOWING CAREFULLY
9
PRODUCT MADE IN CHINA
NOTE
