xxodd WOOMBOX User manual

BLUETOOTH WIRELESS SPEAKER WITH
POWERBANK FUNCTION
WOOMBOX USER MANUAL
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT
AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

1
IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed and manufactured to
ensure your personal safety. However, improper use can result in potential electrical
shock or fire hazards. Please read all safety and operating instructions carefully before
installation and use, and keep these instructions handy for future reference. Take special
note of all warnings listed in these instructions and on the unit.
1. Read these instructions – All the safety and operating instructions should be read
before the appliance is operated.
2. Keep these instructions – The safety and operating instructions should be kept for
future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow all instructions – All operation and use instructions should be followed.
5. Do not use this apparatus near water – The appliance should not be used near water;
for example, near a bath tub, washbowl, kitchen sink, laundry tub, in a wet basement,
or near a swimming pool.
6. Clean only with dry cloth – The appliance should be cleaned only as recommended
by the manufacturer.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions. The appliance should be situated so that its location or position does not
interfere with its proper ventilation. For example, the appliance should not be situated
on a bed, sofa, rug, or similar surface that may block the ventilation openings; or
placed in a built-in installation, such as a bookcase or cabinet that may impede the
flow of air through the ventilation openings.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Only use attachments / accessories specified by the manufacturer.
10.Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
11.This appliance shall not be exposed to dripping or splashing water and that no object
filled with liquids such as vases shall be placed on the apparatus.
12.Power Sources – The appliance should be connected to a power supply only of the
type described in the operating instructions or as marked on the appliance. Do not
overload wall outlet.
13.Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type.
14.There is a high energy rechargeable battery inside the speaker box, do not throw it
into fire to avoid danger of explosion.
15.Do not charge the internal rechargeable battery longer than specified to prevent
danger of fire. Overcharging rechargeable batteries may shorten their life span.
16.Do not attempt to dismantle, open or repair this product yourself. If a fault occurs,
seek advice from your local qualified service technician or contact the distributor.

2
IMPORTANT NOTES
Avoid installing the unit in locations described below:
•Places exposed to direct sunlight or close to heat radiating appliances such as
electric heaters.
•Places subject to constant vibration.
•Dusty, humid or moist places.
NOTE:
This product is not magnetically shielded and may cause color distortion on the screen of
some TVs or video monitors. To avoid this, you may need to move the unit further away
from the TV or monitor if unnatural color shifts or image distortion occurs.
COMPLIANCE WITH FCC REGULATIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
NOTE : This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

3
PROTECT YOUR FURNITURE
This model is equipped with non-skid rubber 'feet' to prevent the product from moving
when you operate the controls. These 'feet' are made from non-migrating rubber material
specially formulated to avoid leaving any marks or stains on your furniture. However
certain types of oil based furniture polishes, wood preservatives, or cleaning sprays may
cause the rubber 'feet' to soften, and leave marks or a rubber residue on the furniture. To
prevent any damage to your furniture we strongly recommend that you purchase small
self-adhesive felt pads, available at hardware stores and home improvement centers
everywhere, and apply these pads to the bottom of the rubber 'feet' before you place the
product on fine wooden furniture.
PRODUCT FEATURES
The Woombox is a Bluetooth portable speaker with the following features:
Auxiliary input jack to play music from your iPod or digital audio player
Wireless playback of music from your mobile phone via the Bluetooth connection
Hands-free for phonecall
Up to 33 feet (10 meters) operating range
Digital volume control
 Charge an out-of-power smartphone for emergency use
 Built-in UL-approval 1,000 mAh Li-Polymer rechargeable battery.

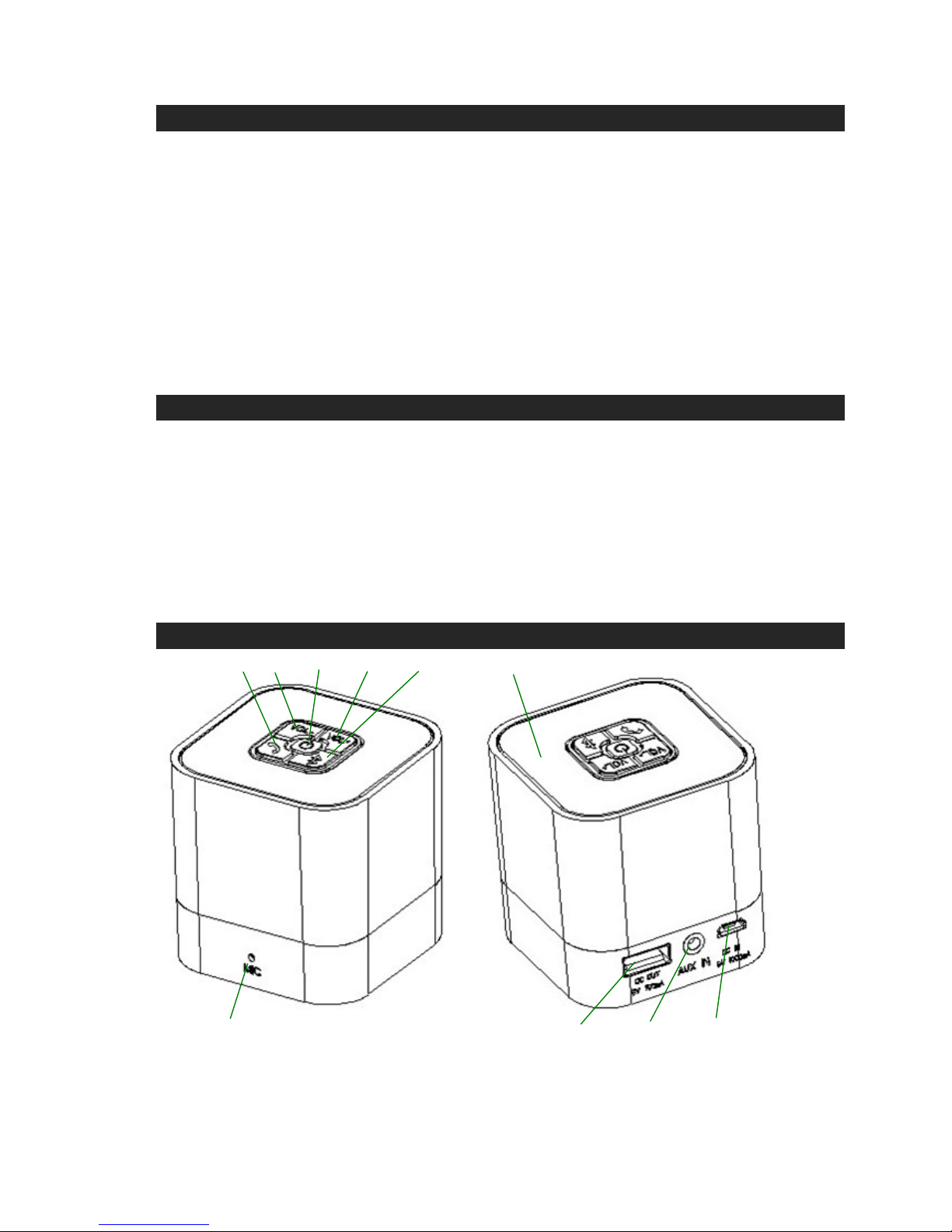

LOCATION OF CONTROLS
1 2 3 4 5 10
6 7 8 9

4
1. PHONE BUTTON
2. VOLUME DOWN (-) BUTTON
3. POWER ON/OFF BUTTON; 5V DC-OUT BUTTON; POWER/CHARGING INDICATOR
4. VOLUME UP (+) BUTTON
5. BLUETOOTH ON/OFF BUTTON; BLUETOOTH STATUS INDICATOR
6. CONDENSOR MIC
7. DC OUT/AUXILIARY BATTERY CHARGING USB PORT
8. AUX-IN JACK
9. DC IN/BUILT-IN BATTERY CHARGING MICRO-USB PORT
10. SPEAKER
LED STATUS INDICATORS
POWER LED （ Red & Green , beneath Power button ）
MODE STATUS LED INDICATION
Power off LED off
Battery in charging Slow flashing Red
Power OFF
Battery fully charged Solid Red
Battery at working level Slow flashing Green
Battery at low level Slow flashing Green & fast flashing Red
No power LED off
Battery in charging Slow flashing Red & Green
Power ON
Battery fully charged Solid Red & Green
Remarks:
Fast Flashing: 1 second apart.
Slow Flashing: Around 3 - 4 seconds apart.
Battery at working level: Voltage at 3V – 4.2V

5
BLUETOOTH LED （ Red & Blue , beneath Bluetooth button ）
Not in pairing LED Off
In pairing Red & Blue flash alternatively
Failed to link Red flashes twice per second
Tapping Bluetooth button for
3 seconds to enter pairing
mode.
Linked Blue flashes twice per second
Failed to link Red flashes twice per second
Linked Blue flashes twice per second
Re-link the previously linked
device by tapping Bluetooth
button for 2 seconds. Bluetooth will turn off automatically if unlinked for over 5 minutes
CHARGING INSTRUCTIONS
This unit operates on a built-in Li-Polymer battery that can be recharged either using the
USB port on your computer or from a USB power adaptor (not included) with a rated
output of DC 5V, 1000mA.
Note: The DC input micro-USB port located on this unit is mainly designed for charging
the built- in Li-Polymer battery. The unit will still operate normally while charging,
but doing this may reduce the battery life.
CHARGING THE BATTERY
1. Charge the built-in Li-Polymer battery a minimum of 4 hours prior to first use.
2. Plug the unit into a USB port on your computer or into a USB power adaptor
(not included) using the included USB cable.
3. Unplug the USB cable from the power source once the battery is fully charged.
4. After prolonged use, the battery voltage may discharge and operation might become
intermittent. When the internal battery charge is very low, the power button backlight will
begin flashing slow green & fast red alerting you to recharge the internal battery.
Battery Note and Care
1: Do not burn or bury batteries.
2: Do not puncture or crush.
3: Do not disassemble.
4: Recycle Li-Polymer batteries. Do not dispose of in the trash.
5: Use only chargers rated for Li-Polymer cells. Be sure the charger’s voltage and
current settings are correct for the battery pack being charged.
6: Charge batteries on a fireproof surface away from flammable items or liquids.
7: Batteries should NEVER be left unattended while charging. Only adults should
charge the batteries.
8: Follow the manufacturer’s instructions for charging the product and do not charge
longer than recommended. Unplug the charger when the battery is charged or not used.

6
TURNING THE SPEAKER POWER ON/OFF
1. In standby mode, tap the POWER button to turn on the unit, the power button
backlight will light up green and begin blinking slowly.
2. In power on mode, tap the POWER button to turn the unit off, the green power
button backlight turns off.
3. At power-on mode 5V DC-OUT is turn on and ready for charging your mobile
phone.
Note: Before first use, please charge the speakers for at least 4 hours because
the batteries may not fully charged, even though the charging LED lights.
BLUETOOTH OPERATION
Power on the unit and follow the directions below to use the A2DP profile Bluetooth
features of this unit.
Turn on the Bluetooth
In Bluetooth Off mode, press and hold the Bluetooth button for about 3 seconds until
a beep sound is heard and the Bluetooth button backlight flashes Red and Blue
alternatively. The Bluetooth is turned on.
In Bluetooth Off mode, press and hold the Bluetooth button for about 2 seconds until
the Bluetooth button backlight flashes red and a beep sounds. The Bluetooth is turned
on and the previously paired device is now re-linked with WOOMBOX.
Turn off the Bluetooth
In Bluetooth ON mode, press and hold the Bluetooth button and hold for about 5 seconds
until a beep sound is heard and the Bluetooth button backlight flashes one red and then
all lights go off. Bluetooth will turn off automatically if linking was not processed or the link
has been interrupted for over 5 minutes.
PAIRING (LINKING) A BLUETOOTH ENABLED MOBILE PHONE OR OTHER
BLUETOOTH ENABLED DEVICE TO THE WOOMBOX
1. With the power on and Bluetooth Off , press and hold the Bluetooth button for about 3
seconds until a second beep sound is heard, The Bluetooth button backlight will flash
blue and red.
2. The WOOMBOX is ready to pair (link) with your Bluetooth mobile phone or device.
3. Turn on the Bluetooth feature of your mobile phone and enable the search or scan
feature to find the " WOOMBOX ".
4. Select " WOOMBOX " from the device list when it appears on your screen. If required,
enter the pass code “0000” to pair (link) the unit with your mobile phone.
5. After successfully pairing (linking) with your mobile phone, you can play music from
your mobile phone wirelessly to the WOOMBOX.

7
6. Press the Volume Up (+) / Down (-) button to adjust the desired volume level.
7. To turn off the WOOMBOX Bluetooth, press and hold the Bluetooth button for about 5
seconds until a beep sound is heard and the Bluetooth button backlight flashes red and
then all lights go off. Alternatively you may press power button to shut Bluetooth. Don’t
forget to also turn off the Bluetooth feature on your mobile phone.
NOTES:
1. Refer to the manual of your mobile phones, iPad, computer or other Bluetooth enabled
device for Bluetooth operation, since it may vary from model to model.
2. Your Bluetooth enabled device will not play the music through the speaker, even it can
be connected, if the device does not support A2DP.
3. If the built in Li-Polymer battery reaches a very low power level that affects Bluetooth
operation, the Power button backlight will begin to rapidly blink red two times every
second , followed by three long type sounds prior to the unit is turned off. This will alert
you to recharge the speaker battery immediately.
4. Do not plug in the Audio jack when the Bluetooth is in operation.
5. If you are pairing (linking) your computer to the WOOMBOX using Bluetooth, you
may need to set the WOOMBOX as your computer’s default sound device.
6. The WOOMBOX will reset its volume at 70% full-scale every time the power is turned
of and turned on. Adjust to the level to your desire by with Vol+/Vol- buttons.
Using the WOOMBOX as a Hands Free Bluetooth Speakerphone
1. Link your mobile phone to the speaker via Bluetooth as described above.
2. When receiving an incoming call on your mobile phone, tap the PHONE button on
WOOMBOX to switch an incoming call from mobile phone to WOOMBOX. A short beep
sound will be heard confirming the call was answered. Complete your call using the
built-in microphone and speaker of WOOMBOX .
3. Press the VOLUME UP(+) /DOWN (-) button on the WOOMBOX to adjust the volume
to your desired sound level. Adjusting volume of linked device will do as well.
4. To end the call, just tap the PHONE button again on WOOMBOX . A short beep sound
will be heard and the call will end. If you were streaming music from your mobile phone
to the WOOMBOX, the music will automatically resume streaming to the WOOMBOX.
5. To reject an income-call, simply press and hold the PHONE button on the
WOOMBOX for about 3 seconds, a long beep sound will be heard.
6. In a phonecall, hands-free mode will be transferred to Smartphone mode by tapping
PHONE button for 3 seconds. Tapping PHONE button again for 3 second will resume
hands-free mode.
7. The WOOMBOX will shut down its Bluetooth automatically at receiving no input signal
for 5 minutes.

8
8. You may also shut down Bluetooth by tapping Bluetooth button of the WOOMBOX for
5 seconds.
9. The WOOMBOX will automatically redial the last number you dialed by tapping the
PHONE button twice. A quick press on the Phone button will end the call in progress. A
short beep tone will be heard confirming the redialing is ended.
10. If your mobile phone is already paired with WOOMBOX but became unlinked even
with both Bluetooth devices turned on, you need to do nothing as the WOOMBOX will
re-link with the mobile phone automatically.
The Bluetooth button status indicator will blink two red with two short beeps if the
WOOMBOX and your mobile phone have been re-linked successfully.
11. To unlink, press and hold the Bluetooth button and hold for about 5 seconds until a
beep sound is heard and the Bluetooth button backlight flashes one red and then all
lights go off. Alternatively pressing Power button will do as well.
NOTE :
Re-link WOOMBOX by using Bluetooth operation guided in Manual of your mobile phone
in case automatic re-linking failed.
PLAYING MUSIC USING THE AUXILIARY INPUT
The WOOMBOX features an auxiliary audio signal input jack for connecting external
audio devices like MP3 players, CD players, iPhones or iPods (except iPod shuffle 3
rd
gen) and listen to them through the speaker of WOOMBOX.
1. Use the audio cable (included) with one 3.5 mm stereo plug on each end of the cable.
2. Plug one end into the AUX-IN jack on the WOOMBOX and the other end of the cable
into the Line-out Jack or Headphone Jack of your external audio device.
3. Tap the POWER button to turn on the WOOMBOX. The POWER button backlight
will turn green and begin flashing slowly.
4. Turn on your external audio device.
5. Press the VOLUME UP (+) / DOWN (-) button to adjust the desired volume level.
6. Operate all other functions on the auxiliary device as usual.

9
NOTES:
(1). If you’re connected to the Line Out Jack of your external device then you only need
to adjust the volume control on the WOOMBOX. If you’re connected to the Headphone
Jack of your external device, then you may need to adjust both the volume control of
your external device and the volume control on the WOOMBOX to find the most
desirable volume setting.
(2). If you use AUX IN function in Bluetooth on mode, Bluetooth audio will be temporarily
disconnected when the audio cable plugged in. Unplugging the audio cable will resume
Bluetooth audio.
(3). We suggest you turn off the Bluetooth to save battery power when playing music via
AUX IN mode.
(4). Tap the POWER button to turning off the system when you finish listening. Don't
forget to switch off the power of your external device as well.
RECHARGING WOOMBOX BATTERY
When you listen to music, the built-in rechargeable Li-Polymer battery will eventually
reach a low power condition. The power indicator will turn red and start flashing quickly,
so please charge the speaker battery as soon as possible.
1. Plug the unit into a USB port on your computer or into a DC 5V, 1000mA USB power
adaptor (not included) using the included USB cable.
2. Plug the micro USB plug of the cable into the micro USB port of the WOOMBOX.
Charging in Power On mode
The Red & Green LEDs slowly flash simultaneously if battery is charged up to a
workable level.
Both Green & Red LED lit solid if battery is fully charged.
Charging in Unit Power Off mode
The Red LED turns on and starts flashing slowly.
The Red LED lights solid when the battery is fully charged after charging for
about 4 hours.
NOTES :
1. Charging time will vary if you are listening to music while charging the speaker battery.
We recommend you switch off the speaker power during the charging process or until
the speaker batteries are fully charged.

10
2. To prolong the life of a rechargeable battery, it is recommended to completely
discharge it before fully charging it again.
3. Rechargeable batteries need to be cycled for maximum performance and longer
battery life. If you don’t use the player that often, be sure to recharge the battery at least
once a month in order to keep the internal battery working properly.
USE THE WOOMBOX TO RECHARGE A MOBILE PHONE BATTERY
The WOOMBOX is featured with a USB port for recharging your mobile phone at
emergency. With a 700mA DC current maximum the WOOMBOX is capable of charging
devices of 3,000mAH or below.
1. Connect the 5V USB DC OUT jack of the WOOMBOX to the charging port of your
mobile phone with the USB cable included in the pack of the mobile phone when being
purchased.
2. Turn on the WOOMBOX by tapping POWER button. The 5V DC-OUT is now on.
3. Check charging status indicator of your mobile phone to make sure of proper
charging.
4. To cease charging simply tap Power button which turns off both 5V DC-OUT and
power of WOOMBOX. Alternatively press Power button for 3 second to turn off 5V
DC-OUT while leaving WOOMBOX at power-on mode.
5. Tap the Power button of WOOMBOX again for music play.
NOTE :
Make sure the battery of WOOMBOX is fully charged before charging your mobile
phone or other devices. Do not charge WOOMBOX battery while leaving 5V DC-OUT
at charging condition as this will prolong charging time for mobile phone and might
shorten life-time of WOOMBOX battery.
CARE AND MAINTENANCE
1. Avoid operating your unit under direct sunlight or in hot, humid or dusty places.
2. Keep your unit away from heating appliances and sources of electrical noise such as
fluorescent lamps or motors.
3. Unplug the unit from the electrical power outlet immediately in case of malfunction.
CLEANING THE UNIT
To prevent fire or shock hazard, disconnect your unit from the USB port of power
source when cleaning.
The finish on the unit may be cleaned with a dust cloth and cared for as other
furniture, Use caution when cleaning and wiping the plastic parts.
If the cabinet becomes dusty wipe it with a soft dry dust cloth. Do not use any wax or
polish sprays on the cabinet.

11
If the front panel becomes dirty or smudged with fingerprints it may be cleaned with a
soft cloth slightly dampened with a mild soap and water solution.
Never use abrasive cloths or polishes as these will damage the finish of your unit.
CAUTION: Never allow any water or other liquids to get inside the unit while cleaning.
TROUBLESHOOTING GUIDE
SYMPTOM POSSIBLE PROBLEM SOLUTION
AC adaptor or USB cable not plugged
properly
Plug the AC adaptor into a wall outlet and plug the
connector into the supply jack on the unit.
Defective AC adaptor Use a good adaptor to verify.
Defective AC outlet Use other AC-powered product to verify.
No Charging
Defective USB port of PC Make sure PC is on and use the other USB port to
verify.
Bluetooth shut-down due to low
battery power Charge the battery.
Unlinked to mobile phone Link with mobile phone as guided.
WOOMBOX is placed out of working
range Place WOOMBOX within 10m of mobile phone
Volume level was set too low Increase volume of WOOMBOX , and that of
source device if necessary.
No Sound in
Bluetooth mode
AUX IN socket was plugged Unplug AUX IN .
Audio cable not plugged properly Check if the audio cable is properly and firmly
plugged.
AUX no sound
Volume level was set too low Increase volume of WOOMBOX , and that of
source device if necessary.
Volume level was set too high Lower down volume by tapping VOL- button.
Poor sound quality from mobile
phone. This can be
verified with Bluetooth devices or other types like
CD player.Source distortion or noise
Lower down volume level, shut down BASS or
adjust EQ of the old-version iPod if used.
Sound Distortion
Battery low Recharge the battery .
Unit hot Long-time operation at high volume Lower down volume level or shut down power
for a while.
Battery low Recharge the battery.
DC OUT is not on Tap Power button for 2 seconds and back-light
flashes red & green alternatively to power on.
Charger cable not connected properly
Check to make sure the cable is properly and
firmly connected.
No output from USB
DC OUT
Defective charging cable Use a good cable to verify.
\

12
SPECIFICATIONS
Bluetooth: v3.0
Wireless Receiving Distance: 10M / 33FT
Bluetooth Profiles: A2DP + HFP + HSP
Advanced Audio Distribution Profile (A2DP) for Wireless Music Streaming.
Hands-free Audio (HFP) and Headset Profiles (HSP) for Hands-free Speakerphone.
Hands-free Speaker for Bluetooth Phone.
Built-In Microphone.
Audio Input: AUX-IN 3.5mm. Connect Your Ipod, MP3, Digital Audio Players.
Audio Cable Included.
Audio Output Power: 1.2W(RMS) x 1
Impedance: 4 Ohm
Sensitivity: 73dB
THD: < 1%
Audio Frequency Response: 150Hz-20Khz
Digital Volume Control.
Built-in Rechargeable 1000mAh Battery.
USB Charge Cable Included.
DC IN: 5V / 1000mA DC OUT: 5V / 700mA
USB PowerBank Port to Recharge Cellphone.
6-10 Hours of Continuous Playback.
Material: ABS
Dimension: 5.7 (W) x 5.7 (H) x 5.7 (D) cm
Weight: 138g
Bluetooth® is a registered trademark of Bluetooth SIG, Inc
