Yamaha WaveRunner EX 2023 Owner's manual

2023 WaveRunner
EX/EX SPORT
EX DELUXE
EX LIMITED
OWNER’S/OPERATOR’S MANUAL
F3Y-F8199-16
LIT-18626-13-98
U.S.A. Edition
Read this manual carefully
before operating this watercraft.
DIC183

WARNING: Operating, servicing
and maintaining a recreational marine
vessel can expose you to chemicals
including engine exhaust, carbon monoxide,
phthalates, and lead, which are known to
the State of California to cause cancer and
birth defects or other reproductive harm. To
minimize exposure, avoid breathing exhaust,
service your vessel in a well-ventilated area
and wear gloves or wash your hands
frequently when servicing this vessel.
For more information go to
www.P65warnings.ca.gov/marine
Read this manual carefully before operating this watercraft. This manual
should stay with the WaveRunner if it is sold.
UF3Y16E0.book Page 1 Tuesday, August 9, 2022 11:18 AM

Important manual information
EJU30183
To the owner/operator
Thank you for choosing a Yamaha watercraft.
This owner’s/operator’s manual contains in-
formation you will need for proper operation,
maintenance, and care. A thorough under-
standing of these simple instructions will help
you to obtain maximum enjoyment from your
new Yamaha. If you have any questions
about the operation or maintenance of your
watercraft, please consult a Yamaha dealer.
In this manual, information of particular im-
portance is distinguished in the following
ways:
This is the safety alert symbol. It is used
to alert you to potential personal injury haz-
ards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
EWJ00072
A WARNING indicates a hazardous situa-
tion which, if not avoided, could result in
death or serious injury.
ECJ00092
A NOTICE indicates special precautions
that must be taken to avoid damage to the
watercraft or other property.
TIP
A TIP provides key information to make pro-
cedures easier or clearer.
EJU45461
Engine data recording
This model’s ECM stores certain engine data
to assist in the diagnosis of malfunctions and
for research, statistical analysis and develop-
ment purposes.
Although the sensors and recorded data will
vary by model, the main data points are:
Engine status and engine performance
data
This data will be uploaded only when a spe-
cial Yamaha diagnostic tool is attached to the
engine, such as when maintenance checks or
service procedures are performed.
Yamaha will not disclose this data to a third
party except in the following cases. In addi-
tion, Yamaha may provide engine data to a
contractor in order to outsource services re-
lated to the handling of the engine data. Even
in this case, Yamaha will require the contrac-
tor to properly handle the engine data we
provided and Yamaha will appropriately
manage the data.
With the consent of the boat owner
Where obligated by law
For use by Yamaha in litigation
For general Yamaha-conducted research
purposes when the data is not related to an
individual engine or owner
UF3Y16E0.book Page 1 Tuesday, August 9, 2022 11:18 AM

Important manual information
EJU40401
Because Yamaha has a policy of continuing
product improvement, this product may not
be exactly as described in this owner’s/oper-
ator’s manual. Specifications are subject to
change without notice.
This manual should be considered a perma-
nent part of this watercraft and should remain
with it even if the watercraft is subsequently
sold.
EJU30224
WaveRunner EX / EX SPORT /
EX DELUXE / EX LIMITED
OWNER’S/OPERATOR’S MANUAL
©2023 by Yamaha Motor Corporation,
U.S.A.
1st Edition, June 2022
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Corporation, U.S.A.
is expressly prohibited.
Printed in U.S.A.
P/N LIT-18626-13-98
UF3Y16E0.book Page 2 Tuesday, August 9, 2022 11:18 AM

Table of contents
General and important labels........... 1
Identification numbers .................... 1
Primary Identification (PRI-ID)
number............................................ 1
Hull Identification Number (HIN)......... 1
Engine serial number.......................... 1
Emission control information .......... 2
Approval label of emission control
certificate ........................................ 2
Manufactured date label .................... 3
Star labels .......................................... 3
Important labels .............................. 5
Warning labels.................................... 6
Other labels ........................................ 9
Safety information........................... 11
Limitations on who may operate
the watercraft ............................. 11
Cruising limitations........................ 12
Operation requirements ................ 13
Recommended equipment ........... 16
Hazard information........................ 16
Watercraft characteristics ............. 17
Wakeboarding and water-skiing ... 18
Rules of the Road ......................... 20
To get more boating safety
information ................................. 24
Enjoy your watercraft
responsibly................................. 25
Description....................................... 26
Watercraft glossary ....................... 26
Location of main components ...... 27
Control function operation ............. 31
Watercraft control functions ......... 31
Engine stop switch........................... 31
Engine shut-off switch ..................... 31
Start switch ...................................... 31
Throttle lever .................................... 32
RiDE lever (EX DELUXE / EX
LIMITED) ....................................... 32
Steering system................................ 32
Cooling water pilot outlet ................. 33
Water separator................................ 33
Watercraft operation ...................... 34
Watercraft operation functions ..... 34
Reverse system (EX SPORT)............ 34
Shift system (EX DELUXE / EX
LIMITED) ....................................... 34
Instrument operation ...................... 38
Multifunction information center... 38
Information display........................... 38
Equipment operation ...................... 43
Equipment..................................... 43
Seat .................................................. 43
Handgrip........................................... 43
Reboarding grip................................ 44
Reboarding step (EX SPORT / EX
DELUXE / EX LIMITED) ................ 44
Bow eye............................................ 44
Stern eyes ........................................ 45
Cleat ................................................. 45
Pull-up cleats (EX LIMITED) ............ 45
Storage compartments .................... 45
Fire extinguisher holder.................... 47
Operation and handling
requirements ................................... 48
Fuel requirements ......................... 48
Fuel................................................... 48
Engine oil requirements ................ 50
Engine oil.......................................... 50
Draining the bilge water................ 52
Draining the bilge water on land....... 52
Draining the bilge water on water .... 52
UF3Y16E0.book Page 1 Tuesday, August 9, 2022 11:18 AM

Table of contents
Transporting on a trailer................ 53
First-time operation ........................ 54
Engine break-in ............................. 54
Pre-operation checks ..................... 55
Pre-operation checklist .................... 55
Pre-operation check points........... 57
Pre-launch checks ........................... 57
Post-launch checks ......................... 62
Operation ......................................... 64
Operating your watercraft ............. 64
Getting to know your watercraft ...... 64
Learning to operate your
watercraft...................................... 64
Riding position ................................. 65
Launching the watercraft ................. 65
Starting the engine on water ............ 65
Stopping the engine......................... 66
Leaving the watercraft...................... 66
Operating the watercraft .................. 66
Turning the watercraft ...................... 67
Stopping the watercraft ................... 69
Operating the watercraft in reverse
or neutral (EX SPORT / EX
DELUXE / EX LIMITED)................. 70
Boarding the watercraft ................... 71
Starting off........................................ 74
Capsized watercraft ......................... 75
Beaching and docking the
watercraft...................................... 76
Operating in weeded areas .............. 76
After removing the watercraft from
the water ....................................... 77
Care and storage............................. 78
Post-operation care ...................... 78
Flushing the cooling water
passages....................................... 78
Cleaning the watercraft .................... 79
Battery care...................................... 79
Long-term storage ........................ 81
Cleaning ........................................... 81
Lubrication ....................................... 81
Rustproofing..................................... 82
Maintenance.................................... 84
Maintenance ................................. 84
Periodic maintenance chart ............. 85
Engine oil and oil filter ...................... 87
Specifications.................................. 88
Specifications ............................... 88
Trouble recovery ............................. 90
Troubleshooting............................ 90
Troubleshooting chart ...................... 90
Emergency procedures ................ 93
Cleaning the jet intake and
impeller ......................................... 93
Raising the reverse gate (EX
DELUXE / EX LIMITED) ................. 94
Jumping the battery ......................... 94
Towing the watercraft....................... 95
Submerged watercraft ..................... 95
Consumer information ................... 97
Limited warranty ........................... 97
YAMAHA EXTENDED SERVICE
(Y.E.S.) ....................................... 99
Index............................................... 100
UF3Y16E0.book Page 2 Tuesday, August 9, 2022 11:18 AM

General and important labels
1
EJU30263
Identification numbers
Record the Primary Identification (PRI-ID)
number, Hull Identification Number (HIN), and
engine serial number in the spaces provided
for assistance when ordering genuine parts
from a Yamaha dealer. Also record and keep
these ID numbers in a separate place in case
your watercraft is stolen.
EJU30284

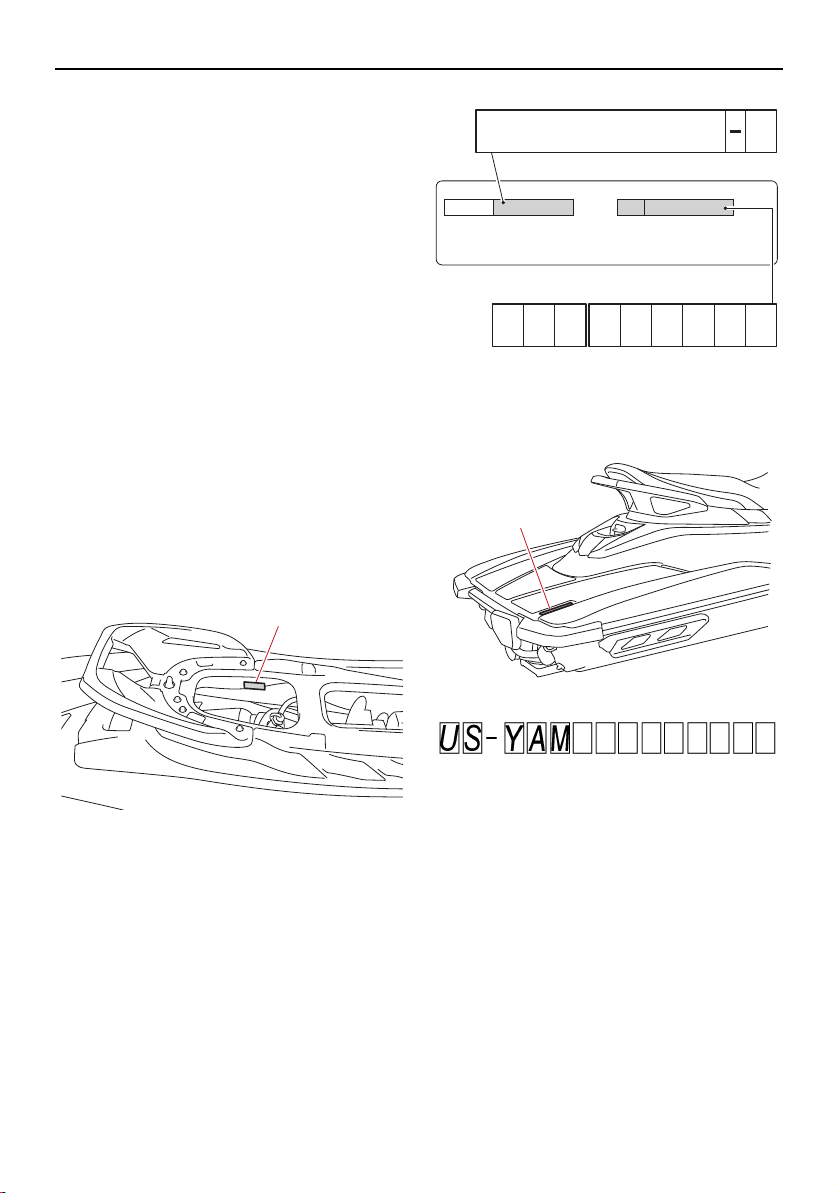

Primary Identification (PRI-ID) number
The PRI-ID number is stamped on a plate at-
tached inside the engine compartment. (See
page 43 for seat removal and installation pro-
cedures and page 47 for information on the
seat storage compartment.)
MODEL:
EX1050C-Y (EX)
EX1050B-Y (EX SPORT)
EX1050A-Y (EX DELUXE)
EX1050D-Y (EX LIMITED)
EJU30301
Hull Identification Number (HIN)
The HIN is stamped on a plate attached to
the aft deck.
EJU44440
Engine serial number
The engine serial number is stamped on a
plate attached to the engine unit. (See page
43 for seat removal and installation proce-
dures and page 47 for information on the seat
storage compartment.)
1Primary Identification (PRI-ID) number loca-
tion
1
1Hull Identification Number (HIN) location
MODEL
YAMAHA MOTOR CO.,LTD.
ASSEMBLED IN U.S.A. WITH FOREIGN AND DOMESTIC COMPONENTS.
ASSEMBLÉ EN U.S. AVEC DES COMPOSANTS ÉTRANGERS ET
DOMESTIQUES.
PRI-I.D.
1
UF3Y16E0.book Page 1 Tuesday, August 9, 2022 11:18 AM

General and important labels
2
EJU30353
Emission control information
This engine conforms to U.S. Environmental
Protection Agency (EPA) and/or California Air
Resources Board (CARB) regulations for ma-
rine SI engines applicable at the time of man-
ufacture.
This engine is certified to operate on regular
unleaded gasoline.
EJU44470
Approval label of emission control
certificate
This label is attached to the top of the cylin-
der head and to the inside of the engine com-
partment. (See page 43 for seat removal and
installation procedures, page 47 for informa-
tion on the seat storage compartment, and
page 47 for information on the fire extinguish-
er holder.)
1Engine serial number location
1
1Emission control information label location
1
EMISSION CONTROL INFORMATION
ENGINE FAMILY :
MAX POWER : kW
DISPLACEMENT : liters
EPA/CA FEL : HC+NOx , CO g/kW-h
THIS ENGINE CONFORMS TO CALIFORNIA AND U.S. EPA EXHAUST REGULATIONS
FOR SI MARINE ENGINES. REFER TO OWNER’S MANUAL FOR MAINTENANCE
SPECIFICATIONS AND ADJUSTMENTS.
YAMAHA MOTOR CO.,LTD.
UF3Y16E0.book Page 2 Tuesday, August 9, 2022 11:18 AM

General and important labels
3
EJU44460
Manufactured date label
This label is attached to the port side of the
air filter case. (See page 43 for seat removal
and installation procedures and page 47 for
information on the fire extinguisher holder.)
EJU30441
Star labels
This watercraft is labeled with a California Air
Resources Board (CARB) star label. See be-
low for a description of your particular label.
One Star - Low Emission
The one-star label identifies engines that
meet the Air Resources Board’s Personal
Watercraft and Outboard marine engine 2001
exhaust emission standards. Engines meet-
ing these standards have 75% lower emis-
sions than conventional carbureted two-
stroke engines. These engines are equivalent
to the U.S. EPA’s 2006 standards for marine
engines.
1Emission control information label location
1Manufactured date label location
1
EPA FEL: HC+NOx ,CO CA
KNCNPLINEME2 , KYMXPTANKTK2 , KBEMPMDRN003
KYMXPVSSLYM1
1
1Star label location
1
UF3Y16E0.book Page 3 Tuesday, August 9, 2022 11:18 AM

General and important labels
4
Two Stars - Very Low Emission
The two-star label identifies engines that
meet the Air Resources Board’s Personal
Watercraft and Outboard marine engine 2004
exhaust emission standards. Engines meet-
ing these standards have 20% lower emis-
sions than One Star-Low Emission engines.
Three Stars - Ultra Low Emission
The three-star label identifies engines that
meet the Air Resources Board’s Personal
Watercraft and Outboard marine engine 2008
exhaust emission standards or the Sterndrive
and Inboard marine engine 2003-2008 ex-
haust emission standards. Engines meeting
these standards have 65% lower emissions
than One Star-Low Emission engines.
Four Stars - Super Ultra Low Emission
The four-star label identifies engines that
meet the Air Resources Board’s Sterndrive
and Inboard marine engine 2009 exhaust
emission standards. Personal Watercraft and
Outboard marine engines may also comply
with these standards. Engines meeting these
standards have 90% lower emissions than
One Star-Low Emission engines.
UF3Y16E0.book Page 4 Tuesday, August 9, 2022 11:18 AM

General and important labels
5
EJU30455
Important labels

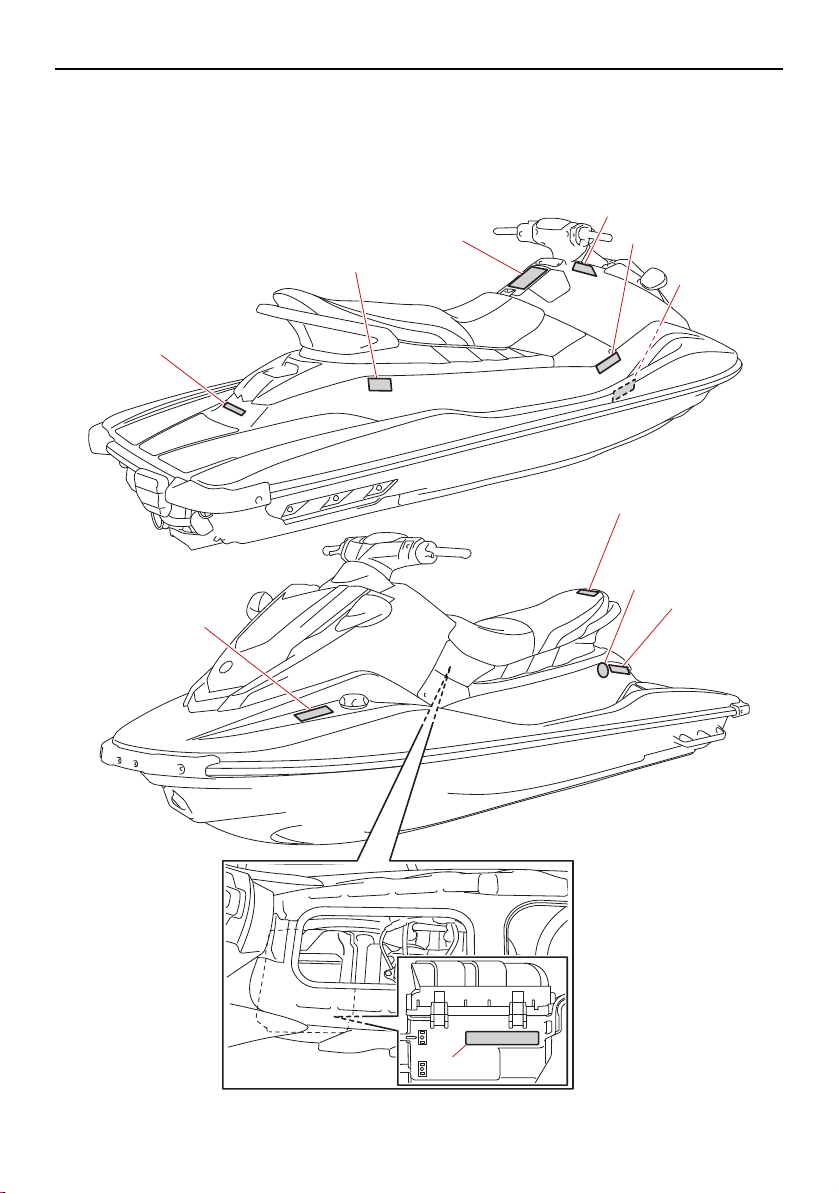

Read the following labels before using this watercraft. If you have any questions, consult a
Yamaha dealer.
1
5
10
7
2
6
8
11
3
4
9
UF3Y16E0.book Page 5 Tuesday, August 9, 2022 11:18 AM

General and important labels
6
EJU35914
Warning labels

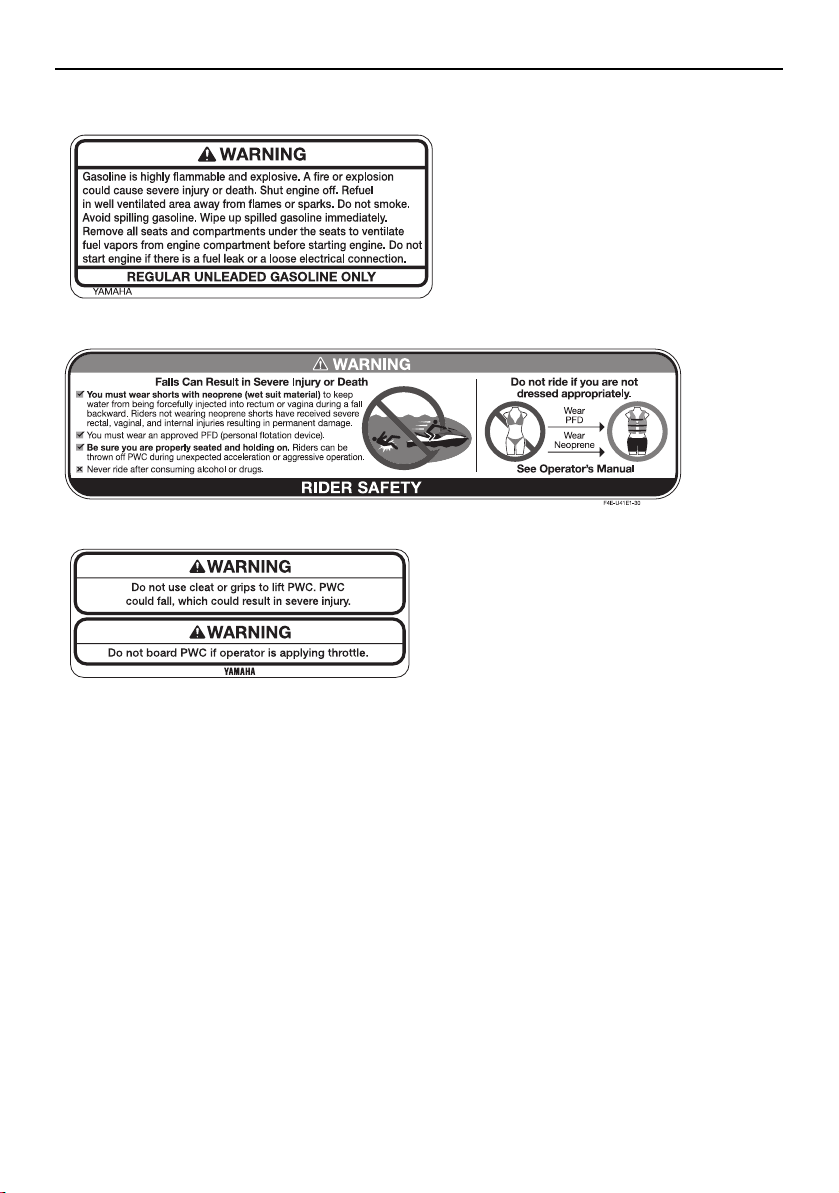

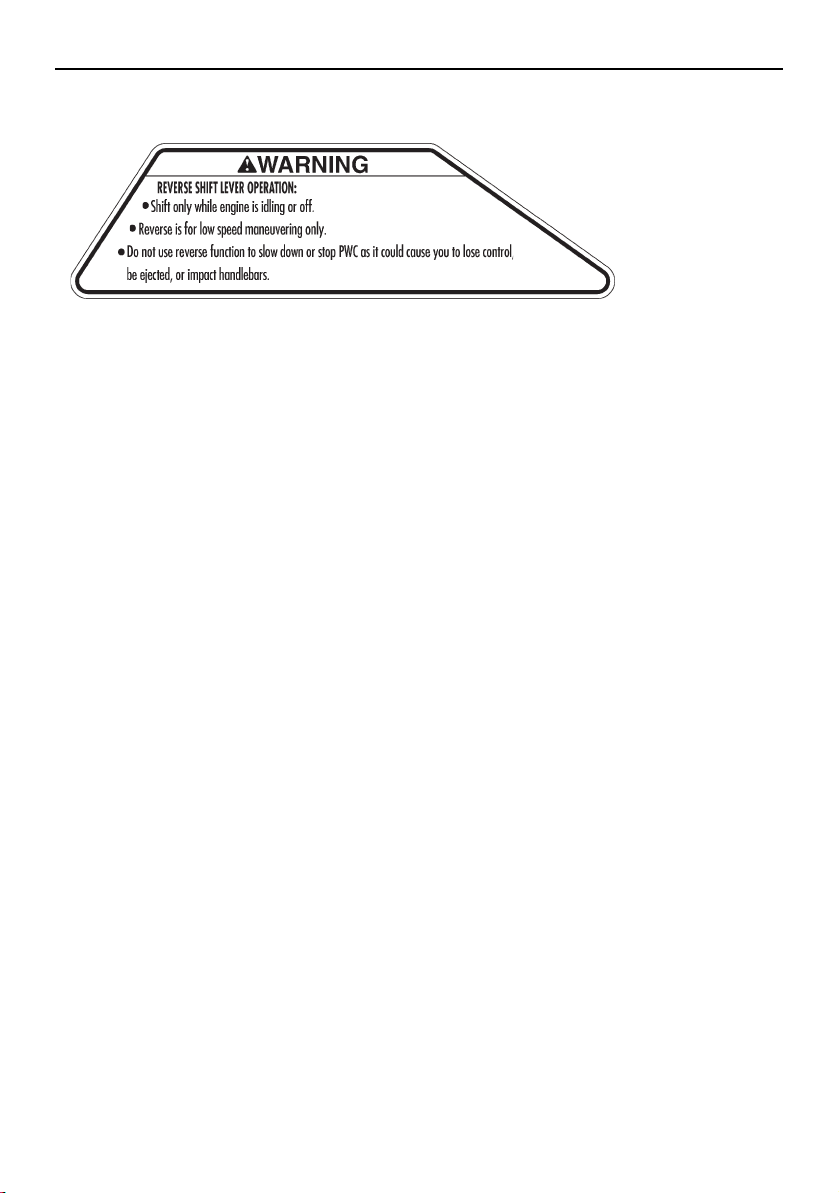

If any of these labels are damaged or missing, contact a Yamaha dealer for replacements.
1
UF3Y16E0.book Page 6 Tuesday, August 9, 2022 11:18 AM

General and important labels
7
F3Y-U415B-00
F3Y-U415B-20
F3V-U416A-00
F3V-U416A-20
3
2
4
F4E-U41E1-40
UF3Y16E0.book Page 7 Tuesday, August 9, 2022 11:18 AM

General and important labels
8
EX SPORT
F3K-U41D5-20
5
UF3Y16E0.book Page 8 Tuesday, August 9, 2022 11:18 AM

General and important labels
9
EJU44221
Other labels
F0V-U41F5-01
F1B-U41F5-01
EX
F3Y-U41G1-20
F3Y-U41G1-30
RATED PERSON CAPACITY:3
MAXIMUM LOAD:225 kg (496 lb)
YAMAHA
6
7
8
9
UF3Y16E0.book Page 9 Tuesday, August 9, 2022 11:18 AM

General and important labels
10
F3Y-U418E-40
F3Y-U418E-50
XXX-XXX
XXX-XXX XXX-XXX
PFD
NEOPRENE
1
2
XXX-XXX
10
11
UF3Y16E0.book Page 10 Tuesday, August 9, 2022 11:18 AM

Safety information
11
EJU30675
The safe use and operation of this water-
craft is dependent upon the use of proper
riding techniques, as well as upon the
common sense, good judgment, and ex-
pertise of the operator. Every operator
should know the following requirements
before riding the watercraft.
Before operating the watercraft, read this
owner’s/operator’s manual, the Riding
Practice Guide, the Riding Instruction card,
and all labels on the watercraft. Also, watch
the WaveRunner Basic Orientation Video
linked to the following QR code.
https://yamahawaverunners.com/orientati
on
A DVD is also available at your nearest
dealer for your convenience.
These materials should give you an under-
standing of the watercraft and its opera-
tion.
Never allow anyone to operate this water-
craft until they too have read this own-
er’s/operator’s manual, the Riding Practice
Guide, the Riding Instruction card, and all
labels, and, if possible, watched the
WaveRunner Basic Orientation Video.
Showing them the video may help reinforce
the information contained in these materi-
als.
EJU30733
Limitations on who may
operate the watercraft
Make sure that the operator is 16 years of
age or older and has taken a boater safety
course.
Adults must supervise use by minors.
Your state (or province) may have addition-
al requirements. You can find local rules by
contacting the United States Coast Guard
(USCG), the National Association of State
Boating Law Administrators, or your local
Power Squadron.
This watercraft is designed to carry the op-
erator and up to 2 passengers. Never ex-
ceed the maximum load limit or allow more
than 3 persons (or 2 persons if a wake-
boarder or water-skier is being pulled) to
ride the watercraft at any time.
Do not operate the watercraft with any pas-
sengers on board until you have consider-
able practice and experience riding alone.
Operating the watercraft with passengers
requires more skill. Take the time to be-
come accustomed to the handling charac-
teristics of the watercraft before trying any
difficult maneuvers.
Maximum load:
225 kg (496 lb)
Load is the total weight of cargo, op-
erator, and passengers.
UF3Y16E0.book Page 11 Tuesday, August 9, 2022 11:18 AM

Safety information
12
EJU44481
Cruising limitations

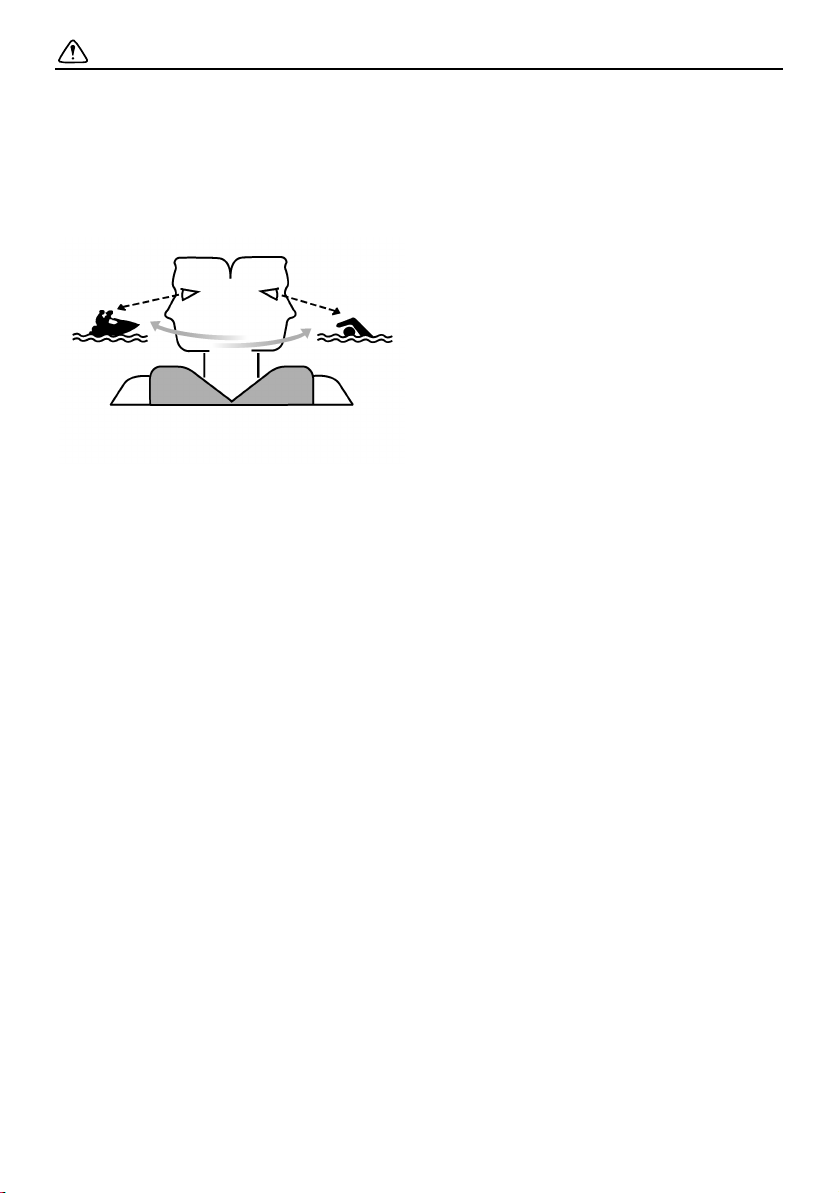

Scan constantly for people, objects, and
other watercraft. Be alert for conditions
that limit your visibility or block your vision
of others.
Operate defensively at safe speeds and
keep a safe distance away from people,
objects, and other watercraft.
Do not follow directly behind watercraft or
other boats.
Do not go near others to spray or splash
them with water, go too close to other
boats, or go too fast for the traffic condi-
tions.
EX / EX SPORT: Take early action to avoid
collisions. Remember, watercraft and other
boats do not have brakes.
EX / EX SPORT: Avoid sharp turns or other
maneuvers that make it hard for others to
avoid you or understand where you are go-
ing.
EX DELUXE / EX LIMITED: Take early ac-
tion to avoid collisions. Remember, water-
craft and other boats do not have brakes.
In addition, the Reverse with Intuitive De-
celeration Electronics (RiDE) system is not
a braking device for avoiding dangerous
situations. The RiDE system is an electron-
ic system for controlling the engine speed
and reverse gate, which is located near the
jet thrust nozzle. The RiDE lever located at
the left handlebar grip can be used to
change the direction of the jet thrust so that
the watercraft moves in reverse or is in neu-
tral. The RiDE system assists the operator
when slowing down and during slow-
speed maneuvering, such as launching,
beaching, and docking.
EX DELUXE / EX LIMITED: Avoid sharp
turns, slowing down rapidly by squeezing
the RiDE lever forcefully, and other maneu-
vers that make it hard for others to avoid
you or understand where you are going.
Avoid areas with submerged objects or
shallow water.
Do not release the throttle lever when trying
to steer away from objects—as with other
powerboats, you need throttle to steer. Al-
ways check throttle and steering controls
before starting the watercraft.
Ride within your limits and avoid aggres-
sive maneuvers to reduce the risk of loss of
control, ejection, and collision.
This is a high performance boat—not a toy.
Avoid aggressive operation, sharp turns,
and unexpected acceleration that can cau-
se you to be thrown off. Do not jump waves
or wakes—jumping can cause injuries such
as back or spinal injuries (paralysis), facial
injuries, and broken legs, ankles, and other
bones. Improper operation can result in se-
vere injury or death.
Do not operate the watercraft in rough wa-
ter, bad weather, or when visibility is poor;
this may lead to an accident causing injury
or death. Be alert to the possibility of ad-
verse weather. Take note of weather fore-
casts and the prevailing weather
conditions before setting out on your wa-
tercraft.
As with any water sport, you should not op-
erate your watercraft without someone else
UF3Y16E0.book Page 12 Tuesday, August 9, 2022 11:18 AM

Safety information
13
nearby. If you operate further than swim-
ming distance from shore, you should be
accompanied by another boat or water-
craft, but make sure you stay a safe dis-
tance away. It’s good, common sense.
Never operate in water that is less than 60
cm (2 ft) deep from the bottom of the wa-
tercraft, otherwise you increase your chan-
ce of hitting a submerged object, which
could result in injury.
This watercraft is not equipped with light-
ing required for night operation. Do not op-
erate the watercraft after sunset or before
dawn, otherwise you increase the risk of
colliding with another boat, which could re-
sult in severe injury or death.
Follow navigation rules, and state/provin-
cial and local laws that apply to watercraft.
EJU43123
Operation requirements
All riders must wear a personal flotation de-
vice (PFD) that is approved by the appro-
priate authorities and is suitable for
personal watercraft use.
Wear protective clothing. Severe internal
injuries can occur if water is forced into
body cavities as a result of falling into the
water or being near the jet thrust nozzle.
You must wear shorts with neoprene (wet-
suit material) to keep water from being
forcefully injected into the rectum or vagina
during a fall backward. Riders not wearing
neoprene shorts have received severe rec-
tal, vaginal, and internal injuries resulting in
permanent damage. Normal swimwear
does not offer adequate protection.
Eye protection is recommended to keep
wind, water, and glare from the sun out of
your eyes while you operate your water-
craft. Restraining straps for eyewear are
made which are designed to float should
your eyewear fall in the water.
Footwear and gloves are recommended.
Helmets meeting Snell or DOT standards
are required for IJSBA-sanctioned races.
You must decide whether to wear a helmet
while you ride for recreation. You should
know that a helmet could help protect you
60 cm (2 ft)
1Authority-approved PFD
2Wetsuit bottom
1
2
UF3Y16E0.book Page 13 Tuesday, August 9, 2022 11:18 AM

Safety information
14
in certain kinds of accidents and that it
could injure you in others.
A helmet is designed to provide some head
protection. Although helmets cannot pro-
tect against all foreseeable impacts, a hel-
met might reduce your injuries in a collision
with a boat or other obstacle.
A helmet may have potential safety haz-
ards, as well. Falling into the water could
risk the chance of the helmet catching wa-
ter, commonly known as “bucketing”, and
the resulting strain on your neck could cau-
se choking, severe and permanent neck in-
juries, or death. A helmet could also
increase the risk of an accident if it reduces
your vision or hearing, or if it distracts you
or increases your fatigue.
How should you decide if a helmet’s poten-
tial safety benefits outweigh its potential
risks for you? Consider your particular rid-
ing conditions. Consider factors such as
your riding environment and your riding
style and ability. Also consider the likeli-
hood of traffic congestion, and the water
surface conditions.
If you decide to wear a helmet based upon
your riding circumstances, choose one
carefully. Look for a helmet designed for
personal watercraft use, if possible. Con-
sider a helmet meeting Snell or DOT stan-
dards. If you will be engaging in closed-
course competition, follow the helmet re-
quirements of the sanctioning organization.
Never operate the watercraft after consum-
ing alcohol or taking other drugs.
For reasons of safety and proper care of
the watercraft, always perform the pre-op-
eration checks listed on page 55 before op-
erating the watercraft.
The operator should grip the handlebars
firmly with both hands and the passengers
should hold on firmly, either to the person
in front of them or to the handgrip provid-
ed.
The operator and passengers should al-
ways keep their feet on the floor of the foot-
well when the watercraft is in motion.
Lifting your feet increases the chances of
losing your balance, or hitting objects out-
side the watercraft with your feet. Do not
give a ride to children if their feet cannot
reach the floor of the footwell.
Never allow a passenger to ride in front of
the operator.
Always consult your doctor on whether it is
safe for you to ride this watercraft if you are
pregnant or in poor health.
Do not attempt to modify this watercraft.
Modifications to your watercraft may re-
duce safety and reliability, and render the
watercraft unsafe or illegal for use.
Attach the engine shut-off cord (lanyard) to
your left wrist and keep it free from the han-
dlebars so that the engine stops if you, the
operator, fall off. After riding, remove the
engine shut-off cord (lanyard) from the wa-
tercraft to avoid accidental starting or un-
authorized use by children or others.
UF3Y16E0.book Page 14 Tuesday, August 9, 2022 11:18 AM
