Yamaha F350A User manual

OWNER’S MANUAL
F350A
FL350A
6AW-28199-70-E0

EMU25051
Read this owner’s manual carefully before operating or working on your
outboard motor. Keep this manual onboard in a waterproof bag when
boating. This manual should stay with the outboard motor if it is sold.

Important manual information
EMU25103
To the owner
Thank you for choosing a Yamaha outboard
motor. This Owner’s Manual contains infor-
mation needed for proper operation, mainte-
nance and care. A thorough understanding
of these simple instructions will help you ob-
tain maximum enjoyment from your new
Yamaha. If you have any question about the
operation or maintenance of your outboard
motor, please consult a Yamaha dealer.
In this Owner’s Manual particularly important
information is distinguished in the following
ways.
The Safety Alert Symbol means
ATTENTION! BECOME ALERT! YOUR
SAFETY IS INVOLVED!
WARNING
EWM00780
Failure to follow WARNING instructions
could result in severe injury or death to
the machine operator, a bystander, or a
person inspecting or repairing the out-
board motor.
CAUTION:
ECM00700
A CAUTION indicates special precautions
that must be taken to avoid damage to the
outboard motor.
NOTE:
A NOTE provides key information to make
procedures easier or clearer.
Yamaha continually seeks advancements in
product design and quality. Therefore, while
this manual contains the most current prod-
uct information available at the time of print-
ing, there may be minor discrepancies
between your machine and this manual. If
there is any question concerning this manu-
al, please consult your Yamaha dealer.
To ensure long product life, Yamaha recom-
mends that you use the product and perform
the specified periodic inspections and main-
tenance by correctly following the instruc-
tions in the owner’s manual. Any damage
resulting from neglect of these instructions is
not covered by warranty.
Some countries have laws or regulations re-
stricting users from taking the product out of
the country where it was purchased, and it
may be impossible to register the product in
the destination country. Additionally, the
warranty may not apply in certain regions.
When planning to take the product to another
country, consult the dealer where the prod-
uct was purchased for further information.
If the product was purchased used, please
consult your closest dealer for customer re-
registration, and to be eligible for the speci-
fied services.
NOTE:
The F350AET, FL350AET and the standard
accessories are used as a base for the ex-
planations and illustrations in this manual.
Therefore some items may not apply to ev-
ery model.
EMU25121
F350A, FL350A
OWNER’S MANUAL
©2007 by Yamaha Motor Co., Ltd.
1st Edition, May 2007
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan

Table of contents
General information .......................... 1
Identification numbers record.......... 1
Outboard motor serial number .......... 1
Digital electronic control serial
number............................................ 1
Key number....................................... 2
EC label........................................... 2
Read manuals and labels................ 3
Warning labels .................................. 3
Safety information............................. 7
Safety information ........................... 7
Rotating parts.................................... 7
Hot parts ........................................... 7
Electric shock.................................... 7
Power trim and tilt ............................. 7
Engine shut-off cord.......................... 7
Gasoline............................................ 7
Gasoline exposure and spills ............ 7
Carbon monoxide.............................. 8
Modifications ..................................... 8
Boating safety ................................. 8
Alcohol and drugs ............................. 8
Personal flotation devices ................. 8
People in the water ........................... 8
Passengers ....................................... 8
Overloading....................................... 8
Avoid collisions ................................. 8
Weather ............................................ 9
Passenger training ............................ 9
Boating safety publications ............... 9
Laws and regulations ........................ 9
Basic requirements ......................... 10
Fueling instructions ....................... 10
Gasoline.......................................... 10
Engine oil ........................................ 10
Installation requirements ............... 11
Boat horsepower rating................... 11
Mounting motor ............................... 11
Digital electronic control
requirements................................. 11
Battery requirement ........................ 12
Propeller selection .......................... 12
Start-in-gear protection ................. 13
Basic components .......................... 14
Main components ......................... 14
Digital electronic control .................. 16
Digital electronic control-active
indicator ........................................ 17
Digital electronic control-warning
indicator ........................................ 17
Control lever .................................... 18
Free throttle switch.......................... 18
Throttle friction adjuster................... 19
Engine shut-off switch ..................... 20
Main switch ..................................... 20
Power trim and tilt switch on digital
electronic control........................... 21
Power trim and tilt switch on bottom
engine cowling .............................. 21
Power trim and tilt switches
(twin type) ..................................... 22
Tilt limiter ......................................... 22
Tilt support lever for power trim
and tilt model.................................22
Top cowling lock lever (turn type) ...23
Flushing device ............................... 23
Fuel filter/Water separator............... 24
6Y8 Multifunction meters................. 24
Tachometer unit .............................. 24
Speed & fuel meter unit................... 28
Speedometer unit ............................ 29
Fuel management meter ................. 30
Warning system ............................ 31
Digital electronic control warning ....31
Overheat warning (twin engines) ....31
Low oil pressure warning ................32
Operation ......................................... 34
Installation..................................... 34
Mounting the outboard motor .......... 34
Breaking in engine ........................ 35
Procedure for 4-stroke models........ 35
Pre-operation checks.................... 36
Fuel ................................................. 36
Controls ........................................... 36
Stop switches .................................. 36
Engine ............................................. 36
Checking the engine oil level ..........36
Filling fuel...................................... 37
Operating engine .......................... 37

Table of contents
Priming fuel system......................... 37
Starting engine................................ 37
Warming up engine ....................... 39
Shifting .......................................... 39
Stopping boat ................................ 40
Stopping engine ............................ 40
Procedure ....................................... 40
Trimming outboard motor.............. 41
Adjusting trim angle
(Power trim and tilt)....................... 41
Adjusting boat trim .......................... 42
Tilting up and down ....................... 43
Procedure for tilting up
(power trim and tilt models) .......... 43
Procedure for tilting down
(power trim and tilt models) .......... 45
Cruising in shallow water .............. 45
Power trim and tilt models............... 45
Cruising in other conditions........... 47
Maintenance..................................... 48
Specifications ................................ 48
Transporting and storing
outboard motor............................ 49
Storing outboard motor ................... 49
Procedure ....................................... 50
Lubrication ...................................... 50
Flushing power unit......................... 51
Cleaning the outboard motor .......... 52
Checking painted surface of
motor............................................. 52
Periodic maintenance.................... 52
Replacement parts.......................... 52
Severe operating conditions ........... 52
Maintenance chart 1 ....................... 54
Maintenance chart 2 ....................... 56
Greasing ......................................... 57
Cleaning and adjusting spark
plug ............................................... 58
Checking fuel system...................... 61
Inspecting idling speed ................... 62
Changing engine oil ........................ 62
Checking wiring and connectors ..... 62
Exhaust leakage ............................. 63
Water leakage................................. 63
Engine oil leakage........................... 63
Checking power trim and tilt
system........................................... 63
Checking propeller .......................... 64
Removing propeller ......................... 65
Installing propeller ........................... 65
Changing gear oil ............................ 66
Inspecting and replacing
anode(s)........................................ 67
Checking battery
(for electric start models) ..............68
Connecting the battery .................... 69
Disconnecting the battery................ 71
Checking top cowling ...................... 71
Coating the boat bottom.................. 71
Trouble Recovery............................ 72
Troubleshooting ............................ 72
Temporary action in
emergency .................................. 75
Impact damage ............................... 75
Running single engine
(twin engines)................................ 75
Replacing fuse ................................ 76
Power trim and tilt will not
operate.......................................... 77
Water separator-warning indicator
blinks while cruising ...................... 77
Treatment of submerged motor .... 79

1
General information
EMU25171
Identification numbers record
EMU25183
Outboard motor serial number

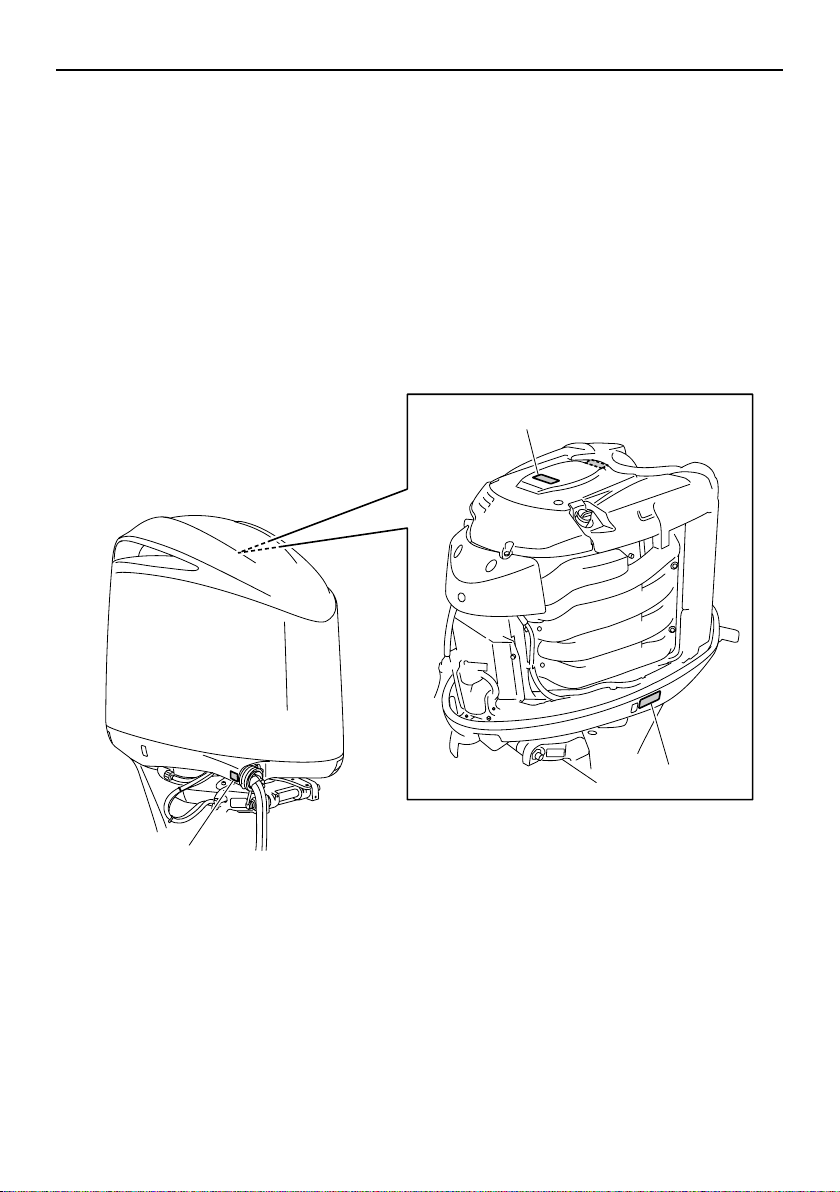

The outboard motor serial number is
stamped on the label attached to the port
side of the clamp bracket.
Record your outboard motor serial number in
the spaces provided to assist you in ordering
spare parts from your Yamaha dealer or for
reference in case your outboard motor is sto-
len.
EMU34940
Digital electronic control serial
number
The digital electronic control serial number is
stamped on the label attached to the digital
electronic control box.
Record your digital electronic control serial
number in the spaces provided to assist you
in newly connecting the digital electronic
control to the outboard motor.
NOTE:
Consult your Yamaha dealer if you have any
questions concerning the digital electronic
control serial number.
1. Outboard motor serial number location
1ZMU05814
1. Digital electronic control serial number loca-
tion
1. Digital electronic control serial number loca-
tion
ZMU05885
1
ZMU05887
1

General information
2
EMU25190
Key number
If a main key switch is equipped with the mo-
tor, the key identification number is stamped
on your key as shown in the illustration.
Record this number in the space provided for
reference in case you need a new key.
EMU25202
EC label
Engines affixed with this label conform to
certain portions of the European Parliament
directive relating to machinery. Refer to the
label and the EC Declaration of Conformity
for more details.
1. Key number
1. EC label location
ZMU05943
1
ZMU01696

General information
3
EMU33520
Read manuals and labels
Before operating or working on this motor:
●
Read this manual.
●
Read any manuals supplied with the boat.
● Read all labels on the outboard motor and the boat.
If you need any additional information, contact your Yamaha dealer.
EMU33831
Warning labels
If these labels are damaged or missing, contact your Yamaha dealer for replacements.
F350A
4
2
1
ZMU05942

General information
4
FL350A
4
2
13
ZMU05815

General information
5
EMU34641
Contents of labels
The above warning labels mean as follows.
1
WARNING
EWM01681
●
Keep hands, hair, and clothing away
from rotating parts while the engine is
running.
●
Do not touch or remove electrical parts
when starting or during operation.
2
WARNING
EWM01671
●
Read Owner’s Manuals and labels.
● Wear an approved personal flotation
device (PFD).
●
Attach engine shut-off cord (lanyard) to
your PFD, arm, or leg so the engine
stops if you accidentally leave the
helm, which could prevent a runaway
boat.
3
WARNING
EWM01282
Use only a counterclockwise rotation
propeller with this engine.
Counterclockwise propellers are marked
with a letter “L”after the size indication.
The wrong type of propeller could cause
the boat to go in an unexpected direction,
which could lead to an accident.
12
3
ZMU05707
6K1-83823-41

General information
6
EMU33850
Other labels
EMU35130
Symbols
The following symbols mean as follows.
Caution/Warning
Read Operator’s Manual
Hazard caused by continuous rotation
Electrical hazard
4
ZMU05711
ZMU05666
ZMU05665
ZMU05664
ZMU05696

7
Safety information
EMU33621
Safety information
Observe these precautions at all times.
EMU33630
Rotating parts
Hands, feet, hair, jewelry, clothing, PFD
straps, etc. can become entangled with inter-
nal rotating parts of the engine, resulting in
serious injury or death.
Keep the top cowling in place whenever pos-
sible. Do not remove or replace the cowling
with the engine running.
Only operate the engine with the cowling re-
moved according to the specific instructions
in the manual. Keep hands, feet, hair, jewel-
ry, clothing, PFD straps, etc. away from any
exposed moving parts.
EMU33640
Hot parts
During and after operation, engine parts are
hot enough to cause burns. Avoid touching
any parts under the top cowling until the en-
gine has cooled.
EMU33650
Electric shock
Do not touch any electrical parts while start-
ing or operating the engine. They can cause
shock or electrocution.
EMU33660
Power trim and tilt
Body parts can be crushed between the mo-
tor and the clamp bracket when the motor is
trimmed or tilted. Keep body parts out of this
area at all times. Be sure no one is in this
area before operating the power trim and tilt
mechanism.
The power trim and tilt switches operate
even when the main switch is off. Keep peo-
ple be away from the switches whenever
working around the motor.
Never get under the lower unit while it is tilt-
ed, even when the tilt support lever is locked.
Severe injury could occur if the outboard mo-
tor accidentally falls.
EMU33670
Engine shut-off cord
Attach the engine shut-off cord so that the
engine stops if the operator falls overboard
or leaves the helm. This prevents the boat
from running away under power and leaving
people stranded, or running over people or
objects.
Always attach the engine shut-off cord to a
secure place on your clothing or your arm or
leg while operating. Do not remove it to leave
the helm while the boat is moving. Do not at-
tach the cord to clothing that could tear
loose, or route the cord where it could be-
come entangled, preventing it from function-
ing.
Do not route the cord where it is likely to be
accidentally pulled out. If the cord is pulled
during operation, the engine will shut off and
you will lose most steering control. The boat
could slow rapidly, throwing people and ob-
jects forward.
EMU33810
Gasoline
Gasoline and its vapors are highly flam-
mable and explosive. Always, refuel ac-
cording to the procedure on page 37 to
reduce the risk of fire and explosion.
EMU33820
Gasoline exposure and spills
Take care not to spill gasoline. If gasoline
spills, wipe it up immediately with dry rags.
Dispose of rags properly.
If any gasoline spills onto your skin, immedi-
ately wash with soap and water. Change
clothing if gasoline spills on it.
If you swallow gasoline, inhale a lot of gaso-
line vapor, or get gasoline in your eyes, get
immediate medical attention. Never siphon
fuel by mouth.

Safety information
8
EMU33900
Carbon monoxide
This product emits exhaust gases which
contain carbon monoxide, a colorless, odor-
less gas which may cause brain damage or
death when inhaled. Symptoms include nau-
sea, dizziness, and drowsiness. Keep cock-
pit and cabin areas well ventilated. Avoid
blocking exhaust outlets.
EMU33780
Modifications
Do not attempt to modify this outboard mo-
tor. Modifications to your outboard motor
may reduce safety and reliability, and render
the outboard unsafe or illegal to use.
EMU33740
Boating safety
This section includes a few of the many im-
portant safety precautions that you should
follow when boating.
EMU33710
Alcohol and drugs
Never operate after drinking alcohol or tak-
ing drugs. Intoxication is one of the most
common factors contributing to boating fatal-
ities.
EMU33720
Personal flotation devices
Have an approved personal flotation device
(PFD) on board for every occupant. Yamaha
recommends that you must wear a PFD
whenever boating. At a minimum, children
and non-swimmers should always wear
PFDs, and everyone should wear PFDs
when there are potentially hazardous boat-
ing conditions.
EMU33730
People in the water
Always watch carefully for people in the wa-
ter, such as swimmers, skiers, or divers,
whenever the engine is running. When
someone is in the water near the boat, shift
into neutral and shut off the motor.
Stay away from swimming areas. Swimmers
can be hard to see.
The propeller can keep moving even when
the motor is in neutral. Shut off the engine
when a person is in the water near you.
EMU33750
Passengers
Consult your boat manufacturer’s instruc-
tions for details about appropriate passenger
locations in your boat and be sure all pas-
sengers are positioned properly before ac-
celerating and when operating above an idle
speed. Standing or sitting in non-designated
locations may result in being thrown either
overboard or within the boat due to waves,
wakes, or sudden changes in speed or direc-
tion. Even when people are positioned prop-
erly, alert your passengers if you must make
any unusual maneuver. Always avoid jump-
ing waves or wakes.
EMU33760
Overloading
Do not overload the boat. Consult the boat
capacity plate or boat manufacturer for max-
imum weight and number of passengers. Be
sure that weight is properly distributed ac-
cording to the boat manufacturers instruc-
tions. Overloading or incorrect weight
distribution can compromise the boats han-
dling and lead to an accident, capsizing or
swamping.
EMU33770
Avoid collisions
Scan constantly for people, objects, and
other boats. Be alert for conditions that limit
your visibility or block your vision of others.
Operate defensively at safe speeds and
keep a safe distance away from people, ob-
jects, and other boats.
●
Do not follow directly behind other boats or
waterskiers.

Safety information
9
●
Avoid sharp turns or other maneuvers that
make it hard for others to avoid you or un-
derstand where you are going.
●
Avoid areas with submerged objects or
shallow water.
●
Ride within your limits and avoid aggres-
sive maneuvers to reduce the risk of loss
of control, ejection, and collision.
●
Take early action to avoid collisions. Re-
member, boats do not have brakes , and
stopping the engine or reducing throttle
can reduce the ability to steer. If you are
not sure that you can stop in time before
hitting an obstacle, apply throttle and turn
in another direction.
EMU33790
Weather
Stay informed about the weather. Check
weather forecasts before boating. Avoid
boating in hazardous weather.
EMU33880
Passenger training
Make sure at least one other passenger is
trained to operate the boat in the event of an
emergency.
EMU33890
Boating safety publications
Be informed about boating safety. Additional
publications and information can be obtained
from many boating organizations.
EMU33600
Laws and regulations
Know the marine laws and regulations where
you will be boating- and obey them. Several
sets of rules prevail according to geographic
location, but all are basically the same as the
International Rules of the Road.

10
Basic requirements
EMU25540
Fueling instructions
WARNING
EWM00010
GASOLINE AND ITS VAPORS ARE HIGH-
LY FLAMMABLE AND EXPLOSIVE!
● Do not smoke when refueling, and keep
away from sparks, flames, or other
sources of ignition.
● Stop engine before refueling.
●
Refuel in a well-ventilated area. Refuel
portable fuel tanks off the boat.
● Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags.
● Do not overfill the fuel tank.
●
Tighten the filler cap securely after re-
fueling.
● If you should swallow some gasoline,
inhale a lot of gasoline vapor, or get
gasoline in your eyes, get immediate
medical attention.
●
If any gasoline spills onto your skin, im-
mediately wash with soap and water.
Change clothing if gasoline spills on it.
●
Touch the fuel nozzle to the filler open-
ing or funnel to help prevent electro-
static sparks.
CAUTION:
ECM00010
Use only new clean gasoline which has
been stored in clean containers and is not
contaminated with water or foreign mat-
ter.
EMU30910
Gasoline
EMU35530
Engine oil
NOTE:
If the recommended engine oil grades are
not available, select an alternative from the
following chart according to the average
temperatures in your area.
Recommended gasoline:
Premium unleaded gasoline with a
minimum octane rating of 94 (Re-
search Octane Number).
Recommended engine oil:
4-stroke motor oil with a combination
of the following SAE and API oil classi-
fications
Engine oil type SAE:
10W-30, 10W-40, 20W-40
Engine oil grade API:
SE, SF, SG, SH, SJ, SL
Engine oil quantity (excluding oil filter):
7.8 L (8.24 US qt) (6.86 Imp.qt)

Basic requirements
11
CAUTION:
ECM01050
All 4-stroke engines are shipped from the
factory without engine oil.
EMU33552
Installation requirements
EMU33560
Boat horsepower rating
Before installing the outboard motor(s), con-
firm that the total horsepower of your mo-
tor(s) does not exceed the boats maximum
horsepower rating. See the boats capacity
plate or contact the manufacturer.
WARNING
EWM01560
Overpowering a boat can cause severe
instability.
EMU33570
Mounting motor
Your dealer or other person experienced in
proper rigging should mount the motor using
correct equipment and complete rigging in-
structions. For further information, see page
34.
WARNING
EWM01570
●
Improper mounting of the outboard mo-
tor could result in hazardous condi-
tions such as poor handling, loss of
control, or fire hazards.
● Because the motor is very heavy, spe-
cial equipment and training is required
to mount it safely.
EMU34951
Digital electronic control
requirements
The digital electronic control be equipped
with a start-in-gear protection device(s). This
device prevents the engine from starting un-
less it is in neutral.
WARNING
EWM01580
●
If the engine starts in gear, the boat can
move suddenly and unexpectedly, pos-
sibly causing a collision or throwing
passengers overboard.
● If the engine ever starts in gear, the
start-in-gear protection device is not
working correctly and you should dis-
continue using the outboard. Contact
your Yamaha dealer.
This digital electronic control unit is only
available for the outboard motor which you
have purchased.
Prior to use of the digital electronic control
unit, set it in order to operate your outboard
ZMU01710

Basic requirements
12
motor only. Otherwise, it will not be possible
to operate the outboard motor.
Perform setting of the outboard motor and
the digital electronic control unit in the follow-
ing cases.
●
If a used outboard motor is installed
●
If the digital electronic control unit is re-
placed
●
If the ECM (Electronic control module) of
the used outboard motor is replaced
● If the ECM (Electronic control module) of
the digital electronic control unit is re-
placed
Consult your Yamaha dealer for setting.
EMU25702
Battery requirement
CAUTION:
ECM01061
Do not use a battery that does not meet
the specified capacity. If a battery that
does not meet specifications is used, the
electric system could perform poorly or
be overloaded, causing electric system
damage.
For electric start models, choose a battery
which meets the following specifications.
EMU25721
Battery specifications
The engine cannot be started if battery volt-
age is too low.
EMU34190
Propeller selection
Next to selecting an outboard, choosing the
right propeller is one of the most important
purchasing decisions a boater can make.
The type, size, and design of your propeller
have a direct impact on acceleration, top
speed, fuel economy, and even engine life.
Yamaha designs and manufactures propel-
lers for every Yamaha outboard motor and
every application.
Your outboard motor came with a Yamaha
propeller chosen to perform well over a
range of applications, but there may be uses
where a different propeller would be more
appropriate.
Your Yamaha dealer can help you select the
right propeller for your boating needs. Select
a propeller that will allow the engine to reach
the middle or upper half of the operating
range at full throttle with the maximum boat-
load. Generally, chose a larger pitch propel-
ler for a smaller operating load and a smaller
pitch propeller for a heavier load. If you carry
loads that vary widely, chose the propeller
that lets the engine run in the proper range
for your maximum load but remember that
you may need to reduce your throttle setting
to stay within the recommended engine
speed range when carrying lighter loads.
For instructions on propeller removal and in-
stallation, see page 64.
Minimum cold cranking amps (CCA/EN):
670.0 A
Minimum rated capacity (20HR/IEC):
110.0 Ah
1. Propeller pitch in inches
2. Type of propeller (propeller mark)
3. Propeller diameter in inches
ZMU05937
-
3
12

Basic requirements
13
EMU35140
Start-in-gear protection
Yamaha outboard motors or Yamaha-ap-
proved digital electronic control units are
equipped with start-in-gear protection de-
vice(s). This feature permits the engine to be
started only when it is in neutral. Always se-
lect neutral before starting the engine.

14
Basic components
EMU2579D
Main components
NOTE:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els.
F350A, FL350A
1
2
3
4
5
6
7
7
8
9
7
10
10
6
ZMU05813
1. Top cowling
2. Anti-cavitation plate
3. Propeller*
4. Cooling water inlet
5. Clamp bracket
6. Tilt support lever
7. Top cowling lock lever(s)
8. Water separator
9. Flushing device
10. Power trim and tilt switch

Basic components
15
123 4
ZMU05938
5
6
5
6

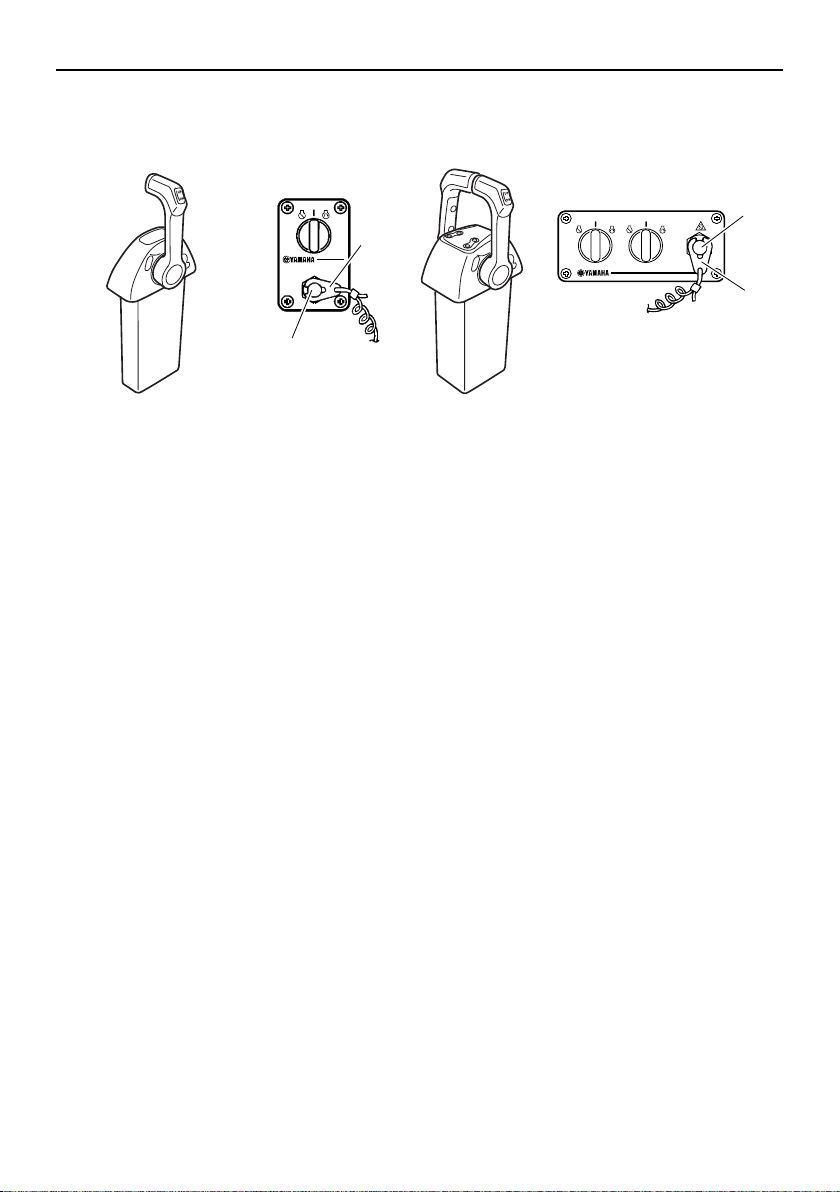

1. Digital electronic control (single type)*
2. Switch panel (for use with single type)*
3. Digital electronic control (twin type)*
4. Switch panel (for use with twin type)*
5. Clip
6. Engine shut-off switch
