OWNER’S MANUAL
F6A
F8C
FT8D
60R-F8199-73-E0
U60R73E0.book Page 1 Friday, June 15, 2007 1:28 PM

Read this owner’s manual carefully before operating or working on your
outboard motor. Keep this manual onboard in a waterproof bag when boating.
This manual should stay with the outboard motor if it is sold.
U60R73E0.book Page 1 Friday, June 15, 2007 1:28 PM

Important manual information
EMU25103
To the owner
Thank you for choosing a Yamaha outboard
motor. This Owner’s Manual contains infor-
mation needed for proper operation, mainte-
nance and care. A thorough understanding of
these simple instructions will help you obtain
maximum enjoyment from your new Yamaha.
If you have any question about the operation
or maintenance of your outboard motor,
please consult a Yamaha dealer.
In this Owner’s Manual particularly important
information is distinguished in the following
ways.
The Safety Alert Symbol means AT-
TENTION! BECOME ALERT! YOUR SAFE-
TY IS INVOLVED!
WARNING
EWM00780
Failure to follow WARNING instructions
could result in severe injury or death to the
machine operator, a bystander, or a per-
son inspecting or repairing the outboard
motor.
CAUTION:
ECM00700
A CAUTION indicates special precautions
that must be taken to avoid damage to the
outboard motor.
NOTE:
A NOTE provides key information to make
procedures easier or clearer.
Yamaha continually seeks advancements in
product design and quality. Therefore, while
this manual contains the most current product
information available at the time of printing,
there may be minor discrepancies between
your machine and this manual. If there is any
question concerning this manual, please con-
sult your Yamaha dealer.
To ensure long product life, Yamaha recom-
mends that you use the product and perform
the specified periodic inspections and mainte-
nance by correctly following the instructions in
the owner’s manual. Any damage resulting
from neglect of these instructions is not cov-
ered by warranty.
Some countries have laws or regulations re-
stricting users from taking the product out of
the country where it was purchased, and it
may be impossible to register the product in
the destination country. Additionally, the war-
ranty may not apply in certain regions. When
planning to take the product to another coun-
try, consult the dealer where the product was
purchased for further information.
If the product was purchased used, please
consult your closest dealer for customer re-
registration, and to be eligible for the specified
services.
NOTE:
The F6AMH, F8CMH, FT8DMH, FT8DE,
FT8DEP and the standard accessories are
used as a base for the explanations and illus-
trations in this manual. Therefore some items
may not apply to every model.
EMU25141
F6A, F8C, FT8D
OWNER’S MANUAL
©2007 by Yamaha Motor Co., Ltd.
1st Edition, March 2007
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in France
U60R73E0.book Page 1 Friday, June 15, 2007 1:28 PM

Table of contents
General information .......................... 1

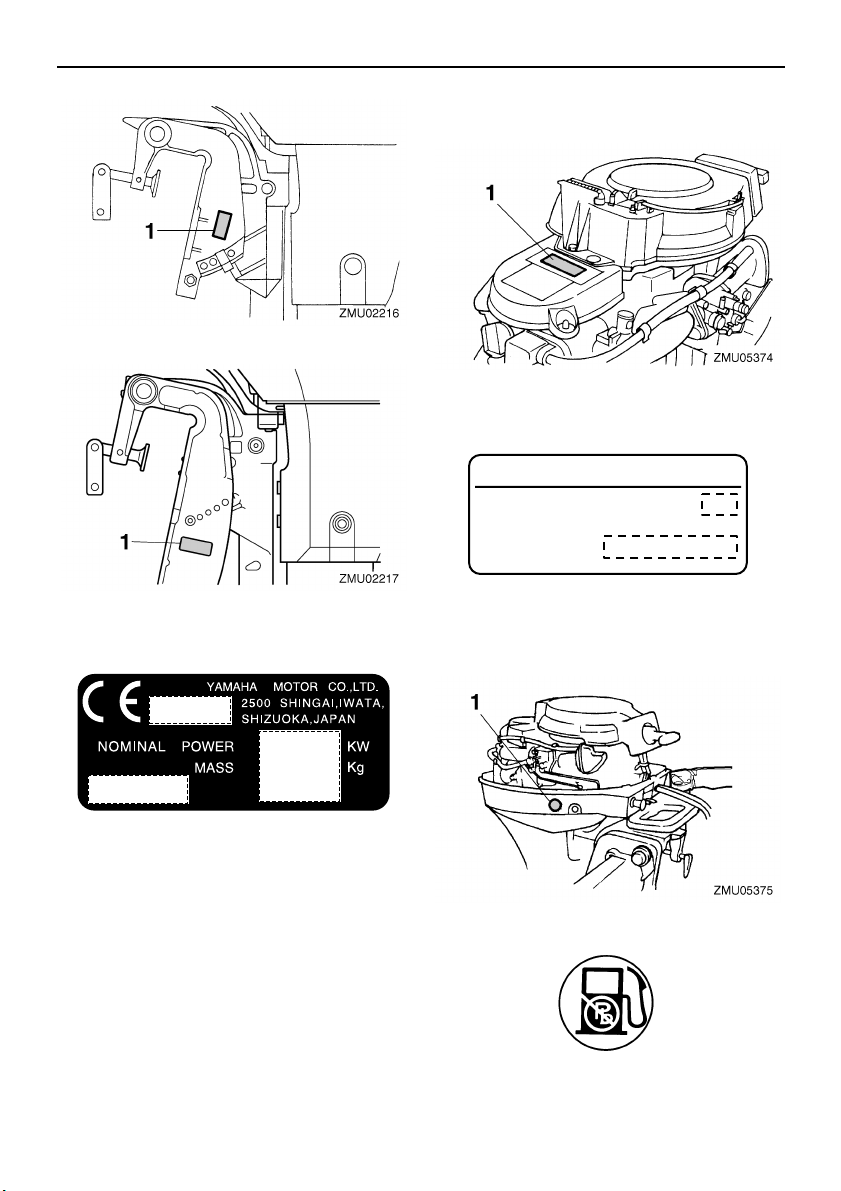

Identification numbers record.......... 1
Outboard motor serial number ........... 1
Key number........................................ 1
EC label........................................... 1
Emission control information ........... 2
SAV models........................................ 2
Read manuals and labels................ 3

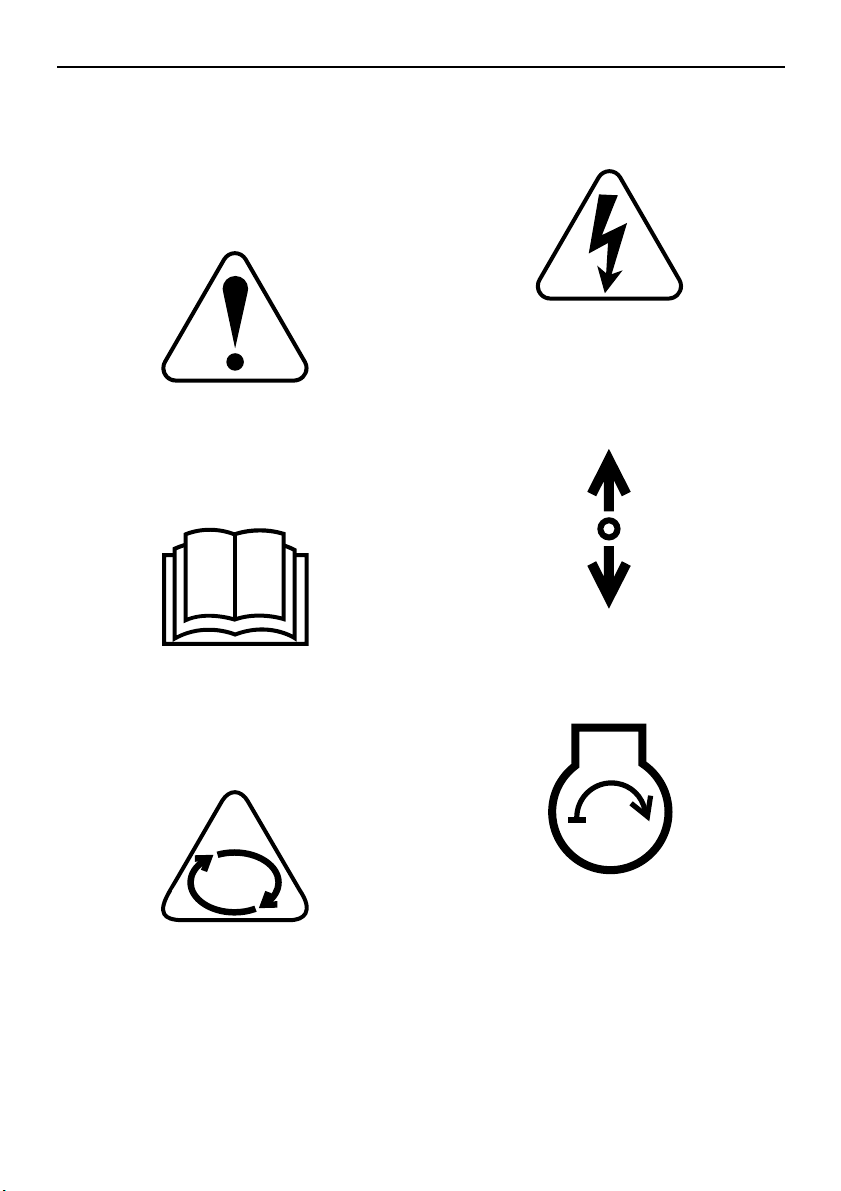

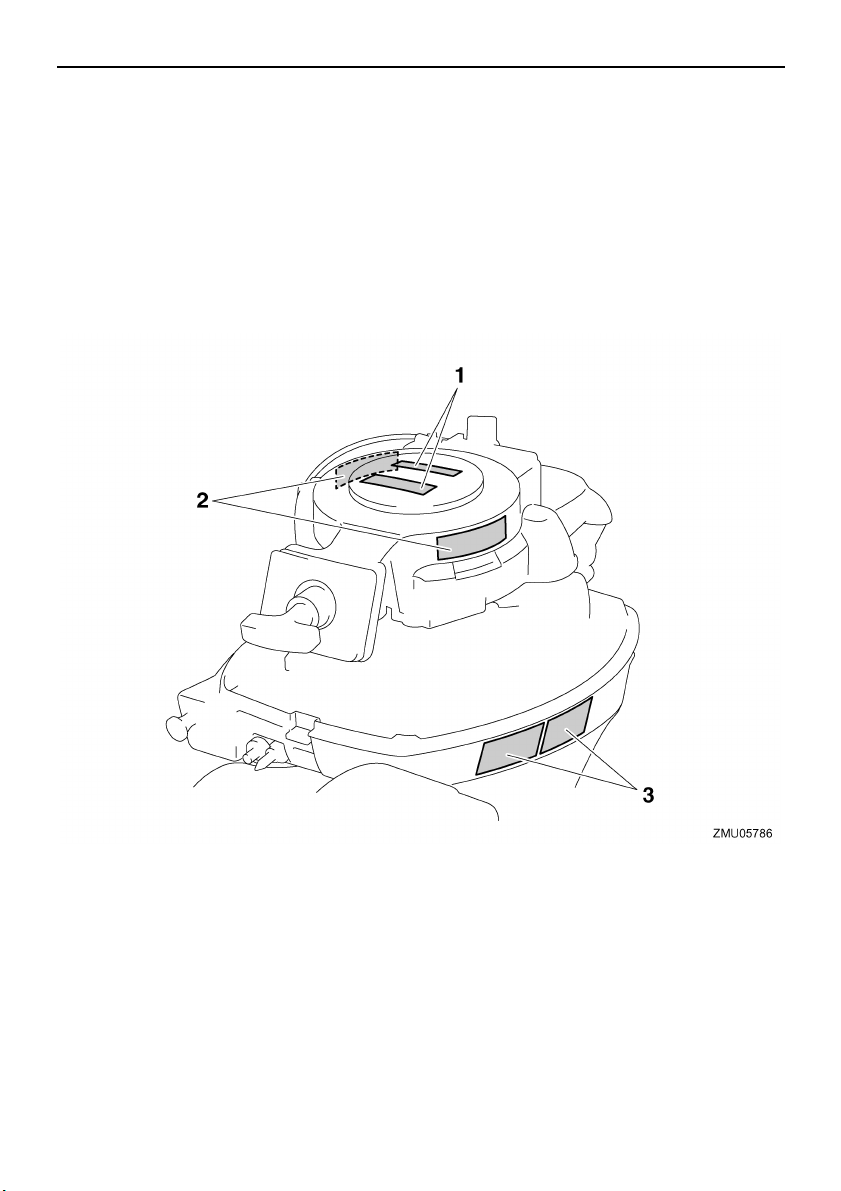

Warning labels.................................... 3
Safety information............................. 7
Safety information ........................... 7
Rotating parts ..................................... 7
Hot parts............................................. 7
Electric shock ..................................... 7
Power tilt............................................. 7
Engine shut-off cord ........................... 7
Gasoline ............................................. 7
Gasoline exposure and spills ............. 7
Carbon monoxide ............................... 8
Modifications ...................................... 8
Boating safety ................................. 8
Alcohol and drugs............................... 8
Personal flotation devices .................. 8
People in the water............................. 8
Passengers ........................................ 8
Overloading ........................................ 8
Avoid collisions................................... 8
Weather.............................................. 9
Passenger training ............................. 9
Boating safety publications................. 9
Laws and regulations ......................... 9
Basic requirements ......................... 10
Fueling instructions ....................... 10
Gasoline ........................................... 10

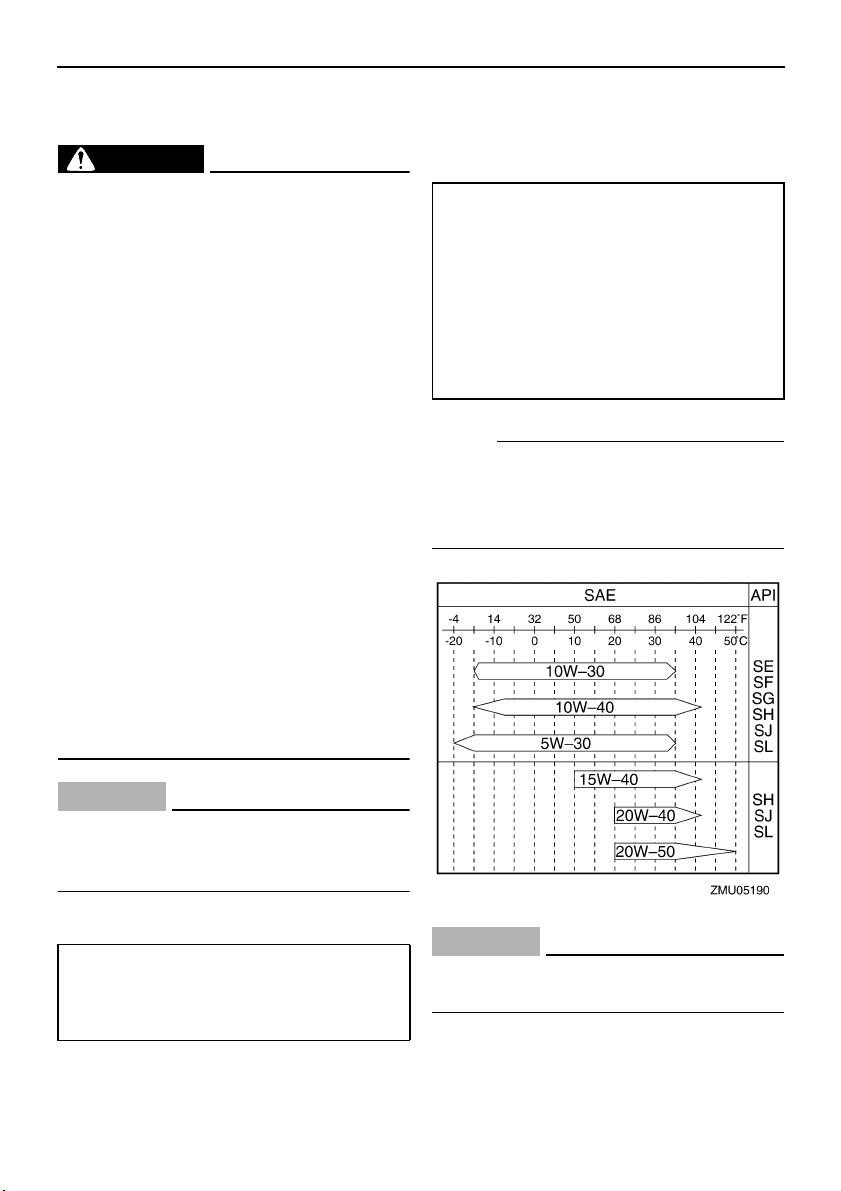

Engine oil.......................................... 10
Installation requirements ............... 11
Boat horsepower rating .................... 11
Mounting motor ................................ 11
Remote control requirements ........... 11
Battery requirement.......................... 11
Without a rectifier or Rectifier
Regulator ...................................... 12

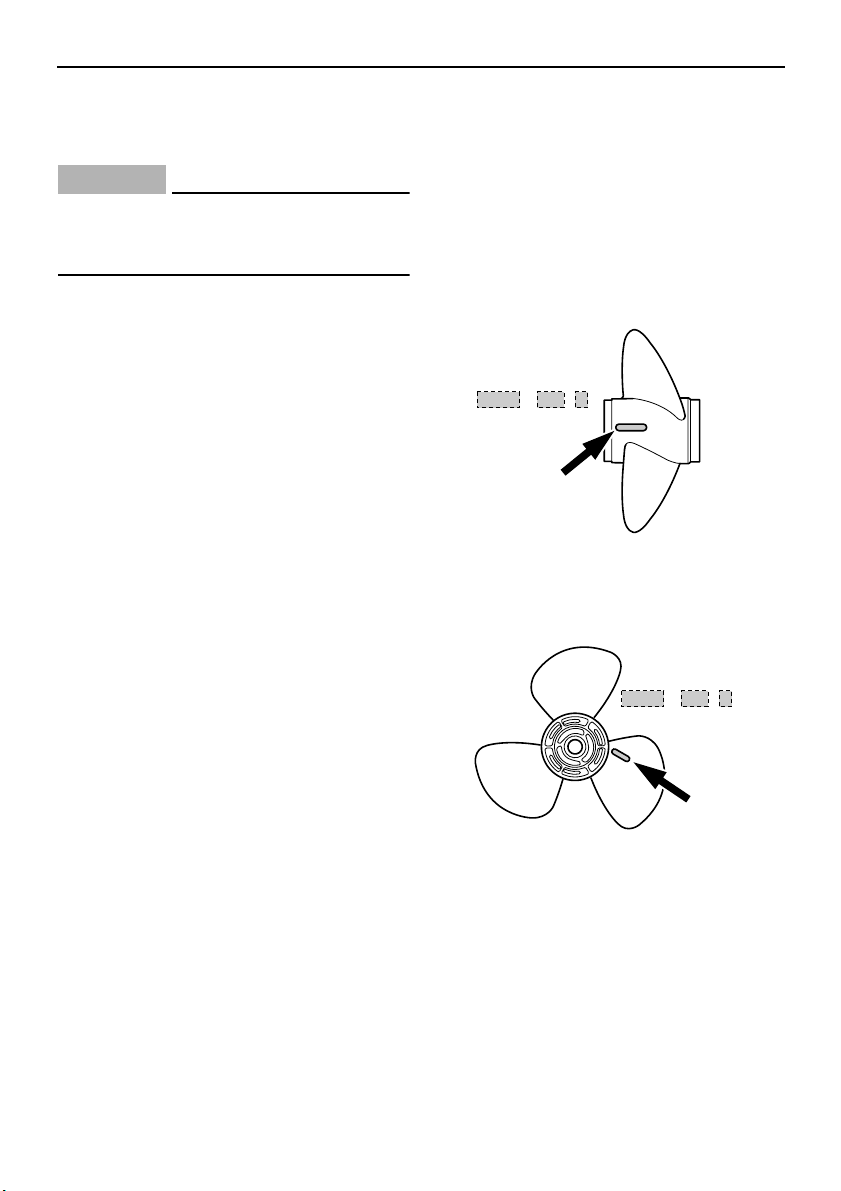

Propeller selection............................ 12
Start-in-gear protection ................. 12
Basic components .......................... 14
Main components.......................... 14
Fuel tank........................................... 15
Fuel joint........................................... 16
Fuel gauge ....................................... 16
Fuel tank cap.................................... 16
Air vent screw................................... 16
Remote control ................................. 16
Remote control lever ........................ 16
Neutral interlock trigger .................... 17
Neutral throttle lever ......................... 17
Choke switch .................................... 17
Tiller handle ...................................... 17
Gear shift lever ................................. 17
Throttle grip ...................................... 18
Throttle indicator............................... 18
Throttle friction adjuster .................... 18
Engine shut-off switch ...................... 19
Engine stop button ........................... 20
Choke knob for pull type................... 20
Manual starter handle....................... 20
Main switch....................................... 21
Power tilt switch................................ 21
Steering friction adjuster................... 21
Trim rod (tilt pin) ............................... 22
Tilt lock mechanism .......................... 22
Tilt support knob ............................... 22
Tilt support bar ................................. 22
Power tilt unit.................................... 23
Top cowling lock lever
(pull up type) ................................. 23
Flushing device ................................ 23
Warning indicator ............................. 23
Low oil pressure-warning indicator... 24
Warning system ............................ 24
Low oil pressure warning.................. 24
U60R73E0.book Page 1 Friday, June 15, 2007 1:28 PM

Table of contents
Operation ......................................... 25
Installation ..................................... 25
Mounting the outboard motor ........... 25
Clamping the outboard motor........... 26
Breaking in engine ........................ 27
Procedure for 4-stroke models ......... 27
Pre-operation checks .................... 27
Fuel .................................................. 28
Controls ............................................ 28
Stop switches ................................... 28
Engine .............................................. 28
Checking the engine oil level............ 28
Filling fuel ...................................... 29
Operating engine........................... 29
Feeding fuel (portable tank) ............. 29
Starting engine ................................. 30
Warming up engine ....................... 34
Manual start and electric start
models .......................................... 34
Shifting .......................................... 34
Stopping boat ................................ 36
Stopping engine ............................ 36
Procedure......................................... 36
Procedure......................................... 37
Trimming outboard motor .............. 37
Adjusting trim angle for manual tilt
models .......................................... 38
Adjusting trim angle
(power tilt models)......................... 39
Adjusting boat trim............................ 39
Tilting up and down ....................... 40
Procedure for tilting up
(manual tilt models)....................... 40
Procedure for tilting up
(power tilt models)......................... 41
Procedure for tilting down
(manual tilt models)....................... 42
Procedure for tilting down
(power tilt models)......................... 42
Cruising in shallow water .............. 43
Cruising in shallow water
(manual tilt models)....................... 43
Power tilt models.............................. 45
Cruising in other conditions........... 45
Maintenance .................................... 47
Specifications................................ 47
Transporting and storing outboard
motor.......................................... 49
Clamp screw mounting models ........ 49
Storing outboard motor..................... 50
Procedure......................................... 50
Lubrication........................................ 51
Battery care ...................................... 51
Flushing power unit .......................... 52
Cleaning the outboard motor............ 53
Checking painted surface of motor... 53
Periodic maintenance ................... 53
Replacement parts ........................... 53
Severe operating conditions............. 53
Maintenance chart 1......................... 54
Maintenance chart 2......................... 56
Greasing ........................................... 57
Cleaning and adjusting spark plug ... 58
Checking fuel system ....................... 59
Checking fuel filter ............................ 60
Inspecting idling speed..................... 60
Changing engine oil.......................... 60
Checking wiring and connectors ...... 62
Exhaust leakage............................... 62
Water leakage .................................. 62
Engine oil leakage ............................ 62
Checking power tilt system............... 63
Checking propeller ........................... 63
Removing propeller .......................... 64
Installing propeller ............................ 64
Changing gear oil ............................. 65
Cleaning fuel tank............................. 66
Inspecting and replacing anode(s) ... 67
Checking battery
(for electric start models) .............. 68
Connecting the battery ..................... 69
Disconnecting the battery ................. 69
Checking top cowling ....................... 69
Coating the boat bottom ................... 69
U60R73E0.book Page 2 Friday, June 15, 2007 1:28 PM

Table of contents
Trouble Recovery ............................ 71
Troubleshooting ............................ 71
Temporary action in emergency.... 74
Impact damage................................. 74
Replacing fuse.................................. 74
Power tilt will not operate ................. 75
Starter will not operate ..................... 75
Emergency starting engine............... 76
Engine fails to operate .................. 77
Emergency engine operation ........... 77
Treatment of submerged motor..... 77
Procedure......................................... 77
U60R73E0.book Page 3 Friday, June 15, 2007 1:28 PM

General information
1
EMU25171
Identification numbers record
EMU25183
Outboard motor serial number
The outboard motor serial number is stamped
on the label attached to the port side of the
clamp bracket.
Record your outboard motor serial number in
the spaces provided to assist you in ordering
spare parts from your Yamaha dealer or for
reference in case your outboard motor is sto-
len. EMU25190
Key number
If a main key switch is equipped with the mo-
tor, the key identification number is stamped
on your key as shown in the illustration.
Record this number in the space provided for
reference in case you need a new key.
EMU25202
EC label
Engines affixed with this label conform to cer-
tain portions of the European Parliament di-
rective relating to machinery. Refer to the
label and the EC Declaration of Conformity for
more details.
1. Outboard motor serial number location
1. Outboard motor serial number location
1. Key number
U60R73E0.book Page 1 Friday, June 15, 2007 1:28 PM

General information
2
EMU25221
Emission control information
EMU25351
SAV models
Engines affixed with the label pictured below
conform to SAV (the Swiss exhaust emission
regulations for Swiss inshore waters).
Approval label of emission control certifi-
cate
Fuel requirement label
1. EC label location
1. EC label location
ZMU01696
1. Approval label location
1. Fuel requirement label location
YAMAHA MOTOR CO.,LTD.
Motorfamilie
Abgastypenpruf-
Nummer
ZMU04492
ZMU04494
U60R73E0.book Page 2 Friday, June 15, 2007 1:28 PM

General information
3
EMU33520
Read manuals and labels
Before operating or working on this motor:
●Read this manual.
●Read any manuals supplied with the boat.
●Read all labels on the outboard motor and the boat.
If you need any additional information, contact your Yamaha dealer.
EMU33831
Warning labels
If these labels are damaged or missing, contact your Yamaha dealer for replacements.
F6AMH, F8CMH, FT8DMH
U60R73E0.book Page 3 Friday, June 15, 2007 1:28 PM

General information
4
FT8DE, FT8DEP
U60R73E0.book Page 4 Friday, June 15, 2007 1:28 PM

General information
5
EMU33911
Contents of labels
The above warning labels mean as follows.
1
WARNING
EWM01690
Emergency starting does not have start-
in-gear protection. Ensure shift control is
in neutral before starting engine.
2
WARNING
EWM01680
●Keep hands, hair, and clothing away
from rotating parts while the engine is
running.
●Do not touch or remove electrical parts
when starting or during operation.
3
WARNING
EWM01670
●Read Owner’s Manuals and labels.
●Wear an approved personal flotation de-
vice (PFD).
●Attach engine shut-off cord (lanyard) to
your PFD, arm, or leg so the engine
stops if you accidentally leave the helm,
which could prevent a runaway boat.
ZMU05706
12
3
U60R73E0.book Page 5 Friday, June 15, 2007 1:28 PM

General information
6
EMU33841
Symbols
The following symbols mean as follows.
Caution/Warning
Read Operator’s Manual
Hazard caused by continuous rotation
Electrical hazard
Remote control lever/gear shift lever operat-
ing direction, dual direction
Engine start/ Engine cranking
ZMU05696
ZMU05664
ZMU05665
ZMU05666
ZMU05667
ZMU05668
U60R73E0.book Page 6 Friday, June 15, 2007 1:28 PM

7
Safety information
EMU33621
Safety information
Observe these precautions at all times.
EMU33630
Rotating parts
Hands, feet, hair, jewelry, clothing, PFD
straps, etc. can become entangled with inter-
nal rotating parts of the engine, resulting in se-
rious injury or death.
Keep the top cowling in place whenever pos-
sible. Do not remove or replace the cowling
with the engine running.
Only operate the engine with the cowling re-
moved according to the specific instructions in
the manual. Keep hands, feet, hair, jewelry,
clothing, PFD straps, etc. away from any ex-
posed moving parts.
EMU33640
Hot parts
During and after operation, engine parts are
hot enough to cause burns. Avoid touching
any parts under the top cowling until the en-
gine has cooled.
EMU33650
Electric shock
Do not touch any electrical parts while starting
or operating the engine. They can cause
shock or electrocution.
EMU34790
Power tilt
Body parts can be crushed between the mo-
tor and the clamp bracket when the motor is
trimmed or tilted. Keep body parts out of this
area at all times. Be sure no one is in this area
before operating the power tilt mechanism.
The power tilt switches operate even when
the main switch is off. Keep people be away
from the switches whenever working around
the motor.
Never get under the lower unit while it is tilted,
even when the tilt support lever or knob is
locked. Severe injury could occur if the out-
board motor accidentally falls.
EMU33670
Engine shut-off cord
Attach the engine shut-off cord so that the en-
gine stops if the operator falls overboard or
leaves the helm. This prevents the boat from
running away under power and leaving peo-
ple stranded, or running over people or ob-
jects.
Always attach the engine shut-off cord to a
secure place on your clothing or your arm or
leg while operating. Do not remove it to leave
the helm while the boat is moving. Do not at-
tach the cord to clothing that could tear loose,
or route the cord where it could become en-
tangled, preventing it from functioning.
Do not route the cord where it is likely to be
accidentally pulled out. If the cord is pulled
during operation, the engine will shut off and
you will lose most steering control. The boat
could slow rapidly, throwing people and ob-
jects forward.
EMU33810
Gasoline
Gasoline and its vapors are highly flam-
mable and explosive. Always, refuel accord-
ing to the procedure on page 29 to reduce the
risk of fire and explosion.
EMU33820
Gasoline exposure and spills
Take care not to spill gasoline. If gasoline
spills, wipe it up immediately with dry rags.
Dispose of rags properly.
If any gasoline spills onto your skin, immedi-
ately wash with soap and water. Change
clothing if gasoline spills on it.
If you swallow gasoline, inhale a lot of gaso-
line vapor, or get gasoline in your eyes, get
immediate medical attention. Never siphon
fuel by mouth.
U60R73E0.book Page 7 Friday, June 15, 2007 1:28 PM

Safety information
8
EMU33900
Carbon monoxide
This product emits exhaust gases which con-
tain carbon monoxide, a colorless, odorless
gas which may cause brain damage or death
when inhaled. Symptoms include nausea,
dizziness, and drowsiness. Keep cockpit and
cabin areas well ventilated. Avoid blocking ex-
haust outlets.
EMU33780
Modifications
Do not attempt to modify this outboard motor.
Modifications to your outboard motor may re-
duce safety and reliability, and render the out-
board unsafe or illegal to use.
EMU33740
Boating safety
This section includes a few of the many im-
portant safety precautions that you should fol-
low when boating.
EMU33710
Alcohol and drugs
Never operate after drinking alcohol or taking
drugs. Intoxication is one of the most common
factors contributing to boating fatalities.
EMU33720
Personal flotation devices
Have an approved personal flotation device
(PFD) on board for every occupant. Yamaha
recommends that you must wear a PFD
whenever boating. At a minimum, children
and non-swimmers should always wear
PFDs, and everyone should wear PFDs when
there are potentially hazardous boating condi-
tions.
EMU33730
People in the water
Always watch carefully for people in the wa-
ter, such as swimmers, skiers, or divers,
whenever the engine is running. When some-
one is in the water near the boat, shift into
neutral and shut off the motor.
Stay away from swimming areas. Swimmers
can be hard to see.
The propeller can keep moving even when
the motor is in neutral. Shut off the engine
when a person is in the water near you.
EMU33750
Passengers
Consult your boat manufacturer’s instructions
for details about appropriate passenger loca-
tions in your boat and be sure all passengers
are positioned properly before accelerating
and when operating above an idle speed.
Standing or sitting in non-designated loca-
tions may result in being thrown either over-
board or within the boat due to waves, wakes,
or sudden changes in speed or direction.
Even when people are positioned properly,
alert your passengers if you must make any
unusual maneuver. Always avoid jumping
waves or wakes.
EMU33760
Overloading
Do not overload the boat. Consult the boat ca-
pacity plate or boat manufacturer for maxi-
mum weight and number of passengers. Be
sure that weight is properly distributed ac-
cording to the boat manufacturers instruc-
tions. Overloading or incorrect weight
distribution can compromise the boats han-
dling and lead to an accident, capsizing or
swamping.
EMU33770
Avoid collisions
Scan constantly for people, objects, and oth-
er boats. Be alert for conditions that limit your
visibility or block your vision of others.
Operate defensively at safe speeds and
keep a safe distance away from people, ob-
jects, and other boats.
●Do not follow directly behind other boats or
waterskiers.
●Avoid sharp turns or other maneuvers that
make it hard for others to avoid you or un-
derstand where you are going.
U60R73E0.book Page 8 Friday, June 15, 2007 1:28 PM

Safety information
9
●Avoid areas with submerged objects or
shallow water.
●Ride within your limits and avoid aggressive
maneuvers to reduce the risk of loss of con-
trol, ejection, and collision.
●Take early action to avoid collisions. Re-
member, boats do not have brakes, and
stopping the engine or reducing throttle can
reduce the ability to steer. If you are not
sure that you can stop in time before hitting
an obstacle, apply throttle and turn in anoth-
er direction.
EMU33790
Weather
Stay informed about the weather. Check
weather forecasts before boating. Avoid boat-
ing in hazardous weather.
EMU33880
Passenger training
Make sure at least one other passenger is
trained to operate the boat in the event of an
emergency.
EMU33890
Boating safety publications
Be informed about boating safety. Additional
publications and information can be obtained
from many boating organizations.
EMU33600
Laws and regulations
Know the marine laws and regulations where
you will be boating- and obey them. Several
sets of rules prevail according to geographic
location, but all are basically the same as the
International Rules of the Road.
U60R73E0.book Page 9 Friday, June 15, 2007 1:28 PM

Basic requirements
10
EMU25540
Fueling instructions
WARNING
EWM00010
GASOLINE AND ITS VAPORS ARE HIGH-
LY FLAMMABLE AND EXPLOSIVE!
●Do not smoke when refueling, and keep
away from sparks, flames, or other
sources of ignition.
●Stop engine before refueling.
●Refuel in a well-ventilated area. Refuel
portable fuel tanks off the boat.
●Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags.
●Do not overfill the fuel tank.
●Tighten the filler cap securely after refu-
eling.
●If you should swallow some gasoline, in-
hale a lot of gasoline vapor, or get gaso-
line in your eyes, get immediate medical
attention.
●If any gasoline spills onto your skin, im-
mediately wash with soap and water.
Change clothing if gasoline spills on it.
●Touch the fuel nozzle to the filler open-
ing or funnel to help prevent electrostat-
ic sparks.
CAUTION:
ECM00010
Use only new clean gasoline which has
been stored in clean containers and is not
contaminated with water or foreign matter.
EMU25580
Gasoline
If knocking or pinging occurs, use a different
brand of gasoline or premium unleaded fuel.
EMU25683
Engine oil
NOTE:
If the recommended engine oil grades are not
available, select an alternative from the fol-
lowing chart according to the average temper-
atures in your area.
CAUTION:
ECM01050
All 4-stroke engines are shipped from the
factory without engine oil.
Recommended gasoline:
Regular unleaded gasoline with a mini-
mum octane rating of 90 (Research
Octane Number).
Recommended engine oil:
4-stroke motor oil with a combination of
the following SAE and API oil classifi-
cations
Engine oil type SAE:
10W-30 or 10W-40
Engine oil grade API:
SE, SF, SG, SH, SJ, SL
Engine oil quantity (excluding oil filter):
0.8 L (0.85 US qt) (0.70 Imp.qt)
U60R73E0.book Page 10 Friday, June 15, 2007 1:28 PM

Basic requirements
11
EMU33552
Installation requirements
EMU33560
Boat horsepower rating
Before installing the outboard motor(s), con-
firm that the total horsepower of your motor(s)
does not exceed the boats maximum horse-
power rating. See the boats capacity plate or
contact the manufacturer.
WARNING
EWM01560
Overpowering a boat can cause severe in-
stability.
EMU33570
Mounting motor
Your dealer or other person experienced in
proper rigging should mount the motor using
correct equipment and complete rigging in-
structions. For further information, see page
25.
WARNING
EWM01570
●Improper mounting of the outboard mo-
tor could result in hazardous conditions
such as poor handling, loss of control,
or fire hazards.
●Because the motor is very heavy, spe-
cial equipment and training is required
to mount it safely.
EMU33580
Remote control requirements
The remote control unit must be equipped
with a start-in-gear protection device(s). This
device prevents the engine from starting un-
less it is in neutral.
WARNING
EWM01580
●If the engine starts in gear, the boat can
move suddenly and unexpectedly, pos-
sibly causing a collision or throwing
passengers overboard.
●If the engine ever starts in gear, the
start-in-gear protection device is not
working correctly and you should dis-
continue using the outboard. Contact
your Yamaha dealer.
EMU25693
Battery requirement
CAUTION:
ECM01061
Do not use a battery that does not meet the
specified capacity. If a battery that does
not meet specifications is used, the elec-
tric system could perform poorly or be
overloaded, causing electric system dam-
age.
For electric start models, choose a battery
which meets the following specifications.
EMU25721
Battery specifications
The engine cannot be started if battery volt-
age is too low.
ZMU01710
Minimum cold cranking amps (CCA/EN):
FT8DE 347.0 A
FT8DEP 347.0 A
Minimum rated capacity (20HR/IEC):
FT8DE 40.0 Ah
FT8DEP 40.0 Ah
U60R73E0.book Page 11 Friday, June 15, 2007 1:28 PM

Basic requirements
12
EMU25730
Without a rectifier or Rectifier Regula-
tor
CAUTION:
ECM01090
A battery cannot be connected to models
that do not have a rectifier or Rectifier
Regulator.
If you wish to use a battery with the models
without a rectifier or Rectifier Regulator, install
an optional Rectifier Regulator.
Using a maintenance-free battery with the
above models can shorten the life of the bat-
tery significantly.
Install an optional Rectifier Regulator or use
accessories rated to withstand 18 volts or
higher with the above models. Consult your
Yamaha dealer for details on installing an op-
tional Rectifier Regulator.
EMU34190
Propeller selection
Next to selecting an outboard, choosing the
right propeller is one of the most important
purchasing decisions a boater can make. The
type, size, and design of your propeller have
a direct impact on acceleration, top speed,
fuel economy, and even engine life. Yamaha
designs and manufactures propellers for ev-
ery Yamaha outboard motor and every appli-
cation.
Your outboard motor came with a Yamaha
propeller chosen to perform well over a range
of applications, but there may be uses where
a different propeller would be more appropri-
ate.
Your Yamaha dealer can help you select the
right propeller for your boating needs. Select
a propeller that will allow the engine to reach
the middle or upper half of the operating
range at full throttle with the maximum boat-
load. Generally, chose a larger pitch propeller
for a smaller operating load and a smaller
pitch propeller for a heavier load. If you carry
loads that vary widely, chose the propeller
that lets the engine run in the proper range for
your maximum load but remember that you
may need to reduce your throttle setting to
stay within the recommended engine speed
range when carrying lighter loads.
For instructions on propeller removal and in-
stallation, see page 63.
EMU25770
Start-in-gear protection
Yamaha outboard motors or Yamaha-ap-
proved remote control units are equipped with
start-in-gear protection device(s). This feature
1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
1. Propeller diameter in inches
2. Propeller pitch in inches
3. Type of propeller (propeller mark)
ZMU04606
-
x
123
ZMU04604
-
x
123
U60R73E0.book Page 12 Friday, June 15, 2007 1:28 PM

Basic requirements
13
permits the engine to be started only when it
is in neutral. Always select neutral before
starting the engine.
U60R73E0.book Page 13 Friday, June 15, 2007 1:28 PM

Basic components
14
EMU2579D
Main components
NOTE:
* May not be exactly as shown; also may not be included as standard equipment on all models.
F6A, F8C
1. Top cowling
2. Top cowling lock lever
3. Anti-cavitation plate
4. Propeller*
5. Cooling water inlet
6. Drain screw
7. Trim rod
8. Clamp bracket
9. Gear shift lever
10.Flushing device
11.Choke knob
12.Fuel joint
13.Manual starter handle
14.Warning indicator
15.Engine stop button/Engine shut-off switch
16.Tiller handle
17.Throttle grip
18.Throttle friction adjuster
19.Tilt lock lever
20.Clamp screw
21.Rope attachment
22.Fuel tank
U60R73E0.book Page 14 Friday, June 15, 2007 1:28 PM
