Yamaha F8 User manual

Read this manual carefully before operating this
outboard motor.
OWNER’S MANUAL
F8
LIT-18626-10-14
60R-F8199-3B-E0
U60R3BE0.book Page 1 Thursday, May 2, 2013 8:59 AM

ZMU07696
Les gaz d’échappement du moteur de ce produit
contiennent des substances chimiques connues
dans l’État de Californie pour provoquer le cancer,
des anomalies congénitales et des troubles de la
reproduction.
Read this manual carefully before operating this outboard motor. Keep this
manual onboard in a waterproof bag when boating. This manual should stay
with the outboard motor if it is sold.
U60R3BE0.book Page 1 Thursday, May 2, 2013 8:59 AM

Important manual information
EMU44140
To the owner
Thank you for selecting a Yamaha outboard
motor. This Owner’s Manual contains infor-
mation needed for proper operation, mainte-
nance and care. A thorough understanding of
these simple instructions will help you obtain
maximum enjoyment from your new Yamaha.
If you have any question about the operation
or maintenance of your outboard motor,
please consult a Yamaha dealer.
In this Owner’s Manual particularly important
information is distinguished in the following
ways.
: This is the safety alert symbol. It is used
to alert you to potential personal injury haz-
ards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
WARNING
EWM00781
A WARNING indicates a hazardous situa-
tion which, if not avoided, could result in
death or serious injury.
NOTICE
ECM00701
A NOTICE indicates special precautions
that must be taken to avoid damage to the
outboard motor or other property.
TIP:
A TIP provides key information to make pro-
cedures easier or clearer.
Yamaha continually seeks advancements in
product design and quality. Therefore, while
this manual contains the most current product
information available at the time of printing,
there may be minor discrepancies between
your machine and this manual. If there is any
question concerning this manual, please con-
sult your Yamaha dealer.
To ensure long product life, Yamaha recom-
mends that you use the product and perform
the specified periodic inspections and mainte-
nance by correctly following the instructions in
the owner’s manual. Any damage resulting
from neglect of these instructions is not cov-
ered by warranty.
Some countries have laws or regulations re-
stricting users from taking the product out of
the country where it was purchased, and it
may be impossible to register the product in
the destination country. Additionally, the war-
ranty may not apply in certain regions. When
planning to take the product to another coun-
try, consult the dealer where the product was
purchased for further information.
If you purchased this outboard motor used,
see your Yamaha dealer to have it registered
in your name in Yamaha records.
TIP:
The F8MHA and the standard accessories
are used as a base for the explanations and
illustrations in this manual. Therefore some
items may not apply to every model.
EMU44200
F8
OWNER’S MANUAL
©2013 by Yamaha Motor Co., Ltd.
1st Edition, April 2013
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in France
U60R3BE0.book Page 1 Thursday, May 2, 2013 8:59 AM

Table of contents
Safety information............................. 1
Outboard motor safety .................... 1
Propeller ............................................. 1
Rotating parts ..................................... 1
Hot parts............................................. 1
Electric shock ..................................... 1
Engine shut-off cord (lanyard) ............ 1
Gasoline ............................................. 1
Gasoline exposure and spills ............. 1
Carbon monoxide ............................... 1
Modifications ...................................... 2
Boating safety ................................. 2
Alcohol and drugs............................... 2
Personal flotation devices (PFDs) ...... 2
People in the water............................. 2
Passengers ........................................ 2
Overloading ........................................ 2
Avoid collisions................................... 2
Weather.............................................. 3
Accident reporting .............................. 3
Boat education and training................ 3
Passenger training ............................. 3
Boating safety publications................. 3
Laws and regulations ......................... 3
Boating organizations...................... 4
Basic boating rules
(Rules of the road) ....................... 4
Steering and sailing rules and sound
signals............................................. 4
Rules when encountering vessels...... 5

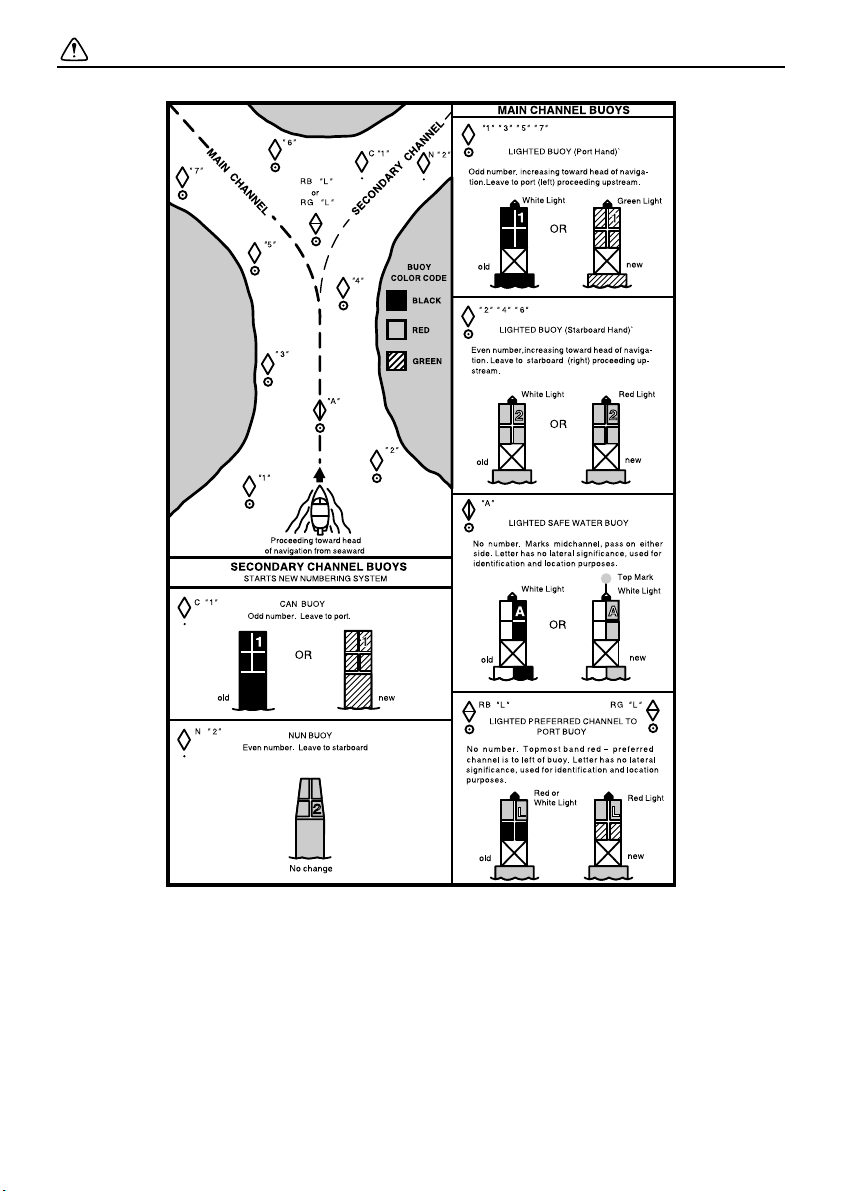

Other special situations...................... 6
General information .......................... 9
Identification numbers record.......... 9
Outboard motor serial number ........... 9
Read manuals and labels.............. 10
Warning labels.................................. 10
Specifications and requirements... 13
Specifications ................................ 13
Installation requirements ............... 14
Boat horsepower rating .................... 14
Mounting motor ................................ 14
Battery requirements ..................... 14
Without a rectifier or Rectifier
Regulator ...................................... 14
Propeller selection ........................ 14
Start-in-gear protection ................. 15
Engine oil requirements ................ 15
Fuel requirements ......................... 16
Gasoline ........................................... 16
Gasoline Additives............................ 17
Muddy or acidic water ................... 17
Anti-fouling paint ........................... 17
Motor disposal requirements......... 18
Emergency equipment .................. 18
Emission control information......... 18
North American models .................... 18
Star labels ........................................ 19
Components .................................... 21
Components diagram.................... 21
Fuel tank........................................... 21
Fuel joint........................................... 22
Fuel gauge ....................................... 22
Pressure relief tab ............................ 22
Fuel tank cap.................................... 22
Air vent screw................................... 22
Tiller handle ...................................... 22
Gear shift lever ................................. 22
Throttle grip ...................................... 23
Throttle indicator............................... 23
Throttle friction adjuster .................... 23
Engine shut-off cord (lanyard) and
clip................................................. 23
Engine stop button ........................... 24
Choke knob for pull type................... 24
Manual starter handle....................... 24
Steering friction adjuster................... 24
Trim rod (tilt pin) ............................... 25
Tilt lock mechanism .......................... 25
Tilt support bar ................................. 25
Cowling lock lever (pull up type)....... 26
Flushing device ................................ 26
Alert indicator ................................... 26
Instruments and indicators............ 27
Indicators ...................................... 27
Low oil pressure-alert indicator ........ 27
U60R3BE0.book Page 1 Thursday, May 2, 2013 8:59 AM

Table of contents
Engine control system.................... 28
Alert system .................................. 28
Low oil pressure alert ....................... 28
Installation ....................................... 29
Installation ..................................... 29
Mounting the outboard motor ........... 29
Clamping the outboard motor........... 30
Operation ......................................... 32
First-time operation ....................... 32
Fill engine oil .................................... 32
Breaking in engine............................ 32
Getting to know your boat ................ 32
Checks before starting engine ...... 32
Fuel level .......................................... 32
Remove the top cowling ................... 33
Fuel system ...................................... 33
Controls ............................................ 33
Engine shut-off cord (lanyard) .......... 33
Engine oil.......................................... 33
Engine .............................................. 34
Flushing device ................................ 34
Install top cowling ............................. 34
Filling fuel ...................................... 35
Operating engine........................... 37
Sending fuel (portable tank) ............. 37
Starting engine ................................. 38
Checks after starting engine ......... 40
Cooling water ................................... 40
Warming up engine ....................... 40
Manual start models ......................... 40
Checks after engine warm up ....... 41
Shifting ............................................. 41
Stop switches ................................... 41
Shifting .......................................... 41
Stopping boat ................................ 42
Stopping engine ............................ 42
Procedure......................................... 42
Trimming outboard motor .............. 43
Adjusting trim angle for manual tilt
models .......................................... 43
Adjusting boat trim............................ 44
Tilting up and down....................... 45
Procedure for tilting up
(manual tilt models)....................... 45
Procedure for tilting down
(manual tilt models)....................... 46
Shallow water................................ 46
Cruising in shallow water
(manual tilt models)....................... 46
Cruising in other conditions........... 47
Maintenance .................................... 49
Transporting and storing outboard
motor.......................................... 49
Clamp screw mounting models ........ 49
Storing outboard motor..................... 50
Procedure......................................... 50
Lubrication........................................ 51
Cleaning and anticorrosion
measures ...................................... 51
Flushing power unit .......................... 51
Cleaning the outboard motor............ 52
Checking painted surface of
outboard motor.............................. 52
Periodic maintenance ................... 53
Replacement parts ........................... 53
Maintenance interval guidelines ....... 53
Maintenance chart 1......................... 54
Maintenance chart 2......................... 56
Greasing ........................................... 57
Cleaning and adjusting spark plug ... 58
Checking fuel filter ............................ 58
Inspecting idle speed........................ 59
Changing engine oil.......................... 59
Inspecting wiring and connectors ..... 61
Checking propeller ........................... 61
Removing propeller .......................... 62
Installing propeller ............................ 62
Changing gear oil ............................. 63
Inspecting and replacing anode(s) ... 64
Trouble Recovery............................ 65
Troubleshooting ............................ 65
Temporary action in emergency ... 68
Impact damage................................. 68
Starter will not operate ..................... 68
Emergency starting engine............... 69
U60R3BE0.book Page 2 Thursday, May 2, 2013 8:59 AM

Table of contents
Engine fails to operate .................. 70
Emergency engine operation ........... 70
Treatment of submerged motor..... 70
Consumer information.................... 71
YAMAHA FOUR-STROKE
OUTBOARD MOTOR
THREE-YEAR LIMITED
WARRANTY............................... 71
IMPORTANT WARRANTY
INFORMATION IF YOU USE
YOUR YAMAHA OUTSIDE THE
U.S.A. OR CANADA .................. 73
U60R3BE0.book Page 3 Thursday, May 2, 2013 8:59 AM

1
Safety information
EMU33622
Outboard motor safety
Observe these precautions at all times.
EMU36501
Propeller
People can be injured or killed if they come in
contact with the propeller. The propeller can
keep moving even when the motor is in neu-
tral, and sharp edges of the propeller can cut
even when stationary.
●Stop the engine when a person is in the wa-
ter near you.
●Keep people out of reach of the propeller,
even when the engine is off.
EMU33630
Rotating parts
Hands, feet, hair, jewelry, clothing, PFD
straps, etc. can become entangled with inter-
nal rotating parts of the engine, resulting in se-
rious injury or death.
Keep the top cowling in place whenever pos-
sible. Do not remove or replace the cowling
with the engine running.
Only operate the engine with the cowling re-
moved according to the specific instructions in
the manual. Keep hands, feet, hair, jewelry,
clothing, PFD straps, etc. away from any ex-
posed moving parts.
EMU33640
Hot parts
During and after operation, engine parts are
hot enough to cause burns. Avoid touching
any parts under the top cowling until the en-
gine has cooled.
EMU33650
Electric shock
Do not touch any electrical parts while starting
or operating the engine. They can cause
shock or electrocution.
EMU33671
Engine shut-off cord (lanyard)
Attach the engine shut-off cord so that the en-
gine stops if the operator falls overboard or
leaves the helm. This prevents the boat from
running away under power and leaving peo-
ple stranded, or running over people or ob-
jects.
Always attach the engine shut-off cord to a
secure place on your clothing or your arm or
leg while operating. Do not remove it to leave
the helm while the boat is moving. Do not at-
tach the cord to clothing that could tear loose,
or route the cord where it could become en-
tangled, preventing it from functioning.
Do not route the cord where it is likely to be
accidentally pulled out. If the cord is pulled
during operation, the engine will shut off and
you will lose most steering control. The boat
could slow rapidly, throwing people and ob-
jects forward.
EMU33810
Gasoline
Gasoline and its vapors are highly flam-
mable and explosive. Always, refuel accord-
ing to the procedure on page 37 to reduce the
risk of fire and explosion.
EMU33820
Gasoline exposure and spills
Take care not to spill gasoline. If gasoline
spills, wipe it up immediately with dry rags.
Dispose of rags properly.
If any gasoline spills onto your skin, immedi-
ately wash with soap and water. Change
clothing if gasoline spills on it.
If you swallow gasoline, inhale a lot of gaso-
line vapor, or get gasoline in your eyes, get
immediate medical attention. Never siphon
fuel by mouth.
EMU33900
Carbon monoxide
This product emits exhaust gases which con-
tain carbon monoxide, a colorless, odorless
gas which may cause brain damage or death
when inhaled. Symptoms include nausea,
dizziness, and drowsiness. Keep cockpit and
cabin areas well ventilated. Avoid blocking ex-
haust outlets.
U60R3BE0.book Page 1 Thursday, May 2, 2013 8:59 AM

Safety information
2
EMU33780
Modifications
Do not attempt to modify this outboard motor.
Modifications to your outboard motor may re-
duce safety and reliability, and render the out-
board unsafe or illegal to use.
EMU33740
Boating safety
This section includes a few of the many im-
portant safety precautions that you should fol-
low when boating.
EMU33710
Alcohol and drugs
Never operate after drinking alcohol or taking
drugs. Intoxication is one of the most common
factors contributing to boating fatalities.
EMU40280
Personal flotation devices (PFDs)
Have an approved PFD on board for every oc-
cupant. Yamaha recommends that you must
wear a PFD whenever boating. At a minimum,
children and non-swimmers should always
wear PFDs, and everyone should wear PFDs
when there are potentially hazardous boating
conditions.
EMU33731
People in the water
Always watch carefully for people in the wa-
ter, such as swimmers, skiers, or divers,
whenever the engine is running. When some-
one is in the water near the boat, shift into
neutral and stop the engine.
Stay away from swimming areas. Swimmers
can be hard to see.
The propeller can keep moving even when
the motor is in neutral. Stop the engine when
a person is in the water near you.
EMU33751
Passengers
Consult your boat manufacturer’s instructions
for details about appropriate passenger loca-
tions in your boat and be sure all passengers
are positioned properly before accelerating
and when operating above an idle speed.
Standing or sitting in non-designated loca-
tions may result in being thrown either over-
board or within the boat due to waves, wakes,
or sudden changes in speed or direction.
Even when people are positioned properly,
alert your passengers if you must make any
unusual maneuver. Always avoid jumping
waves or wakes.
EMU33761
Overloading
Do not overload the boat. Consult the boat ca-
pacity plate or boat manufacturer for maxi-
mum weight and number of passengers. Be
sure that weight is properly distributed ac-
cording to the boat manufacturer’s instruc-
tions. Overloading or incorrect weight
distribution can compromise the boats han-
dling and lead to an accident, capsizing or
swamping.
EMU33772
Avoid collisions
Scan constantly for people, objects, and other
boats. Be alert for conditions that limit your
visibility or block your vision of others.
Operate defensively at safe speeds and keep
a safe distance away from people, objects,
and other boats.
●Do not follow directly behind other boats or
waterskiers.
●Avoid sharp turns or other maneuvers that
make it hard for others to avoid you or un-
derstand where you are going.
ZMU06025
U60R3BE0.book Page 2 Thursday, May 2, 2013 8:59 AM

Safety information
3
●Avoid areas with submerged objects or
shallow water.
●Ride within your limits and avoid aggressive
maneuvers to reduce the risk of loss of con-
trol, ejection, and collision.
●Take early action to avoid collisions. Re-
member, boats do not have brakes, and
stopping the engine or reducing throttle can
reduce the ability to steer. If you are not
sure that you can stop in time before hitting
an obstacle, apply throttle and turn in anoth-
er direction.
EMU33790
Weather
Stay informed about the weather. Check
weather forecasts before boating. Avoid boat-
ing in hazardous weather.
EMU44160
Accident reporting
Boat operators are required by law to file a
Boating Accident Report with their boating law
enforcement agency if their boat is involved in
any of the following accidents:
1. There is loss of life or probable loss of life.
2. There is personal injury that requires
medical attention beyond first aid.
3. There is property damage to boats or oth-
er property over a certain amount.
4. There is complete loss of a boat.
Contact local law enforcement personnel if a
report is necessary.
EMU44170
Boat education and training
For U.S.A.
Operators should take a boating safety
course. This may be required in your state.
Many of the organizations listed in the next
section can provide information about cours-
es in your area.
You may also want to consider an Internet-
based program for basic boater education.
The Online Boating Safety Course provided
by the BoatU.S. Foundation, is approved by
the National Association of State Boating Law
Administrators (NASBLA) and recognized by
the United States Coast Guard. Most, but not
all, states accept this course to meet their
minimum requirements. While it cannot re-
place an in-depth course such as one offered
by the U.S. Coast Guard, U.S. Power Squad-
ron, or other organization, this online course
does provide a general overview of the basics
in boating safety, requirements, navigation,
and operation. Upon successful completion of
the course, the user can download a certifi-
cate of completion immediately or, for a small
charge, request one by mail. To take this free
course, go to boatus.org.
For Canada
All operators of pleasure craft must illustrate
competency by means of a Pleasure Craft
Operators Card with the exception of Person-
al Water Craft used for rental purposes which
require a rental checklist be completed. Plea-
sure Craft Operators Cards can be obtained
following the completion of a competency
course, with an on-line option. Details can be
found on Transport Canada’s website.
www.tc.gc.ca
EMU33880
Passenger training
Make sure at least one other passenger is
trained to operate the boat in the event of an
emergency.
EMU33890
Boating safety publications
Be informed about boating safety. Additional
publications and information can be obtained
from many boating organizations.
EMU33590
Laws and regulations
Know the marine laws and regulations where
you will be boating- and obey them. Several
sets of rules prevail according to geographic
location, but all are basically the same as the
International Rules of the Road. The rules
U60R3BE0.book Page 3 Thursday, May 2, 2013 8:59 AM

Safety information
4
presented in the following section are con-
densed- and have been provided for your
convenience only.
Contact the U.S. Coast Guard, the National
Association of State Boating Law Administra-
tors, or your local Power Squadron for a com-
plete set of rules governing the waters in
which you will be using your boat.
EMU44180
Boating organizations
The following organizations provide boating
safety training and information about boating
safety and laws.
In the U.S.A.
United States Coast Guard
Consumer Affairs Staff (G-BC)
Office of Boating, Public, and Consumer Af-
fairs
U.S. Coast Guard Headquarters
Washington, D.C. 20593-0001
http://www.uscgboating.org/
United States Power Squadrons
1-888-FOR-USPS (1-888-367-8777)
http://www.usps.org/
Boat Owners Association of The United
States
1-800-336-BOAT (1-800-336-2628)
http://www.boatus.com/
National Association of State Boating Law
Administrators (NASBLA)
1500 Leestown Road, Suite 330
Lexington, KY 40511 859-225-9497
http://www.nasbla.org/
National Marine Manufacturers Associa-
tion (NMMA)
200 East Randolph Drive
Suite 5100
Chicago, IL 60601
http://www.nmma.org/
Marine Retailers Association of America
155 N. Michigan Ave. Chicago,
IL 60304
http://www.mraa.com/
In the Canada
National Marine Manufacturers Associa-
tion Canada
14 McEwan Drive
Suite 8
Bolton, ON
L7E 1H1
http://www.nmma.org/
EMU33691
Basic boating rules (Rules of
the road)
Just as there are rules that apply when you
are driving on streets and highways, there are
waterway rules that apply when you are driv-
ing your boat. These rules are used interna-
tionally. (For U.S.A.: and are also enforced by
the United States Coast Guard and local
agencies.) You should be aware of these
rules, and follow them whenever you encoun-
ter another vessel on the water.
EMU33700
Steering and sailing rules and sound
signals
Whenever two vessels on the water meet one
another, one vessel has the right-of-way; it is
called the “stand-on” vessel. The vessel that
does not have the right-of-way is called the
“give-way” or “burdened”vessel. These rules
determine which vessel has the right-of-way,
and what each vessel should do.
U60R3BE0.book Page 4 Thursday, May 2, 2013 8:59 AM

Safety information
5
Stand-on vessel
The vessel with the right-of-way has the duty
to continue its course and speed, except to
avoid an immediate collision. When you main-
tain your direction and speed, the other vessel
will be able to determine how best to avoid
you.
Give-way vessel
The vessel that does not have the right-of-
way has the duty to take positive and timely
action to stay out of the way of the Stand-On
vessel. Normally, you should not cross in front
of the vessel with the right-of-way. You should
slow down or change directions briefly and
pass behind the other vessel. You should al-
ways move in such a way that the operator of
the other vessel can see what you are doing.
“ The general prudential rule ”
This rule is called Rule 2 in the International
Rules and says,
“ In obeying and construing these rules due
regard shall be had to all dangers of naviga-
tion and collision, and to any special circum-
stances, which may render a departure from
the above rules necessary in order to avoid
immediate danger.”
In other words, follow the standard rules ex-
cept when a collision will occur unless both
vessels try to avoid each other. If that is the
case, both vessels become “ Give-Way ” ves-
sels.
EMU25521
Rules when encountering vessels
There are three main situations that you may
encounter with other vessels which could lead
to a collision unless the Steering Rules are fol-
lowed:
Meeting: (you are approaching another ves-
sel head-on)
Crossing: (you are traveling across the other
vessel’s path)
Overtaking: (you are passing or being
passed by another vessel)
In the following illustration, your boat is in the
center. You should give the right-of-way to
any vessels shown in white area (you are the
Give-Way vessel). Any vessels in the shaded
area must yield to you (they are the Give-Way
vessels). Both you and the meeting vessel
must alter course to avoid each other.
Meeting
If you are meeting another power vessel head
on, and are close enough to run the risk of col-
lision, neither of you has the right-of-way Both
of you should alter course to avoid an acci-
dent. You should keep the other vessel on
your port (left) side. This rule doesn’t apply if
both of you will clear one another if you con-
tinue on your set course and speed.
U60R3BE0.book Page 5 Thursday, May 2, 2013 8:59 AM

Safety information
6
Crossing
When two power driven vessels are crossing
each other’s path close enough to run the risk
of collision, the vessel which has the other on
the starboard (right) side must keep out of the
way of the other. If the other vessel is on your
right, you must keep out of its way; you are the
Give-Way vessel. If the other vessel is on
your port (left) side, remember that you
should maintain course and direction, provid-
ed the other vessel gives you the right-of-way
as it should.
Overtaking
If you are passing another vessel, you are the
“Give-Way” vessel. This means that the other
vessel is expected to maintain its course and
speed. You must stay out of its way until you
are clear of it. Likewise, if another vessel is
passing you, you should maintain your speed
and direction so that the other vessel can
steer itself around you.
EMU25531
Other special situations
There are three other rules you should be
aware of when driving your boat around other
vessels.
Narrow channels and bends
When navigating in narrow channels, you
should keep to the right when it is safe and
practical to do so. If the operator of a power-
driven vessel is preparing to go around a
bend that may obstruct the view of other water
vessels, the operator should sound a pro-
longed blast on the whistle (4 to 6 seconds). If
another vessel is around the bend, it too
should sound the whistle. Even if no reply is
heard, however, the vessel should still pro-
ceed around the bend with caution. If you nav-
igate such waters with your boat, you will
need to carry a portable air horn, available
from local marine supply stores.
Fishing vessel right-of-way
All vessels that are fishing with nets, lines or
trawls are considered to be “fishing vessels”
under the International Rules. Vessels with
trolling lines are not considered fishing ves-
sels. Fishing vessels have the right-of-way re-
gardless of position. Fishing vessels cannot,
however, impede the passage of other ves-
sels in narrow channels.
Sailing vessel right-of-way
Sailing vessels should normally be given the
right-of-way. The exceptions to this are:
1. When the sailing vessel is overtaking the
power-driven vessel, the power-driven
vessel has the right-of-way.
2. Sailing vessels should keep clear of any
fishing vessel.
3. In a narrow channel, a sailing vessel
should not hamper the safe passage of a
power-driven vessel that can navigate
only in such a channel.
Reading buoys and other markers
The waters of the United States are marked
for safe navigation by the lateral system of
buoyage. Simply put, buoys and markers
have an arrangement of shapes, colors, num-
bers and lights to show which side of the buoy
a boater should pass on when navigating in a
particular direction. The markings on these
buoys are oriented from the perspective of be-
ing entered from seaward (the boater is going
towards the port). This means that red buoys
U60R3BE0.book Page 6 Thursday, May 2, 2013 8:59 AM

Safety information
7
are passed on the starboard (right) side when
proceeding from open water into port, and
black buoys are to port (left) side. When navi-
gating out of port, your position with respect to
the buoys should be reversed; red buoys
should be to port and black buoys to star-
board.
Many bodies of water used by boaters are en-
tirely within the boundaries of a particular
state. The Uniform State Waterway Marking
System has been devised for these waters.
This system uses buoys and signs with dis-
tinctive shapes and colors to show regulatory
or advisory information. These markers are
white with black letters and orange boarders.
They signify speed zones, restricted areas,
danger areas, and general information.
Remember, markings may vary by geograph-
ic location. Always consult local boating au-
thorities before driving your boat in unfamiliar
waters.
U60R3BE0.book Page 7 Thursday, May 2, 2013 8:59 AM

Safety information
8
ZMU01708
U60R3BE0.book Page 8 Thursday, May 2, 2013 8:59 AM

General information
9
EMU25171
Identification numbers record
EMU25184
Outboard motor serial number
The outboard motor serial number is stamped
on the label attached to the port side of the
clamp bracket.
Record your outboard motor serial number in
the spaces provided to assist you in ordering
spare parts from your Yamaha dealer or for
reference in case your outboard motor is sto-
len.
1. Outboard motor serial number location
U60R3BE0.book Page 9 Thursday, May 2, 2013 8:59 AM

General information
10
EMU33523
Read manuals and labels
Before operating or working on this outboard motor:
●Read this manual.
●Read any manuals supplied with the boat.
●Read all labels on the outboard motor and the boat.
If you need any additional information, contact your Yamaha dealer.
EMU33832
Warning labels
If these labels are damaged or missing, contact your Yamaha dealer for replacements.
F8
U60R3BE0.book Page 10 Thursday, May 2, 2013 8:59 AM

General information
11
EMU33912
Contents of labels
The above warning labels mean as follows.
1
WARNING
EWM01691
Emergency starting does not have start-
in-gear protection. Ensure shift control is
in neutral before starting engine.
2
WARNING
EWM01681
●Keep hands, hair, and clothing away
from rotating parts while the engine is
running.
●Do not touch or remove electrical parts
when starting or during operation.
3
WARNING
EWM01671
●Read Owner’s Manuals and labels.
●Wear an approved personal flotation de-
vice (PFD).
●Attach engine shut-off cord (lanyard) to
your PFD, arm, or leg so the engine
stops if you accidentally leave the helm,
which could prevent a runaway boat.
12
3
ZMU05740
U60R3BE0.book Page 11 Thursday, May 2, 2013 8:59 AM

General information
12
EMU35132
Symbols
The following symbols mean as follows.
Notice/Warning
Read Owner’s Manual
Hazard caused by continuous rotation
Electrical hazard
ZMU05696
ZMU05664
ZMU05665
ZMU05666
U60R3BE0.book Page 12 Thursday, May 2, 2013 8:59 AM

Specifications and requirements
13
EMU34521
Specifications
TIP:
“(AL)” stated in the specification data below
represents the numerical value for the alumi-
num propeller installed.
Likewise, “(SUS)” represents the value for
stainless steel propeller installed and “(PL)”
for plastic propeller installed.
EMU2821S
Dimension and weight:
Overall length:
1038 mm (40.9 in)
Overall width:
358 mm (14.1 in)
Overall height S:
998 mm (39.3 in)
Overall height L:
1125 mm (44.3 in)
Motor transom height S:
435 mm (17.1 in)
Motor transom height L:
562 mm (22.1 in)
Dry weight (AL) S:
39 kg (86 lb)
Dry weight (AL) L:
40 kg (88 lb)
Performance:
Full throttle operating range:
5000–6000 r/min
Rated power:
5.9 kW (8 HP)
Idle speed (in neutral):
1000-1100 r/min
Power unit:
Type:
4-stroke SOHC L2 4valves
Total displacement:
197 cm³ (12.0 c.i.)
Bore ×stroke:
56.0 ×40.0 mm (2.20 ×1.57 in)
Ignition system:
CDI
Spark plug (NGK):
BR6HS-10
Spark plug gap:
0.9–1.0 mm (0.035–0.039 in)
Steering system:
Tiller handle
Starting system:
Manual starter
Starting carburetion system:
Choke valve
Valve clearance IN (cold engine):
0.15–0.20 mm (0.0059–0.0079 in)
Valve clearance EX (cold engine):
0.20–0.25 mm (0.0079–0.0098 in)
Maximum generator output:
6 A
Lower unit:
Gear shift positions:
Forward-neutral-reverse
Gear ratio:
2.08(27/13)
Trim and tilt system:
Manual tilt
Propeller mark:
N
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Min. pump octane number (PON):
86
Fuel tank capacity:
12 L (3.17 US gal, 2.64 Imp.gal)
Recommended engine oil:
YAMALUBE 4M FC-W or 4-stroke
outboard motor oil
Recommended engine oil grade 1:
SAE 10W-30/10W-40/5W-30
API SE/SF/SG/SH/SJ/SL
U60R3BE0.book Page 13 Thursday, May 2, 2013 8:59 AM

Specifications and requirements
14
Engine oil quantity:
0.8 L (0.85 US qt, 0.70 Imp.qt)
Lubrication system:
Wet sump
Recommended gear oil:
Yamalube Marine Gearcase Lube or
Hypoid gear oil
Recommended gear oil grade:
SAE 90 API GL-4
Gear oil quantity:
0.150 L (0.159 US qt, 0.132 Imp.qt)
Tightening torque:
Spark plug:
25 Nm (2.55 kgf-m, 18.4 ft-lb)
Propeller nut:
17 Nm (1.73 kgf-m, 12.5 ft-lb)
Engine oil drain bolt:
24 Nm (2.45 kgf-m, 17.7 ft-lb)
EMU33554
Installation requirements
EMU33564
Boat horsepower rating
WARNING
EWM01560
Overpowering a boat can cause severe in-
stability.
Before installing the outboard motor(s), con-
firm that the total horsepower of your out-
board motor(s) does not exceed the boats
maximum horsepower rating. See the boat’s
capacity plate or contact the manufacturer.
EMU33571
Mounting motor
WARNING
EWM01570
●Improper mounting of the outboard mo-
tor could result in hazardous conditions
such as poor handling, loss of control,
or fire hazards.
●Because the motor is very heavy, spe-
cial equipment and training is required
to mount it safely.
Your dealer or other person experienced in
proper rigging should mount the motor using
correct equipment and complete rigging in-
structions. For further information, see page
29.
EMU25694
Battery requirements
EMU25730
Without a rectifier or Rectifier Regula-
tor
NOTICE
ECM01090
A battery cannot be connected to models
that do not have a rectifier or Rectifier
Regulator.
If you wish to use a battery with the models
without a rectifier or Rectifier Regulator, install
an optional Rectifier Regulator.
Using a maintenance-free battery with the
above models can shorten the life of the bat-
tery significantly.
Install an optional Rectifier Regulator or use
accessories rated to withstand 18 volts or
higher with the above models. Consult your
Yamaha dealer for details on installing an op-
tional Rectifier Regulator.
EMU34195
Propeller selection
Next to selecting an outboard motor, selecting
the right propeller is one of the most important
purchasing decisions a boater can make. The
type, size, and design of your propeller have
a direct impact on acceleration, top speed,
fuel economy, and even engine life. Yamaha
designs and manufactures propellers for ev-
ery Yamaha outboard motor and every appli-
cation.
Your outboard motor came with a Yamaha
propeller selected to perform well over a
range of applications, but there may be uses
where a different propeller would be more ap-
propriate.
U60R3BE0.book Page 14 Thursday, May 2, 2013 8:59 AM
