OWNER'S MANUAL

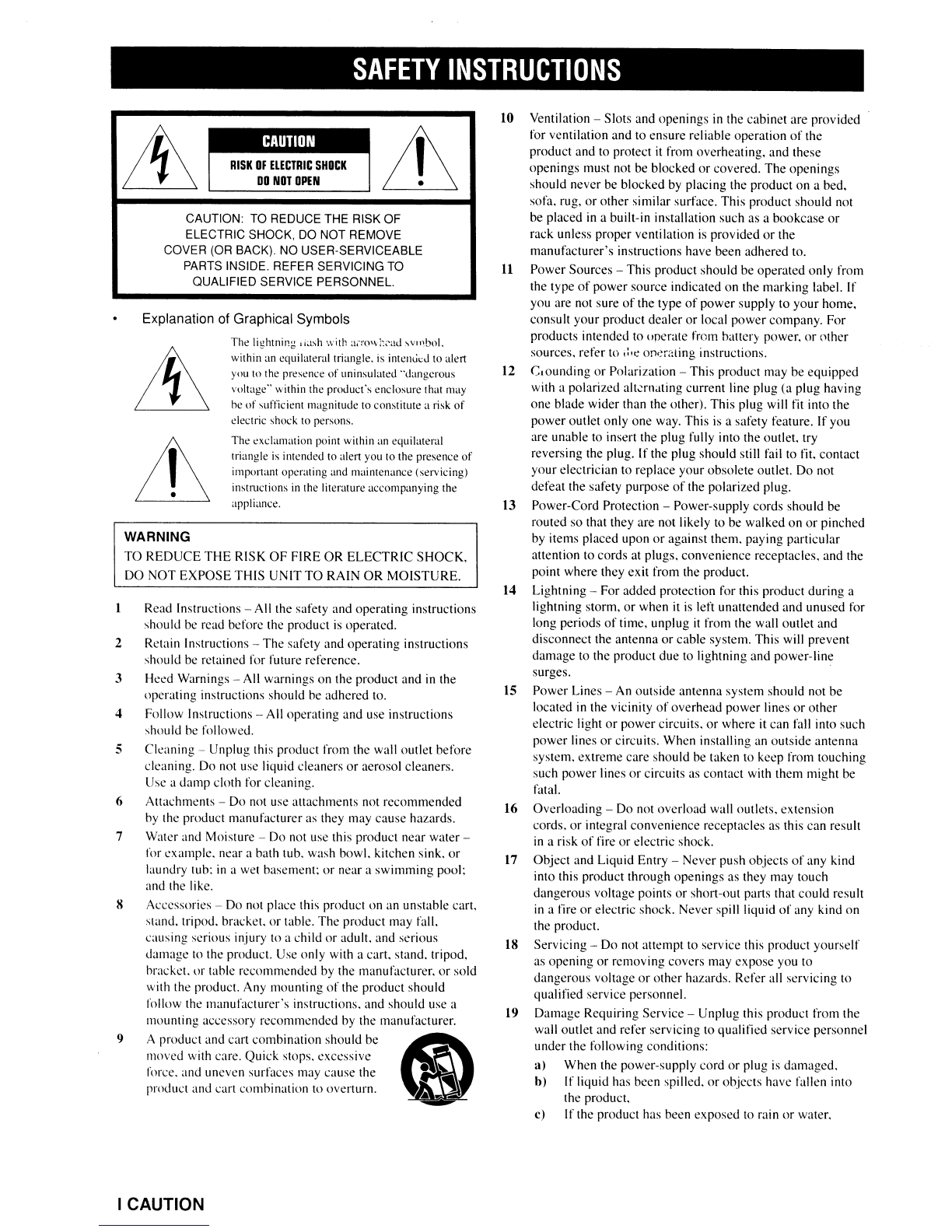

SAFETY INSTRUCTIONS
9
Explanation of Graphical Symbols
10 Ventilation -Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of the
product and to protect it from overheating. and these
openings must not be blocked or covered. The openings
should nevcr be blocked by placing the product on abed.
sofa. rug, or other similar surface. This product should not
be placed in abuilt-in installation such as a bookcase or
rack unless proper ventilation is provided or the
manufaclllrer's instructions have been adhered to.
11 Power Sources - This product should be operated only from
the type of power source indicated on the marking label. If
you are not sure of the type of power supply to your home.
consult your product dealer or local power company. For
products intendel! to ooerate from battery power. or Nher
sources. refer to ,:,e on~r,:ting instructions.
12 C,ounding or Polarization - This product may be equipped
with apolarizel! alt~rnating current line plug (a plug having
one blade wider than the other). This plug will fit into the
power outlet only one way. This is asafety feature. If you
are unable to insert the plug fully into the outlet. try
reversing the plug. If the plug should still fail to fit. contact
your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
13 Power-Cord Protection -Power-supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them. paying particular
attention to cords at plugs. convenience receptacles. and the
point where they exit from the product.
14 Lightning -For added protection for this product during a
lightning storm, or when it is left unattended and unused for
long periods of time. unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and power-line
surges.
15 Power Lines -An outside antenna system should not be
located in the vicinity of overheal! power lines or other
electric light or power circuits. or where it can fall into such
power lines or circuits. When installing an outside antenna
system. extreme care should be taken to keep from touching
such power lines or circuits as contact with them might be
fatal.
16 Overloading -Do not overload wall outlets. extension
cords. or integral convenience receptacles as this can result
in arisk of fire or electric shock.
L7 Object and Liquid Entry - ever push objects of any kind
into this product through openings as they may touch
dangerous voltage points or short-out parts that could result
in afire or electric shock. Never spill liquid of any kind on
the product.
18 Servicing -Do not attempt to service this product yourself
as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
19 Damage Requiring Service -Unplug this product from the
wall outlet and refer servicing to qualified service personnel
under the following conditions:
a) When the power-supply cord or plug is damaged.
h) If liquid has been spilled. or ohjects have fallen into
the product.
e) If the product has been exposed to rain or water.
The lightning Jiash \\.'ilh ai"ro\\-l:;;-au ~vlJ~bnl.
within an equilateral triangle. is intenucd to alen
you to the presence of uninsulated "dangerous
vultage" within the product's enclosure that may
he
of sufficient magnitude to constitute arisk of
dectric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert you to the presence
of
important operating and maintenance (servicing)
instructions
in the literature accompanying the
appliance.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
Read Instructions -All the safety and operating instructions
shoull! be read before the product is operated.
Retain Instructions - The safety and operating instructions
should be retained for future reference.
Heed Warnings -All warnings on the product and in the
operating instructions should he adhered to.
Follow Instructions -All operating and use instructions
should be rollowel!.
Ckaning -Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners.
Use al!amp cloth for cleaning.
Attachments -Do not use attachments not recommended
by the prol!uct manufaclllrer as they may cause hazards.
Water and Moislllre -Do not use this product near water -
ror example. near abath IlIb. wash bowl. kitchen sink. or
laundry IlIb: in awet basement: or near a swimming pool;
and the like.
Acccssories -Do not place this product on an unstable cart.
stand. tripolI. bracket. or table. The product may fall.
causing serious injury to achild or adult. and serious
damage to the product. Use only with acart. stand. tripod,
bracket. or table recommendel! by the manufacturer. or sold
with the product. Any mounting of the product should
rollow the manufacturer's instructions. and should use a
mounting accessory recommended by the manufaclllrer.
Aproduct and cart combination should be •
moved with care. Quick stops. excessive
force. and uneven surfaces may cause the • ~
product and cart combination to overturn. ~
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
7
6
5
4
2
3
ICAUTION

'. .' . " SAFETYINSTflUCTIONS
NEe - NATIONAL ELECTRICAL CODe
EXAMPLE OF ANTENNA GROUNDING
ANTENNA
DISCHARGE UNIT
(NEG SECTION 810-20)
GROUNDING CONDUCTORS
(NEG SECTION 810-21)
~,~ .m,"~
-----r1-- LEAD IN
__ ...-..,' III I WIRE
~~~~- GROUND CLAMPS
....--- POWER SERVICE GROUNDING
"':" ELECTRODE SYSTEM
(NEC ART 250. PART HI
ELECTRIC
SERVICE
EOUIPMENT
24 Outdoor Antenna Grounding -If an outside antenna or
cable system is connected to the product. be sure the
antenna
or cable system is grounded so as to provide some
protection against voltage surges and built-up static
charges. Article 810
of the National Electrical Code. ANSI!
NFPA 70. provides information with regard to proper
grounding
of the mast and supporting structure. grounding
of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements for
the grounding electrode.
Note to CATV system installer:
This reminder is provided to call the CATV system
installer's attention to Article 820-40
of the NEC that
provides guidelines for proper grounding and.
in particular,
specifies that the cable ground shall be connected to the
grounding system
of the building. as close to the point of
cable entry as practical.
d) If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions as an
improper adjustment
of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to its
normal operation,
e) If Ihe product has been dropped
or damaged in any
way. and
t) When the product exhibits adistinct change in
performance -this indicates aneed for service.
20 Replacement Parts -When replacement parts are
required. be sure the service technician has used
replacement parts specified
by the manufacturer or have
the same characteristics as the original part.
Unauthorized substitutions may result
in fire. electric
shock.
or other hazards.
21
Safe!)' Check -Upon completion of any service or
repairs to this product. ask the service technician to
perform safety checks to determine ,hat the product
is in
proper operating condition.
22 Wall
or Ceiling Mounting -The unit should be mounted
to awall
or ceiling only as recommended by the
manufacturer.
23 Heat -The product should be situated away from heat
sources such as radiators, heat registers. stoves.
or other
products (including amplifiers) that produce
heat
FCC INFORMATION (for US customers only)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS
UNIT!
This product. when installed as indicated in the
instructions contained
in this manual. meets FCC
requirements. Modifications not expressly approved
by Yamaha may void
your authority. granted by the
FCC. to use the
product
2. IMPORTANT: When connecting this product to
accessories and/or another product use
only high
quality shielded cables. Cable/s supplied with this
product
MUST be used. Follow all installation
instructions. Failure to follow instructions
could void
your FCC authorization to use this product in the USA.
3. NOTE: This product has been tested and found to
comply with the requirements listed in FCC
Regulations. Part
15 for Class "B" digital devices.
Compliance with these requirements provides a
reasonable level
of assurance that your use of this
product
in aresidential environment will not result in
harmful interference with other electronic devices.
This
equipment generates/uses radio frequencies and.
if not installed and used according to the instructions
found
in the users manual. may cause interference
harmful to the operation
of other electronic devices.
Compliance with FCC regulations does not guarantee
that interference will not
occur in all installations. If
this product is found to be the source
of interference.
which can be
determined by turning the unit "OFF" and
"ON". please try to eliminate the problem by using one
of the following measures:
Relocate
either this product or the device that is being
affected by the interference.
Utilize
power outlets that are on different branch (circuit
breaker or fuse) circuits or install AC line filter/s.
In the case
of radio or TV interference. relocate/reorient
the antenna. If the
antenna lead-in is 300 ohm ribbon
lead.
change the lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory
results. please contact the local retailer authorized to
distribute this type
of product If you can not locate the
appropriate retailer. please contact Yamaha Electronics
Corp., U.S.A.
6660 Orangethorpe Ave, Buena Park, CA
90620.
The above statements apply ONLY to those products
distributed by Yamaha Corporation
of America or its
subsidiaries.
CAUTION II

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.
To assure the finest performance, please read this
manual carefully. Keep it in asafe place for future
reference.
2Install
this unit in awell ventilated, cool, dry, clean
place with
at least 30 cm on the top, 20 cm on the
left and right, and 10 cm at the back of this unit
-away from direct sunlight, heat sources,
vibration,
dust, moisture, and/or cold.
3Locate
this unit away from other electrical
appliances, motors,
or transformers to avoid
humming sounds. To prevent fire or electrical
shock,
do not place this unit where it may get
exposed
to rain, water, and/or any type of liquid.
4Do
not expose this unit to sudden temperature
changes from
cold to :-Jot, and do not locate this
unit in aenvironment with high humidity (Le. e
room
with a humidifier) to prevent condensation
inside this unit, which may cause an electrical
shock, fire, damage
to this unit, and/or personal
injury.
5On the
top of this unit, do not place:
-Other
components, as they may cause damage
and/or
discoloration on the surface of this unit.
-
Burning objects (Le. candles), as they may
cause fire, damage
to this unit, and/or personal
injury.
-Containers
with liquid in them, as they may
cause electrical
shock to the user and/or
damage
to this unit.
6Do not cover this unit with anewspaper,
tablecloth, curtain, etc.
in order not to obstruct
heat radiation. If the temperature inside this unit
rises, it may cause fire, damage to this unit, and/or
personal injury.
7Do
not plug in this unit to awall outlet until all
connections are complete.
8Do not operate this unit upside-down. It may
overheat,
possibly causing damage.
9Do not use force on switches, knobs and/or cords.
10 When disconnecting the power cord from the wall
outlet,
grasp the plug; do not pull the cord.
11 Do not clean this unit with chemical solvents; this
might damage the finish. Use aclean, dry cloth.
12 Only voltage specified on this unit must be used.
Using
this unit with a higher voltage than
specified
is dangerous and may cause fire,
damage
to this unit, and/or personal injury.
YAMAHA will
not be held responsible for any
damage
resulting from use of this unit with a
voltage
other than specified.
13 To prevent damage by lightning, disconnect the
power cord from the wall
outlet during an
electrical storm.
14 Take care of this unit so that no foreign objects
and/or liquid drops inside this unit.
15 Do not attempt to modify or fix this unit. Contact
qualifiedYAMAHA
service personnel when any
service
is needed.The cabinet should never be
opened
for any reasons.
16 When not planning to use this unit for long
periods of time (i.e. vacation), disconnect the AC
power plug from the wall outlet.
17 Be sure to read the "TROUBLESHOOTING" section
on ;:;ornmon operating errors before ccnduding
~:lat this unit is faulty. .
18
3efore moving this unit, press STANDBY/ON to set
this unit in the standby mode, and disconnect the
AC power plug from the wall outlet.
19 VOLTAGE SELECTOR (China and General models
only)
The VOLTAGE SELECTOR on the rear panel
of this
unit must be set for your local main voltage
BEFORE
plugging into the AC main supply.
Voltages are 110/120/220/240 VAC, 50/60 Hz.
This unit is not disconnected from the AC power
source as long as
it is connected to the wall outlet.
even
if this unit itself is turned off. This state is called
the standby mode.
In this state, this unit is designed to
consume avery small quantity
of power.
IMPORTANT
Please record the serial number of this unit in the
space below.
MODEL:
Serial No.:
The serial number is located on the rear
of the unit.
Retain this
Owner's Manual in asafe place for future
reference.
FOR CANADIAN CUSTOMERS
To prevent electric shock, match wide blade of plug to
wide slot and fully insert.
This Class Bdigital apparatus complies with Canadian
ICES-003.
We WantYou Listening For A Lifetime
YAMAHA and the Electronic Industries Association's Consumer
Electronics Gmup want
you to get the most out of your e4uipment
hy playing it al asafe level. One that lets the sound come through
loud and cle;u· without annoying blaring or distortion -and. most
illlfmrtantly. without alfecting your sensitive hearing.
III CAUTION
Since hearing damage from loud sounds is often
undetectable until
it is too late. YAMAHA and the
Electronic Industries Association's Consumer
Electronics Group recommend you
to avoid
prolonged exposure
from excessive volume levels. Ii
·
/.'
:: 6
II _
... ~
.........
LISTENING
JUALIlwl:lme

CONTENTS
INTRODUCTION
CONTENTS 1
FEATURES 2
GETTING STARTED 3
Checking the package contents 3
Installing batteries
in the remote control 3
CONTROLS AND FUNCTIONS 4
Front panel 4
Remote control 6
Using the remote control 7
Front panel display 8
SPEAKER SETUP 9
Speakers 9
Speaker placement 9
Connecting the speakers 10
CONNECTIONS 13
Before connecting components 13
Connecting video components 14
Connecting audio components 16
Connecting the antennas
17
Connecting an external amplifier 18
Connecting an external decoder 18
Connecting the power supply cords 19
Turning on the power 19
SPEAKER MODE SETTINGS 20
ADJUSTING
SPEAKER OUTPUT LEVELS .. 21
Before you begin 21
Using the test tone 21
BASIC PLAYBACK 23
Input modes and indications 25
Selecting asound field program
26
DIGITAL SOUND FIELD PROCESSING
(DSP) 29
Understanding sound fields 29
Hi-Fi
DSP programs 29
CINEMA-DSP 30
Sound design of CINEMA-DSP 30
CINEMA-DSP programs 32
TUNING 34
Automatic and manual tuning 34
Presetting stations 35
Tuning
in to apreset station 37
Exchanging preset stations 37
SLEEP TIMER 38
Setting the sleep timer 38
Canceling the sleep timer 38
RECORDING 39
ADVANCED OPERATION
SET MENU 40
Adjusting the items on the SET MENU 40
I SPEAKER SET (speaker mode settings) 41
2LFE LEVEL 43
3
SP DLY TIME (speaker delay time) 43
4
D. RANGE (dynamic range) 44
5LlR BALANCE (balance of the main left and
right speakers) 44
6HP
TONE CTRL (headphone tone control) 44
7I/O ASSIGN (input/output assignment)
44
8INPUT MODE (initial input mode) .45
I) DISPLAY SET 4:;
10MEM.
GUARD (memory guard) .45
REMOTE CONTROL FEATURES 46
Control area 46
Setting the manufacturer code 47
Clearing setup manufacturer codes 47
Controlling other components
48
ADJUSTING THE LEVEL OF THE EFFECT
SPEAKERS 49
ADJUSTING
THE DELAY TIME 50
ADJUSTING
THE PARAMETER SETTINGS
FOR PRO LOGIC IT MUSIC 51
Changing parameter settings 51
PRO LOGIC IT Music parameter descriptions 51
ADDITIONAL INFORMATION
TROUBLESHOOTING 52
GLOSSARY 56
SPECIFICATIONS 58
1

FEATURES
Built-in 6-channel power amplifier
•Minimum RMS output power
(0.06% THO, 20 Hz -20 kHz, 8Q)
Main: 75 W + 75 W
Center: 75 W
Rear:
75W+75W
Rear center: 75 W
Multi-mode digital sound field
processing
•Dolby Pro Logic/Dolby Pro Logic II dC~0c~r
•Dolby Digital/Dolby Digital EX decoder
•DTS/DTS-ES compatible decoder
•
CINEMA DSP: Combination of YAMAHA DSP
technology and Dolby Pro Logic, Dolby Digital
or DTS
•Virtual
CINEMA DSP
• SILENT CINEMA DSP
Sophisticated AM/FM Tuner
•40-Station random access preset tuning
•Automatic preset tuning
•Preset station shifting capability (Preset
editing)
Other features
•96-kHz/24-bit D/A converter
•
"SET MENU" for optimizing this unit for your
AudioNideo system
•Test tone generator for easier speaker balance
adjustment
•6-channel external
decoder input
•S-video signal input/output capability
•
Component video input/output capability
•Optical and coaxial digital audio signal
jacks
~Sleep timer
•Remote control with preset manufacturer
codes
•About this manual
- :'ci)-:. indicates atip for your operation.
-
Some operations can be performed by using either the buttons on the main unit or on the remote control. [n cases when the button
names differ between the main unit and the remote control. the button name on the remote control is given in parentheses.
-This manual
is printed prior to production. Design and specifications are subject to change in part for the reason of the improvement
in operativity ability. and others. In this case. the product has priority.
D[] IDOLBY I
DIGITAL- EX
PRO LOGIC II
Manufacturcd under license from Dolby Laboratories.
"Dolby". "Pro Logic". and the double-D symbol are trademarks
of Dolby Laboratories.
2
SURROUND
"DTS·'. "ES" and "DTS Digital Surround" are trademarks of
Digita[ Theater Systems. Inc.

GETTING STARTED
Indoor FM antenna
(U.S.A., Canada, China,
Korea and General models)
~
(Europe, U.K., Australia and
Singapore models)
75-ohm/300-ohm antenna
adapter (U.K. model)
FrontVIDEO
AUX jack cap
'0 "0 ... _
ae=i m-m
0000
0'000
en:)' 00
~~ §§
00 8
8'@~(!j'O
~ Q) Qj'~'
~-~ G§
GilUJedj~
-( 1Ea)+
@vB
ggElElE3
(][I El El [§J
CEJ
Check your package to make sure it contains the following items.
Remote control Batteries (4) AM loop antenna
(AAA,
R03, UM·4)
•Notes on batteries
•Change all of the batteries if you notice adecrease in
the operating range of the remote control, that the
indicator does not tlash, or the light becoming dim.
•Do not use old batteries together with new ones.
•Do not use different types of batteries (such as alkaline
and manganese batteries) together. Read the packaging
carefully as these different types of batteries may have
the same shape and color.
• If the batteries have leaked. dispose of them
immediately. Avoid touching the leaked material or
letting it come into contact with clothing, etc. Clean
the battery compartment thoroughly before installing
new batteries.
If the remote control is without batteries for more than
2minutes, or if exhausted batteries remain in the
remote control. the contents of the memory may be
cleared. When the memory is cleared, insert new
batteries, set up the manufacturer code that may have
been cleared.
Press the v part and slide off the battery
compartment cover.
Insert the four supplied batteries (AAA, R03,
UM-4)
according to the polarity markings on
the inside of the battery compartment.
Slide the cover back on so
that it snaps into
place.
3

CONTROLS AND FUNCTIONS
Front panel
,I
@YA~AHA NATURAL SOUNO AV RECEIVER
1
: l--=-~"';;;;;;:=-
'I @ @2]
oSTANDBY/ON
Turns this unit on, or set it to the standby mode. When
you turn this unit on. you will hear aclick and there will
be a 4 to 5-second delay before this unit can reproduce
sound.
Standby mode
[n this mode, this unit will consume asmall amount of
power in order to receive infrared-signals from the
remote control.
8Remote control sensor
Receives signals from the remote control.
8Front panel display
Shows information about the operational status of this
unit.
oINPUT MODE
Sets the priority for the types of input signals (AUTO,
DTS.
ANALOG) to receive when one component is
connected to two
or more input jacks. Priority cannot be
set when 6CH
[NPUT is selected as the input source.
4
oINPUT <J / [>
Selects the input source you want to listen to or watch.
oVOLUME
Controls the output level of all audio channels.
This does not atlect the OUT (REC) level.
o6CH INPUT
Selects the audio source connected to the 6CH INPUT
jacks. This audio takes priority over the source selected
with
INPUT <J / [> (or the input selector buttons on the
remote control).
onSILENT (PHONES jack)
Allows you enjoy DSP effect for private listening with
headphones. When you connect headphones, no signals
are output to the speakers
or the OUTPUT jacks.
oSPEAKERS AlB
Turns the set of main speakers connected to the Aand/or
Bterminals
on or off.

· . . . . COt'!TROLS AND FUNCTIONS
41i> STEREO/EFFECT
Switches between normal stereo and DSP effect
reproduction. When STEREO is selected, 2-channel
signals are directed to the main left and right speakers
without effect sounds and all Dolby Digital and DTS
signals (except the LFE channel) are mixed down to the
main left and right speakers.
$PROGRAM <J Ic>
Selects the DSP program.
.. PRESETITUNING <J Ic>
Selects preset station numbers Ito 8when the colon (:)
appears in the front panel display.
Selects the tuning frequency when the colon (:) does not
appear.
tI) AlBIC/DIE
Selects preset station groups Ato E.
4D BASS
Adjusts the low-frequency response for the main left and
right channels.
Turn right to increase or turn left to decrease the low-
frequency response.
~ TREBLE
Adjusts the high-frequency response for the main left and
right channels.
Turn right to increase or turn left to decrease the high-
frequency response.
~ VIDEO AUX jacks
Inputs for audio and video signals from aportable
external source (game console, etc.). Set the input source
to V-AUX to enjoy source signals from these jacks.
When the VIDEO AUX jacks on the front panel are not
used, you can attach the provided front VIDEO AUX jack
cap as shown in the illustration. When the cap is not
attached. be sure retain it carefully.
4D PRESETITUNING (EDIT)
Switches the function of PRESETITUNING <J / C>
between selecting apreset station number and tuning (the
colon (:) turns on or off).
This button is also used to exchange the assignment of
two preset stations with each other.
~ TUNING MODE (AUTO/MAN'L MONO)
Switches the tuning mode between automatic and manual.
G) MEMORY (MAN'L1AUTO FM)
Stores the current station in the memory.
@t) FM/AM
Switches the reception band between FM and AM.
5

CONTROLS AND FUNCTIONS
Remote control
coo.,,,
This section describes the remote control controls and
their functions. Make sure that the
AMP mode is selected
before starting operation. See "'REMOTE
CONTROL
FEATURES" on pages 46 to 48.
o-.~--"---_ ... _._, [------0
~
DtSCSl<IP
@YAMAHA
6
oInfrared window
Outputs infrared control signals. Aim this window at the
component you want to operate.
f) CODE SET
Used when setting up the manufacturer code (see page
47).
oInput selector buttons
Select the input source and set the remote control to
operate the selected source component.
oDSP program
Sek~t i'~!> programs for the AMP position. Press a
bUtlL1I1 tt:;peatedly to select a OSP program within that
group.
oLEVEL
Selects the effect speaker channel to be adjusted.
oMulti control section
Used when changing the setting and to implement the
settings.
f) TEST
Outputs the test tone to adjust the speaker levels.
oTRANSMIT indicator
Flashes while the remote control is sending signals.
oSTANDBY
Sets this unit in the standby mode.
«D SYSTEM POWER
Turns on the power of this unit.
tD SLEEP
Sets the sleep timer.
o6CH INPUT
Selects the audio source connected to the 6CH INPUT
jacks.
~ AMP
Sets the remote control to the AMP mode for controlling
this unit.
4D~
Sets the remote control to operate other component (not
necessarily connected to this unit) without changing this
unit's input source.
~ VOLUME +/-
Increases or decreases the volume level.
4@ MUTE
Mutes the sound. Press again to restore the audio output
to the previous volume level.

o
oSTEREO/EFFECT
Switches between normal stereo and DSP effect
reproduction. When STEREO is selected. 2-channel
signals are directed to the main left and right speakers
without effect sounds and all Dolby Digital and DTS
signals (except the LFE channel) are mixed down to the
main left and right speakers.
~ SET MENU
Selects the SET MENU mode.
. CONTROLS AND FUNCTIONS
~ !=-~O @ @ «> <!l<.i_")
~~~~ -;----,I;~~~;J
30° •30°
--=--.--:::;.-- Approximately 6 m (20 feet)
The remote control transmits adirectional infrared beam.
Be sure to aim the remote control directly at the remote
control sensor on the main unit during operation.
•Handling the remote control
•Do not spill water or other liquids on the remote
control.
•Do not drop the remote control.
•Do not leave or store the remote control in the
following types of conditions:
-high humidity or temperature such as near aheater,
stove or bath:
-dusty places: or
- in places subject to extremely low temperatures.
7

CONTROLS AND FUNCTIONS
Front panel display
o
r:;;:· MArRiX-l~/DVR, , VCR1, 0 V-AU~, ,O·TV ICBl, ,OVO , ,MD/CO·R, ,~~o =:-;:;r.:;';:;;-~;;::---,
i DO DIGITAL vrRTu~n lOTS DOLBY OIGITAlPRO lOGIC II ,--, STEREO AUTO
, DO PRO LOGlc/n "::sii:"ENT (MOVIE THTR 12 ENTERTAINMENT I TUNED MEMORY
I:~~:i - 1IIIIIIIIIIIili
o Processor indicators
Lights up when the ~.Ir.[]]=-':O:;:IO::;G:;:;IT::-;;A7L'). VIRTUAL.
( [[] PRO LOGIC/ n ) or (DSP) are activated.
MATRIX lights up when the Dolby Digital EX decoder or
the DTS-ES compatible decoder is activated.
f) Input source indicator
Shows the current input source with acursor.
eMUTE indicator
Flashes while the MUTE function is on.
oVOLUME level indicator
Indicates the volume level.
o ( PCM ) indicator
Lights up when this unit is reproducing peM (pulse code
modulation) digital audio signals.
oSILENT indicator
Lights up when headphones are connected while the
Jigital sounJ field processor is on.
«i> STEREO indicator
Lights up when this unit is receiving astrong signal for an
FM stereo broadcast while the "AUTO" indicator is lit.
mTUNED indicator
Lights up when this unit is tuned to astation.
oMEMORY indicator
Flashes to show astation can be stored.
Q) AUTO indicator
Shows that this unit is in the automatic tuning mode.
mSLEEP indicator
Lights up while the sleep timer is on.
~ Input channel indicator
Indicates the channel components of input signals being
received.
oHeadphones indicator
Lights up when headphones are connected.
oDSP program indicators
The name of the selected DSP program lights up when the
ENTERTAINME T. MOVIE THEATER I. MOVIE
THEATER 2 or O(J/DTS SURROUND DSP program is
selected.
o Multi-information display
Shows the current DSP program name and other
information when adjusting or changing settings.
8

SPEAKER SETUP
This unit has been designed to provide the best sound-
tield quality with a6-speaker system, using main left and
right speakers, rear left and right speakers, acenter
speaker, and arear center speaker. If you use different
brands of speakers (with different tonal qualities) in your
system, the tone of amoving human voice and other types
of sound may not shift smoothly. We recommend that you
use speakers from the same manufacturer or speakers
with the same tonal quality.
The main speakers are used fOl the main source sound
plus effect sounds. They will probably be the speakers
from your present stereo system. The rear speakers are
used for effect and surround sounds. The center speaker is
for the center sounds (dialog, vocals, etc.). The rear center
speaker supplements the rear (left and right) speakers and
provides for more realistic front-to-back transitions.
The main speakers should be high-performance models
and have enough power-handling capacity to accept the
maximum output of your audio system. The other
speakers do not have to be equal to the main speakers. For
precise sound localization, however, it is ideal to use the
models of equivalent performance with the main
speakers.
•Use of asubwoofer expands your
sound field
It is also possible to further expand your system with the
addition of asubwoofer. The use of asubwoofer is
effective not only for reinforcing bass frequencies from
any or all channels. but also for reproducing the LFE
(low-frequency effect) channel with high fidelity when
playing back Dolby Digital or DTS signals. The
YAMAHA Active Servo Processing Subwoofer System is
ideal for natural and lively bass reproduction.
Refer to the following diagram when you place the
speakers.
Center speaker
Rear speaker (R)
Main
speaker (L)
Rear center
speaker
Rear speaker (L)
•Main speakers
Place the main left and right speakers an equal distance
from the ideal listening position. The distance between
each speaker and each side of the video monitor should
also be the same.
•Center speaker
Align the front face of the center speaker with the front
face of your video monitor. Place the speaker as close to
the monitor as possible (such as directly over or under the
monitor) and centrally between the main speakers.
•Rear speakers
Place these speakers behind your listening position.
facing slightly inwards, nearly 1.8 m(6 feet) above the
floor.
•Rear center speaker
Place the rear center speaker in the center between the
rear left and right speakers at the same height from the
floor as the rear speakers.
•Subwoofer
The position of the subwoofer is not so critical. because
low bass sounds are not highly directional. But it is better
to place the subwoofer near the main speakers. Turn it
slightly toward the center of the room to reduce wall
reflections.
!,!§tll
•If you do not use any of effect speakers (rear. center and/or rear
center). change the settings
of SPEAKER SET items at the
SET MENU to designate the signals to other terminals you
connect speakers to.
CAUTION
Use magnetically shielded speakers. If this type of
speakers still creates the interference with the monitor.
place the speakers away from the monitor.
9

SPEAKER SETUP
Connecting the speakers
Be sure to connect the left channel (L). right channel (R), "+" (red) and "-" (black) properly. If the connections are
faulty. no sound
wi II be heard from the speakers. and if the polarity of the speaker connections is incorrect. the sound
will be unnatural and lack bass.
CAUTION
•Use speakers with the specified impedance shown on the rear panel of this unit.
•Do not let the bare speaker wires touch each
other or any metal part of this unit. This could damage this unit
and/or the speakers.
If necessary. use the
SET MENU to change the speaker mode settings according to the number and size of the speakers
in your configuration after you finish connecting your speakers.
•Speaker cables
Remove approximately 10 mm (3/8") of
insulation from each of the speaker cables.
Twist the exposed
wires of the cable
together to prevent short circuits .
-----_.- -----,
Aspeaker cord is a~tually apair of insulated cables
rUl~:1ing side by side. One cable is colored or shaped
differently. perhaps with astripe. groove
or ridge.
D
~
~
Tighten the knob to secure the wire.
Red: positive (+)
Black: negative (-)
• Connecting to the SPEAKERS terminals
O-U-n-sc-r-e-w-t-h-e-k-n-o-b-. ----------
~ Insert one bare wire into the hole in the side
of each terminal.
(U.S.A. model)
\ I,
~Ci>-:'
(U.S.A .• Canada. Australia. China. Korea and General models)
•Banana plug connections are also possible. First. tighten the
knob and then insert
the banana plug connector into the end of
the corresponding terminal.
•MAIN SPEAKERS terminals
One or two speaker systems can be connected to these terminals. When using only one speaker system. it can be
connected to either the MAIN A
or the MAIN Bterminals.
•REAR SPEAKERS terminals
Arear speaker system can be connected to these terminals.
•CENTER SPEAKER terminals
Acenter speaker can be connected to these terminals.
•REAR CENTER SPEAKER terminals
Arear center speaker can be connected to these terminals.
10

Main Bspeaker
Right Left Main Aspeaker Right Left
@8 @8
@8
SPEAKER SETUP
Subwoofer
system Right Left
Rear speaker
Rear center
speaker
The diagram shows the speaker layout in the listening
room.
•SUBWOOFER jack
When using asubwoofer with built-in amplifier, including the YAMAHA Active Servo Processing Subwoofer System,
connect the input
jack of the subwoofer system to this jack. Low bass signals distributed from the main, center and/or
rear channels are directed to this
jack in accordance with your SPEAKER SET selections. The LFE (low-frequency
effect) signals generated when Dolby Digital
or DTS is decoded are also directed to this jack in accordance with your
SPEAKER SET selections.
N!~"'\;
R~~;
•The cut-off frequency of the SUBWOOFER jack is 90 Hz.
•If you do not use asubwoofer, designate the signals to the main left and right speakers by changing the setting
of SPEAKER SET
item" IE BASS" on the SET MENU to MAIN.
•Use the control on the subwoofer to adjust its volume level. It is also possible to adjust the volume level by using this unit's remote
control (see "ADJUSTING
THE LEVEL OF THE EFFECT SPEAKERS" on page 49).
11

SPEAKER SETUP
•IMPEDANCE SELECTOR switch
WARNING
Do not change setting of the IMPEDANCE SELECTOR switch when the power of this unit is on. this may damage
the unit. If this unit fails to turn on when STANDBY/ON (or SYSTEM POWER) is pressed. the IMPEDANCE
SELECTOR switch may not be fully slid to either position. If so. slide the switch all the way to either position when
this unit is in the standby mode.
Select the switch position (left
or right) according to the impedance of the speakers in your system. Be sure to move this
switch
only when this unit is in the standby mode.
IMPEDANCE
SELECTOR
switch
[
(U.S.A. model)
12
Switch Speaker Impedance level
position
If you use one set
of main speakers,
Ithe impedance
of each speaker :T1ust
Main be 4n or higher.
If you use two sets
of main speakers.
the impedance
of each speaker must
be 8n
or higher.
Left Center The impedance must be 6n
or
higher.
Rear The impedance must be 6n
or
Center higher.
Rear
The impedance of each speaker must
be 6n
or higher.
If you use one set of main speakers.
the impedance
of each speaker must
be 8n
or higher.
If you use two sets
of main speakers.
Main the impedance
of each speaker must
be
16 n or higher.
[Canada model onlyI
The impedance of each speaker must
Right be 8n
or higher.
Center The impedance must be 8nor
higher.
Rear The impedance must be 8nor
Center higher.
Rear The impedance
of each speaker must
be 8n
or higher.

CONNECTIONS
CAUTION
Do not connect this unit or other components to the
mains power until all connections between the
components have been completed.
•Be sure all connections are made correctly, that is to
say L(left) to L. R(right) to R, "+" to "+" and "-" to
"_". Some components require different connection
methods and have different jack nnmes. Refer to the
operation instructions for each component to be
connected to this unit.
•When you connect other YAMAHA audio components
(such as atape deck, MD recorder and CD player or
changer), connect them to the jack with the same
number labels as 01 [1], [I] etc. YAMAHA applies this
labeling system to all its products.
•After you have completed all connections, check them
again to make sure they are correct.
•The name of jack corresponds to input selector.
•Connecting to digital jacks
This unit has digital jacks for direct transmission of
digital signals through either coaxial or fiber optic cables.
You can use the digital jacks to input PCM, Dolby Digital
and DTS bitstreams. To enjoy multi-channel sound track
of DVD software, etc. with DSP effect. you need to make
digital connection. All digital input jacks are acceptable
for 96-kHz sampling digital signals.
Nqll
• The OPTICAL jacks on this unit conform to the EIA standard.
If you use afiber optic cable that does not conform to this
standard. this unii
m.iY not function properly.
DIGITAL INPUT jacks
(pages 13-16) Antenna input terminals (page 17) Speaker terminals (pages 10-11)
Audio component jacks
(page 16) Video component jacks
(pages 14-15)
6CH INPUT jacks
(page 18)
DIGITAL OUTPUT jack
(page 16)
SUBWOOFER
OUTPUT jack
(page 11) OUTPUT jacks
(page 18)
AC OUTLETS
(page 19)
13

CONNECTIONS
Connecting video components
Refer to the connection examples on the next page.
•Types of video jacks
There are three types of video jacks as follows:
ICQtAPONENT VIDEO
'."I.tO
o~ !ii~
• ~ ~-·r
OVIDEO jack
Conventional composite video signal.
8SVIDEO jack
Transmits color and luminance separately ::;O~; "chives
high-quality color reproduction.
oCOMPONENT VIDEO jacks
Transmit color difference (Ps/Cu. PldCR) and
luminance separately and provide the best quality
picture.
•Each type
of video jack works independently. Signals
input through the composite video. S-video
and
component jacks are on ly output through the
corresponding composite video. S-video. and
component jacks.
•Use acommercially available cable specified for
connecting each type of jacks.
• The description of the component video jacks may
differ
depending on the component (e.g. Y. Cs. CRiY.
PRo PR/Y. B- Y. R-Yetc.). When using these jacks. refer
also to the operation instructions for the
component
being connected.
•Connecting avideo monitor
Connect the video input jack on your video monitor to the
MONITOR OUT VIDEO jack.
Note
oIf you conncct this unit with asource component using S-video
(or Componcnt vidco) jacks. you also need to connect your
vidco monitor using 5-vidco (or Component video) jacks.
•Connecting a OVO player/digital
TV/cableTV
Connect the optical digital audio signal output jack on
your component to the DIGITAL INPUT jack and
connect the video signal output jack on the component to
the VIDEO jack on this unit.
Then connect AUDIO jacks on your component to the
AUDIO jacks on this unit.
14
,I,
~Cjl~
oIf your video component has an 5-video output or component
video output. connect the S-video signal output jack on the
component to the 5 VIDEO jack or connect the component
video signal output jacks on the component to the
COMPONENT VIDEO jacks.
o The AUDIO jacks are available for avideo component which
does not have optical digital output jack. However. multi-
channel reproduction cannot be obtained with audio signals
input from AUDIO jacks .
•Connecting agame console or
camcorder
Connect the optical digital audio signal output jack on
your video component to the OPTrCALjack on the front
pand ami connect video signal output jack on the
component to ~lJe ViDEO jack on the front panel.
,',
~Cjl~
oIf your video component has an S-video output. connect the 5-
video signal output jack on the component to the S VIDEO
jack.
o The AUDIO jacks are available for avideo component such as
a camcorder which does not have optical digital output jack.
•Connecting aVCR or OVR (digital
video recorder)
Connect the audio signal input jacks on your video
component to the AUDIO OUT jacks and connect the
video signal input jack on the video component to the
VlDEO OUT jack on this unit for picture recording.
Connect the audio signal output jacks on your component
to the AUDIO IN jacks and connect the video signal
output jack on the component to the VlDEO IN jack on
this unit to playa source from your recording component.
Second VCR or digital video recorder can be connected
using VCR 2/DVR jacks.
oIf your video component has an S-video input. connect the S-
video signal input jack on the component to the S VIDEO OUT
jack.
oIf your video component has an S-video output. connect the S-
video signal output jack on the component to the S VIDEO IN
jack.
Note~;!
o Once you have connected arecording component to this unit.
keep its power turned on while using this unit. If the power is
off. this unit may distort the sound from other components.
oS-video and component video signals pass independently
through this unit's video circuit. Make sure to connect this unit
to hath asource component and arecording component using
the video jacks of the same system.

VCR 1
AUDIO
~VIDEO
OUTPUT INPUT INPUT OUTPUT
@@ @@ ® ®
DVD player
8AS8 TREBLE
(> .~ ~
Game console or
camcorder
CONNECTIONS
®
VIDEO
INPUT
D
Video monitor
---t~ .....-indicates signal direction
---i[!)J- indicates left analog cables
---1jJNr indicates right analog cables
omI2D indicates optical cables
'---4ElJ- indicates video cables
15

•Connecting aCD recorder or MD
recorder
,',
'::(j)~
•The AUDIO jacks are availahle for aCD player which does not
have coaxial digital output jack.
•Connecting aCD player
Connect the coaxial digital output jack on your CD player
to the DiGiTAL iNPUT CD jack.
CONNECTIONS
Connecting audio compon,enls
.~
.,
~
,',
'::(j)~
•The AUDIO jacks are available for an CD recorder or MD
recorder which does not have optical digital input or output
jack.
Notesi
~,,<' - oJ,
•Once you have connected arecording component to this unit.
keep
its power turned on while using this unit. If the power is
off. this unit may distort the sound from other components.
•DIGITAL OUTPUT jack and analog OUT (RECl jacks are
independent. Only digital signals are output
from DIGITAL
OUTPUT jaek and analog signals
from OUT (REC) jacks.
Connect the optical digital signal input jack on your CD
recorder or MD recorder to the DIGiTAL OUTPUT MOl
CD-R jack for digital recording.
Connect the optical digital output jack on your CD
recorder or MD recorder to the DIGITAL INPUT MDI
CD-R jack to playa source from your recording
component.
COAXIAL
I'~------=-~U~""_I--H
CD player
OPTICAL
OUTPUT
( ~
I-=--~'-----=---'~~ ..... t+-f-+I+4111
CD recorder or INPUT
MD recorder
~ indicates signal direction
---ffi):r indicates coaxial cables
-mnilIIQl} indicates optical cables
16
