Yamaha ATS-1060 User manual

Before using the sound bar, make sure you have received all of the following items.
Install the sound bar on the TV stand, etc.
The sound bar can also be mounted on a wall, using the included
mounting template and commercially available screws. Refer to the
Owner’s Manual for additional installation instructions.
Supplied items
ATS-1060 Quick Start Guide UA
EN
Sound bar (ATS-1060)
Remote control
A CR2025 Lithium battery
has already been inserted
into the remote control.
Optical digital audio cablePower cable
Mounting template
Use when mounting the sound bar on a wall
Spacers × 2
Use when mounting the
sound bar on a wall
Owner’s Manual
Analog audio cable
(RCA plug (L/R)-3.5 mm
mini plug cable)
Quick Start Guide
(This sheet)
Preparing the remote control
Remove the battery’s insulating strip before
attempting to use the remote control.
Battery’s insulating strip
Installation
Keys
Caution
• Do not stack the sound bar and a BD player or other device directly on each other.
Doing so may cause a malfunction due to vibrations.
Published 06/2016 KS-A0
Manual Development Group
© 2016 Yamaha Corporation
ATS-1060/UA/qsg
— 1 —

TV

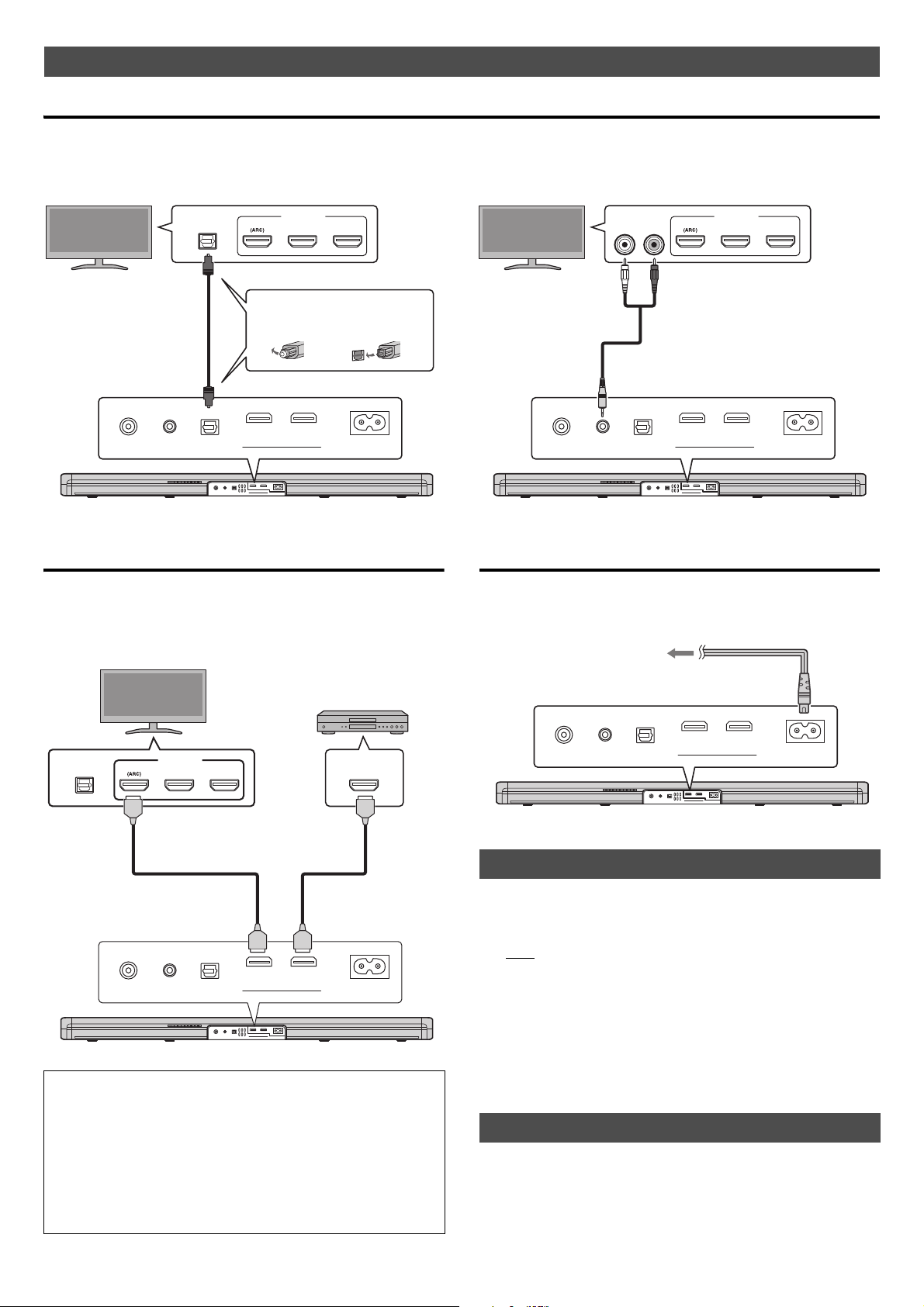

When only a TV will be connected to the sound bar, connect the two using one of the two methods shown below. An optical digital audio cable and an
analog audio cable (RCA plug (L/R)-3.5 mm mini plug cable) are supplied with the sound bar.
TV and a set-top box, or BD/DVD player
When a TV and a playback device will be connected to the sound bar,
connect the three as shown below. HDMI cables are not supplied with the
sound bar. Use third-party HDMI cables.
Power cable
After all connections are complete, connect the supplied power cable to
the AC IN jack on the sound bar and plug the power cable into an AC wall
outlet.
1Press z(power) key to turn on the sound bar.
2Press the TV key to select TV as the input source.
NOTE
• Press the ANALOG key if the sound bar and TV are connected as shown with “2nd
choice” above. Press the HDMI key to watch a TV program received via set-top
box.
3Select the desired input source on the TV.
4Press the VOLUME (+/–) keys to adjust the volume.
For details, refer to the Owner’s Manual.
– “HOME THEATER CONTROLLER” sound bar control app
–Bluetooth connection
– Clear voice
The sound bar is equipped with a number of other functions not
described in the Quick Start Guide. See the Owner’s Manual for details.
Connection
1st choice 2nd choice
ANALOG TV OUT(ARC) SUBWOOFEROUT IN
HDMI ACIN
ANALOG TV OUT (ARC)
SUBWOOFER OUT IN
HDMI AC IN
HDMI INPUT
123
OPTICAL
OUTPUT
TV
1. Remove
the cap
2. Check the
direction of
the plug
ANALOG TV OUT(ARC) SUBWOOFEROUT IN
HDMI ACIN
ANALOG TV OUT (ARC)
SUBWOOFER OUT IN
HDMI AC IN
HDMI INPUT
ANALOG
OUTPUT
LR
123
TV
When a TV that supports Audio Return Channel (ARC) will be
connected, the sound bar can only play audio from the TV when it is
connected as shown above.
What is Audio Return Channel (ARC)?
In order for the sound bar to play audio from a TV, the TV must usually
be connected to the sound bar via an audio cable as well as an HDMI
cable. If, however, the TV supports Audio Return Channel (ARC), TV
audio signals can be input to the sound bar via the HDMI cable that
outputs video signals from the sound bar to the TV.
ANALOG TV OUT(ARC) SUBWOOFEROUT IN
HDMI ACIN
ANALOG TV OUT (ARC)
SUBWOOFER OUT IN
HDMI AC IN
HDMI INPUT
123
OPTICAL
OUTPUT
HDMI OUTPUT
TV
Cable, satellite or
network set-top box, or
BD/DVD player
Watching TV
... and more features!
ANALOG TV OUT(ARC) SUBWOOFEROUT IN
HDMI ACIN
ANALOG TV OUT (ARC) SUBWOOFER OUT IN
HDMI AC IN
To an AC wall outlet
