Yamaha If2112m User manual

CONTENTS

SERVICE MANUAL

SPECIFICATIONS & DIMENSIONS ....... 3

NET WORK ..................................................... 4

DISASSEMBLY PROCEDURE ............................... 8

• IF2112M/64/95/99/64W/95W/99W

IF2115M/64/95/99/64W/95W/99W ....................................... 8

PARTS LIST

HAMAMATSU, JAPAN

Installation Series

SPEAKER SYSTEM

• IF2112M • IF2115M

PA 011810

（総合仕様&寸法図）

（ネットワーク）（分解手順）

（目次）

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Installation Series

SPEAKER SYSTEM

2

WARNING

Components having special characteristics are marked and must be replaced with parts having specification equal to those

originally installed.

IMPORTANT NOTICE

This manual has been provided for the use of authorized Yamaha Retailers and their service personnel. It has been assumed that basic

service procedures inherent to the industry, and more specifically Yamaha Products, are already known and understood by the users,

and have therefore not been restated.

WARNING : Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury,

destruction of expensive components and failure of the product to perform as specified. For these reasons, we advise

all Yamaha product owners that all service required should be performed by an authorized Yamaha Retailer or the

appointed service representative.

IMPORTANT : This presentation or sale of this manual to any individual or firm does not constitute authorization certification,

recognition of any applicable technical capabilities, or establish a principal-agent relationship of any form.

The data provided is belived to be accurate and applicable to the unit(s) indicated on the cover. The research engineering, and service

departments of Yamaha are continually striving to improve Yamaha products. Modifications are, therefore, inevitable and changes in

specification are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the

distributor’s Service Division.

WARNING : Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated

by grounding yourself to the ground bus in the unit (heavy gauge black wires connect to this bus.)

IMPORTANT : Turn the unit OFF during disassembly and parts replacement. Recheck all work before you apply power to the unit.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (Where applicable)

components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause

cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REASON WHAT SO EVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/

flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.

印の商品は、安全を維持するために重要な部品です。交換する場合は、安全のために必ず指定の部品をご使用ください。

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Installation Series

SPEAKER SYSTEM

3

SPECIFICATIONS & DIMENSIONS（総合仕様&寸法図）

Units: mm

（単位）

• IF2112M/64/95/99/64W/95W/99W • IF2115M/64/95/99/64W/95W/99W

* 1 :With recommended YAMAHA DSP conﬁguration.

* 2 :2 hrs. IEC noise

SystemType Middle power 2-way full-range speaker

Model IF2112M/64(W) IF2112M/95(W) IF2112M/99(W) IF2115M/64(W) IF2115M/95(W) IF2115M/99(W)

Specifications/

Drive Mode

Passive

Bi-amp

Passive

Bi-amp

Passive

Bi-amp

Passive

Bi-amp

Passive

Bi-amp

Passive

Bi-amp

Frequency Range

(–10dB)(4π)

*1

55 Hz–20k Hz (Bi-amp mode) 45 Hz–20k Hz (Bi-amp mode)

Frequency Range

(±3dB)(4π)

*1

60 Hz–20k Hz (Bi-amp mode) 55 Hz–20k Hz (Bi-amp mode)

Nominal Coverage

(H x V, –6dB)

IF2112M/64(W): 60°x 40°, can be rotated to 40°x 60°

IF2112M/95(W): 90°x 50°, can be rotated to 50°x 90°

IF2112M/99(W): 90°x 90°

IF2115/64M(W): 60°x 40°, can be rotated to 40°x 60°

IF2115/95M(W): 90°x 50°, can be rotated to 50°x 90°

IF2115/99M(W): 90°x 90°

Power Rating 350 W

*2

LF:

350 W

(AES)

HF:

60 W

(AES) 350 W

*2

LF:

350 W

(AES)

HF:

60 W

(AES) 350 W

*2

LF:

350 W

(AES)

HF:

60 W

(AES) 350 W

*2

LF:

400 W

(AES)

HF:

60 W

(AES) 350 W

*2

LF:

400 W

(AES)

HF:

60 W

(AES) 350 W

*2

LF:

400 W

(AES)

HF:

60 W

(AES)

Nominal Impedance 8 ohms LF:

8 ohms HF:8 ohms 8 ohms LF:

8 ohms HF:

8 ohms 8 ohms LF:

8 ohms HF:

8 ohms 8 ohms LF:

8 ohms HF:

8 ohms 8 ohms LF:

8 ohms HF:

8 ohms 8 ohms LF:

8 ohms HF:

8 ohms

Sensitivity (1W@1m) 95dB

SPL LF:

96dB

SPL

HF:110dB

SPL 95dB

SPL LF:

96dB

SPL

HF:

108dB

SPL 95dB

SPL LF:

96dB

SPL

HF:

108dB

SPL 97dB

SPL LF:

98dB

SPL

HF:

110dB

SPL 97dB

SPL LF:

98dB

SPL

HF:

108dB

SPL 97dB

SPL LF:

98dB

SPL

HF:

108dB

SPL

Calculated Peak

SPL 126dB

SPL LF:

127dB

SPL

HF:134dB

SPL 126dB

SPL LF:

127dB

SPL

HF:

132dB

SPL 126dB

SPL LF:

127dB

SPL

HF:

132dB

SPL 128dB

SPL LF:

130dB

SPL

HF:

134dB

SPL 128dB

SPL LF:

130dB

SPL

HF:

132dB

SPL 128dB

SPL LF:

130dB

SPL

HF:

132dB

SPL

Calculated Continuous

SPL 120dB

SPL LF:

121dB

SPL

HF:128dB

SPL 120dB

SPL LF:

121dB

SPL

HF:

126dB

SPL 120dB

SPL LF:

121dB

SPL

HF:

126dB

SPL 122dB

SPL LF:

124dB

SPL

HF:

128dB

SPL 122dB

SPL LF:

124dB

SPL

HF:

126dB

SPL 122dB

SPL LF:

124dB

SPL

HF:

126dB

SPL

Components

LF 12" (30cm) Woofer, 3" (76mm) Voice Coil 15" (38cm) Woofer, 3" (76mm) Voice Coil

HF

Rotatable Constant Directivity Horn, 1.4" (36mm) exit,

1.7" (44mm) Voice Coil Compression Driver

Constant Directivity Horn,

1.4" (36mm) exit, 1.7" (44mm)

Voice Coil Compression Driver

Constant Directivity Horn,

1.4" (36mm) exit, 1.7" (44mm)

Voice Coil Compression Driver

Rotatable Constant Directivity Horn, 1.4" (36mm) exit,

1.7" (44mm) Voice Coil Compression Driver

Enclosure

Dimensions (H x W x D) 695 x 378 x 454 mm (27.4 x 14.9 x 17.9 in) 770 x 448 x 534 mm (30.3 x 17.6 x 21.0 in)

Weight 28 kg (61 lbs) 34 kg (75 lbs)

Shape 30°Trapezoidal 30°Trapezoidal

Material 5/8 inch (16mm), 11-ply Finnish Birch 5/8 inch (16mm), 11-ply Finnish Birch

Finish Textured Black (Textured White) Textured Black (Textured White)

Grill Powder coated perforated steel backed with acoustically transparent

reticulated foam Powder coated perforated steel backed with acoustically transparent

reticulated foam

Connectors 1 x Neutric NL4 and barrier strip, wired in parallel 1 x Neutrik NL4 and barrier strip, wired in parallel

Flying Hardware 15 x M10 for shoulder eyebolts and U-bracket

4 x M8 for 3rd party speaker mount hardware 15 x M10 for shoulder eyebolts and U-bracket

4 x M8 for 3rd party speaker mount hardware

Pole Mounts n/a n/a

Handle n/a n/a

Optional Accessory

U-bracket UB2112(W) UB2115(W)

Array Frame HAF2-2112(W), HAF3-2112(W), VAF2-2112(W) HAF2-2115(W), HAF3-2115(W), VAF2-2115(W)

3rd party accessory

Omnimount (US) 120.0 series 120.0 series

Multimount (US, Allen

products) 120 series 120 series

Powermount (UK) 120 series 120 series

Ohashi (Japan) n/a n/a

695

155

75°

378

454

75°

183.5

448

534

770

w

.

x

i

a

o

y

u

1

6

3

.

c

o

m

Q

3

7

6

3

1

5

1

5

0

9

2

8

9

4

2

9

8

T

E

L

1

3

9

4

2

9

6

5

1

3

9

2

8

9

4

2

9

8

0

5

1

5

1

3

6

7

3

Q

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Installation Series

SPEAKER SYSTEM

4

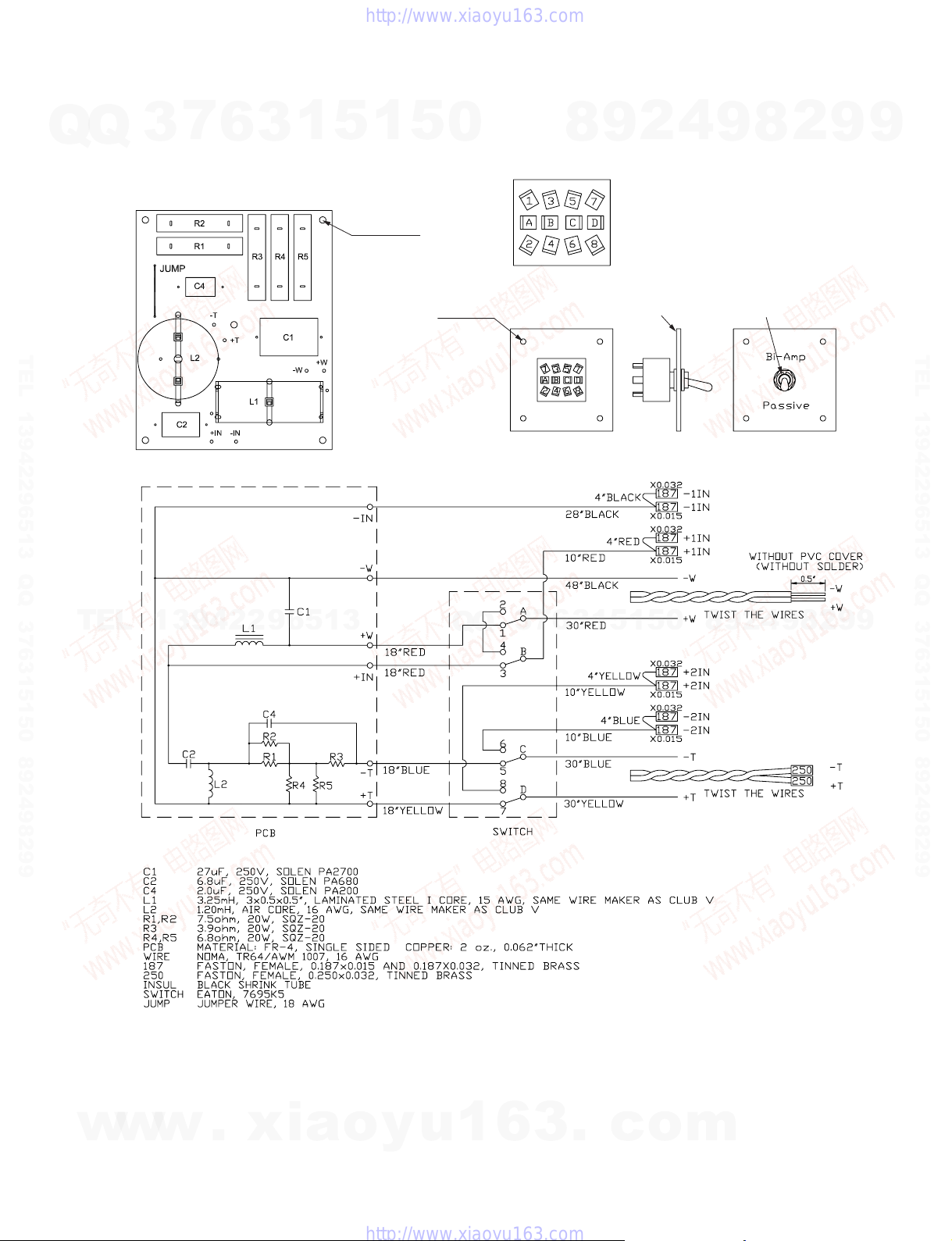

NETWORK（ネットワーク）
