Yamaha LC3 Music lab User manual

Operation Guide

Yamaha LC3 Operation Guide
Contents Page
Controlling the Volume of the Teacher’s
Speaking Voice (Microphone) . . . . . . . . . . . . . 1
Controlling the Teacher’s Instrument
VolumeLevel..........................1
SelectingStudents.........................2
Interacting With a Single Student . . . . . . . . . . . . . 4
Listening to a Single Student. . . . . . . . . . . . . . . . . 4
Broadcasting a Single Student
fortheEntireClass .....................5
Addressing and Isolating
All Students Simultaneously . . . . . . . . . . . . . . 6
Allowing the Entire Class to Interact. . . . . . . . . . . 7
Quickly Resetting All Buttons. . . . . . . . . . . . . . . . 8
Muting All Student Instruments . . . . . . . . . . . . . . 8
Setting Students In PAIRS . . . . . . . . . . . . . . . . . . 9
Interacting with a PAIR . . . . . . . . . . . . . . . . . . . . 9
GroupingStudents........................10
Storing Custom Settings
(RECALLMEMORY)..................13
Recalling Custom Settings . . . . . . . . . . . . . . . . . . 14
Using a CD or MP3 Player . . . . . . . . . . . . . . . . . 15
Recording a Student’s Performance (Audio) . . . . . 16
Using External Powered Speakers . . . . . . . . . . . . . 16
UsingtheAUXInput......................17

Controlling the Volume of the Tea her’s Speaking Voi e (Mi rophone)
With the MIC button on, move the MIC slider up to the desired voice level.
Controlling Tea her’s Instrument Volume Level
Use the built-in volume control on your instrument to raise or lower its volume in the LC3 lab.
It’s the only instrument volume control you need be concerned with.
Volum knob on Yamaha CP300
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
1

Sele ting Students
A BA K light will always be on no matter how many students are in the LC3 lab. The light will
show the bank of students 1-8 at the bottom of the control unit. A fully expanded LC3 system will
have a total of six banks (48 students). Each bank has eight students organized in the following
fashion:
BA K 1-8 BA K 9-16
BA K 17-24 BA K 25-32
BA K 33-40 BA K 41-48
ot all LC3s will have all banks available. It depends on the number of expansion cards installed on
the system. For LC3s with less than all expansion cards installed, the BA K select button will only
cycle through banks installed in the system. It then returns to the first bank and cycles through
again. Labs with no expansion cards will be locked on BA K 1-8.
Teachers of larger, expanded labs will find themselves jumping through banks quite frequently since
they can only view the status of eight students at a time. For example, to confirm that students 3
and 13 are together, toggle between Bank 1-8 and 9-16 using the BA K button.
A handy table of numbers is printed on the control unit to help you quickly find the buttons of
students in the various BA KS. For example, button 6 enables students 6, 14, 22, 30, 38, and 46
depending on the currently selected BA K.
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
2
(1)TOGGLE
(2)TOGGLE

Example One
When listening to student 3, the BA K button would be set where the first light (1-8) is lit and
student button 3 would be on.
Example Two
To listen to student 10, press the BA K button until the second light is lit (signifying BA K
9-16). Then, press button number two for student 10.
16 24
32 40 48
917
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
3
(1)
(2)

Intera ting With a Single Student
This is essentially paying a visit to a student’s virtual practice room. Once in the correct bank, select
the student button and then turn on the MIC button. Think of turning on the MIC button as
opening the practice room door. Make sure your MIC volume is up by using the MIC slider. When
you’re ready to leave this student’s practice room, press the lit student button to turn it off.
In this xampl , you ar int racting with stud nt 5.
Listening to a Single Student
If you want to listen in on a student without talking to them, the equivalent of putting your ear to
the door, do not select the MIC button. You will know a student is selected when the light above
their number is on. When the MIC button light is not on, the student can not hear you speak.
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
4
(1)
(4)
(2)
(3)

Broad asting a Single Student for the Entire Class
Select a student as if you were going to work with them, then turn on the BROADCAST button.
The selected student’s performance will be heard by entire class.
To exit this mode, effectively sending all students back to their virtual practice rooms, turn
BROADCAST off by touching the student button again.
In this xampl , stud nt 5 is playing for th class; you can mak comm nts with MIC on.
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
5
(1)
(3)
(2)

Addressing and Isolating All Students Simultaneously
To speak to and play for all students without hearing their instruments, and without them being
able to hear each other, press the ALL button (the MIC will come on automatically). The students
will not be able to hear each other speak or play but they will hear their own instruments. This is
the key difference of engaging the ALL button versus switching on every student button (in every
Bank). The latter would have the students interacting with each other. Engaging ALL is like visiting
each and every student in their virtual practice room at the same time... and the students never
leave their rooms. To cancel this mode, press the ALL button so its light turns off.
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
6
(1)

Allowing the Entire Class to Intera t... the MEGAGROUP
This is essentially your “all together now” mode. You can hear students, students can hear you, and
students can hear each other speak and play. In a simple 8-student (non-expanded) lab, this can be
as simple as turning on student buttons 1, 2, 3, 4, 5, 6, 7 and 8. But in an expanded lab this would
have to be done for each bank. Yamaha has created a handy shortcut to get all student buttons on
or off quickly. RECALL MEMORY 7 and RECALL MEMORY 8 are reserved for these important
tasks.* Simply tap (don’t hold) the RECALL button and then tap student button 7 to activate all
student buttons as a MEGAGROUP. This one action engages every student button across all banks.
You will know your lab is in this mode by seeing every student light on, the MIC light on, and the
GROUP A button flashing. To clear the MEGAGROUP, sending all students back to their virtual
practice rooms, tap the RECALL button and then tap student button 8.
*Learn more about RECALL MEMORY on pages 13-14.
16 24
32 40 48
917
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
7
(1)
(2)
(2)
OR

Qui kly Resetting All Buttons
If you’re unsure about which settings/buttons are on or off, press and hold the MUTE ALL button and
then tap the ALL button. This resets all of the controller’s student unit buttons to off. This is the same as
turning the power off and then on again without making a trip to the power button on the hub.
Muting All Student Instruments
When it’s time for students to pay attention, temporarily disable their instruments by turning the
MUTE ALL button on. Note: student MICs are active but reduced in volume.
16 24
32 40 48
917
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
8
(1) HOLD
(1) TAP

Setting Students In PAIRS
To quickly get students working in simple pairs (two students per virtual practice room), press the
PAIRS button. This will automatically place student 1 with 2, 3 with 4, 5 with 6, etc.
Intera ting with a PAIR
With the PAIRS button on, press the student selector button of either member of a pair and turn
on MIC. otice that both lights turn on with a single button press. Work with pairs exactly as you
would with individual students.
In this xampl , stud nts 7 and 8 mak up a pair.
16 24
32 40 48
917
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
9
(1)
(1)
(2)
(3)

Grouping Students
If simply pairing students isn’t flexible enough for your needs, the LC3 Lab allows you to create
easily recallable Groups. Think of a Group as a kind of virtual practice room in which multiple
students can meet at the same time. You can have as many as four Groups (A/B/C/D) set up in the
Controller at any given time. To group a set of students, press and hold GROUP button A, B, C
or D as desired, select the BA K for the student(s) desired, and turn on the appropriate student
buttons for that Group. Students from different banks may be grouped together in any combination
within the four available Groups.
A flashing light next to Group button A, B, C or D indicates that the teacher is currently working
with that Group. A steady light next to button A, B, C and D indicates that the Group is active and
working with each other but without the teacher.
Keep in mind that RECALL MEMORY 7 and RECALL MEMORY 8 are factory pre-set Groups for
engaging and clearing. RECALL MEMORY 7 sets up GROUP A with all student buttons on… a
MEGAGROUP (Groups B/C/D are empty in this memory). RECALL MEMORY 8 has all four
Groups empty of students. To create this clean slate as a starting point for building Groups, simply
tap the RECALL button and then tap student button 8.
Example One
To set students 1, 3, 7 and 8 into a Group, press and hold GROUP button A, select BA K 1-8,
press student 1 then 3 then 7 then 8. Release the GROUP button A and it will begin to flash,
indicating the Group is active and the teacher is with them. To speak with the Group, turn on
the MIC button.
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
10
(3)TAP
(4)TAP
(5)TAP
(6)TAP
(2)TAP
(1) HOLD

Example Two
Students 1, 3, 5 and 7 are Group A, students 2, 4, 6 and 8 are Group B, students 9, 10, 11 and 12
are Group C, and students 13, 14, 15 and 16 are Group D. In the illustration below, you are working
with GROUP A, which has a flashing light. Groups B, C and D are working by themselves.
Example Three
You are working with GROUP B, which has a flashing light. A, C and D are working by themselves.
16 24
32 40 48
917
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
11

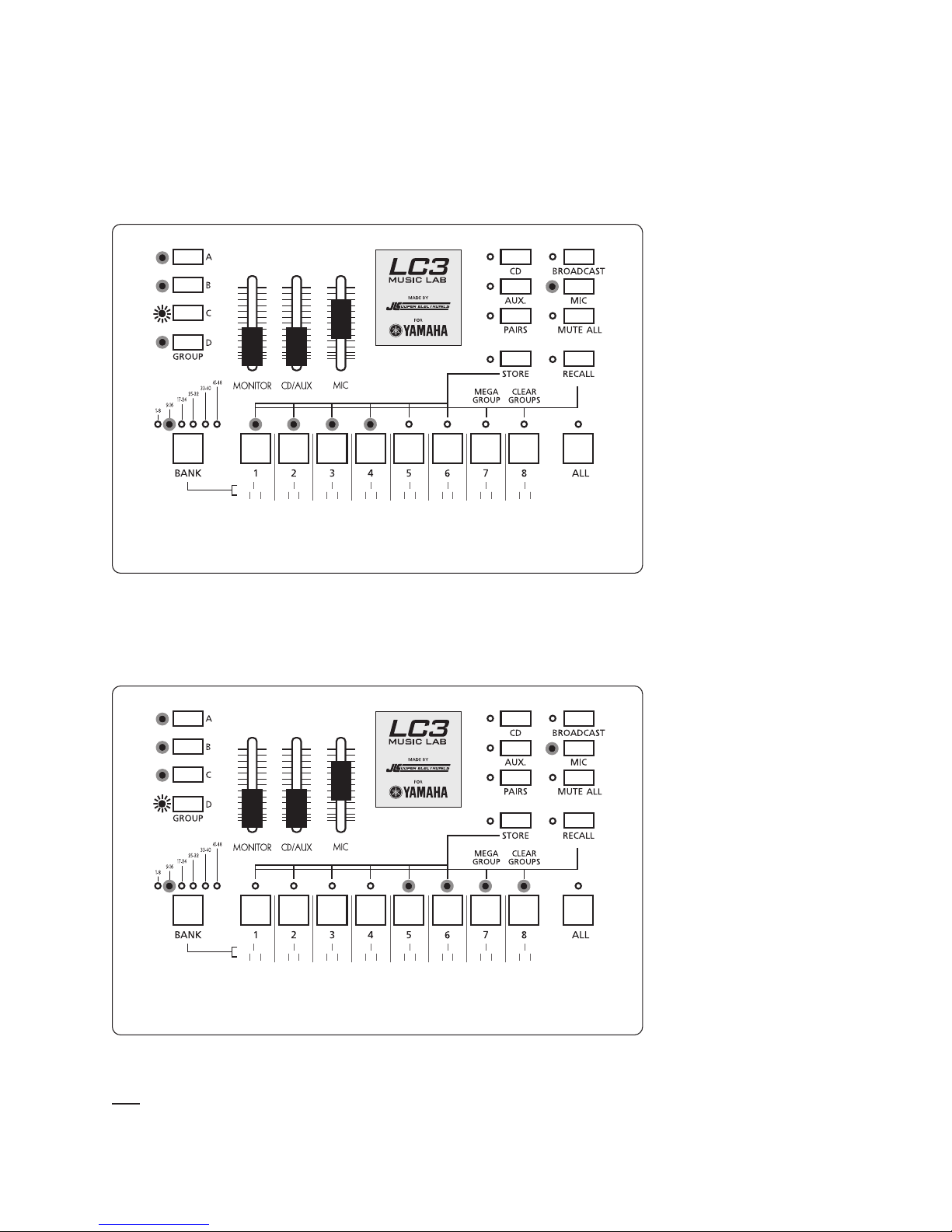

Example Four
You are working with GROUP C, which has a flashing light. A, B and D are working by themselves.
Example Five
You are working with GROUP D, which has a flashing light. A, B and C are working by themselves.
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
12

It’s possible to group students from more than one bank—students 1 and 3 with student 10 and 11,
for example. Simply press and hold the GROUP A button, select BA K 1, tap student 1 then 3,
next select BA K 2 by pressing the BA K button and tap student number 10 (button 2) and 11
(button 3). Release the GROUP button A and it will begin to flash indicating the group is active
and you are working with them.
Storing Custom Settings (RECALL MEMORY 1-6)
It’s possible to save your GROUP A/B/C/D configurations as custom RECALL MEMORIES. Your
control unit actually has six buttons––each capable of holding a GROUP A/B/C/D configuration.
Remember that RECALL MEMORY 7 and RECALL MEMORY 8 are pre-set to turn all student
buttons on (into a MEGAGROUP) and all student buttons off (students go back to the virtual
practice rooms). RECALL MEMORIES 1-6 are yours to customize.
If you had six different classes, for example, you could have completely different GROUP A/B/C/D
configurations for each class at the touch of a button.
To store your custom group settings in your control unit, first tap the STORE button, then tap the
desired student button number 1-6.
Tap on numb r d button (1-6) to assign your RECALL MEMORY.
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
13
(2)
(1)

Re alling Custom Settings
To RECALL a memory, tap the RECALL button, then tap the button of the MEMORY desired.
Tap on numb r d button (1-6) to r call a pr s t you hav stor d.
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
14
(1)
(2)

Using a CD or MP3 Player
For the entire class to hear audio from a playback device, simply connect the audio player to the CD
I jack on the hub. Turn on the CD button from the control unit and move the CD/AUX slider up
to desired volume. When the CD input is used, all students will hear the playback regardless of which
student buttons are enabled. You can work with students or groups as described in the previous
sections while providing CD/AUX audio to every student.
15
Controller

Re ording a Student’s Performan e (Audio)
Connect a tape or CD recorder to the REC OUT on the hub. Then, to record the student, select
the student, press RECORD on the recording device and tell the student to play. Anything you
hear gets sent to the audio recorder.
In this xampl , stud nt 14 is b ing r cord d.
Using External Powered Speakers
There might come a time when the audio in the LC3 lab needs to be heard by someone in the
room who is not wearing headphones. With powered speakers (like a stereo system) connected
to the MO ITOR OUT of the hub, move the MO ITOR slider up to volume desired.
16
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47
Controller

Using the AUX Input
For the entire class to hear audio from additional devices like MIDI file players, metronomes or
computers, simply connect the device to the AUX I jacks on the hub. Turn on the AUX button
on the control unit and then move the CD/AUX slider up to desired volume. When the AUX input
is used, all students will hear the device regardless of which student buttons are enabled. You can
work with students or groups as described in the previous sections while providing CD/AUX audio
to every student.
17
16 24
32 40 48
9 17
25 33 41
10 18
26 34 42
11 19
27 35 43
12 20
28 36 44
13 21
29 37 45
14 22
30 38 46
15 23
31 39 47

©2009 Yamaha Corporation of America. All rights reserved.
www.yamaha.com/LC3
