Yangda Sky Speaker-I User manual

Shenzhen Yangda Security Co., Ltd
Add:3F, Block 5, Ji An Tai Industrial Area,XiHe,FuYong,
BaoAn district,ShenZhen,China, 518057
Email: [e-mail] Web: www.yangdaonline.com

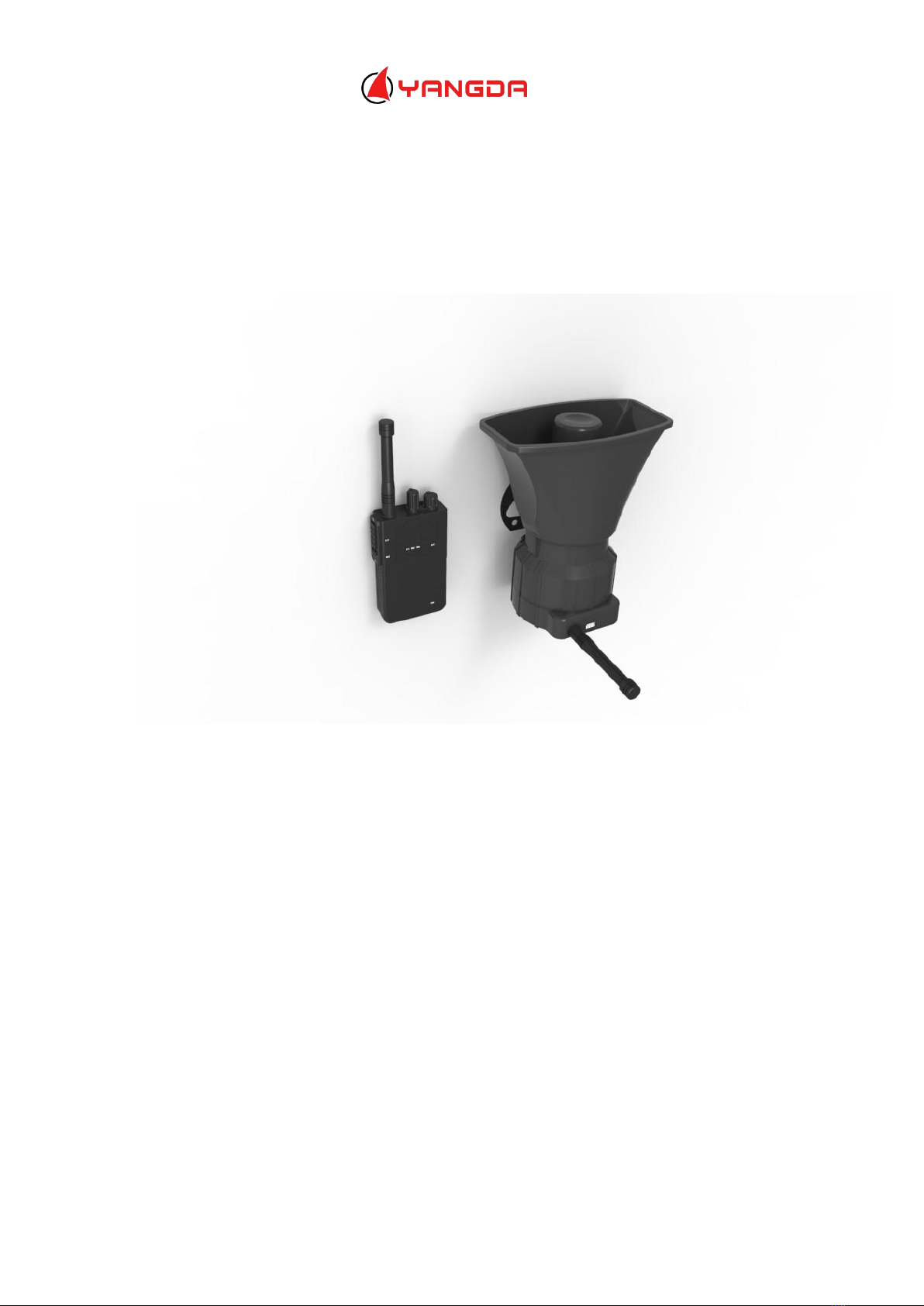

Sky Speaker-I Megaphone
Introduction
Sky Speaker-I is a megaphone designed for SUAS,can be installed on multirotor and
fixed wing platforms.Based on digital wireless transmission technology,it can play
recorded sound sources and do real-time broadcasting.In this case,it will be very
helpful in missions like broadcasting over crowds,fire fighting,police
negotiation,rescue etc.
Compared with normal analog signal transmission based megaphone,Sky Speaker-I
uses advanced digital sound coding technology,which enable the speaker to avoid
analog sound disturbing in the air.
Sky Speaker-I has 2 working modes:play SD card recorded sound and real-time
broadcasting.You are able to switch the modes easily on handheld intercom.Another
big feature for Sky Speaker-I is its lightweight design,simple structure and small
size,which makes the drone to carry it easily and fly with low resistance in the air.

Shenzhen Yangda Security Co., Ltd
Add:3F, Block 5, Ji An Tai Industrial Area,XiHe,FuYong,
BaoAn district,ShenZhen,China, 518057
Email: [e-mail] Web: www.yangdaonline.com
Features
1)Lightweight design,only 500grams for speaker
2)All-in one structure and small size,easy for installation and low air resistance
3)Based on digital sound coding technology,can get super clear voice and prevent
disturbing from analog voice sources
4)2 work modes:recorded sound play and real-time broadcasting.Easy switch
5)Internal magnetic speaker,do not affect drone geomagnetic field
6)Anti-squeal design
7)Super clear and high strength sound,great penetrability
Product description
I.Handheld wireless intercom
[1]Transmitter antenna,410-470MHZ
[2]Recorded sound play switch,corresponding to sound file 1,2,3,...
[3]PTT button,press this button for at least 0.5 second then speak(make sure speak at
the right front of MIC areas,2cm distance is best)

Shenzhen Yangda Security Co., Ltd
Add:3F, Block 5, Ji An Tai Industrial Area,XiHe,FuYong,
BaoAn district,ShenZhen,China, 518057
Email: [e-mail] Web: www.yangdaonline.com
[4]REC button,press this button to play SD card recorded sound file in a loop,stop
playing if press the button again(you can press PTT button to speak when it is playing
recorded sound.Loosen PTT button,then speaker play recorded sound from the
beginning)
[5]Power switch.Turn it on,then indicator light [10]PWR will light up.Please turn down
the power if intercom is not in use to save energy.
[6]USB charge port.Battery voltage range is 3.7V-4.2V,please use 1C charger.When it
is in charging process,indicator light [7] CHG is red.If charging is completed,[7]CHG
turned green.
[7]Charging indicator CHG.
[8]PTT indicator.The indicator will light up if PTT button is pressed.
[9]REC indicator.The indicator will light up if REC button is pressed.
[10]Power indicator PWR
[11]MIC area.Please speak at the right front of MIC area,2CM distance is the best.
[12]Channel switch.The system supports 4 channels,please make sure the speaker
and the intercom at the same channel.

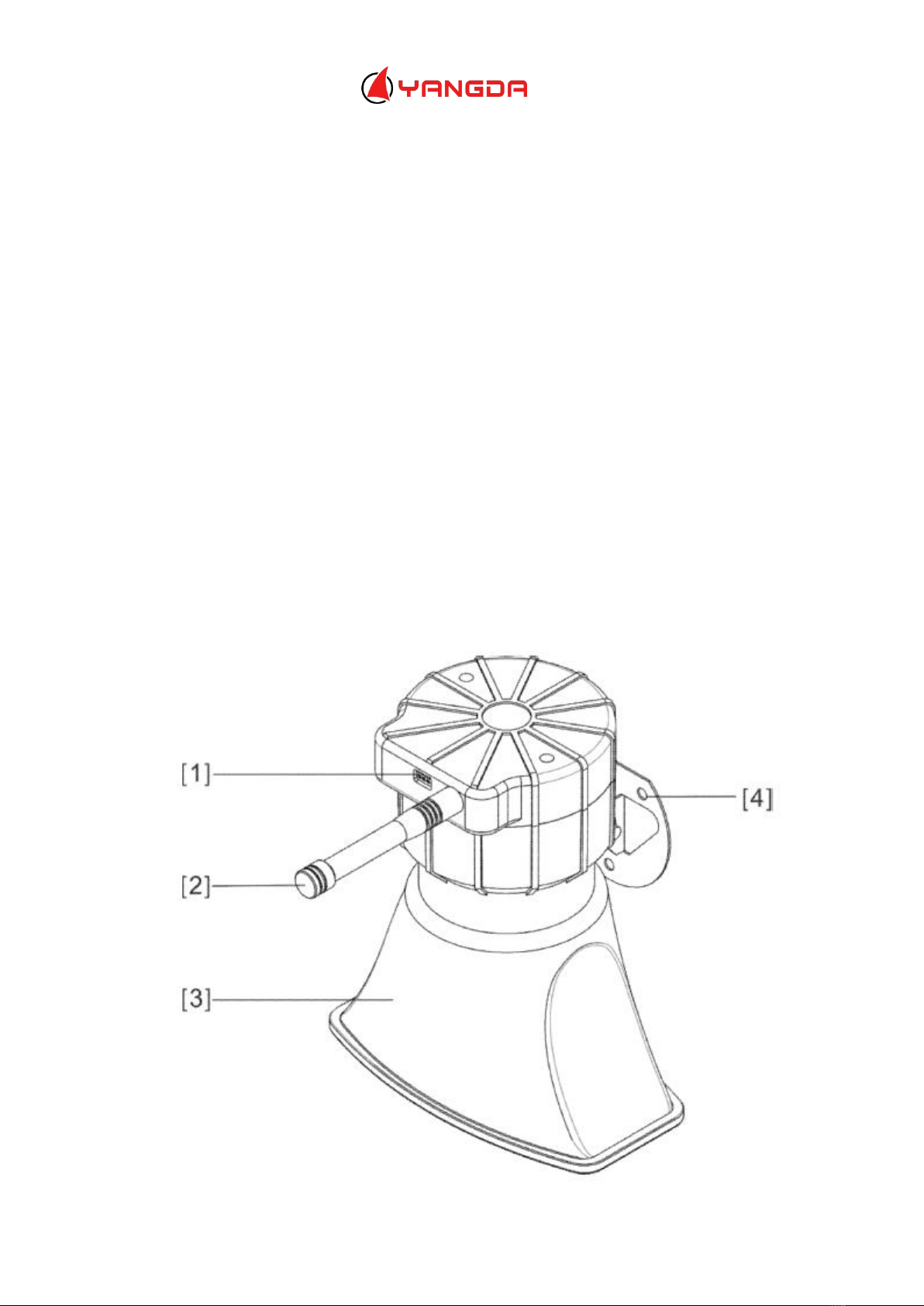

II.Speaker

Shenzhen Yangda Security Co., Ltd
Add:3F, Block 5, Ji An Tai Industrial Area,XiHe,FuYong,
BaoAn district,ShenZhen,China, 518057
Email: [e-mail] Web: www.yangdaonline.com
[1]Channel switch.1,2,3,4 ON,means channel 1,2,3,4.
[2]Receiver antenna,frequency 410-470MHZ
[3]Speaker
[4]Adapter board.±40 degree adjustment range.
System installation steps
1)Install the speaker to the drone,try to keep it away from compass,GPS magnetic
sensitive components.
2)Install speaker antenna,keep it at the same channel with wireless intercom.
3)Connect to LIPO battery with XT60 connector
4)Turn the intercom power on,wait for seconds until REC indicator light up one
time,then intercom initialization complete.Make it at the same channel with speaker.
5)Keep the intercom at least 20 meters away from the speaker,press PTT button,PTT
indicator light up,wait for at least 0.5 second,speak to MIC area,you can hear your
voice if everything is ok.
6)Loosen PTT button and then press REC button,REC indicator light up,speaker start
to play recorded sound is everything is ok.
Dimension

Shenzhen Yangda Security Co., Ltd
Add:3F, Block 5, Ji An Tai Industrial Area,XiHe,FuYong,
BaoAn district,ShenZhen,China, 518057
Email: [e-mail] Web: www.yangdaonline.com
Specification
Speaker
Weight
500 grams
Sound strength
125db (1m distance)
80db (100m distance)
Sound cover range
1KM
Anti-squeal distance
Over 20m
Voltage
9-28V
Current
100mA
Frequency range
410-470MHZ
Power connector
XT60(optional)
4FSK digital modulation
Data:12.5KHZ
Sound:7K60FXW
Sound distortion percentage
Less than 3%
Signal receive sensitivity
-117 dBm
Max signal receive range
10km
Amplifier power
100W / 6Ω
Handheld wireless intercom
Frequency range
410-470MHZ
Channel number
4CH
Recorded sound number
9
Battery
2200mAH
Charge method
Via USB
Current
1500mA
Power
2W(33dbm)
Max transmission range
10KM
Digital coding type
AMBE
Digital protocol
ETSI-TS102 361-1,-2,-3
